New Insights into Diversity of Myanmarinidae (Hyenoptera: Apocrita), with Description of Two New Species from Mid-Cretaceous Myanmar Amber

TL;DR

Two new species of an extinct wasp family from mid-Cretaceous Myanmar amber are described, highlighting their unique features and diversity.

Contribution

Description of two new species in Myanmarinidae with detailed morphological comparisons and updated species key.

Findings

Myanmarina simplex sp. nov. is characterized by a small head and 13-segmented antennae.

Myanmarina grandis sp. nov. has a large head and 11-segmented antennae with distinct tibial features.

The study reveals high species-level diversity within the Myanmarinidae family.

Abstract

Hymenoptera are well represented in the fossil record, particularly in the mid-Cretaceous amber from northern Myanmar, representing a geographic isolation and endemism. Two new fossil taxa of the extinct family Myanmarinidae, Myanmarina simplex sp. nov. and M. grandis sp. nov., are described and illustrated from mid-Cretaceous Kachin amber. The notable endemic characters revealed are summarized for comparison; they also suggest the high species-level diversity of Myanmarinidae.

Two new species assigned to the genus Myanmarina of the family Myanmarinidae are described and figured from male specimens preserved in Upper Cretaceous ambers from the Hukawng Valley of northern Myanmar. Myanmarina simplex sp. nov. can be distinguished by a small head, 13-segmented antennae, the first flagellomere equal to the second one in length and protibiae with a bifurcated spur. Myanmarina grandis sp. nov. is established based on a large head, 11-segmented antennae, the first flagellomere shorter than the second one and all tibiae with a spur and dorso-apical tooth. In addition, the key to known species of Myanmarina was updated.

Figures

Full text

1. Introduction

Cretaceous amber from Myanmar has preserved the amazing paleodiversity of insects and particularly that of Hymenoptera, with over 382 species in 216 genera across 71 families [1,2]. Interestingly, 36 hymenopteran families have only recently been discovered from the Burmese (Myanmar) amber, providing unique insights into the Cretaceous entomofauna [2]. The family Myanmarinidae, an extinct lineage of parasitoid wasps, was famous as endemic to Myanmar terrain in the mid-Cretaceous [3,4,5,6] and is placed with one relict family, Stephanidae, and four extinct families, Aptenoperissidae, Ephialtitidae, Ohlhoffiidae and Myanmarinidae, in the superfamily Stephanoidea [3,4,7,8,9,10,11,12]. It is morphologically characterized by a straight propodeum in the side view (lacking a posterior slope), so a real constriction is absent between the propodeum and the metasoma [4]. Furthermore, myanmarinid wasps are easily distinguishable from all other Hymenoptera in having a small body (below 5 mm in length), a narrow, cylindrical head that is smooth without a crown, oligomereous antenna (up to 14-segmented), extremely reduced venation and tibiae with a single apical spur and dorso-apical tooth [4,6].

Myanmarinidae were first established in 2018 by Zhang and Rasnitsyn on the basis of five male specimens of three species within the single genus Myanmarina, M. lisu Zhang and Rasnitsyn, 2018, M. kachin Zhang and Rasnitsyn, 2018 and M. lahu Zhang and Rasnitsyn, 2018 [4]. Subsequently, M, jeannineae Li et al., 2018, was reported based on one female and three male specimens, with integrally compared morphological features from the male and female specimens, showing sexual dimorphism such as the size of the body and the number of antennomeres [3,13]. Additionally, M. sidorchukae Jouault et al., 2020, was recorded based on an exquisitely preserved specimen, and the key to known species of Myanmarina males was provided [5]. Recently, M. diversa Zheng, Zhang & Rasnitsyn, 2022, was confirmed as the sixth myanmarinid wasp, and the emended diagnosis of Myanmarinidae was proposed by re-examination and revision [6]. Although this family is extraordinary and only discovered from the Cretaceous in Burmese amber of insular origin, hitherto six species within just a single genus have been discovered, exhibiting high morphological and taxonomic diversity [4,6].

Herein we collected two well-preserved fossil specimens of Myanmarinidae from the mid-Cretaceous Burmese amber in Kachin, northern Myanmar. Furthermore, we propose two new species, Myanmarina simplex sp. nov. and M. grandis sp. nov. described and illustrated in this paper. Our new findings of these new species provide more comprehensive evidence for the basal morphological variation and detailed analysis of the taxonomy of myanmarinid wasps and enhance our understanding of endemic hymenopteran fauna in Myanmar amber.

2. Materials and Methods

The type specimens described in this study were collected form the Hukawng Valley of Kachin State (26°20′ N, 96°36′ E), northern Myanmar (detailed map in Grimaldi and Ross, 2017). Radiometric analyses established the earliest Cenomanian 98.79 ± 0.62 Ma for the Kachin amber according to U-Pb zircon data of the volcanoclastic matrix found within the amber enclosing sediments [14]. Additionally, an earlier dating based on ammonites supports a late Albian–early Cenomanian age from the amber-bearing deposits [15]. However, the true age of the amber deposit by palaeontological and zircon means remains to be resolved [9,16].

All type specimens reported herein were collected legally prior to 2015 without any armed conflict and ethnic strife in Myanmar and were permanently housed in the Institute of Geology and Paleontology, Linyi University. The two amber specimens were re-cut and polished to as flat as was possible with surfaces parallel to the inclusion by the precision diamond-wire saw (Chassieu, France) and rotary polisher (Paris, France). The samples were examined and photographed with a Nikon SMZ-10R stereoscopic microscope (Shanghai, China) and VHX 5000 digital microscope platform (Lakewood, CO, USA). The line drawings were composed with CorelDraw 2020 (https://www.coreldraw.com/en/, accessed on 1 January 2020) and Adobe Photoshop CS6 (https://www.adobe.com/, accessed on 24 April 2012). Measurements were established with Image J software v.1.8.0 (National Institutes of Health, Bethesda, MD, USA). The morphological terminology of body and wing venation used herein follows [4,6].

3. Results

Systematic palaeontology

Order Hymenoptera Linnaeus, 1758

Suborder Apocrita Gerstaecker, 1867

Superfamily Stephanoidea Leach, 1815

Family Myanmarinidae Zhang and Rasnitsyn, 2018

Genus Myanmarina Zhang and Rasnitsyn, 2018

Type species: M. lisu Zhang and Rasnitsyn, 2018;

Included species: M. kachin Zhang and Rasnitsyn, 2018; M. lahu Zhang and Rasnitsyn, 2018; M. jeannneae Li, Shih, Rasnitsyn and Ren, 2018; M. sidorchukae Jouault, Rasnitsyn and Perrichot, 2020; M. diversa Zheng and Rasnitsyn, 2022; M. simplex Zheng, sp. nov., and M. grandis Zheng, sp. nov.

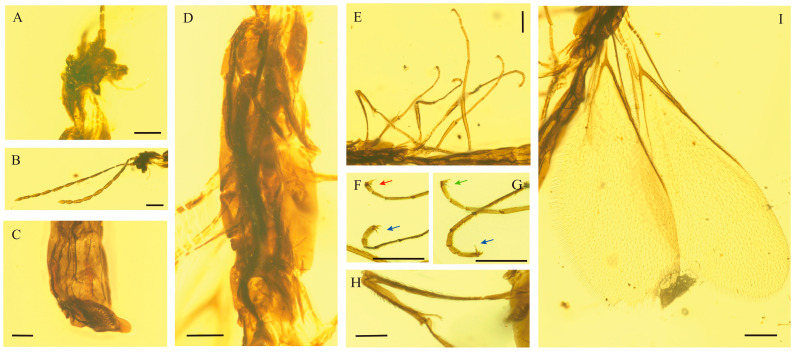

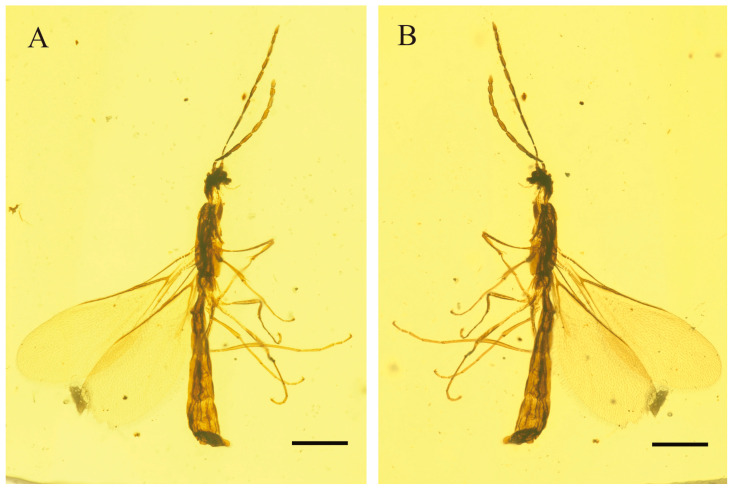

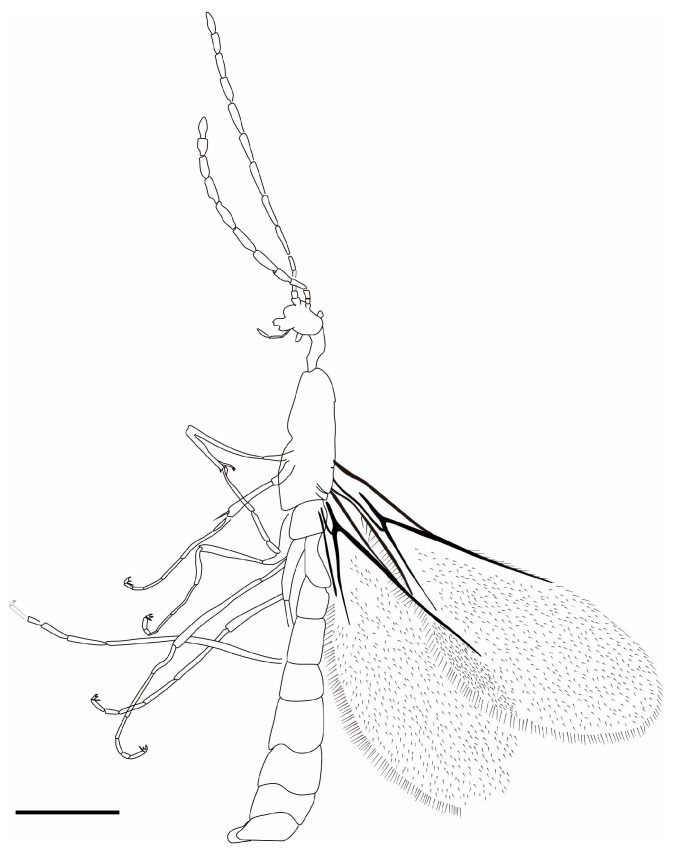

Myanmarina simplex Zheng, sp. nov. (Figure 1, Figure 2 and Figure 3)

urn:lsid:zoobank.org:pub:3FF4BE73-17EB-4944-A317-EE544B3785E1

Etymology. The specific name is derived from the Latin word “simplex”, meaning simple, referring to the dramatically reduced forewing venation, with only a few veins present in the specimen.

Type material. Holotype, male, LYU-HY-2032, mid-Cretaceous Burmese amber, housed in the Institute of Geology and Paleontology, Linyi University; well-preserved.

Locality and horizon. Hukawng Village, Kachin State, northern Myanmar; mid-Cretaceous (upper Albian to lower Cenomanian).

Diagnosis. Small head, long and round. Antenna with 13 antennomeres, with the first and second flagellomeres subequal in length, apical segments gradually shortening. Long maxillary palp. Protibia with bifurcated spur. Hind wing with no basal membrane of hamuli.

Description. Dark reddish brown integument as preserved, with paler flagellomeres, wings and legs. Body length 2.76 mm, from top of head to end of metasoma.

Head, long elliptic, 0.17 mm long and 0.12 mm high. Compound eye, not easily recognizable. Ocelli difficult to discern. Clypeus transverse, with semilunar anterior margin. Mandible, short. Maxillary palps, slender and long, with four segments visible, basal palpomeres, short, apical three, narrow and elongate, 0.02 mm, 0.04 mm, 0.4 mm and 0.07 mm in length, respectively. Antennae, long and filiform, 13-segmented, about 1.54 mm in length and 0.04 mm in maximum width, inserted moderately low on the head in lateral view, densely covered with setae and sensilla. Scape, cylindrical and remarkably swollen, more robust than remaining antennomeres, about 1.50 times the length and 1.25 times the width of the pedicel; pedicel, short and broad, 0.04 mm in length and 0.03 mm in width; flagellomeres, slender, about 1.60 times to 5.50 times longer than wide. First flagellomere distinctly narrower than pedicel, with length 0.15 mm and width 0.02 mm and nearly as long as the second one; third to seventh flagellomeres conspicuously longer than other flagellomeres in length; remaining flagellomeres gradually shorter toward apex. Apicalmost flagellomere oval. Lengths of flagellomeres (in mm): 0.07, 0.07, 0.14, 0.15, 0.17, 0.13, 0.14, 0.11, 0.12, 0.08 and 0.11.

Mesosoma subcylindrical, length 0.78 mm and height 0.18 mm, much wider than head in lateral view. Pronotum, short and prominent. Propleura, long, forming distinct neck. Mesonotum, large, with details obscure. Mesoscutellum, convex in profile, and 0.13 mm long. Metanotum, short, 0.03 mm long; metapostnotum, open and long. Propodeum, convex, with anterior face almost as high as metanotum and posterior face conspicuously higher than metanotum.

Forewing, long and narrow, about 0.76 mm in length and 0.17 mm in width, densely pubescent and with extraordinary long marginal setae along posterior margin. Wing venation dramatically reduced, only a few veins present, mainly in basal area. Pterostigma undeveloped. Vein C and R fused, C+R tubular and thickened, more than half of forewing in length. 1-Rs and 1-M fused and aligned as very thick Rs & M, longer than M+Cu. M+Cu formed an obtuse angle with Rs & M. 1-Cu short, nearly one-sixth as long as Rs & M. Crossvein cu-a aligned with 1A, meeting Cu distinctly distal to M+Cu apex. Free Cu long and nebulous, subparallel to posterior margin and practically fading. All distal wing surface free of veins. Hind wings with only R and long posterior setae present, with membrane rudiment present only distal to hamuli (apparently two present).

Legs, elongate, slender and covered with short appressed setae. Forelegs with femur distinctly longer than tibia; tibia with bifurcated spur and a dorso-apical tooth; tarsus with five tarsomeres, basitarsus shorter than remaining tarsomeres combined; measurements (mm) of femur, tibia and five tarsomeres as follows: 0.44, 0.29, 0.30, 0.14, 0.11, 0.06 and 0.05, respectively. Mid legs relatively short; coxa large and elongate, 0.29 mm in length and 0.07 mm in width as preserved; trochanter 0.07 mm in length; femur 0.27 mm long and 0.04 mm wide; tibia shorter than fore- and metatibia, 0.19 mm long and 0.03 mm wide; tarsus with five tarsomeres, first tarsomere distinctly longer than others, and fourth tarsomere shortest; tarsomere length 0.24 mm, 0.11 mm. 0.07 mm, 0.04 mm and 0.07 mm. Hind legs, long; coxa and trochanter poorly preserved; femur, slender (ca. 0.36 mm long and 0.04 mm wide), with long, straight apical spur; tibia longer than fore- and mesotibia; tarsal segment ratio I: II: III: IV: V = 0.38: 0.19: 0.15: 0.06: 0.09. All pretarsal claws simple and acute, with straight preapical tooth.

Metasoma, oblong with eight segments, 1.63 mm in length, 0.27 mm in maximum width. First metasomal segment, trapezoid, with dorsal surface concave, much narrower at base in dorsal view, 0.26 mm long, 0.13 mm maximum width and 0.06 mm minimum width; second to seventh metasomal segments almost equal in length; third to fifth metasomal segments gradually widened from base to apical apex; sixth metasomal segment widest, 0.23 mm long and 0.27 mm wide; the following seventh and eighth segments apparently narrower than previous ones. Male genitalia well preserved but overlapped, claspers wide and long, covered with dense setae triangular in side view; gonostylus broadens apically; penis valve with apex proportionally flat and covered with long setae; otherwise, genitalia not visible.

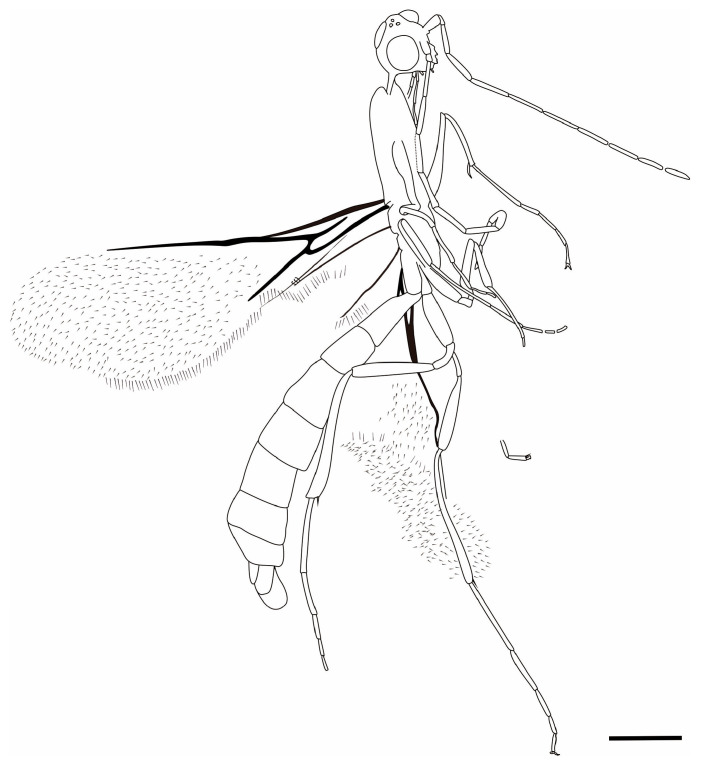

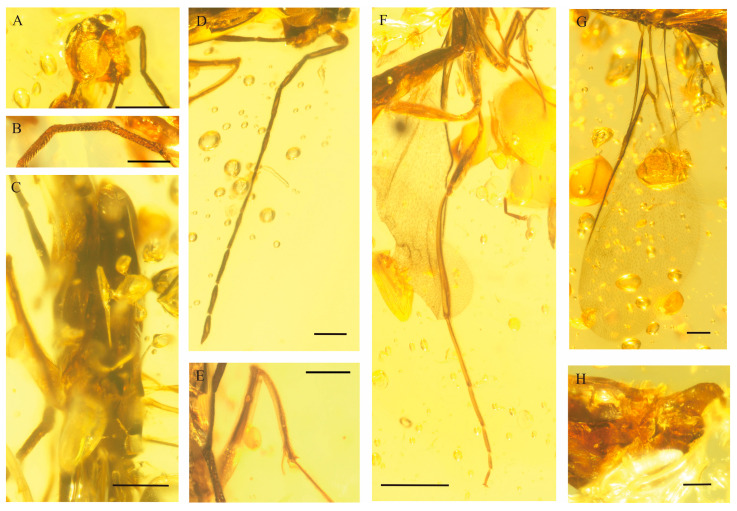

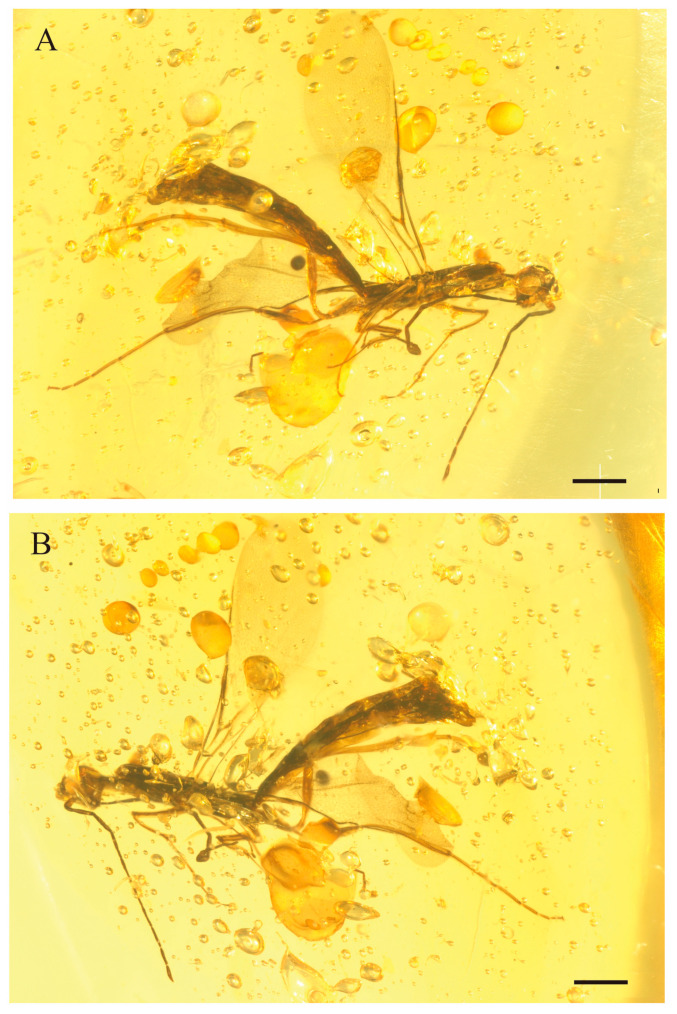

Myanmarina grandis Zheng, sp. nov. (Figure 4, Figure 5 and Figure 6)

urn:lsid:zoobank.org:pub:F419FEDA-BDB6-4D13-9EF2-72320877C8E8

Etymology. The specific name “grandis”(Latin), means large, referring to the body size, compared with other species of the Myanmarina.

Type material. Holotype, male, LYU-HY-2035; mid-Cretaceous Burmese amber, housed in Institute of Geology and Paleontology, Linyi University; well-preserved.

Locality and horizon. Hukawng Village, Kachin State, northern Myanmar; mid-Cretaceous (upper Albian to lower Cenomanian).

Diagnosis. Head large and oval, with vertex flat to prominent convex. Antenna with 11 antennomeres, scape about 1.5 times as long as pedicel, first flagellomere shorter than second; maxillary palps long; tibiae with spur and not distinctly bifid.

Description. Integument, dark reddish brown as preserved, with scape, pedicel, flagellomeres, tibiae and tarsi less dark. Male, body length 2.65 mm, excluding antennae.

Head, subglobose, slightly shorter than wide in lateral view, with length 0.45 mm and height 0.34 mm. Compound eye, large and ovoid, with height 0.25 mm and width 0.22 mm. Ocelli, present and small, situated in a triangle on top of vertex above compound eyes. Prominent facial convexity projecting length 0.10 mm and width 0.07 mm in profile. Maxillary palps slightly longer than height of head, with four segments visible, basal palpomeres short and broad, two apical ones clavate and elongate visible, 0.06 mm, 0.10 mm, 0.16 mm and 0.18 mm long, respectively. Antenna with 11 antennomeres, 2.33 mm long and longer than head and mesosoma combined, inserted moderately low on head in lateral view and covered with setae and sensilla. Scape distinctly robust and broad, almost 1.50 times the length and width of pedicel; pedicel short and narrow, 0.06 mm long and 0.04 mm wide; flagellomeres much longer than wide; first flagellomere slightly shorter than the second one; flagellomere II to V equal in length, remaining flagellomeres gradually shortening toward apex. Apicalmost flagellomere, pointed oval. Lengths of flagellomeres (in mm): 0.19, 0.24, 0.28, 0.26, 0.26, 0.22, 0.23, 0.18 and 0.17.

Mesosoma, elongate and column-shaped, more slender than head in lateral view, 1.13 mm long and 0.28 mm high. Pronotum, smooth and short, with no details visible. Propleura, large, almost abut in middle third; mesonotum difficult to observe laterally. Mesoscutellum 0.18 mm long. Metanotum short, 0.10 mm long. Propodeum concave in posterior margin and nearly 1.6 times as long as mesonotum.

Forewing, clear and hyaline, ca. 2.76 mm long and 0.90 mm wide, densely pubescent and with particularly long marginal setae inserted in distal half of posterior margin. Venation, brown to light brown as preserved, highly reduced, mainly most basal veins presented. Pterostigma absent. Vein, C+R thick, about half length of wing; Rs & M strongly oblique and widening toward apical wing margin, almost equal to M+Cu in length. M+Cu absent basally but form an obtuse angle with Rs & M. 1-Cu short, nearly one-third length of Rs & M. cu-a present but very short, aligned with 1A. Free Cu long, nebulous, subparallel to posterior wing margin and fading distally. Hind wing short and narrow, without wing venation, but R, three hamuli and narrow membrane distal to hamuli, with long posterior setae present.

Legs, slender, bearing short and thick setae. Fore femur (ca. 0.61 mm long and 0.09 mm wide) fusiform and pronouncedly longer and basally wider than tibia; foretibia 0.45 mm long and 0.04 mm wide, with elongated and curved spur not distinctly split apically and with velum reaching its apex and with dorso-apical tooth; tarsus with five tarsomeres, basitarsus longer than tibia and shorter than remaining tarsomeres combined; measurements (mm) of tarsomeres as follow: 0.42 mm, 0.12 mm, 0.15 mm, 0.12 mm and 0.10 mm, respectively. Mesocoxa, 0.27 mm in length and 0.10 mm in width; mesotrochanter, 0.09 mm long and 0.06 mm wide; mesofemur, (ca. 0.43 mm long) columniform, as wide as mesotibia; mesotibia, wider and shorter than protibia, ca. 0.37 mm long and 0.06 mm wide; mesotarsus with five tarsomeres, measurements as follow: 0.47 mm, 0.26 mm, 0.15 mm, 0.10 mm and 0.05 mm. Metacoxa, elongate and swollen, with 0.45 mm long and 0.09 mm wide; metatrochanter, longer, 0.22 mm long and 0.05 mm wide; metafemur, nearly twice as long as profemur, 0.52 mm long and 0.11 mm wide; metatarsomeres, length 0.53 mm, 0.33 mm, 0.199 mm, 0.12 mm and 0.12 mm. Apex of all tibiae with long spur and short dorsoapical tooth directed posteriorly; tarsal claws simple and bent, arolium and preapical tooth visible in meso- and metapretarsi.

Metasoma elongated, with eight external tergites, 2.69 mm in length and 0.36 mm in maximum width. First metasomal segment, slender and subcylindrical, 0.37 mm long and 0.12 mm wide; second metasomal segment, longest, third to sixth metasomal segments, almost equal in length, seventh to eighth metasomal segments, shorter and wider than former segments. Claspers of male genitalia, long and wide; gonostylus broadens apically; penis valve short and visible.

Revised key to males of the known species of Myanmarina.

1. Antenna 11-segmented……………..…..………………………………………..………2

– Antenna 12- or 13-segmented……..…..…………………..…..………...……………….4

2. First flagellomere short, obviously shorter than second. ……………………………………………………………………M. grandis Zheng sp. nov.

– First flagellomere twice as long as second.……………………………………………3

3. Metafemur long and slender (more than 4× as long as wide), male claspers very long (as long as or longer than preceding metasomal segment) ……………………………………………………….M. lisu Zhang and Rasnitsyn, 2018

– Metafemur short and thick (3× as long as wide), metacoxa and male claspers short (shorter than preceding metasomal segment) ………M. kachin Zhang and Rasnitsyn, 2018

4. Antenna 12-segmented………………………….……………………………………….5

– Antenna 13-segmented………………………….………………………………………..6

5. Metafemur thin, only slightly wider medially, about as long as metatibia……………………………………………………….M. lahu Zhang and Rasnitsyn, 2018

– Metafemur thick, conspicuously wider medially, much shorter than metatibia… 7

6. Head elongated, much longer than wide in dorsal view …………………………………………………………….…….M. jeannineae Li et al., 2018

– Head short, rounded, slightly longer than wide in dorsal view……...................................................................................M. sidorchukae Jouault et al., 2020

7. Metafemur conspicuously wider medially, three apical antennomeres of subequal length, protibial spur bifid…………………….…M. diversa Zheng, Zhang & Rasnitsyn 2022

– Metafemur thin, apical antennomeres distinctly gradually shortening, protibial spur acute………………………………………………………………………M. simplex Zheng sp. nov.

4. Discussion

The mid-Cretaceous Burmese amber is one of the largest and richest fossil insect Lagerstätten known [1,17,18,19]. Hitherto, 384 hymenopteran species out of 2233 described insect species reveal a dramatic and amazing diversity of fossil insects preserved in mid-Cretaceous amber from Myanmar [2,4,6,9]. Noticeably, Myanmarinidae were described by Zhang et al., 2018 and amended by Zheng et al., 2022 showing highly specialized morphological characters [3,4,5,6,13].

Our fossils possess particular characters easily recognized as Myanmarinidae among the Stephanoidea as evidenced by a small and slender body size, oligomerous antenna, a straight propodeum, without constriction between propodeum and metasoma, deeply reduced wing venation and a single tibial spur [3,4]. Until now, the fossil record of this family has only one genus, Myanmarina, with six species [3,4,5,6], and the diversity and character distribution among the identified fossil species of Myanmarinidae are shown in Table 1. We herein report the discovery of two interesting species, Myanmarina simplex sp. nov. and M. grandis sp. nov., preserved in mid-Cretaceous amber from Myanmar. Myanmarina simplex sp. nov. can be distinguished from other species of the genus as follows: it differs from M. kachin, M. lisu, M. jeannineae, M. sidorchukae and M. lahu by 13-segmented antenna; differs from M. diversa by the first flagellomere being nearly equal to the second one and having a slender metafemur. Myanmarina grandis sp. nov. differs from other species primarily by its 11-segmented antenna (vs. 12-segmented in M. lahu, M. jeannineae and M. sidorchukae; 13-segmented in M. simplex sp. nov. and M. diversa). Despite the considerable similarity between M. grandis sp. nov. M. lisu and M. kachin, it is not difficult to distinguish this new species from the latter two by a number of morphological details of the antenna, such as the first flagellomere being as long as the second one (vs. the first flagellomere being extremely long, almost twice length of the second one in M. lisu and M. kachin).

It is interesting that the two newly described Myanmarina fossils significantly extend the known record of myanmarinid wasps from the Cretaceous, as well as considerably increase our knowledge concerning the diversity of these unusual wasps. Noteworthily, Myanmarina simplex sp. nov. and M. grandis sp. nov. are endemic characters of the Burmese amber biota emphasizing high species-level diversity and bizarre morphology, with an astonishing diversity of hymenopteran taxa in the fossil record in the mid-Cretaceous.

5. Conclusions

Myanmarina simplex sp. nov. and M. grandis sp. nov. are assigned herein to the family Myanmarinidae, which is only known from mid-Cretaceous Kachin amber as the seventh and eighth species of a single genus Myanmarina, representing a distinctive body of morphological features, particularly the extremely reduced forewing venation pattern and highlighting great diversity of the parasitoid hymenopterans in the Cretaceous insect faunas. Additionally, these new and important species increase the number of endemic taxa resulting from isolation of the West Burma Plate.
