Wearable Sensors for Health Monitoring

TL;DR

Wearable sensors are being developed to continuously monitor health, helping detect issues early and reduce healthcare costs.

Contribution

The paper reviews recent developments and challenges in wearable sensor technologies for health monitoring.

Findings

Wearable sensors can monitor physiological indicators and detect unusual events in real time.

Advances in miniaturization and wireless communication have enabled practical wearable health systems.

Challenges remain in the research, development, and application of these sensor technologies.

Abstract

The growing global population and the rapid increase in older adults are driving healthcare costs upward. In response, the healthcare system is shifting toward models that enable continuous monitoring of individuals without requiring hospital admission. Advances in sensing technologies, embedded systems, wireless communication, nanotechnology, and device miniaturization have made these smart systems possible. Wearable sensors can monitor physiological indicators and other symptoms, helping to detect unusual or unexpected events. This allows for the provision of timely assistance when it is needed most. This paper outlines the challenges associated with these systems and reviews recent developments in wearable, sensor-based human activity monitoring. The focus is on health monitoring applications, including relevant biomarkers, wearable and implantable sensors, and established sensor technologies currently used in healthcare, as well as future prospects. It also discusses the challenges involved in researching, developing, and applying these sensors. The goal is to promote the widespread use of these sensors in human health monitoring.

Figures

Full text

1. Introduction

The rapid evolution of sensing technologies, flexible electronics, and wireless communication over the past several decades has transformed the way physiological signals can be measured and interpreted. Among these advancements, wearable sensors have emerged as powerful tools capable of continuously monitoring key health indicators in real time. Their growing popularity in security, entertainment, commercial, and especially medical fields reflects a broader shift toward decentralized, personalized, and preventive healthcare models. As global populations age and chronic diseases become more prevalent, the demand for systems that enable unobtrusive, long-term monitoring outside clinical settings continues to grow.

In the medical field, wearable and implantable sensors provide a unique opportunity to assess human activity and physiological function with high temporal resolution. These devices can non-invasively measure vital parameters, including cardiovascular signals, body temperature, biochemical markers, and metabolic indicators, providing insights that were previously accessible only through hospital-based equipment. Wearable sensors capture dynamic physiological changes, helping to detect early signs of illness, monitor disease progression, and support timely interventions. This improves quality of life and reduces healthcare costs.

Recent advancements in materials science, nanotechnology, and printed electronics have enabled the creation of highly flexible, stretchable, and biocompatible sensing platforms that conform closely to the human body. These technologies can now measure complex biochemical analytes in sweat or interstitial fluid, track motion and posture, and continuously monitor heart rate, blood pressure, and temperature. Progress in miniature power systems and wireless data transmission supports the seamless integration of these technologies into everyday life.

This review provides an overview of the current state of wearable and implantable sensors for health monitoring. It emphasizes key physiological signals and biomarkers, describes major sensing mechanisms and materials, and explores recent advancements in device design and fabrication. Additionally, it outlines the current challenges and prospects for translating these technologies into robust, user-friendly systems suitable for widespread adoption in healthcare.

The cited works were selected based on their significance and adequacy to the message we chose to deliver. There were no fixed inclusion or exclusion criteria. Google Scholar was used as the search engine, and no precise time window was used. Significant review articles are systematically cited at the end of each section so that readers can access various illustrated examples. Figure 1 summarizes the various applications of physical and biochemical sensors reviewed in this work and their maturity levels.

This manuscript provides an integrated analysis of biochemical, physiological, and implantable biosensing technologies, linking printing-based fabrication strategies with technological maturity. It distinguishes clinically validated systems (e.g., CGM, ECG, and SpO_2_) from emerging wearable biochemical sensors that target sweat and interstitial fluid. By contextualizing laboratory-scale innovations within real healthcare pathways, this review provides a realistic view of translational readiness. This work is further distinguished by the inclusion of textile-based, tattoo-based, and fully printed biosensing platforms, providing a forward-looking resource for the wearable biosensor community.

2. Wearable and Implantable Health Monitoring Sensors

2.1. Wearable Sensors

Wearable sensors are the primary tools for detecting physiological signals from the human body. These devices can measure various parameters, such as blood glucose levels, heart rate, respiratory rate, and body motion [1]. Each parameter provides essential information about health and bodily function, and the underlying mechanisms through which the sensors detect them differ.

2.1.1. Physiological Sensors

Cardiovascular Monitoring System

Continuous monitoring of heart rate and pulse is essential for the prevention and diagnosis of cardiovascular diseases (CVDs). The heart’s primary function is to pump blood throughout the body, thereby maintaining tissue perfusion, recycling venous blood, and enabling metabolic exchange processes [2]. Heart rate reflects the frequency of cardiac cycles, and in clinical settings, heart rate and pulse are fundamental indicators of cardiac function [3,4].

Cardiovascular disease (CVD) remains one of the leading causes of death worldwide, responsible for more than 17 million deaths annually—approximately 31% of all deaths globally [5]. This number is projected to rise to 23.6 million by 2030 [6]. Despite the high mortality rate, up to 90% of cases of cardiovascular disease (CVD) are preventable through early detection [7]. Heart rate and pulse provide vital information that supports the timely prevention and treatment of cardiovascular conditions [8]. Although cardiovascular diseases (CVDs) are typically asymptomatic in their early stages, they affect arterial pulse characteristics, influence blood pressure, and alter wrist pulse waveforms [9].

Traditional cuff-based sphygmomanometers are still widely used in clinical practice to measure systolic and diastolic blood pressure [10,11]. However, this indirect method does not enable continuous monitoring. To overcome this limitation, the authors proposed a flexible blood pressure sensor based on ultrathin, lightweight graphene tattoo sheets [12]. When placed over a wrist artery, a small electrical current is applied to the skin to measure bioimpedance. Machine learning models then correlate fluctuations in this signal with blood pressure, enabling continuous monitoring. Another study introduced a flexible blood pressure sensor based on piezoelectric composite ultrasonic technology, which represents a significant departure from conventional approaches [13]. In this design, polydimethylsiloxane (PDMS) and conductive silver nanowires were integrated using a dice-and-fill technique, yielding a highly flexible sensor.

The electrical activity of the heart is commonly assessed using an electrocardiogram (ECG), which provides essential insights into cardiovascular health. Because ECG signals are periodic, heart rate can be derived from R-to-R (RR) intervals [2]. Traditional ECG monitoring relies on gel-assisted Ag/AgCl electrodes, but these can be inconvenient [14]. In contrast, skin-contact ECG sensors allow users to more easily monitor cardiac health and detect early signs of serious conditions, such as cardiomyopathy, arrhythmias, and hypertension [15,16]. However, Ag/AgCl electrodes may cause skin irritation [14,17], which has driven increasing interest in flexible dry electrodes. One example is a flexible, wearable electrode in which highly conductive silver was deposited onto cowhide via plasma sputtering [18]. Tests on six subjects showed that the resulting ECG signal quality was comparable to that obtained using standard Ag/AgCl electrodes.

Plethysmography and ultrasound are widely used to monitor pulse and heart rate [19], but the bulky equipment and difficulty maintaining accuracy during long-term measurements limit their use in wearable systems [20,21]. To address these limitations, a flexible strain sensor for real-time pulse monitoring was recently introduced [22]. This patch-type device uses highly sensitive, flexible polyaniline to detect pressure changes caused by blood flow. This allows for the analysis of pulse characteristics for clinical applications. Further developments have led to the creation of a flexible pressure sensor capable of monitoring three pulse positions simultaneously [23]. This device integrates traditional Chinese pulse diagnosis with modern sensor technology. Ionogel-based pressure sensor arrays were fabricated on PET substrates, converting arterial pressure fluctuations into changes in electrical resistance. One advantage of this system is its ability to generate three-dimensional pulse maps that closely mimic a physician’s tactile assessment by presenting key information, including pulse strength and waveform.

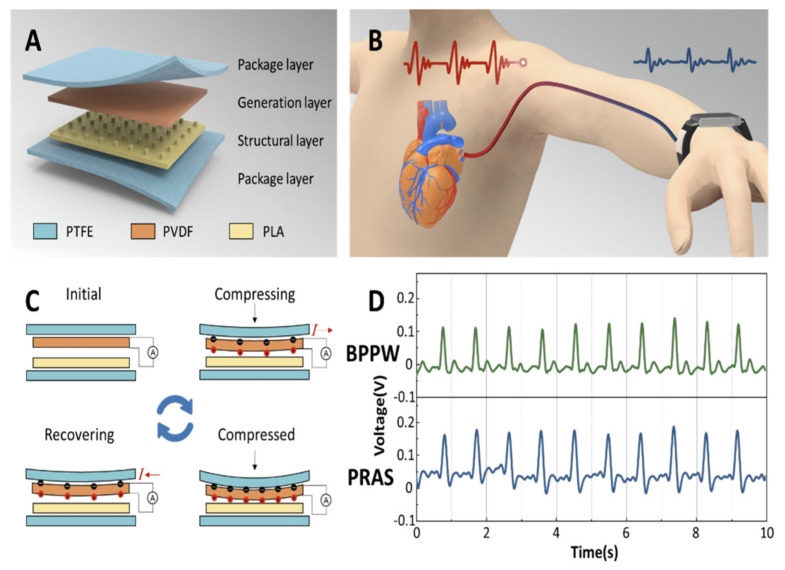

Another successful example of a flexible pulse sensor is based on poly (vinylidene fluoride-co-trifluoroethylene) (PVDF-TrFE) [24]. This device integrates analog amplification circuitry and sensing components onto a flexible substrate that can detect low pressures (down to 10 kPa) and increase electrical signal strength tenfold. These characteristics make it highly effective for monitoring pulse signals in humans. Figure 2 shows a wearable device that monitors arterial pressure through the piezoelectric effect.

The reader can refer to the review article from Prieto-Avalos et al. [26] for a good overview of the literature on cardiovascular monitoring systems. It should be noted that none of the cuffless blood pressure devices reviewed above have reached a high level of maturity yet. For this reason, publications rarely present stringent validation protocols and never refer to standards, particularly those of the AAMI/ESH/ISO (Association for the Advancement of Medical Instrumentation/European Society of Hypertension/International Organization for Standardization). One may conjecture that standards and protocols will become more prevalent for more mature systems in the near future.

Activity Monitoring System

The monitoring of motion or activity of moving objects is a widely studied topic in the field of wearable electronics. Most wearable motion-detection systems rely on strain sensors, which use variations in baseline resistance to indicate motion-related activities [27,28]. Motion detection is particularly valuable for prosthetic limbs and soft robotics, as well as for individuals with physical impairments and elderly persons who require continuous remote activity monitoring [29,30]. However, many state-of-the-art sensors and systems have significant drawbacks, including bulkiness, rigidity, limited wearability, and excessive weight, which make continuous monitoring difficult [29,30]. Consequently, substantial research efforts have focused on developing lightweight, wearable systems that use thin-film electronics and sensors printed directly onto flexible polymeric or textile substrates [31]. These wearable platforms, often referred to as electronic skins, are equipped with various sensors designed to mimic the sensory functions of human skin [32,33]. Various strategies have been explored to create these sensors, including using discrete sensing elements distributed across multiple body regions or fully integrated systems embedded within connected wearable suits [30,34]. Soft motion-sensing suits typically incorporate sensors positioned at joints that articulate during movement, thereby activating the sensing elements. One application is monitoring human gait, where strain sensors embedded in a wearable suit capture motion patterns [35]. In another development, strain sensors made from liquid metal and embedded in elastomers were placed on the hip, knee, and ankle joints to measure bending angles [29].

Nanoscale materials play a significant role in the design of motion-detection sensors, whether in their pure form or mixed with elastomeric polymers as composites. Embedding conductive fillers into rubber-based matrices is advantageous because of the matrices’ high stretchability and ease of integration onto non-planar surfaces. For example, natural rubber infused with liquid-exfoliated graphene can form a conductive composite [36]. This composite exhibited a 10^4^-fold increase in resistance at strains up to 800%, demonstrating high sensitivity and a dynamic response suitable for continuous motion monitoring when mounted on joints or other moving body parts. Silver nanowires printed with an Ecoplex dielectric layer have also been used to fabricate capacitive sensors for multifunctional wearable applications [37]. These sensors can detect strain, pressure, temperature, and touch under various physiological conditions.

Another notable approach used a double-helical carbon nanotube (CNT) array to create a strain sensor for hand motion detection [38]. This design allowed for strain measurements of up to 410% with low hysteresis and high sensitivity to subtle movements. Additionally, CNT/Ecoflex nanocomposites have been used to produce ultra-stretchable, skin-mountable strain sensors for motion monitoring [39]. In these composites, the CNT percolation network forms conductive pathways while the Ecoflex matrix accommodates large deformations associated with joint or muscle motion. This results in resistance changes that correspond to expansion levels.

Further work has explored the 3D printing of CNT/polyurethane nanocomposites, in which thin extruded filaments serve as strain sensors [40]. Similarly, CNT/PDMS nanocomposites have shown great promise for wearable, strain-based motion detection [41,42,43]. 3D printing enables precise control over CNT/polyurethane mixing ratios and viscosities, facilitating the fabrication of composites optimized for percolation and ideal for strain-sensing applications. In another development, a multifunctional sensing device was printed on a flexible substrate that incorporated Ag, CNTs, PEDOT:PSS, and ZnO to detect multiple physiological signals in real time [44]. These sensor patches comprise disposable and non-disposable components. The disposable component adheres to the skin and integrates printed sensors that track temperature, acceleration, and ECG signals. It also includes kirigami structures that accommodate skin deformation.

Recent advances include the development of a novel composite consisting of a conductive sponge made of carbon black impregnated in a shear-thickening gel and polyurethane [27]. This sensor provides effective impact protection, reducing applied forces by 44%, while simultaneously monitoring human motion. Additionally, strain sensors based on liquid metals and conductive ionoelastomers have garnered considerable interest due to their ability to detect large deformations with high sensitivity [45,46].

Chang et al. [47] provided an overview of the literature on activity monitoring systems.

Body Temperature Monitoring System

Wearable temperature sensors have been widely studied, with significant exploration of various sensing materials and printing technologies. In wearable applications, these sensors serve two primary purposes: continuous monitoring of body temperature and ambient temperature measurement. For body temperature monitoring, sensors are typically mounted directly on the epidermis or maintained in close contact with the skin as detachable components of wearable devices [48]. Continuous body temperature tracking is important for patients with chronic illnesses, unconscious or injured individuals, people undergoing anesthesia or surgical procedures, and workers exposed to extreme environmental conditions. Wearable temperature sensors are also crucial in electronic skin technologies and are frequently investigated alongside other sensing systems aimed at advancing industrial and social robotics [49,50].

Printed thermal sensors typically operate by measuring changes in the resistance of metallic structures as the temperature increases. Thermal coefficient of resistance (TCR) values are used to quantify their response [51]. In recent years, numerous thermal sensors have been developed using intrinsically conductive materials and nanocomposites engineered into flexible, minimally constrained geometries [52,53].

Fully printed fabrication methods simplify manufacturing, reduce costs, and enable the creation of single-layer, patterned, conductive lines of various geometries, such as meanders, spirals, and circles. For instance, a polymeric blend containing SWCNTs was used to detect both temperature and CO_2_ gas simultaneously [54]. Direct attachment of sensors to the epidermis requires substrates with skin-like properties, such as biocompatibility, breathability, oxygen permeability, and waterproofing. Meeting all these requirements remains challenging, however. To address this challenge, breathable and stretchable temperature sensors inspired by human skin have been developed [55]. Additional work includes transfer-printed copper strips on semipermeable polyurethane films and an inkjet-printed graphene/PEDOT:PSS temperature sensor fabricated on a skin-conformable polyurethane substrate, which eliminates the need for photolithography [56].

Skin-mounted biosensors that can detect sweat metabolites, electrolytes, and temperature simultaneously have been integrated into a single, wearable patch designed for prolonged use during exercise [57]. A related approach enabled the concurrent measurement of sweat pH using an ion-selective field-effect transistor (ISFET) and skin temperature using an embedded temperature sensor [58]. Silver-based interconnects were printed, and poly (3,4-ethylenedioxythiophene):poly (styrene sulfonate) (PEDOT:PSS) served as the temperature-sensing material. Real-time testing was performed by attaching the patch to a subject’s neck while they exercised.

Recent advances have investigated the printing and performance of nanoscale sensing materials. The resistance variations of sensing layers connected by conductive pastes were evaluated under temperature changes. A comparative study of carbonaceous materials, including reduced graphene oxide (rGO), single-walled carbon nanotubes (SWCNTs), and multi-walled carbon nanotubes (MWCNTs), assessed responsivity and long-term stability [59]. Reduced graphene oxide (rGO) exhibited strong, stable performance under varying environmental conditions, including humidity, pressure, and gas exposure. It remained responsive even when coated with protective insulating layers. Graphene nanowells exhibited exceptionally high TCR values (up to 180% K^−1^), making them promising candidates for monitoring human body temperature [60].

A biocompatible, conductive, “green” electrolyte composed of aliphatic diol–calcium chloride (CaCl_2_) complexes was identified as a promising material for in vivo and in vitro temperature sensing. It showed consistent resistance changes with temperature [53]. A customizable, 3D-printed sensor capable of monitoring temperature and pressure was developed using a skin-toned substrate for direct visual readout [61]. Through multilayer 3D integration, pressure and temperature sensors were combined into a single, flexible patch. Furthermore, an innovative, self-adhesive mechanism inspired by octopus suction cups was created using PDMS microstructures to ensure robust adhesion to the skin [62].

A resistance-based temperature sensor was developed using a nanocomposite of poly (N-isopropylacrylamide) (PNIPAM) hydrogel, poly (3,4-ethylenedioxythiophene):poly (styrene sulfonate) (PEDOT: PSS), and carbon nanotubes (CNTs). This sensor exhibits a strong thermal response of 2.6% °C^−1^ within the human temperature range (25–40 °C). A highly stretchable, self-healing thermistor based on a polyacrylamide/carrageenan double-network hydrogel demonstrated stretchability of up to 330% strain and sensitivity of 2.6% °C^−1^ at high strain levels [63], making it suitable for placement on joints or irregular surfaces. This thermistor closely mimics the self-healing behavior of human skin.

Precise temperature feedback is essential for monitoring active heating in applications such as heat therapy, perioperative care, and controlled transdermal drug delivery. Integrated wearable temperature sensors have been used for these purposes [64]. Stretchable aluminum heaters combined with gold-based resistance temperature detectors (RTDs) were implemented in a tattoo-like wearable patch. This patch was fabricated using a cut-and-paste method and can be attached to any body area without restricting movement [63]. These developments collectively highlight the strong and growing interest in advancing wearable temperature-sensing technologies across diverse application domains.

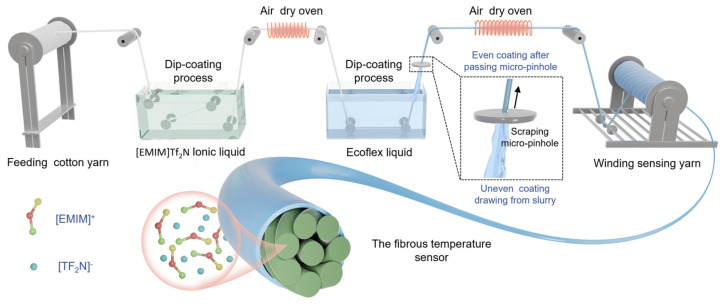

Due to their flexibility, comfort, and compatibility with textile integration, fiber-based temperature sensors are of increasing interest for wearable physiological monitoring. Li et al. [65] described a temperature-sensitive fiber containing an ionic liquid that demonstrates stable and repeatable thermal responses with good linearity and high sensitivity (2.6% °C^−1^; Figure 3). The sensor’s performance remains largely unaffected by mechanical stresses, such as compression, bending, and twisting. Stable operation is also maintained under acidic and alkaline conditions. Furthermore, this fiber sensor has been successfully incorporated into firefighter protective garments, sports wristbands, and infant clothing, enabling continuous body temperature monitoring and early-warning functionality.

As described above, such temperature sensors only target skin temperature. It is usually lower and much more variable (it can vary from 28 to 34 °C) than blood temperature (36.2–37.5 °C for healthy individuals) depending on environmental factors, clothing, blood flow, and body area. Therefore, skin temperature does not directly reflect core temperature and the transfer function is only valid for some given areas (armpit, ear).

For an overview of the literature on wearable body temperature sensors, readers can refer to Hashimoto et al.’s review article [66].

Blood Oxygen Saturation (SpO2) Monitoring System

Blood oxygen saturation (SpO_2_) is a vital sign that reflects the percentage of oxygen-bound hemoglobin in the blood. Continuous SpO_2_ monitoring is essential for managing respiratory diseases, cardiovascular conditions, sleep disorders, and critical care [67]. Wearable SpO_2_ technologies integrated into smartwatches, rings, earbuds, and skin patches have rapidly evolved from traditional clinical pulse oximeters into compact, low-power platforms capable of long-term, noninvasive physiological tracking. Advances in optical sensing, noise-reduction algorithms, flexible electronics, and wireless connectivity have driven this evolution.

These wearable systems enable real-world physiological assessments and offer trend-based insights into conditions such as sleep apnea, chronic obstructive pulmonary disease (COPD), and silent hypoxemia. During the pandemic, wearable oximeters became widely used for remote patient monitoring, highlighting their clinical relevance [67]. Beyond conventional fingertip devices, modern wearable oximeters provide continuous, unobtrusive monitoring of blood oxygenation in various forms.

Despite significant progress, there are still accuracy challenges, particularly under high-motion conditions, with individuals of darker skin tones, and in low-perfusion states. Improving calibration strategies, ensuring equitable performance, and lowering energy consumption remain important goals for future development. As these technologies continue to advance, wearable SpO_2_ systems are poised to play an increasingly important role in telemedicine, chronic disease management, sleep diagnostics, and personalized health monitoring.

Dcosta et al. [68] provided an overview of the literature on SpO_2_ monitoring systems.

2.1.2. Biological Fluid-Based Sensors

Glucose Sensors

Diabetes is a widespread chronic disease that poses serious global health risks. According to the World Health Organization (WHO) [69,70], millions of individuals are affected worldwide, and diabetes remains one of the leading causes of mortality each year. The primary cause of diabetes is dysfunctional or depleted insulin production, which leads to irregular glucose levels. Therefore, frequent glucose concentration monitoring is essential to prevent severe complications. Since the introduction of the first-generation glucose biosensor by Clark and Lyons [71] at Cincinnati Children’s Hospital in 1962, extensive development of these devices has occurred. Various human physiological fluids, including blood, urine, sweat, saliva, interstitial fluid, ocular fluid, and breath, contain glucose biomarkers suitable for diagnostic purposes [72,73].

Enzymatic sensing, particularly the use of glucose oxidase (GOx), remains the most widely adopted method for selective glucose detection [73]. In this approach, redox reactions at the sensor interface generate a measurable decrease in oxygen concentration and release hydrogen peroxide (H_2_O_2_), both of which are proportional to glucose levels. Initially developed for laboratory blood analysis, glucose monitoring technologies have rapidly evolved into handheld devices for rapid point-of-care testing. Modern glucose meters typically rely on disposable, enzyme-activated electrode strips [73]. Comprehensive reviews of glucose sensors and recent advancements in portable detection systems can be found elsewhere [72,73,74,75].

Due to the rapid growth of microelectronics on unconventional substrates, especially wearable and conformable materials, glucose sensors have attracted substantial research interest [76]. Wearable and implantable glucose sensors enable in vivo measurements, allowing for continuous, real-time glucose tracking and improved self-management of diabetes [77].

Emerging technologies, such as the Internet of Things (IoT), enable clinicians to remotely monitor patient data through cloud-based systems [78]. Several recent proof-of-concept devices have demonstrated practical, real-time glucose monitoring capabilities. One example is an all-printed, tattoo-based glucose sensor designed for noninvasive glycemic monitoring [79]. This device operates through epidermal sensing, combining reverse iontophoretic extraction of interstitial glucose with enzyme-based amperometric detection. Screen printing was used to fabricate the electrodes: a Papilio transfer-paper substrate with silver (Ag) and silver chloride (AgCl) as the reference and counter electrodes, respectively, and conductive carbon ink as the working electrode. Comparative in vitro and on-body measurements demonstrated the device’s strong potential for detecting micromolar glucose concentrations.

Another innovative development is a wearable sensor array for multiplexed perspiration analysis [80]. This fully integrated platform can simultaneously monitor multiple sweat biomarkers, including glucose, lactate, sodium, and potassium ions, as well as skin temperature. The electrochemical glucose and lactate sensors use Ag/AgCl electrodes, and ion-selective membranes are drop-cast for electrolyte detection. Tests performed during indoor and outdoor physical activities confirmed the system’s effectiveness for personalized diagnostics and real-time health monitoring.

Functional nanoscale materials, including nanowires, nanoribbons, and nanotubes, are important for designing conformable, wearable sensors. For example, indium oxide (In_2_O_3_) nanoribbons were used to fabricate field-effect transistor (FET) sensors on polydimethylsiloxane (PDMS) substrates [81]. After being laminated onto the skin, these sensors successfully detected glucose in sweat, tears, and saliva at concentrations as low as 10 nM. Another system integrated a sweat-based glucose sensor with a closed-loop transdermal drug delivery module, enabling accurate glucose measurement with real-time correction for pH, temperature, and humidity variations [82]. These miniaturized devices were fabricated via clean-room processes and transferred onto PDMS for skin-conformable operation.

Other wearable sensing platforms include cotton fabrics printed with carbon, graphite, silver (Ag), and silver chloride (AgCl) electrodes for lactate detection [83]. In another example, a spray-printed reduced graphene oxide (rGO) working electrode was integrated into a wrist-mounted sensor, yielding excellent amperometric responses for in vivo glucose detection in the 0–2.4 mM range [84]. A robust, non-enzymatic, wearable sensor patch incorporating integrated signal processing and wireless communication modules was developed on flexible stainless steel [77]. Implanted into subcutaneous tissue, these sensors continuously monitor interstitial glucose levels.

Similarly, organic-material-based biosensors have shown promise due to their compatibility with low-temperature fabrication processes and their inherent biocompatibility. One such device uses a cross-linked film of PEDOT (poly (3,4-ethylenedioxythiophene)) and glucose oxidase for amperometric glucose sensing [78]. A three-electrode system patterned on a PET substrate was paired with front-end electronics to enable remote glucose monitoring.

Together, advances in sensing materials, device architectures, and fabrication methods demonstrate the rapid progress of this field. Minimally invasive, wearable glucose-monitoring technologies have been industrialized for over 20 years. Non-invasive sensors, which are not yet fully mature, will likely appear on the market in the near future.

To accelerate development, existing commercial devices can be adapted. This allows you to use robust and reliable components while only developing the specific sensing part. Chen et al. [85] recently achieved this by adding a “glucose add-on” to a commercial smartwatch bracelet. Consequently, the watch can provide information on mapping, physical activity, heart rate, and glucose levels. This helps develop the glucose sensor and identify trends in glucose levels (e.g., an unexpected drop in glucose levels when inactive versus an expected drop during heavy activity). In this example, the glucose sensor is powered by the smartwatch and communicates directly with it.

Glucose monitoring systems have been reviewed by Xue et al. [86], for example.

Lactate Sensors

Lactate, a key metabolite produced in muscle tissue during anaerobic glucose metabolism, plays a crucial role in the human body. Continuous lactate monitoring is important during physical activity, especially for athletes, to prevent cell acidosis, which can severely impair muscle performance [87,88]. Several human body fluids contain measurable lactate concentrations. For instance, the lactate concentration in blood is typically 0.5–1.5 mM in healthy individuals at rest, rising to approximately 12 mM during intense exercise [89]. Other fluids, such as tears, saliva, and sweat, exhibit distinct lactate concentrations [87,89,90]. For practical, wearable applications, lactate sensors should be noninvasive and operate using sweat or interstitial fluid analysis [91,92].

Selectivity is essential because body fluids contain numerous other metabolites. Most wearable electrochemical lactate sensors use enzymes, such as lactate oxidase, for selective detection. However, non-enzymatic approaches have also been explored [93]. Redox mediators are sometimes incorporated to enhance catalytic activity and improve sensing performance.

An electrochemical biosensor in the form of a printable tattoo was developed for real-time lactate monitoring during exercise [88]. This device uses Ag/AgCl electrodes and functionalized multi-walled carbon nanotubes (MWCNTs) in a three-electrode configuration. The biosensor exhibited strong chemical selectivity for lactate, demonstrated linear detection up to 20 mM, and maintained stable performance under continuous mechanical deformation. A multiplexed sensor array capable of measuring multiple metabolites, electrolytes, and skin temperature simultaneously was also demonstrated on a soft, flexible substrate [94]. This fully integrated, wearable patch can be comfortably worn on the wrist or as a headband.

Hybrid sensing systems that combine biochemical and electrophysiological monitoring represent an advanced approach to wearable health tracking [95]. In one such system, Ag/AgCl electrodes were screen-printed, and lactate oxidase was used as the selective enzyme. When mounted on the skin, the patch enabled the simultaneous measurement of electrical and chemical signals without cross-interference. A non-enzymatic lactate sensor was fabricated using screen printing. In this sensor, the working electrode was electropolymerized with 3-aminophenylboronic acid (3-APBA) that was imprinted with lactate [93]. This device achieved a detection range of 3–100 mM, a detection limit of 1.5 mM, and a response time of two to three minutes.

Textile-based, printed amperometric biosensors have also been demonstrated for lactate monitoring [96]. Carbon, graphite, and Ag/AgCl inks were deposited onto cotton fabric for the working, reference, and counter electrodes, respectively. After lactate oxidase immobilization, the biosensors achieved a detection range of 0.05–1.5 mM within five minutes. A tube-shaped painted biosensor also demonstrated strong potential as a portable, user-friendly biochemical sensing platform [92]. Its interior surface was printed with carbon graphite and Ag/AgCl to form an electrochemical cell suitable for lactate detection.

Furthermore, graphene nanowells were printed alongside Ag/AgCl electrodes to create an electrochemical biosensor capable of real-time lactate detection [97]. Testing in fluids such as deionized water and phosphate-buffered saline revealed a broad detection range of 1.0 μM to 10 mM, which can mimic various physiological environments.

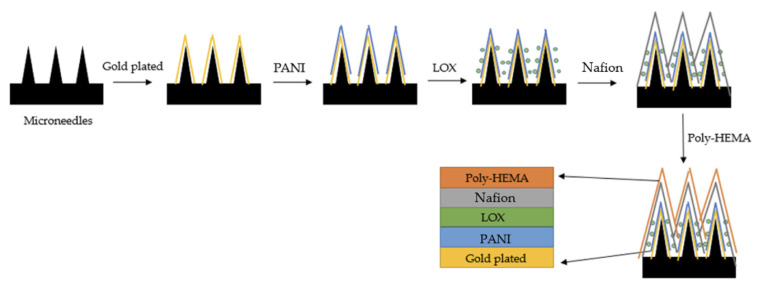

Similar to continuous glucose monitoring, continuous lactate sensing is being investigated using percutaneous microneedle arrays. For example, Chien et al. [98] coated the base of a percutaneous microneedle array with an electroplated conductive polymer layer of polyaniline (PANI). Then, a lactate oxidase (LOx) layer was deposited. Then, a Nafion-modified polymer layer was applied to enhance the selective adsorption of the target analyte at the electrode surface. Finally, a protective poly (HEMA) film was introduced as the outermost layer to isolate the electrode from interfering impurities. Figure 4 provides a schematic illustration of the multilayer structure. Each needle is 1 mm long, 0.44 mm wide, and 0.03 mm thick. This device has a lactate detection range of 0.5–40 mmol L^−1^.

Lactate sensing remains a major focus of research in the field of wearable electronics. The rapid progress in sensing materials, device integration, and fabrication techniques suggests strong potential for commercial adoption in the near future.

To gain an overview of the literature on lactate sensors, readers can refer to the review article by Ding et al. [99].

pH Sensors

pH is a measure of the acidity or alkalinity of a solution. Accurate pH measurement is fundamental to numerous environmental, biological, and chemical processes. Over time, a wide range of detection methods has been developed. Traditional pH sensing relies on potentiometric, chemiresistive, optical, mass-based, and capacitive techniques [100]. Typically, pH is measured using glass electrodes or ion-selective field-effect transistors (ISFETs). However, the mechanical rigidity of these electrodes, the need for a reference electrode, and the risk of electrolyte leakage present challenges for miniaturization and wearable applications on irregular surfaces [101].

As a result, newer strategies, particularly chemiresistive sensing, have gained prominence as low-cost, miniaturizable approaches suitable for wearable devices with minimal signal degradation. Monitoring pH levels in various bodily fluids, especially sweat, has received increasing attention because pH levels directly correlate with multiple health conditions. For instance, patients with type II diabetes or kidney stones typically have lower pH levels than healthy individuals [102], and many skin disorders are associated with abnormal pH values. Therefore, skin-mounted, noninvasive, in vivo, real-time pH monitoring is expected to play a crucial role in the early diagnosis of several medical conditions [103]. Human skin reflects changes in body pH, making it an ideal location for continuous monitoring.

Hydrated skin tends to be more acidic, while dehydrated skin becomes slightly more alkaline. Current research focuses on developing sensors that can distinguish between these physiological states. One example is an electrochemical device integrated with data acquisition and signal conditioning circuits for continuous, real-time monitoring of pH and calcium concentrations in body fluids [102]. The sensing results were validated using spectrometry and commercial pH meters, demonstrating high repeatability and selectivity. A capsule-sized, implantable pH sensor prototype was also developed for monitoring gastroesophageal reflux [104]. This system uses interdigitated electrodes for impedance and pH detection and operates wirelessly through external transponders.

Wearable and textile-based approaches have also been explored. For example, cotton-yarn-based conductive wire electrodes have been proposed for detecting pH and other analytes in the human body [105]. Carbon nanotubes (CNTs) served as the conductive filler and were coated with a polymeric membrane to form ion-selective electrodes. Functionalization plays a critical role in CNT-based sensing. Biofunctionalized, inkjet-printed CNTs have been demonstrated for pH detection [106], where the sensing mechanism relies on the doping and dedoping of CNTs by hydronium and hydroxide ions. Multiple printing cycles improved conductivity and ensured reproducible sensitivity and fast response times.

Screen-printed thick films of Ag/AgCl/KCl electrodes have been developed for simultaneous pH and temperature sensing [107]. Metal-oxide-based printed layers, such as screen-printed TiO_2_ thick films, have been investigated for pH measurement and water quality analysis [100]. In these devices, screen-printed interdigitated electrodes (IDEs) paired with TiO_2_ sensing layers exhibited impedance changes that were strongly correlated with pH variations. Recently, high-resolution aerosol-jet printing was used to fabricate CNT-based serpentine sensing layers with Ag electrodes [101]. The resulting miniature sensors exhibited rapid response times, high sensitivity, and promising biocompatibility for potential live-cell applications.

The same approaches used to create wearable pH sensors can be used for other cations, such as K^+^ and Na^+^. These cations are easily accessible in sweat and their concentrations can vary with certain illnesses [108]. One of the most relevant publications on this topic is the work of Pirovano et al. (2020). They developed a fully autonomous system called SwEatch that resembles a wristwatch, despite not being a Swatch^®^. They successfully tested the system with athletes. The Na^+^ and K^+^ sensors are potentiometric, of course. The Na^+^ ionophore was a calixarene and the K^+^ ionophore was valinomycin. More notable than the cation sensitivity, which is approximately +50 mV/dec for both ions, is the sensor architecture, which is based on poly (3-octylthiophene-2,5-diyl). This conductive polymer is used as the transducing component and is printed directly onto screen-printed carbon electrodes.

More recently, in 2024, Jalal et al. [109] used polyaniline for pH sensing and the two original inorganic ionophores, Na_0.44_MnO_2_ and K_2_Co[Fe(CN)6], for sensing Na^+^ and K^+^, respectively. Interestingly, no recent developments concerning the diagnosis of cystic fibrosis have been published. One of the most recent studies is that of De Matteis et al. [110], who investigated the electrochromic properties of tungsten oxide (WO_3_) in the presence of sodium. However, despite being developed to a demonstrator-grade level, none of these devices has reached the market yet.

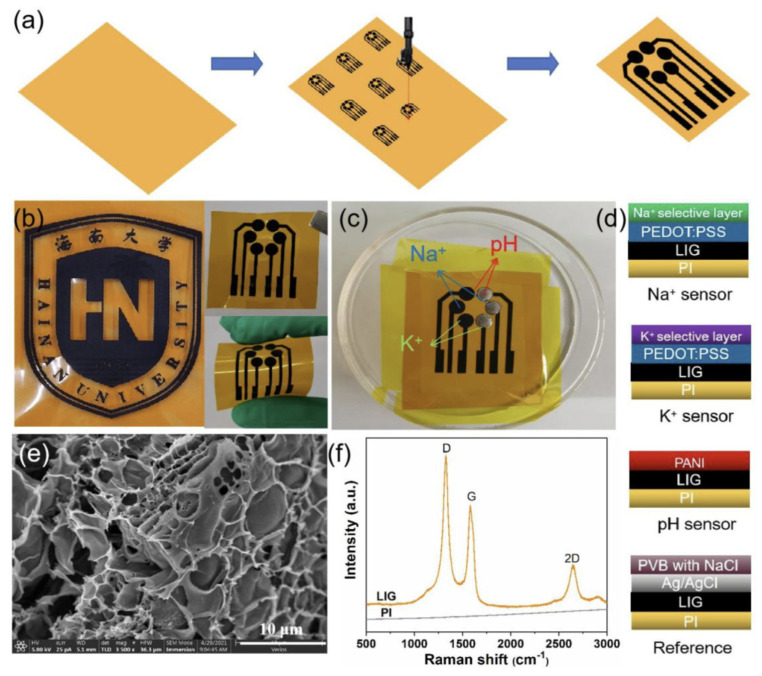

Figure 5 shows an example of a flexible pH sensor coupled with sodium and potassium sensors. This sensor can be applied directly to the skin. It is produced by writing directly onto a polyimide substrate using the laser-induced graphene (LIG) technique.

For an overview of the literature on wearable pH sensors for wound monitoring, readers can refer to the review article by Li et al. [112].

Table 1 summarizes the sensing approaches, materials, substrates, and mechanisms used in fluid-based glucose, lactate, and pH sensing systems.

Cholesterol Sensors

Monitoring cholesterol levels is essential for maintaining human health because elevated levels are strongly correlated with an increased risk of cardiovascular and cerebrovascular diseases, including heart disease, stroke, hypertension, coronary artery disease, arteriosclerosis, and cerebral thrombosis [114]. Accordingly, substantial research efforts have focused on developing highly sensitive cholesterol biosensors that employ a variety of detection mechanisms. Recent advances in strategies to enhance the selectivity and sensitivity of enzymatic cholesterol sensors have been comprehensively reviewed elsewhere [115].

An integrated array of field-effect transistors (i-FETs) has been demonstrated for simultaneously and selectively detecting multiple analytes, specifically cholesterol, glucose, and urea [114]. In this system, ZnO nanorods serve as the sensing elements, improving device stability and enabling rapid multi-analyte analysis. Despite this progress, comparatively little research has addressed the fabrication of cholesterol sensors on polymeric substrates using printing-based manufacturing approaches. Wearable cholesterol-monitoring platforms are in the early stages of development and require substantially more research, particularly with respect to material selection and optimization of detection mechanisms.

For a comprehensive understanding of the literature on cholesterol monitoring systems, readers can refer to the review article by Rajan et al. [116].

2.2. Implantable Sensors

Implantable prototypes for healthcare applications are the second major type of wearable sensing system. These devices are inserted into the body to detect abnormalities or administer microdoses of therapeutic agents. Implantable sensors enable the continuous, real-time monitoring of internal biochemical variations and provide a direct interface for molecular transport and physiological signal tracking. Two primary categories of implantable technologies have been extensively investigated: neural sensors and drug-delivery systems. The most widely adopted examples are invasive glucose-monitoring devices, including blood glucose monitoring (BGM) and continuous glucose monitoring (CGM) systems. Several minimally invasive commercial CGM platforms, such as Abbott’s FreeStyle Libre 2 and Dexcom’s G6, quantify glucose levels in subcutaneous interstitial fluid. Despite their clinical utility, these devices can cause discomfort or pain during application.

Self-monitoring of blood glucose (SMBG) remains a common approach for assessing glucose at the point of care. This method requires obtaining a small blood sample via a finger prick and applying it to a reagent strip containing enzyme-based components, typically glucose oxidase. The enzymatic reaction generates an electrical signal that the SMBG device subsequently processes to yield an accurate glucose concentration. SMBG systems are valued for their simplicity, reliability, and usefulness in daily glucose management. However, they only provide single-time-point measurements and therefore fail to capture the full spectrum of glucose fluctuations occurring over a 24-h period. Furthermore, repeated finger pricking can cause discomfort and reduce patient adherence to regular monitoring [117]. One example is the FreeStyle Precision Neo meter by Abbott, a compact device that can analyze extremely small blood volumes in seconds. It is equipped with integrated data storage and trend analysis features.

Continuous glucose monitoring (CGM) systems are a more advanced solution that employ a subcutaneous sensor to deliver real-time glucose data at frequent intervals. This continuous data stream gives users a comprehensive view of diurnal glucose dynamics and enables earlier detection of hyperglycemic or hypoglycemic events. CGM is particularly beneficial for individuals with highly variable glycemic profiles because it offers substantially more information than SMBG. However, adoption is limited by the high cost of the technology, and device accuracy may decline during rapid glucose fluctuations, which can influence clinical decision-making [118]. The Dexcom G6 system is an example of current CGM technology. It features a subcutaneous sensor with a functional lifespan of up to 10 days, as well as wireless transmission of real-time glucose readings to smartphones or other devices. Despite these advantages, accessibility and affordability remain significant challenges, underscoring the need for further innovation.

Although invasive approaches such as SMBG and CGM are considered the clinical gold standard, they have several drawbacks. Frequent skin penetration or prolonged sensor implantation can result in pain, irritation, and user fatigue. Improper sterilization, reuse of lancets, or sharing of monitoring equipment can also increase the risk of transmitting bloodborne pathogens, especially in environments where disposable medical supplies are limited [119]. These limitations have intensified interest in developing non-invasive glucose-sensing technologies that can provide accurate, continuous measurements without causing physical harm. Such innovations would substantially enhance patient comfort while mitigating the safety risks associated with traditional invasive methods. Over the past few decades, significant research efforts have focused on advancing various non-invasive strategies for continuous glucose monitoring.

Implantable monitoring systems have been reviewed; for example, see the work of Yu et al. [120].

3. Mature Applications of Health Monitoring Sensors

Several health-monitoring sensor technologies have reached maturity and stability. They have been widely adopted and extensively validated for routine use in clinical and consumer settings. These technologies are listed in Table 2.

Cardiovascular monitoring is one of the oldest and most reliable application areas. Electrocardiography and heart rate monitoring, implemented through Holter monitors, chest straps, and smartwatches, are well-established for diagnostic and longitudinal monitoring purposes. Blood pressure monitoring using oscillometric cuffs remains the clinical reference standard. However, some cuffless blood pressure measurement methods have now reached a sufficient level of maturity and validation for broader deployment. Pulse oximeters that measure peripheral oxygen saturation (SpO_2_) are widely used in hospitals and are increasingly being integrated into wearable devices.

Glucose monitoring is another area with highly developed sensor technologies. Continuous glucose monitors (CGMs), such as those developed by Dexcom and Abbott FreeStyle Libre, are FDA-approved and widely used in diabetes management. These systems continuously measure glucose levels and have become integral to modern clinical practice for both type 1 and type 2 diabetes.

Technologies that track activity and motion using accelerometers and gyroscopes are also well established. These sensors are commonly used for counting steps, detecting falls, monitoring sleep, and tracking sedentary behavior. They are commonly embedded in fitness bands, smartwatches, and medical-grade wearables used for clinical monitoring and functional assessment.

Respiratory monitoring has a long history in clinical care and has evolved to include wearable technology. Impedance-based respiration rate sensors and chest-worn bands are widely used, and capnography remains a standard technique in clinical settings, particularly in anesthesia and intensive care. Wearable respiratory belts are now used for continuous respiratory monitoring at home and in hospitals.

Similarly, temperature monitoring technologies are mature. Digital skin temperature sensors and ingestible temperature sensors have long been used in clinical and research settings. More recently, continuous temperature patches have been introduced for fever tracking, fertility monitoring, and long-term physiological monitoring.

Sleep monitoring is a well-established field with applications in both the clinical and consumer sectors. Polysomnography, which incorporates electroencephalography (EEG), electromyography (EMG), airflow sensors, SpO_2_ measurement, and thoracic effort sensors, is a fully mature technology and remains the clinical gold standard. Meanwhile, wearable sleep trackers, such as Fitbit and Oura, have also matured and are widely used for sleep monitoring outside of clinical laboratories.

Implantable sensors are among the most advanced health-monitoring technologies. Cardiac pacemakers and implantable cardiac monitors have decades of proven clinical use and provide continuous cardiac sensing and therapy. Similarly, cochlear implants are a long-established class of implantable sensor systems with extensive clinical validation.

Mature sensing solutions have also benefited gait and rehabilitation monitoring. Inertial measurement units (IMUs) are widely used for gait analysis and tracking progress in physical therapy and rehabilitation, and have been broadly adopted in sports medicine and rehabilitation settings.

Finally, environmental and physiological stress sensors have achieved stable commercial deployment. Skin conductance sensors that measure electrodermal activity (EDA) are used for stress monitoring in mature products, such as the Empatica E4. UV exposure sensors are also being integrated into wearable devices to monitor environmental exposure.

These applications represent a set of health-monitoring sensor technologies characterized by technical stability, clinical validation, regulatory acceptance, and large-scale use in clinical practice and consumer health monitoring.

4. Conclusions: Prospects and Challenges

Wearable sensors, such as photoplethysmography (PPG) watches, inertial measurement units (IMUs), electrocardiogram (ECG) patches, smart textiles, and biochemical sensors, have become central to modern digital health. Advances in miniaturized electronics, wireless communication, ultra-low-power systems, and AI-based analytics have driven their rapid development. The literature widely recognizes the potential of wearables for continuous health monitoring, remote patient management, and preventive medicine. However, it also emphasizes significant methodological, regulatory, and ethical challenges.

Wearables enable the persistent monitoring of physiological and behavioral parameters, including heart rate, respiration, physical activity, and sleep, in settings beyond traditional clinical environments. Continuous data acquisition supports longitudinal tracking and the early detection of physiological deviations, enabling earlier intervention than episodic clinical measurements [121,122]. Machine learning methods applied to wearable sensor data can identify subtle trends that predict disease onset, including cardiac arrhythmias, sleep disorders, metabolic dysregulation, and stress-related conditions [123,124].

Wearable technologies have demonstrated their clinical usefulness in managing chronic diseases. For example, continuous glucose monitoring can help manage diabetes, connected blood-pressure cuffs can help manage hypertension, oxygen monitoring can help manage chronic obstructive pulmonary disease, and ECG-based devices can help manage cardiac arrhythmias [125,126]. Furthermore, AI-driven data fusion techniques can integrate multimodal sensor streams to derive personalized risk scores and digital biomarkers that capture individual physiological trajectories [127,128]. Clinical-grade wearables also support decentralized healthcare models by enabling home-based monitoring, reducing the burden on hospitals, and facilitating remote clinical decision-making [129,130].

Despite these advantages, several limitations remain. Consumer-grade wearables are often affected by motion artifacts, variable skin perfusion, optical interference, and algorithmic inconsistencies. These factors result in reduced accuracy compared with that of gold-standard clinical equipment [131,132]. The heterogeneity of sensing modalities, signal-processing algorithms, calibration procedures, and data formats across devices is a recurring challenge that limits interoperability, reproducibility, and large-scale data aggregation [133,134].

Wearables generate intimate, high-resolution biometric data, raising concerns related to re-identification risks, cybersecurity vulnerabilities, algorithmic bias, and the potential misuse of health data by employers or insurers [135,136]. From an engineering perspective, trade-offs between user comfort, sampling frequency, sensor quality, and battery capacity remain major constraints. Long-term user adherence is often low, and data accuracy depends heavily on proper device placement and maintenance [137,138].

From a regulatory standpoint, medical-grade wearables must undergo rigorous evaluation under FDA or CE frameworks, which can significantly impede innovation and market adoption. In contrast, most consumer devices lack medical certification and are not reliable for clinical decision-making [139]. Additionally, clinicians face challenges integrating high volumes of wearable data into electronic health record systems without contributing to alert fatigue or an increased cognitive burden [140].

Overall, the literature agrees that wearable sensors have the potential to transform healthcare by shifting it from a reactive model to a preventive, continuous, and personalized one. Their ability to generate rich longitudinal datasets surpasses that of traditional clinical tools. However, challenges related to accuracy, standardization, privacy, regulation, and clinical integration must be addressed to enable their safe and effective adoption in mainstream healthcare. Indeed, the clinical translation of healthcare wearable sensors depends on more than just technical performance. It also requires robust frameworks for privacy, fairness, security, consent, and interoperability. The continuous and highly granular collection of data poses significant privacy risks and can create algorithmic bias if the datasets are not representative. This underscores the importance of privacy-by-design principles and systematic bias assessments. Strong data security measures, including end-to-end encryption and clear data governance, are essential to maintaining trust and protecting sensitive health information. Adaptive consent models that reflect the ongoing and evolving use of wearable data are equally important. Finally, interoperability standards, such as FHIR (Fast Healthcare Interoperability Resources), are critical for integrating wearable data into clinical workflows and electronic health records. This will enable the data to be used in a scalable, reproducible, and clinically meaningful way.
