Effect of femoral component design and quadriceps load on patellofemoral kinematics after total knee arthroplasty: an in vitro cadaveric study
Vera Maioli, Emanuele Diquattro, Michele Conconi, Francesco Castagnini, Francesco Traina, Nicola Sancisi, Luca Cristofolini
TL;DR
This study shows that a new knee implant design better mimics natural knee motion but may not work well for patients with certain anatomical features.
Contribution
The study introduces a comparison of patella-friendly and traditional femoral implant designs under varying quadriceps loads in cadaveric knees.
Findings
The patella-friendly design better reproduced native patellar motion under most conditions.
Traditional implants remained stable even with extreme medial loading, though they deviated more from native kinematics.
Patella-friendly implants showed instability and lateral displacement with extreme medial loading.
Abstract
Patellofemoral (PF) complications are a common cause of dissatisfaction and revision following total knee arthroplasty (TKA), often linked to altered kinematics and implant design. “Patella-friendly” femoral components with a wider, funnel-shaped trochlear groove may better restore native patellar motion. This study evaluated PF kinematics both before and after TKA performed using kinematic alignment, investigating the role of implant design and quadriceps loading. In total, 12 paired fresh-frozen cadaveric lower limbs were tested before and after TKA. Within each pair, one limb received a traditional medial pivot femoral component, while the contralateral limb received a “patella-friendly” medial pivot femoral component. Native and implanted knees were tested by flexing the knee under the action of an external load applied through the quadriceps tendon, varying its magnitudes (20,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsTotal Knee Arthroplasty Outcomes · Orthopaedic implants and arthroplasty · Lower Extremity Biomechanics and Pathologies
Introduction
Patellofemoral (PF) complications remain a major concern following total knee arthroplasty (TKA), representing a substantial source of patient dissatisfaction and revision surgery. These complications—including anterior knee pain, patellar maltracking, subluxation, fracture, patellar clunk, and crepitus—have been reported in 1.4–12.8% of cases [1, 2], depending on implant design and surgical technique [3, 4].
These complications are clinically observed in both the most common surgical alignment techniques, namely, mechanical alignment (MA) and kinematic alignment (KA) [5]. MA aims to standardize the coronal alignment by positioning the femoral and tibial components such that the joint line of the prosthesis, i.e., the line tangent to the implant surfaces in the coronal plane, is orthogonal to the mechanical axis of the limb, regardless of the patient’s native anatomy [5]. In contrast, surgery performed following the KA-TKA rationale seeks to reconstruct the patient’s native, prepathological tibiofemoral joint lines in the coronal plane, thereby preserving the individual’s limb alignments and maintaining their original Q angle [5, 6]. The Q angle is a clinical measurement to approximate the direction of the quadriceps vector force (QV). It is defined as the angle formed between the lines connecting the center of the patella to the attachment site of the patellar tendon on the tibial tubercle, and the line connecting the center of the patella to the anterior superior iliac spine on the pelvis, with the knee fully extended.
By replicating the native distal femoral joint line and Q angle, KA has the potential to promote more physiological PF mechanics, including retropatellar contact pressure, contact area, and patellar kinematics. However, in vitro studies have shown no significant differences between MA and KA-TKA with the same prosthetic design [6]. Similarly, no improvements in functional outcomes [5] or revision rate [7] have been consistently reported by clinical studies. In contrast, KA may result in slightly greater lateral patellar tilt or shift [8]. This apparent lack of clinical benefit raises a key question: if KA is expected to improve knee function, why are the reported outcomes so similar to MA?
One critical limitation of KA-TKA is the widespread use of femoral components originally designed for MA surgical technique [9]. Until a few years ago, the development of the KA surgical technique focused primarily on optimizing the alignment and function of the tibiofemoral joint, with limited attention paid to the PF joint. Traditional femoral components, originally designed for MA, are optimized for implantation following an approach that standardizes joint alignment and therefore the Q angle and are typically characterized by a trochlear groove inclined at a fixed 6° from femoral mechanical axis [10]. When traditional design components are implanted to meet the KA criteria, their geometry may no longer align with the patient-specific joint anatomy achieved with this surgical technique, in particular, at the patellar level, as the position of the implants is no longer fixed relative to the mechanical axis of the femur, potentially resulting in suboptimal patellar tracking and contributing to PF complications.
In recent years, increased awareness of the association between TKA failure and PF complications has prompted the development of so-called “patella-friendly” femoral components. Compared with the traditional components, these modern designs may incorporate several geometric modifications of the femoral component, intended to improve patellar tracking and reduce extensor mechanism-related symptoms. An example of a commonly adopted feature is the lengthening of the intercondylar notch to enhance patellar engagement during flexion so as to reduce the risk of instability or patellar “jumping” to minimize impingement with the superior edge of the femoral box, a common cause of anterior knee pain and patellar clunk syndrome [11]. Other manufacturers adopted a prominent high lateral flange, which has also been introduced to serve as a containment guide, especially during early flexion when the patella begins to engage in the trochlea [12]. This feature is particularly beneficial in patients with preexisting instability or ligamentous laxity. Moreover, patella-friendly designs may also feature a laterally oriented trochlear groove, so as to accommodate also more valgus alignment with a lateralized quadriceps line of force (quadriceps vector—QV). This kind of design may offer a particular advantage when implanted following the KA rationale, since the Q angle could vary in a wider range than in MA. Improving the congruence between the direction of the QV and the patellar motion, patella-friendly design femoral components may minimize the risk of maltracking or lateral subluxation—especially in patients with increased Q angles.
A recent radiographic study has revealed the geometric mismatch between traditional femoral component designs and the restored Q angle with KA [13]. The study demonstrated that a femoral component specifically designed for KA, with a wider trochlear groove, provided better alignment with the QV and greater lateral coverage of the anterior femoral resection. In contrast, clinical evidence remains mixed. Several studies have reported minimal and statistically nonsignificant differences in anterior knee pain, patellar clunk, and clinical outcome scores between traditional femoral components and more modern patella-friendly designs in the short and mid-term [14, 15]. Conversely, at least one long-term study has demonstrated meaningful improvements in clinical scores with patella-friendly designs [12].
Despite these clinical findings, to the best of our knowledge, no in vitro studies have conclusively demonstrated whether a patella-friendly femoral component restores PF kinematics more closely to the prepathologic native knee than a traditional design implant. Furthermore, the effect of varying quadriceps loading conditions on PF kinematics post-TKA remains underexplored.
A deeper understanding of how TKA—and, specifically, femoral component design and altered quadriceps force directions—affects PF biomechanics is essential for improving functional outcomes and reducing complication rates.
The present study aims to address the following key questions:
- How does patellar kinematics change after TKA performed with KA compared with the native knee?
- How do traditional design and patella-friendly design femoral components affect PF tracking?
- What is the effect of altered quadriceps vector direction on patellar motion?
- Does a patella-friendly design implant better preserve physiological patellar tracking under different quadriceps loading conditions?
We hypothesized that patella-friendly femoral components would more closely reproduce native patellofemoral kinematics than traditional designs under variable quadriceps loading conditions.
Materials and methods
Specimens
A total of 12 paired fresh-frozen human cadaveric lower limbs from six donors (Table 1) were used in this study, in accordance with the ethical approval granted by the Bioethical Committee of the University of Bologna (no. 0150450 of 5 June 2023). Specimens were obtained through an international tissue donation program (Anatomy Gift Registry, Hanover, MD, USA). Inclusion criteria were: no history of lower limb fractures or surgeries, no major deformities, and a physically active lifestyle up to the time of death. Donor demographics are summarized in Table 1.Table 1. Details of specimen information and implant assignmentID specimenID donorSideFemoral componentSexAge at death (years)Height (cm)Weight (kg)Femoral component sizeTibial component size1ALeftTraditionalM43180148552RightPatella-friendly553BLeftPatella-friendlyF6116598444RightTraditional445CLeftTraditionalM67188154656RightPatella-friendly657DRightTraditionalM5118857558LeftPatella-friendly559ERightTraditionalM681731184410LeftPatella-friendly4411FRightPatella-friendlyF59170373212LeftTraditional32Mean60176.5108Standard deviation9.29.145.4
Each specimen was prepared and tested following a previously established protocol [16], where the kinematics in the native conditions were investigated in detail. For completeness, a brief summary of the methodology is provided here.
Specimens’ preparation
The specimens were stored at −28 °C sealed in plastic bags when not in use and thawed at room temperature for 24 h prior to testing. During preparation and testing, hydration was maintained through regular water spraying. Skin, subcutaneous fat, and all muscles except the distal quadriceps were removed, preserving the extensor mechanism, including joint capsule, ligaments and quadriceps tendon. The quadriceps tendon was sutured to avoid tearing under controlled loading. The femurs were proximally resected, while the tibias and fibulas were distally resected. Each end was embedded in a cylindrical cement pot, ensuring consistent alignment with the anatomical axes of the femur and tibia [17]. Stainless steel screws were placed into the femur, tibia, and patella for use as landmarks.
Experimental set-up
A custom-built rig was used to evaluate PF kinematics during passive flexion and under simulated quadriceps load. The femur was rigidly fixed, while the tibia was suspended and free to move under gravity. The rig allowed full adjustment of femoral position, ensuring alignment with the anatomical axes and minimizing unwanted torque. Controlled quadriceps tension was applied via static weights connected to the sutured tendon through ropes and pulleys. The direction of the muscle force was modulated through adjustable pulleys mounted to the rig frame. The knee extended under quadriceps tension, while the tibial flexion was induced with a pushing rod applied to the cement pot. This method constrained only flexion, allowing the remaining degrees of motion to result from joint mechanics alone.
Motion tracking was performed using a Vicon optoelectronic system (Vicon Motion Systems Ltd.; nominal accuracy 0.5 mm/0.5°), comprising six Bonita 10 cameras (1024 × 1024 pixels, 250 Hz) and two Vero cameras (2048 × 1024 pixels, 330 Hz), arranged to maximize accuracy and minimize marker occlusion [18]. Reflective marker clusters were attached to the femur, tibia, and patella. A pointer tool with three passive markers was used to digitize the screw positions and anatomical landmarks. Prior to use, the camera system was calibrated, showing a consistent world error of less than 0.07%, which reflects the residual fitting error between the observed positions of the wand and the ideal calibration model.
Implantation

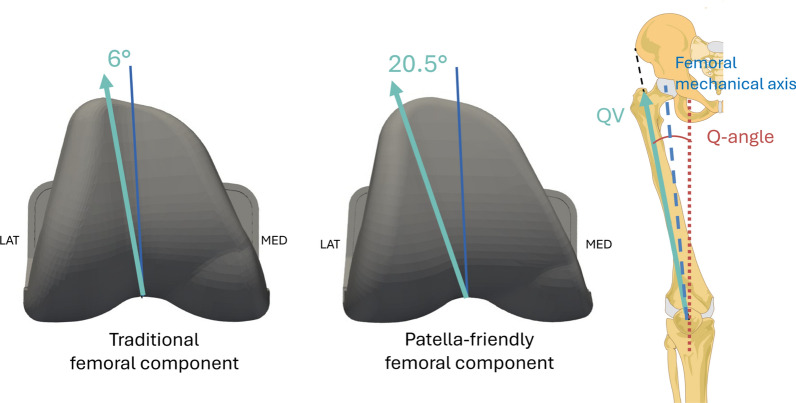

Each specimen underwent TKA using one of the two femoral component designs from the same manufacturer (Medacta International S.A., Castel San Pietro, Switzerland): traditional design (Sphere) or patella-friendly design implant (SpheriKA). Both designs are medial-pivot type. The patella-friendly femoral component used in this study follows a design philosophy aimed at improving PF tracking by accommodating a wider range of Q angles. Compared with the traditional design, which features a trochlear opening of approximately 6° relative to the femoral mechanical axis, the patella-friendly component incorporates a substantially wider lateral opening of 20.5° (Fig. 1). Its geometry also features a more funnel-shaped trochlear groove, intended to facilitate the guided engagement of the patella during knee flexion and better support tracking, particularly under conditions of increased lateral quadriceps pull.Fig. 1. Left: traditional design femoral component with a trochlear opening at 6° to the femoral mechanical axis. Center: patella-friendly design femoral component with a trochlear opening at 20.5°. Right: the reference lines are illustrated: in black the line from the center of the patella to the ASIS, in red the line from the center of the patella to the tibial tuberosity (together forming the Q angle), and in blue the femoral mechanical axis as the line from the center of the knee joint to the center hip joint. Figshare repository (10.6084/m9.figshare.30019984)
Knees were randomly assigned so that each donor received both implant types (one per side), with balanced distribution of right and left limbs across the two groups. Implant sizes were selected to match native femoral anatomy on the basis of preoperative computed tomography (CT) scans, and sizing was kept consistent between the two limbs of each donor (Table 1).
All the surgical procedures were carried out by an orthopedic team experienced in knee surgery. Kinematic alignment was granted, using the GMK Efficiency technique and MyKnee patient-specific cutting guides (Medacta International SA). The guides were designed from preoperative CT scans to restore the native joint lines and the individual Q angle. The only deviation from native geometry involved the tibial slope: for native slopes greater than 5°, the reconstructed slope was set to 5°; otherwise, the native slope was preserved. The patella was not resurfaced.
Testing protocol

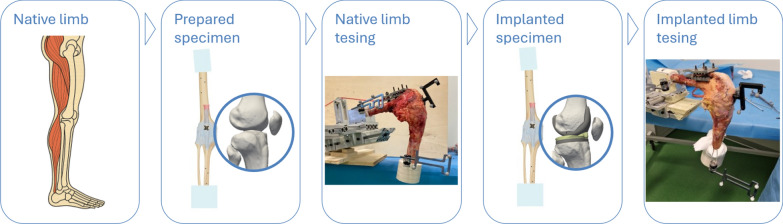

The specimens were tested in both the native and implanted condition (Fig. 2).Fig. 2A schematic of the experimental protocol. Starting with native legs, they were prepared by removing all the soft tissues, except the joint capsule. The prepared specimens were tested. They were then implanted with TKA and tested again with the same protocol. Figshare repository (10.6084/m9.figshare.30019987)

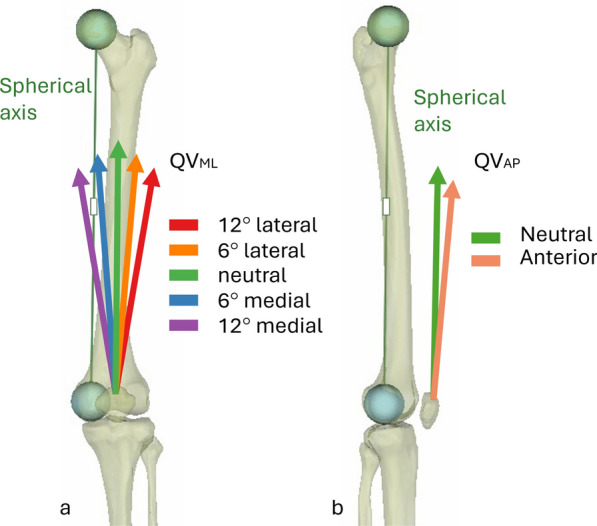

Each knee was tested with ten QV directions, combining five medial–lateral (QV_ML_ in neutral, ± 6°, ± 12°) (Fig. 3a) and two anterior–posterior (QV_AP_ in neutral and + 5° anterior) (Fig. 3b) angles. The simulated variation in quadriceps direction was selected to cover the expected spectrum of Q angle variability, which can span approximately 21° (from ~6° to ~27°). Using a wide range of QV_ML_ orientations, we aimed to reproduce both physiological and pathological conditions, such as strength imbalance of the quadriceps muscle, which is a common condition after TKA [19]. This testing protocol follows the approach adopted in a previous biomechanical study evaluating patellar tracking in the native knee without TKA [16]. The neutral direction was defined as the vector parallel to a line extending from the center of the femoral head to the center of a sphere fitted on the medial femoral condyle, also referred to as the spherical axis [20]. Although the proximal femur was resected for mounting, the center of the femoral head was virtually reconstructed from the pretest CT scan of the intact limb, and the relative position of the femur and QV in the neutral direction was reconstructed with VICON three-dimensional (3D) reconstruction to ensure minimal deviation from the intended position.Fig. 3. Quadriceps load variation of direction in the frontal plane (a) and the sagittal plane (b). In green, the parameters correspond to the reference conditions
Each loading direction was tested at three force magnitudes (QV_load_): 20 N (minimal preload to maintain patellar position), 160 N, and 280 N (simulating two levels of muscle contraction). Thus, a total of 30 tests were performed on each native and on each implanted specimen.
For each test, the starting position was defined as the maximal flexion reached by pushing the tibia. The end position was defined as the maximum extension reached under quadriceps loading, except for the minimal load condition (20 N), where the extension was induced. Each test included three cycles of flexion–extension, followed by a rest period of approximately 1 min.
Imaging and data analysis
CT scans (CT, GE Discovery CT scanner, GE Healthcare, Milwaukee, WI; slice thickness = 0.625 mm, in-plane resolution = 0.781 mm) were acquired at three time points: on the entire limb before starting any specimen preparation, after preparation for testing, and after TKA implantation. The 3D models of the bone surfaces were generated using semi-automatic segmentation (Mimics v25.0, Materialise NV, Leuven, Belgium). Anatomical reference frames were defined on the segmentations obtained from the native leg, on the basis of identifiable landmarks, following established conventions [21].

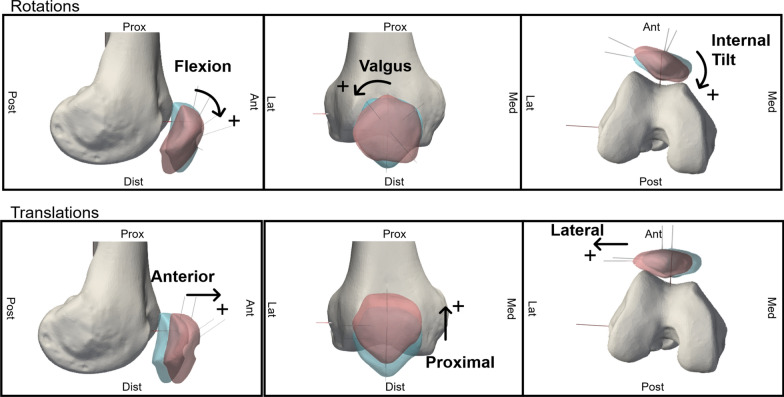

Knee joint motion was analyzed with the proprietary software of the optoelectronic system (Nexus 2.5, Vicon, Oxford, UK), which allowed for the reconstruction of marker trajectories throughout the test sequences. Marker data were transformed from the laboratory coordinate system to anatomical reference frames via a CT-based registration pipeline. Registration was performed using a point-to-surface distance minimization algorithm, both on the bone geometry and on three non-collinear fiducial markers per bone to improve accuracy. After registration, mean distances between fiducial points were measured to generate a distance map, and the registration was considered satisfactory if errors were below 0.5 mm. The complete transformation process is detailed in a previous work [16]. The relative motion of the patella with respect to the femur and of the femur with respect to the tibia were quantified in MATLAB (v2023b, MathWorks Inc.), using the Grood and Suntay convention [22] to describe motion in terms of three rotations and three translations (Fig. 4).Fig. 4. Motion components of the patellofemoral joint of a right leg. Figshare repository (10.6084/m9.figshare.30019969)
Metric
Initially, the comparison of the patella behavior before and after TKA was referred to a single condition, which is considered the reference condition. This is minimal load (20N) and neutral direction in both medial–lateral and anterior–posterior directions (green arrows in Fig. 3). In this condition, patellar tracking was evaluated for all grouped specimens by comparing the native knee with the implanted patella both for the specimens implanted with traditional prostheses and with patella-friendly prostheses.
Subsequently, the influence of varying quadriceps load direction and magnitude on patellar motion was assessed for both native and implanted conditions. To minimize interspecimen variability, the effect of these perturbations was quantified relative to the reference condition of the same specimen. Specifically, in the native knee, each loaded test was compared with the native reference test, while in the implanted knee each loaded test was compared with the implanted reference test. This approach allowed us to isolate the effect of load variations independently of the interspecimen differences in native and implanted states, assessed with the previous analysis.
Finally, given that the patella-friendly design device was specifically intended to address Q angle variability, here simulated by changing QV_ML_, a focused transversal analysis was performed on the influence of QV_ML_ on PF kinematics. Comparisons were made across native knees, traditional design implants, and newer patella-friendly design implants.
Statistical analysis
The distribution of all kinematic variables was assessed using the Shapiro–Wilk test, which indicated a deviation from normality for some degrees of knee flexion. As a result, nonparametric statistical methods were adopted.
In the reference condition, the effect of TKA on patellar kinematics was assessed separately for the two implant designs. Specimens were divided into two groups according to the femoral component implanted: traditional design and patella-friendly design. For each group, both the native and the implanted condition were available, allowing paired comparisons of pre- and postimplantation kinematics within the same design. Statistical analysis was performed using the Wilcoxon signed-rank test at 1° knee flexion intervals, comparing native versus implanted knees within each group. To account for multiple comparisons, p-values were adjusted using the Bonferroni correction, and statistical significance was set at p < 0.05.
To evaluate the effects of quadriceps loading parameters on PF kinematics, we analyzed separately the influence of QV_ML_, QV_load_, and QV_AP_. For each parameter, data were grouped according to its levels while keeping the other parameters unstratified. This procedure was performed both in the native and implanted condition. To minimize interspecimen variability, for each specimen and test the kinematic curve was normalized by subtracting the corresponding specimen-specific reference condition (20 N load, neutral direction). Statistical analysis was then conducted using the Kruskal–Wallis test at 1° knee flexion intervals, with Bonferroni correction (p < 0.05), comparing each test condition to its reference.
To investigate the effect of femoral component design on patellar tracking under different quadriceps loading directions, a linear mixed-effects model was used. Specimens were grouped according to the implanted femoral component (traditional design versus patella-friendly design), and the statistical model assessed differences in PF kinematics between the native and implanted conditions (native as baseline), accounting for quadriceps vector direction (QV_ML_) as a fixed effect (neutral direction as baseline) and specimen identity as a random effect. This approach allowed for the inclusion of repeated measures within specimens and provided a robust evaluation of the interaction between prosthetic design and load direction. The analysis was conducted for all the motion components at 1° intervals of knee flexion. The results were considered significant for p < 0.05.
A summary of the statistical analysis used is reported in Table 2. All analyses were conducted using R (version 4.0.1, http://www.r-project.org).Table 2. Overview of statistical analyses used for each comparisonResearch questionComparisonStatistical testNotes/CorrectionsEffect of TKA on PF kinematics in the reference conditionNative versus implanted (within design)Wilcoxon signed-rank testBonferroni correction;p < 0.05Effect of quadriceps parameters (QV_ML_, QV_AP_, QV_load_)Each parameter level versus reference (QV_ML_ = neutral, QV_AP_ = neutral, QV_load_ = 20N)Kruskal–Wallis testSpecimen-normalized;Bonferroni correction;p < 0.05Effect of QV_ML_ with different implant designsNative kinematic versus implanted kinematic with traditional femoral design versus implanted kinematic with patella-friendly femoral designLinear mixed-effect modelSpecimen as random effect;p < 0.05
Results
Native knee tests were performed correctly on all specimens except specimens 11 and 12, which belonged to the same donor. Tests with QV_ML_ at 12° medial were not performed for these two specimens owing to the risk of damage to the extensor mechanism. The same issue occurred post-TKA in specimens 6, 10, and 11, all implanted with the patella-friendly design.
Specimens that could not complete the 12° medial QV_ML_ tests were excluded only from the analyses of the specific tests that were unperformed. All other test conditions from these specimens were included in the analysis.
In the following presentation of results and discussion, we will focus solely on PF kinematics. Only the graphs of the most significant motion components will be shown, while the complete analysis of all motion components can be found in Supplementary Material 1. Details on tibiofemoral kinematics are provided in Supplementary Material 2.
Comparison between native and implanted knees at the reference condition

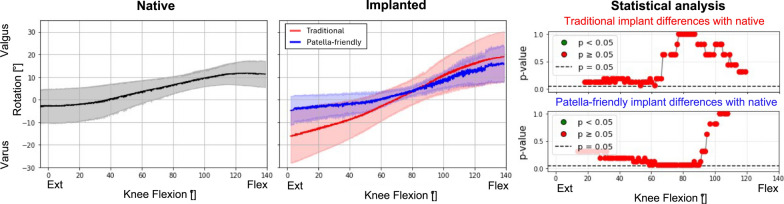

Analysis at the reference condition (20 N quadriceps force, neutral in the frontal and sagittal planes) revealed no significant differences in PF kinematics between the native and implanted knees for both the femoral component designs. However, the curve’s trends showed several interesting features, especially in varus–valgus rotation (Fig. 5), medial–lateral translation (Fig. 6) and anterior–posterior translation (Fig. 7) of the patella. The main results are summarized in Table 3.Fig. 5varus–valgus rotation of the patellofemoral joint before (first column) and after (second column) TKA, grouped according to the design of the femoral component. The third column represents the results of the statistical analysis of the differences between before and after TKA on the top for the traditional implant design and on the bottom for the patella-friendly design (in green the significant values, in red the nonsignificant values, threshold value 0.05). Data include 12 specimens in the native condition and 6 per design in the implanted conditionFig. 6Medial–lateral translation of the patellofemoral joint before (first column) and after (second column) TKA, grouped according to the design of the femoral component. The third column represents the results of the statistical analysis of the differences between before and after TKA on the top for the traditional implant design and on the bottom for the patella-friendly design (in green the significant values, in red the nonsignificant values, threshold value 0.05). Data include 12 specimens in the native condition and 6 per design in the implanted conditionFig. 7Trajectory of the centroid of the patella during testing in the reference condition in two specimens (right and left leg from the same donor) before and after TKA implantation. The top specimen (left leg, image was mirrored to make it easier to compare) was implanted with the traditional design prosthesis; the bottom specimen (right leg) was implanted with the patella-friendly design prosthesis. The trajectory of the patella is always represented for a knee flexion from 0° to 120°Table 3. Summary of the results obtained in the reference conditionPF kinematic motion componentTraditional femoral componentPatella-friendly femoral componentPatellar excursionPatellar excursionFlexion–extension rotationSimilar to nativeSimilar to nativeVarus–valgus rotationHigher patellar excursion than nativeSimilar to nativeInternal–external tiltSimilar to nativeSimilar to nativeAnterior–posterior translationSimilar to nativeSimilar to nativeProximal–distal translationSimilar to nativeSimilar to nativeMedial–lateral translationGreater overall translation; more lateral patella than native in full flexionSimilar range of motion; patella more medially translated than native throughout the flexion knee

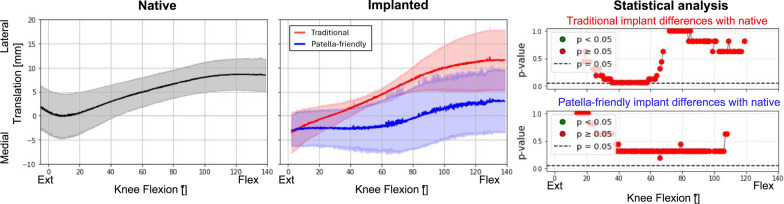

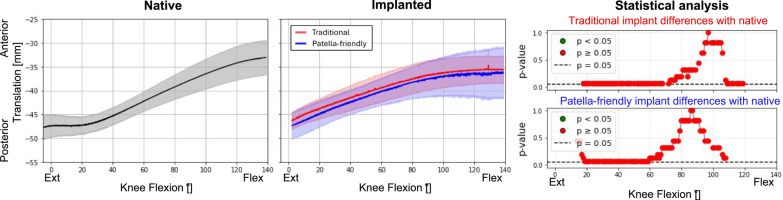

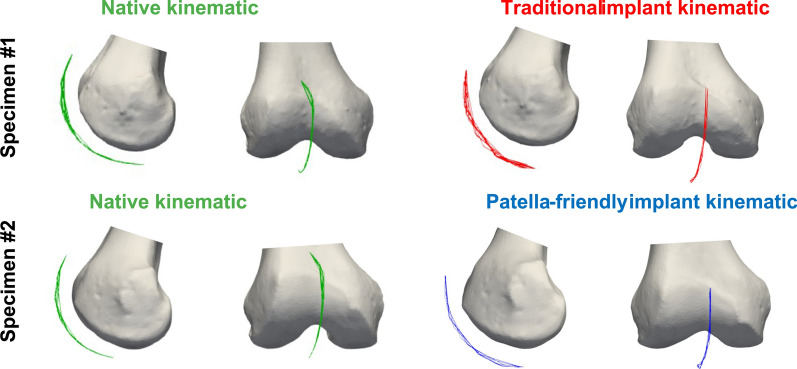

Notably, the characteristic early flexion medial shift of the native patella was reduced with the patella-friendly design and was completely absent with the traditional design (Fig. 6). This altered early tracking was also evident in the patellar centroid trajectory (Fig. 7). Anterior–posterior translation showed a similar trend: native knees translated minimally in early flexion, whereas implanted knees began translating immediately (Fig. 8). Although these differences did not reach statistical significance owing to the relatively high interspecimen variability, the observed pattern suggests a potentially relevant alteration of early patellar tracking following TKA.Fig. 8. Anterior–posterior translation of the patellofemoral joint before (first column) and after (second column) TKA, grouped according to the design of the femoral component. The third column represents the results of the statistical analysis of the differences between before and after TKA, on the top for the traditional implant design and on the bottom for the patella-friendly design (in green the significant values, in red the nonsignificant values, threshold value 0.05). Data include 12 specimens in the native condition and 6 per design in the implanted condition
Influence of quadriceps loading parameters
The effect of quadriceps loading parameters on native PF kinematics was studied in detail in a previous work [16], and it is used here as a comparison for the discussions.

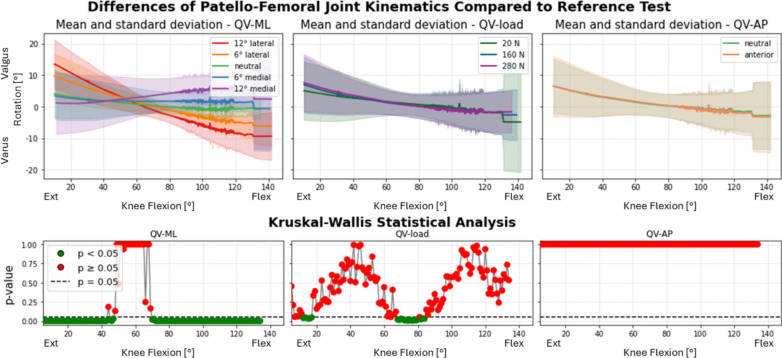

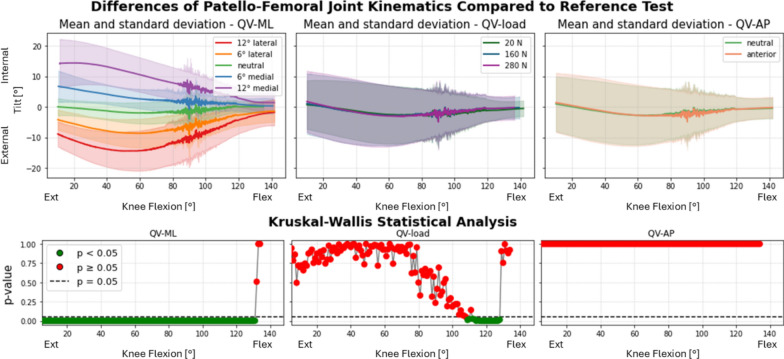

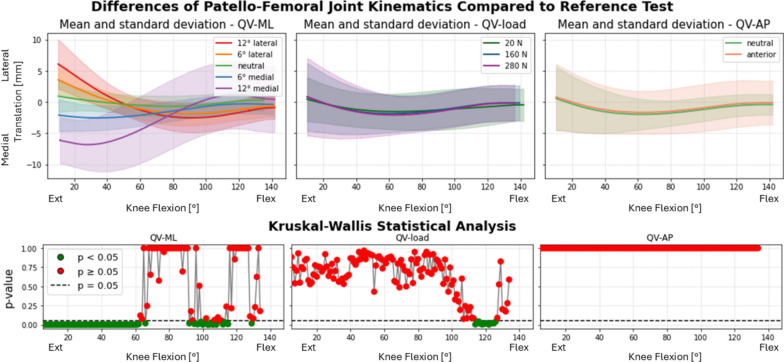

In the knees implanted with both the traditional design and the patella-friendly design components, the medial–lateral direction of the quadriceps vector (QV_ML_) significantly affected varus–valgus rotation (Fig. 9), internal–external rotation (Fig. 10), and medial–lateral translation (Fig. 11) of the patella over the full flexion range.Fig. 9. Varus–valgus rotation of the patella after TKA. Top: absolute values as a function of knee flexion angle (the median and standard deviation between 12 specimens are plotted). Center: differences of all tests compared with the reference test (QV_load_ = 20 N, QV_ML_ = neutral, QV_AP_ = neutral). Left: the difference as a function of QV_ML_, middle QV_load_, right QV_AP_. Bottom: significance of the differences plotted at the center. The p-value trend is plotted for the three parameters (left QV_ML_, middle QV_load_, right QV_AP_); the threshold for significance (p = 0.05) is marked as a dashed line. The significant values are represented in green, the nonsignificant ones in redFig. 10Internal–external tilt of the patella after TKA. Top: absolute values as a function of knee flexion angle (the median and standard deviation between 12 specimens are plotted). Center: differences of all tests compared with the reference test (QV_load_ = 20 N, QV_ML_ = neutral, QV_AP_ = neutral). Left shows the difference as a function of QV_ML_, middle QV_load_, right QV_AP_. Bottom: significance of the differences plotted at the center. The p-value trend is plotted for the three parameters (left QV_ML_, middle QV_load_, right QV_AP_); the threshold for significance (p = 0.05) is marked as a dashed line. The significant values are represented in green, the nonsignificant ones in redFig. 11Medial–lateral translation of the patella after TKA. Top: absolute values as a function of knee flexion angle (the median and standard deviation between 12 specimens are plotted). Center: differences of all tests compared with the reference test (QV_load_ = 20 N, QV_ML_ = neutral, QV_AP_ = neutral). Left shows the difference as a function of QV_ML_, middle QV_load_, right QV_AP_. Bottom: significance of the differences plotted at the center. The p-value trend is plotted for the three parameters (left QV_ML_, middle QV_load_, right QV_AP_); the threshold for significance (p = 0.05) is marked as a dashed line. The significant values are represented in green, the nonsignificant ones in red
In particular, with the leg extended, the patella pulled by the lateral QV_ML_ is in a valgus position, externally tilted and more laterally translated; with the leg flexed, the patella is in a neutral tilt and varus position. Conversely, when the QV_ML_ acts in the medial direction, the patella shifts from a varus, medial position with internal tilt to a valgus position with a neutral tilt. The varus–valgus inversion consistently occurred around 60°, where QV_ML_ ceased to influence patellar behavior, which became more dependent on QV_load_. Around the same angle, all the medial–lateral translations become smaller and independent on the QV_ML_, apart from the 12° medial direction. QV_AP_ and QV_load_ had small or null but statistically significant effects on both rotations and medial–lateral translation.
The trend of all the motion components is detailed in Supplementary Material 1. Furthermore, in Supplementary Material 3, the absolute PF kinematics (without subtracting the reference test in neutral condition) is reported for all tests performed before and after TKA with the traditional design component, grouped by parameters for one specimen (specimen 1). In Supplementary Material 4, the same results are reported for specimen 2, from the same donor but implanted with the patella-friendly design component.
Effect of the quadriceps vector direction on kinematic fidelity to native motion
The greater influence of QV_ML_ justified the focused transversal analysis conducted to assess differences between native and implant PF kinematics when the direction of the quadriceps force varied in the medial–lateral direction.
Overall, PF kinematics was significantly affected by the presence of TKA, with effects varying according to implant design and QV_ML_. The three motion components most affected were medial–lateral translation, varus–valgus rotation, and internal–external tilt. The patella-friendly design better mimicked native PF kinematics compared with the traditional design across all motion components (Table 4).Table 4. Effect of femoral component design on patellar kinematics and quadriceps action across flexionPF kinematic motion componentTraditional femoral componentPatella-friendly femoral componentVarus–valgus rotationAlters patellar rotation throughout knee flexion;Modifies the relationship between patellar motion and quadriceps action at the knee flexedAlters patellar motion throughout knee flexion, but to a lesser extent;Minimal interference with quadriceps actionInternal–external tiltInfluences tilt throughout knee flexion;Alters the quadriceps effect on the patella, especially for medial-directed quadricepsNo significant alteration of tilt;Minimal effect on quadriceps actionMedial–lateral translationSignificantly affects patellar translation throughout flexion except at full extension;Modifies the quadriceps effect when the knee is flexedSignificant effect only for extreme medial quadriceps direction;Otherwise, minimal effect; interaction with quadriceps only for extreme medial direction

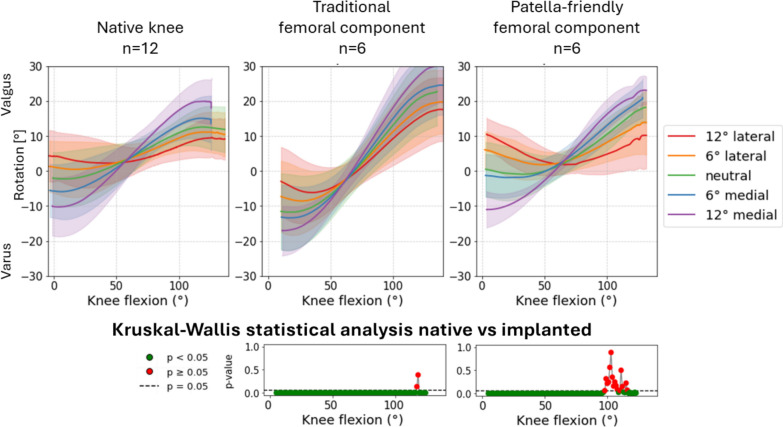

An analysis of patellar varus–valgus rotation (Fig. 12) confirmed that traditional design implants produced a greater rotational excursions than patella-friendly design, deviating more from the native knees behavior.Fig. 12. Varus–valgus rotation as a function of medial–lateral direction of the quadriceps force in native limbs (left), limbs implanted with traditional design TKA (center), and limbs implanted with patella-friendly design TKA (right). Bottom: the results of the mixed effect models statistical analysis for the presence of TKA versus native grouped for the traditional and patella-friendly design femoral component. The significant values are represented in green and the nonsignificant ones in red, and the threshold for significance (p = 0.05) is marked as a dashed line
More generally, the traditional design resulted in significant differences from the native kinematics throughout knee flexion–extension cycles (p < 0.001), as was considered the direction of QV alone. In contrast, the interaction between TKA condition (native versus implanted) and QV direction was significant (p < 0.05) for all directions, but not at full flexion. In the mixed-model analysis, the “interaction” terms tested whether the effect of QV direction on patellar motion differed between native and implanted knees. A significant interaction, therefore, indicates that the implant condition modified the way in which QV direction influenced varus–valgus kinematics, rather than simply adding a constant offset. This indicates that the influence of QV direction on varus–valgus motion was different in native and implanted knees, but at high flexion angles, the effect of the implant alone was predominant.
In the patella-friendly design group, the range of motion was generally more similar to native. However, the presence of TKA alone produced a significant alteration of PF kinematics (p < 0.05). Again, the direction of QV alone strongly influenced the motion throughout the knee flexion (p < 0.001), while few interaction terms reached significance.

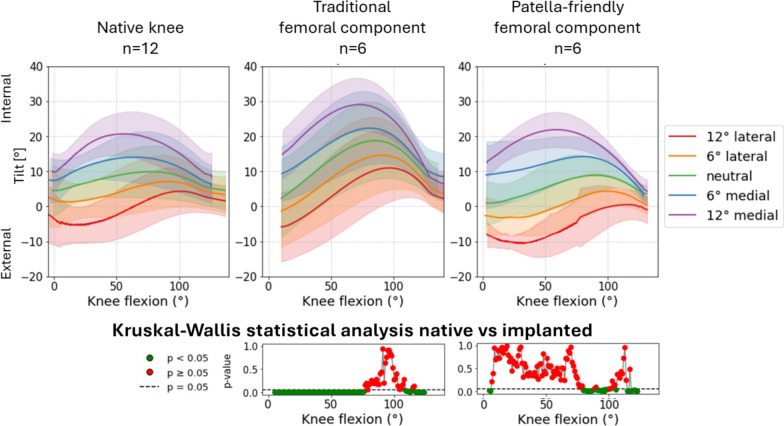

Internal–external tilt of the patella (Fig. 13) was significantly affected by TKA mainly in the traditional implant group, with highly significant differences at all flexion angles (p < 0.001), except at full flexion where the effect was attenuated. Interactions between the presence of prosthesis and medial QV_ML_ (both 6° and 12°) showed high significance throughout most of the cycle, while lateral QV_ML_, only at flexed knee.Fig. 13. Internal–external tilt as a function of medial–lateral direction of the quadriceps force in native limbs (left), limbs implanted with traditional design TKA (center), and limbs implanted with patella-friendly design TKA (right). On the bottom the results of the mixed effect models statistical analysis for the presence of TKA versus native grouped for the traditional and patella-friendly design femoral component. The significant values are represented in green and the nonsignificant ones in red, and the threshold for significance (p = 0.05) is marked as a dashed line
In the patella-friendly design group, the patellar tilt did not differed significantly from native (p > 0.05). Interactions with the direction of the quadriceps load were rarely significant.

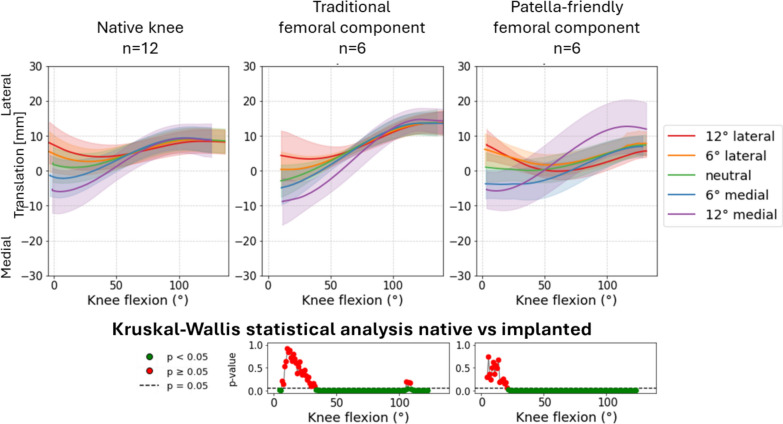

For medial–lateral patellar translation (Fig. 14), the traditional design implant induced systematic deviations across flexion angles over 30° (p < 0.001), with significant interactions at the fully flexed knee for all directions and from mid-flexion for the neutral and medial directions.Fig. 14. Variation of medial–lateral translation as a function of medial–lateral direction of the quadriceps force in native limbs (left), limbs implanted with traditional design TKA (center), and limbs implanted with patella-friendly design TKA (right). On the bottom the results of the mixed effect models statistical analysis for the presence of TKA versus native grouped for the traditional and patella-friendly design femoral component. The significant values are represented in green and the nonsignificant ones in red, and the threshold for significance (p = 0.05) is marked as a dashed line
