Ligand-specific activation trajectories dictate GPCR signalling in cells
Romy Thomas, Pauline S. Jacoby, Chiara De Faveri, Cécile Derieux, Aenne-Dorothea Liebing, Barbora Melkes, Hans-Joachim Martini, Marcel Bermúdez, Claudia Stäubert, Martin J. Lohse, Irene Coin, Andreas Bock
TL;DR
This study shows that different agonists activate the M2 muscarinic receptor in distinct ways, leading to multiple active states with varying abilities to trigger G-protein signaling in living cells.
Contribution
The study reveals that ligand-specific activation trajectories and conformational equilibria underlie GPCR signaling in intact cells.
Findings
Different agonists produce at least four distinct active states of the G-protein-bound M2R.
Each active state has a different ability to activate G proteins.
Activation trajectories involve both common and ligand-specific conformational changes.
Abstract
G-protein-coupled receptors (GPCRs) are key mediators of cell communication and represent the most important class of drug targets1,2. Biophysical studies with purified GPCRs in vitro have suggested that they exist in an equilibrium of distinct inactive and active states, which is modulated by ligands in an efficacy-dependent manner3–11. However, how efficacy is encoded and whether multiple receptor states occur in living cells remain unclear. Here we use genetic code expansion12 and bioorthogonal labelling13–16 to generate a panel of fluorescence-based biosensors for a prototypical GPCR, the M2 muscarinic acetylcholine receptor (M2R). These biosensors enable real-time monitoring of agonist-promoted conformational changes across the receptor’s extracellular surface in intact cells. We demonstrate that different agonists produce equilibria of at least four distinct active states of the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7

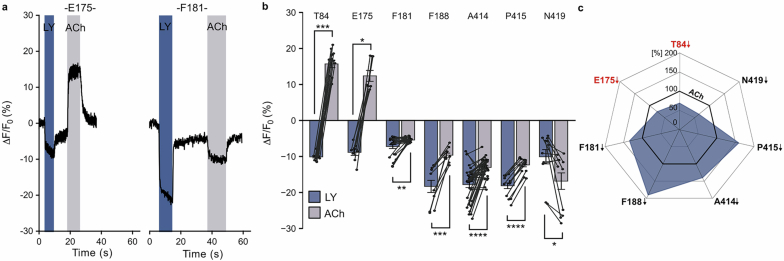

Figure 8
Figure 9Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsReceptor Mechanisms and Signaling · Protein Kinase Regulation and GTPase Signaling · Click Chemistry and Applications
Main
Activation of cell surface receptors by extracellular ligands is the hallmark of cell–cell communication and controls most physiological functions in humans. GPCRs are the largest class of such receptors^1,2^. After ligand activation, GPCRs communicate their message into cells by recruiting and activating intracellular G proteins^17^. GPCR ligands can activate (agonist) or inactivate (antagonist/inverse agonist) receptors to various extents, and this diversity in ligand efficacy is exploited in drug therapy^18^. However, the molecular nature of ligand efficacy and the mechanisms of GPCR activation in living cells remain largely unclear.
Fluorescence spectroscopy studies with purified β_2_-adrenergic receptors^19–22^, and more recent nuclear magnetic resonance (NMR) and double electron–electron resonance (DEER) spectroscopy studies, have established that GPCRs do not operate as simple on/off switches but exist in a dynamic equilibrium of multiple inactive and active states^3,4,23–25^. Partial agonists are believed to stabilize conformational states that are structurally different from those stabilized by full agonists^6,11,26,27^. Likewise, single-molecule Förster resonance energy transfer (FRET) and advanced NMR spectroscopy studies have demonstrated that GPCRs can form distinct signalling complexes with G proteins^28,29^, in which the G proteins may possess different nucleotide affinities^5,7^. Partial agonists have been proposed to stabilize GPCR–G-protein complexes with reduced efficacy towards nucleotide exchange^5,7,30,31^. However, all of these studies were performed in isolated systems using purified receptors reconstituted in detergent micelles or nanodiscs. Whether GPCRs in the physiological environment of a living cell also adopt different conformations and form distinct signalling complexes is essentially unclear.
Here we develop a new type of conformational GPCR biosensors to probe the existence and ligand modulation of such GPCR–G-protein-signalling complexes in intact cells. Using the M_2_R as a model, we demonstrate that agonist activation leads to formation of an equilibrium of distinct GPCR signalling complexes along ligand-specific activation trajectories. These distinct activation trajectories and the relative abundances of these distinct receptor–G-protein complexes dictate the type and extent to which specific G proteins are activated.
Development of GPCR biosensors
GPCR activation results in large-scale receptor conformational changes^1,32–35^. Most prominently, outward movement of the intracellular part of transmembrane domain 6 enables coupling to and activation of G proteins. In turn, G-protein binding promotes conformational changes in the receptor, including its extracellular domains and the ligand-binding pocket, which stabilize agonist binding^1,32,36^. This communication between extra- and intracellular receptor domains represents the principle of allosteric coupling.
To track conformational changes at the extracellular surface of GPCRs at a high spatial resolution, we sought to develop a new type of biosensor. These biosensors should be genetically encoded, equipped with minimally sized labels (similar to those used in NMR, DEER and single-molecule FRET studies on isolated receptors) and retain an unmodified intracellular surface to preserve G-protein coupling. We chose the M_2_R as a model because structural studies have shown that its extracellular conformational changes on activation, including closure of the binding pocket, are the most pronounced among all class A GPCRs of which the structures have been solved^36–39^.
The least invasive way to attach probes to a GPCR at the single-residue resolution in living cells is by bioorthogonal chemistry on genetically encoded chemical anchors^12–15^. In brief, a non-canonical amino acid (ncAA), also known as an unnatural amino acid, carrying an anchor for rapid catalyst-free labelling is incorporated into the receptor using genetic code expansion technology (GCE). The label is then attached post-translationally by ultrarapid strain-promoted inverse electron-demand Diels–Alder cycloaddition, which occurs within minutes without interfering with native functional groups. Using this strategy, we previously demonstrated quantitative labelling of GPCRs on the live cell surface^40^.

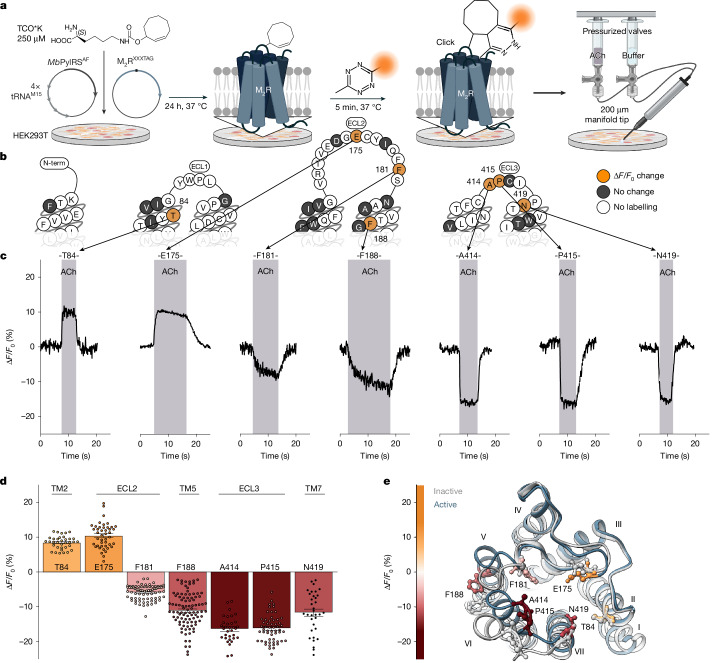

We screened the entire extracellular surface of the M_2_R to identify positions at which the click-ncAA trans-cyclooct-2-ene lysine (TCOK)^41^ was efficiently incorporated and yielded robust labelling with a cell-impermeable, tetrazine-conjugated cyanine dye (Tet–Cy3) (Fig. 1a). Of 72 receptor mutants, 25 displayed good cell surface expression and labelling (Extended Data Fig. 1). The other 47 constructs were not expressed, not trafficked to the cell surface or showed no labelling at all (Fig. 1b and Supplementary Fig. 1). As a control, labelling in the absence of TCOK produced no fluorescence (Supplementary Fig. 2).Fig. 1. An extracellular single-colour conformational GPCR biosensor panel.a, Genetic incorporation of a ncAA (TCOK) and bioorthogonal labelling of M_2_R with Tet–Cy3 (Methods). Cells expressing biosensors are stimulated by continuous pressurized application of agonist (ACh) or buffer through a manifold tip. Created in BioRender. Thomas, R. (2025) https://BioRender.com/loxqlqf. b, Snake plot of M_2_R indicating all positions that were robustly labelled (orange and grey) and showed activation-related changes in fluorescence intensity (orange). The numbers are the residue numbers. Positions that could not be labelled are indicated in white. ECL1, extracellular loop domain 1; ECL2, extracellular loop domain 2; ECL3, extracellular loop domain 3. c, Representative changes in fluorescence intensity (ΔF*/F0) were recorded over time from several individual HEK293T cells expressing M_2_R biosensors labelled at the indicated amino acid positions. Cells were superfused with 1 mM ACh. The shaded areas indicate the duration of agonist addition, and the unshaded areas indicate agonist washout with buffer. d, Mean fluorescence intensity changes (ΔF/F0) of all seven agonist-sensitive biosensors after activation with 1 mM ACh. Positive values indicate an increase in fluorescence; negative values indicate a decrease after ACh superfusion. Data are mean ± s.e.m., with each datapoint representing a single cell. M_2_R^84^ (35 cells examined over 17 independent experiments), M_2_R^175^ (44, 11), M_2_R^181^ (76, 9), M_2_R^188^ (96, 15), M_2_R^414^ (33, 7), M_2_R^415^ (56, 9), M_2_R^419^ (34, 12). TM2, transmembrane domain 2; TM5, transmembrane domain 5; TM7, transmembrane domain 7. e, Top view of the X-ray crystal structure of the active M_2_R (blue; Protein Data Bank (PDB): 4MQS). The positions of incorporated TCOK yielding GPCR biosensors are colour coded according to the gradient, representing the mean ACh-induced changes in fluorescence intensity (ΔF*/F0). For comparison, the X-ray crystal structure of the inactive M_2_R (PDB: 3UON) is shown in grey. The roman numerals indicate the number of the transmembrane helix. The constructs used were SP-M_2_R^XXXTAG^ (Methods).Source data
Next, we applied the endogenous M_2_R agonist acetylcholine (ACh) to single cells expressing one labelled construct each using a superfusion device (Fig. 1a). Seven of the 25 Cy3-TCO*K-M_2_R constructs exhibited robust and reproducible changes in their fluorescence emission intensities (Fig. 1c,d), therefore serving as reporters for M_2_R activation. We quantified the labelling efficiency at these M_2_R biosensors using fluorescence correlation spectroscopy^40,42^. Four M_2_R biosensors showed quantitative Cy3 labelling (positions Thr84 (M_2_R^84^), Glu175, Ala414 and Pro415) and three reached labelling efficiencies of 60–80% (positions Phe181, Phe188 and Asn419; Extended Data Fig. 1). Importantly, all seven M_2_R biosensors robustly activated G proteins and internalized after ACh exposure, indicating full functionality (Extended Data Fig. 2). Notably, labelling position Ala414 with either the rhodamine dye TAMRA or the cyanine dye Cy5 also resulted in M_2_R activation biosensors (Supplementary Fig. 3).
Cyanine fluorophores such as Cy3 are environmentally sensitive^23,42,43^. We propose that the observed fluorescence changes arise from local microenvironmental changes (such as transitions to either more hydrophobic or to more polar microenvironments) caused by ligand-promoted receptor conformational changes. Mapping the position of ACh-sensitive labels onto high-resolution structures of the inactive and active M_2_R (Fig. 1e) shows that all positions featuring ACh-promoted fluorescence changes lie in extracellular receptor domains that move during receptor activation^37–39^. All seven biosensors retain the ability to respond to the positive allosteric modulator LY2119620 (ref. ^38^), which binds at the extracellular allosteric binding site (Extended Data Fig. 3). Thus, we infer that the M_2_R biosensors report on activation-related conformational changes of the receptor. Supporting this, binding of the antagonist N-methylscopolamine did not induce fluorescence changes at any of these positions (Extended Data Fig. 2).

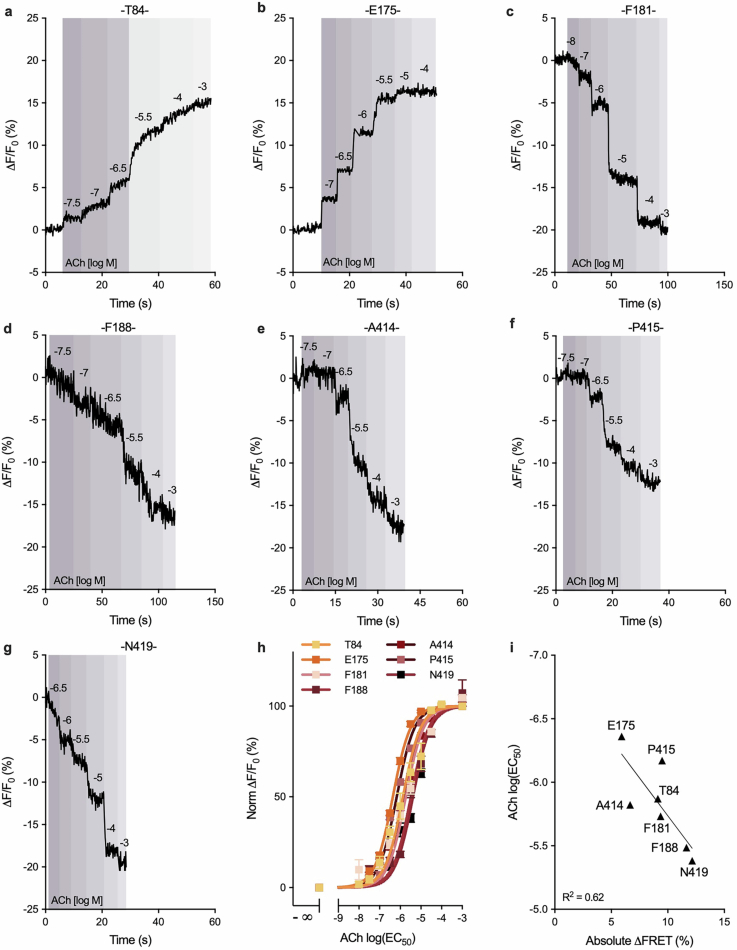

ACh-stimulated fluorescence changes varied in both direction (fluorescence increase or decrease) and amplitude (ΔF/F0, −16% to +10%) (Fig. 1c,d and Supplementary Table 1). All changes were strictly dependent on the presence of ACh and returned to the baseline after ACh washout (Fig. 1c). Moreover, ACh-mediated changes in fluorescence were also concentration dependent, with potencies matching reported ACh affinity values (around 1–6 µM; Extended Data Fig. 4), which further supports the specificity of the observed effects.
Ligand-unique conformational states of the M2R
The M_2_R biosensor panel enables monitoring receptor conformational changes across the entire extracellular surface (Fig. 1e) while leaving the intracellular domains, which couple to G proteins, untagged. This makes it an ideal tool for investigating the existence of distinct, ligand-specific GPCR active states and their coupling to G proteins in intact cells. To study agonist effects, we selected M_2_R agonists differing in their reported efficacies in classical pharmacological assays: the endogenous full agonist ACh, the superagonist iperoxo^39,44–46^, and the partial agonists arecoline and pilocarpine. All of the agonists stimulated G-protein activation at all seven biosensors in a concentration-dependent manner, similar to wild-type (WT) M_2_ receptors (Extended Data Fig. 5). We noted that higher agonist potency tended to correlate with a smaller dynamic range of the functional response (Extended Data Fig. 4i). This would be compatible with the notion that some biosensors might display slightly different spontaneous activity compared with WT M_2_ receptors. Only at the M_2_R^181^ biosensor were all of the agonists less potent and less efficacious. Nonetheless, the rank order of agonist potencies and efficacies at all biosensors matched WT receptors (Extended Data Fig. 5 and Supplementary Table 2). This demonstrates that conformational data obtained with the panel of biosensors can be projected to WT receptors.

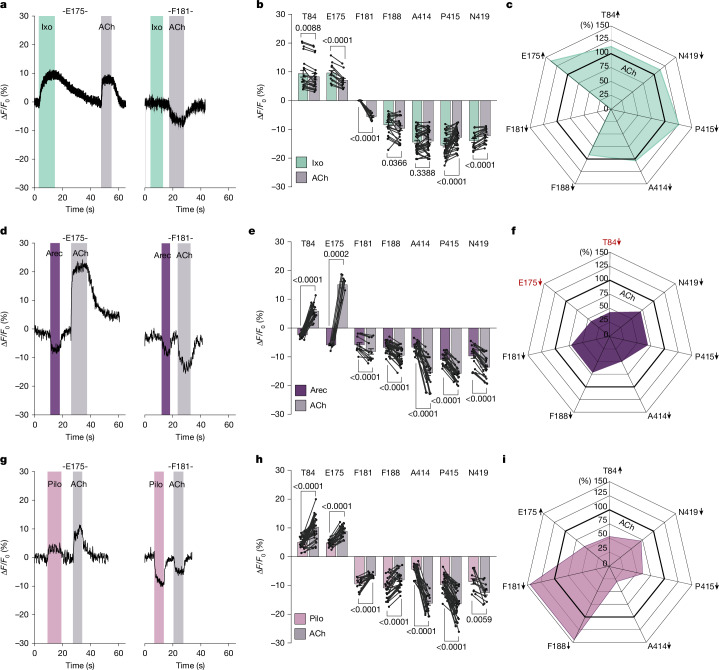

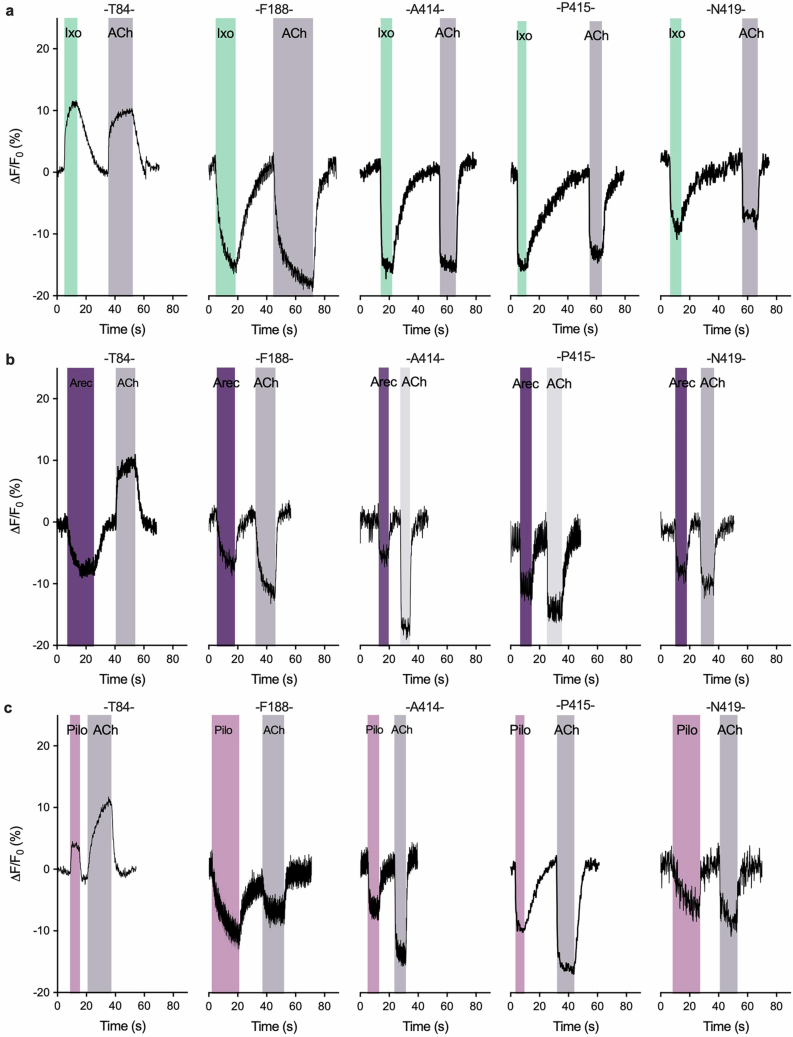

Stimulation of the M_2_R biosensor family with a saturating concentration of iperoxo changed fluorescence emission at six out of the seven ACh-responsive M_2_R biosensors (Fig. 2 and Extended Data Fig. 6). Compared with ACh, iperoxo produced larger responses at five biosensors (M_2_R^84^, M_2_R^175^, M_2_R^414^, M_2_R^415^ and M_2_R^419^), but smaller fluorescence changes at the M_2_R^188^ biosensor. Notably, the M_2_R^181^ biosensor did not respond at all (Fig. 2a,b and Extended Data Fig. 6) at any of the sequences of agonist addition (Supplementary Fig. 4). Absolute ΔF/F0 amplitudes after iperoxo exposure (Fig. 2b and Supplementary Table 1) were normalized to ACh at each M_2_R biosensor and plotted in a radar plot (Fig. 2c), irrespective of signal direction. We define this visualization of agonist-specific conformational changes of the receptor as the ligand’s conformational fingerprint (Fig. 2c).Fig. 2. The M_2_R biosensor panel uncovers agonist-specific conformational fingerprints in intact cells.a,d,g, Representativechanges in fluorescence intensity (ΔF/F0) recorded in real-time from single HEK293T cells expressing the indicated M_2_R biosensors superfused with 100 µM iperoxo (Ixo; a),1 mM arecoline (Arec; d) and 10 mM pilocarpine (Pilo; g), followed by 1 mM ACh after wash out with buffer, respectively. Application of different agonists is indicated by shaded areas in different colours. Non-shaded areas indicate buffer application. b,e,h, The mean changes in fluorescence intensity (ΔF/F0) of all seven biosensors after activation with the indicated ligand (iperoxo (green; b), arecoline (purple; e) and pilocarpine (pink; h)) after wash out with buffer. Positive values indicate an increase in fluorescence; negative values indicate a decrease after agonist superfusion. Connected datapoints represent data retrieved from the same cell. Data are mean ± s.e.m., with each datapoint representing a single cell (Supplementary Table 1). M_2_R^84^ (iperoxo (21 cells examined over 7 independent experiments), arecoline (25, 6), pilocarpine (39, 7), M_2_R^175^ (iperoxo (13, 7), arecoline (9, 4), pilocarpine (25, 5)), M_2_R^181^ (iperoxo (12, 5), arecoline (13, 7), pilocarpine (17, 7)), M_2_R^188^ (iperoxo (21, 5), arecoline (35, 6), pilocarpine (27, 6)), M_2_R^414^ (iperoxo (38, 12), arecoline (26, 11), pilocarpine (22, 3)), M_2_R^415^ (iperoxo (40, 9), arecoline (26, 5), pilocarpine (43, 10)) and M_2_R^419^ (iperoxo (19, 9), arecoline (22, 6), pilocarpine (12, 6)). For b, e and** h**, P values were calculated using two-tailed paired t-tests. c,f,i, The mean changes in fluorescence intensity (ΔF/F0) in response to iperoxo (green; c), arecoline (purple; f) and pilocarpine (pink; i), normalized to ΔF/F0 of 1 mM ACh in the same cell. The bold line indicates ACh (set to 100%). The direction of ΔF/F0 is indicated by arrows: increase (up), decrease (down). For f, the change of direction in fluorescence emission for M_2_R^84^ and M_2_R^175^ after arecoline stimulation is highlighted in red. The constructs used were SP-M_2_R^XXXTAG^ (Methods).Source data
The conformational fingerprints of arecoline (Fig. 2f) and pilocarpine (Fig. 2i) differed markedly from those of ACh and iperoxo. Arecoline induced smaller fluorescence changes compared with ACh at all positions (Fig. 2d,e, Extended Data Fig. 6 and Supplementary Table 1). Notably, arecoline activation of M_2_R^84^ and M_2_R^175^ biosensors caused a decrease in fluorescence, in contrast to the increase observed with ACh (Fig. 2d,e and Extended Data Fig. 6). For pilocarpine, M_2_R^181^ and M_2_R^188^ showed more-pronounced changes in fluorescence compared with ACh, while all of the other biosensors reported significantly smaller changes than with ACh (Fig. 2g,h and Extended Data Fig. 6).
Comparison of the radar plot conformational fingerprints (Fig. 2c,f,i) enables general conclusions: conformational changes at most agonist-sensitive receptor positions (84, 175, 414, 415, 419) scale directly with agonist efficacies, and are largest with the superagonist iperoxo. By contrast, conformational changes at M_2_R^181^ and M_2_R^188^ biosensors are inversely correlated with agonist efficacies, and are largest with the low-efficacy partial agonist pilocarpine (Fig. 2i). At M_2_R^181^, the superagonist iperoxo does not induce changes in fluorescence intensity at all (Fig. 2c).
These data cannot be explained by a simple two-state model of one inactive and one active receptor conformation. Instead, they suggest the existence of an ensemble of distinct active states of the M_2_R in intact cells, consistent with a recent NMR study on purified M_2_R receptors^24^.
Distinct receptor–G-protein complexes
The observation that the extent of conformational changes elicited by agonist activation scales directly with agonist efficacy at some receptor positions but inversely at others suggests that the M_2_R adopts multiple active states in living cells, which differ in their ability to stimulate G-protein signalling. To probe the existence of such distinct M_2_R–G-protein complexes, we manipulated the equilibrium between different states by increasing G-protein coupling. To shift the receptor equilibrium toward a high-efficacy, high-affinity M_2_R–G-protein complex, we overexpressed the Gα_oA_(G203T) mutant. This Gα mutant features low affinity towards both GDP and GTP^47,48^, and its coupling to agonist-bound receptors yields stable nucleotide-free receptor–Gα_oA_-protein complexes^48^. Indeed, comparison of maximal fluorescence changes (relative to ACh) between the individual agonists after Gα_oA_(G203T) overexpression reveals differences to the efficacy rank order of agonists in the presence of the endogenous G-protein repertoire of the cell (Supplementary Fig. 6). This is direct evidence that the equilibrium of different receptor states is altered by the presence of the Gα_oA_(G203T) mutant.
We compared relative fluorescence changes across all seven M_2_R biosensors in presence of the endogenous G-protein repertoire of HEK293 cells and after Gα_oA_(G203T) overexpression (Fig. 3). All of the M_2_R biosensors except for the biosensor M_2_R^419^ (Supplementary Fig. 5) were sensitive to Gα_oA_(G203T) overexpression, but the responses strongly depended on both the ligand and the tested biosensor (Fig. 3). According to the principle of allosteric coupling, the conformational changes of the M_2_R induced by coupling to Gα_oA_(G203T) are expected to mirror those initiated by agonist binding from the extracellular side. With G-protein overexpression, these changes occur before agonist addition. As a result, agonist stimulation of biosensors indicating the formation of the high-efficacy M_2_R–G-protein complex would result in reduced or no changes in fluorescence emission intensities.Fig. 3M_2_ receptor activation results in an equilibrium of distinct M_2_R–G-protein signalling complexes in intact cells.Comparison of ligand-promoted changes in fluorescence intensity (ΔF/F0) of the M_2_R biosensors labelled with Tet–Cy3 at the indicated positions and stimulated with 1 mM ACh (grey), 100 µM iperoxo (green), 1 mM arecoline (purple) or 10 mM pilocarpine (pink) at endogenous G-protein levels or after Gα_oA_(G203T) overexpression. a,b,d,e,g,h, Representative traces of the ΔF/F0 of single cells expressing the indicated M_2_R biosensors (M_2_R^175^ (a), M_2_R^415^ (b), M_2_R^181^ (d), M_2_R^188^ (e), M_2_R^84^ (g) and M_2_R^414^ (h)) at endogenous G-protein levels (left) or after Gα_oA_(G203T) overexpression (right). The shaded areas indicate the duration of agonist superfusion, and the unshaded areas represent buffer application. c,f,i, Statistical summary of the normalized (norm.) changes in ΔF/F0 obtained from experiments in a and b (c),** d** and** e** (f), and** g** and h (i). Shown are the ligand-dependent differences in ΔF/F0 after Gα_oA_(G203T) overexpression (Gmut) normalized to the mean ΔF/F0 of endogenous G-protein levels (Gendo, set to 0%). Negative values indicate decreases in ΔF/F0 after Gα_oA_(G203T) overexpression, and positive values indicate increases in ΔF/F0 after Gα_oA_(G203T) overexpression. Data are mean ± s.e.m., with each datapoint representing a single cell. M_2_R^84^ (iperoxo (15 cells examined over 5 independent experiments), ACh (14, 7), arecoline (10, 3), pilocarpine (20, 4)), M_2_R^175^ (iperoxo (11, 3), ACh (10, 3), arecoline (9, 3), pilocarpine (11, 3)), M_2_R^181^ (iperoxo (29, 4), ACh (41, 7), arecoline (34, 4), pilocarpine (20, 3)), M_2_R^188^ (iperoxo (16, 3), ACh (26, 4), arecoline (13, 3), pilocarpine (17, 3)), M_2_R^414^ (iperoxo (12, 4), ACh (31, 9), arecoline (10, 3), pilocarpine (16, 3)), M_2_R^415^ (iperoxo (28, 5), ACh (21, 6), arecoline (19, 5), pilocarpine (10, 3)). For c,** f** and i, P values were calculated using unpaired two-tailed t-tests. The constructs used were SP-M_2_R^XXXTAG^ (Methods). The diagram in a was created in BioRender. Thomas, R. (2025) https://BioRender.com/loxqlqf.Source data

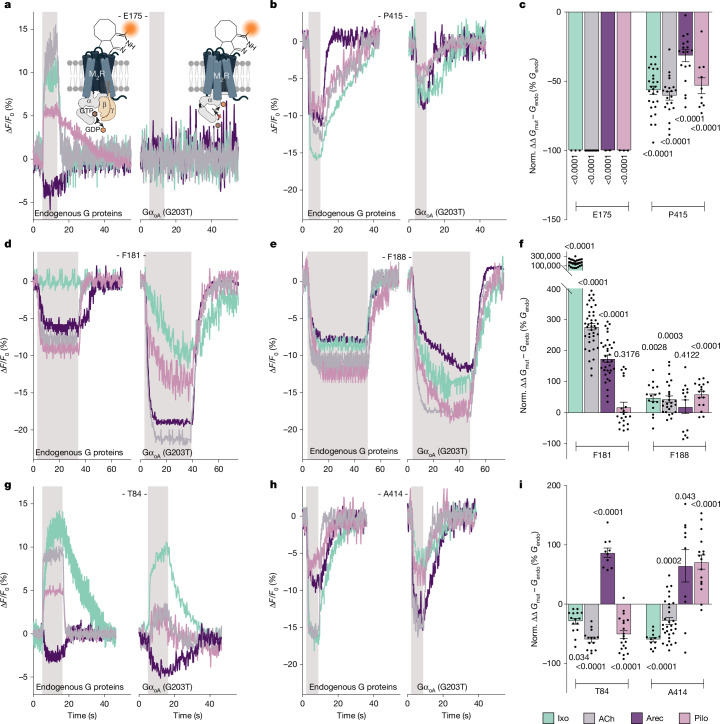

Most prominently, and for all agonists tested, Gα_oA_(G203T) overexpression resulted in a complete loss of agonist-induced changes in fluorescence at the M_2_R^175^ biosensor (Fig. 3a,c). At many class A GPCRs, formation of the high-affinity complex between a nucleotide-free G protein and the receptor entails conformational rearrangements of extracellular receptor domains^1,8,32,36^. In the extreme case, this can result in a complete closure of the ligand-binding pocket, which limits agonist association and dissociation, therefore increasing the lifetime of the high-affinity complex^36–39^. Although not providing direct atomic-level structural insights, our data strongly suggest that the biosensor M_2_R^175^ indicates conformational changes of the extracellular loops involved in the formation of the high-affinity receptor–G-protein complex. In support of this conclusion, Ala mutation of Tyr426, a key residue involved in this lid closure, led to a complete loss of ACh-induced fluorescence changes in the M_2_R^175^ biosensor (Extended Data Fig. 7). Furthermore, this is corroborated by the fact that, under endogenous G-protein levels, the fluorescence changes at the M_2_R^175^ biosensor increase with the efficacy of the agonist (Fig. 2). Similar to the loss of signal at the M_2_R^175^ biosensor, the changes in fluorescence at the M_2_R^415^ (Fig. 3b) were reduced by around 30–80% in the presence of overexpressed Gα_oA_(G203T) (Fig. 3b,c).
By contrast, for most ligands, Gα_oA_(G203T) overexpression resulted in a significant increase in fluorescence emission at M_2_R^181^ (Fig. 3d) and M_2_R^188^ (Fig. 3e,f) compared with the endogenous G-protein condition. This suggests that the conformational changes induced by receptor coupling to Gα_oA_(G203T) at these positions are different from those induced by the agonists alone. This effect was most pronounced for the high-efficacy agonists than for the partial agonists (Fig. 3f). Notably, although iperoxo did not induce any response at the M_2_R^181^ biosensor at endogenous G-protein levels (Fig. 2a–c), it did so in the presence of Gα_oA_(G203T) (Fig. 3d–f). Thus, the increase in agonist-promoted changes in fluorescence at M_2_R^181^ (Fig. 3d) and M_2_R^188^ (Fig. 3e) in the presence of overexpressed Gα_oA_(G203T) likely unmasks the stabilization of a M_2_R–G-protein complex that is distinct from the one revealed by the loss or decrease of responses at the M_2_R^175^ and M_2_R^415^ biosensors.
To determine whether this distinct complex may have low signalling efficacy, we increased the abundance of GDP-bound M_2_R–G-protein complexes by pretreating the cells with pertussis toxin (PTX) overnight. Through ADP-ribosylation of Gα_i/o_ subunits, PTX locks the α subunits of endogenous G_i/o_ proteins into an inactive GDP-bound state^49^, which hampers productive coupling between receptors and G proteins. In contrast to the effects of Gα_oA_(G203T) overexpression, pretreatment with PTX completely abolished the fluorescence intensity changes at the M_2_R^181^ biosensor induced by ACh and arecoline and significantly decreased the pilocarpine-promoted effect (Extended Data Fig. 8). On the basis of these findings, we propose that these biosensors indicate a low-efficacy, likely GDP bound, M_2_R–G-protein signalling complex. This is consistent with biophysical experiments using purified proteins in vitro, which suggest the existence of such low-efficacy, GDP-bound receptor complexes at agonist-bound β_2_ARs^5,11,50^, A_2_A receptors^6,7,31^ and μORs^51^.
The effects of Gα_oA_(G203T) overexpression on two other biosensors, M_2_R^84^ and M_2_R^414^, were more heterogeneous and varied strongly with the efficacy of the ligand. Specifically, at M_2_R^84^, Gα_oA_(G203T) overexpression reduced ligand-promoted fluorescence changes compared with endogenous G-protein levels for all of the tested agonists except arecoline (Fig. 3g,i). The unique behaviour of arecoline is further highlighted by the experiments at endogenous G-protein levels (Fig. 2d,e), where arecoline stimulation resulted in fluorescence intensity changes in the opposite direction compared with all of the other tested ligands.
The M_2_R^414^ biosensor responded to agonist exposure in a strongly ligand efficacy-dependent manner when the Gα_oA_(G203T) mutant was overexpressed (Fig. 3h,i). Similar to the effects observed with the M_2_R^84^, M_2_R^175^ and M_2_R^415^ biosensors, ACh- and iperoxo-promoted fluorescence changes were diminished relative to endogenous G-protein levels, whereas those of the partial agonists arecoline and pilocarpine were increased (Fig. 3h,i).
In summary, the Gα_oA_(G203T) overexpression data suggest the existence of at least two functionally distinct M_2_R–G-protein complexes at steady state.
Kinetics of the formation and dynamics of M2R–G-protein complexes
To assess whether evidence for distinct M_2_R–G-protein complexes can also be inferred from the kinetics of the various biosensors, we analysed the time course of their agonist-promoted fluorescence changes. The apparent on-rates of the fluorescence changes promoted by the high-efficacy agonists ACh and iperoxo at the six G-protein sensitive M_2_R biosensors lie in the range of 170–2,700 ms (Extended Data Fig. 9a) and 340–3,200 ms (Extended Data Fig. 9b), respectively (Supplementary Table 3). These on-rates are much slower than those obtained with previous intracellular GPCR biosensors (on-rates ≈ 30–50 ms) that were used to monitor activation kinetics^52^. Importantly, the on-rates for the extracellular GPCR biosensors described here agree very well with the kinetics of GPCR-mediated G-protein activation (on-rates ≈ 500–1,000 ms)^52^. Consistent with this, overexpression of Gα_oA_(G203T) further increases the apparent on-rates for the vast majority of agonists and biosensors (Extended Data Fig. 9 and Supplementary Table 3). Thus, the conformational changes that we record at the extracellular surface of the receptor probably result from intracellular G-protein coupling, further corroborating that our panel of GPCR biosensors monitors conformational changes in GPCR–G-protein signalling complexes.
By inspecting these rates more closely, we can distinguish two groups of biosensors: one group comprising the M_2_R^84^, M_2_R^414^, M_2_R^415^ and M_2_R^175^ biosensors, which displayed the fastest on-kinetics between 160–530 ms (for ACh) and 340–1,000 ms (for iperoxo), and the other group including the M_2_R^181^ and M_2_R^188^ biosensors, with apparent on-rates of more than 1 s (for ACh) and approximately 3 s (for iperoxo at M_2_R^188^) (Extended Data Fig. 9a,b). Notably, iperoxo appeared to divide the group of M_2_R^84^, M_2_R^414^, M_2_R^415^ and M_2_R^175^ biosensors further into two subgroups (Extended Data Fig. 9b).
Different kinetic patterns were observed when the biosensors were activated with the partial agonists arecoline and pilocarpine. Specifically, on-rates after activation with arecoline yielded three groups of M_2_R biosensors: fast biosensors (M_2_R^84^, M_2_R^175^ and M_2_R^415^; on-rate ≈ 300 ms), an intermediate biosensor (M_2_R^414^; on-rate ≈ 900 ms) and slow biosensors (M_2_R^181^ and M_2_R^188^; on-rate ≈ 2 s) (Extended Data Fig. 9c and Supplementary Table 3). Finally, kinetic analysis of pilocarpine-stimulated conformational changes revealed two groups of M_2_R biosensors, which reported receptor conformational changes on significantly different timescales. As seen with ACh and iperoxo, pilocarpine triggered fast conformational changes at the M_2_R^175^, M_2_R^414^ and M_2_R^415^ biosensors with apparent on-rates between 180 and 330 ms (Extended Data Fig. 9d). However, in contrast to what was observed with all other agonists, pilocarpine-stimulated conformational changes reported by M_2_R^84^ occurred on the same slow timescale as those reported by M_2_R^181^ and M_2_R^188^ (Extended Data Fig. 9d).

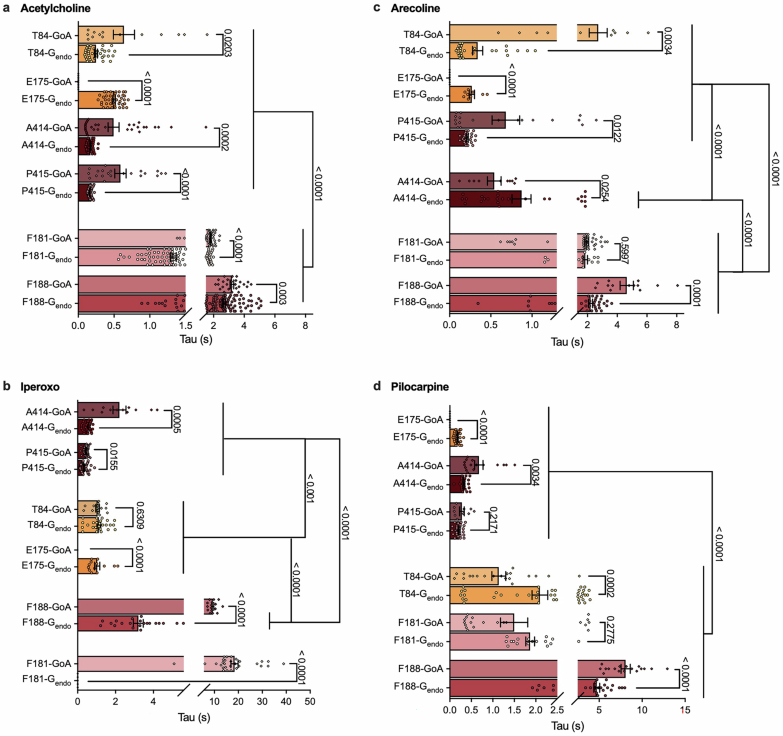

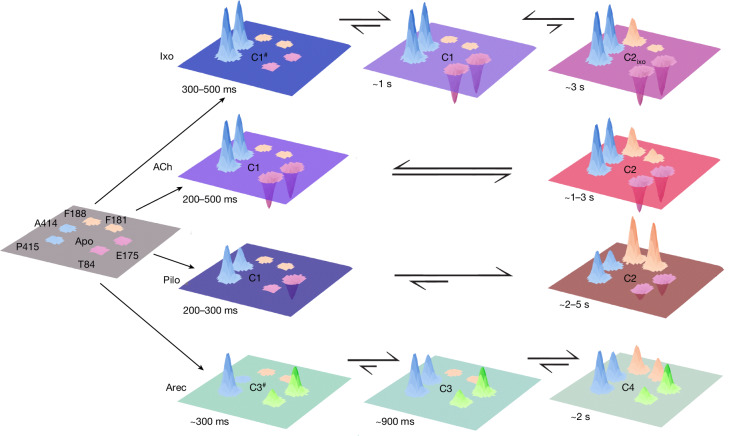

Overall, the kinetic analysis of receptor conformational changes (Extended Data Fig. 9) yielded the same groups that we identified by modulating the activity state of the G protein (Fig. 3): the fast responders include M_2_R^175^ and M_2_R^415^ sensors, which report on the formation of the high-efficacy complex, whereas M_2_R^181^ and M_2_R^188^, which indicate the formation of the low-efficacy complex, responded slower. This strongly corroborates the notion that the activated M_2_R can form a minimum of two G-protein signalling complexes in intact cells that differ in their signalling efficacies and suggests that these complexes form at different timepoints. Moreover, the patterns of on-rates suggest that these complexes form along different activation trajectories depending on the type of agonist. In the case of ACh, iperoxo and pilocarpine, activation of the receptor results first in the formation of a high-efficacy GPCR signalling complex (complex 1, C1), primarily indicated by increases in fluorescence at position 175 (and fluorescence decreases at positions 414 and 415) (Figs. 2–4). This process takes about 200 ms to 1 s, depending on the agonist (Fig. 4 and Extended Data Fig. 9). A second, low-efficacy, GPCR signalling complex (C2) forms then after around 2–5 s and is indicated by decreases in fluorescence at positions 181 and 188 (Fig. 4). Modulation of the activity state of the G protein (Fig. 3) has clearly demonstrated that C1 and C2 co-exist in an equilibrium; however, it remains unclear whether C2 develops from C1 or whether C1 and C2 form in parallel.Fig. 4. Ligand-specific activation trajectories and equilibria of M_2_R–G-protein signalling complexes.Schematic three-dimensional representation of the time-resolved, agonist-mediated formation of GPCR signalling complexes in intact cells. The planes illustrate the receptor’s extracellular surface, and the numbered positions indicate the six biosensors that were sensitive to G-protein modulation (Fig. 3). Agonist-promoted changes in fluorescence are shown as peaks. The mean fluorescence changes (Fig. 2) define the height of each peak. For better visualization, the direction of fluorescence changes was inverted (that is, fluorescence decreases are shown as increasing peaks). Peaks from the same group of biosensors are shown in the same colour. The colour of each plane is the sum of the colours of all peaks in that plane. This representation yields unique colours that enable visual discrimination between ligand-specific receptor–G protein signalling complexes. For simplification, the apo state is depicted in grey and does not result from the sum of peak colours. The positions of the conformational equilibria at steady state are indicated by the equilibrium arrows. Indicated times are apparent on-rates of agonist-specific fluorescence changes (Extended Data Fig. 9 and Supplementary Table 3). The superscript hash symbols indicate intermediate complexes. The C in the planes stands for complex.
In addition to the two common receptor signalling complexes C1 and C2, there are important ligand-specific differences: compared with ACh, iperoxo stabilizes a greater fraction of C1 (Figs. 2 and 4). Moreover, iperoxo-activated receptors appear to reach C1 through an intermediate state that forms earlier (300–500 ms) and is indicated by fluorescence changes exclusively at positions 414 and 415 (C1^#^). Furthermore, the iperoxo-stabilized complex 2 (C2_ixo_) forms to a much smaller extent compared with ACh; and C2_ixo_ is highly distinct as its stabilization does not involve any conformational rearrangements at position 181. Pilocarpine stabilizes C1 to a much smaller extent than ACh and its formation does not involve fast conformational changes at position 84 (Fig. 4). Furthermore, pilocarpine stabilizes C2 most effectively, which is indicated by the largest conformational changes at positions 181 and 188 among all of the tested agonists (Figs. 2 and 4).
By contrast, arecoline-mediated receptor activation follows a unique trajectory that is highly distinct from the other three agonists (Fig. 4). Arecoline activation stabilizes first the formation of a high efficacy signalling complex (C3) that is primarily characterized by decreases, rather than increases, in fluorescence at positions 84 and 175 (Figs. 2 and 4). This complex forms in about 900 ms through an intermediate state C3^#^ (Fig. 4). Formation of the low-efficacy signalling complex (C4) takes approximately 2 s and involves fluorescence decreases at positions 181 and 188 that are significantly larger than the ones resulting from ACh activation but smaller than those induced by pilocarpine (Fig. 4).
Equilibria of complexes define ligand efficacy
Our data (Figs. 2–4) have collectively demonstrated that all agonists stabilize the formation of at least two distinct M_2_R–G-protein signalling complexes in intact cells at steady state. Common to all agonists is the observation that these signalling complexes co-exist in an equilibrium and feature different efficacies towards G-protein signalling (Fig. 3). However, depending on the specific agonist, the formation of the GPCR signalling complexes occurs at different timescales and follows distinct trajectories (Fig. 4 and Extended Data Fig. 9) that involve ligand-unique conformational changes of the receptor (Fig. 2). Moreover, the position of the signalling-complex equilibrium is highly ligand dependent (Fig. 4).

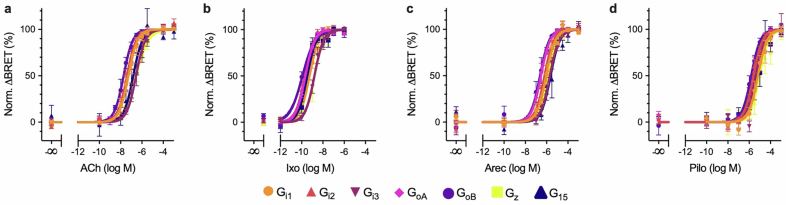

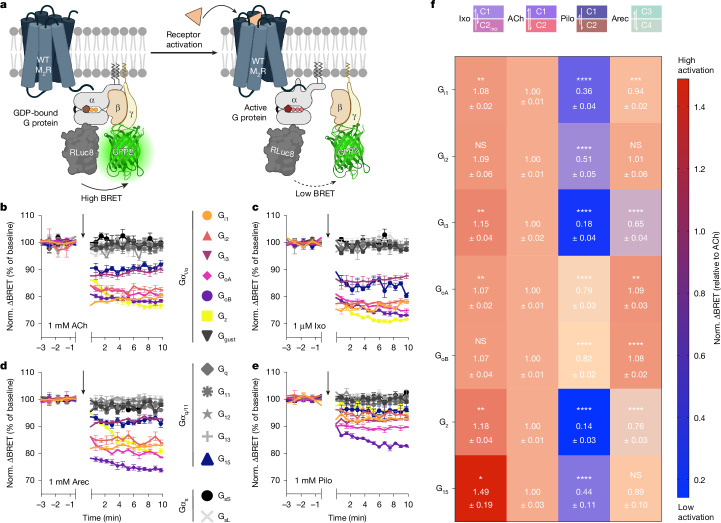

To assess whether this conformational complexity dictates which specific set of G proteins is activated by each ligand, we profiled all agonists in BRET-based G-protein-activation assays using the TRUPATH biosensor platform^53^, which comprises 14 different Gα subunits (Fig. 5a). All agonists showed strong selectivity for activating the G_i/o_ family of G proteins (Fig. 5b–e) and displayed similar potencies across the G_i/o_-family members (G_i1_, G_i2_, G_i3_, G_oA_, G_oB_, G_z_) (iperoxo, ~0.2–2 nM; ACh, ~30–300 nM; arecoline, ~0.2–2 µM; pilocarpine, ~2–10 µM; Extended Data Fig. 10 and Supplementary Table 3). Moreover, some small but significant activation of Gα_15_ was observed (Fig. 5b–e).Fig. 5. Activation trajectories and conformational equilibria define ligand efficacy in living cells.a, TRUPATH assay principle. The BRET-based Gαβγ biosensors sense the conformational rearrangement during receptor-promoted G-protein activation as a decrease in BRET due to the increased distance between Gα and Gγ subunits^53^. Created in BioRender. Thomas, R. (2025) https://BioRender.com/loxqlqf. b–e, Representative traces of agonist-promoted changes in normalized ΔBRET (%) for all G-protein biosensors after activation of WT M_2_R (SP-M_2_R-WT) with the indicated agonists. Agonists were applied (black arrows) at saturating concentrations of ACh (b), iperoxo (c), arecoline (d) and pilocarpine (e). Number of independent experiments for ACh, iperoxo, arecoline and pilocarpine, respectively: 4, 6, 4 and 6 (G_i1_); 4, 7, 4 and 6 (G_i2_); 4, 6, 4 and 5 (G_i3_); 6, 5, 3 and 6 (G_oA_); 5, 8, 3 and 5 (G_oB_); 5, 6, 4 and 4 (G_z_); and 6, 6, 4 and 5 (G_15_). f, G protein-coupling selectivity profile of the M_2_R. Overview of agonist-promoted ΔBRET normalized to ACh (set to 1) obtained after agonist-promoted, M_2_R-mediated stimulation of BRET-based G-protein biosensors (TRUPATH). The coloured boxes (using the colour code from the planes in Fig. 4) on top of each column represent the equilibrium of receptor–G-protein complexes stabilized by the indicated ligand (Fig. 4). Heat-map values represent the mean ± s.e.m. (Supplementary Table 4). Statistical analysis was performed using one-way analysis of variance (ANOVA) with Dunnett’s post-hoc test for multiple comparisons (ACh as reference); ****P < 0.0001, ***P < 0.001, **P < 0.01, *P < 0.05; NS, not significant.Source data
Importantly, comparing the maximal responses of agonists across the seven G proteins clearly reveals a rich texture of ligand efficacies (Fig. 5f), whereby the partial agonists appear to display more efficacy differences between the individual G-protein subunits than the full agonists. In particular, iperoxo behaved as a superagonist for almost all G proteins and pilocarpine elicited a partial response in all G protein-activation assays. However, arecoline displayed a unique efficacy profile exerting superagonism for G_oA_ and G_oB_ while behaving as a partial agonist for all of the other members of the G_i/o_-protein family (Fig. 5f).
Linking a ligand’s conformational equilibrium (Fig. 4) to its G-protein signalling profile (Fig. 5) suggests that the position of this equilibrium (C1 versus C2) dictates the strength of agonism across the G-protein subtypes while the ligand-specific trajectory of complex formation has an important role in discriminating between different G-protein subtypes. Specifically, iperoxo stabilizes the high-efficacy complex C1 to a greater extent than ACh (Figs. 2 and 4). However, and in contrast to ACh, it hardly forms any low-efficacy complex C2 (Figs. 2 and 4). Conversely, pilocarpine strongly favours stabilization of C2 over C1 (Figs. 2 and 4). Finally, the unique trajectory of arecoline-mediated complex formation (Fig. 4) results in preferential activation of G_o_ over G_i_ proteins (Fig. 5).
Conclusions
Overall, our study reveals that the activation of a GPCR in intact cells may be far more complex than previous biophysical studies with isolated receptors have suggested. By attaching minimal-sized fluorescent labels to a set of activation- and G-protein coupling-sensitive positions on the extracellular receptor surface, we were able to track a receptor’s activation trajectory in real-time with considerable conformational detail directly within the native membrane environment of an intact cell. In contrast to earlier fluorescent GPCR activation biosensors that rely on fusion to large fluorescent proteins, self-labelling tags or, at best, oligomeric epitopes^52^, our sensors report on the movement of single receptor positions labelled with a fluorophore anchored through an ncAA, while leaving the intracellular surface of the receptor completely untouched. Although the method does not reach the atomic-level resolution of biophysical techniques such as NMR or DEER—as fluorophores are attached to the receptor backbone through a relatively large and flexible linker—it offers to our knowledge the highest spatial and temporal resolution currently achievable for tracking conformational changes in receptors within live cells.
Taken together, our data demonstrate that agonist activation of a GPCR results in the formation of an equilibrium of distinct active GPCR states and signalling complexes with various G proteins that differ in their efficacies. We propose that distinct agonists form such signalling complexes along different activation trajectories, involving both common and ligand-specific conformational changes in the receptor that evolve over time in a ligand-dependent manner. These individual activation trajectories may form the molecular basis for G-protein-subtype selectivity, while the position of this signalling complex equilibrium at steady state may define the overall strength of agonism. Thus, our study elucidates the molecular nature of ligand efficacy in intact cells.
It will be interesting to investigate whether and how these GPCR activation trajectories and the resultant formation of signalling complex equilibria can be exploited to expand our ability to manipulate receptors and achieve specific downstream responses and, ultimately, superior therapeutic effects. Moreover, we anticipate that our single-colour conformational sensor technology will be broadly applicable to other receptors, enabling the temporal dissection of conformational changes elicited by structurally distinct ligands, ranging from small molecules to larger peptides with diverse pharmacological profiles. This unique information, derived from the live-cell context, will enhance development of GPCR drug candidates with unique signalling profiles and expand our understanding of the general principles underlying GPCR structural dynamics.
Methods
Biosensor construction
Gibson assembly
All cloning, except for site-directed mutagenesis, was conducted using Gibson assembly (NEBuilder HiFi DNA Assembly Master Mix, New England Biolabs)^54^. All primers were synthesized by BioTeZ. A list of all of the primer sequences is provided in Supplementary Table 5. Primers 1 and 3 were used to cut within the pcDNA3.0 backbone to decrease fragment sizes and increase yields for PCR amplification. All PCR products were obtained using Q5 High-Fidelity DNA Polymerase (New England Biolabs). All constructs were verified by Sanger sequencing (LGC Genomics).
For SP-M_2_R-WT, the cDNA of human WT M_2_R was cloned into pcDNA3.0 and a cleavable signal peptide (SP)^55^ was cloned N-terminally of WT human M_2_R using primers 1 and 2, 3 and 4, and 5 and 6. To obtain SP-M_2_R-WT-eGFP, eGFP was fused to the C terminus of SP-M_2_R-WT using primers 1 and 7, 3 and 8, and 9 and 10. For the ELISA assay, an HA-tag was cloned N-terminally to the WT receptor, resulting in SP-HA-M_2_R-WT, using primers 3 and 11, and 1 and 12.
Site-directed mutagenesis
Receptor mutants were cloned by introducing an amber stop codon (TAG) at the desired positions by site-directed mutagenesis using the AAscan primer design tool^56^. A list of the primer sequences is provided in Supplementary Table 6. Mutagenesis was performed using SP-M_2_R-WT, SP-HA-M_2_R-WT and SP-M_2_R-WT-eGFP as templates. Point mutations were introduced by PCR using Thermo Fisher Scientific Phusion High-Fidelity DNA Polymerase (New England Biolabs). PCR products for QuickChange mutagenesis were incubated for 1 h at 37 °C with 1 µl DpnI restriction enzyme (New England Biolabs) before transformation. The resulting mutants are referred to as SP-M_2_R^XXXTAG^, SP-HA-SP-M_2_R^XXXTAG^ or SP-M_2_R^XXXTAG^-eGFP throughout. To introduce the mutation disrupting the tyrosine lid closure (Y426A), the primers 13 and 14, and SP-M_2_R^175TAG^ as a template were used, resulting in SP-M_2_R^175TAG^-Y426A. The point mutation was introduced using the Q5 Site-Directed Mutagenesis Kit (New England Biolabs).
Cell culture
HEK-tsA201 (Sigma-Aldrich; referred to as HEK293T cells throughout) cells were cultured in T75 flasks at 37 °C, 5% CO_2_ in complete DMEM with 4.5 g l^−1^ glucose (PAN-Biotech). Culture media was supplemented with 10% (v/v) FBS (Biochrom), 100 U ml^−1^ penicillin, 100 mg ml^−1^ streptomycin (Biochrom) and 2 mM L-glutamine (PAN-Biotech). Cells were passaged every 2–3 days when reaching a confluency of 80–90%. For passaging and seeding, the culture medium was aspirated, cells were washed with 5 ml Dulbecco’s PBS solution (Sigma-Aldrich), detached with 2 ml trypsin/EDTA (PAN-Biotech), resuspended in 5 ml DMEM and transferred to a new T75 flask. All cell lines were routinely tested for mycoplasma contamination using MycoAlert Mycoplasma Detection Kit (Lonza Group) and were not contaminated with mycoplasma. For the qualitative screen of labelled mutants at the accessible extracellular receptor surface, HEK293T cells were seeded on glass-bottomed 8-well µ-slides (Ibidi) at a density of approximately 7 × 10^4^ cells per well in 300 µl DMEM. For single-cell fluorescence microscopy experiments, HEK293T cells were seeded on 24 mm glass coverslips (Paul Marienfeld) in 6-well plates at a density of approximately 2.5–3 × 10^5^ cells per well in 1.5 ml culture medium. Coverslips and 8-well µ-slides were coated with poly-D-lysine (PDL; Sigma-Aldrich; 25 µg ml^−1^ in PBS) for 30 min at room temperature and washed with PBS twice before seeding cells. For the quantification of labelling efficiency by temporal brightness experiments, HEK-293AD (BioCat; referred to as HEK-AD cells throughout) cells were seeded on uncoated 24 mm glass coverslips in 6-well plates at a density of approximately 3 × 10^5^ cells per well in 1.5 ml culture medium. To determine the cell-surface expression of M_2_R biosensors using a cell-surface enzyme-linked immunosorbent assay (ELISA), 1.6 × 10^6^ HEK293T cells were seeded into a T25 flask and grown for 24 h at 37 °C. For the TRUPATH G-protein activation experiments of WT M_2_ receptors, HEK293T cells were seeded into 6-well plates at a density of 3 × 10^5^ cells per well.
For the TRUPATH Gα_oA_-activation assay of WT M_2_R and each of the seven M_2_R biosensors as well as SP-M_2_R^175TAG^-Y426A, HEK293T cells were seeded into T75 flasks and grown for 24 h at 37 °C to a confluency of 80–85%.
For the internalization experiments, HEK293T cells were seeded onto glass-bottomed 4-well µ-slides (Ibidi) at a density of approximately 5 × 10^4^ cells per well in 300 µl DMEM.
Transfection and ncAA incorporation
Principle and rationale of ncAA incorporation
To genetically encode a ncAA, an orthogonal aminoacyl-tRNA synthetase (AARS)–tRNA pair must be introduced into the host cell. This pair does not crosstalk with the endogenous synthetase–tRNA pairs responsible for incorporating canonical amino acids. Typically, the orthogonal pair is derived from a different organism—for example, bacterial pairs are commonly used for GCE in eukaryotic cells. The ncAARS specifically recognizes the ncAA, while the orthogonal tRNA functions as an amber suppressor: it carries an anticodon complementary to a stop codon (usually the amber stop codon UAG) and competes with termination factors to reassign this natural nonsense codon as a sense codon. The ncAARS charges the orthogonal tRNA with the ncAA, which is then delivered to the ribosome for regular incorporation into the nascent protein. Each ncAA requires a specific AARS, although some AARSs can accommodate more than one amino acid.
In our laboratory, we have established a two-plasmid system to incorporate ncAA into proteins of interest (POIs). One plasmid (typically pcDNA3) carries the gene encoding the POI, in which a TAG stop codon replaces the natural codon at the position targeted for ncAA incorporation. The second plasmid is a bicistronic construct that encodes the translational machinery: the aminoacyl-tRNA synthetase (AARS) and the corresponding tRNA. To ensure proper expression and processing of the procaryotic tRNA in mammalian cells, the tRNA gene—lacking the 3′-CCA sequence—is placed under the control of external Pol III promoters (H1 or U6) and followed by an appropriate trailer. To achieve the high tRNA concentrations required to outcompete the release factor, the tRNA expression cassette is typically repeated in tandem.
The orthogonal pair used for TCO*K incorporation is derived from the system that naturally incorporates pyrrolysine (Pyl) in methanogenic archaea in response to the amber codon (UAG)^57^. Specifically, the plasmid contains one copy of the Methanococcus barkeri pyrrolysyl-tRNA synthetase (MbPylRS) under the control of a CMV promoter, along with four tandem copies of the gene encoding the enhanced M15 tRNA for expression in mammalian cells^58^. The plasmid, which was generated in our lab, is deposited in Addgene, where the complete map and additional information can be found (105830, https://www.addgene.org/105830/).
Protocols
Live-cell epifluorescence microscopy
Cells grown on coverslips in 6-well plates were transfected 12–24 h after seeding when reaching a confluency of 40–60%. Before transfection, the culture medium was changed to DMEM without supplemented antibiotics, FBS and L-glutamine. For bioorthogonal labelling of trans-cyclooct-4-en-lysine (TCOK, SiChem) a premix of HEPES buffer (1 M, pH 7.4, Sigma-Aldrich) and TCOK stock solution (100 mM TCOK in ncAA storage buffer, 0.2 M NaOH, 15% DMSO) was added to a final concentration of 0.25 mM TCOK per well 1 h before transfection. Cells on coverslips were transfected using Lipofectamine 2000 transfection reagent (Thermo Fisher Scientific) as follows: per well a total amount of 1.5 µg cDNA was diluted with 150 µl Opti-MEM (Thermo Fisher Scientific) and combined after 5 min incubation at room temperature with 3.75 µl Lipofectamine 2000 transfection reagent, diluted in 150 µl Opti-MEM. After 20 min incubation at room temperature, the transfection mixture was added dropwise to each well. To maintain cell viability and to remove remaining excess TCO*K, the medium was changed to complete DMEM 4–6 h after transfection. Cells were grown an additional 18–20 h before single-cell microscopy experiments were conducted.
For ncAA incorporation and subsequent bioorthogonal labelling, the cDNA of SP-M_2_R^XXXTAG^ or SP-M_2_R^175TAG^-Y426A (for biosensor activation experiments) or SP-M_2_R^XXXTAG^-eGFP (for expression analysis and quantification of bioorthogonal labelling) and the MbPylRS^AF^/4xtRNA^M15^ were transfected at a 1:1 ratio. For the labelled control without ncAA incorporation, cells were transfected with SP-M_2_R^414TAG^/MbPylRS^AF^/4xtRNA^M15^ as described in the previous section (total amount of cDNA, 1.5 µg) but then not loaded with TCO*K. When overexpressing the Gα_oA_(G203T) mutant, a cDNA ratio (total amount of cDNA, 1.5 µg) of 1:1:1 (SP-M_2_R^XXXTAG^:Gα_oA_(G203T):MbPylRS^AF^/4xtRNA^M15^) was used. For the Gα_i3_-FRET activation assay, the cDNA (total amount of cDNA, 1.5 µg) of the SP-M_2_R^XXXTAG^ or SP-M_2_R-WT was transiently transfected with MbPylRS^AF^/4xtRNA^M15^ and the G_i3_-FRET biosensor at a ratio of 10:10:1. For the internalization experiments, the cDNA (total amount of cDNA, 1.5 µg) of SP-M_2_R^XXXTAG^ or SP-M_2_R-WT-eGFP, MbPylRS^AF^/4xtRNA^M15^ and GRK3 were transfected at a 5:5:1 ratio.
Cell-surface ELISA
For determining the cell-surface expression of M_2_R biosensors using ELISA, the cells were supplemented with TCO*K as described above and transfected with 10 µl Lipofectamine 2000, using a cDNA ratio of 1:1 (SP-HA-M_2_R^XXXTAG^ or SP-HA-M_2_R-WT, MbPylRS^AF^/4xtRNA^M15^) of 4 µg total plasmid 24 h after seeding in a T25 cell culture flask.
BRET-based G-protein activation experiments (TRUPATH)
To assess the G protein-activation profile of M_2_ WT receptors, cells were transfected with SP-M_2_R-WT, Gα-RLuc8, Gβ and GFP^2^-Gγ at a ratio of 1:1:1:1 in a total amount of 1.5 µg cDNA per well of a 6-well plate. For each Gα subunit, the combination of Gβ and Gγ used was the one optimized previously^53^, as listed in Supplementary Table 7. Transfection was performed using the Effectene Transfection Kit (Qiagen) 18–24 h after seeding. For the transfection per well, the cDNA was premixed with 66 µl DNA-condensation buffer (EC-buffer) and 12 µl enhancer was added, mixed and incubated at room temperature for 2 min. After adding 6 µl Effectene, the mix was incubated at room temperature for 20 min. The culture medium was renewed, 350 µl DMEM was added to the transfection mix and the resulting solution applied dropwise to the cells.
For TRUPATH Gα_oA_-activation experiments of M_2_R WT and each of the seven M_2_R biosensors as well as the double mutant SP-M_2_R^175TAG^-Y426A, per T75 flask cells were transfected with the cDNA of either SP-M_2_R-WT (1.5 µg) or SP-M_2_R^XXXTAG^ (3.5 µg) together with MbPylRS^AF^/4xtRNA^M15^ (3.5 µg), Gα_oA_-RLuc8 (1.5 µg), Gβ_8_ (1.5 µg) and GFP^2^-Gγ_3_ (1.5 µg). In the case of SP-M_2_R-WT the amount of cDNA was lowered to reduce expected expression differences compared with the M_2_R biosensors. To ensure equal levels of transfected cDNA among all samples, 2 µg of empty pcDNA3.1 vector was added to the samples containing SP-M_2_R-WT. Transfections were performed using Lipofectamine 2000 transfection reagent according to manufacturer recommendations for 16–24 h. In brief, cDNAs were dissolved in 1,200 µl OptiMEM (per flask), incubated for 5 min and 1,200 µl of OptiMEM containing 30 µl of Lipofectamine was added per transfection mixture and incubated with the cDNAs for 20 min at room temperature. The resulting solution was then added into freshly exchanged DMEM containing 100 mM TCO*K, according to the same principle as described above. To avoid transfection variability in between the different M_2_Rs, stock solutions containing MbPylRS^AF^/4xtRNA^M15^, Gα_oA_-RLuc8, Gβ_8_ and GFP^2^-Gγ_3_ with appropriate cDNAs quantities, as well as Lipofectamine were prepared and divided subsequently for each construct.
Bioorthogonal labelling of M2R biosensors
Fluorescent labels were attached to the receptor using ultra-rapid click chemistry between dye–tetrazine derivatives and the ncAA TCOK. While we have experience with other labelling chemistries^13^ in our laboratory, such as copper-catalysed azide–alkyne cycloaddition (CuAAC) on both azide- and alkyne-containing ncAAs, and strain-promoted azide–alkyne cycloaddition (SPAAC) on ncAAs bearing strained alkynes (for example, BCNK)^14^, we have consistently achieved the best results in terms of labelling speed, efficiency, cell viability and reproducibility using ultrarapid strain-promoted inverse electron-demand Diels–Alder cycloaddition on TCOK. This ncAA carries a selected isomer of cyclooctene (trans-2-cyclooctene), which is highly reactive with both tetrazine and methyl-tetrazine dye derivatives yet sufficiently stable over the duration of the experiment (maximum of 2 min)^41^.
Cells expressing SP-M_2_R^XXXTAG^ or SP-M_2_R^XXXTAG^-eGFP, as well as SP-M_2_R^175TAG^-Y426A, were labelled 30 min to 1 h before microscopy. If not indicated otherwise, cells were labelled with Tet–Cy3-conjugated dye (JenaBioscience) according to our previously published protocol^59^. In brief, Tet-conjugated dyes were dissolved in imaging buffer (144 mM NaCl, 5.4 mM KCl, 1 mM MgCl_2_, 2 mM CaCl_2_, 10 mM HEPES, pH 7.3), from 0.5 mM stock solutions in DMSO to a final concentration of 1.5 µM. The culture medium was removed from the cells and, subsequently, 0.5 ml (coverslips) or 150 µl (µ-slides) of the solution was applied to the cells and removed after 5 min incubation at 37 °C. Cells were kept in imaging buffer at 37 °C until imaging. For the G_i3_-FRET activation assay cells were labelled using Tet-Cy5-conjugated dye (Lumiprobe) according to the same protocol. Cells were labelled with Cy5 (instead of Cy3) to overcome the spectral overlap of Cy3 with the acceptor fluorophore of the G_i3_-FRET biosensor (that is, cpVenus). To test the transferability of the biosensor approach using structurally different dyes, cells were labelled with tetrazine-5-TAMRA (JenaBioscience) using the same protocol.
Labelling screen of M2R mutants

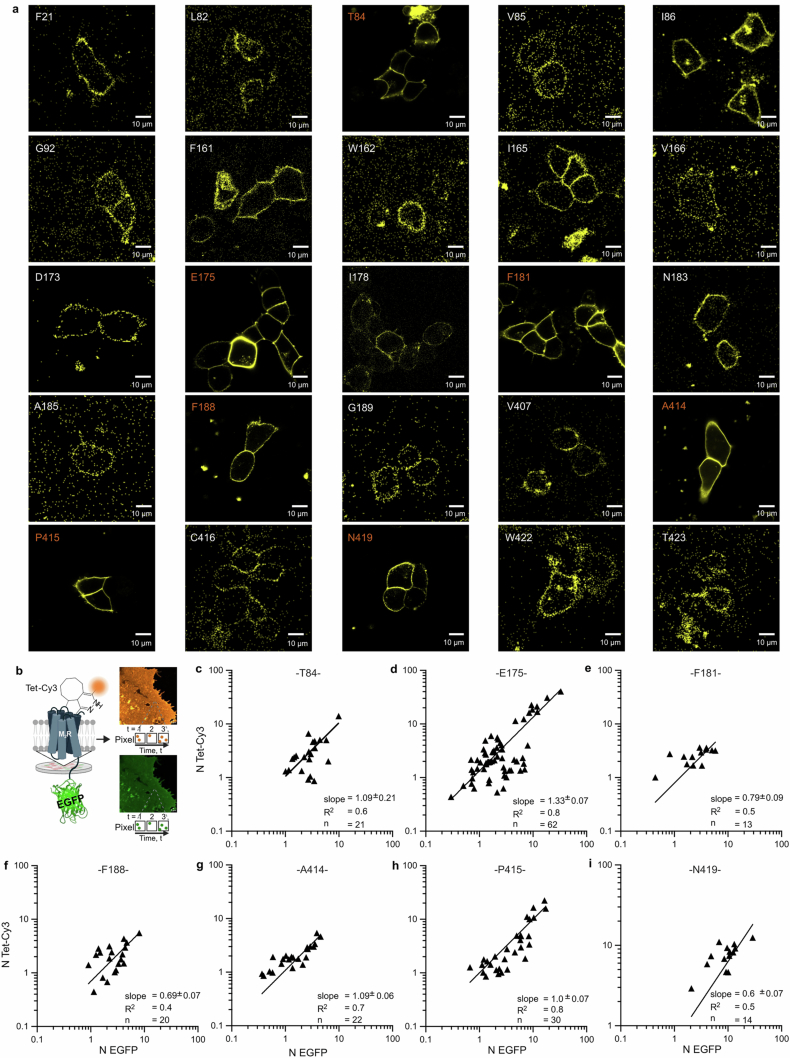

For these experiments, the SP-M_2_R^XXXTAG^-eGFP constructs were used. For the qualitative evaluation of full-length receptor expression and membrane localization, all cloned constructs of SP-M_2_R^XXXTAG^-eGFP were expressed in HEK293T cells and labelled at the respective site as described before. Confocal images of the cells expressing SP-M_2_R^XXXTAG^ were taken before and after labelling with Tet–Cy3 to ensure cell viability before labelling. The screen for labelled receptor mutants was done using a LEICA TCS SP8 laser-scanning microscope with an oil-immersion objective (HC PL APO ×63/1.40 NA, oil). A 554 nm laser was used at 5% power to excite Cy3 fluorophores and the respective emission was measured within 590–650 nm. To excite eGFP fluorophores, a 488 nm laser was used at 5% power and the respective emission was measured within 500–555 nm. Images were acquired with a hybrid detector in sequential scan mode to avoid bleedthrough (1,024 × 1,024 pixel, line average 4, 400 Hz, gating 0.3–6 ms) using the Leica Application Suite X (LASX) software (v.3.5.7.23225). Labelling was assessed by considering full-length receptor expression (reflected by C-terminal eGFP) and Cy3-staining of the same cells. M_2_R mutants were evaluated as being labelled when Cy3-labelling and eGFP membrane staining could be observed robustly for cells from at least three independent experiments.
Temporal brightness analyses through quantification of labelling efficiencies
For these experiments, the SP-M_2_R^XXXTAG^-eGFP constructs were used. The labelling efficiency of the selected M_2_R biosensors was quantified using molecular brightness analyses according to a previously published protocol^59^. In brief, the seven different SP-M_2_R^XXXTAG^-eGFP constructs were transfected in HEK-AD cells and bioorthogonally labelled with Tet–Cy3 as described in the ‘Bioorthogonal labelling of M_2_R biosensors’ section above. Temporal brightness experiments were conducted on the LEICA TCS SP8 laser-scanning microscope, using the same laser lines and detector settings as described in the ‘Labelling screen of M_2_R mutants’ section above. To reduce possible photobleaching, the laser power was reduced to 1% while identifying appropriate cells. Cells were imaged at their basolateral membranes. Suitable cells for the analysis exhibited a homogenous morphology of the basolateral membrane and distribution of fluorescent spots. For each cell, 100 consecutive frames were acquired (256 × 256 pixel, line average 1, zoom factor 22.8).
Temporal brightness analysis was performed in ImageJ (v.1.5.4f) using the Number & Brightness analysis plugin of J. Unruh^60^. Image stack files were converted to 16-bit and appropriate regions with homogenous intensity distribution were selected from single fluorescence channels, opened as interactive 2D histogram. The number of emitters per pixel was extracted from the intensity of that pixel divided by the molecular brightness of the emitters as follows:
N = xavg / yavg* − 1*, where yavg represents the average apparent brightness of all selected pixels over time and xavg represents the average intensity of all selected pixels over time. The data were plotted as a scatter dot plot of N obtained from the eGFP channel and N obtained from the Cy3 channel. To determine the labelling efficiency, data were fitted to a linear regression with constraints at x,y = 0. The slope of the regression indicates the resulting labelling efficiency.
Live-cell epifluorescence microscopy
Single-cell kinetic experiments with M2R biosensors

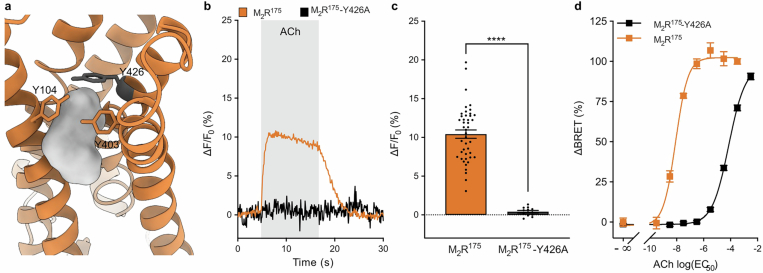

For these experiments, the SP-M_2_R^XXXTAG^ constructs, as well as SP-M_2_R^175TAG^-Y426A, were used. Kinetic single-cell fluorescence microscopy experiments using the M_2_R biosensors were conducted using an inverted DMi8 epifluorescence microscope (Leica Microsystems), equipped with an oil-immersion objective (HC PL APO ×63/1.40–0.60, oil), a high-speed polychromator (VisiChrome, Visitron Systems), a Xenon-Lamp (75 W, 5.7 A, Hamamatsu Photonics) or a CoolLED pE-800 (40% illumination, CoolLED) for the labelled control without ncAA incorporation and the kinetic experiments with the SP-M_2_R^175TAG^-Y426A mutant, a Photometrics Prime 95B sCMOS camera (Visitron Systems) with a Optosplit II dual emission image splitter (Cairn research), and the Visiview v.4.0 imaging software (Visitron Systems). A DAPI/FITC/Cy3/Cy5 ET Quadband Filter (ChromaTechnology) was used for imaging Cy3-labelled cells at 555/10 nm. Emission was recorded using a T590lpxr dichroic mirror (ChromaTechnology) and a 595/50 nm emission filter (ChromaTechnology). Coverslips with transfected cells were transferred to imaging chambers (Attofluor, Thermo Fisher Scientific) and washed once with imaging buffer. Cells were kept in imaging buffer throughout the experiment. All single-cell imaging was performed at room temperature. For ligand application, a solenoid valve perfusion system with a 200-µm inner diameter manifold-tip (Octaflow II, ALA Scientific Instruments) was used. Ligands were applied in direct vicinity of the cells after superfusion with imaging buffer for 5–10 s. The superfusion was conducted at a pressure of 50 mbar. Image sequences were recorded at 100-ms excitation time and acquisition intervals or 50 ms when using the CoolLED pE-800 lightsource. Image processing was performed with ImageJ^61^. Each cell was analysed individually. Cell membranes were selected as regions of interest using the drawing tool. An area without cells was defined as background. Fluorescence intensity over time of all regions was extracted for each emission channel. The raw data were processed by subtracting the background fluorescence at every timepoint for all recorded emission channels.
Changes in the fluorescence emission intensity were normalized to baseline according to the following formula: ΔF/F0 = ((F − F0)/F0) × 100%, where F0 is the mean emission intensity of the first ten datapoints of the time series, and F is the mean emission intensity of ten datapoints at the stable plateau of emission intensity changes reached after ligand application. To retrieve the apparent on-rates τ, a plateau followed by one-phase association/decay ordinary fitting was performed as follows: r(t) = F0 + (Plateau-F0)* × ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$1-{e}^{-K\times (t-{t}_{0})}$$\end{document} ), if t < t_0*_, where t is time (s), t0 is the respective timepoint of ligand application and Plateau-F0 is the amplitude of emission intensity change. From this, τ has been calculated as τ = 1/K. Concentration–response curves were fit using a four-parametric variable slope fit (log(agonist) versus response) by calculating:
*Y = *Bottom + (Top − Bottom)/( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$1+{10}^{\log ({\rm{E}}{{\rm{C}}}_{50}-X)}\times {\rm{H}}{\rm{i}}{\rm{l}}{\rm{l}}{\rm{S}}{\rm{l}}{\rm{o}}{\rm{p}}{\rm{e}}$$\end{document} ), where X is the log of dose or concentration, Y is the response (Plateau) and Top is the maximum efficacy Emax.
Gi3-FRET activation assay

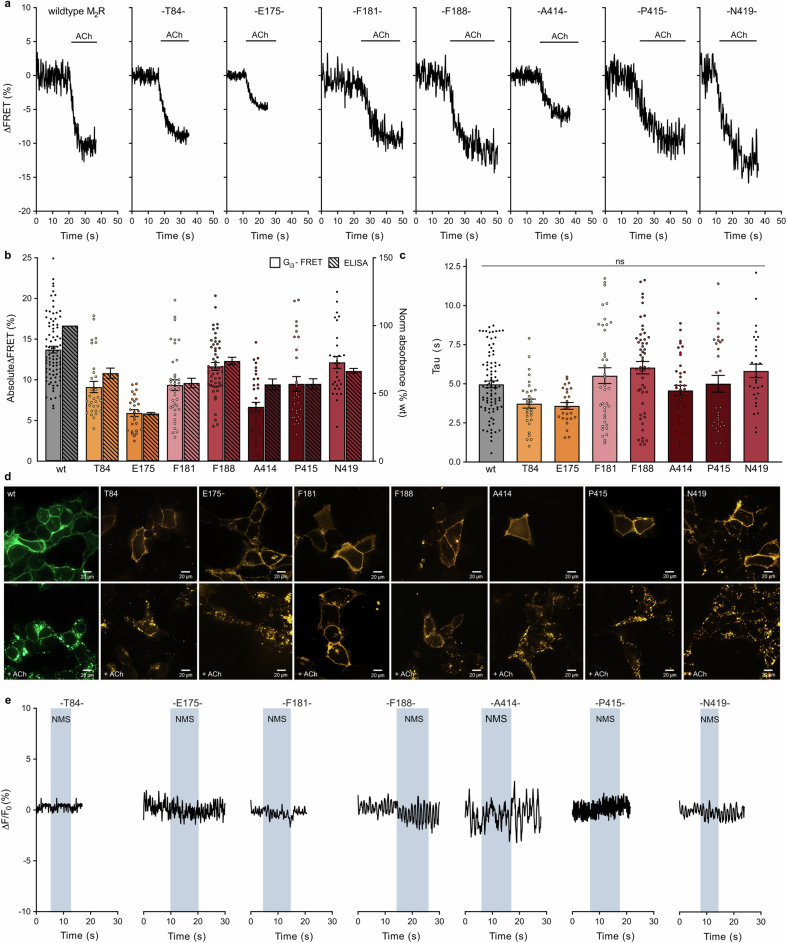

For the G_i3_-FRET activation assay, the SP-M_2_R^XXXTAG^ constructs were used. The FRET assay was performed using an Olympus IX83 Inverted Microscope equipped with an oil-immersion objective (UPLAPO60XOHR ×60/1.5 NA, oil) with an ORCA-Fusion C14440-20UP camera (Hamamatsu Photonics). A Spectra III-LCR-8S-A21 light engine (Lumencore) at 50 mW light intensity and an additional 20% transmission neutral-density filter (Qioptiq Photonics) were used for excitation with the following band-pass filters: CFP, 438/29 nm; YFP, 511/16 nm; Cy5 637/12 nm. The emission light was split into two channels using an OPTOSPLIT II (Cairn research) equipped with the following band-pass filters: CFP, 475/28 nm; YFP, 542/27 nm; and Cy5, 700/75 nm. For FRET measurements only Tet–Cy5-labelled cells were imaged. Sequences of images were acquired with camera scan mode 2, a 30 ms excitation time, 100 ms frame interval and 2 × 2 camera binning, resulting in 1,152 × 1,152 pixel resolution. After each individual FRET-experiment, YFP direct excitation was recorded with the same imaging settings, enabling comparisons of sensor expression. Ligands were applied using a solenoid valve perfusion system with a 100-µm inner diameter manifold-tip (Octaflow II, ALA Scientific Instruments) at a pressure of 350 mbar. In addition to background correction for both donor and acceptor emission, the obtained acceptor emission was corrected for spectral bleedthrough (B) as Acceptor_emission_ − B × Donor_emission_ (ref. ^62^). The spectral bleedthrough was experimentally determined from FRET measurements of HEK293T cells expressing the donor fluorophore mTurquoise2 as the ratios of acceptor/donor emission. A correction factor of 0.22 was determined from three independent experiments. The FRET-ratios were calculated as the ratio of corrected acceptor emission (referred to as FRET) over corrected donor emission as Acceptor_emission_/Donor_emission_. All datapoints were plotted as ΔFRET (%) = (FRET − FRET_0_/FRET_0_) × 100%, where FRET_0_ is the baseline, which was determined from the average of ten datapoints before ligand application.
Inhibition of endogenous Gi/o proteins with PTX

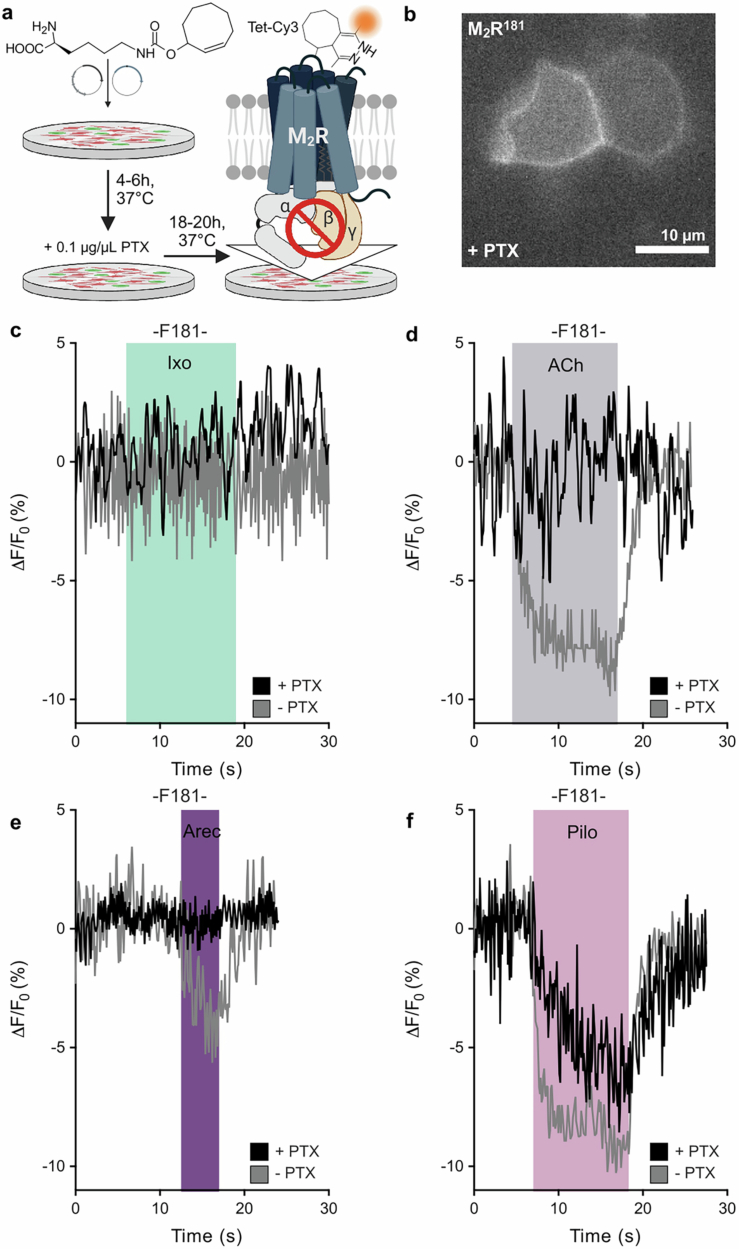

For these experiments, the SP-M_2_R^XXXTAG^ constructs were used. To inhibit the activation of endogenous G_i/o_ proteins, cells have been treated overnight with the exotoxin PTX (Tocris Bioscience). To this end, HEK293T cells were seeded and the M_2_R biosensors were transfected as described above. After 4–6 h of transfection, the culture medium was exchanged for complete DMEM, and PTX was added to the cells at a final concentration of 0.1 µg µl^−1^. Cells were grown an additional 18–20 h before single-cell microscopy experiments were conducted. Labelling, fluorescence microscopy and image processing were carried out as described above. For suitable comparability, single-cell microscopy experiments were conducted for cells with and without PTX pretreatment on the same day for the same M_2_R biosensor.
Cell-surface expression of M2R biosensors
For these experiments, the SP-HA-M_2_R^XXXTAG^ and SP-HA-M_2_R-WT constructs were used. Cell-surface expression of SP-M_2_R-WT and the M_2_R biosensors in HEK293T cells was assessed using an indirect cellular ELISA assay as described in a previously published protocol^63^. In brief, 24 h after transfection, cells were detached using Versene, reseeded into 48-well plates at a density of 1.2 × 10^5^ cells per well and grown at 37 °C for another 24 h. The ELISA assay was performed by fixing the cells with 4% formaldehyde, washing twice with PBS, blocking with DMEM supplemented with 10% FBS. The medium was removed and 50 mU ml^−1^ anti-HA-peroxidase antibody (1:1,000, Sigma-Aldrich) was applied to the cells. The cells were washed three times with PBS. Subsequently, PBS was removed and detection solution (3.7 mM o-phenylenediamine, 22.65 mM citric acid, 51.4 mM Na_2_HPO_4_) including H_2_O_2_ were applied. The reaction was stopped by adding stopping reagent (0.12 M Na_2_SO_3_, 1 M HCl). Per well, the supernatant was transferred into a clear 96-well plate and the absorbance was measured at 492 nm (620 nm reference wavelength) in an EnVision microplate reader. The data were corrected to the reference wavelength and normalized to the absorbance of M_2_R WT (set to 100%).
BRET-based G protein-activation experiments (TRUPATH)
G-protein-activation profile of the M2R WT
To survey which G proteins are activated by the SP-M_2_R-WT, we used the TRUPATH library (Addgene, 1000000163) according to protocols that were published recently^53,64^. In brief, 24 h after transfection cells were detached, collected in fresh supplemented DMEM and reseeded into PDL-coated white 96-well plates at a density of 5 × 10^4^ cells per well. Cells were grown at 37 °C for another 24 h. The plates were stored at room temperature for 10 min before starting the assay. The culture medium was removed, and the cells in every well were washed twice with imaging buffer. Cells were kept in 60 µl imaging buffer and 10 µl of freshly prepared Prolume Purple working solution (NanoLight Technology) was added to each well at a final concentration of 5 µM per well. The plates were incubated for 5 min at room temperature in the dark. BRET measurements were performed using the Synergy Neo2 plate reader (Agilent Technologies), equipped with the BRET2 Filter cube (Agilent Technologies, 400/510 nm emission) and using a 50 ms integration time. Before ligand application of 30 µl per well, a baseline was recorded for 5 min. Negative controls were obtained by the addition of 30 µl imaging buffer per well instead of ligand. The BRET measurement was continued for 20 min with a time interval of 45 s between each datapoint. The BRET ratios 510/400 of each well were normalized to the baseline of the negative control (set to 100%). For the G-protein-activation heat map, all datapoints were normalized to the mean plateau value of the wells stimulated with 1 mM ACh. The data were analysed using Microsoft Excel 2016.
Functional characterization of M2R biosensors

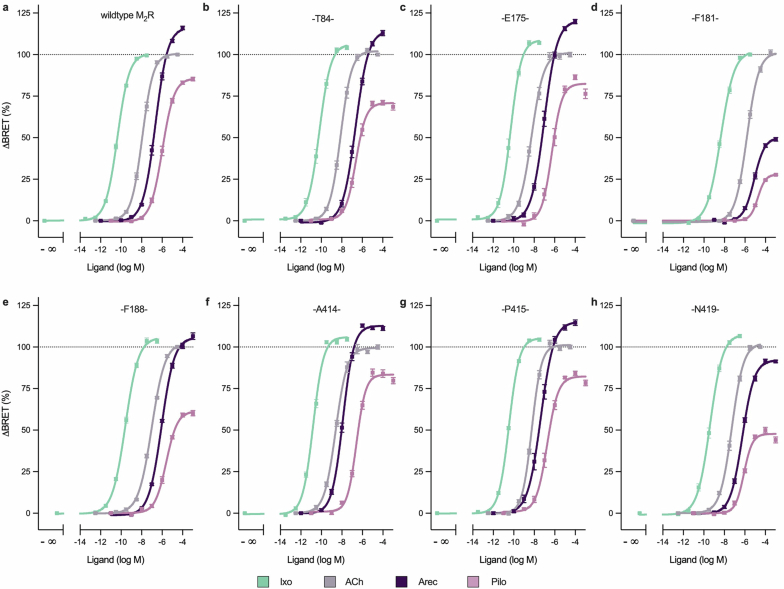

For the TRUPATH Gα_oA_-activation assay of WT M_2_R and the seven M_2_R biosensors, the same batch of cells expressing one of the M_2_R biosensors or the WT receptor was seeded into the same plate, and all of the ligands were tested within the same read. BRET measurements were performed using a PHERAstar fsx plate reader (BMG Labtech), equipped with a BRET2 filter cube (BMG Labtech, 410/530 nm emission). The baseline was recorded for 5 min followed by 7 min stimulation with the different ligands with a time interval of 60 s between each datapoint. The inverse BRET ratios 410/530 of each well were normalized to the baseline of negative control (set 0%) and ACh maximum concentration (set 100%) for each mutant. The data were analysed using Microsoft Excel 2016.
Internalization assay
The SP-M_2_R-WT-eGFP and the SP-M_2_R^XXXTAG^ constructs were expressed in HEK293T cells and labelled with Tet–Cy3 as described in the previous sections. After addition of ACh (400 µM), cells were incubated for 1 h at 37 °C. Images were acquired using the Axio Observer.Z1/7 microscope (Zeiss), equipped with a C-Apochromat ×63/1.2 NA W Korr DICII objective, an AxioCam 705 mono with Duolink camera and a LED Colibri 5 light source. Filters used (bandpass/bandstop in nm): eGFP, 450–490/495 (excitation), and 500/550 nm (emission); Cy3, 545–565/575 (excitation) and 579–604 nm (emission). Images were acquired using Zen blue 2.3 lite software (Zeiss).
Data analysis and statistics
Plotting, curve fitting and statistical analyses were performed using Prism v.7.0 or newer (GraphPad). Drift corrections in fluorescence imaging was performed using Origin 2022 (OriginLab). A Gaussian distribution of all datapoints was tested using the D’Agostino–Pearson omnibus normality test in Prism 7.0.
Statistic differences of two groups were assessed using two-tailed unpaired Student’s t-tests. A two-tailed paired t-test was performed when comparing various data obtained from the same single cell. In the case of normal distribution, a parametric test was used. Welch’s correction was further performed in the case of unequal variance. Statistic differences of three or more populations have been assessed using a parametric one-way ANOVA. When comparing to a reference group of data, a Tukey’s post hoc test was performed. In the case of multiple comparisons, a Dunnett’s test was used. For all statistical analyses, the confidence interval was set to 95% (P = 0.05). All experiments were performed with samples from independent experiments and repeated at least three times. The number of individually analysed cells is referred to as n. Details about n and the statistical test performed are stated in the appropriate figure legend.
Molecular models of receptors and analyses thereof were performed with UCSF ChimeraX, developed by the Resource for Biocomputing, Visualization, and Informatics at the University of California, San Francisco, with support from National Institutes of Health R01-GM129325 and the Office of Cyber Infrastructure and Computational Biology, National Institute of Allergy and Infectious Diseases^65^. Schematics were created using BioRender.
For Fig. 2, the ΔF/F0 of each condition was normalized to the ΔF/F0 obtained for ACh within the same cell. For Fig. 3c,f,i and Supplementary Fig. 5, data from overexpression of the Gα_oA_(G203T) mutant were normalized to data obtained at endogenous G-protein levels using the following equation: Norm ΔΔGmut = ((Gmut − mean_endo_)/mean_endo_) × 100%, where Gmut represents the ΔF/F0 of the respective M_2_R biosensor when co-expressed with Gα_oA_(G203T), and mean_endo_ refers to the mean ΔF/F0 at endogenous G-protein levels (Fig. 2 and Supplementary Table 1). For Supplementary Fig. 6, the ΔF/F0 of each datapoint obtained from activation of the seven M_2_R biosensors with the ligands Ixo, Arec and Pilo was normalized to the mean ΔF/F0 of ACh at endogenous G-protein expression levels or after overexpression of Gα_oA_(G203T).
For Fig. 4, three-dimensional surface plots (Fig. 4) were generated using the NumPy and matplotlib libraries of Python (v.3.7.9)^66,67^. The plots were generated as abstract Gaussian peaks modelled using the Gaussian function: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$z(x,y)=A\times {e}^{(-((x-{x}_{0})2+(y-{y}_{0})2)/2\sigma 2)}$$\end{document} with A as the mean ΔF/F_0_ relative to the plane z = 0. M_2_R biosensors indicating the same receptor–G-protein complex were assigned similar colours. For each ligand-dependent receptor/G-protein complex at a given timepoint after agonist activation, the colour intensities from all positions were summed, and the respective plane was labelled in that colour.
