In vivo kinematics of knee joint cartilage and meniscus contact areas under load application: a biomechanical MRI study
Moritz Florian Mayr, Hans Meine, Thomas Lange, Tayfun Yilmaz, Elham Taghizadeh, Hagen Schmal, Kaywan Izadpanah
TL;DR
This study uses MRI to track how knee cartilage and meniscus move under load, revealing how the meniscus stays stable in healthy knees.
Contribution
The study provides a physiological baseline for in vivo knee joint mechanics and meniscus behavior under load.
Findings
Axial loading increased cartilage-to-cartilage contact more in the medial than lateral compartment.
Meniscus-to-cartilage contact decreased with loading, but tibial-meniscal contact remained stable.
The meniscotibial ligament likely prevents excessive meniscus extrusion at the tibial interface.
Abstract
Distinguishing physiological meniscus mobility from pathological extrusion remains a clinical challenge, particularly regarding the prevention of osteoarthritis. While cadaveric studies suggest that meniscectomy increases contact stress, the in vivo dynamics of the healthy meniscus under load—specifically the role of the meniscotibial (coronary) ligament—remain poorly defined. This study aimed to establish a physiological reference standard for load transmission and contact area kinematics in the healthy knee. In a biomechanical MRI study, nine healthy male subjects underwent high-resolution 3T MRI with prospective motion correction. Knee joints were scanned in an unloaded state and under a physiological axial load of 400 N. We performed 3D segmentation to quantify changes in cartilage-to-cartilage and cartilage-to-meniscus contact areas, differentiating between femoral and tibial…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —Universitätsklinikum Freiburg (8975)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsKnee injuries and reconstruction techniques · Osteoarthritis Treatment and Mechanisms · Total Knee Arthroplasty Outcomes
Introduction
The articular cartilage and menisci of the knee contribute to the harmonious movement of the joint components, ensuring low friction and minimizing localized stress. In the process of force transmission and distribution, the cartilaginous surfaces and menisci of the knee joint have a significant function. The menisci are semilunar fibrocartilaginous structures that play a pivotal role in load transmission, shock absorption, and secondary stabilization of the knee joint. To fulfill these biomechanical functions, the menisci must maintain their position on the tibial plateau while allowing for physiological adaptation during movement. This structural stability is primarily provided by the anterior and posterior meniscal roots and the meniscotibial (coronary) ligament (MTL). While the roots anchor the meniscal horns, the MTL attaches the meniscal body to the tibial plateau, thereby restricting excessive extrusion under axial loading. Disruption of these restraining structures is increasingly recognized as a cause of functional failure and osteoarthritis progression [1–8]. The contact mechanism of the tibiofemoral joint has been investigated in multiple in vivo studies. Skin markers or biplane fluoroscopy have been used for the determination of the contact area [9–12]. Due to the technical constraints of these methods, the measurement of contact areas is restricted to real-time imaging of the distance between femoral and tibial bone or skin markers, rather than the alterations in the cartilage or menisci themselves. Over the past thirty years, MRI has become a significant diagnostic tool for examining cartilage and menisci. It offers high spatial resolution and excellent soft-tissue contrast. Nevertheless, a significant drawback is its limited capability to capture dynamic processes, primarily due to its sensitivity to motion artifacts. Consequently, most research in this area has focused on the knee joint’s contact mechanisms using MRI scans taken before and after joint loading [13–17]. A limitation of this approach is that it does not allow for direct observation of cartilage and menisci behavior under load, but rather only after a certain delay. This method cannot eliminate confounding variables, such as time-dependent recovery due to the poroviscoelastic behavior of the menisci and cartilage, or compartment-specific re-expansion after load application [18, 19]. The benefit of MR imaging during load exposure would be the opportunity for direct insights into the in vivo biomechanical responses of the menisci and the cartilage surfaces of the tibiofemoral joint. Knee cartilage MRI with prospective motion correction based on optical tracking has been applied in an earlier pilot study for investigation of the patellofemoral cartilage contact and compression behavior under loading [20]. The use of prospective motion correction has shown promise in minimizing motion artifacts, thereby enhancing the accuracy of cartilage imaging during mechanical loading. This technique allows for a more reliable assessment of the dynamic behavior of cartilage and menisci, contributing valuable insights into their biomechanics under load [21, 22]. In the current research, the contact dynamics of the tibiofemoral joint under in-situ loading conditions were examined using MR imaging with prospective motion correction. We hypothesized that the area of cartilaginous contact in the tibiofemoral joint expands, while the contact area between cartilage and meniscus diminishes when the joint is loaded in comparison to its unloaded state. This hypothesis aligns with previous findings that suggest alterations in contact areas occur under mechanical loading, reflecting the dynamic nature of knee joint biomechanics [9, 23–25] .
Materials and methods
In this study, nine participants with no prior history of knee pain or significant trauma to the examined knee underwent MRI scans of the knee both with and without the application of an axial load of 400 N (N). All participants were healthy males aged between 26 and 31 years. The mean body mass index (BMI) was 23.5 kg/m². The research received approval from the institutional review board (No335/12), and all volunteers provided written informed consent prior to their involvement.
Imaging protocol and load application
An MRI examination was conducted using a Magnetom Trio 3T system (Siemens Healthineers, Germany) equipped with an 8-channel multipurpose coil (NORAS MRI products, Germany). The multipurpose coil consists of two separate elements, which were positioned medially and laterally at the level of the knee joint and secured using Velcro straps. This configuration allowed stable coil positioning while keeping the knee in full extension throughout the loading protocol. Load was transmitted to the investigated limb via a footplate connected to an MR-compatible pneumatic loading system (Fig. 1). Prior to the measurements, a calibration curve (air pressure–force relationship) was established to determine the required air pressure to generate the desired force (in N) at the footplate. During scanning, the air pressure was continuously monitored using a manometer and maintained constant to ensure a steady applied force. The load vector was applied colinear to the long axis of the lower limb. The thigh was positioned in a dedicated cradle, and the knee joint was kept in full extension. To provide counterforce against the footplate and to prevent subject translation, a climbing harness was placed around the pelvis and fixed to the scanner table. Only the investigated leg was loaded. The contralateral leg remained freely positioned and unloaded. Potential off-axis loading (e.g., excessive varus/valgus) was monitored using the motion tracking and motion correction approach. Substantial unintended varus/valgus loading would likely have been apparent in the motion tracking data. For the prospective motion correction, a moiré phase tracking (MPT) system (Metria Innovation Inc., Milwaukee, US) was utilized, which includes a single in-bore camera and a tracking marker that generates angle-dependent moiré patterns [26]. The system recorded the translational and rotational movements of the marker at a frame rate of 80 frames per second. Prior to each excitation pulse, real-time updates of the MRI measurement volume were conducted during the scan using the motion data collected optically. Additionally, an inter-scan subject motion correction (position locking) was employed to ensure that all imaging scans within a session adhered to the originally intended geometric configuration. The standard imaging sequence utilized was a T1-weighted spoiled 3D gradient-echo sequence, featuring slab-selective water excitation, covering a field-of-view (FOV) of 150 mm (AP) × 122 mm (RL) × 44 mm (FH) with a spatial resolution of 0.4 mm (AP) × 0.4 mm (RL) × 0.5 mm (FH). The sequence parameters included a TR of 16 ms, TE of 6.88 ms, excitation angle of 15°, readout bandwidth of 130 Hz/Px, and an AP readout direction. The total duration of the protocol was 3 min and 20 s. To ensure comprehensive coverage of the tibiofemoral joint, localizer images in all three planes were obtained before the main scan, and the 3D measurement volume was accurately positioned. Load-induced displacement of the MRI measurement volume was corrected via the position locking feature of our prospective motion correction system. Two 3D datasets were collected: one under unloaded conditions and another with an axial mechanical load of 400 N, with MRI scans conducted 30 s after the onset of loading. This short delay was chosen to reduce the impact of immediate post-onset transients and to mitigate, to some extent, the influence of the time-dependent poro-viscoelastic behavior of cartilage and menisci (fluid redistribution/viscoelastic settling) under compressive loading.

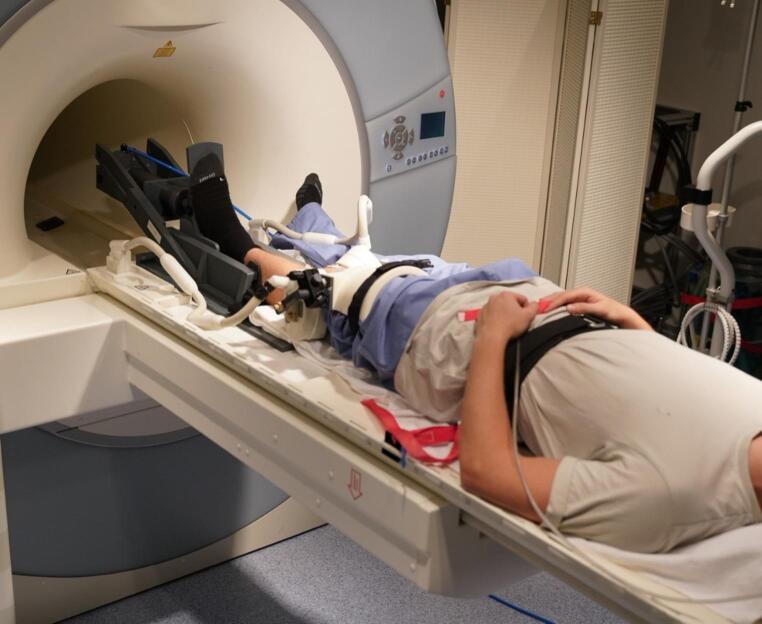

Fig. 1. Setup of the MRI-compatible pneumatic loading device. The participant is positioned supine with the knee in full extension. To ensure isolated axial loading and prevent compensatory movements, the participant is firmly secured to the MRI table using fixation straps. The load is applied via a pneumatic footplate
Calculations of contact area
For segmentation, a custom analysis tool developed on the MeVisLab platform was utilized [27]. In addition to cartilage and menisci, the femur and tibia were segmented. Bone segmentations were used to define a three-dimensional coordinate system and to register the relative motion of both joint partners between unloaded and loaded conditions. Furthermore, femur and tibia segmentations enabled a three-dimensional visualization of the joint. Finally, bone segmentations would also allow assessment of load-related changes in cartilage thickness. However, these analyses were not part of the present study. The bone segmentation was performed using a marker-based watershed transform in three dimensions. Relevant areas within and outside the femoral and tibial bones were identified across multiple axial MRI slices until the segmentation accurately represented the correct bone volume. The resulting surface underwent post-processing, aligning it to a sub-voxel precise position through cubic interpolation of the image data. This process yielded exceptionally smooth bone surfaces, entirely data-driven, without any mesh smoothing techniques. Subsequently, the contours of the femoral and tibial cartilage were marked manually slice by slice in the sagittal plane. Similarly, the medial and lateral menisci were delineated manually slice by slice in the coronal plane. The generated data were then transformed into a surface mesh. The slice-by-slice drawing introduced minor discontinuities, which were mitigated by applying a gentle inter-slice smoothing (Gaussian kernel with σ = 1.25 mm). Surface smoothing was applied for visualization purposes only. All quantitative analyses (including contact area calculations) were performed on the original, unmodified segmentation data. The contact regions of the femoral and tibial cartilage and the associated menisci were computed automatically. The contact area was defined as the regions of cartilage-to-cartilage and cartilage-to-meniscus surfaces with an inter-structural Euclidean distance of less than 1 mm. The contact areas of the corresponding cartilaginous surfaces were confirmed to be approximately equal, and the arithmetic mean of both contact areas was calculated. The meniscotibial and meniscofemoral contact areas were examined separately. The tibiofemoral cartilage-to-cartilage and cartilage-to-meniscus contact areas, along with their changes under load exposure, were analyzed collectively and individually, divided into medial and lateral compartments. The variation in contact areas under load was assessed as mean change and mean percentage change. Additionally, the average ratio of the medial contact area to the lateral contact area was determined.
Statistical analysis
The Gaussian distribution of the load-induced variations among the analyzed variables was confirmed through the Shapiro-Wilk test. Since all variations of the analyzed variables exhibited a normal distribution, a t-test was employed to assess changes in quantitative outcomes across the entire study population. A p-value < 0.05 was deemed statistically significant. The results are presented as mean and standard deviation (SD). No formal power analysis was conducted, as this study was designed as a pilot investigation. The collected data were statistically examined using SPSS version 29.0 for Mac (SPSS Inc., Chicago, Illinois).
Results
Motion-corrected MRI data from nine healthy participants were effectively obtained in both the unloaded condition and under load application. This process yielded similar image quality for the unloaded and loaded scans, which would otherwise be impaired by strong motion artifacts, and facilitated accurate segmentation of cartilage, osseous structures, and menisci (Figs. 2 and 3).

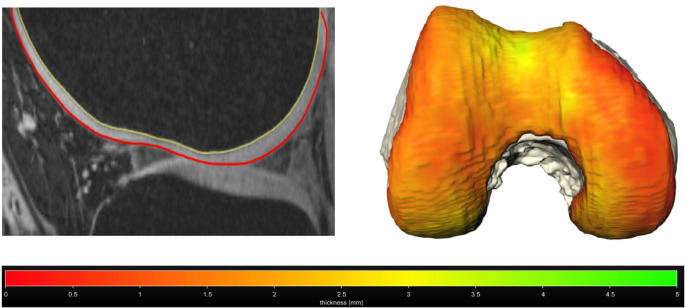

Fig. 2. Segmentation of the femoral bone and cartilage in the sagittal plane and the according three-dimensional model of the femoral bone with its cartilaginous surface and color-coded cartilage thickness

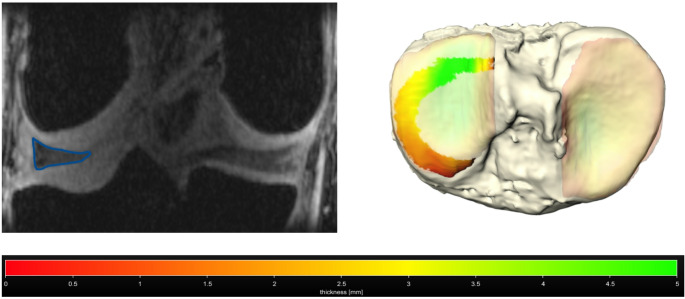

Fig. 3. Segmentation of the lateral meniscus and the according three-dimensional model of the tibia with the meniscotibial contact area in the lateral compartment and color-coded thickness of the underlying tibial cartilage surface
Cartilage-to-cartilage contact area
In the unloaded condition, tibiofemoral cartilage-to-cartilage contact area was consistently larger in the medial than in the lateral compartment (p < .001), resulting in a medial-to-lateral ratio of 1.56 ± 0.27. Under axial loading, total tibiofemoral cartilage-to-cartilage contact area increased by 11.6% (p = .002). This load-induced increase was predominantly mediated by the medial compartment, which showed a significant rise in cartilage-to-cartilage contact area (+ 15.0%; p < .001). In contrast, the lateral compartment exhibited only a small increase that did not reach statistical significance. Despite the overall increase in contact area with loading, the compartmental distribution remained asymmetric: the medial compartment continued to demonstrate significantly larger contact areas than the lateral compartment in the loaded condition (p < .001). In line with this, the medial-to-lateral ratio increased to 1.68 ± 0.26 during loading, representing a significant rise compared with the unloaded state (p = .025) (Table 1; Fig. 4). Taken together, these results indicate that axial loading increases tibiofemoral cartilage-to-cartilage contact primarily through a medial compartment response rather than a uniform increase across both compartments.
Table 1. Tibiofemoral cartilage-to-cartilage contact area ^a^Total0 Newtons400 N400 N–0 N615 mm² ± 173 mm²679 mm² ± 180 mm²+64 mm² (+11.6%) ± 42 mm²Medial371 mm² ± 103 mm²421 mm² ± 106 mm² +50 mm² (+15.0%) ± 21 mm² Lateral245 mm² ± 77 mm²258 mm² ± 81 mm²+14 mm² (+6.7%) ± 29 mm²Medial - Lateral 126 mm² ± 56 mm²
162 mm² ± 57 mm² ^a^ Values are expressed as mean ± SD, mean change (mean percentage change) ± SD or mean difference ± SD. Bold values indicate statistical significance (p < .05)

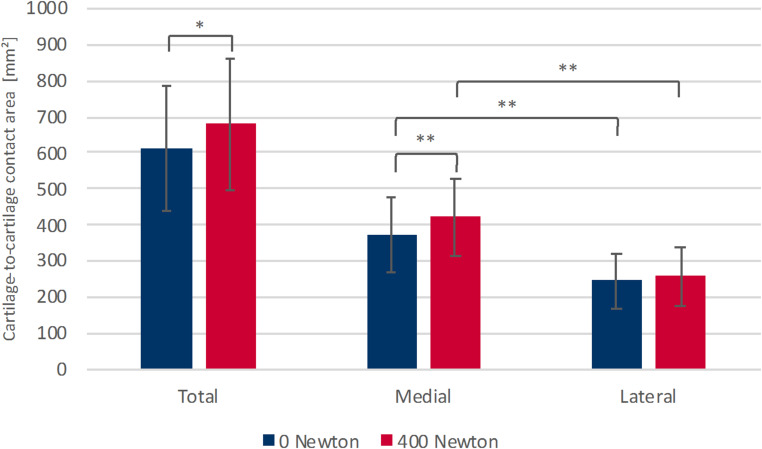

Fig. 4. Comparison of the tibiofemoral cartilage-to-cartilage contact area in the total knee joint, in the medial and the lateral compartment in unloaded (0 N) and loaded state (400 N). * p = .002, ** p < .001
Cartilage-to-meniscus contact area
In the unloaded condition, there were no notable differences observed between the medial and lateral compartments, nor between the meniscotibial and meniscofemoral cartilage-to-meniscus contact areas. When further analyzed compartment-wise, the meniscotibial and meniscofemoral contact areas also showed no significant differences. Upon applying a load of 400 N, the overall cartilage-to-meniscus contact area exhibited a decrease of 3.4%, although this was not statistically significant. In the medial compartment, however, the mean meniscofemoral contact area significantly decreased by 9.5% (p = .028) under load (Fig. 5). Other load-related alterations in the cartilage-to-meniscus contact areas were not significant. A comparison of the proximal and distal surfaces of the menisci under load revealed a significantly larger meniscotibial area compared to the meniscofemoral area for the entire knee joint (p = .004) and for the medial compartment (p = .002). No significant differences were found in the other cartilage-to-meniscus contact areas under loaded conditions (Table 2).
Table 2. Tibiofemoral cartilage-to-meniscus contact area ^a^Total0 N400 N400 N–0 N1893 mm² ± 243 mm²1824 mm² ± 242 mm²– 69 mm² (– 3.4%) ± 146 mm²Total medial963 mm² ± 169 mm²918 mm² ± 178 mm²– 45 mm² (– 4.6%) ± 80 mm²Total lateral930 mm² ± 97 mm²906 mm² ± 114 mm²– 24 mm² (– 2.3%) ± 97 mm²Total meniscofemoral929 mm² ± 107 mm²870 mm² ± 114 mm²– 59 mm² (– 6.1%) ± 91 mm²Total meniscotibial964 mm² ± 154 mm²954 mm² ± 135 mm²– 10 mm² (– 0.5%) ± 69 mm²Medial meniscofemoral471 mm² ± 70 mm²428 mm² ± 85 mm² – 44 mm² (-9.5%) ± 49 mm² Medial meniscotibial492 mm² ± 105 mm²490 mm² ± 97 mm²– 2 mm² (0.4%) ± 42 mm²Lateral meniscofemoral458 mm² ± 50 mm²442 mm² ± 52 mm²– 16 mm² (-2.8%) ± 56 mm²Lateral meniscotibial472 mm² ± 62 mm²464 mm² ± 69 mm²– 8 mm² (-1.5%) ± 49 mm²TotalMedial - Lateral34 mm² ± 129 mm²12 mm² ± 174 mm²MeniscofemoralMedial - Lateral13 mm² ± 57 mm²– 15 mm² ± 83 mm²MeniscotibialMedial - Lateral21 mm² ± 77 mm²27 mm² ± 100 mm²TotalMeniscofemoral - Meniscotibial– 34 mm² ± 106 mm² -84 mm² ± 63 mm² MedialMeniscofemoral - Meniscotibial– 21 mm² ± 55 mm² -63 mm² ± 41 mm² LateralMeniscofemoral - Meniscotibial– 13 mm² ± 57 mm²– 21 mm² ± 44 mm²^a^ Values are expressed as mean ± SD, mean change (mean percentage change) ± SD or mean difference ± SD. Bold values indicate statistical significance (p < .05)

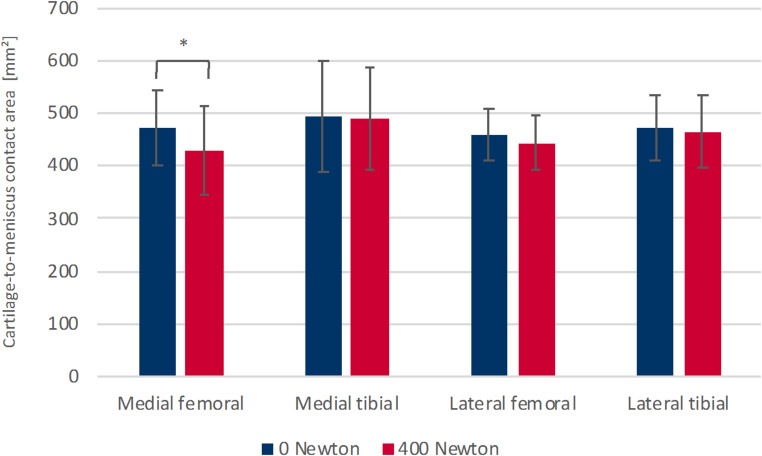

Fig. 5. Comparison of the cartilage-to-meniscus contact area in the medial and lateral compartment on the femoral and tibial side in unloaded (0 N) and loaded state (400 N). * p = .028
