Ultrasound measurement of optic nerve sheath diameter pre and post lumbar puncture for prediction of postdural puncture headache
Fatma Merzou, Anna-Lena Kunzmann, Daniel Janitschke, Jose Valdueza, Benjamin Landau, Sebastian Roemer, Erwin Stolz, Laurin Schappe, Viviana Versace, Steffen Kottackal, Piergiorgio Lochner
TL;DR
This study shows that measuring optic nerve sheath diameter with ultrasound can help predict postdural puncture headache after lumbar puncture.
Contribution
The study demonstrates that optic nerve sheath diameter measured via ultrasound can predict postdural puncture headache with high sensitivity and specificity.
Findings
All patients showed a physiological reduction in optic nerve sheath diameter immediately after lumbar puncture.
A significant difference in optic nerve sheath diameter was observed between patients with and without postdural puncture headache at 24 hours.
A cut-off value of 4.9 mm for optic nerve sheath diameter predicted postdural puncture headache with 86% sensitivity and 93% specificity.
Abstract
The aim of our study is to test the hypothesis whether ultrasonographically measured ultrasound-guided optic nerve sheath diameter (US-ONSD) decreases after lumbar puncture (LP) and whether decreased optic nerve sheath diameter (ONSD) after lumbar puncture is associated with headache. The latter might help to identify patients with postdural puncture headache (PDPH). In this prospective observational study 76 patients, who had undergone diagnostic LP using an atraumatic technique, received a measurement of ONSD before (T0), immediately after (T1) and 24 h after LP (T2). Additionally demographic data such as age, sex, body mass index (BMI), and also headaches and symptoms were recorded. In six out of 7 patients with constant PDPH, we additionally measured ONSD 48 h (T3) and 72 h (T4) after LP. All patients (n = 76, 100%) showed a physiological reduction in ONSD at T1. Patients with…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4- —Universitätsklinikum des Saarlandes und Medizinische Fakultät der Universität des Saarlandes (8981)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsTraumatic Brain Injury and Neurovascular Disturbances · Anesthesia and Pain Management · Optical Imaging and Spectroscopy Techniques
Introduction
Postdural puncture headache (PDPH) due to a cerebrospinal fluid (CSF) leak following a dural puncture, such as the diagnostic lumbar puncture (LP), is characterised by a position-dependent headache, usually occurring within five days after the procedure and disappearing spontaneously after two weeks. Neck pain, visual disturbances, back pain, subjective hearing disturbances, and nausea may also occur. The development of post-puncture syndrome depends, among other things, on the shape and size of the needle. Predisposing factors such as young age, female sex, low body mass index (BMI), and chronic headache also play a role^1,2^.
PDPH impairs the quality of life of the affected patients and requires additional treatment, which can lead to hospitalisation and treatment costs. Optic nerve sheath diameter (ONSD) measurement via transorbital sonography (TOS) is based on the measurement of the optic nerve sheath (ONS) that surrounds the optic nerve. The optic subarachnoid space communicates with the cranial subarachnoid space, lies between the optic nerve and the ONS, and is filled with CSF. It is known that an increase or decrease of intracranial pressure (ICP) causes the ONS to increase or decrease in diameter^3^. Meanwhile, several studies have shown a correlation between the increase in the ONSD and increased ICP^4,5^. However, there is currently limited data to determine the utility of ultrasound-guided ONSD (US-ONSD) after LP; particularly whether ONSD can also specifically detect low ICP^6–8^.
In this context, according to the pathophysiology and magnetic resonance imaging (MRI) findings of symptomatic intracranial hypotension, a pilot study from Fitchner et al. showed that symptomatic patients with orthostatic headache had a significantly decreased ONSD during changes from supine to upright position^9^.
PDPH is a common complication after LP and there exists no effective tool for predicting it yet. According to a study published in 2024, ONSD may be valuable for predicting PDPH^7^.
However, to date there have been no studies looking at patients receiving LP for diagnostic purposes without an anaesthetic procedure and serially measuring ONSD to identify individuals at risk of developing PDPH^8^. There are conflicting results in the literature on the correlation between the change in real-time ONSD and the measurement of ICP by lumbar puncture, with two reports finding a positive correlation and one finding no correlation^10–12^.
Aim
We tested the hypothesis that US-ONSD is changed after LP and could identify patients with possible occurrence of PDPH.
Methods
Study design
This prospective observational study was conducted in the department of neurology at the Saarland University Medical Center. The local ethics committee (Ethikkommission der Ärztekammer des Saarlandes; no. 208/23) approved this study. All procedures were performed according to the ethical standards of the committee responsible for human experimentation (institutional and national) and the Helsinki Declaration of 1975, revised in 2013. Written informed consent was obtained from each participant or legal guardian.
Participants
We prospectively recruited patients, who were admitted to our neurology department between November 2023 and April 2024 and needed to undergo LP as a diagnostic test. ONSD was measured using ultrasound in each patient before and after LP. Inclusion criteria were as follows: age ≥ 18 years, patients who require LP solely for clinical indication as diagnostic test (patients with headaches, autoimmune diseases (e.g. multiple sclerosis), infections of the central/peripheral nervous system, or unclear polyneuropathy). All patients had no clinical signs of increased ICP before LP and underwent an LP using an atraumatic needle, preferably the size 20G (n = 66, 86.8%) but also 22G (n = 6, 7.9%) and in rare 21G (n = 2, 2.6%) and 27G (n = 2, 2.6%). The exclusion criteria were age < 18 years, no informed consent, presence of absolute contraindications for LP, poor or unavailable transorbital acoustic window (e.g., due to severe optic nerve atrophy, preexisting eye trauma) and patients with hydrocephalus or idiopathic intracranial hypertension (IIH) (Fig. 1).Fig. 1. Flow chart: The clinical course of study for patients.
All patients showed no clinical signs of increased ICP and underwent a cranial computed tomography (CT) scan of the head before the LP procedure.
Patient characteristics were collected before LP. LP was performed in a seated position with both knees and chin pointing towards reaching for the chest. CSF pressure was not measured, as there was no clinical indication.
For ONSD measurement, the patient was positioned supine with the head and upper body raised 20–30°. US-ONSD technique is subsequently described in detail in the same section^13^.
ONSD was assessed before LP (T0), immediately after LP (T1), and after 24 h after LP (T2) (Fig. 2). If patients presented with symptoms of PDPH related to CSF hypotension, clinical data were collected up to 72 h (T4), and ONSD was measured at T3 (48 h) and T4 (72 h) (Fig. 3).Fig. 2. The ONSD measures values of the two groups of post-dural puncture headache (PDPH) and no PDPH at different time points. Before lumbar puncture (T0), after LP (T1) and after 24 h (T2). Asterisks denote statistical significance at * p < 0.05, ** p < 0.01, and *** p < 0.001. ### p < 0.001 compares T2 between groups. @T0 p < 0.05 compared to PDHD.Fig. 3. The ONSD measurement values of the patients with postdural puncture headache (PDPH) at different time points. Before lumbar puncture (T0), directly after LP (T1), after 24 h (T2), after 48 h (T3), and after 72 h (T4). * p < 0.05, ** p < 0.01, *** p < 0.001.
The datasets used and analysed during the current study are available from the corresponding author upon reasonable request.
Transorbital sonography
Before commencement of this study, the investigator (AK) was trained to perform ONSD measurement by ultrasound, examining 25 healthy subjects according to the guidelines of the recent international measurement protocol^14,15^ and was supervised by a clinician experienced in the technique (PL). Subsequently, the two sonographers (AK and PL), who investigated the inter-observer variation independently performed ONSD measurements without knowing the other’s results before starting recruitment and obtaining sonographic measurements. The average inter-observer variation was 0.13 mm.
US-ONSD measurement technique
The ultrasonography studies of ONSD were performed with an ultrasound machine (GE Logiq E9) equipped with a linear transducer (LA 332, GE; 4–15 MHz) with a lateral resolution of < 0.4 mm; the mechanical index was reduced to < 0.26, following ALARA principle.
In particular, the ONSD was identified by measuring the distance between the external borders of the hyperechogenic area surrounding the optic nerve, corresponding to the periorbital subarachnoid space (supplemental Fig. 1). The binocular mean ONSD values were obtained for each eye by averaging these values.
Brightness and dynamic range were individually modified in order to obtain more contrast. Once we had achieved a satisfactory image of the ONSD, this was captured using the freeze button and the measurement was performed on the ultrasound device. Three different measurements were taken for each eye, and the average value was used for statistical purposes. For a standardized measurement we went 3 mm downwards starting from the lamina cribosa. The optic nerve presents itself as hypoechoic. Next to the hypoechoic optic nerve one can identify the hyperechoic ONSD according to recently published consensus criteria^15^.
All transorbital ultrasound investigations were performed by one person (AK), who was blinded to medical examinations, using the same equipment and constant settings. In cases of measurement uncertainty, the ONSD measurements were reviewed again with the senior neurosonologist (PL).
PDPH patients
The clinical course of PDPH patients was followed up by an additional third and blinded investigator, who was not responsible for measuring the ONSD so that subjective factors influencing the study results were avoided.
The patients were questioned for the development of PDPH at the 24th, 48th or eventually at 72th hour, and the numerical rating scale (NRS) score of patients who developed PDPH was recorded. Postinterventional PDPH pain assessment was measured with an NRS score from 0 to 10 (0 = no pain and 10 = most severe pain) by patient self-assessment. Furthermore, we contacted the patients two weeks after the LP to hear more about the course of their symptoms after discharge.
Moreover, age, sex, weight, height, and correspective BMI, needle thickness and amount of CSF were also recorded for all patients. The amount of CSF, extracted during the lumbar puncture, was determined by a doctor, depending on the underlying disease and indication and ranged from a minimum of 5 to a maximum of 30 mL.
The selected patient position was in sitting, which is better tolerated by most patients in an acute setting.
Statistical analysis
Based on previous studies, the frequency relation between the two groups PDPH and non-PDPH patients is assumed to be at approximately 1:4^7^. In order to be able to determine a significant difference between these two groups, the needed number of patients was calculated to be 80 persons altogether.
All collected variables were stored in one table. This dataset was evaluated using the programming language ”R” for statistical analysis and the software ”RStudio”. For quantitative data, descriptive statistics were reported as mean (± standard deviation (SD)) for normally distributed variables and median (min–max), if not normally distributed, respectively. Absolute frequencies and percentages were reported for qualitative variables. Student’s t-test was used for continuous variables to determine significant differences between independent groups, while the chi-squared test was employed to evaluate differences in categorical variables.
Multivariate logistic regression was performed to determine the associations of the demographic and procedural variables highlighted (sex, age, CSF volume withdrawn, needle gauge, history of chronic headache, and BMI) as well as the ONSD measured at three time points (T0 = pre-puncture, T1 = immediately post-puncture, T2 = 24 h post-puncture) and the relationship with PDPH.
The statistical evaluation of ONSD over time involved a two-factorial ANOVA followed by a Tukey-HSD as a post-hoc analysis. ROC curve analysis was conducted using the “pROC” package for R. Plots were generated using the “ggplot2” package. In all figures, asterisks denote statistical significance at * for p < 0.05, ** for p < 0.01, and *** for p < 0.001.
Results

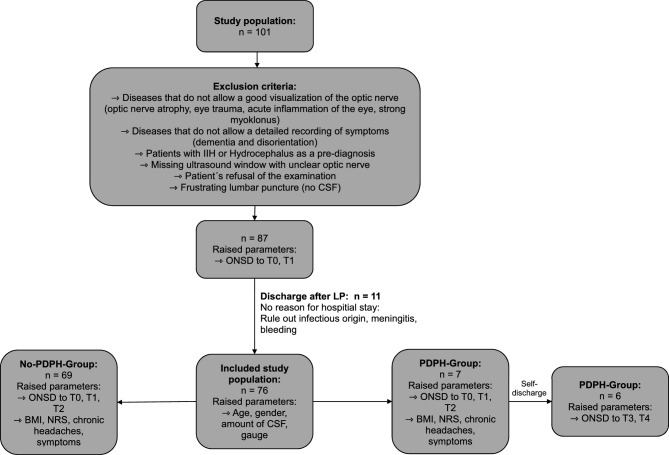

Altogether 101 patients were assessed. Figure 1 (flow chart) shows the algorithm for excluding and including patients, according to the specified reasons.
All 87 patients underwent an LP and a measurement of the ONSD. In 11 patients the ONSD was only recorded at T0 and T1 because they did not provide an indication for hospital stay. The reasons for exclusion are shown in the flow chart. Finally, 76 patients were included for analyses. The characteristics of patients are listed in Table 1. Seven (9.2%) of the 76 patients (5/2; f/m) developed PDPH.Table 1. Demographic data of the PDPH and non-PDPH groups.CharacteristicNon-PDPH groupn = 69PDPH groupn = 7P-valueNumber (%)Mean ± SDMedian (Min–Max)Number (%)Mean ± SDMedian (Min–Max)Age (years)56 ± 1760 (19–88)34 ± 1230 (21–53) < 0.003^b^Sex (F/M)31/38(45/55)5/2(71/29)0.18^a^BMI (kg/m^2^)25 ± 525 (14–37)22 ± 423 (16–27)0.18^c^Chronic headache (yes/no)12/57(17/83)2/5(29/71)0.47^a^Liquor volume (ml)9 ± 75 (3–35)11 ± 810 (5–30)0.18^b^Gauge20: n = 61 (88.4%)21: n = 2 (2.9%)22: n = 4 (5.8%)27: n = 2 (2.9%)20: n = 5 (71.4%)22: n = 2 (28.6%)0.19^a^a: Chi-squared test; b: Mann–Whitney-U-test; c: Unpaired t-test.Gauge: needle size.
No statistical differences were found in terms of BMI, sex, CSF volume, needle size, or prior history of headaches between PDPH and non-PDPH patients. There was a statistical difference in age (p < 0.001). We found no significant correlation between ONSD and the NRS scores of both groups at each time point. The only significant correlation was found in the PDPH group between NRS and ONSD at time point T1 (r = -0.44; p = 0.045).
In the PDPH group, a significant correlation was found between sex and ONSD at T0 (r = -0.78; p = 0.04), T1 (r = -0.80; p = 0.03), T2 (r = -0.82; p = 0.03), T3 (r = -0.97; p = 0.002), T4 (r = -0.95; p = 0.004) and a correlation between age and ONSD at T1 (r = 0.775; p = 0.04), T2 (r = 0.773; p = 0.04), T3 (r = 0.97; p = 0.002), T4 (r = 0.90; p = 0.015). In the PDPH group, there was a significant increase in back pain in the lumbar area (p = 0.004), once from T0 to T1 (p = 0.02) and from T0 to T2 (p = 0.003). For all other symptoms surveyed from T0 to T4, no significant difference was found.

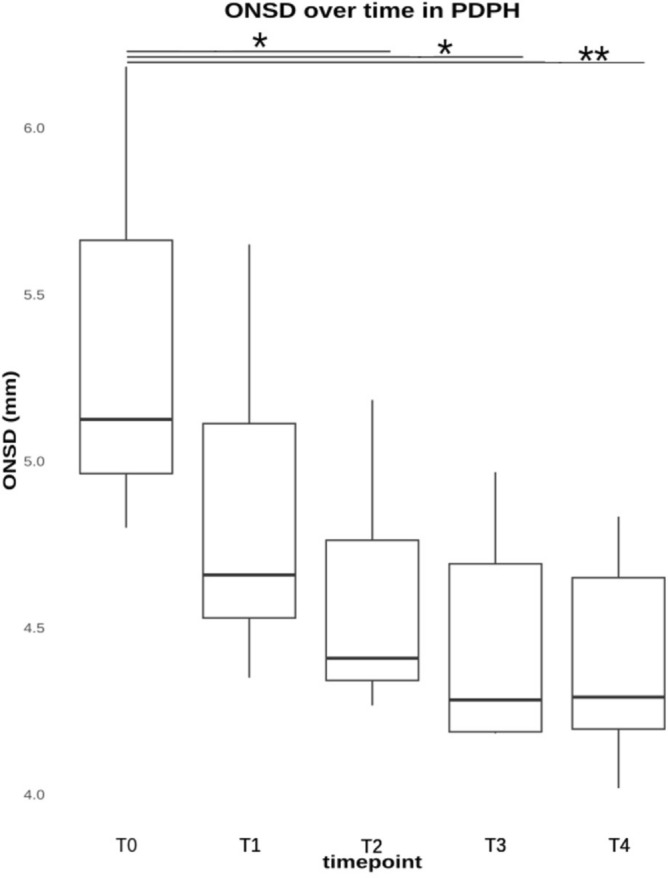

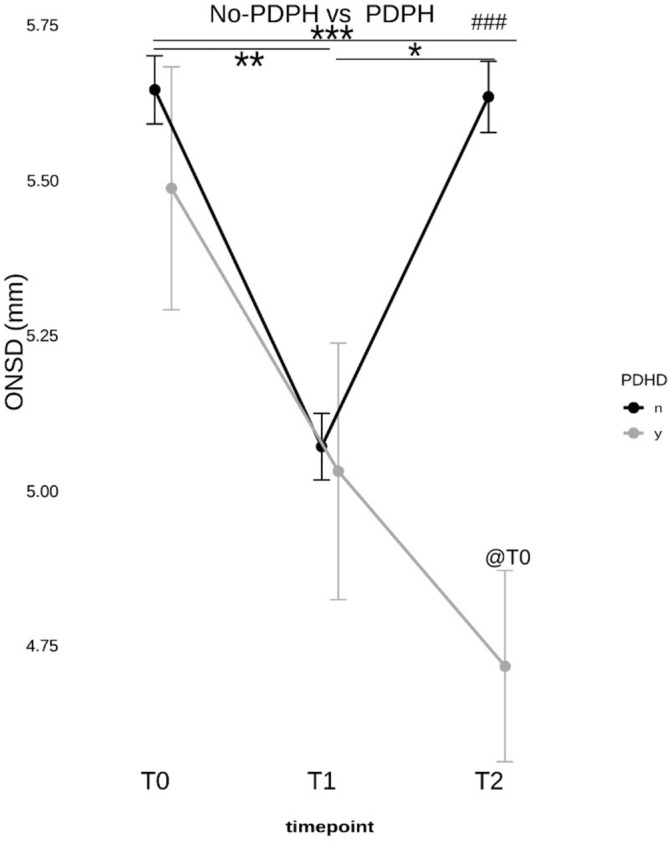

There was no statistically significant difference before lumbar puncture (T0) in the mean ONSD measurements in patients with PDPH 5.40 mm ± 0.54 (range 4.80–6.20 mm), and without PDPH development 5.61 mm ± 0.46 (range 4.52–6.73 mm). There was a statistically significant difference in postprocedural ONSD between patients with and without PDPH development at T2 (p < 0.001) (Fig. 2).

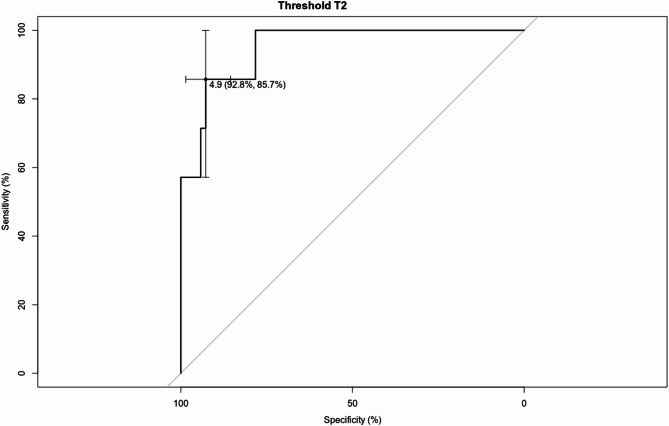

The ROC curve analysis showed the optimal ONSD cutoff value at T2 of 4.9 mm for predicting PDPH (AUC 0.92, 95% CI: 0.89 to 1.01). Adopting this cutoff value, the sensitivity and specificity were 85.7% and 92.8%, respectively (Fig. 4).Fig. 4. The ROC curve of the ONSD cutoff for PDPH prediction. ONSD T2 cutoff was 4.9 mm; AUC = 0.92, 95% CI 0.89 to 1.01, and p < 0.05*, T2 AUC: 0.93, sensitivity 85.7%, specificity 92.8%.
