A dynamic model of COVID-19 infection quantifies the impact of preventive interventions on the infection of severely immunocompromised subjects in the United Kingdom
Carmen Pin, Sylvia Taylor, Catia Ferreira, Sofie Arnetorp, Holly Kimko
TL;DR
A mathematical model of COVID-19 in the UK shows that immunocompromised individuals remain at high risk despite general vaccination success, and targeted interventions like passive immunization could help.
Contribution
A novel dynamic model quantifies the impact of preventive strategies on severely immunocompromised individuals during the COVID-19 pandemic.
Findings
The UK vaccination program reduced general population hospitalizations and deaths but left severely immunocompromised individuals at high risk.
Simulated protective strategies like passive immunization during SARS-CoV-2 peaks could significantly reduce infections in vulnerable groups.
Mathematical models can effectively assess complex interactions and intervention impacts in both immunocompetent and immunosuppressed populations.
Abstract
The disproportional risk of microbial infections affecting immunocompromised individuals underlines the critical need to develop effective infection preventive strategies. Using the COVID-19 pandemic as an example, we developed a mathematical model to evaluate interventions to protect severely immunocompromised (SIC) subjects against COVID-19. Predictions were well-aligned with UK available data for 2021 and 2022, and the model was used to retrospectively quantify the impact of preventive interventions in alternative scenarios during that period. Model simulations indicated that while the UK vaccination program reduced hospitalizations and deaths in the general population, SIC subjects remained at high risk of severe COVID-19. Simulated protective strategies, such as passive immunization, during seasonal SARS-CoV-2 peaks, showed potential to significantly reduce infection rates in this…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsSARS-CoV-2 and COVID-19 Research · COVID-19 epidemiological studies · Immune responses and vaccinations
Introduction
At the close of 2019, China informed the World Health Organization (WHO) of a pneumonia of unknown cause, detected in the city of Wuhan in Hubei province [1]. On January 13^th^, 2020, the first case of novel coronavirus outside of China was confirmed [1]. On January 30^th^, 2020, the WHO declared that the infection outbreak constituted a Public Health Emergency of International Concern. On February 11^th^, the new disease was named COVID-19 and the novel coronavirus “severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2)”. While 2021 was characterized by large peaks of infection all around the globe, during 2022, there was a considerable reduction in coronavirus disease hospitalisation and mortality in developed countries, which was attributable to broad access to COVID-19 vaccines, SARS-CoV-2 infection and reinfection acquired immunity and the emergence of attenuated SARS-CoV-2 variants [2].
The first dose of the vaccine against COVID-19 was deployed in the UK on December 8^th^ 2020 [3]. Vaccination of individuals in the UK was prioritized according to the risk of severe COVID-19, which was strongly determined by age and co-morbidities [4]. In January 2022, about a year time from the first dose, around 90% of people aged 12 years or older had been vaccinated at least once in the UK [5].
Despite the major reduction in COVID-19 hospitalisations and deaths, compared with the pandemic period, the high transmissibility of emergent variants and subvariants has led to high levels of circulating virus and the absolute number of deaths remains high [2]. Acquired immunity by COVID-19 vaccines and SARS-CoV-2 infection may be sufficient to safeguard most immunocompetent individuals against severe COVID-19. However, previous retrospective cohort studies show that fully vaccinated immunocompromised individuals remain at higher risk of hospitalisation, ICU admission, and death than the general population because they often have impaired immune responses to COVID-19 vaccination [6–9]. To address the vulnerability of immunocompromised individuals, preventive interventions different from vaccines have been developed to protect against SARS-CoV-2 infection and/or COVID-19 severe, and include the practice of preventive methods such as “cocoon vaccination” of routine contacts, anti-viral therapies, and passive immunization [10].
To evaluate how prophylactic strategies could protect immunocompromised individuals, we retrospectively quantify the impact of preventive measures on the COVID-19 pandemic by modelling SARS-CoV-2 infection dynamics across the UK in 2021 and 2022. The value of mathematical models to guide pandemic strategies has been previously highlighted [11]. Here, we developed a multicompartment Susceptible-Exposed-Infected-Resistant (SEIR) type model [12–18] that describes COVID-19 infection dynamics across severely immunocompromised (SIC) individuals and immunocompetent subjects in the UK population during 2021 and 2022. We modelled viral transmission and disease progression across multiple infection stages with age stratification and distinct immune states conferring protection against mild or severe disease. The framework incorporates variant-specific effects, seasonality, and both asymptomatic and symptomatic infection, and accounts for social events affecting mixing patterns as well as pharmaceutical and non-pharmaceutical interventions implemented in the UK during this period. The SIC population follows the “stringently defined immunocompromised” criteria from a prior report [9], encompassing individuals who, in the recent past, had one or more of the following conditions: moderate to severe primary immunodeficiency; active treatment with high-dose of corticosteroids or with non-corticosteroid immunosuppressive or immunomodulatory therapies; solid organ or stem cell transplant; solid or haematological malignancy on active treatment; specified haematological malignancies such as leukemias, lymphomas or multiple myeloma; and advanced or untreated HIV. We adopted a hybrid approach that couples ordinary differential equations with event-based scheduling to integrate discrete changes into otherwise continuous-time dynamics and align event timings with UK official data and published literature. We applied the model to analyse the pandemic trajectory and, in particular, to evaluate the outcomes of the SIC population under counterfactual scenarios.
Results
A mathematical model of COVID-19 transmission describes the pandemic dynamics across the UK population during 2021 and 2022 considering immunocompetent and SIC subjects
We have developed a model of the COVID-19 infection dynamics across the UK population during 2021 and 2022 that considers SIC individuals and immunocompetent subjects. The latter individuals are further subdivided in immunized subjects, by either infection or vaccination, and non-immunized against COVID-19. Numerous studies indicate that immunocompromised individuals exhibit significantly reduced immunogenicity to COVID-19 vaccines and infections, and this weakened immune response aggravates with increased severity of the immunocompromised condition [19–21]. Here, for the sake of simplicity, we assumed that SIC individuals are always symptomatic if infected and remain unprotected against any form of the disease, whether mild or severe, after infection or vaccination. On the other hand, immunocompetent subjects might be immunologically naïve against COVID-19 or immunized, by either infection or vaccination, and while protected against the severe form of the disease, they could be susceptible to COVID-19 infection with mild or no symptoms (Fig 1A). To capture age differences in the pandemic outcomes, we implemented three age groups which comprise subjects aged 45 or younger, between 45 and 75 and 75 or older (Fig 1A). Age ranges were selected to maximize within-group similarity in hospitalization and mortality outcomes, using reported data in the literature [22–25], while maximizing between-group contrasts (Supplementary Figure S1A in S1 File). Hereinafter, we referred to COVID-19 requiring hospitalization as severe disease and used the term mild disease for all other symptomatic conditions.

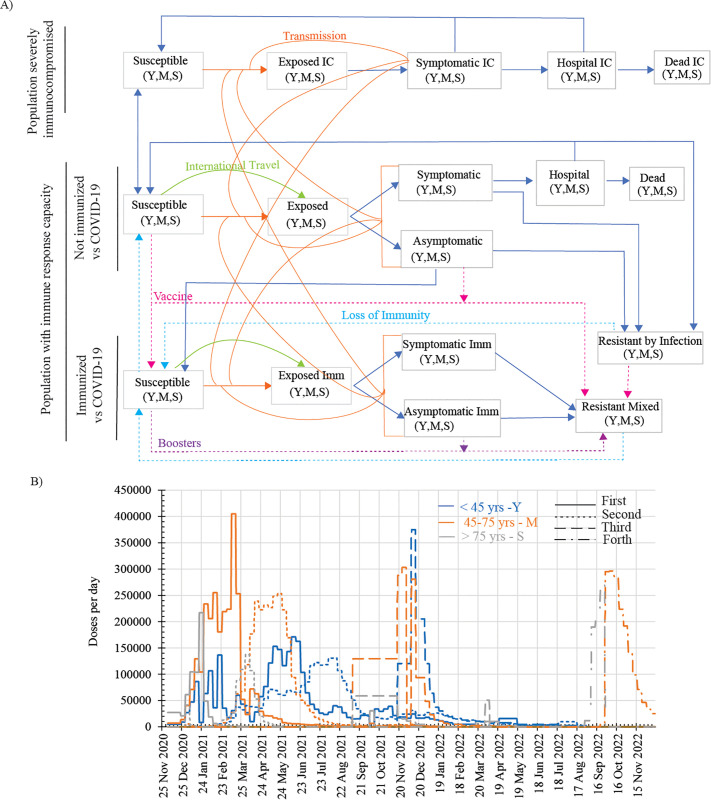

Modelling COVID-19 infection dynamics in the UK population from August 2020 to December 2022.A) Depiction of a model of the COVID-19 pandemic across a population partitioned into severely immunocompromised (SIC) individuals and immunocompetent subjects, who could be immunized subjects, by either infection or vaccination, and non-immunized against COVID-19 infection. The SIC population is further partitioned into susceptible (Sus(IC), incubating after exposure (E(IC), symptomatic (Sym(IC), hospitalized (H(IC), and dead (D(IC) subjects. The immunocompetent individuals naïve against COVID-19 infection are subdivided into susceptible (Sus), exposed (E), infected symptomatic (Sym) and asymptomatic (Asym), hospitalized (H) and dead (D) compartments. After recovering from the infection, these subjects became immunized and resistant to both mild and severe disease (RInf). The COVID-19 immunized population does not comprise compartments for hospitalized or dead subjects, but includes susceptible to mild disease (Sus(Imm), incubating (E(Imm), symptomatic (Sym(Imm), and asymptomatic (Asym(Imm) subjects as well as resistant individuals to any form of the disease (RMix). Each compartment is subdivided in 3 age groups: < 45 (Y: young age), 45−75 (M: middle age) and >75 years (S: senior). COVID-19 transmission requires the contact between susceptible and infected subjects or could result from international travelling. Immunity can be acquired by vaccination or infection and may protect against mild and severe disease or against the severe form only. Loss of immunity is progressive with loss of protection against the mild form of the disease first. B) Rate of deployment of the first four sequential doses of COVID-19 vaccine to each age group in the UK according to published data by NHS England [32`]. The first dose is administered to susceptible (Sus) and asymptomatic (Asym) naïve subjects as well as to resistant individuals following infection (RInf). Repeated doses or boosters are delivered to susceptible (Sus(Imm), asymptomatic (Asym(Imm) and resistant individuals (RMix) within the immunized population.
We consider that transmission of COVID-19 takes place after susceptible subjects encounter infected, either symptomatic or asymptomatic, immunosuppressed or immunocompetent subjects. Thus, transmission depends on the number of susceptible and infected subjects and the intensity of encounters between them. The infection transmission rate is further modulated by age differences in social activity [26] and overall health condition. Furthermore, COVID-19 variant-associated changes in the infection rate are implemented according to the reported timeline of the emergence of the alpha (B.1.1.7), delta (B.1.617.2) and omicron (B.1.1.529) variants (supplementary Figure S1B in S1 File) [27,28]. We also considered further modulation of the infection rate by COVID-19 seasonality [29,30] (supplementary Figure S1C in S1 File), international air travelling restrictions, periods of mandatory tests to enter the UK [31], isolation during symptomatic disease, government-imposed lockdown periods and school holiday in the UK. Age differences in hospitalization and death rates were also considered for both immunocompetent and SIC subjects.
We implemented the administration of the COVID-19 vaccine in our model using the actual vaccination deployment rates published by NHS England during 2021 and 2022 for each age group, which included up to four doses for subjects aged 45 and above [32] (Fig 1B). The first dose of vaccine conferred high level of protection against the severe form of the disease, but lower against the mild disease, as reported for vaccines used in the UK [33–35]. Repeated vaccine administration to already immunized subjects increased the protection against mild disease to 100% [33–35]. We assumed that efficient COVID-19 immunity was established 21 days after the first dose and 14 days after boosters’ administration as reported for the vaccine used in the UK [33–36]. We considered that immunity acquired by either infection or vaccination waned over time and resistant subjects to any form of the disease became susceptible first to the mild form [37–40] and later, if not receiving a booster or being infected, to the severe disease [41].
The model was calibrated using quantitative COVID-19 case data from the UK government and public sources (Table 1, Supplementary Table S1 in S1 File) from August 1^st^, 2020, to December 31^st^, 2022. Out of this specific context of application, i.e., country and period, model predictions are unreliable and similarly, jointly identified parameter values to describe high level data may be highly inaccurate when used in isolation. Supplementary Fig S2 in S1 File shows the predicted COVID-19 infection dynamics in each age group across all model compartments (Fig 1) in SIC and immunocompetent subjects during the study period.
Table 1: Description and identified values for model parameters and terms (parameter values are inter-dependent and meaningless out of the context of this model).
Model predictions are aligned with a variety of observations gathered in the UK during 2021 and 2022, including SIC subjects
Fig 2A shows that the simulated results for overall hospitalized subjects and daily deaths are in good agreement with data reported by the UK government from August 1^st^, 2020, to December 31^st^, 2022 [42]. At the beginning of this period and during most of 2021, the prediction for new cases of infection is higher than the number of COVID-19 positive cases recorded by the UK government [42] (Fig 2A). This could reflect the progressive building of the testing capacity and strategy to meet the UK demand. Similar disagreements on estimated and reported infection cases during this period have been previously described [13,14].

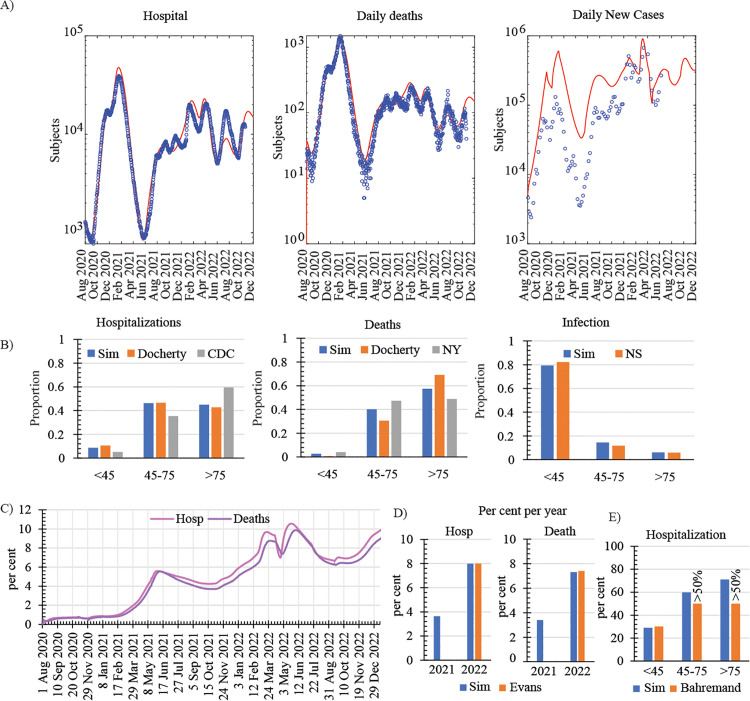

Comparison between model predictions and available COVID-19 pandemic data.A) Comparison of reported hospitalized cases, daily deaths, and daily new cases of infection (symbols) reported by the UK government [42] with model predictions (lines) from Aug 2020 to December 2022; B) Simulated and observed age distribution of infected and hospitalized cases and deaths. Simulations were performed from Aug 1st, 2020, to Nov 30th, 2021, before any vaccine deployment in the UK. Simulated age distributions (Sim) were compared with data reported by the UK office for National Statistics (NS) [47], Docherty et al. for UK hospitals [24], the centre for disease control and prevention (CDC) [25] and the city of New York [23]; C-D) Simulated percentage of hospitalized cases and deaths in the SIC population relative to the total hospitalized cases and deaths in the UK from Aug 2020 to December 2022 per day (C) and per year (D). The simulated percentage per year, 2021 and 2022, is plotted together with data reported by Evans et al. [9]; E) Simulated and reported by Bahremand et al.[20] hospitalization rates relative to COVID-19 cases for each age group in the SIC population between January 7, 2022 and March 14, 2022.
For the immunocompetent population, we assumed that the higher infection rates reported in young subjects, and recapitulated by the model (Fig 2B), could be associated with more intense social activity in this age group [26]. We also observed that the model factor modulating the effect of the age on the infection rate was higher in senior subjects (σS= 0.24, Table 1) than in the middle age group (σM= 0.11, Table 1), which could be explained by poorer overall health in subjects aged 75 and above leading to greater susceptibility to infection. Thus, for the immunocompetent population, our simulations and available data suggest that the youngest group was the main age group harbouring the virus and, mainly when asymptomatically infected, responsible for viral transmission (Fig 2B). On the other hand, in agreement with available data (Fig 2B), the model predicts that hospitalisations and deaths mainly occur in subjects over 45 years, (Fig 2B). In particular, subjects aged 75 and above exhibit the highest proportion of hospitalization cases and deaths, although they exhibit lower infection rates, and this observation is well aligned with model predictions (Fig 2B).
To parametrize our simulated SIC population, we use the reported quantitative data on “stringently defined immunocompromised” subjects by Evans et al. [9]. In alignment with the data in that report, we assumed that this group represents 0.7% of the UK population. We considered that the impact of age on the risk of infection among SIC individuals could be neglected as previously reported [43]. For the SIC population, we introduced an additional parameter to account for the reduced infection rate resulting from their decreased social activity or additional protective measurements. This adjustment reflects the recommended shielding measures, which encourage these individuals to minimize contact with others. Moreover, we considered a higher overall risk of hospitalization in infected SIC individuals relative to immunocompetent subjects and higher likelihood of hospitalisation in older individuals as previously reported [20]. Having implemented these details in our model, our simulated hospitalization and death percentages of SIC subjects, relative to the hospitalization and death cases in the total population, respectively, were in good agreement with published data [9] (Figs 2C-2D). Notice that the smaller hospitalization and death percentages of SIC subjects in 2021, compared to 2022, are due to considerably larger numbers of clinical cases in the immunocompetent population in 2021 when the population immunity against SARS-CoV-2 was relatively low. Similarly, the age associated hospitalization rates were in good alignment with published data of SIC subjects [20] (Fig 2E).
Altogether, we have developed a model of the dynamics of COVID-19 infection across the UK population during 2021 and 2022, able to recapitulate available data for the overall population as well as for SIC subjects.
Model sensitivity analysis highlights the impact of asymptomatic infections on viral transmission and the influence of SIC-specific protective strategies on outcomes in SIC subjects
We evaluated the sensitivity of the model state variables to key parameters governing infection dynamics and assessed effects separately in the immunocompetent and SIC populations (Supplementary Table S2 in S1 File). The most influential parameter in the immunocompetent population, and highly influential in the SIC population, was fAsym, the fraction of infections that are asymptomatic. Increases in the value of this parameter were associated with widespread rises in state variables, consistent with intensified viral transmission and circulation, and underscored the central role of asymptomatic infection in propagation. The incubation and transmission rates exerted likewise a strong effect on the model outcomes; higher values similarly amplified viral circulation. The infection recovery rate (or infection clearance) for asymptomatic cases showed a stronger impact than the recovery rate for symptomatic cases, further supporting asymptomatic individuals as key drivers of transmission (Supplementary Table S2 in S1 File). Hospitalization and mortality rates had had their largest effects on the SIC population, which, by model designed, is assumed not to develop immunity and is therefore more sensitive to changes in parameters linked to severe disease.
The parameter with the greatest impact on the SIC population was that modulating SIC-specific infection transmission (Supplementary Figure S3, Supplementary Table S2 in S1 File). Infection transmission in SIC subjects differs from the immunocompetent population due to restrictions in social activity, diminish overall health condition or specific protective measurements applied to this population to modify transmission. This parameter exerted a strong influence on outcomes (Supplementary Figure S3, Supplementary Table S2 in S1 File) which indicated that SIC-specific protective measures could have substantial effects on this population. Notably, increasing values of this parameter heightened viral circulation exclusively within the SIC population.
Hospitalization and death of immunocompetent subjects are predicted to have been strongly reduced by the vaccination program in the UK mainly during 2021
We next aim to use the model to quantify the impact of the vaccination strategy in the UK. To that end, we simulated scenarios considering no vaccination of i) any subject, ii) the young group iii) the middle age group or iv) the senior group during 2021 and 2022. We compared the simulated results with the predicted pandemic outcomes by the original model described above and validated with existing data.
For the scenario considering no vaccination of any subject, our model predicted an increase of more than 110,000 deaths and 730,000 hospitalization admissions in the immunocompetent population during 2021 and 2022 (Fig 3A). The exclusion from the vaccination campaign of either the middle age or senior group would have resulted in an increase of about 400,000 or 250,000 hospital admissions, respectively, and about 50,000 deaths in either case. Missing the vaccination of the young group would have had a comparatively minor increase of 500 deaths and 10,000 hospital admissions (Fig 3A). On the other hand, the vaccination of immunocompetent subjects was predicted to have a minor effect on the pandemic outcomes of SIC subjects with a very minor increase of about 0.7% deaths and 0.06% hospital admission cases in the no vaccination scenario (Fig 3B). This result suggests that despite the vaccine-induced disruption of the infection cycle in the general population, the level of circulating virus remained sufficiently high to infect SIC subjects and changes in disease outcomes for SIC subjects associated with vaccination were predicted to be negligible.

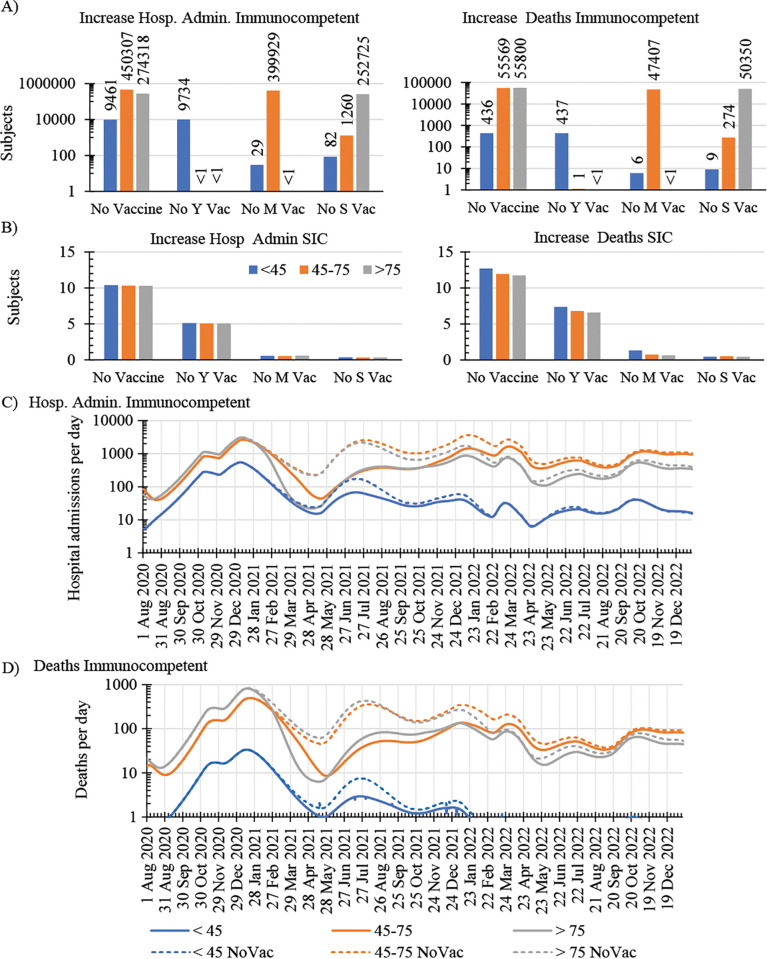

Simulated impact of vaccination on COVID-19 dynamics across the immunocompetent and SIC population in the UK.Predicted increase in the number of hospital admissions and deaths of immunocompetent (A) and SIC (B) subjects under simulation conditions considering no vaccination of i) any subject, ii) young, Y, iii) middle age, M, or iv) senior, S, subjects during 2021 and 2022. Daily hospital admissions (C) and deaths (D) of immunocompetent subjects under the vaccination programme implemented in the UK according to published data by NHS England [32`] (solid line), which is described in Fig 1B, and under simulated conditions assuming no vaccination of any subject during 2021 and 2022 (dashed line).
Our model assumes that SIC subjects remain unprotected against COVID-19 infection after vaccination or after infection. While immunocompromised individuals are known to have a significantly reduced immune response compared to immunocompetent individuals, they may still exhibit some degree of protection following vaccination [19–21]. For simplicity, we assumed individuals with severely immunocompromised conditions are not able to mount efficient immune responses. This assumption facilitated the assessment of how increased immunity, driven by vaccination, of the general population, could impact on the pandemic outcomes of the SIC population, without confounding from their own immune responses. In addition, there is a lack of accurate quantitative information on the immune response of SIC subjects required for a precise estimation of the response to vaccination or infection on SIC subjects. Nevertheless, this assumption may affect the absolute outcomes of the SIC population under counterfactual simulation scenarios. Accordingly, those numbers should be interpreted as illustrative and used for comparative purposes only.
Figs 3C-3D shows that the differences in hospital admissions and deaths between the no vaccination scenario and the original model, describing the actual pandemic outcomes on immunocompetent subjects, are more apparent in 2021 than in 2022 for all age groups. This indicates that the vaccination of immunocompetent subjects had the greatest impact in 2021 before the so-called herd immunity was achieved in the population in 2022 (Figs 3C-3D).
All together our simulation results suggest that the vaccination strategy deployed in the UK led to the early increase of the population immunity and mainly during 2021 prevented a considerable increase of the already high reported number of deaths and hospital admissions in the UK during the COVID-19 pandemic.
Preventive protective interventions during COVID-19 peak of infections could strongly reduce hospitalization and deaths of SIC subjects
We further used the model to investigate the impact of preventive interventions, such as passive immunization, conferring protection to SIC subjects against COVID-19 infection. For this purpose, we shortened the study period from April 1^st^, 2021, to December 31^st^, 2022, and simulated scenarios including preventive passive immunization during the infection peaks from October 15^th^, 2021, to April 15^th^, 2022, and from October 15th, 2022, to the end of the study period. Thus, we avoided the inclusion of the extremely large peak of infection recorded at the end of 2020-beginning 2021 associated with the extremely low initial population immunity and that could lead to an exaggeration of the impact of preventive interventions on clinical outcomes in SIC subjects.
We simulated 4 possible scenarios comprising interventions conferring 10%, 25% 35% and 50% protection against COVID-19 infection during the infection peak periods mentioned above. Protection levels in our simulations refer to the percentage of individuals protected against infection. We compared the simulated results in SIC subjects with the predicted outcomes by the original model calibrated with existing data and predicting the actual pandemic dynamics.
Our original model calibrated with existing data predicted about 4,400 deaths and 44,000 hospital admissions of SIC subjects from April 2021 to Dec 2022. In our simulation scenario with preventive interventions conferring 35% protection against COVID-19 infection, these numbers decreased by approximately 900 and 10,000, respectively, and further by about 1300 and 14,000, respectively, when the simulated preventive interventions achieved 50% protection against infection (Fig 4A). Of note, the efficacy of our simulated preventive interventions was age-independent, and its relative impact was consistent across all age-groups. The greater absolute decrease in clinical cases predicted for the middle age group was the result of a greater number of casualties in this age group. The temporal dynamics of the simulated clinical outcomes suggests a rapid response to preventive interventions with considerable decreases in hospital admissions and deaths of SIC subjects during the intervention periods (Figs 4B-4C).
Simulated impact of preventive interventions during COVID 19 infection peaks in the SIC population.A) Predicted decrease in the number of hospital admissions and deaths of SIC subjects, accumulated from April 2021 to December 2022, under simulated conditions considering preventive interventions that confer 25, 50, 75 and 100% protection to the SIC population from October 15th, 2021, to April 15th, 2022, and from October 15th, 2022, to end of the study in December 2022, during the epidemiological infection peaks. Daily hospital admissions (B) and deaths (C) of SIC individuals with (dashed line) and without (solid line) considering preventive interventions conferring 75% protection against COVID-19 infection during the epidemiological infection peaks from October 15th, 2021, to April 15th, 2022, and from October 15th, 2022, to end of the study in December 2022.
Our simulation results indicate that protective interventions, such as passive immunization, preventing COVID-19 transmission to SIC subjects during infection peaks could significantly mitigate the risk of severe COVID-19 in this population.
Discussion
We developed a mathematical model of the COVID-19 pandemic with emphasis on its application to understand the impact of preventive strategies on SIC subjects. To that end, we focussed on recapitulating the observed disease dynamics in the UK population during 2021 and 2022 and performed simulations in alternative scenarios. To achieve a good representation of available data on the general population and SIC subjects in the UK, our model assumed that SARS-CoV-2 transmission rates were affected by age differences on social activity and overall health condition, emerging new variants, seasonality and population-wide social and travelling restrictions, and implemented the vaccination rates published by NHS England [32]. Furthermore, we considered that immunocompetent subjects, following vaccination or infection, could become protected against COVID-19 mild and severe disease or only to the severe disease, while SIC subjects did not develop any effective protection after vaccination or infection. This level of granularity was sufficient to achieve a satisfactory representation of the observed disease dynamics and enabled the simulation of alternative prophylactic strategies during 2021 and 2022 in the UK.
In agreement with previous mathematical modelling studies [44], our simulations indicate that the vaccination strategy deployed in the UK was an efficient intervention to control COVID-19 by enhancing the population immunity while preventing severe disease cases, leading to a faster containment of the pandemic. However, immunocompromised individuals remain highly disproportionately impacted by COVID-19, despite high rates of vaccination, accounting for more than 20% of COVID-19 hospitalisations, ICU admissions, and deaths in England [9]. Our results indicate that preventing measurements delivering 25%, 35% or 50% protection to the SIC population could reduce hospital admissions and deaths by 15%, 22% and 31%, respectively, when delivered during the seasonal peak of SARS-CoV-2 infection. These results emphasize the continuous need for the development and implementation of innovative strategies to safeguard immunocompromised populations.
Given the complexity of SARS-CoV-2 infection dynamics, mathematical models are highly suitable to investigate the impact of preventive strategies, therapeutics and alternative scenarios on the infection cycle and disease and, hence, assess outcomes for vulnerable populations, the pressure on the healthcare system, and the overall death toll. However, it is worth noticing that the forecasting performance of this type of models is limited by the uncertainty to predict future events such as the emergence of new variants or socioeconomic political events affecting the dynamics of the infection cycle. In this study, we developed a model to characterize the COVID-19 pandemic in the UK during 2021 and 2022. Model hypotheses could be adjusted, and regional or period-specific modifications could be implemented to help evaluate prophylactic and therapeutic strategies aimed at safeguarding global populations against COVID-19 and other viral or bacterial infections.
Materials and methods
Model description
Ou model describes the temporal dynamics of COVID-19 infection across a population partitioned into compartments. A high-level partition divides the population into SIC individuals, unable to develop any immune response against COVID-19, and immunocompetent subjects. The latter population is further subdivided in immunized subjects, by either infection or vaccination, and non-immunized against COVID-19 infection (Fig 1A). We neglected the impact of births and deaths on the dynamics of the immunocompetent population but considered the in- and out-flow of immunocompromised subjects required to balance the size of this population.
The SIC population is further partitioned into susceptible (Sus^(IC^), exposed in incubation stage (E^(IC^), symptomatic (Sym^(IC^), hospitalized (H^(IC^), and dead (D^(IC^) subjects (Fig 1A). Regarding the immunocompetent individuals naïve against COVID-19 virus, we assumed that they are susceptible to the mild and severe form of the disease and subdivided this population into susceptible (Sus), exposed in incubation stage (E), infected symptomatic (Sym) and asymptomatic (Asym), hospitalized (H) and dead (D) compartments. If recovering from the infection, these subjects became immunized against COVID-19 and resistant to both mild and severe disease (RInfc).
The COVID-19 immunized population does not include compartments for hospitalized or dead subjects, but includes susceptible to mild disease (Sus^(Imm^), incubating (E^(Imm^), symptomatic (Sym^(Imm^), and asymptomatic (Asym^(Imm^) subjects as well as resistant individuals to any form of the disease (RMix). (Fig 1A). Thus, there are two compartments of resistant subjects to mild and severe disease, one of them, RInf, comprises non-vaccinated individuals, while the other, RMix, includes mostly vaccinated individuals. This partition of the resistant individuals aimed to achieve a more realistic apportion of vaccine first doses to the population during 2021 and 2022 in the UK [32`]. Each compartment is further subdivided in three age groups that include subjects aged 45 or younger (young, Y), between 45 and 75 (middle, M) and 75 or older (senior, S) (Fig 1A).
In alignment with UK vaccination protocols published by NHS England during 2021 and 2022, [32] (Fig 1A), we simulated the administration of the first dose of the vaccine to non-immunized subjects, who could be susceptible or undergoing their first asymptomatic infection, and to subjects already immunized after recovering from infection (RInf). Boosters were delivered to the immunized population including susceptible, asymptomatic infected and resistant subjects after infection or vaccination (RMix).
We implemented the infection dynamics of new COVID-19 variants by changing the rate of infection and death according to the reported timeline of the emergence of the alpha (B.1.1.7), delta (B.1.617.2) or omicron (B.1.1.529) variants (supplementary Figure S2B in S1 File) [27,28] from August 2020 to December 2022. Furthermore, we also considered that the immunity developed against the delta variant offer limited protection against the omicron variant infection as previously reported [45] and implemented a reduction in the number of resistant subjects to the mild disease after the emergence of the omicron variant.
The rate of infection was further modulated with various terms that quantified the impact of social activity [26] and overall health condition according to the subjects age, COVID-19 infection seasonality [29,30] (supplementary Figure S2C), international air travelling restrictions with periods of mandatory tests to enter the UK [31], isolation during symptomatic disease, lockdown periods and school holiday in the UK.
For SIC subjects, the age-independent factor that modulates infection transmission was calibrated using published data [9] on hospitalization cases of immunocompromised individuals (Fig 1F). We also considered that the rate of hospitalization of infected SIC individuals was sixteen-fold higher than that of immunocompetent individuals [20] and it was age-dependent, with higher likelihood of hospitalisation in older individuals as previously reported [20]. The death rate of hospitalized SIC subjects was calibrated using published data (Fig 2D) [9] resulting in slightly different values, about 10% lower, from those of immunocompetent subjects (Table 1). The remaining model parameters shared the values identified for the immunocompetent population (Table 1).
The model is described by the following system of ordinary differential equations (ODEs):
SIC population
Non-COVID-19 immunised immunocompetent population
COVID-19 immunised immunocompetent population
Two further equations describe the number of new infection cases and hospital admissions per unit time for SIC subjects:
as well as for the immunocompetent population:
where indicates the age group, and t denotes time (days). State variables are defined above, and parameter values are included in Table 1. Initial values used to solve the model are provided in Supplementary Table S1 in S1 File.
To identify parameter values, we used quantitative information on COVID-19 cases made available by the UK government and other publicly available sources (Table 1, Fig 2, Supplementary Table S1, Supplementary Figures S1B-C in S1 File) from August 1^st^, 2020, to December 31^st^, 2022. Model simulations were performed using MATLAB software (version R2024b).
MATLAB (version R2024b) model codes and data are available in Supplementary Material and deposited in BioModels (MODEL2502220001) database [46]. Data used in this paper are publicly available and all sources are cited.
Model sensitivity analysis
The relative (dimensionless) sensitivity value, Sij, of the model variable Xi to the parameter pj, was defined through the partial derivative and computed using the ode function available in MATLAB 2024b. Thus, Sij quantifies the percentage change in the variable Xi per percentage change in the parameter pj. Values of S near zero indicate that the output is insensitive to that parameter, whereas values greater than one indicate that changes in the parameter value lead to proportionally larger changes in the output variable. Positive (negative) values indicate that the output variable increases (decreases) when the parameter increases.
We analysed the sensitivity of 54 model state variables to 13 parameters. We estimated the total effect of each parameter as the sum of absolute sensitivity values across all state variables, as well as, separately within the immunocompetent and SIC populations to identify which population was most affected by each parameter (Supplementary Table S2 in S1 File). To avoid redundancies, we did not evaluate the effects of multiplicative rate modifiers associated with discrete events (for example, variant emergence or implementation of protective strategies). We likewise did not examine sensitivity to the timing of such events.
Supporting information
S1 FileSupporting Information Figures and Tables (WORD file).(DOCX)
S2 FileMATLAB model code (ZIP file).(ZIP)
