Effects of non-invasive vagus nerve stimulation on pupil dilation are dependent on sensory matching

TL;DR

Non-invasive vagus nerve stimulation does not reliably increase pupil dilation unless there is a mismatch in perceived sensation between the real and sham conditions.

Contribution

The study reveals that sensory matching between taVNS and sham conditions is critical for interpreting pupil dilation as a biomarker.

Findings

taVNS did not significantly increase pupil dilation compared to sham when sensations were matched.

Sham-induced pupil dilation was linked to differences in perceived sensation between taVNS and sham.

Right-ear taVNS reduced left-right pupil correlation after stimulation.

Abstract

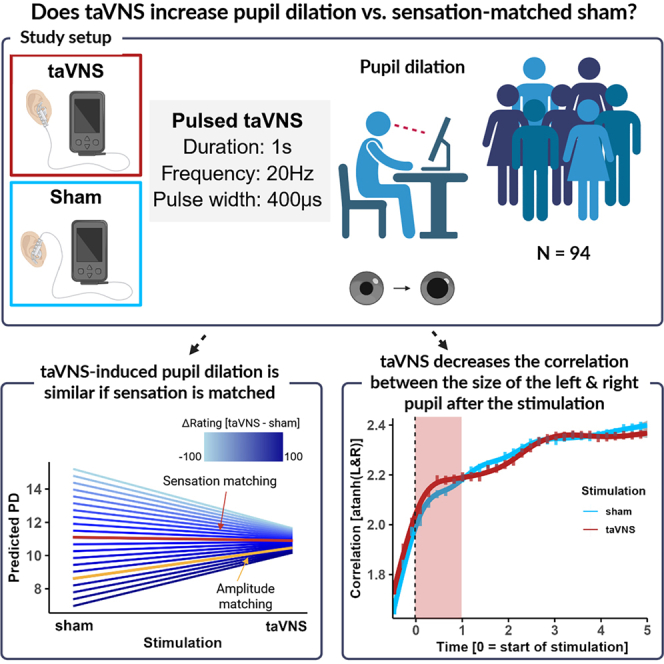

Transcutaneous auricular vagus nerve stimulation (taVNS) is a promising tool to modulate motivation and affect, with prior studies showing greater pupil dilation compared to sham. However, sensory differences between conditions may confound results. In a randomized crossover study with 94 participants, we applied right-sided pulsed taVNS (1 s, 20 Hz, and 400 μs) and calibrated stimulation amplitude to match subjective sensation. Contrary to expectations, taVNS did not significantly increase pupil dilation versus sham. However, when participants perceived sham as less intense, taVNS effects were stronger. Differences in perceived sensation between taVNS and sham were mainly linked to sham-induced pupil dilation. Our findings suggest that right-sided pulsed taVNS only leads to greater pupil dilation when a sensory mismatch occurs, underscoring the difficulty of creating an effective sham.

•taVNS does not increase pupil dilation vs. sham when sensation is matched•Differences in sensation for taVNS vs. sham are linked to sham-induced pupil dilation•Right-ear taVNS reduced left-right pupil correlation after stimulation•Sensory matching is critical for using pupil dilation as a taVNS biomarker

taVNS does not increase pupil dilation vs. sham when sensation is matched

Differences in sensation for taVNS vs. sham are linked to sham-induced pupil dilation

Right-ear taVNS reduced left-right pupil correlation after stimulation

Sensory matching is critical for using pupil dilation as a taVNS biomarker

Neurology; Eye observable entity; Affect; Procedure by device; Sensory neuroscience

Figures

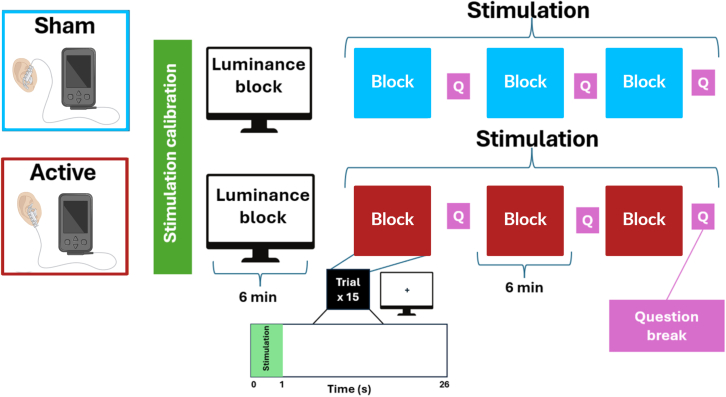

Overview of the study design and stimulation conditions. After placing the electrode, participants completed a stimulation calibration to determine the optimal stimulation amplitude for the following blocks. The stimulation calibration was followed by an initial luminance block (15 trials of 15 s) without stimulation. After the luminance block, participants underwent three stimulation blocks of approximately 6 min each, during which they received short taVNS pulses of 1 s with an interstimulus interval of 25 s. They received 15 stimulations in each block, and the block was followed by a sensat

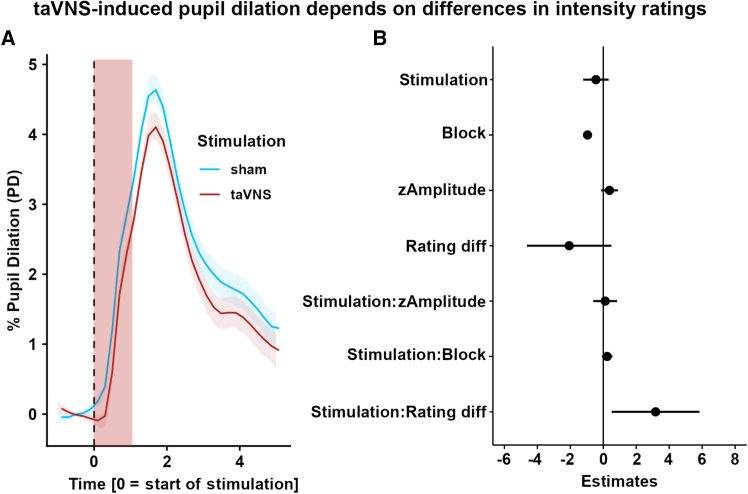

taVNS does not induce larger pupil dilation compared to sham(A) Changes in pupil dilation for taVNS (red line) vs. sham (blue line) over time, showing no significant difference in pupil dilation between conditions. Pupil dilation is expressed in percentage change over baseline. Highlighted in red is the stimulation pulse.(B) Mixed-effects model for the maximum pupil dilation, showing a negative effect of block, *b*(89.5) = −0.97, 95% CI [-1.23; −0.71], *p* < 0.001 (Figure S2A), and a positive interaction effect of stimulation and rating differences (Rating diff), *b*(95) = 3.39, 95% CI [0.62;

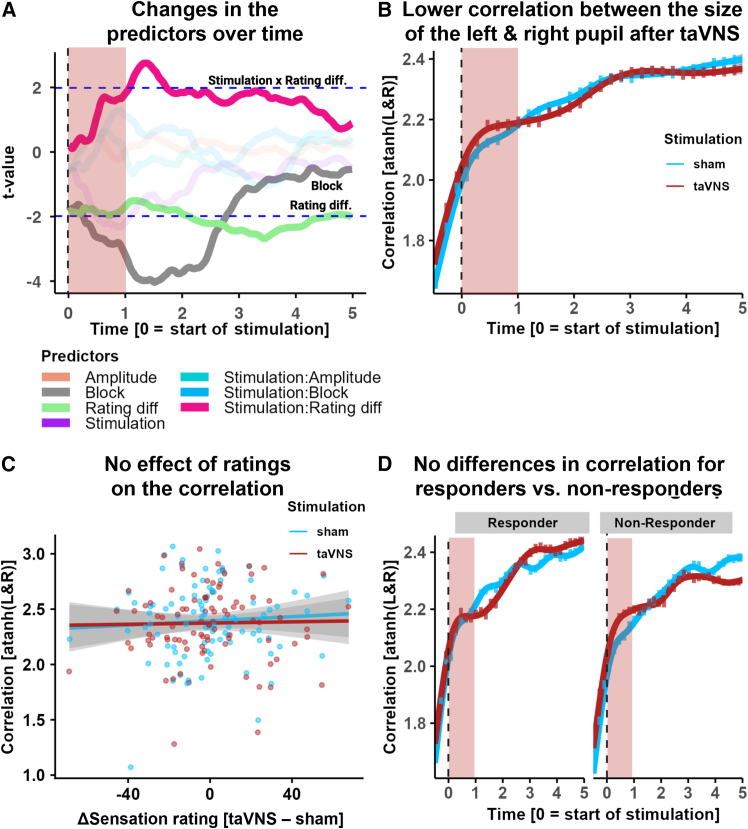

Time series analysis and correlation of the size of the left and right pupil(A) Time-resolved analyses of taVNS-induced changes in pupil dilation show an early modulation by rating differences (Rating diff.). Additional effects that cross the significance threshold are highlighted. The red overlay shows the time of stimulation. Data were analyzed in bins of 100 ms. Dashed blue lines indicate the two-tailed critical t-value corresponding to α = 0.05.(B) Lower correlation for taVNS vs. sham between the dilation of the left and right eye after the stimulation pulse, Stimulation × Time *b*(93) = −

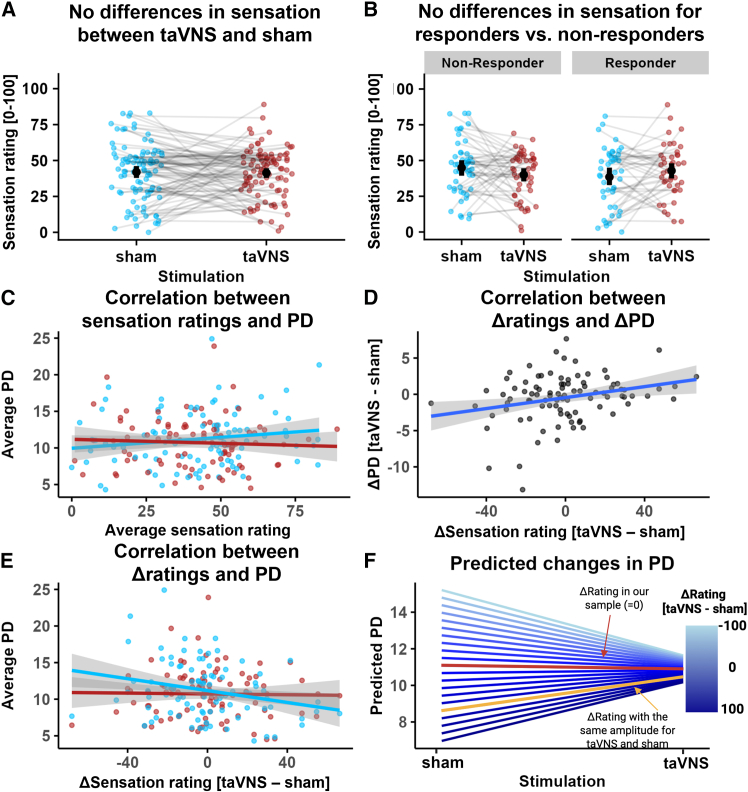

Differences in sensation explain taVNS-induced pupil dilation (PD)(A) No differences in sensation for taVNS (red) and sham, *b*(92) = −0.55, 95% CI [-5.37; 4.27], *p* = 0.82. Error bars depict 95% bootstrapped CIs.(B) No significant differences in sensation between responders and non-responders, *b*(92) = −9.31, 95% CI [-18.84; −0.21], *p* = 0.055). Error bars depict 95% bootstrapped CIs.(C) No significant correlation between sensation and PD for taVNS, *r*(92) = −0.06, 95% CI [-0.26; 0.15], *p* = 0.60, and sham, *r*(92) = 0.16, 95% CI [-0.05; 0.35], *p* = 0.13.(D) Positive correlation, *r*(92

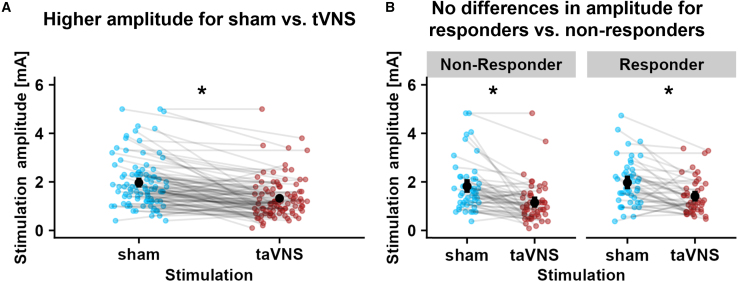

Differences in amplitude for taVNS vs. sham(A) Lower amplitude for taVNS (red) compared to sham (blue), *b*(92) = −0.64 mA, 95% CI [-0.82; −0.46], *p* < 0.001.(B) No differences in amplitude for taVNS vs. sham between responders and non-responders, *b*(92) = 0.12 mA, 95% CI [-0.25; 0.48], *p* = 0.53. Error bars depict 95% bootstrapped CIs. In all panels, significance levels are set at α < 0.05 and are calculated using linear mixed models (*lmerTest*) and the Satterthwaite method to determine the degrees of freedom.Table 1Information regarding participants’ demographics and testing parameters,
