The genome sequence of the Poplar Admiral, Limenitis populi (Linnaeus, 1758) (Lepidoptera: Nymphalidae)

TL;DR

This paper presents the genome sequence of the Poplar Admiral butterfly, including two haplotypes and the mitochondrial genome.

Contribution

The study provides a high-quality genome assembly for Limenitis populi, including chromosomal pseudomolecules and the mitochondrial genome.

Findings

The genome assembly includes two haplotypes totaling 342.08 and 341.73 megabases.

Haplotype 1 is scaffolded into 30 chromosomal pseudomolecules, including the Z sex chromosome.

The mitochondrial genome is 15.22 kilobases in length.

Abstract

We present a genome assembly from a male specimen of
Limenitis populi (Poplar Admiral; Arthropoda; Insecta; Lepidoptera; Nymphalidae). The assembly contains two haplotypes with total lengths of 342.08 megabases and 341.73 megabases. Most of haplotype 1 (99.97%) is scaffolded into 30 chromosomal pseudomolecules, including the Z sex chromosome. Haplotype 2 was assembled to scaffold level. The mitochondrial genome has also been assembled, with a length of 15.22 kilobases.

Figures

A. Live specimen. B. Voucher photograph of the Limenitis populi (ilLimPopu1) specimen used for genome sequencing.

Hi-C contact map of the Limenitis populi genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes. The plot was generated using PretextSnapshot.

Merian elements painted across chromosomes in the ilLimPopu1.hap1.1 assembly of Limenitis populi.Chromosomes are drawn to scale, with the positions of orthologues shown as coloured bars. Each orthologue is coloured by the Merian element that it belongs to. All orthologues which could be assigned to Merian elements are shown.

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve (the homozygous peak) corresponds to k-mers shared by both haplotypes and the red and blue curves (the heterozygous peaks) show k-mers found only in one of the haplotypes.

Assembly metrics for ilLimPopu1.hap1.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1,000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

BlobToolKit GC-coverage plot for ilLimPopu1.hap1.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Tables

Table 1.. Specimen and sequencing data for BioProject.

Platform	PacBio HiFi	Hi-C	RNA-seq
ToLID	ilLimPopu1	ilLimPopu1	ilLimPopu1
Specimen ID	SAN28000003	SAN28000003	SAN28000003
BioSample (source individual)	SAMEA114539582	SAMEA114539582	SAMEA114539582
BioSample (tissue)	SAMEA114539616	SAMEA114539616	SAMEA114539616
Tissue	whole organism	whole organism	whole organism
Sequencing platform and model	Revio	Illumina NovaSeq X	Illumina NovaSeq X
Run accessions	ERR13900449	ERR13907227	ERR14986718
Read count total	1.63 million	840.62 million	154.66 million
Base count total	17.93 Gb	126.93 Gb	23.35 Gb

Table 2.. Genome assembly statistics.

Assembly name	ilLimPopu1.hap1.1	ilLimPopu1.hap2.1
Assembly accession	GCA_964341245.1	GCA_964341235.1
Assembly level	chromosome	scaffold
Span (Mb)	342.08	341.73
Number of chromosomes	30	N/A
Number of contigs	113	115
Contig N50	6.29 Mb	6.17 Mb
Number of scaffolds	33	53
Scaffold N50	12.4 Mb	12.37 Mb
Longest scaffold length (Mb)	21.97	N/A
Sex chromosomes	Z	N/A
Organelles	Mitochondrial genome: 15.22 kb	N/A

Table 3.. Chromosomal pseudomolecules in the haplotype 1 genome assembly of Limenitis populi ilLimPopu1.

INSDC accession	Molecule	Length (Mb)	GC%	Assigned Merian elements
OZ204939.1	1	14.16	32.50	M1
OZ204940.1	2	14.15	32.50	M2
OZ204941.1	3	13.92	32.50	M8
OZ204942.1	4	13.43	32	M19;M28
OZ204943.1	5	13.36	32	M9
OZ204944.1	6	13.34	32.50	M3
OZ204945.1	7	13.25	33	M5
OZ204946.1	8	13.21	32.50	M17;M20
OZ204947.1	9	13.04	32.50	M16
OZ204948.1	10	12.93	32.50	M12
OZ204949.1	11	12.72	32	M18
OZ204950.1	12	12.40	32.50	M7
OZ204951.1	13	12.35	32.50	M4
OZ204952.1	14	12.04	32.50	M6
OZ204953.1	15	11.92	32	M21
OZ204954.1	16	11.51	32.50	M22
OZ204955.1	17	11.12	32.50	M15
OZ204956.1	18	10.82	33	M11
OZ204957.1	19	10.78	32.50	M10
OZ204958.1	20	10.30	32.50	M13
OZ204959.1	21	9.90	33	M23
OZ204960.1	22	9.87	33	M14
OZ204961.1	23	8.67	35.50	M27
OZ204962.1	24	8.67	33	M24
OZ204963.1	25	8.63	33	M26
OZ204964.1	26	7.14	38	M30
OZ204965.1	27	5.87	33.50	M25
OZ204966.1	28	5.33	35	M31
OZ204967.1	29	5.25	34	M29
OZ204938.1	Z	21.97	32.50	MZ

Table 4.. Earth Biogenome Project summary metrics for the Limenitis populi assembly.

Measure	Value	Benchmark
EBP summary (haplotype 1)	6.7.Q61	6.C.Q40
Contig N50 length	6.29 Mb	≥ 1 Mb
Scaffold N50 length	12.40 Mb	= chromosome N50
Consensus quality (QV)	Haplotype 1: 61.7; haplotype 2: 62.7; combined: 62.1	≥ 40
k-mer completeness	Haplotype 1: 95.05%; Haplotype 2: 95.06%; combined: 99.46%	≥ 95%
BUSCO	C:98.8%[S:98.5%‚D:0.3%]‚ F:0.2%‚M:1.0%‚n:5 286	S > 90%; D < 5%
Percentage of assembly assigned to chromosomes	99.97%	≥ 90%

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Amphiesmenoptera; Lepidoptera; Glossata; Neolepidoptera; Heteroneura; Ditrysia; Obtectomera; Papilionoidea; Nymphalidae; Limenitidinae; Limenitidini; Limenitis; Limenitis populi (Linnaeus, 1758) (NCBI:txid227535)

Background

The Poplar Admiral ( Limenitis populi) is a striking butterfly in the family Nymphalidae. Adults are large, with a wingspan of 70–90 mm, and are easily identified by their dark brown to black wings adorned with a prominent white band and orange spots on the hindwings. The underside is equally distinctive, with intricate orange and white markings. The species is found across much of Europe and Asia, favouring deciduous and mixed woodlands with abundant aspen ( Populus tremula), its primary larval host plant ( Silvonen et al., 2014).

This species is univoltine, with adults on wing between late June and early August, females starting their flight earlier than the males. Poplar Admirals are often difficult to observe as they rarely descend from the canopy and almost never visit flowers. Instead, they are often found feeding on faeces, urine or carrion. Females lay eggs on aspen leaves, rarely other poplar species. The larvae hatch in late summer and feed on the leaves before overwintering as small caterpillars in a hibernaculum. Development resumes in spring, with pupation occurring in early summer.

Although L. populi is widespread, its populations in mainland Europe are often patchy and sensitive to habitat fragmentation. For instance, the species is listed as critically endangered (CR) in Germany ( Reinhardt & Bolz, 2011). In contrast, populations in the northern parts of the species’ distribution have witnessed an impressive climate change-driven range expansion over the last couple of decades ( Saarinen & Jantunen, 2013; Sunde et al., 2023).

The reference genome assembly for Limenitis populi presented here is a valuable addition to the expanding genomic resources for Nymphalid butterflies. It provides a foundation for investigating the genetic basis of the species’ ecological adaptations, including host plant specialisation and overwintering strategies. Additionally, this genome will support comparative studies within the genus Limenitis, the subfamily Heliconiinae and the broader family Nymphalidae, which include model taxa extensively studied for wing pattern evolution ( Joron et al., 2006). The sequence data were derived from a male specimen ( Figure 1) collected from Hautalahti, Liperi, North Karelia, Finland.

A. Live specimen. B. Voucher photograph of the Limenitis populi (ilLimPopu1) specimen used for genome sequencing.

Methods

Sample acquisition

The specimen used for genome sequencing was an adult male Limenitis populi (specimen ID SAN28000003, ToLID ilLimPopu1; Figure 1), collected from Hautalahti, Liperi, North Karelia, Finland (latitude 62.5561, longitude 29.1041). The specimen was collected and identified by Jaakko Pohjoismaki (University of Eastern Finland).

Nucleic acid extraction

Protocols for high molecular weight (HMW) DNA extraction developed at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory are available on protocols.io ( Howard et al., 2025). The ilLimPopu1 sample was weighed and triaged to determine the appropriate extraction protocol. Tissue from the whole organism was homogenised by powermashing using a PowerMasher II tissue disruptor.

HMW DNA was extracted in the WSI Scientific Operations core using the Automated MagAttract v2 protocol. DNA was sheared into an average fragment size of 12–20 kb following the Megaruptor®3 for LI PacBio protocol. Sheared DNA was purified by automated SPRI (solid-phase reversible immobilisation). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system. For this sample, the final post-shearing DNA had a Qubit concentration of 29.13 ng/μL and a yield of 1 369.11 ng, with a fragment size of 17.9 kb. The 260/280 spectrophotometric ratio was 1.91, and the 260/230 ratio was 3.02.

RNA was extracted from whole organism tissue of ilLimPopu1 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol. The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.

PacBio HiFi library preparation and sequencing

Library preparation and sequencing were performed at the WSI Scientific Operations core. Libraries were prepared using the SMRTbell Prep Kit 3.0 (Pacific Biosciences, California, USA), following the manufacturer’s instructions. The kit includes reagents for end repair/A-tailing, adapter ligation, post-ligation SMRTbell bead clean-up, and nuclease treatment. Size selection and clean-up were performed using diluted AMPure PB beads (Pacific Biosciences). DNA concentration was quantified using a Qubit Fluorometer v4.0 (ThermoFisher Scientific) and the Qubit 1X dsDNA HS assay kit. Final library fragment size was assessed with the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) using the gDNA 55 kb BAC analysis kit.

The sample was sequenced on a Revio instrument (Pacific Biosciences). The prepared library was normalised to 2 nM, and 15 μL was used for making complexes. Primers were annealed and polymerases bound to generate circularised complexes, following the manufacturer’s instructions. Complexes were purified using 1.2X SMRTbell beads, then diluted to the Revio loading concentration (200–300 pM) and spiked with a Revio sequencing internal control. The sample was sequenced on a Revio 25M SMRT cell. The SMRT Link software (Pacific Biosciences), a web-based workflow manager, was used to configure and monitor the run and to carry out primary and secondary data analysis.

Specimen details, sequencing platforms, and data yields are summarised in Table 1.

Hi-C

** Sample preparation and crosslinking **

The Hi-C sample was prepared from 20–50 mg of frozen whole organism tissue of the ilLimPopu1 sample using the Arima-HiC v2 kit (Arima Genomics). Following the manufacturer’s instructions, tissue was fixed and DNA crosslinked using TC buffer to a final formaldehyde concentration of 2%. The tissue was homogenised using the Diagnocine Power Masher-II. Crosslinked DNA was digested with a restriction enzyme master mix, biotinylated, and ligated. Clean-up was performed with SPRISelect beads before library preparation. DNA concentration was measured with the Qubit Fluorometer (Thermo Fisher Scientific) and Qubit HS Assay Kit. The biotinylation percentage was estimated using the Arima-HiC v2 QC beads.

** Hi-C library preparation and sequencing **

Biotinylated DNA constructs were fragmented using a Covaris E220 sonicator and size selected to 400–600 bp using SPRISelect beads. DNA was enriched with Arima-HiC v2 kit Enrichment beads. End repair, A-tailing, and adapter ligation were carried out with the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs), following a modified protocol where library preparation occurs while DNA remains bound to the Enrichment beads. Library amplification was performed using KAPA HiFi HotStart mix and a custom Unique Dual Index (UDI) barcode set (Integrated DNA Technologies). Depending on sample concentration and biotinylation percentage determined at the crosslinking stage, libraries were amplified with 10–16 PCR cycles. Post-PCR clean-up was performed with SPRISelect beads. Libraries were quantified using the AccuClear Ultra High Sensitivity dsDNA Standards Assay Kit (Biotium) and a FLUOstar Omega plate reader (BMG Labtech).

Prior to sequencing, libraries were normalised to 10 ng/μL. Normalised libraries were quantified again and equimolar and/or weighted 2.8 nM pools. Pool concentrations were checked using the Agilent 4200 TapeStation (Agilent) with High Sensitivity D500 reagents before sequencing. Sequencing was performed using paired-end 150 bp reads on the Illumina NovaSeq X.

Specimen details, sequencing platforms, and data yields are summarised in Table 1.

RNA-seq library preparation and sequencing

Libraries were prepared using the NEBNext ^®^ Ultra™ II Directional RNA Library Prep Kit for Illumina (New England Biolabs), following the manufacturer’s instructions. Poly(A) mRNA in the total RNA solution was isolated using oligo(dT) beads, converted to cDNA, and uniquely indexed; 14 PCR cycles were performed. Libraries were size-selected to produce fragments between 100–300 bp. Libraries were quantified, normalised, pooled to a final concentration of 2.8 nM, and diluted to 150 pM for loading. Sequencing was carried out on the Illumina NovaSeq X to generate 150-bp paired-end reads.

Genome assembly

Prior to assembly of the PacBio HiFi reads, a database of k-mer counts ( k = 31) was generated from the filtered reads using FastK. GenomeScope2 ( Ranallo-Benavidez et al., 2020) was used to analyse the k-mer frequency distributions, providing estimates of genome size, heterozygosity, and repeat content.

The HiFi reads were assembled using Hifiasm in Hi-C phasing mode ( Cheng et al., 2021; Cheng et al., 2022), producing two haplotypes. Hi-C reads ( Rao et al., 2014) were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019). Contigs were further scaffolded with Hi-C data in YaHS ( Zhou et al., 2023), using the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).

The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

Assembly curation

The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants ( ASCC) pipeline. TreeVal was used to generate the flat files and maps for use in curation. Manual curation was conducted primarily in PretextView and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Manual corrections included 11 breaks, 30 joins, and removal of 8 haplotypic duplications. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation. PretextSnapshot was used to generate a Hi-C contact map of the final assembly.

Assembly quality assessment

Chromosomal painting was performed using lep_busco_painter using Merian elements, which represent the 32 ancestral linkage groups in Lepidoptera ( Wright et al., 2024). Painting was based on gene locations from the lepidoptera_odb10 BUSCO analysis and chromosome lengths from the genome index produced using SAMtools faidx ( Danecek et al., 2021). Each complete BUSCO (including both single-copy and duplicated BUSCOs) was assigned to a Merian element using a reference database, and coloured positions were plotted along chromosomes drawn to scale.

The Merqury.FK tool ( Rhie et al., 2020), run in a Singularity container ( Kurtzer et al., 2017), was used to evaluate k-mer completeness and assembly quality for both haplotypes using the k-mer databases ( k = 31) computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.

The genome was analysed using the BlobToolKit pipeline, a Nextflow implementation of the earlier Snakemake BlobToolKit pipeline ( Challis et al., 2020). The pipeline aligns PacBio reads using minimap2 ( Li, 2018) and SAMtools ( Danecek et al., 2021) to generate coverage tracks. Simultaneously, it queries the GoaT database ( Challis et al., 2023) to identify relevant BUSCO lineages and runs BUSCO ( Manni et al., 2021). For the three domain-level BUSCO lineages, BUSCO genes are aligned to the UniProt Reference Proteomes database ( Bateman et al., 2023) using DIAMOND blastp ( Buchfink et al., 2021). The genome is divided into chunks based on the density of BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database with DIAMOND blastx. Sequences without hits are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The BlobToolKit suite consolidates all outputs into a blobdir for visualisation. The BlobToolKit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), with package management via Conda and Bioconda ( Grüning et al., 2018), and containerisation through Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017).

Genome sequence report

Sequence data

The genome of a specimen of Limenitis populi was sequenced using Pacific Biosciences single-molecule HiFi long reads, generating 17.93 Gb (gigabases) from 1.63 million reads, which were used to assemble the genome. GenomeScope2.0 analysis estimated the haploid genome size at 348.54 Mb, with a heterozygosity of 0.16% and repeat content of 13.97%. These estimates guided expectations for the assembly. Based on the estimated genome size, the sequencing data provided approximately 50× coverage. Hi-C sequencing produced 126.93 Gb from 840.62 million reads, which were used to scaffold the assembly. RNA sequencing data were also generated and are available in public sequence repositories. Table 1 summarises the specimen and sequencing details.

Assembly statistics

The genome was assembled into two haplotypes using Hi-C phasing. Haplotype 1 was curated to chromosome level, while haplotype 2 was assembled to scaffold level. The final assembly has a total length of 342.08 Mb in 33 scaffolds, with 80 gaps, and a scaffold N50 of 12.4 Mb ( Table 2).

Most of the assembly sequence (99.97%) was assigned to 30 chromosomal-level scaffolds, representing 29 autosomes and the Z sex chromosome. Chromosome Z was identified by alignment to the genome of Limenitis camilla (GCA_905147385.1) ( Vila et al., 2022). Scaffolds have uncertain order and orientation on Chromosome 23 in the approximate region 0.41–1.19 Mb, and Chromosome 26 in the region 2.98–5.37 Mb. The chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 2; Table 3). Chromosome painting with Merian elements illustrates the distribution of orthologues along chromosomes and highlights patterns of chromosomal evolution relative to Lepidopteran ancestral linkage groups ( Figure 3).

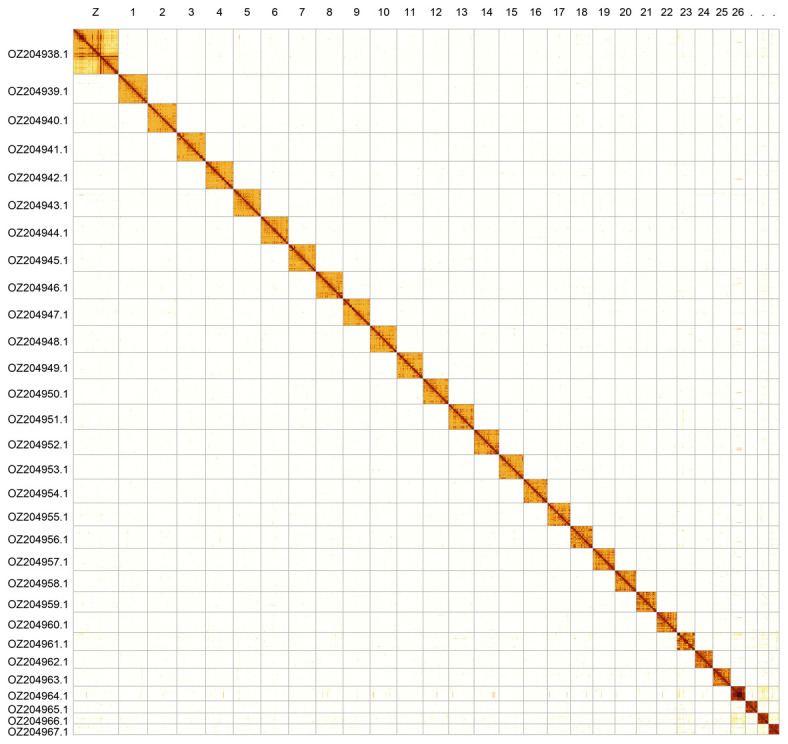

Hi-C contact map of the Limenitis populi genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes. The plot was generated using PretextSnapshot.

Table 3.: Chromosomal pseudomolecules in the haplotype 1 genome assembly of Limenitis populi ilLimPopu1.

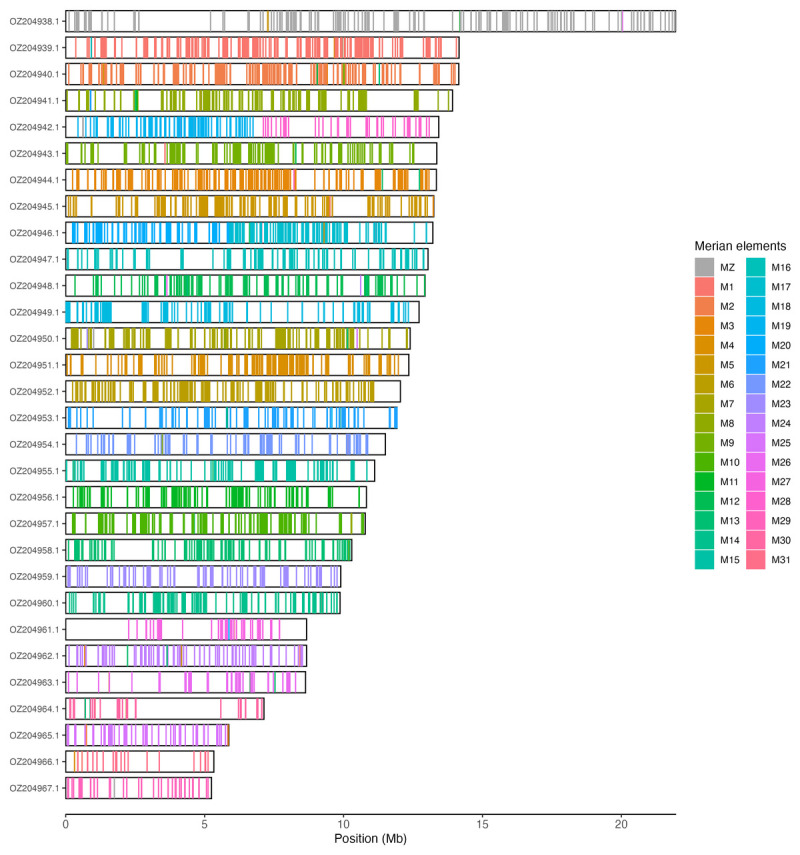

Merian elements painted across chromosomes in the ilLimPopu1.hap1.1 assembly of Limenitis populi.Chromosomes are drawn to scale, with the positions of orthologues shown as coloured bars. Each orthologue is coloured by the Merian element that it belongs to. All orthologues which could be assigned to Merian elements are shown.

The mitochondrial genome was also assembled. This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record.

Assembly quality metrics

For haplotype 1, the estimated QV is 61.7, and for haplotype 2, 62.7. When the two haplotypes are combined, the assembly achieves an estimated QV of 62.1. The k-mer completeness is 95.05% for haplotype 1, 95.06% for haplotype 2, and 99.46% for the combined haplotypes ( Figure 4). BUSCO analysis using the lepidoptera_odb10 reference set ( n = 5 286) ( Kriventseva et al., 2019) identified 98.8% of the expected gene set (single = 98.5%, duplicated = 0.3%) for haplotype 1. The snail plot in Figure 5 summarises the scaffold length distribution and other assembly statistics for haplotype 1. The blob plot in Figure 6 shows the distribution of scaffolds by GC proportion and coverage for haplotype 1.

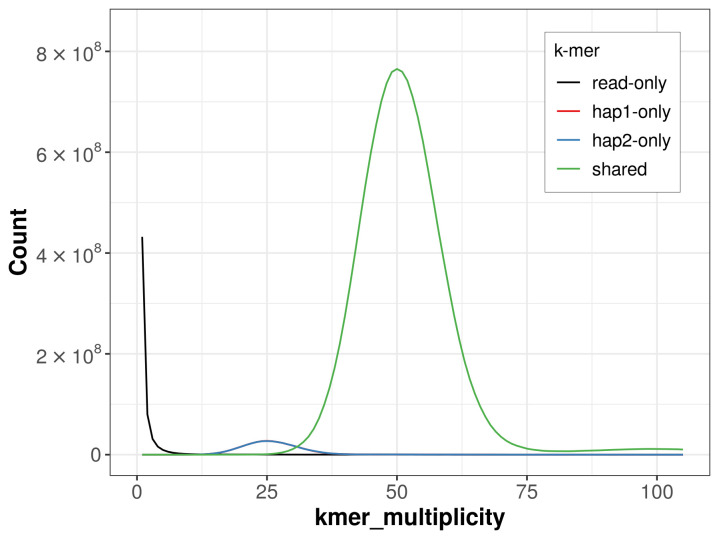

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve (the homozygous peak) corresponds to k-mers shared by both haplotypes and the red and blue curves (the heterozygous peaks) show k-mers found only in one of the haplotypes.

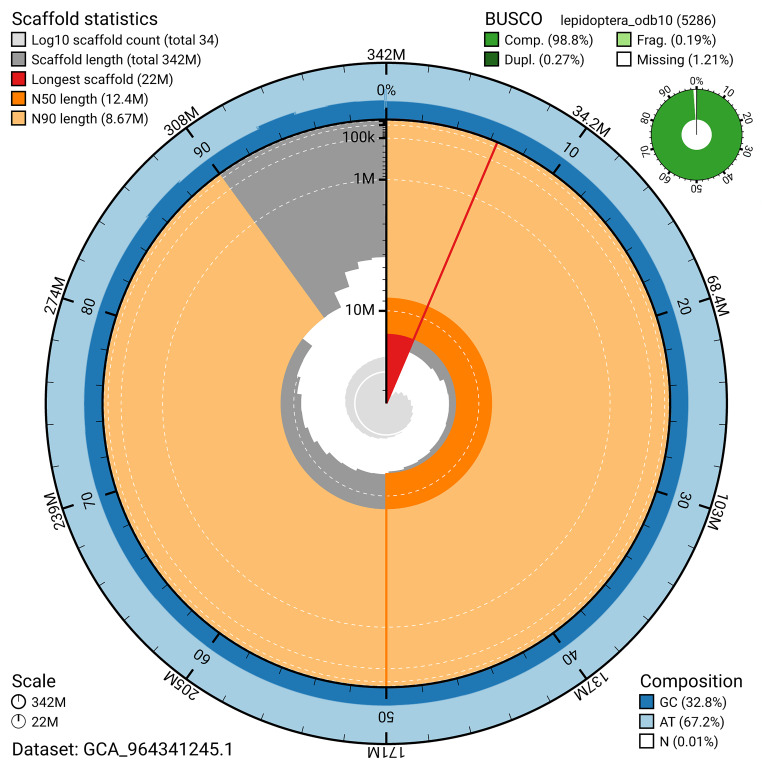

Assembly metrics for ilLimPopu1.hap1.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1,000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

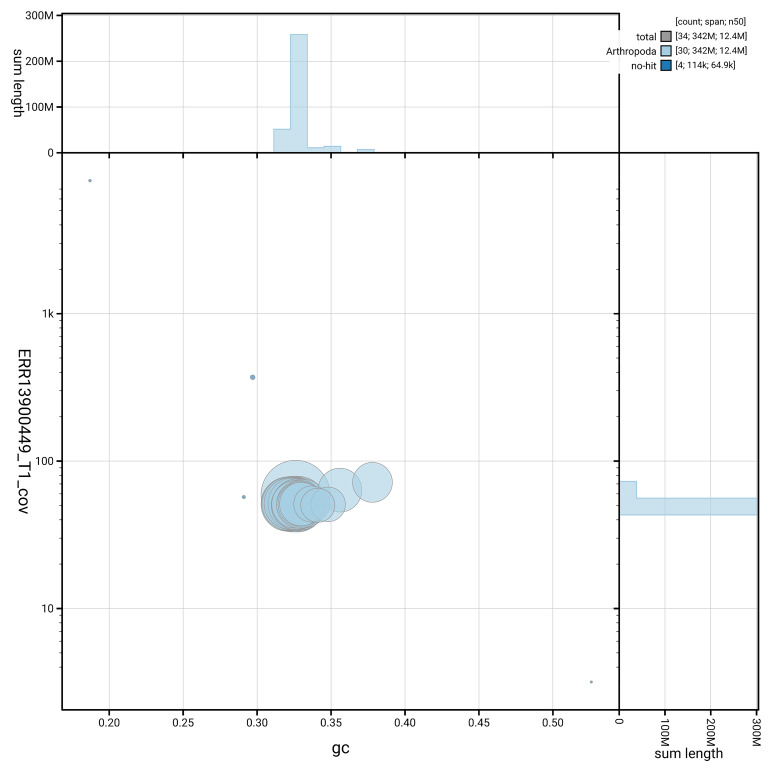

BlobToolKit GC-coverage plot for ilLimPopu1.hap1.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Table 4 lists the assembly metric benchmarks adapted from Rhie et al. (2021) the Earth BioGenome Project Report on Assembly Standards September 2024. The EBP metric, calculated for the haplotype 1, is 6.C.Q61, meeting the recommended reference standard.

Table 4.: Earth Biogenome Project summary metrics for the Limenitis populi assembly.
