Spatiotemporal expression of endospore appendages and cryo-EM insights into Ena1C-mediated S-ENA anchoring in Bacillus paranthracis
Ephrem Debebe Zegeye, Mike Sleutel, Unni Lise Jonsmoen, Jingqi Chen, Luiza P. Morawska, Yohannes Beyene Mekonnen, Oscar P. Kuipers, Han Remaut, Marina Aspholm
TL;DR
This study explores how spore surface fibers form in Bacillus paranthracis, revealing timing and structural details of their development.
Contribution
The study provides new insights into the spatiotemporal regulation and structural role of Ena1C in S-ENA fiber anchoring during spore formation.
Findings
S-ENA subunit expression begins one hour earlier than L-ENA subunits during spore development.
Ena1C forms a ring-like structure essential for anchoring S-ENAs to the spore surface.
ENA expression peaks during late sporulation and is tightly regulated with spore coat and exosporium development.
Abstract
The endospores of many Bacillus cereus group species are decorated with highly resilient fibrous structures known as endospore appendages (ENAs), whose precise biological functions remain poorly understood. Structural and genetic studies have identified ena1A, ena1B, and ena1C as essential for forming the longer, thicker, and most abundant staggered (S)-ENA fibers in Bacillus paranthracis, whereas ena3A encodes the major subunit of the shorter, thinner, ladder-like (L)-ENAs. Here, we investigated the spatiotemporal expression dynamics of S- and L-ENA proteins and the specific role of Ena1C in S-ENA biogenesis. Using time-lapse fluorescence microscopy, we observed strict temporal regulation of ena gene expression, with no detectable ENA subunit production before spores became phase-bright. ENAs expression peaked during late sporulation phase, with fluorescence localized around the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6- —https://doi.org/10.13039/501100008119Norges Miljø- og Biovitenskapelige Universitet
- —https://doi.org/10.13039/501100005416Norges Forskningsråd
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsBacillus and Francisella bacterial research · Bacterial Genetics and Biotechnology · Cellular transport and secretion
Introduction
The endospores (spores) of various species within the Bacillus cereus group are decorated with multiple appendages (ENAs) resembling pili^1–3^. These appendages exhibit remarkable mechanical robustness^4^ and resistance to chemical and enzymatic treatments^5,6^. Previous efforts to characterize the protein composition of ENAs via mass spectrometry were unsuccessful, owing to their exceptional resistance to conventional solubilization and enzymatic degradation methods. However, recent cryo-electron transmission microscopy (Cryo-EM) advancements have enabled the determination of the three-dimensional architecture of three different types of ENAs^5–7^. These structural discoveries, in turn, enabled the structure-guided identification of the genes encoding the ENA proteins^5,6^.
Although appendages on spore surfaces were first observed nearly 50 years ago^1,8^, the precise biological functions of ENAs have remained elusive. Previous studies hypothesized that ENAs may play roles in spore adhesion to biotic and abiotic surfaces, spore aggregation, and biofilm formation (reviewed in)^9^, but direct functional evidence was lacking. Recent investigations have shown that ENAs contribute to spore-spore aggregation and surface adhesion, providing new insights into their role in spore biology^4,10^. One study further demonstrated that wildtype B. paranthracis spores expressing ENAs attach significantly stronger to industrially relevant surfaces, such as stainless steel and polypropylene, than ENA-deficient mutant spores, suggesting that ENAs contribute directly to the persistence of spores in industrial environments^11^.
Based on the arrangement of the subunits within the fibers, two distinct ENA morphologies, known as Staggered (S)-ENA and Ladder (L)-ENA, have been characterized in the B. paranthracis food poisoning outbreak strain NVH 0075/95 (hereafter referred to as B. paranthracis) (Supplementary Fig. S1)^5^. S-ENA fibers constitute approximately 90% of the appendages on the surface of spores of this strain and are encoded by the bicistronic operon ena1AB^5^. However, the genes that encode the 4–6 tip fibrillae (also known as ruffles) remain unidentified. The assembly of S-ENA fibers involves the polymerization of Ena1A and Ena1B subunits, forming a structure that extends from the spore coat and traverses the exosporial sac^5^. The ena1C gene, which is located adjacent to ena1B in the opposite orientation (Supplementary Fig. S1a), is essential for the formation of S-ENA, as its deletion results in spores lacking S-ENA^5^. However, Ena1C does not appear to contribute to the stalk structure itself, leading to the hypothesis that Ena1C may instead function in assembly and/or anchoring of S-ENA to the spore body.
The L-ENA fiber accounts for approximately 10% of the total number of ENA fibers present on the surface of B. paranthracis spores. It is encoded by the bicistronic bclA-ena3A operon, located either on the chromosome, on a plasmid, or in some cases on both, where it appears as paralogs^6^. Whereas the ena3A gene constitutes the major subunit of the L-ENA fiber stalk, the tip fibrillum (ruffle) is encoded by the l-bclA gene (Supplementary Fig. S1b)^6^. Furthermore, the exsL gene, located upstream of l-bclA, has been identified as a crucial tethering component for the L-ENA fiber; its deletion results in loss of L-ENA fibers attached to the exosporium^6^. Quantitative real-time PCR analyses demonstrated that the expression of genes encoding both S-ENA and L-ENA fibers increases during the sporulation phase^5,6^. However, it remains unclear at what stage of sporulation ENA proteins are expressed, whether S- and L-ENA subunit proteins are expressed simultaneously or sequentially, and where within the sporulating cell this expression occurs. Moreover, the precise role of ena1C in S-ENA biogenesis is not yet understood.
Here, to gain deeper insights into the spatiotemporal expression dynamics of S-ENA and L-ENA subunits and to investigate the specific role of Ena1C in S-ENA biogenesis, we combined time-lapse microscopy of fluorescent protein–tagged Ena1A, Ena1B, Ena1C, and Ena3A with negative-stain transmission electron microscopy (nsTEM), cryo-EM, AlphaFold modeling, and targeted genetic analyses. These complementary approaches enabled precise mapping of ENA expression onsets and progression during spore development, providing a detailed temporal framework for appendage formation, and revealing structural features of Ena1C that underlie its role in S-ENA biogenesis.
Materials and methods
Chromosomal integration of ena genes with fluorescent protein-encoding genes
The fusion of ena1A and ena1C with the superfolder GFP gene (sfGFP) at the C-termini, as well as the tagging of ena3A with the mKate gene (mKate2), was achieved using the markerless gene replacement technique^12,13^. The fluorescent proteins used were SPS6 and KPS12 variants of sfGFP and mKate2, respectively, which were chosen for their enhanced brightness in Bacillus species^14^. Briefly, the constructs contain the open reading frame (ORF) of the respective ena gene (excluding the stop codon), seamlessly fused with a GFP linker sequence (5’-GGTAGCGGTGGAGGTGGCAGC-3’) and a fluorescent gene in tandem. This sequence was flanked by upstream and downstream homology arms specific to the ena gene. The lengths of the corresponding upstream and downstream homology sequences, respectively, were 704 bp and 704 bp for ena1A, 699 bp and 700 bp for ena1C, and 708 bp and 677 bp for ena3A. Synthetic gene constructs, flanked by EcoRI restriction sites, were ordered from Synbio Technologies (U.S.A.). The constructs were digested with EcoRI and ligated into the pMAD-I-SceI shuttle vector (Supplementary Table S1). The resulting pMAD constructs (Supplementary Table S1) were transformed into B. paranthracis^5^, and blue colonies were selected. The selected colonies were further transformed with pBKJ233 to facilitate double crossover, as previously described^12,13^. White colonies were randomly picked and screened by colony PCR (primers shown in Supplementary Table S2) for expected band sizes, and positive candidates were confirmed by Sanger sequencing. The B. paranthracis constructs generated for this study are summarized in Table 1.
Table 1. List of B. paranthracis constructs used in this study.Strain/genotypeDescriptionSource B. paranthracis Wildtype ^5^
B. paranthracis ena1A-sfGFP Chromosomally integratedThis study B. paranthracis ena1C-sfGFP Chromosomally integratedThis study B. paranthracis ena3A-mKate2 Chromosomally integratedThis studyB. paranthracis::pHT304*-P_ena1AB_-sfGFP-ena1BPlasmid expressionThis studyB. paranthracis*::pHT304*-P_ena1AB_-ena1B-sfGFPPlasmid expressionThis studyB. paranthracis*::pHT304*-P_ena3A_-mKate2-ena3APlasmid expressionThis studyB. paranthracis*::pHT304*-P_ena3A_-mKate2-ena1CPlasmid expressionThis studyB. paranthracis ena1A-sfGFP*::pHT304*-P_ena3A_-mKate2-ena3ACo-expression of Ena1A and Ena3AThis studyB. paranthracis ena1C-sfGFP*::pHT304*-P_ena3A_-mKate2-ena3ACo-expression of Ena1C and Ena3AThis studyB. paranthracis*::pHT304Empty vector (control)This studyB. paranthracis Δena1C**ena1C knockout strain ^5^ B. paranthracis::pHT304*-P_ena1C_-ena1CEna1C overexpressing strainThis studyB. paranthracis* Δena1C:: pHT304*-P_ena1C_-ena1C* (C142S)ena1C knockout strain complemented with ena1C (C142S)This study
Expression of fluorescently tagged ENA subunits from low-copy plasmid
The low-copy number shuttle vector pHT304^15^ was used to express the ena genes fused with fluorescent protein tags, sfGFP or mKate2 (Supplementary Table S1). Unless indicated otherwise, sfGFP (SPS6) and mKate2 (KPS12)^14^ genes were fused in-frame to the 5ꞌ end of the respective ena coding sequence, yielding N-terminally tagged constructs expressed from their native promoters (Supplementary Fig. S2). The DNA sequences comprising the native promoters of the respective ena gene, the ORF of the selected fluorescent gene, the GFP linker sequence, the ORF of the specific ena gene, and the stop codon in tandem, flanked by EcoRI restriction sites, was synthesized at Synbio Technologies (U.S.A.). The amino acid sequences of the fusion proteins expressed are given in Supplementary Table S3.
Manual time-course fluorescence microscopy
A single colony of B. paranthracis expressing a fluorescent protein tagged ENA subunit was picked from an LB agar plate and inoculated into 10 mL of brain heart infusion (BHI) medium in a 50 mL conical tube. The cultures were incubated at 37 °C overnight with shaking at 200 rpm. The next day, 0.5 mL of the overnight culture was transferred to a 250 mL Erlenmeyer flask containing 50 mL of sporulation medium. The sporulation medium^5^ consisted of 8 g/l bacto nutrient broth (Difco), 1 µM FeSO_4_, 2.5 µM CuCl_2_, 12.5 µM ZnCl_2_, 66 µM MnSO_4_, 1 M MgCl_2_, 5 mM (NH4)2_SO_4, 2.5 µM Na_2_MoO_4_, 2.5 µM CoCl_2_, 1 mM Ca (NO_3_)2, pH 7.6. To monitor sporulation and protein expression dynamics, 1 mL of the culture was collected hourly for fluorescence microscopy analysis. Prior to microscopy analysis, a thin layer of 1.5% agarose (w/v) (Serva # 11404.05) was solidified on a 10-well multitest slide (MP Biomedicals, # 096041805E). One µL of the culture sample was transferred onto the agarose pad, briefly incubated at room temperature to immobilize the cells, covered with a standard coverslip, and examined by fluorescence microscopy as described in the section Fluorescence microscopy below. Where indicated, 24-h cultures were harvested by centrifugation at 4000 × g for 10 min, washed once with PBS (pH 7.2), and the final pellet was resuspended in PBS for fluorescence microscopy.
Automated time-lapse fluorescence microscopy
To enable growth and sporulation of B. paranthracis for automated time-lapse microscopy, we cultivated the bacteria on agarose patches on microscope slides as previously described^16^, with modifications. Specifically, we used a modified sporulation agar in which the standard sporulation medium^5^ was adjusted by reducing the nutrient broth (Difco) concentration from 8 g/L to 2 g/L. Single colonies of each strain were then inoculated into 15 mL of the modified sporulation medium in 50 mL conical tubes and incubated at 37 °C with shaking (200 rpm) for 24 h. Following incubation, cultures were centrifuged, and supernatants sterilized by filtration through 0.2 μm membrane filters.
The modified sporulation agar was thus prepared combining 250 µL of the adjusted sporulation medium, 1 mL of 3% melted sterile agarose, and 0.75 mL of the filtered 24-h culture supernatant, yielding a total volume of 2 mL. This mixture was briefly warmed in a microwave to ensure homogeneity. For strains carrying the low-copy plasmid pHT304, erythromycin was added to a final concentration of 5 µg/mL. To assemble the slides, a Gene Frame (1.5 × 1.6 cm; Thermo Scientific #AB0577) was attached to a sterile microscope slide, and approximately 100 µL of the melted agarose medium was pipetted into the well. A second sterile slide was immediately placed on top, and the assembly was allowed to solidify at 4 °C (Supplementary Fig. S3). Prior to inoculation, the slides were pre-incubated at 37 °C for 20 min to stabilize the conditions.
To facilitate aeration, the top slide was carefully removed, and a third of the central segment of the agar was excised using a sterile scalpel blade (Merck #S2646). For inoculation, single colonies of each strain were grown overnight in BHI broth and 60 µL of the culture was transferred to fresh modified sporulation medium and incubated for 1 h for adaptation. Subsequently, 1.5 µL of the culture (OD_600_ ≈0.01) was spotted onto three distinct locations on the agar surface. A sterile coverslip was applied to seal the preparation, ensuring firm contact at the edges (Supplementary Fig. S3). The inoculated slides were immediately transferred to the time-lapse fluorescence microscopy setup, with imaging parameters detailed in the Fluorescence Microscopy section.
Fluorescence microscopy
Deltavision elite deconvolution microscope (Applied Precision, GE Healthcare, Issaquah, WA, USA), equipped with an environmental chamber, was used for time-lapse imaging. Images were captured using a 100x phase-contrast objective (oil immersion, Deltavision; Olympus, Japan). Standard fluorescence filter sets were used to visualize sfGFP and mKate2. Unless otherwise stated, the imaging settings were as follows: POL (exposure 0.5 s, and 32% transmission), GFP (exposure 0.3 s, 10% transmission), and mCherry (exposure 1 s, 10% transmission). For B. paranthracis ena1C-sfGFP constructs, the exposure time was increased to 1 s. In automated time-lapse imaging, 4 or 5 isolated cells were marked for tracking, and imaging was conducted with 10–12 min intervals at 37 °C until the sporulation process was completed (~ 20–24 h). For 24-h flask culture experiments, images were acquired using Nikon ECLIPSE Ti2 inverted microscope equipped with a 100x oil-immersion objective (Plan Apo λ 100×/1.45 oil, Nikon). Phase contrast and fluorescence images were captured using a Nikon DS-Qi2 monochrome camera. Image acquisition and exposure control were performed using NIS-Elements AR software (Nikon). The exposure times for each imaging modality were as follows: phase-contrast, 1 s; FITC fluorescence, 1 s; and mCherry fluorescence, 1s.
Negative-stain transmission electron microscopy (nsTEM)
To prepare samples for nsTEM imaging, spores were scraped off 3 to 4-week-old blood agar plates and suspended in distilled water. The spores were washed three times by repeated resuspending and centrifugation. Where indicated, spores were instead directly resuspended in water and examined for the presence of unattached S-ENAs in the environment. A 400-mesh copper grid covered with FCF400-CU Formvar Carbon Film was placed onto a droplet of the suspended spores for 1 min. The excess suspension was removed by capillary action using a dry filter paper. The grid was then placed on a droplet of 4% uranyl acetate for negative straining for 1 min. After removing the excess stain with filter paper and allowing the grid to air-dry, the samples were analyzed using a JEM-2100Plus Electron Microscope (JEOL Ltd.).
Image analysis
Fluorescence intensity analysis, color assignment, overlay images, and time-lapse videos were created using Fiji software (https://imagej.net/Fiji). Corrected total spore fluorescence was analyzed as described previously^17^. The length and number of ENAs were determined by analyzing nsTEM images using the measuring tool in the Fiji software. The number of pixels measured were converted to nm by using the number of pixels/nm from the scalebar as a conversion factor.
Recombinant expression of His6-tagged Ena1C
A synthetic open reading frame encoding Ena1C and Ena1C (∆1–36) with an N-terminal 6xHis-tag followed by a TEV cleavage site (ENLYFQG) were codon-optimized for recombinant expression in E. coli, synthesized by Twist Biosciences, and cloned into the pET28a expression vector (see Supplementary Table S3 for the amino acid sequences). Large-scale recombinant expression of Ena1C was carried out in the T7 Express lysY/Iq E. coli strain from NEB. A single colony was inoculated into 200 mL of LB and grown at 37 °C with shaking at 150 rpm overnight to obtain the primary culture. Next morning, 6 L of LB was inoculated with 20 mL/L of primary culture and grown at 37 °C with shaking until the OD_600_ reached 0.8, after which protein expression was induced with 1 mM isopropyl β‐D‐1‐thiogalactopyranoside (IPTG). The culture was incubated for a further 3 h at 37 °C and harvested by centrifugation at 5,000 rcf. The whole‐cell pellet was resuspended in lysis buffer (20 mM potassium phosphate, 500 mM NaCl, 10 mM β‐mercaptoethanol, 20 mM imidazole, 8 M urea, pH 7.5). The lysate was centrifuged to pellet sacculi, and membrane envelopes at 40,000 rcf for 45 min. The cleared lysate was passed over a 5 mL HisTrap HP column (GE Healthcare) and eluted with 20 mM potassium phosphate, pH 7.5, 8 M urea, 250 mM imidazole in gradient mode (20–250 mM imidazole) (Supplementary Fig. S15a). Fractions were further analyzed using SDS–PAGE to check for purity (Supplementary Fig. S15b). Selected fractions were pooled, concentrated to 500 µL, dialyzed against 25 mM potassium phosphate pH 7.5, 50 mM NaCl and passed over a BioRad ENrich™ Sects. 650 10 × 300 column for removal of aggregated species. Selected fractions were pooled and concentrated to 1 mg/mL.
Cryo-electron transmission microscopy
QUANTIFOIL^®^ holey Cu 400 mesh grids with 2-µm holes and 1‐µm spacing were glow discharged in vacuum using plasma current of 5 mA for 1 min (ELMO; Agar Scientific). Right before cryo‐plunging, 3 µL of a 1 mg/mL Ena1C sample was applied on the holey grid at 95% humidity and room temperature in a Gatan CP3 cryo‐plunger. The grid was machine‐blotted with Whatman grade 2 filter paper for 3.5 s from both sides and plunge frozen into liquid ethane at −176 °C. Grids were stored in liquid nitrogen until data collection. High‐resolution cryo-EM movies at 5760 × 4092 pixels were recorded using SerialEM^18^ on a JEOL CRYO ARM 300 microscope equipped with an omega energy filter (operated at slit width of 20 eV). 9137 movies were captured with a K2 direct electron detector run in counting mode at a magnification of 60 K with a calibrated pixel size of 0.695 Å/pixel, and a total exposure of ~ 60 e^−^/Å^2^ over 60 frames. Movies were imported into cryoSPARC^19^ v4.7.1 for further processing. Movies were motion-corrected using Patch Motion Correction and defocus values were determined using Patch CTF. Exposures were curated and particles from 200 micrographs were picked using the blob picker with 75Å−120Å minimum and maximum diameter, and extracted with a box size of 52 × 52 pixels, with a pixel size of 2.78Å/pixel. The resulting particle stack was subjected to 2D classification and selected class averages were used in a subsequent Template Picker job of the entire dataset. After Micrograph Junk Detection, this yielded ~ 2.59 million particles, which after several rounds of 2D classification was filtered down to 1.15 million particles. 4 initial volumes were generated with the Ab-Initio job, 3 of which were selected as inputs in subsequent Heterogeneous Refinement. 726,988 particles corresponding to a single heterogeneous model were classified further in a 3D Classification job with 10 classes. 486,293 particles corresponding to 5 selected classes were used as input for Homogeneous refinement with global C9 imposed, re-extracted to a pixel size of 1.39Å/pixel and used in a final homogenous refinement in C9. Despite best efforts to enrich particles corresponding to tilt and side-view orientations in the final particle stack, the resulting volume suffers from clear missing wedge artefacts. As an initial atomic model, we used a nonameric AlphaFold3^20^ prediction of D1-33 Ena1C. Regions of the input model that were not supported by clear density were removed. Due to pronounced map anisotropy characterized by a cFAR value of 0.16, we limited model refinement to rigid-body fitting into the cryo-EM volume using ChimeraX^21^ followed by a single round of refinement with phenix.refine^22^ with the “rigid_body” flag enabled. Figures were created using ChimeraX using an EMReady^23^ postprocessed map which was deposited to the EMDB alongside the B-factor sharpened map (Supplementary Table S4).
Statistical analyses
Statistical analyses were performed using GraphPad Prism version 10. Unpaired two-tailed t-tests and ordinary one-way ANOVA with multiple comparisons (comparing the mean of each group with the mean of every other group) were conducted to evaluate the statistical significance between groups. P-values < 0.05 were considered statistically significant.
Results
Optimization of growth and sporulation of B. paranthracis for time-lapse microscopy
To enable time-lapse microscopy of B. paranthracis sporulation, we first sought to establish a robust method for growing and sporulating the cells directly on a microscope slide (Supplementary Fig. S3). However, initial attempts to grow and sporulate B. paranthracis on an agarose patch placed on a microscopic slide using the standard Sporulation medium^5^ were unsuccessful due to cell lysis occurring after a few hours of normal growth. To address this issue, we modified the sporulation agar by reducing the concentration of nutrient broth (Difco) from 8 g/L to 2 g/L. In this adjusted medium, the bacteria exhibited an extended growth period, with some sporulation observed near the air interface. Further optimizations, including increasing air space and replacing a portion of the fresh modified sporulation medium with overnight spent medium, enabled the bacterial population to complete the sporulation process, culminating in the release of fully developed spores from the mother cells.
Phase-bright spore formation precedes ENA protein expression by hours
To investigate the temporal dynamics of ENA subunit expression during sporulation, we made constructs encoding fluorescent fusion proteins (sfGFP or mKate2) at the C- or N-termini of ENA subunits. The constructs were either integrated into their native chromosomal loci or expressed from low-copy plasmids under native promoters. When expressed from plasmids, expression was analyzed in both the wildtype strain and relevant ena deletion mutants as appropriate. Fluorescent protein-tagged Ena1A, Ena1B, Ena1C, and Ena3A were monitored by time-lapse fluorescence microscopy. Starting from single vegetative cells, images were taken every 10–12 min and followed until spore release from the mother cell. When needed, complementary data were obtained from shake-flask cultures bysampling at 1-h intervals until the sporulation was completed. Under the conditions we used, the first detectable fluorescence signals, indicating the onset of ENA subunit expression, appeared approximately ~ 1–3 h after phase-bright spores became clearly visible. Fluorescence intensity then increased steadily until mature spores were released from the mother cells. Notably, expression of all four ena genes was tightly regulated, with no Ena1A, Ena1B, Ena1C or Ena3A detected before the spores attained maximum size and brightness (Fig. 1, Supplementary Fig. S4 and Supplementary Movie S1-4). Occasional exceptions were observed in a few apparently non-sporulating or aberrant cells, where premature expression occurred (Supplementary Fig. S5). Importantly, these rare instances of leaky expression were restricted to strains expressing Ena from the low-copy plasmid pHT304 (Supplementary Fig. S5) and were absent in strains with chromosomally integrated constructs.
ENA expression peaks at the forespore-mother cell interface during late sporulation phase
Having established the timing of ENA subunit expression during sporulation, we next examined the precise spatial localization and intensity dynamics of each Ena protein. This analysis revealed distinct patterns of fluorescence accumulation on the surface of the developing spore highlighting key differences in the subcellular distribution of Ena1A, Ena1B, Ena1C, and Ena3A during the late stages of spore development. The sections below describe the expression pattern and localization of each Ena protein.

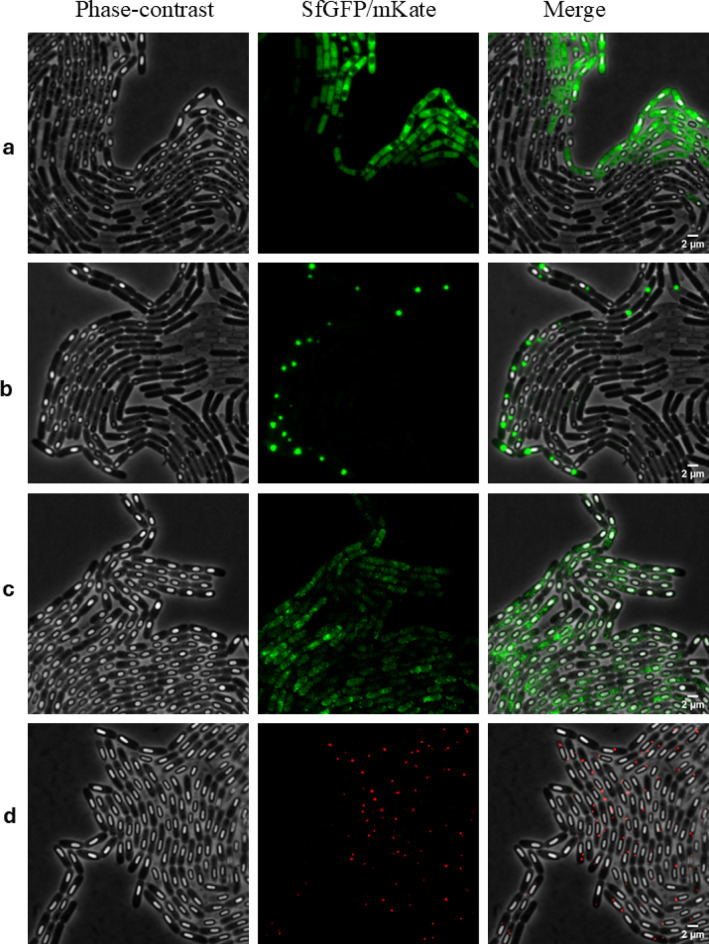

Fig. 1ENA subunit proteins are expressed after phase-bright spores mature. Time-lapse fluorescent images of B. paranthracis showing ENA protein expression. (a) Ena1A-sfGFP, (b) sfGFP-Ena1B, (c) Ena1C-sfGFP and (d) Ena3A-mkate2. Fluorescence images shown in panel (a–d) were from chromosomally integrated constructs, whereas panel (b) represents expression from a low-copy plasmid (pHT304).
Ena1A
Ena1A was expressed as a C-terminal fusion with sfGFP integrated into the chromosome (B. paranthracis ena1A::sfGFP). Under the conditions used, Ena1A expression began approximately 1.8 h after the first phase-bright spores were detected, with fluorescence increasing steadily over the following 2.5 h (Fig. 1 and Supplementary Movie S1). Fluorescence was initially distributed throughout the mother cell, followed by a marked accumulation on the developing spore. After spore release, fluorescence remained visible within the exosporial sac (Supplementary Fig. S6). nsTEM examination of these spores revealed an absence of surface displayed S-ENA fibers, suggesting that the sfGFP tag interfered with S-ENA polymerization (Fig. 2a).
Ena1B
N-terminally sfGFP tagged Ena1B was expressed from a low-copy plasmid. Under the conditions used, the first GFP signal appeared approximately 1.5 h after detection of the first phase-bright spores. Ena1B expression began predominantly at a single focus near the forespore, oriented toward the mother cell side (Fig. 1). Signal intensity steadily increased over the next 3 h until the spore was released from the mother cell (Supplementary Movie S2). Despite considerable loss of Ena1B during mother cell lysis (Supplementary Movie S2), released spores still retained varying levels of fluorescence (Supplementary Fig. S7). A similar expression pattern was observed when the tag was fused to the C-terminus (Supplementary Fig. S7b). Whereas nearly all released spores carrying the N-terminally tagged Ena1B exhibited fluorescence, only 32% of spores expressing the C-terminally tagged version were fluorescent (over 200 spores examined for each construct; Supplementary Fig. S7c). nsTEM analysis of spores from both N- and C-terminally tagged Ena1B expressed from plasmids revealed an absence of S-ENA fibers (Fig. 3a, b), indicating that the tag interfered with S-ENA assembly even in a wildtype background.
Ena1C
To investigate the spatiotemporal expression pattern of Ena1C, we generated fusion proteins in which sfGFP was attached to the C-terminus of Ena1C (chromosomally integrated) or mKate2 was fused to its N-terminus and expressed from a low-copy plasmid. The Ena1C-sfGFP fusion produced diffuse fluorescens foci, predominantly localized near the spore body, which started to appear approximately 2 h after emergence of phase-bright spores (Fig. 1 and Supplementary Movie S3). Notably, fluorescence signals remained associated with the spores after lysis of the mother cells (Supplementary Movie S3 and Supplementary Fig. 8a). Similarly, spores released from cells expressing mKate2-Ena1C from a low-copy plasmid also retained fluorescence (Supplementary Fig. S8b). Interestingly, nsTEM of B. paranthracis ena1C::sfGFP spores revealed fewer S-ENA (13 ± 7.4 on average) compared to wildtype spores (20 ± 9), based on examination of 50 spores per group (Figs. 2b and 5e).

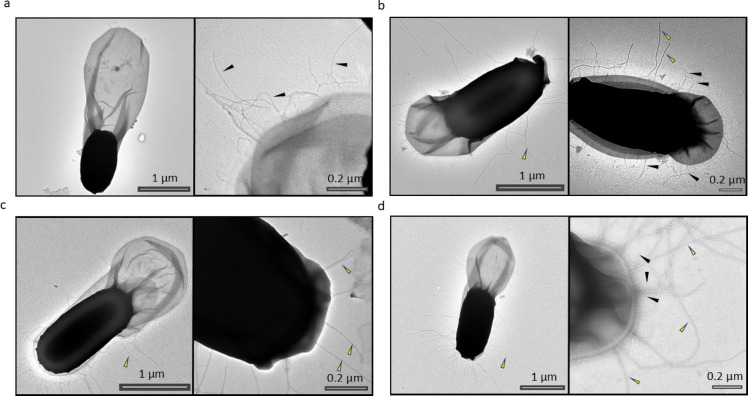

Fig. 2nsTEM micrographs of C-terminal fluorescent protein-tagged constructs integrated at their native ena loci in B. paranthracis. (a) B. paranthracis ena1A::sfGFP. (b) B. paranthracis ena1C::sfGFP. (c) B. paranthracis ena3A::mKate2. (d) wildtype B. paranthracis (control). Yellow and black arrows indicate S-ENAs and L-ENAs, respectively.
Ena3A
Ena3A, the major component of the L-ENA fiber^6^, was expressed as a fusion with mKate2, either chromosomally at the C- or plasmid-borne at the N-terminus. In both constructs, expression was evident as a few bright foci on either side of the spore, predominantly adjacent to the mother cell (Fig. 1, Supplementary Movie S4). Expression was first detected at approximately 3.1 h after the appearance of phase-bright spores. The fluorescence signal from Ena3A fused C-terminally with mKate2 diminished considerably upon lysis of the mother cell but was not lost completely (Supplementary Movie S4). The remaining signal was detected in the exosporium of the mature spore (Supplementary Fig. S9a; Supplementary Movie S4). In contrast, an apparent loss of fluorescence was evident upon lysis of the mother cell when the tag was placed at the N-terminus of Ena3A (Supplementary Fig. S9b, c) in the automated time-lapse experiment. To verify this, we analyzed spores (over 200 in each group) from 24-h shake-flask cultures of the two constructs after washing twice with PBS. The results indicate that a subpopulation of spores from both constructs retained detectable fluorescence, with 48% of the C-tagged spores and 41% of the N-tagged Ena3A spores remaining fluorescent. nsTEM analysis of spores expressing chromosomally integrated Ena3A-mKate2 (B. paranthracis ena3A::mKate2) or plasmid-expressed Ena3A-mKate2 in the wildtype strain (B. paranthracis::pHT304*-Pena3A-mKate2-ena3A*) revealed a complete absence of L-ENAs (Figs. 2c and 3c).

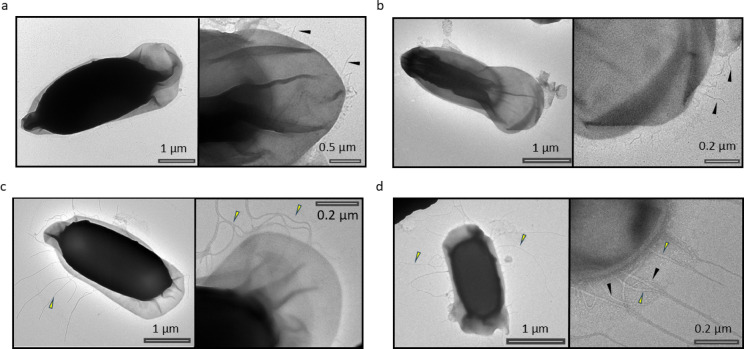

Fig. 3nsTEM micrographs of spores of wildtype B. paranthracis transformed with pHT304 expression constructs encoding fluorescent tagged ENA subunits. (a) B. paranthracis::pHT304-P_ena1AB-sfGFP-ena1B. (b) B. paranthracis::pHT304-Pena1AB-ena1B-sfGFP (c) B. paranthracis::pHT304-Pena3A_-mKate2-ena3A. (d) B. paranthracis::pHT304 (control). Yellow and black arrows indicate S-ENAs and L-ENAs, respectively.
In summary, ENA fusion proteins exhibited distinct temporal and spatial expression patterns during sporulation, with fluorescence signals primarily accumulating at the forespore–mother cell interface. Ena1A and Ena1C localized more broadly around the spore, whereas Ena1B and Ena3A showed highly focused expression. Expression from low-copy plasmid was stronger than from chromosomal integrations, and a substantial fraction of ENA fusion proteins remained unincorporated into spores.
The expression of S-ENA proteins precedes L-ENA expression
To determine the relative expression timing of S- and L-ENA subunit proteins, we co-expressed Ena1A fused to sfGFP (chromosomal integration) and Ena3A fused to mKate2 (plasmid-borne), each under its respective native promoter. Time-lapse fluorescence microscopy revealed that Ena1A expression began approximately 80 min before Ena3A (Fig. 4a, b and Supplementary Movie S5). Similarly, co-expression of Ena1C-sfGFP (chromosome) with mKate2-Ena3A (plasmid) showed that Ena1C expression preceded Ena3A by ~ 79 min (Fig. 4c,d and Supplementary Movie S6). Even after accounting for the differences in fluorescent protein maturation time, 13.6 min for sfGFP and 34.4 min for mKate2^24^, the S-ENA proteins Ena1A and Ena1C were expressed approximately 1 h earlier than the L-ENA subunit Ena3A. However, because fluorescent protein maturation kinetics depend on cellular physiology and have not been characterized in the sporulating mother cell, the precise timing of fluorescence appearance, and consequently the relative timing between the two reporters, should be interpreted with caution.

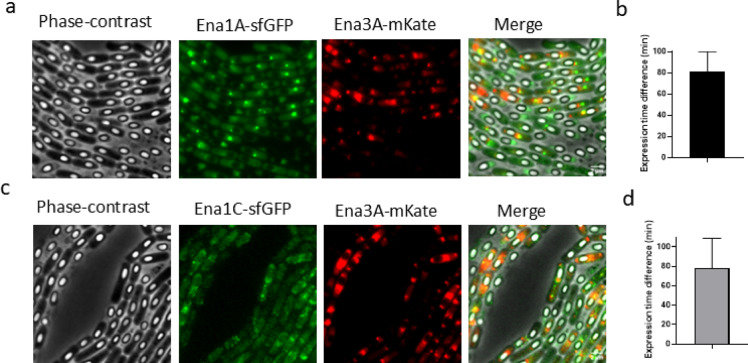

Fig. 4. Co-expression of S-and L-ENA subunit proteins. (a) Co-expression of Ena1A-sfGFP (chromosome) and mKate2-Ena3A (plasmid-borne). (b) Time (min) between detection of Ena1A and detection of Ena3A expression. (c) Co-expression of Ena1C-sfGFP (chromosome) and mKate2-Ena3A (plasmid-borne). (d) Time (min) between initial detection of Ena1C and detection of Ena3A expression. Error bars in (b) and (d) are SD.
Ena1C is required for anchoring S-ENA fibers to the spore surface
Previously, the study by Pradhan et al.^5^ reported that deletion of ena1C in B. paranthracis (Fig. 5a) results in spores lacking S-ENA fibers (Fig. 5b), even though Ena1C is not a structural component of the S-ENA fiber stalk. In that study, spores were extensively washed prior to analysis, potentially removing loosely associated material. In light of the hypothesis that Ena1C anchors the S-ENA fiber to the spore coat and given the reduced number of S-ENA observed in spores expressing Ena1C fused to sfGFP (Fig. 5e), we investigated whether detached or loosely associated S-ENA fibers might still be present in spores lacking Ena1C. To this end, we examined unwashed spore preparations of the B. paranthracis ∆ena1C mutant. Notably, free S-ENAs were observed in close proximity to the ∆ena1C spores (Fig. 5c), without being anchored to the spore surface, suggesting that Ena1C is potentially involved in S-ENA attachment to the spore. The reduction in surface-attached S-ENA fibers observed in Ena1C-sfGFP spores indicates that the C-terminal fusion interferes with Ena1C function in anchoring the S-ENAs to the sub-exosporial layer (Figs. 2b and 5e). We further hypothesized that if Ena1C indeed has role in anchoring S-ENA, overexpression of Ena1C could lead to more, but shorter number of surface-attached S-ENA fibers. Accordingly, we transformed the wildtype B. paranthracis strain with a low-copy plasmid expressing untagged Ena1C under its native promoter. Consistent with the proposed role of Ena1C in anchoring S-ENAs, these spores exhibited a significantly higher number of S-ENAs per spore (Fig. 5d and e). Indeed, the S-ENAs in Ena1C overexpressing strain were also relatively shorter than those in the wildtype strain (Fig. 5f), but comparable in length to the free S-ENAs observed in the ena1C knockout strain. Notably, the median length of free ENAs in the ena1C knockout (Fig. 5b) and overexpressing strains (Fig. 5d) were nearly identical (521 nm and 518 nm, respectively), while the wildtype and C-terminal sfGFP-Ena1C strain had median length of 882 and 1118 nm, respectively (Fig. 5f).

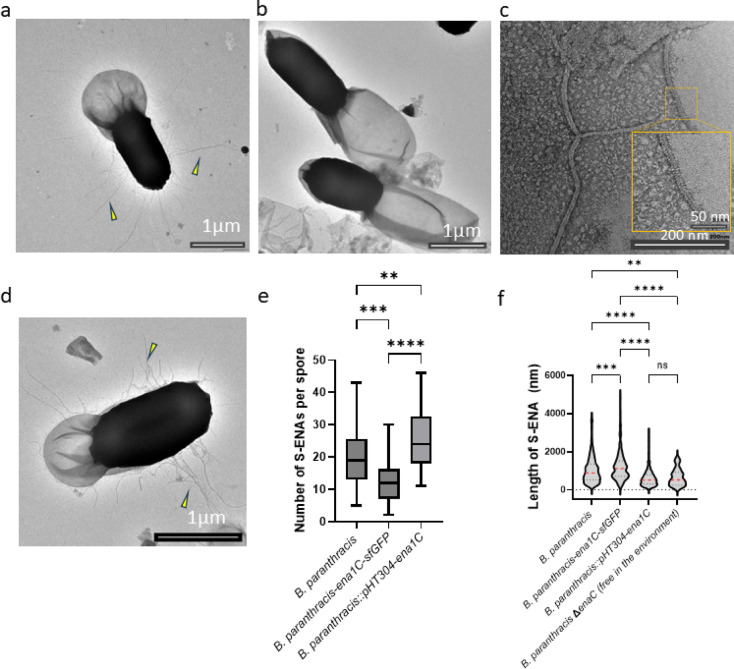

Fig. 5. Ena1C plays a role in anchoring S-ENA to the spore. (a) nsTEM of B. paranthracis wildtype spores. Yellow arrows indicate S-ENAs. (b) B. paranthracis ∆ena1C spores lacking attached S-ENAs. (c) nsTEM of free S-ENAs found in culture supernatant of B. paranthracis ∆ena1C. (d) B. paranthracis::pHT304-ena1C (Ena1C overexpressing strain). (e) Box plot showing the effect of ena1C on the number of anchored S-ENAs per spore. The horizontal line represents the median, and whiskers denote the minimum and maximum values. (f) Violin plot of S-ENA lengths in wildtype spores (n = 268), ena1C-sfGfp (n = 193), Ena1C overexpressing spores (B. paranthracis::pHT304-ena1C) (n = 436) and ∆ena1C spores (unattached S-ENAs free in the environment). The median S-ENA length is indicated by a red dashed line, with quartiles in black.

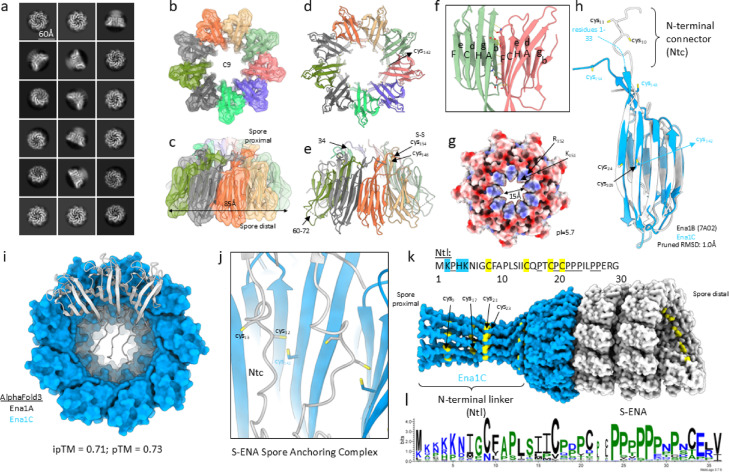

Cryo-EM analysis of Ena1C
