Treatment of displaced sagittal plane femoral condyle fractures (OTA 33 B1-2) with novel J-plate: technical trick and case series
Mitchel Obey, Brian Rust, David Barton, Jenna-Leigh Wilson, Marschall Berkes, Christopher McAndrew
TL;DR
A new surgical technique using a J-shaped plate improves treatment outcomes for certain femoral condyle fractures.
Contribution
A novel dual-implant technique using a J-plate is introduced for better stabilization of distal femur fractures.
Findings
The J-plate technique allows precise placement of implants in biomechanically advantageous locations.
The method offers orthogonal fixation and reduced implant costs compared to anatomical plates.
Abstract
Surgical treatment of unicondylar distal femur fractures remains a challenge. Achieving stable fixation to allow early range of motion and weightbearing is complicated by poor bone quality and articular surface comminution, commonly leading to poor outcomes. Multiple treatment strategies have been previously described including small fragment, large fragment, and anatomical plate fixation. However, given the variability of fracture patterns, anatomical implants often lack the appropriate geometry and fixation options required to provide adequate stabilization. With knowledge and application of the principles of fracture fixation, these injuries can be effectively treated with standard non-anatomically shaped, contourable implants. The objective of this report was to describe a technique that provides effective fixation in these cases and report on outcomes of a small series. This…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsBone fractures and treatments · Hip and Femur Fractures · Facial Trauma and Fracture Management
Introduction
Unicondylar fractures of the distal femur are rare injuries, accounting for less than 1% of all femoral fractures [1–4]. They typically occur following a direct impact onto a flexed knee, which includes low-energy falls in elderly patients and high-energy mechanisms in younger patients [5]. These fractures can occur in the lateral or medial femoral condyle, with fractures of the lateral condyle occurring more often. Fractures of the lateral condyle may be in the coronal plane (Hoffa fracture, OTA/AO 33B3) or the sagittal plane (OTA/AO 33B1) [6]. Whereas fractures of the medial condyle most commonly occur in the sagittal plane (OTA/AO 33B2), and very rarely in the coronal plane. Due to the intra-articular involvement and associated comminution of these fractures, increased rates of post-traumatic arthritis and malunion have been reported [1, 2, 5]. Furthermore, meniscal and cruciate ligament injuries have been reported in association with these injuries, which may further contribute to poor outcomes [1].
Nondisplaced patterns can be treated nonoperatively with good outcomes reported [1]. Most of these fractures, however, are indicated for surgical treatment especially if there is any significant degree of displacement or articular incongruity. Several internal fixation techniques have been previously described, yet there remains a paucity of literature regarding which is most optimal [1, 7–9]. Historically, the medial femoral condyle has been a location that lacked a reliable anatomically pre-contoured plate option. As a result, anatomic plates designed for other locations throughout the body such as the proximal tibia, proximal humerus, and distal tibia have been utilized for stabilizing these injuries [9, 10]. The availability of multiple anatomic plate options is highly dependent upon local hospital implant vendor contracts and implant costs, and surgeons therefore may be limited to standard small or large fragment implant sets when caring for these injuries.
The purpose of this article was to describe a surgical technique that provides rigid orthogonal fixation of unicondylar sagittal plane distal femur fractures and report on outcomes in a small case series. The technique utilizes a dual-implant construct with a small or large fragment plate, placed at the metaphyseal apex of the fracture, serving to buttress the fracture reduction. This is supplemented by a small fragment reconstruction plate contoured in the shape of a “J” (J-plate) that wraps around the femoral condyle and onto the anterior cortex of the femur. This allows for strategic and precise application of implants in biomechanically advantageous and orthogonal locations which increases construct stability. Supplemental fixation of the articular surface reduction can be implemented by the placement of independent lag screws or through the plates.
Technique
The surgical treatment utilizing a J-plate begins with patient positioning and exposure. Patients are positioned supine with the knee flexed over a radiolucent triangle. The exposure depends upon the fracture pattern. Fractures of the medial femoral condyle (Figs. 1 and 2) are approached through an anteromedial surgical incision that exposes the fracture through the vastus medialis and sartorius intermuscular interval. This incision can be extended distally to perform a medial parapatellar arthrotomy through which the joint can be debrided, and the articular fracture line can be visualized and reduced. Fractures of the lateral femoral condyle are approached through a direct lateral surgical incision that exposes the fracture through a lateral subvastus approach. Like the medial side, this incision can be extended distally to perform a lateral parapatellar arthrotomy for direct visualization and reduction of the articular fracture line.

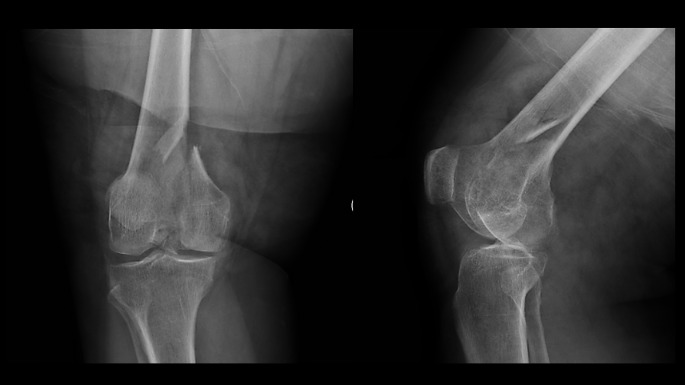

Fig. 1. Injury anteroposterior and lateral radiogaphs of a comminuted medial femoral condyle fracture

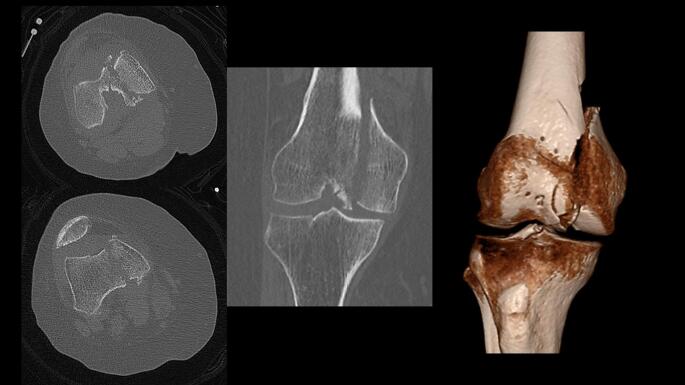

Fig. 2. Injury computed tomography scan images and 3D reconstruction of a comminuted medial femoral condyle fracture
Reduction of the metaphyseal fracture apex and articular surface can be facilitated with a distractor or external fixator, completed with direct clamp reduction, and stabilized with placement of smooth Steinmann pins or other techniques based on surgeon preference and fracture pattern. A series of fluoroscopic intraoperative images are then obtained to assess the reduction. These should include standard anteroposterior and lateral radiographs, as well as a femoral notch view which can be obtained by rotating the fluoroscopy machine caudally approximately 25 degrees.
A small or large fragment LCP (locking compression plate) or DCP (dynamic compression plate) plate of the appropriate length as determined by the primary surgeon’s discretion is now selected, contoured, and centered over the metaphyseal fracture apex to serve as a buttress (Fig. 3). This plate is secured with the first available screw hole just proximal to the fracture apex. At this juncture, the surgeon can proceed with initial definitive fixation of the articular surface reduction with placement of independent lag screws if the bone quality and fracture pattern is amenable. A small fragment reconstruction plate of the appropriate length is now selected and contoured in the shape of a “J”, with the curve of the “J” wrapping around the periphery of the femoral condyle and twisting onto the anterior aspect of the distal femur (Fig. 4). The plate can be contoured with a variety of plate benders standardly found in small and large fragment implant trays. When doing this for the first time it is often helpful to utilize the plate bending templates found in the tray to guide contouring. The objective is to have the plate positioned along the periphery of the condyle distally which allows for placement of screws from medial to lateral (or vice versa) across the articular segment, using the plate as a cortical replacement in an anatomic area and typical patient scenario where the bone is intolerant of lag screw compression. As the plate extends proximally, it transitions to running along the anterior surface of the femur buttressing the anterior fracture extension and allowing for placement of screws in the orthogonal plane from anterior to posterior (Fig. 5). In addition, this plate can “connect” the anterior and posterior condyles in the setting of a coronal plane fracture. Postoperatively patients are kept non-weightbearing for 6 to 12 weeks depending on bone quality and allowed for immediate early range of motion in a hinged knee brace unlocked. Patients are then followed postoperatively for approximately 6 months or until fracture union (Fig. 6).

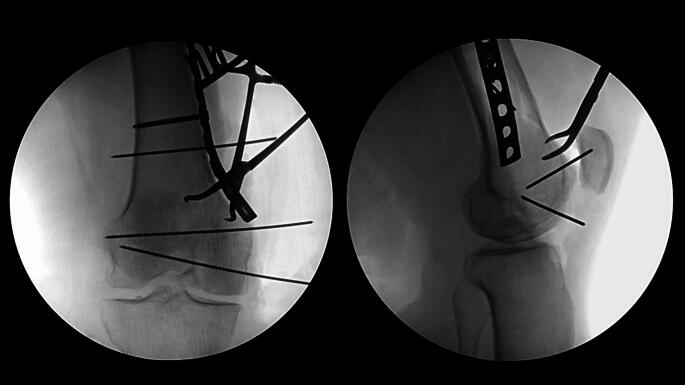

Fig. 3. Intraoperative anteroposterior and lateral radiographs displaying buttress plate placement

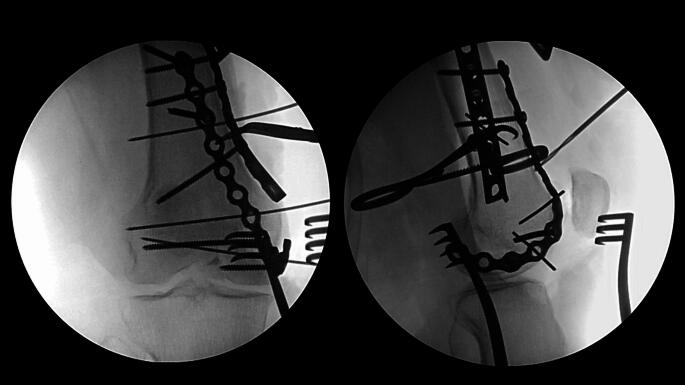

Fig. 4. Intraoperative anteroposterior and lateral radiographs displaying J-plate placement

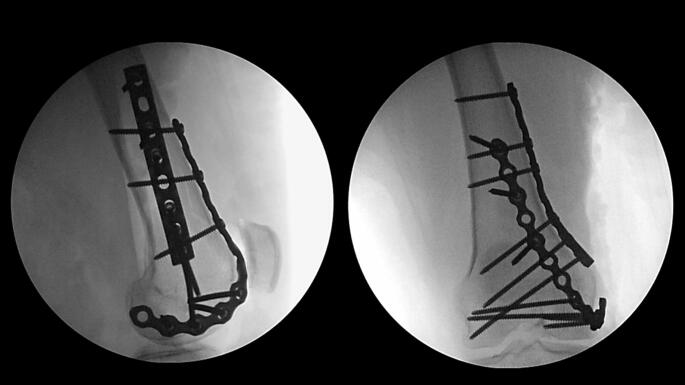

Fig. 5. Final intraoperative anteroposterior and lateral radiographs displaying medial femoral condyle with near anatomic reduction

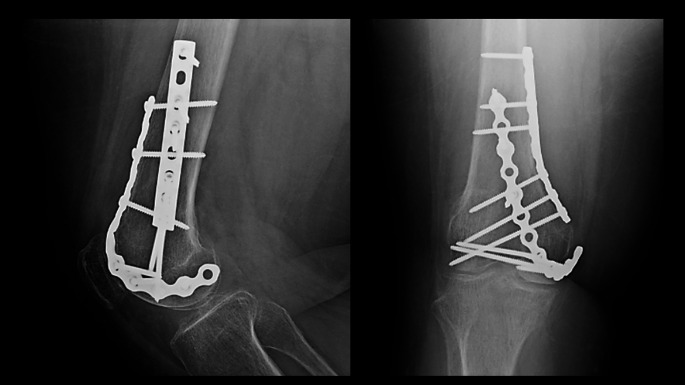

Fig. 6. Final follow-up anteroposterior and lateral radiographs with healed fracture at 6 months postoperative
