Digital Orthodontics: Posterior crossbite correction and arch expansion with directly 3-dimensional printed clear aligners

TL;DR

This paper presents a case where 3D-printed clear aligners successfully corrected a patient's posterior crossbite and mandibular constriction, showing promise as an alternative to traditional methods.

Contribution

The study demonstrates the clinical effectiveness of directly 3D-printed clear aligners for complex dental corrections.

Findings

Directly 3D-printed aligners successfully corrected bilateral premolar crossbite and mandibular constriction.

Treatment resulted in stable arch expansion and minimal relapse (less than 0.5 mm) after one year.

Abstract

Posterior crossbite correction and mandibular arch expansion have traditionally been managed with fixed appliances, while conventional thermoformed aligners have shown limited efficacy due to material properties and biomechanical constraints. This case report describes the management of bilateral premolar crossbite and mandibular constriction in a 26-year-old female using directly 3D-printed clear aligners (DPA) fabricated with a biocompatible resin. A complete digital workflow treatment planning was employed, and twenty-six aligners were produced using high-resolution LCD printing over a treatment period of thirty-one weeks. Posttreatment evaluation confirmed successful correction of the crossbite, stable arch expansion, and maintenance of posterior inclination control. Three-dimensional superimposition and colormap analysis demonstrated minimal relapse, less than 0.5 mm, at one-year follow-up. This report highlights the potential of DPA as a clinically effective alternative to thermoformed aligners for the correction of complex occlusal discrepancies.

Figures

g, Table 1).[Table 1](#T1)The treatment objectives were to correct the bilateral premolar crossbites and achieve arch coordination through dentoalveolar expansion, all within the treatment period of less than one year, in accordance with the patient's preference for a quick retreatment.

b,c). Continued investigation of DPA will expand aligner therapy into a broader range of clinical applications within digital orthodontics. In conclusion, DPA effectively corrected bilateral premolar crossbites and mandibular constriction through dentoalveolar expansion, with results stable at one-year follow-up. The advantages in design flexibility, force control, and manufacturing efficiency suggest that DPA may be a valuable tool in managing malocclusions which have traditionally been less responsive to thermoformed aligners.

Treatment outcome. Best fit superimposition of lower arch by Geomagic control X (a-d); a, Pretreatment in grey and planned setup in green. b, Pretreatment in blue and posttreatment in yellow. c, Planned setup in green and posttreatment in yellow. d, Posttreatment in yellow and one-year follow-up in violet. Superimposed 3D colormaps by Geomagic control X (e-h); e, Pretreatment and planned setup. f, Pretreatment and posttreatment. g, Planned setup and posttreatment. h, Posttreatment and one-year follow-up. Mandibular width measurements (i-m); i, Pretreatment. j, Planned setup. k, Posttreatment.

Full text

Introduction

Since Invisalign introduced clear aligner therapy in the 1990s, aligners, traditionally fabricated from thermoplastic sheets vacuum-pressed over 3D-printed sequential dental models, have become a popular and effective alternative to fixed appliances for esthetic purposes (1). Recent advances in CAD/CAM technology and photopolymer materials have led to the development of directly 3D-printed clear aligners (DPA), which are designed directly over digital models and then 3D-printed using light-cured, biocompatible resins. Direct printing eliminates the need for an intermediate model, allowing software-controlled adjustment of aligner thickness and shape according to each shell region. Hence, this method simplifies the workflow, saves time and cost, enhances mechanical efficiency by offering enhanced precision and accuracy, and reduces environmental waste (2). Recently, an increasing number of studies have reported enhanced manufacturing productivity, ensuring biosafety as well as validating the biomechanical efficacy of DPA systems (3 - 5). Previous clinical reports on DPA have largely focused on anterior teeth alignments (6 - 8). This case report demonstrates the novel and successful application of DPA to more complex movements, namely bilateral premolar crossbite correction and mandibular arch expansion. It also evaluates the stability of these outcomes one-year posttreatment.

Case Report

A 26-year-old female presented with the chief complaint that the misalignment of her mandibular arch was visible when smiling. She expressed a strong preference for aligner therapy over fixed appliances. Her orthodontic history included extraction of her upper first premolars during comprehensive treatment with fixed appliances when she was an adolescent, followed by inadequate retainer wear, which led to relapse. Clinical examination revealed bilateral crossbites of the mandibular first premolars, an overjet of 3.1 mm, an overbite of 1.8 mm, quarter-cusp Class II canine relationships bilaterally, and full cusp Class II molars (Fig. 1a-e).

1

Figure 1. Diagnosis and virtual treatment plan. Pretreatment intraoral and facial photos, and cephalometric and panoramic radiographs (a-h). Treatment setup (i-m); Pretreatment occlusion is shown in blue, and the planned occlusion is shown in white.

Cephalometric analysis indicated a mild skeletal Class II pattern with an ANB angle of 4.2° and a high mandibular plane angle of 30.9° (Fig. 1g, Table 1).Table 1The treatment objectives were to correct the bilateral premolar crossbites and achieve arch coordination through dentoalveolar expansion, all within the treatment period of less than one year, in accordance with the patient's preference for a quick retreatment.

Digital impressions were obtained using a TRIOS 3 (3Shape, Copenhagen, Denmark), and virtual treatment planning was performed with the 3Shape Ortho System, an orthodontic CAD software (Fig. 1i-m). The setup prescribed up to 0.2 mm of translation and 2° of rotation per stage. Aligner shells were designed with a thickness of 0.5 mm and an inner gap of 30 m, incorporating selective blockouts to streamline the force delivery (Fig. 2a).

2

Figure 2. Appliance Design, and treatment progress and results. Flow of design and production of Direct Print Aligner (a-b). Patient is wearing the midline elastic (c), and box elastics in the lower row with wrap-around type aligner (d,e). Treatment results (f-m).

The aligners were printed with FDA-cleared and biocompatible clear resin (ODS Co., Ltd., Incheon, South Korea) using an 8K LCD printer (Sonic Mini 8K; Phrozen Tech Co., Hsinchu, Taiwan) and then underwent standardized post-processing UV-light and heat curing (Fig. 2b) (7).

The patient wore each aligner for approximately twenty hours per day, progressing to the next in sequence every seven days. After seventeen weeks, the crossbite had resolved, and mild distal movement of the maxillary canines was noted. Cross-arch elastics were added to assist with midline refinement (Fig. 2c). Upon completion of the initial twenty-five aligners, slight open bite in the right posterior region and small residual spaces prompted the fabrication of refinement aligners. The aligners were designed as wrap-around types with vertical and posterior box elastics, allowing for occlusal settling without unwanted molar intrusion (Fig. 2d,e).

The active treatment phase was completed in thirty-one weeks using twenty-six aligners. The bilateral premolar crossbites were corrected, and the arches were well coordinated. Fixed lingual retainers were bonded, and night-time DPA retainers were delivered (Fig. 2f-m). The treatment progressed without discomfort or complications, consistent with the limited treatment objectives. Best-fit superimposition with Geomagic Control X demonstrated increased mandibular arch widths and corrected posterior buccolingual crown inclinations from pre- to posttreatment (Fig 3a-d).

3

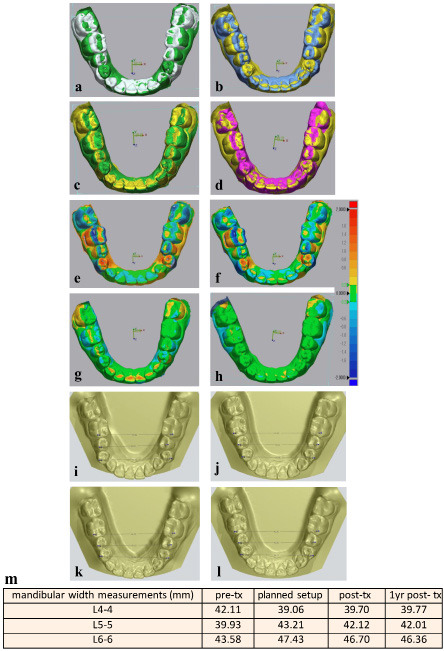

Figure 3. Treatment outcome. Best fit superimposition of lower arch by Geomagic control X (a-d); a, Pretreatment in grey and planned setup in green. b, Pretreatment in blue and posttreatment in yellow. c, Planned setup in green and posttreatment in yellow. d, Posttreatment in yellow and one-year follow-up in violet. Superimposed 3D colormaps by Geomagic control X (e-h); e, Pretreatment and planned setup. f, Pretreatment and posttreatment. g, Planned setup and posttreatment. h, Posttreatment and one-year follow-up. Mandibular width measurements (i-m); i, Pretreatment. j, Planned setup. k, Posttreatment. l, One year follow-up. m, Summary of mandibular width measurements.

Three-dimensional color maps corroborated high treatment efficacy with minimal relapse of the lower arch (Fig. 3e-h). Mandibular inter-tooth width measurements confirmed expansion at the second premolar and first molar levels and effective correction of the first-premolar buccal crossbite, all maintained within 0.5 mm of change at one year (Fig. 3i-m).
