Nanoparticle ultrastructure allows reversible pH sensitivity using 19F NMR and in vivo19F MRI
Alvja Mali, Mariah Daal, Natalia Jirát-Ziółkowska, Nicolas Stumpe, Naiara Larreina Vicente, N. Koen van Riessen, Visakh V. S. Pillai, Francesco Simone Ruggeri, Cyril Cadiou, Françoise Chuburu, Daniel Jirak, Paul B. White, Mangala Srinivas
TL;DR
Researchers developed a pH-sensitive 19F MRI nanosystem that can reversibly switch signals based on nanoparticle structure, useful for imaging tumors and other acidic disease environments.
Contribution
A novel strategy for pH-sensitive 19F MRI using nanoparticle ultrastructure instead of chemical modification.
Findings
Multi-core nanoparticles showed reversible pH-dependent 19F signal modulation, unlike single-core nanoparticles.
19F T2 relaxation times changed significantly with pH in multi-core NPs, validated in vitro and in vivo.
The strategy works across high- and low-field MRI and is activated in acidic tumor regions.
Abstract
Fluorine-19 magnetic resonance imaging (19F MRI) is a powerful imaging modality that provides background-free imaging. Its sensitivity can be modulated through environmentally responsive probe designs exploiting paramagnetic relaxation enhancement (PRE) and related mechanisms. Here, we present a novel pH-sensitive 19F MRI nanosystem in which signal activation is governed by nanoparticle (NP) ultrastructure. Poly(lactic-co-glycolic acid) (PLGA) NPs were synthesized co-encapsulating perfluoro-15-crown-5-ether (PFCE) and lipophilic gadolinium (Gd) chelates, yielding either single-core or multi-core structures. While single-core NPs, the conventional structure for polymer-encapsulated perfluorocarbons, remained pH-insensitive, multi-core NPs exhibited a pronounced and reversible pH-dependent 19F signal modulation. The 19F T1 decreased slightly (from ∼700 to ∼600 ms) in both NP types due to…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9| NP type | Batches | Gd entrapped µg (Gd) per mg (NP) |
19F |
19F | PFCE% wt |
|---|---|---|---|---|---|
| Gd multi-core | 9 | 2.3 ± 0.7 | 550 ± 40 | 21 ± 9 | 14 ± 2 |
| Gd single-core | 4 | 2.0 ± 1.0 | 640 ± 15 | 55 ± 10 | 18 ± 4 |
| Control | 5 | N/A | 750 ± 35 | 390 ± 50 | 22 ± 4 |
- —ZonMw10.13039/501100001826
- —Horizon 2020 Framework Programme10.13039/100010661
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsLanthanide and Transition Metal Complexes · Advanced MRI Techniques and Applications · Advanced NMR Techniques and Applications
Introduction
1
Non-invasive imaging techniques are crucial for early disease detection, driving the need for more sensitive and specific molecular imaging probes. Among emerging strategies, nanoparticle (NP)-based contrast agents have gained particular attention for their ability to enhance imaging sensitivity, improve targeting, and support multimodal imaging. Their tunable physicochemical properties, such as size, surface charge, and composition, enable control over circulation time, tissue accumulation, and contrast agent encapsulation, making them adaptable tools for a wide range of imaging modalities.^1,2^ These advantages have made NPs increasingly relevant in biomedical applications aimed at visualizing molecular and cellular processes in vivo.^3^ Clinical imaging enables real-time, non-invasive monitoring of physiological and pathological conditions, with magnetic resonance imaging (MRI) offering superior soft-tissue contrast, deep tissue penetration, and high spatial resolution without ionizing radiation.^4^
However, conventional proton (^1^H) MRI suffers from strong background signals caused by the high-water content in biological tissues (65–90%), reducing contrast and making it difficult to distinguish specific targets, particularly early-stage tumours.^4–6^ This has led to growing interest in alternative MRI-active nuclei, such as ^23^Na,^7^^19^F,^8,9^ and ^31^P,^10,11^ which offer improved specificity and signal clarity. Among them, fluorine-based MRI (^19^F MRI) has gained significant attention due to its high sensitivity, comparable to that of protons, and its exceptional specificity, as fluorine is nearly absent in biological tissues (≤10^−6^ M).^12,13^ These characteristics have made ^19^F MRI a powerful tool for diverse applications, including tracking cellular therapies and quantitative imaging.^14–17^ Among the different fluorine labels, perfluorocarbons (PFCs) are the most commonly used in ^19^F MRI, owing to their high fluorine content, excellent molecular mobility, and favourable safety profile.^18^ PFC-based agents have also been used clinically.^19,20^
Beyond direct fluorine imaging, activatable ^19^F MRI probes enhance sensitivity by exploiting changes in relaxivity^6,21^ or chemical shift^22,23^ to detect biological processes or trigger drug release.^24,25^ Stimulus-induced relaxivity alterations can create on/off signal switches, significantly improving ^19^F MRI sensitivity. These effects are primarily regulated by their structural properties, particularly their influence on transverse relaxation (T2).^26^ Two key strategies regulate ^19^F MR signal modulation: (1) fluorine nuclei tethered to paramagnetic centres via stimuli-responsive linkers, where proximity modulates the paramagnetic relaxation enhancement (PRE) effect,^27–29^ and (2) reversible fluorine agent aggregation, where restricted motion quenches the signal and disassembly restores it.^21,30,31^ PRE is highly distance-dependent, following an inverse sixth power relationship (r^−6^) with fluorine–chelate separation.^32–34^ Thus, precise nanoscale control over molecular reconfigurations is essential for responsive probe design.^26,35^ Nanomaterials provide ideal platforms for designing such activatable probes, as their tuneable physicochemical properties allow optimization of PRE effects and fluorine relaxation behaviour for enhanced responsiveness.^36,37^
Among external stimuli, pH is particularly relevant, as it is tightly regulated in normal tissues (7.2–7.4) but disrupted under pathological conditions such as inflammation and cancer.^38^ Tumours exhibit a characteristic acidic extracellular microenvironment due to metabolic reprogramming.^39,40^ As a hallmark of disease, these variations make pH-sensitive imaging valuable for detection and monitoring.^41^
Most pH-responsive polymer NPs used for ^19^F MRI contain ionizable groups, such as tertiary amines, with varying acid dissociation constants (pKa values).^42–46^ Fluctuations in pH induce protonation or deprotonation of these groups, leading to polymer swelling or shrinking, which indirectly modulates^47^ the fluorine signal.^48,49^ However, a key challenge for these agents remains increasing the usable fluorine signal while maintaining sufficient fluorine mobility.^45^ Higher fluorine content often increases hydrophobicity and fluorophilicity, leading to aggregation in aqueous environments, which reduces molecular mobility and signal intensity, and may cause toxicity risks in vivo.^18,24^
Our previous research demonstrated the successful co-encapsulation of lipophilic gadolinium (Gd) chelates and perfluoro-15-crown-5-ether (PFCE) within a polymer matrix (poly(d,l-lactide-co-glycolide), PLGA), yielding NPs with either multi-core or single-core structures, as confirmed by Small-Angle Neutron Scattering (SANS).^50–52^
While PRE in PFCs typically requires fluorophilic chelators,^53,54^ in our earlier methodological study,^51^ we showed that NP ultrastructure alone significantly influences ^19^F MR relaxation, with multi-core NPs exhibiting stronger paramagnetic effects than single-core NPs. That same work also revealed only preliminary indications of pH-sensitive ^19^F MR relaxation, uniquely associated with the multi-core configuration, without systematic mechanistic analysis or validation under physiologically relevant conditions. Moreover, the internal structure was previously shown to influence in vivo clearance^52^ and in vitro cellular uptake.^55^
Building on these findings, the present study systematically investigates the mechanism, reversibility, and physiological relevance of this pH responsiveness. Using both high- and low-field MRI (14 T and 3 T), we observed pH-dependent ^19^F MRI signal changes, with multi-core NPs exhibiting pronounced pH responsiveness even under physiologically relevant conditions. In proof-of-concept in vivo experiments (7 T MR), a ^19^F signal was observed only in the tumour and not subcutaneously. Overall, we have built on earlier structural observations towards a translational imaging context, with further mechanistic understanding of the reversibility of the signal generation.
Results and discussion
2
PFCs are advantageous for ^19^F MRI due to their high fluorine content but present challenges such as fluorophilicity, low surface tension, and slow clearance.^18^ Customizable nanocarriers, such as lipid- or polymer-based NPs, address these limitations.^18,56–58^ Our group has focused on optimizing and characterizing PLGA-loaded PFCE NPs, demonstrating that slight procedural modifications yield NPs with either multi-core or single-core ultrastructure (Fig. 1a and b).^50,59^ The ultrastructure plays a crucial role in PFCE clearance, with multi-core NPs exhibiting 15-fold faster clearance in vivo compared to single-core NPs.^52^ These structural differences also influenced MR properties, particularly when a lipophilic Gd-chelate was co-encapsulated with PFCE in the PLGA matrix. Gd entrapment increased with the amount of Gd-chelate added, with higher encapsulation observed for chelates containing longer hydrophobic chains.^51^ However, the consistent pH sensitivity across different Gd chelates suggests that the NP ultrastructure, rather than the chelator itself, determines the response. Based on these findings, only the chelator with the longer hydrophobic tail was used because of its slightly higher encapsulation efficiency.^51^ In this study, three types of NPs were investigated: (1) Gd single-core, (2) Gd multi-core, and (3) control NPs (Gd-free) (Fig. 1a–c). Gd single-core and multi-core NPs were used to investigate the role of NP ultrastructure in pH sensitivity, while control NPs served to determine whether the observed effects were intrinsic to the PLGA matrix or specifically due to the co-encapsulation of Gd-chelate and PFCE.

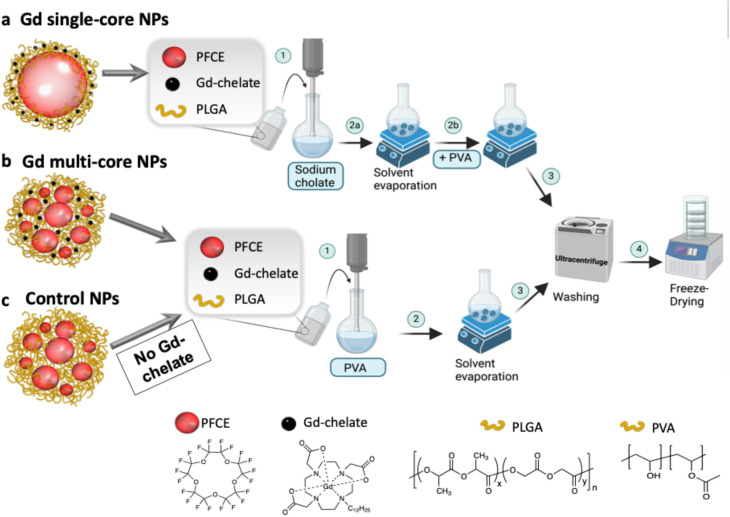

Schematic representation of PLGA–PFCE NP formulation using a single oil-in-water emulsion process for (a) Gd single-core, (b) Gd multi-core, and (c) control NPs. (a) Gd single-core NPs are prepared by sonication of the organic phase with sodium cholate as a surfactant (1), which is later replaced by PVA after solvent evaporation (2a and 2b). (b) Gd multi-core and (c) control NPs are directly formulated using PVA as the surfactant (1), with control NPs omitting the Gd-chelate in the organic phase. After solvent evaporation (2), all NPs are washed to remove excess PVA and free Gd-chelate (3), collected by ultracentrifugation, and freeze-dried (4). Chemical structures of key components, PFCE, Gd-chelate, PLGA, and PVA, are shown at the bottom of the figure for reference.
To ensure comparability across pH sensitivity experiments, NPs were standardized based on (1) Gd entrapment measured by ICP-OES, (2) PFCE entrapment (% wt), and (3) T1 and T2 relaxation times measured by ^19^F NMR (Table 1). Due to inherent batch-to-batch variation, Table 1 reports average values from multiple batches used in this study. While Gd entrapment remained consistent across NP types, PFCE entrapment varied slightly, with Gd multi-core NPs exhibiting the lowest encapsulation efficiency. The co-encapsulation of Gd-chelate did not significantly alter the NP parameters, such as diameter and PDI (Table S1), with multi-core NPs (∼200 nm, PDI 0.2) and single-core NPs (∼160 nm, PDI 0.15) showing similar size distributions.
The encapsulation of paramagnetic chelates significantly affected ^19^F MR properties, particularly in multi-core NPs, where it induced line broadening, potentially affecting quantification accuracy. The paramagnetic effect was more pronounced in T2 than in T1, with greater T2 shortening observed in multi-core NPs due to T2's higher sensitivity to local magnetic field variations, which are amplified by paramagnetic agents such as Gd.^32,60^ The effect of paramagnetic ions on the relaxation times of ^19^F nuclei depends on their distance from the fluorinated core.^54,61,62^ Previous SANS measurements indicated that each PFCE core in multi-core NPs has a radius of 9–12 nm with a 4 nm shell thickness, while single-core NPs have a core radius of approximately 20 nm with a similar shell thickness.^50^ This configuration results in a maximum Gd to PFCE distance of approximately 15 nm in multi-core NPs, compared to about 24 nm in single-core NPs.^51^ Given that PRE decreases steeply with increasing distance,^35^ the robust PRE effect observed in multi-core NPs suggests that additional structural factors, such as PFCE confinement or restricted mobility, may enhance fluorine relaxation beyond what would be expected based on spatial averages alone. In contrast, the larger, less confined single-core NPs allow for greater PFCE mobility, reducing these interactions and weakening PRE. These structural differences likely account for the stronger PRE effect observed in multi-core NPs.
^19^F PRE has long been used to improve ^19^F MR signal sensitivity and to develop stimuli-responsive systems by incorporating specific functional groups sensitive to environmental changes, which modulate the ^19^F signal.^18,24,26,28^ Beyond chemical modifications, the internal structure of PLGA NPs also influences PRE upon pH response. Indeed, Gd single-core NPs showed minimal changes in ^19^F relaxation times across different pH conditions. In contrast, multi-core NPs exhibited a pronounced response to pH variations, with T2 relaxation times increasing 15-fold from neutral to acidic pH.^51^^19^F MRI at 14 T (Fig. 2a) confirmed these observations, showing a marked ^19^F signal increase for multi-core NPs under acidic conditions, whereas no changes were observed in single-core and control NPs. The T2 relaxation time of multi-core NPs increased with decreasing pH, while the T1 and T2 values for control NPs and Gd single-core remained stable (Fig. 2b and S1). Notably, even at acidic pH, the T2 of Gd multi-core NPs does not fully recover to the level observed for pristine PFCE NPs. This likely reflects residual PRE effects from the encapsulated Gd chelate, which continues to influence nearby ^19^F nuclei.

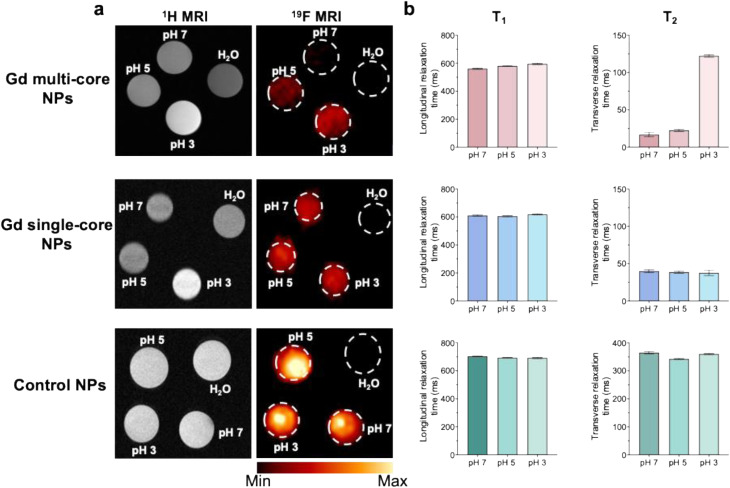

(a) 1H and 19F MRI (14 T) of Gd multi-core, Gd single-core, and control NPs (concentration of 6.5 mg mL−1) at pH 7, 5, and 3, with water (H2O) as a reference. (b) Corresponding 19F T1 (longitudinal) and T2 (transverse) relaxation times under the same pH conditions. Relaxation values are voxel-averaged from a single imaging run with one NP batch.
In addition, control NPs exhibited higher ^19^F signal intensity compared to Gd-loaded NPs, attributed to their higher PFCE content (% wt) (Table 1). Additionally, the defined area of higher intensity (Fig. 2a) likely reflects NP sedimentation due to the shape of the sample tube.
While ^19^F PRE effects are primarily dictated by the proximity and interaction of Gd chelate with the fluorinated core, the enhanced ^1^H MRI contrast observed at pH 3 for Gd multi-core NPs (Fig. 2a) suggests that acidic environments induce structural changes in the polymer matrix, increasing water permeability and Gd–water interactions. The ^1^H T1 relaxation time (Table S2 and Fig. S2) further supports this, showing a significant reduction in T1 at pH 3, while T1 values at pH 5 and 7 remain comparable. These findings suggest that acidic pH induces polymer swelling, likely due to carboxylic group protonation, which reduces rigidity and enhances water permeability, ultimately facilitating water access to Gd and amplifying its paramagnetic effects. Previous NMR spectroscopy studies corroborate this, confirming water's presence within the polymer network and its proximity to the PFCE cores.^50^
To confirm the pH sensitivity observed at 14 T, multi-core NPs were further investigated using a low-field (3 T) MRI scanner (Fig. 3). The results at 3 T were consistent with those at 14 T, as T1 and T2 of control NPs remained constant across pH conditions (Fig. 3b and d). In contrast, multi-core NPs exhibited an increase in T2 under acidic conditions (Fig. 3c), corresponding to a brighter ^19^F signal and reinforcing their pH responsiveness.

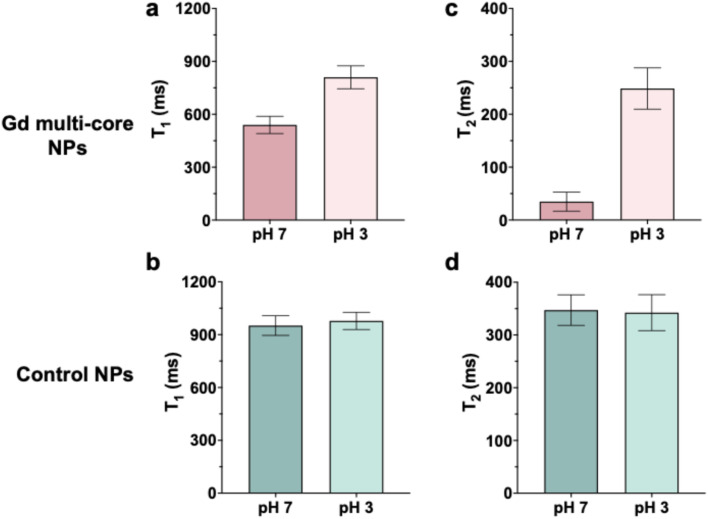

19F T1 (a and b) and T2 (c and d) relaxation times of Gd multi-core and control NPs. All samples were measured at the same concentration 6.5 mg mL−1 on a 3 T MR scanner.
Given the lack of pH sensitivity in single-core NPs, subsequent investigations focused on multi-core NPs with Gd-free PLGA–PFCE NPs used as controls to confirm the effect of Gd-chelate interactions rather than intrinsic polymer properties.
To rule out the possibility that the observed effects were due to PLGA hydrolysis or Gd-chelate release under acidic conditions, the stability of encapsulated Gd was previously confirmed using ^1^H NMR.^51^ Furthermore, Gd release was mimicked by supplementing GdCl_3_ (gadolinium chloride) to Gd-free NPs; while proton relaxation was similarly affected, the ^19^F signal remained unchanged, confirming that the lipophilic Gd-chelates remained confined within the hydrophobic PLGA matrix even in acidic environments.^51^
With hydrolysis excluded, the pH-dependent effect was next examined in terms of possible NP swelling, which remained undetectable by DLS (Fig. S3 and Tables S3, S4). Therefore, the size of Gd multi-core NPs was measured using AFM at both acidic (pH 3) and neutral (pH 7) pH. While statistical analysis showed no significant size difference (Fig. 4a), the mean diameter at pH 3 was slightly larger (∼10 nm, Fig. 4b). Although this increase was not statistically significant, even minor changes in nanoscale dimensions could, in principle, influence the PRE effect due to its high sensitivity to minor distance variations in effective Gd–^19^F distance.^34^

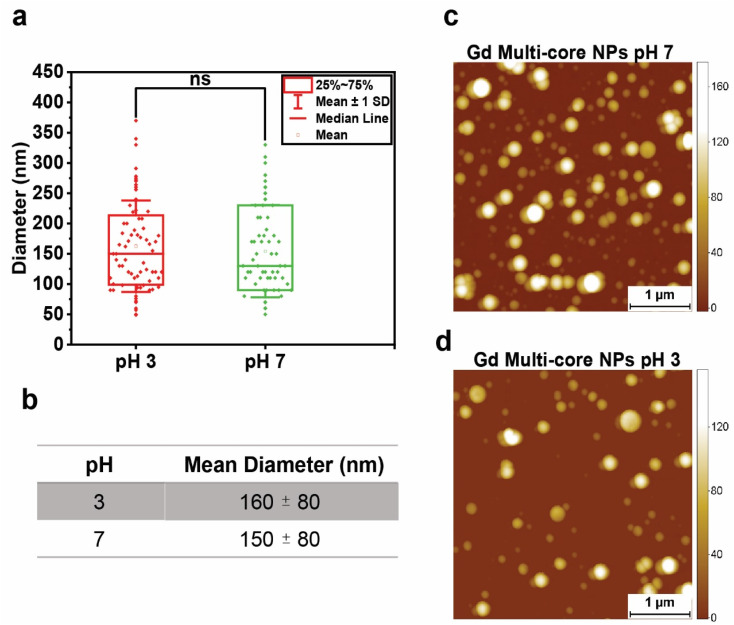

(a) Statistical analysis of the Gd multi-core NP diameter (nm) measured by AFM in acidic (pH 3) and neutral (pH 7) environments. Two-sample t-test for variance: p > 0.05. (b) Mean diameter of NPs under acidic and neutral pH conditions. (c and d) AFM images of Gd multi-core NPs at (a) neutral pH and (b) acidic pH. Scale bar: 1 µm.
Importantly, the absence of a statistically significant change in particle size indicates that geometric expansion alone is unlikely to account for the pronounced pH-dependent changes observed in ^19^F relaxation. Instead, these results suggest that additional mechanisms contribute, including pH-induced alterations in internal nanoparticle dynamics, such as increased PFCE mobility or changes in the effective correlation time within the polymer matrix, which can strongly modulate PRE without requiring large changes in average Gd–^19^F separation.
AFM imaging (Fig. 4c and d) further supported the structural stability of Gd multi-core NPs, showing that the NPs retained a spherical shape across different pH levels.
To determine whether this effect was driven solely by increased permeability and swelling or also influenced by the surrounding environment, ^19^F signal intensity and T2 values were examined in different acidic media. Gd multi-core NPs were resuspended in formic acid, acetic acid, HCl, and D_2_O. The consistent ^19^F signal intensities and T2 values (Fig. 5a and b) across these conditions suggest that the pH sensitivity is inherent to the NP structure rather than specific ion interactions. Furthermore, DLS measurements confirmed that the particle size remained stable, indicating that the NPs were not structurally degraded by the acid exposure (Table S3 and Fig. S3).

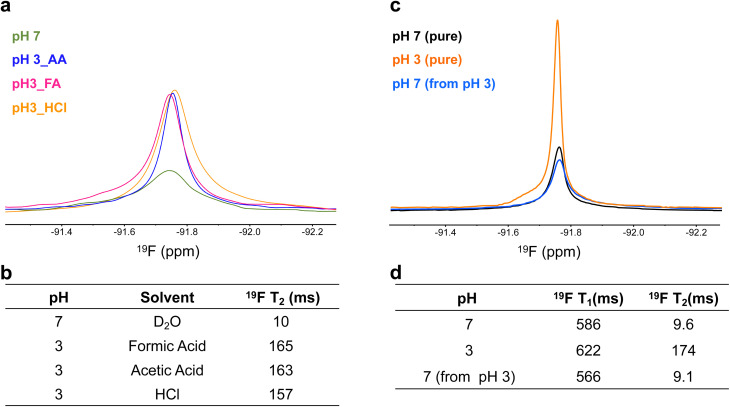

(a) 19F spectral line profiles of NPs resuspended in formic acid (FA), acetic acid (AA), hydrochloric acid (HCl), and deuterium oxide (D2O, pH 7) as a control, illustrating signal characteristics across different acidic environments. (b) 19F T2 relaxation times of NPs under the same conditions. (c) Reversible pH-dependent 19F signal modulation, showing the 19F signal of NPs resuspended at pH 7, pH 3 (HCl solution), and the same sample at pH 3 after neutralization to pH 7 with 5 N NaOH. (d) 19F T1 and T2 relaxation times corresponding to the same samples under the indicated pH conditions. All samples were measured by 19F NMR at 500 MHz with a concentration of 6.5 mg mL−1 for all conditions.
A key feature of the Gd multi-core NPs is their reversible pH-dependent ^19^F signal modulation, as observed by ^19^F NMR. To investigate this reversibility, samples from the same batch were compared: one resuspended at pH 7, one at pH 3, and the latter subsequently neutralized to pH 7 using 5 N NaOH. Initially, the ^19^F signal at pH 3 was higher, but upon neutralization, it decreased to match that of the sample originally resuspended at pH 7 (Fig. 5c). This behaviour aligns with the increase in T2 values under acidic conditions (Fig. 5d). Reproducibility of this reversible behaviour across independently prepared nanoparticle batches is shown in the SI (Table S5).
DLS measurements confirmed that the NPs remained structurally stable throughout the pH transition, with no effective changes in size or PDI (Table S4). A similar reversible effect was observed in NPs resuspended in acetic acid (Table S6), reinforcing that the pH responsiveness arises from the NP ultrastructure rather than the acidic medium itself.
To further investigate the pH responsiveness of Gd multi-core NPs under biologically relevant conditions, in-cell ^19^F NMR spectroscopy was performed using RAW 264.7 macrophages. Previous phantom experiments were conducted under non-physiological pH conditions, which do not fully reflect the moderate acidity of cellular compartments. Thus, assessing whether the NPs exhibit similar pH sensitivity under physiological conditions was necessary. For this purpose, cells were labelled with Gd multi-core and control NPs and analysed via^19^F NMR in a Shigemi tube containing culture medium with 5% D_2_O. Cell viability remained high before and after measurements.
Three experimental conditions were analysed: (1) NPs in medium, to assess the influence of the medium's biochemical composition on pH responsiveness, (2) premixing, representing extracellular NP presence at pH 7, and (3) overnight incubation, mimicking NP uptake and intracellular processing (Fig. 6).

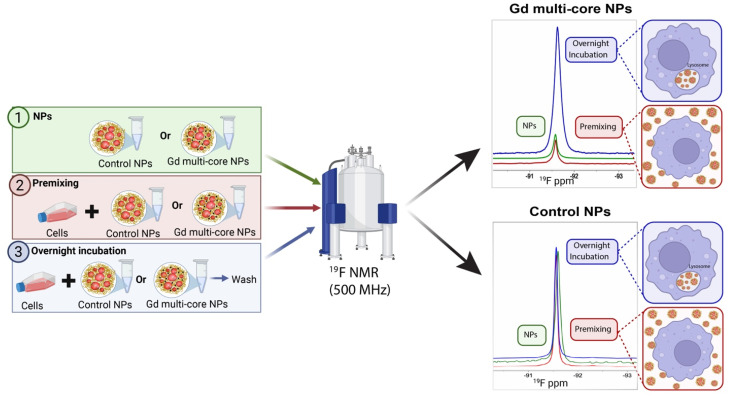

Experimental setup and 19F NMR spectra at 500 MHz for control NPs and Gd multi-core NPs with RAW 264.7 macrophages. The results present three conditions: premixing, overnight incubation, and NPs in medium (Biorender).
PLGA-based particles of this size are primarily internalized through fluid-phase pinocytosis and clathrin-mediated endocytosis.^63,64^ Due to their terminal carboxylic acid groups, negatively charged PLGA NPs tend to accumulate in lysosomes, unlike positively charged NPs, which can escape lysosomes and exhibit perinuclear localization.^65^ Therefore, we expected that the acidic lysosomal environment would influence the ^19^F relaxivity of the Gd multi-core NPs.
Under premixing conditions (Fig. 6), the ^19^F signal of Gd multi-core NPs was initially low, similar to the baseline signal of the NPs in medium. However, following overnight incubation, the ^19^F signal increased substantially, indicating responsiveness to the mildly acidic intracellular environment. In contrast, the control NPs exhibited consistently high signal intensity both before and after incubation, with no significant increase over time, indicating no pH responsiveness (Fig. 6). T2 values (Table S7) further support these observations, showing an increase for Gd multi-core NPs from ∼30 ms to ∼200 ms after incubation, whereas control NPs remained stable (∼750 ms). The fact that the T2 of Gd multi-core NPs remains at 208 ms, significantly lower than that of control NPs (Table S7), suggests that the ^19^F nuclei still experience the PRE effect from Gd. This indicates that Gd has not been entirely released, and the particles remain structurally intact, rather than undergoing complete degradation.
Confocal microscopy confirmed intracellular localization, showing that Gd multi-core NPs remained outside the cells under premixing conditions but colocalized with lysosomes after 8 hours and overnight incubation (12 hours) (Fig. 7). The increase in the ^19^F NMR signal after overnight incubation aligns with this lysosomal localization, suggesting that the mildly acidic environment enhances the pH responsiveness of Gd multi-core NPs under physiological conditions.

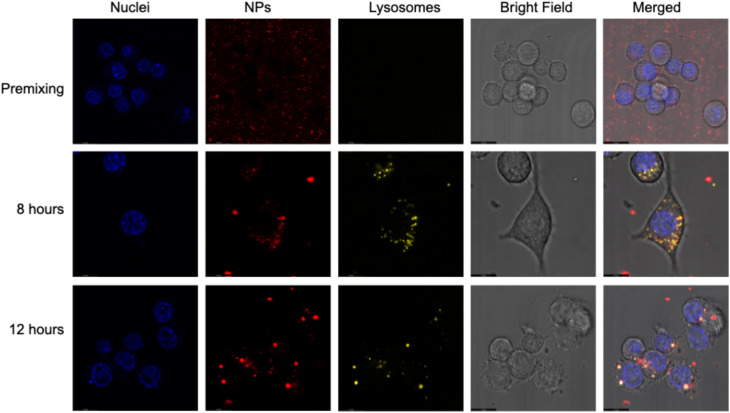

Confocal microscopy images of RAW 264.7 macrophages with NPs under three conditions: premixing and after 8 hours and overnight (12 hours) uptake. Nuclei are stained in blue (Hoechst EasyProbe), NPs in red (AttoOxa12), and lysosomes in yellow (LysoTracker™ Green DND-26). Live-cell imaging was performed using an inverted microscope with a 63× oil-immersion lens. Fluorescence and bright-field channels are displayed separately, along with the merged image. The signal from the NPs is visible in lysosomes after 8- and 12-hour incubation.
The trends observed in the NMR studies were further corroborated by in vitro^19^F and ^1^H MRI (14 T) of RAW 264.7 macrophages incubated with Gd multi-core or control NPs (Fig. 8). Cells were incubated under the same conditions described above for the in-cell NMR, namely, “premixing”, which mimics extracellular NP presence at neutral pH, and “overnight incubation”, which allows for intracellular processing in mildly acidic compartments. After incubation, cells were fixed, resuspended in PBS, and imaged. Both the pellet and the supernatant were imaged to distinguish signal contributions from internalized versus extracellular particles (Fig. 8).

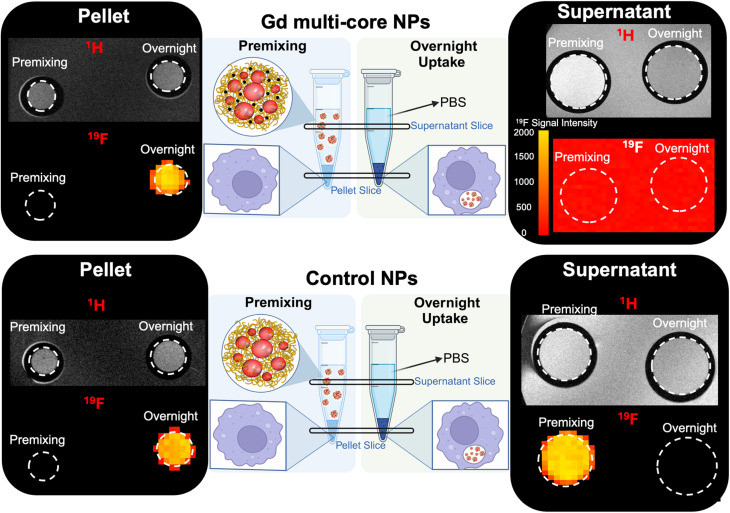

In vitro 19F and 1H MRI (14 T) of RAW 264.7 macrophages incubated with Gd multi-core and control NPs under premixing conditions and after overnight incubation. MR imaging was performed in two slices: one of the cell pellets (left) and one of the supernatants (right). To demonstrate the absence of a 19F signal in the supernatant for the Gd multi-core condition, the 19F signal is displayed without background suppression, showing only noise.
In the supernatant of the cells incubated with Gd multi-core NPs, no ^19^F MR signal was detected after overnight incubation, as uninternalized NPs were washed away. Similarly, under the premixing conditions, the ^19^F signal remained undetectable, consistent with the previously observed “off” state due to the PRE effect of Gd (Fig. 8 and S4). However, under premixing condition, an increased ^1^H signal confirmed the presence of Gd multi-core NPs in the supernatant, indicating Gd-driven contrast enhancement (Fig. 8). This behaviour differs from that observed in aqueous suspension (Fig. 2), where ^1^H signal enhancement occurred only at pH 3, likely due to polymer swelling induced by carboxyl group protonation. In contrast, the enhanced ^1^H signal in PBS at pH 7 suggests that ionic interactions with salts in the buffer may also contribute to mild NP swelling. We hypothesize that these interactions disrupt polymer packing and increase hydration, allowing greater water permeability around the Gd chelates and enhancing relaxivity. However, this effect alone was insufficient to mitigate the PRE effect and restore the ^19^F MR signal. This indicates that while some structural rearrangement may occur in PBS, it does not significantly alter the Gd–PFCE proximity required to relieve PRE suppression.
In the cell pellet, no ^19^F MR signal was observed under the premixing conditions, consistent with the NPs remaining extracellular in PBS (pH 7), where the PRE effect continues to suppress the ^19^F signal. After overnight incubation, however, the ^19^F signal became clearly detectable in the pellet. This signal recovery suggests that intracellular uptake and subsequent trafficking into mildly acidic compartments, such as late endosomes or lysosomes, alleviated the PRE effect, likely through ultrastructural rearrangement that increased the average Gd–PFCE distance or altered PFCE mobility.
For the control NPs, which lack Gd, a clear ^19^F MR signal was observed in the supernatant under premixing condition and remained detectable in the pellet after overnight incubation (Fig. 8), with no evidence of signal modulation. This confirms that these NPs are not pH-responsive and that their signal remains stable over time regardless of location.
Interestingly, these findings reveal an additional advantage of Gd multi-core NPs for ^19^F MRI-based cell tracking.^66^ In ex vivo cell labelling workflows, it is often difficult to distinguish between truly internalized NPs and extracellular surface-bound particles that persist despite washing, potentially confounding in vivo imaging readouts. In our system, only particles that are internalized and processed within the mildly acidic intracellular environment undergo structural changes sufficient to restore the ^19^F signal. In contrast, extracellular particles remain undetectable by ^19^F MRI due to the ongoing PRE effect. This selective signal activation improves labelling specificity and offers a promising strategy to enhance the reliability of ^19^F MRI for tracking labelled cells in vivo.
Building on the strong in vitro pH response of Gd multi-core NPs, their behaviour was further evaluated in an in vivo tumour model as a proof of concept. As shown in Fig. 9, the Gd multi-core NPs produced a strong ^19^F MR signal within the tumour, whereas no detectable signal was observed in the reference tube or at the subcutaneous injection site, both mimicking the pH 7 conditions previously studied in vitro. The presence of the ^19^F MR signal within the tumour was further confirmed by ex vivo imaging after tumour extraction (Fig. S5), demonstrating the responsiveness of Gd multi-core NPs to the acidic tumour microenvironment. In contrast, control NPs remained clearly visible by ^19^F MR in both the subcutaneous injection and reference tube, while the ^19^F MR signal in the tumour was notably lower. This may be due to differences in NP distribution or local microenvironmental factors affecting MR signal decay. These findings highlight the potential of Gd multi-core NPs as a smart, pH-responsive probe capable of selectively activating ^19^F MRI contrast in acidic environments, making them advantageous for precision imaging and diagnosis in tumour microenvironments and other conditions where pH variations are critical.

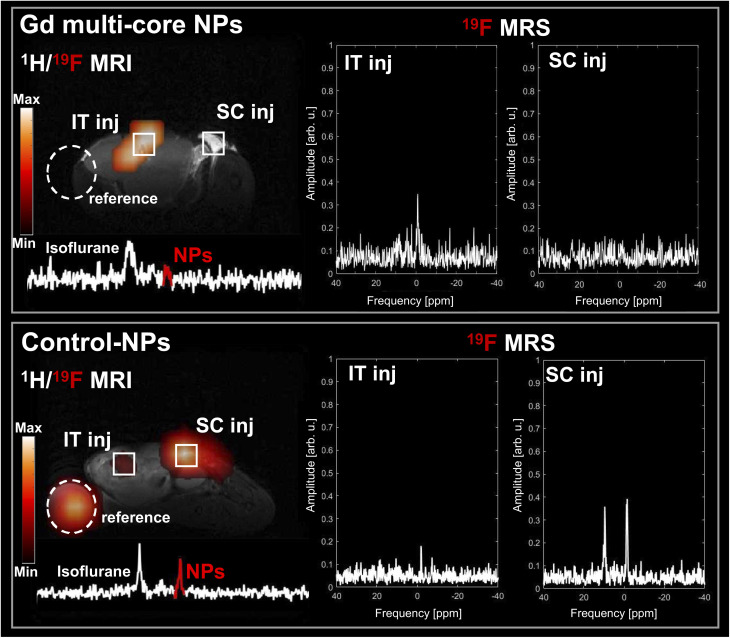

In vivo 1H and 19F MRI (7 T) of Gd multi-core and control NPs (5 mg/100 µL) following intratumoral (IT) and subcutaneous (SC) injections, with a reference (2 mg/100 µL) on site. On the left, merged 1H/19F MR images of mice, with corresponding non-localized 19F MR spectra from NPs, shifted from the isoflurane anaesthesia. On the right, 19F MR spectra from voxels within IT and SC injections. The fluorine signal is marked in red. Total 19F MRI acquisition time: 60 min.
