Decoding vascular calcification: mechanistic insights and translational strategies
Hossein Adelnia, Subarna Ray, Hang Thu Ta
TL;DR
This review explores the complex process of vascular calcification, its causes, and potential treatments, offering insights for future research and clinical applications.
Contribution
The paper provides a comprehensive review of the mechanisms and therapeutic strategies for vascular calcification, emphasizing translational potential.
Findings
Vascular calcification is linked to aging, atherosclerosis, chronic kidney disease, and diabetes.
Recent advances in pharmacological and biomaterial-based interventions show promise for halting or reversing calcification.
Extracellular vesicles, oxidative stress, and inflammation play key roles in vascular calcification mechanisms.
Abstract
Vascular calcification (VC) is a complex, multifactorial process strongly associated with ageing, atherosclerosis, chronic kidney disease, and diabetes. Despite its clinical significance, effective treatment strategies remain elusive due to an incomplete understanding of the underlying mechanisms. In this review, we critically examine the cellular and molecular pathways that drive VC, including the transdifferentiation of vascular smooth muscle cells (VSMCs), the role of extracellular vesicles, and the influence of oxidative stress and inflammation. We also summarise key inducers and endogenous inhibitors of calcification, highlighting therapeutic targets currently under preclinical or clinical investigation. Notably, we evaluate recent advances in pharmacological and biomaterial-based interventions aimed at halting or reversing calcification, with a focus on their translational…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 11
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 12- —Griffith University
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsParathyroid Disorders and Treatments · Biomarkers in Disease Mechanisms · Dermatological and Skeletal Disorders
Introduction
Vascular calcification (VC) refers to the ectopic deposition of calcium in blood vessels in the form of calcium phosphate salts, which are crystallized to form hydroxyapatite (HAp). In addition to the vasculature system, calcification can also occur in other areas such as valves, and even in small vessels in the fatty tissues and skin subcutaneously, which is referred to as calciphylaxis. Early stages of VC can result in high pulse pressure and low coronary perfusion due to high vessel wall stiffness [1]. In advanced stages, it can lead to adverse cardiovascular events such as stenosis, stroke, myocardial infarction (MI), vessel dissection, and rupture during percutaneous coronary interventions [2].
The major cause of morbidity and mortality in patients with end-stage kidney disease and stage 4–5 chronic kidney disease (CKD) who are receiving hemodialysis is calcification [3, 4]. In adult CKD patients older than 45, and younger than 30, end stage kidney disease respectively leads to > 20-times and > 150-times risk of cardiovascular death when compared with an age-matched group [5, 6].
Calcification was once thought to be a passive result of aging and elastin degradation but is now recognized as an active, regulated process involving vasculature cells and bone-related proteins. High levels of matrix-Gla protein (MGP), osteopontin, osteocalcin, and alkaline phosphatase (ALP), which are expressed in the calcification of skeletal tissues (ossification), have been found within the calcified vessels [7]. The mineral component of both bone and calcific vessels (hydroxyapatite) was also found to be similar in terms of crystallization and structure [8]. Calcification can be regulated by a number of inducers and inhibitors. In general, high serum levels of Ca (hypercalcemia) and P (hyperphosphatemia), loss of inhibitors, high levels of reactive oxygen species (ROS), inflammation, apoptotic bodies, and necrotic debris, as well as trans-differentiation of VSMCs as inducers contribute to calcification. When induction processes dominate inhibition processes, calcification is likely to occur and vice versa (Fig. 1).

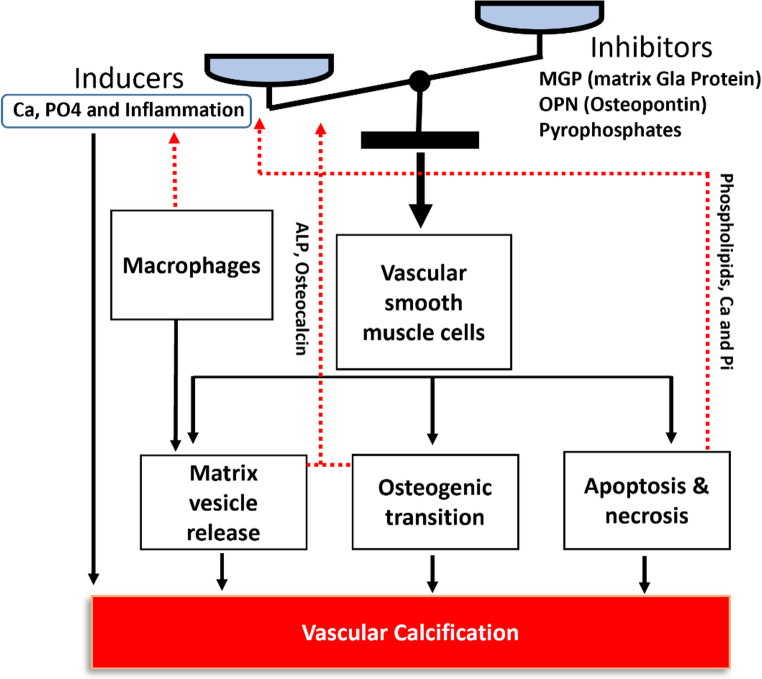

Fig. 1. Pathology of VC: The effect of inducers and inhibitors on vascular smooth muscle cells
Current reviews on the treatment of VC lack detailed discussion of the underlying therapeutic mechanisms and the status of human clinical trials up to 2024. Moreover, there are few studies comparing the drugs with each other; thus, it cannot be determined which intervention is the most promising for treating VC from a clinical perspective [9–11]. This review provides a novel comprehensive analysis of the various forms of VC, categorized by anatomical distribution and etiological origin, alongside their respective molecular mechanisms. Emphasizing recent insights, this review explores the interplay of genetic and molecular contributors to VC pathogenesis in the context of cardiovascular disease (CVD), highlighting their interrelated pathways and identifying emerging therapeutic targets. Central to this discussion is the dysregulation between calcification promoters and inhibitors, a critical factor in modulating disease progression. Furthermore, the review evaluates contemporary treatment strategies, including anti-inflammatory agents, chelation therapy, and inhibitors while detailing their underlying molecular actions. Finally, the translational potential of these therapies is assessed through a synthesis of data derived from in vitro experiments, animal models, and clinical trials. Further research is imperative to elucidate the mechanisms underlying the impact of inducers and therapeutics on VC and develop targeted dietary interventions to prevent or slow this condition. By prioritizing effective therapeutics on VC, we can make significant strides in improving cardiovascular health and reducing the burden of calcification-related diseases (Table 1).
Table 1. Treatment strategies forVC– preclinical studiesTherapeuticCell line, key in vitro finding and mechanismIn vivo key findingIn vivo administrationReferenceMagnesiumVSMCMagnesium has shown to inhibit VCin human aortic VSMC, increasing transient receptor potential melastatin (TRPM) 7 expression, modulating secretion of VC markers such as osteocalcin and MGPIn animal model of genetically high Mg2+, aorta was protected against calcification and increased expression of the antiosteogenic protein OPNwas observedWistar Kyoto (WKY) rat(Dosage: 2.0, 2.5, and 3.0 mmol/L for 10 days )Ex vivo method by isolating aorta [12, 13]MagnesiumHigh phosphate and low magnesium promote calcificationDBA/2 female mice(Dosage: 0.74 g, 1.5 g/100 g body weight/day for 28 daysOral administration [14]Magnesium sulfateVitamin D and magnesium has shown lower calcium and ALP levels than vitamin D aloneSprague Dawley ratsIntravenous [15]Magnesium citrateAdenine-induced Chronic Renal Failure Rat Model has shown a reduced degree of calcification with reduced calcium content, P levels, ALP activity, and protein levels of RUNX2 and increased protein levels of α-SMAMale Sprague–Dawley (SD) ratsDosage: 375–750 mg/kg per day for 28 days)Oral administration with high and low magnesium diet [16]CurcuminRat VSMCCurcumin reduced the calcification by reducing calcium levels, Inhibiting JNK/Bax signalling pathway, decreasing caspase 3 activity, bone-related proteins such as BMP2, Osterix, and Runx2 and ALP levels. [17]CurcuminTendon stem/progenitor cells.Curcumin reversed the osteogenesis and promoted tendeogenesis with elevated Col1α1, Col3α1, and Col14α1Curcumin reduced the levels of gene expression of TNF-α, IL-1α, IL-1β, IL-6, MCP-1, MIP-1α and RANTES and increases MCP-1 and MIP-1α expression. Curcumin also shows improved collagen deposition8-month-old ratsDosage: 3 µg/leg into the right legs subcutaneously every 3 days up to 4 weeks [18]CurcuminHuman aortic valve interstitial cells.Increase in ALP and downregulation of RUNX2 by interference with the activation of NF-κB/AKT/ERK pathways. [19]ApocyninApocynin administration to diabetic rats with VC substantially alleviated arterial calcium deposition.Apocynin inhibited NADPH oxidase activity.Male Wistar ratsDosage: 2, 5 mg. kg^− 1^. day^− 1^ at 5th week subcutaneous for 18 week period [20]ApocyaninVSMC.Apocynin enhanced expression of a-SMA by 5.3%, and reduced expression of BMP2, Runx2, OPN by 3.37%, 0.61% and 3.07% by suppression of ERK1/2 pathway [21]DiosgeninVSMC.Downregulation of VSMC markers and upregulation of osteochondrogenic transdifferentiation markers such as Pit-1ALP and collagen type 1 by phosphorylation of p38 mitogen-activated protein kinase (p38 MAPK), extracellular signal-regulated kinase (ERK), jun N-terminal kinases (JNK), and protein kinase B (PKB/Akt)Diosgenin reduced the level of lipid peroxide markers and prevented NO productionMale albino Wistar ratsDosage: 40 mg/kg/day for 5 weeksOral administration [22, 23]PuerarinVSMC.Prevention of calcium deposition in a dose-dependent manner, inhibition of ROS and NLRP3/Caspase1/IL-1β pathway.Inhibition of calcium deposition, puerarin significantly inhibits the expression of NLRP3, Caspase1 and IL-1βSprague-Dawley (SD) ratsDosage: 400 mg/kg by gavage once a day for 6 weeksOral administration [24]ResveratrolRat VSMC.Reduction in mRNA level of FGF-23 and increased the mRNA level of klotho by regulating Sirt-1 and Nrf2 expression in smooth muscle cells [25]QuercetinDecrease in ALP levels, calcium accumulation by modulation of oxidative stress and iNOs/p38MAPK pathway.Seven-week-old male Wistar ratsDosage: 25 mg/kg/d for 6 weeksOral administration [26]Ginsenoside Rb1VSMC.Rb1 increased the expression of α-SMA and calponin by activation of peroxisome proliferator-activated receptor-γ (PPAR-γ) and inhibition of Wnt/β-catenin pathway and promotion of osteogenic differentiationReduction of calcium deposition as well as ALP activity and calcium concentration in CKD rat arteriesCKD male Wistar ratsDosage: 40 mg/kg/d for 4 weeksIntraperitoneal administration [27]Spermidine, a naturally synthesized polyamineVSMC.Reduction in ALP, BMP-2, and RunX2 by regulation of Sirt-1 and Nrf2Attenuation of calcium and mineral deposition in aorta, downregulation of BMP2 and Runx2 in aortic arteriesMale Sprague–Dawley (SD) ratsDosage: 3 mMintraperitoneal injection twice a week for 4 weeks [28] Dendrobium officinale polysaccharide (DOP)VSMC.DOP reduced the expression of NLRP3, NF-κB, and IL-1βDOP inhibits calcification in aortaAdult male SD ratsDosage: 50 mg/kg orally daily for 8 weeks [29]TNAP inhibitor, SBI-425SBI-425 significantly suppressed TNAP activities of aortic tissues, reduced formation of MAC in the abdominal aortaCKD-mineral and bone disorder (MBD) mouse modelDosage: 30 mg/kg once per day after week 14 of normal diet for 6 weeksOral administration [30]SNF472, hexasodium salt of phytateVSMC and osteoblast.SNF472 inhibited calcification process by binding to surfaceHAp . [31]DenosumabDenosumab has shown to reduce the calcium content in aortaEight-month-old miceDosage: 10 mg/kg twice weekly for 4 weeksSubcutaneous [32]EDTA in PLGA nanoparticleRemoval of calcium from elastin and aorta by chelation without causing vascular damage and change in normal plasma levels of Ca and phosphorus.EDTA binds to metals via four carboxylate and two amine groupsMale Sprague–Dawley ratsDosage: Periadventitial administration of 30 mg of EDTA loaded PLGA nanoparticles pellet for 1 week (injected one time only for 1 week duration) [33]EDTA-loaded albumin NPsReduction in calcium levels by 3 folds in aorta and reverses calcification.Chelation of EDTA with calcium.Sprague–Dawley (SD) rats (6–8 weeks old)Dosage: 5 mg of NP/rat/injectionInjected through the tail vein two times a week for two weeks [34]EDTA-loaded albumin nanoparticlesReversal of calcification by decreasing calcium content by 40% in aorta.Chelation of EDTA with calcium.Male Sprague-Dawley ratsDosage:3 mg/kg body weight twice a week after 4th week for the next 2 weeks.Systemic EDTA injections [35]STSReduction of calcium content in aorta.Chelation with calcium.Male Wistar ratsDosage: 0.4 g/kg body weight 3 times a week for 10 weeksIntraperitoneal injection. [36]BisphosphonatesBisphosphonates can directly inhibit uremic VC independent of bone resorption.Reduction of ALP and calcium levels.Male Sprague-Dawley ratsDosage: 0.17, 1.7, and 17 mg/kg per day for 28 daysSubcutaneous injection [37]BisphosphonatesReduction of calcification in arteries and heart valves by 4 foldsMale Sprague-Dawley ratsDosage: 0.25 mg P · kg^− 1^ · d^− 1^ for 4 weeksIntravenous [38]PolysuccinimidenanoparticleVSMC.Reduction of ROS levels and calcium by chelation of free calcium ions.Reduction of calcium in aorta8weekold male Sprague–Dawley ratsDosage: 50 mg of NPs/kg twice a week for 6 weeksIntravenous injection [39]MelatoninVSMC.Attenuated calcium deposition and reduced ALP levels by activation of AMP-activated protein kinase/mammalian target of rapamycin/Unc-51-like kinase 1 (AMPK/mTOR/ULK1) signaling pathway in VSMC [40]MetforminVSMCs.Metformin treatment reduced VC, expression of RUNX2, BMP2, decreased calcium nodes by activation of AMPK signalling pathwayIncreased protein expression of Nuclear factor E2-related factor 2 (Nrf2) and regulated ferroptosis and inhibits expression of Keap1in aortic tissueMale Sprague-Dawley (SD) ratDosage: 200 mg/kg/day for 6 weeksIntragastrical administration [41]
Classification of VC
Calcifications can be divided into intimal and medial types, depending on their location within a blood vessel. As shown in Fig. 2, the former occurs in areas devoid of smooth muscle cells where endothelial cells and subendothelial connective tissue exist (i.e., intima). The process of calcification of the intima is generally associated with atherosclerosis, in which the intima is highly and chronically inflamed due to endothelial dysfunction. As a consequence, this type of calcification is closely linked to inflammation where mast cells and macrophages play a significant role and considered to be the starting point of the process. Macrophages produce tumour necrosis factor-α (TNF-α), in the presence of oxidized low density lipoproteins (LDL), which in turn induces osteoblastic differentiation of VSMCs and consequently higher level of ALP [42]. Apoptosis of macrophages and VSMCs, as well as the release of matrix vesicle can also intensify calcification [43]. Calcium phosphate in small size particles (< 1 μm) is produced in early stages of intimal calcification.

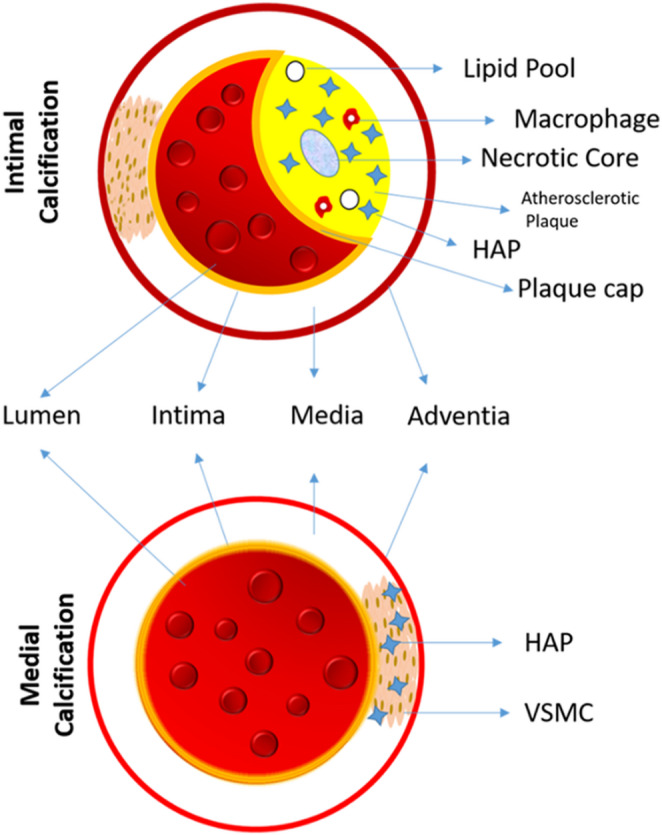

Fig. 2. Intimal calcification versus medial calcification; the location of calcium deposition in the former and the latter is intima, medial layer, respectively
In contrast, medial calcification (Monckeberg’s sclerosis or arteriosclerosis) occurs along the degraded elastin fibres around smooth muscle cells (Fig. 2). This type of calcification is non-inflammatory, non-occlusive and is generally associated with CKD(CKDs), diabetes, and aging, resulting in stiffening of the vasculature, and hypertension. Vascular smooth muscle cells (VSMCs) play a key role in medical calcification. CKD-induced hypercalcemia and hyperphosphatemia drive VSMC differentiation into osteogenic cells, upregulating bone-forming proteins like ALP and osteocalcin while downregulating contractile proteins, impairing vascular function [44].
Inducers/Promoters
Several inhibitors and promoters for the VC have been characterized so far [45]. Apart from elevated serum level of calcium and phosphate which can directly and independently lead to precipitation and deposition of calcium phosphate, osteocalcin, bone morphogenetic proteins (BMP-2, 4 and 6), ALP, bone sialoprotein, Runx2, apoptotic bodies, and oxidative stresses, are known to intensify and induce for calcium deposition. Below, some important inducers are discussed.
High calcium and phosphate levels in the serum
Hyperphosphatemia and hypercalcemia due to mineral imbalance caused by kidney dysfunction are considered the most important inducers of calcification [46]. Free ions of calcium and phosphate are only responsible for complexing. The ionized concentrations of calcium and phosphate in the circulation under healthy conditions are in the range of 1.1–1.3 mM [47], and 0.8–1.45 mM [48], respectively. Under healthy conditions, a large amount (approx. 40% [49]) of total calcium in the serum is complexed, i.e., bound to proteins (primarily albumin [50]), preventing extensive salt precipitation and deposition. The inhibitory role of the proteins synthesized by VSMCs was also demonstrated when in-vitro calcium deposition was compared with cell-free conditions [51].
Even small calcium phosphate particles (calciprotein) have been detected in healthy serum [52]. These tiny particles were suggested to be cleared by the liver sinusoidal endothelial cells [53]. Under pathological conditions, however, the size of these particles greatly increased [54]. The average sizes of calciprotein particles in the serum of CKD patients with and without VC were determined to be 370 nm and 212 nm, respectively. The particle size in healthy volunteers was 168 nm, suggesting a direct correlation between the calciprotein size and calcium deposition [55]. It has been verified in-vitro, where calciprotein particles themselves stimulated calcification of VSMCs through different pathways, further highlighting their importance in the disease etiology [56].
Passive biological calcification closely mirrors cell-free calcium salt precipitation, with similar influencing factors. Acidic conditions reduce, while alkaline conditions enhance, precipitation—paralleling metabolic acidosis and alkalosis effects [57, 58]. Beyond passive roles, hypercalcemia and hyperphosphatemia actively drive calcification through mechanisms like cell apoptosis and VSMC osteogenic trans-differentiation. (Fig. 3).

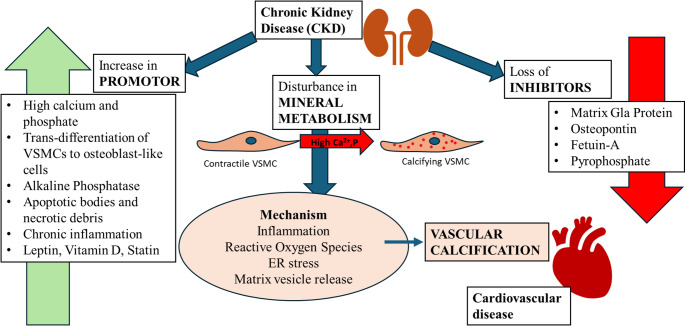

Fig. 3. Pathogenesis of VC. Collective role of several inducers such as high calcium, high phosphate, trans differentiation to oseto-/chondroblast-like cells actively accelerate the progression of disease by upregulation of pro-calcification proteins [59]
Trans-differentiation of VSMCs to osteoblast-like cells
VSMCs maintain vascular elasticity by contracting and relaxing, regulating lumen diameter and blood pressure. However, in medial calcification, they may transdifferentiate into osteoblast-like cells, losing their contractile function. This osteogenic shift is marked by reduced contractile proteins, increased proliferation and migration, and upregulation of bone-forming proteins (e.g., osteocalcin, ALP, osterix) alongside decreased inhibitors (e.g., osteopontin, MGP, pyrophosphates), promoting HAp nucleation and calcification [60, 61].
Hypercalcemia and hyperphosphatemia are primary drivers of this transition, as shown in vitro, where β-glycerophosphate increases ALP activity, inducing mineral deposition [62]. Interestingly, osteogenic differentiation is reversible under conditions favoring VSMC phenotype restoration [60]. Inflammation and chronic ROS production further accelerate trans-differentiation, with tissue non-specific alkaline phosphatase (TNAP) playing a key role. Notably, atherosclerotic plaques exhibit calcification before osteogenic markers emerge, suggesting inflammation precedes VSMC transition in late-stage atherosclerosis [63].
As mentioned earlier, diabetes is a risk factor for calcification as well. The osteogenic differentiation of VSMCs in primary human aortic VSMCs was promoted by high glucose levels through upregulation of glucocorticoid-inducible kinase 1 (SGK1) [64]. However, treatment of the cells with an SGK1 inhibitor prevented differentiation. Likewise, in another study, similar results were observed in terms of cell differentiation under high glucose conditions which was attributed to IL-1β activation [65]. Recent in-vitro studies on mouse aortic VSMCs (MOVAS) have shown that upon glucose treatment, the ALP level, known as an osteoblast marker, rapidly increased [66]. Apelin-13 attenuated the glucose-induced calcification by suppressing trans-differentiation through inhibition of ROS generation, thereby regulating MAPKs and AKT pathways, and preventing DNA damage. In patients with type 2 diabetes, a direct relationship between plasma hypoxia-inducible factor 1 (HIF-1α) and calcium deposition has been observed as well [67]. Activation of HIF-1α has led to the osteogenic differentiation of pulmonary VSMCs [68]. Overall, one can also conclude that trans-differentiation is the consequence of detrimental impacts of other calcification stimulants and occurs mostly at the latest stages of both CKD and atherosclerosis at which the progression of calcification is highly accelerated [69].
Alkaline phosphatase (ALP)
ALP, an 86 kDa enzyme primarily expressed by osteoblasts, plays a key role in bone formation and mineralization. Its activity increases at high pH, releasing phosphate for bone growth. ALP hydrolyzes pyrophosphates (PPi), potent calcification inhibitors, into inorganic phosphates, promoting mineralization [70]. Pyrophosphates (PPi), which are potent and natural calcification inhibitors, are hydrolysed by ALP into inorganic phosphates, which are calcification inducers [71]. The inverse relationship between ALP and PPi is well documented. In uremic rat models of calcification, as ALP increased, PPi decreased [71]. In contrast, low ALP level is associated with a high level of PPi [72], and deficient skeletal mineralization [73]. Serum ALP level of patients with calciphylaxis in end-stage kidney failure was found higher than healthy group [74]. Nevertheless, ALP level of plasma may not be an accurate representation of PPi hydrolysis because ALP is present in different tissues at different levels [75].
ALP also dephosphorylates osteopontin (OPN), reducing its anti-calcification properties [76]. A correlation between ALP and OPN has been noted in stage 5 CKD patients, though OPN phosphorylation status remains unexamined [77]. The osteogenic trans-differentiation of VSMCs is marked by ALP upregulation, with long-term b-GP exposure in vitro increasing ALP while downregulating VSMC markers like SM22α and smooth muscle α-actin [78].
Apoptotic bodies and necrotic debris
In addition to other pathological condition such as chronic inflammation, apoptosis could originate from high calcium and phosphate levels of serum, thereby contributing to calcification process [79, 80]. Apoptosis was described as a process that complements VCrather than being a mutually exclusive pathway by itself [81]. Apoptotic bodies and necrotic debris from macrophage and VSMC particularly increase local concentration of Ca and PO_4_, and initiate nucleation of HAp. Phospholipids from dead cells also function as nucleation agent for HAp crystallization [82, 83]. Matrix vesicles, which are also rich in Ca and PO_4_ are released from apoptotic bodies [84].
In chondrocytes, apoptotic bodies contained a significant amount of ALP and nucleoside triphosphate pyrophosphohydrolase (NTP) as important calcification promoters, which are typically manifested in osteoarthritis [85]. Acceleration of atherosclerotic plaque growth was observed with chronic apoptosis of VSMC in ApoE deficient mice [86]. In high phosphate-induced calcification of VSMCs, iron-based phosphate binders were found to reduce calcification by preventing apoptosis [87].
Chronic inflammation
Several studies have demonstrated the relationship between chronic inflammation and osteogenic trans-differentiation of VSMCs. Inflammation stimulates release of matrix vesicles which are rich in tiny calcium phosphate particles, leading to micro-calcification. This in turn leads to apoptosis, leaving phospholipid debris and calcium among other promoters, further intensifying inflammation and accelerating the disease (Fig. 4) [88]. Interleukin-6 (IL-6) upregulation in particular has been found as an important indicator for chronic inflammation in VC [89]. Plasma levels of IL-6, TNF-α, and C-reactive proteins (CRP), as key inflammatory biomarkers, were elevated in CKD patients [90]. Among different biomarkers, IL-6 was found to be a better predictor of mortality rate in CKD patients under haemodialysis. Increased IL-6 was directly correlated with intimal and medial calcification in these patients [91]. Noteworthy is the fact that these cytokines could also contribute to downregulation of fetuin-A, an potent calcium-binding protein in the serum [92]. Furthermore, TNF-α led to a downregulation of Klotho, both in the kidney and vasculature [93]. The downregulation of both fetuin-A and Klotho can be indicative ofVC.

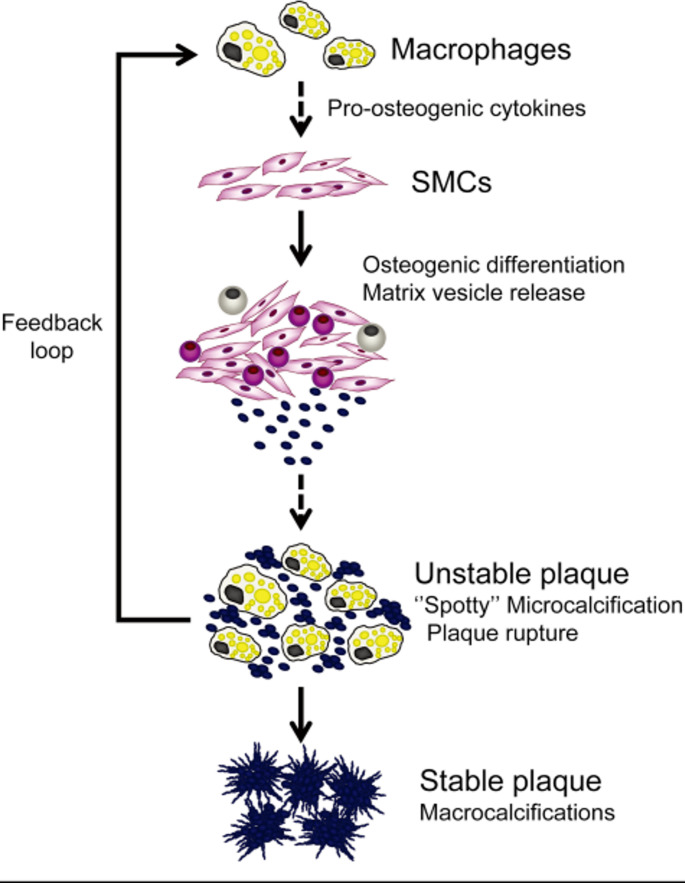

Fig. 4. Effect of chronic inflammation and pro-osteogenic cytokines on the initiation and progression ofVC. Inflammation stimulates release of matrix vesicles which ae rich in tiny calcium phosphate particles, leading to micro-calcification. This in turn leads to apoptosis, leaving phospholipid debris and calcium among other promoters, further intensifying inflammation and accelerating the disease [88]
Human coronary arteries from atheroma type III onwards exhibited a significant expression of CD68, a highly expressed protein in chronic inflammation. In the early stages of atherosclerosis, small calcium depositions in the lesions were detected, which grew in size with plaque progression [69]. Increasing CD68 levels were correlated with microcalcification in the lesion. Furthermore, in-vitro, pro-inflammatory role of the calcium deposits was also indicated in the same study. Inflammation leads to calcification and calcification worsens inflammation further. Considering all the above, inflammation in general, and its biomarkers such as IL-6 in particular could be targeted for the treatment VC [94, 95].
Leptin
Leptin is an enzyme found mostly in the small intestine and blood circulation, whose main function is regulation of fat storage and energy balance [96]. The leptin level is elevated due to kidney dysfunction as it cannot be filtered and cleared from the serum efficiently [97, 98]. Receptors of leptin were characterized in mouse blood vessels [98]. Leptin increased ALP activity 5–10 times in calcifying vascular cells [98]. Long-term treatment of the cells with leptin led to their mineralization [97, 98]. Treatment of endothelial cells with leptin resulted in the generation of oxidative stress, thereby upregulating production of such as BMP-2 [99, 100]. Similarly, in VSMC, leptin increased bone markers such as BMP-2 and Runx2 [90]. Osteoclast generation and thus bone resorption were inhibited by leptin [101]. Overall, in-vitro studies suggest osteoblastic differentiation as a result of leptin, leading to soft tissue calcification.
In different animal models and human trials, the role of leptin has also been indicated. In ApoE-knockout mice models of atherosclerosis, leptin treatment led to 8- and 2.5-fold increase in lesion and valvular calcification as compared to control mice group, respectively [102]. ALP activity was also increased by about 5 times in leptin-treated mice, accompanied with osteogenic differentiation of VSMCs. In a pilot study in patients with type 2 diabetes mellitus who had median calcification score of 100 to 300, leptin level in plasma was found significantly high [90]. In a study involving 548 men aged 50–85 years, high leptin level were associated with severe abdominal aortic calcification [103].
Vitamin D
Among other functions, vitamin D is essential for the absorption of calcium and other minerals. Both low and high vitamin D levels can contribute toVC. (Fig. 5). Its low level can induce chronic inflammation in the vasculature through increasing 1-α hydroxylase activity in endothelial cells, thereby over-proliferating macrophages, increasing cytokine level, overexpressing metalloproteinase and in turn adversely affecting VSMCs [104, 105]. Conversely, a high level of vitamin D increases serum calcium levels significantly and promotes salt deposition [106]. Diets with high level of vitamin D are utilized to induce VCin animal models [107, 108].

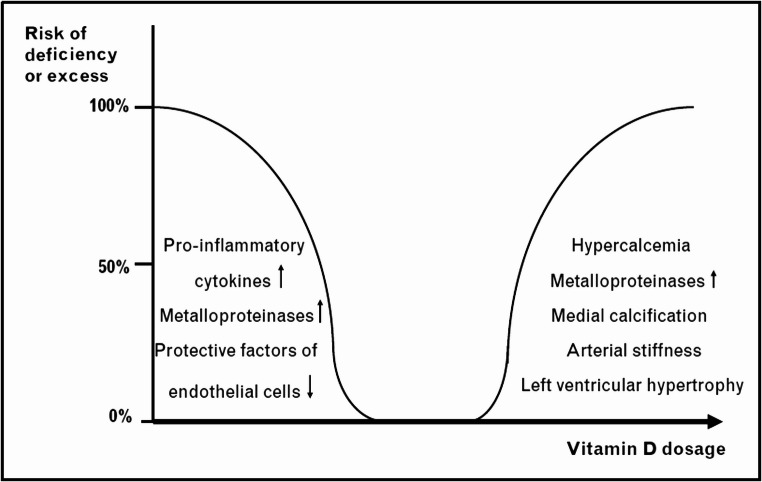

Fig. 5. The effect of vitamin D dosage on VC [109]
Statins
Statins, inhibitors of HMG-CoA reductase, are regarded as the gold standard for the treatment of atherosclerosis and hypercholesteremia. Statins reduce the cholesterol produced by the liver through blocking HMG-CoA enzyme. Nevertheless, there have been a number of in-vitro, in-vivo, and human trials studies showing that statins may serve as a double-edged sword, as they intensify calcification. Trion et al. demonstrated that atorvastatin (2–50 µM) increases calcification of VSMCs in a dose-dependent manner [110]. Atorvastatin at high concentration (50 µM) reduced cell proliferation, and increased apoptosis, which could be the reasons for calcification as discussed above. In a study on 197 patients with type 2 diabetes, frequent statin administration significantly increased the calcification of the abdominal aortic artery [111]. Despite lowering the risk of cardiovascular events, statin therapy in other larger clinical studies has also been associated with increased calcification [111–114].
Matrix metalloproteinase (MMP)
Matrix metalloproteinases (MMPs) are a family of zinc-dependent endopeptidases that play a crucial role in extracellular matrix (ECM) remodelling. In VC, MMPs are increasingly recognized as key regulators due to their involvement in VSMC phenotypic changes, ECM degradation, and promotion of mineral deposition. MMP2, MMP9, MMP13, MMP3 have shown to degrade type 1 and 3 collagen, induce ECM breakdown and inflammation, enhances VSMC osteogenic differentiation [115, 116]. MMP activity promotes phenotypic switching of VSMCs from a contractile to an osteogenic phenotype, characterized by upregulation of Runx2, ALP, and OPN [117]. A recent study by Xie et al., revealed that deletion of smooth muscle cell-specific MMP 3 significantly reduced medial calcification and osteogenic transformation [118]. Tissue inhibitors metalloproteinases (TIMPs) such as TIMP-1, -2, -3, and − 4 play major role in MMP regulation and suppress the expression of various MMPs and orchestrate ECM remodelling [119].
Others
Endoplasmic reticulum (ER) stress promotes calcification through various mechanisms involving VSMCs, and immune cells, and a sudden influx of unfolded proteins leading to an increase in the unfolded protein response (UPR) [120]. Primarily, three key ER stress sensors - IRE1 (inositol-requiring enzyme 1), ATF6 (activating transcription factor 6), and PERK (PKR-like ER kinase) - mediate the UPR by detecting the accumulation of misfolded proteins and activating distinct signalling pathways within the UPR. Activation of UPR leads to a reduction in the entry of newly synthesized proteins into ER and induces the expression of genes encoding molecular chaperones - such as Grp78 (glucose-regulated protein 78), C/EBP homologous protein (CHOP), and c-Jun N-terminal kinase (JNK) - and regulate calcification [121, 122].
Hypoxia-inducible factors (HIFs) facilitates the phenotypic switch of VSMCs toward an osteoblast-like lineage by enhancing the expression of osteogenic regulators, including Runx2, inducing inflammatory factors such as IL-6 and TNF-α thereby contributing to the progression of VC [123]. Other studies have also shown that HIF-1 stimulates bone cell osteogenic differentiation in VSMCs, targets GLUT-1, VEGFA inducing the expression of RUNX2, SOX9 (Sry-related HMG box-9), OCN and ALP in CKD conditions [124–126]. Activation of HIF-1 by Daprodustat, a prolyl hydroxylase inhibitor, has also shown an accelerating medial calcification in CKD patients with hyperphosphatemia [127].
Inhibitors
Even in a healthy body, as noted, the total level of calcium and phosphate can be high enough for the initiation of its corresponding salt or crystal. However, due to the presence of several inhibitors such as MGP, osteopontin (OPN), fetuin-A and pyrophosphate (PPi), precipitation of calcium phosphate does not occur. These inhibitors basically bind to calcium, forming a complex with them, thereby lowering calcium’s ability to be involved in precipitation and crystallization. From the viewpoint of chemistry, any calcium complexing agent -also referred to as chelator- should have an ionized acidic moiety with negative charges (such as phosphoric and carboxylic acid groups), capable of establishing electrostatic interaction with free calcium cations, lowering its physiologically active (un-complexed) concentration [39, 128, 129].
Matrix Gla protein (MGP)
The role of MGP in CVDin general and VC in particular has been well-understood [130–135]. MGP is a vitamin-K dependent protein synthesized mainly by VSMCs and accumulates in extracellular vesicles [136]. MGP carboxylation, called activation, is largely dependent on vitamin K and thus its deficiency leads to uncarboxylated MGP as shown in Fig. 6. A high affinity of glutamic acid for calcium and metal ions causes activated MGP to bind strongly to calcium ions. Activated MGP also inhibits the synthesis of, BMP-2, a pro-calcifying protein [137]. While hyperphosphatemia does not significantly affect MGP levels in vitro, hypercalcemia downregulates MGP after 48 h [138].
MGP-deficient mice develop severe aortic calcification, leading to fatal hemorrhage within two months. In end-stage kidney diseasepatients, elevated dephosphorylated uncarboxylated MGP correlates with high calcification scores, making it a potential biomarker [130]. (Fig. 6)

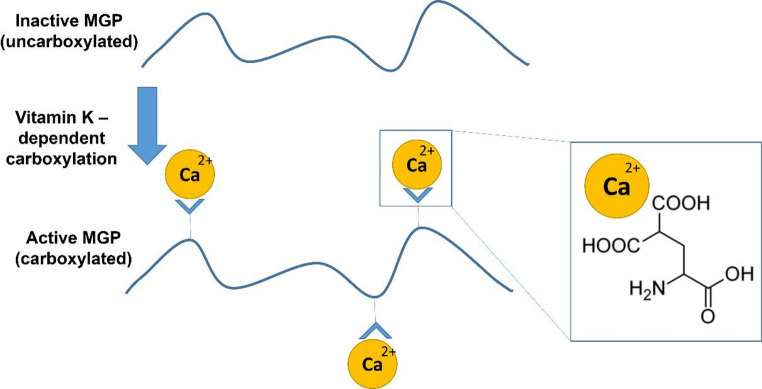

Fig. 6. Activation of MGP by vitamin K leads to its carboxylation by introduction of γ-glutamic acid
Osteopontin (OPN)
OPN is a phosphoprotein with molecular weight of 33 KDa and has a highly negative charge density due mainly to the presence of large aspartic acid (approx. 15–20%), and glutamic acid resides. OPN is synthesized by a variety of cells including fibroblasts [139], VSMCs [140] and macrophages [141]. In bone remodelling, OPN contributes to activation of osteoclast for initiation of bone resorption (via the α_v_β_3_ integrin) [142]. In urine, OPN, referred to as uropontin (uOPN), is found in large quantities serving as an inhibitor of calcium oxalate monohydrate which is the main constituent of kidney stone [143–145].
InVC, the inhibitory role of OPN was demonstrated and attributed to the prevention of HAp nucleation and growth [146]. OPN also promoted regression of VCin vivo [144]. In comparison to mice lacking MGP alone (MGP^−/−^), mice lacking both MGP and OPN (MGP^−/−^, OPN^−/−^) exhibited much more extensive calcium deposition in the vasculature [147]. Further evidence for the OPN role was obtained in a later research demonstrating that OPN^−/−^ mice fed with high phosphate develops extensive calcification compared to the control mice [145]. Noteworthy is also the fact that bone development in OPN^−/−^ mice occurs stronger as a higher mineral content with larger crystal size were detected [148].
Nevertheless, OPN plays a crucial role in chronic inflammation and is thought to be a biomarker for cancer [149, 150]. While acute expression of OPN has protective role in the vasculature against calcification as explained, chronic OPN overexpression is regarded as a predictor for CVDand its related events, and mortality [151, 152]. Several isoforms of OPN have been characterized in recent years, each of which has its own biological function [153].
OPN synthesized from different cells, under different biological conditions may differ in terms of phosphorylation [154], glycosylation [155], and transglutamination [156]. For example, osteoblast and fibroblast were respectively added 21, and 4 phosphate groups into the OPN structure [154]. Giachelli et al. [76] indicated the considerable role of phosphorylation in inhibition of calcification of VSMCs in-vitro. Nevertheless, the role of aspartic acid residue in OPN should not be neglected or underestimated. Aspartic acid is known as the strongest amino acid for complexation with calcium and HAp [157]. Similarly, poly(aspartic acid), homopolymer of aspartic acid, has shown to inhibit and even dissolve of calcium oxalate and HAp [158–160].
Fetuin-A
Fetuin-A, as a glycoprotein synthesized in the liver, and abundant in serum, is considered the main carrier of free fatty acids in the bloodstream [161, 162]. Fetuin-A can bind calcium and Calcium phosphate precursor, inhibiting nucleation and growth of HAp [163]. If bound to calcium particles (calciproteins), Fetuin-A can remove these highly insoluble particles from the circulation. The function of Fetuin-A has been attributed to its high negative charge density arising from glutamic acid and aspartic acid residues [164]. The former and the latter are respectively responsible for inhibition activity of MGP and OPN. Fetuin-A is loaded into matrix vesicles, where local calcium level is high, inhibiting the calcium phosphate precipitation, and improving VSMC survival [165]. Fetuin-A-deficient mice fed with a mineral- and vitamin D-rich diet developed extensive calcification [166]. Rats with calcification had detectable fetuin-mineral complexes in their serum, while those treated with ibandronate without calcification had no detectable complex [167]. Low level of fetuin-A has been well documented in dialysis patients and has been associated with high rate of cardiovascular-related mortality [168]. The Fetuin-deficient serum was reconstructed by spiking different amount of Fetuin-A, showing reduced precipitation of calcium in-vitro [166]. Overall, these findings further suggest calcium binding ability of fetuin-A, its affinity toward HAp and its role in inhibition of calcification.
Pyrophosphate (PPi)
Pyrophosphates, also referred to as diphosphates, are molecules that have a P-O-P bond. They are capable of establishing complexes with metal ions such as calcium and are natural inhibitors for ectopic calcification and HAp crystallization [169]. PPi is found in plasma and its role in the prevention of VC has been demonstrated in-vitro [170], in-vivo [171, 172], and in human trials [173].
Ex-vivo studies on the cultured rat aortas ring, showed endogenous production of PPi. Addition of ALP to the culture medium led to deactivation of the PPi [174]. It is generally accepted that ALP level is inversely related to PPi level. Through VSMCs trans-differentiation, ALP is upregulated, leading to the hydrolysis of PPi into inorganic phosphate. In other words, one can deduce that ALP converts a strong inhibitor (PPi) into an inducer (inorganic free phosphate).
In another study, the aorta of mice lacking ectonucleotide pyrophosphate phosphodiesterase (ENPP1), an enzyme that produces PPi, developed extensive calcification. Additionally, there is evidence that the loss of ENPP1 function in infantile genetic diseases can also lead to VC in humans [175]. ENPP1-deficient children usually die within six months after birth due to heart failure. PPi level of the patients’ serum with CKD after hemodialysis was found to be lower than that of healthy group because it is removed by the dialysis process [75].
These studies collectively demonstrate the inhibitory role of pyrophposphates based on therapeutic strategies could be designed. However, PPi is typically degraded in the stomach, necessitating their parental infusion. PPi’s half-time in the circulation is shorter than 30 min, which limits its clinical use. The synthetic analogues of PPi, i.e., bisphosphonates could address these challenges which will be discussed below. Overall, one can conclude that maintaining high PPi level in the circulation by targeting its metabolism (e.g., use of ALP inhibitors), rather than its administration could have promising prospects.
Treatments
In contrast to lipid-laden plaques, calcified plaques are known to be irreversible. One of the most vulnerable and at-risk populations to VC is CKD patients whose kidneys are not able to remove excess minerals. Other at-risk populations include those with atherosclerosis, post-menopausal women, as well as elderly people. Therefore, managing the underlying conditions such as CKDs, hypertension, and diabetes is the first main treatment prescribed. While they could be beneficial in the early stages of calcification, at the latest stages, when major vascular blockage happens, invasive interventions such as percutaneous angioplasty, and metal stenting are adopted. Although such interventions are successful in atherosclerotic plaques, they could be associated with serious complications in the calcified plaques, due to vessel rigidity, posing the vessel dissection risk, and severe haemorrhage A novel method has recently been adopted that uses the principle applied in the fragmentation of kidney stones with strong shockwaves, referred to as lithotripsy, where high-pressure shocks (50 atm, for short pulses) disintegrate large calcium deposits, facilitating further angioplasty and deploying drug-coated balloons [176]. Despite the progress in invasive methods, there is still no clinically approved non-invasive treatment for VC and thus much attention is paid to the underlying causes as stated above to decelerate the disease progression. Understanding the disease, and the mechanism of action of inducers and inhibitors however have led to the development of several therapies examined in-vitro, in-vivo, and in clinical trials. Some of these therapies include but are not limited to phosphate binders, vitamin K supplementation, sodium thiosulfate, etc. which will be discussed as follows. Of note, however, is that none of these therapies have yet been approved or established although prescribed by some practitioners.
Undoubtedly, there is close interface between bone remodelling and VC which should be considered in the design and development of drugs. Off-target action of the drug could potentially lead to bone resorption and osteoporosis, in addition to being ineffective in the prevention of VC. This highlights the utmost importance of drug targeting to the vasculature, and other at-risk organs. Nevertheless, scrutinizing the literature revealed only a few case studies where the active compound was loaded into a nanocarrier and conjugated with elastin antibody. The antibody improved targeting and thus the treatment efficacy which will be further discussed below.
Phosphate binders
Phosphate binders are a class of orally-administered drugs that reduce dietary phosphate absorption by forming an insoluble complex with it in the gastrointestinal tract, thereby lowering the serum phosphate level [177, 178]. Their effect has been studied in several animal and human studies [179]. Based on the chemical structure, phosphate binders can be divided into two: (i) calcium-containing and (ii) calcium-free [180]. The most notable examples for the former and the latter are calcium acetate and Sevelamer carbonate (Renagel), respectively (Fig. 7).

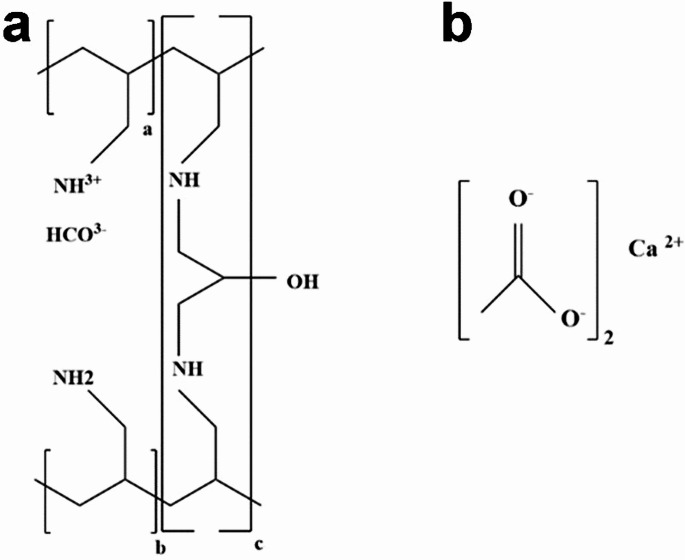

Fig. 7. Chemical structure of (a) sevelamer (a cross-linked poly(allyl amine) in which carbonate ion is introduced for neutralization, and (b) calcium acetate as two phosphate binders used for lowering serum level of phosphate
Calcium-containing binders, while effective in lowering Pi level, have been shown to even intensify calcification in human trials [181]. However, calcium-free binders effectively inhibited or delayed calcium deposition [182, 183]. A recent human trial compared calcium acetate with Sevelamer, further verifying the superiority of the latter for reducing coronary artery calcification scores, as well as prevalence of hypercalcemia [184]. Sevelamer was also significantly more effective than calcium-containing binders in improving survival rate in haemodialysis patients [185].
From the polymer chemistry viewpoint, Sevelamer is poly(allylamine), a cationic polymer, cross-linked with epichlorohydrin. The amine groups of the polymer are fully, and partially protonated under acidic media of the stomach, and neutral conditions of the small intestine, respectively. The protonated groups form strong electrostatic complexes with free dietary phosphate anions which are then excreted from the body without absorption. Sevelamer should be administered orally 3 times a day for each meal (0.8–1.6 gr depending on the diet). Its expensiveness as well as gastrointestinal side effects restrict its clinical use. A randomized controlled trial on CKD patients to study the effect of sevelamer was performed. The study showed that sevelamer reduced the reduction in systemic, vascular, and bone-related inflammatory markers such as IL-6, IL-8, IL-10, CRP, TNFα, and IFN-γ from treatment with sevelamer in CKD patients. Sevelamer treatment also resulted in a significant decrease in levels of FGF-23, calcidiol, and calcitriol, whereas FGF-23 and calcitriol remained unchanged [186]. Also, as suggested, a well-designed randomized clinical trial is required to confirm whether phosphate binders compared to placebo do indeed attenuate the clinical end point in CKD patients [187].
Magnesium
Recently, there have been a great deal of attention to magnesium (Mg^2+^), as many reports have shown its link to cardiovascular mortality in patients with ESRF [188]. Ex-vivo, the synthesis of HAp is inhibited by the presence of Mg ions in the solution [189, 190]. In-vitro, magnesium prevented VSMC calcification, reduced BMP-2 activity and downregulated osteocalcin expression, whereas OPN and MGP were upregulated [12]. VSMCs incubated with Mg^2+^ (2 mM) and Pi (3 mM) exhibited much better cell viability and lower level of calcification. The preventive effect of Mg^2+^ was observed in live cells, but in fixed cells extensive calcification was detected [13]. βGP-induced calcification of VSMC was prevented by 2 mM of magnesium, and explained by a simple passive process; extracellular inhibition of apatite crystallization as free magnesium cations binds phosphate anions, disturbing calcium phosphate salt formation (Fig. 8) [191]. Transient receptor potential melastatin 7 (TRPM7) is regarded as the main magnesium channel in VSMCs [192]. Blocking such channels by 2-aminoethyl diphenylborinate (2-APB) did not prevent the anti-calcification role of magnesium, suggesting its intracellular-independent activity.

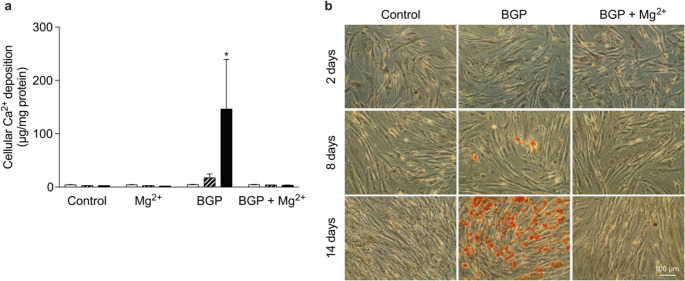

Fig. 8. Mg prevents HAp crystallization in the presence of high Pi concentrations. Quantitative and qualitative evaluation of calcification induced by β-glycerophosphate (BGP) at 2 (white bars), 8 (striped bars) and 14 (black bars) days after BGP supplementation (a) and Alizarin Red staining of BVSMCs (b) [191]
In vivo, high phosphate and low Mg^2+^ diet in mice model of DBA/2 promoted extensive calcification in heart, kidney, and other organs [14]. Treatment of uremia rat induced by vitamin D and nicotine with magnesium sulfate led to a lower ALP activity and lower calcium content in soft tissues [15]. In adenine-fed rats, magnesium citrate also prevented calcification [16]. A 5-year randomized clinical trial study commenced on 2017 will soon reveal the effect of oral Mg supplementation on coronary artery calcification [193]. The same group also showed that by increasing Mg level of the dialysate, the calcification propensity in hemodialysis patients is decreased [194].
Vitamin K supplementation
Vitamin K is a well-known enzyme cofactor involved in coagulation as well as other signalling pathways and is mainly found in green vegetables such as spinach. Direct correlation between vitamin K uptake and carboxylation of MGP has been well documented. As discussed, activated MGP is a potent inhibitor for calcification due to the presence of γ-glutamic acid residues. Vitamin K antagonists such as warfarin strongly prevent MGP carboxylation and lead to calcification [195, 196]. MGP activation is carried out in VSMCs and the role of warfarin on calcium deposition in VSMCs was corroborated in-vitro [51]. In ApoE^−/−^ mice, warfarin resulted in valvular calcification [196]. In warfarin-induced uremic rats, a high dosage of Vitamin K1 intake was required to reverse VCand improve the elasticity of blood vessels [197].
Anti-inflammatory compounds
As mentioned, pathological oxidative stress both intracellularly and extracellularly can contribute to calcification through a variety of mechanism including apoptosis, differentiation of smooth muscle cells to osteoblast-like cells. Such oxidative stresses can be counteracted and neutralized by potent antioxidants which are either synthetic or naturally occurring. The mechanisms of action of most of these compounds are similar, primarily involving the scavenging of ROS, such as hydroxyl radicals (the most reactive form of ROS), or the prevention of their formation altogether. Of noteworthy is that ROS, due to their high reactivity, can also interrupt normal cell function by damaging DNA, lipids of cell membrane, proteins, etc. Therefore, considering the important role ROS plays in the initiation and progression of calcification, antioxidants could be regarded as effective treatment options [198].
Curcumin, a polyphenol from Curcuma longa and turmeric, has well-documented anti-inflammatory and antioxidant properties [199–201]. Hou et al. [17] demonstrated its dose-dependent inhibition of β-glycerophosphate-induced VSMC calcification, reducing ALP, BMP2, Osterix, and Runx2 levels while preventing apoptosis. Curcumin also suppressed ectopic calcium deposition and promoted tendon regeneration by downregulating inflammatory proteins [17]. In another study, it was shown that curcumin can suppress the ectopic calcium deposition in-vitro and in-vivo in tendon. Moreover, curcumin effectively contributed to tendon regeneration through downregulation of inflammatory proteins under stimulated condition [18]. Liu et al. employed curcumin as a crosslinking agent to fix acellular bovine pericardium in bioprosthetic valves, which effectively reduced calcification due to curcumin’s anti-inflammatory effects [202]. Zhou et al. [19] found curcumin inhibited aortic valve cell trans-differentiation, with RNA sequencing linking its effects to NF-κB, TNF, MAPK, and PI3K-AKT pathways. Overall, all these findings highlight the importance of chronic inflammation, and the potential antioxidant can offer in the treatment of not only calcification but also generally cardiovascular complication.
Apocynin, also referred to as dogbane, is a herbal medicine and has potent anti-inflammation activity as reported in several animal studies [203]. It inhibits Nox and decreases superoxide generation [20, 21, 203]. It was shown that Apocynin administration to diabetic rats with VC substantially alleviated arterial calcium deposition [20]. In vitro, it has been suggested that apocynin prevents calcification by down-regulation of bone forming proteins such as BMP-2 and runt-related transcription factor 2 (RUNX2) [21].
Diosgenin as another natural antioxidants, is extracted from fenugreek (Trigonella foenum-graecum). Besides its anti-inflammation activity, Diosgenin has been shown to have a high efficiency in reducing the level of lipid and glucose in circulation [204]. Diosgenin strongly reduced calcification in uremic rat which was attributed to high antioxidant levels, and in turn low lipid peroxidation, thereby increasing endothelial nitric oxide synthase (eNOS) activities [22, 23]. Vitamin E, as another strong antioxidant, as well as its derivatives has shown to prevent osteogenic trans-differentiation of VSMCs induced by oxidized LDL [205], increases antioxidant level in circulation, and reduces calcification in uremic rats [206].
Puerarin, another herbal medicine, is extracted from Pueraria lobata, bears multiple active sites of isoflavone glycoside and is used for treating acute ischemic stroke. Puerarin reduces calcification by lowering ROS, reduction of NF-κB, and down-regulation of BMP-2 IL-1β levels [24]. Likewise, resveratrol and its derivatives which have similar active sites and found mostly in grapes and wines, has demonstrated positive impact on prevention of calcification as they increase Klotho level which are known as important inhibitors [25, 207].
Quercetin is another potent anti-inflammatory compound which is mostly found in variety of fruits and vegetables [208]. Its protective effects on vasculature have been demonstrated in several in vitro and in vivo studies [209]. Quercetin prevented heat shock proteins and thus reduced calcification in vitro [210]. It prevented VC in warfarin-fed animal models by downregulating transglutaminase 2 and β-catenin, reducing ROS production [211]. In a uremic rat model, quercetin increased superoxide dismutase 2 (SOD2) levels, preventing calcification via the iNOS/MAPK pathway [26]. In vitro, quercetin protects VSMCs stimulated by ox-LDL- from differentiation by down regulation of BMP-2 and toll-like receptor (TLR) − 4 [212].
Ginsenosides are one of the major components of traditional herbal medicine which are classified into panaxadiols and panaxatriols and also have potent anti-inflammatory properties. Rb1, a most abundant component of panaxadiols has reported protective properties for vascular and kidney diseases, alleviated creatine and inflammatory cytokine levels in CKD patients [213]. Rb1 has shown to reduce calcium deposition in vitro and in vivo. In vitro results have indicated the protective role of Rb1 in calcium deposition. Rb1 has reduced calcium deposition as well as ALP activity and calcium concentration in vivo. This protective effect of Rb1 is attributed to downregulation of Wnt/β-catenin pathway through the activation of nuclear receptor PPAR-γ [27].
Spermidine, a naturally synthesized polyamine, have been found to have anti-inflammatory properties and provides protection against CVD, reduce reduces lipid accumulation to retard the progression of atherosclerosis [214]. Liu et al. indicated similar results in attenuating calcification in VSMC and arterial rings in vitro and in vivo respectively. Spermidine has shown to activate Sirtulin 1(SIRT1) which inhibits vascular calcification in vitro resulted in the downregulation of endoplasmic reticulum (ER) stress signaling components, such as activating transcription factor 4 (ATF4) and CCAAT/enhancer-binding protein homologous protein (CHOP) [28]. Clinical trials on the application of spermidine for vascular calcification has not been investigated yet.
Dendrobium officinale polysaccharide (DOP) is a valuable herbal medicine and has been shown to enhance humoral and cellular immunity, anticancer, anti-inflammatory, antioxidant, and antidiabetic effects [215]. DOP has shown to inhibit VC in vitro and in vivo. DOP significantly stimulated the activation of HMOX-1 and responsible for anti-apoptotic and anti-inflammatory functions. Moreover, DOP has shown a reduced expression of inflammatory markers such as NLRP3, NF-κB, and IL-1β in VSMCs [29].
Clinical trials on the effect of antioxidants are yet to be investigated to determine their treatment efficacy. Currently there is little information in the literature in this regard. Sodium thiosulfate (STS) which is regarded both as a calcium chelator and an antioxidant has been the subject of a number of clinical trials [216–219] which will be discussed in the following section (chelation therapy). The positive impact of STS has been indicated in the treatment of VC. However, it is still unclear whether this is attributed to its chelation, anti-oxidation or both properties. Another antioxidant cerium nitrate-silver sulfadiazine was topically administered in France to patients with calciphylaxis whose mechanisms is comparable to VC [220]. The positive outcome of the compound was indicated and attributed to ROS scavenging, prevention of infection, as well as its decalcification ability.
Antagonists
ALP inhibitors (e.g., 1,2-diphenyl-2-(1 H-1,2,4-triazol-5-ylthio)athanone) have been found to to prevent VSMC calcification in-vitro [221]. Therefore, therapeutic approaches could be devised to reduce the activity of ALP while maintaining normal bone formation/resorption [222, 223]. It has been found that Sortilin (SORT1) is responsible for ALP loading into the matrix vesicles during VC in-vivo. Sortilin deficiency in mice successfully attenuatedVC, without affecting bone calcification [224]. A study in 2019 showed that SBI-425, an ALP inhibitor, prevents medial arterial calcification in CKD mice models, while maintaining normal skeletal mineralization [30]. To verify its activity, Opdebeeck et al. [225], later in 2021 studied different dosages of SBI-425 to treat adenine-fed CKD rat model of calcification. Low dosages failed to reduce calcification, while high doses reduced bone mineralization. Overall, further studies could be directed on the ALP inhibitors that can merely target calcification in the vasculature not the hard tissues.
SNF472, hexasodium salt of phytate, developed as an intravenously administered form of phytate, is a calcification inhibitor by binding to HAp crystals without chelating free calcium. In vitro results suggest that SNF472 binds easily to HAp and not to free calcium. SNF472 also reduces the levels of calcium deposition in rodent VSMCwithout inducing apoptosis and restoring expression of genes that maintain the contractile phenotype of these cells [31]. Clinical trials in phase 1 and 2 have also shown that SNF472 inhibited HAp crystal formation and deposition without chelating the circulating calcium and hypocalcaemia [226].
Denosumab is a human monoclonal antibody that can bind to and suppress human receptor activator of nuclear factor kappa-B ligand (RANKL), mimicking osteoprotegerin natural bone-protecting activities. It is currently in development. Clinical trials in patients with bone metastases in multiple myeloma or breast cancer found that an injection of denosumab caused immediate and prolonged inhibition of bone turnover indicators [227]. A study with human RANKL knock-in (huRANKL-KI) mice demonstrated that there was a reduction of aortic calcium deposits of prednisolone-treated huRANKL-KI mice by up to 50% when treated with denosumab, based on calcium measurement [32]. The potential effectiveness of denosumab on coronary and abdominal aortic calcification in the elderly female population with osteoporotic chronic renal disease is being assessed in a clinical trial undergoing in France. An important factor in VC is the TNAP iso-enzyme, which can inactivate pyrophosphate, creating sites for bone mineralization and an increase in phosphate ions. Trials are in underway to create an oral medication that may function as a TNAP inhibitor and slow the onset and progression of calcification [228]. These trials’ outcomes will provide more insight into how ALP affects the calcification of coronaryVSMCs.
Chelation therapy
In chemistry, chelation is the bonding of molecules with metal ions including transition metals (e.g., Cu^2+^) and earth metals (e.g., Ca^2+^). The specific chemical structure and configuration of the chelating material allow the formation of a strong complex with the metal ion. Chelation is of outmost importance not only in biology, where a chelant can be employed for the treatment of heavy metal poisoning, but also in industry where its small amount can effectively suppress mineral deposition [39, 128, 129, 229]. For complexation with calcium, the chemical structure of the chelator typically contains acidic residues such as phosphoric or carboxylic acid groups.
Ethylenediaminetetraacetic Acid (EDTA)
Ethylenediaminetetraacetic acid (EDTA) is one of the most efficient calcium chelators. EDTA can effectively disintegrate and dissolve highly insoluble HAp. Its ability in HAp dissolution was found to be superior to citric acid, Fostex (a commercial phosphate-based chelator) [230], DTPA, and STS [231]. On this basis, EDTA may possess the potential to reverse calcification, and thus, despite not being approved by the Food and Drug Administration, it is still prescribed by some practitioners for vascular diseases and calcification [232]. However, clinical studies on the systemic administration of EDTA has not shown promising outcomes. The use of IV-administered EDTA therapy on 1708 patients with a history of MI showed a modest reduction in the risk of adverse cardiovascular events [233]. The study which is called the Trial to Assess Chelation Therapy (TACT) was not convincing enough according to the authors to suggest its routine application as a clinical treatment for those with previous MI. Another small study on the combined use of EDTA/tetracycline on human trial (77 patients) showed reduction in coronary artery calcium score [234]. However, 43% of the patients did not respond to the therapy. Additionally, the trial did not have a control group for comparison. Another study on 47 patients with the history of coronary artery disease (CAD) treated with EDTA did not show significant change in flow-mediated vasodilation compared to placebo [235].
The considerable difference between human trial and dissolution ability of EDTA ex-vivo may be explained by several factors such as its low bioavailability in calcified plaque, its premature action upon injection, and its non-specificity (i.e., chelation other essential ions rather than calcium). Therefore, targeting EDTA to the calcified plaque could be an effective solution to address its low efficacy. EDTA was loaded into poly(lactide-co-glycolic acid) (PLGA) nanoparticles (NPs), which exhibited a sustained release within 3 days [231]. The NPs were delivered locally to a rat model with abdominal aortic calcification induced by CaCl_2_ injury. Calcification was reversed in the aorta while calcium and phosphate levels of the serum did not change. Another study loaded EDTA into albumin NPs onto which rabbit anti-rat elastin antibody was conjugated to target the calcified aortas [34]. The NPs were accumulated in the aorta significantly by conjugating the antibody, while in other organs (e.g., kidney, lung, and spleen), less NPs were detected. In-vivo studies on CaCl_2_ induced calcification showed efficacy of the prepared NPs on the regression of calcification as shown in Fig. 9. Targeted therapy had no effect on serum or urine calcium levels, while with systemic delivery, the former and the latter greatly decreased and increased, respectively. In a recent research, similar result were obtained with the same NPs on adenine-fed rat models of calcification [35].
Fig. 9. Treatment of vascular calcification by EDTA-loaded NPs. The NPs were conjugated with IgG or elastin antibody for targeting. (A) The explanted aortas were stained by Alizarin red to reveal calcium deposits in red colour. As seen the NPs coated with elastin antibody has a very less intense red colour, indicating efficacy of the NPs. (B) Histological staining by the same dye shows insignificant calcium in the aorta. (C) Quantification of calcium further confirms the efficiency of the targeting by elastin antibody
Sodium thiosulfate (STS)
STS is an efficient chelating agent for transition metals as well as earth metal cations such as calcium. STS is a gold standard widely used for treating cyanide poisoning [236] and calciphylaxis (referred to as calcific uremic arteriolopathy) [237]. The latter involves calcification of small blood vessels in the fatty tissues and skin, which is often associated with renal failure and results in ulceration, infection, and death. STS has strong chelation properties, which let it sequester calcium from HAp, convert it to calcium thiosulfate, and excrete it from the body [231, 238]. Additionally, STS is known to have antioxidant properties [239]. Pasch et al. also studied the effects of STS on uremic adenine-fed rat models of calcification and found that STS inhibited calcification by lowering ionized calcium in plasma [36]. On 87 haemodialysis patients (IV injection, twice weekly post-haemodialysis for 4 months), STS inhibited the progression of coronary artery calcification. However, the bone mineral density of the total hip decreased [240]. Mathews et al. also indicated similar results in terms of inhibition of calcification (IV injection, 22 haemodialysis patients, 3 times a week for 5 months), however, no change in vertebral bone density was observed [219]. A recent study on 50 haemodialysis patients showed that intravenously-administered STS could effectively reduce the arterial stiffness [241]. However, bone mineral density was not studied. In summary, while STS is beneficial in inhibition of calcification, bone mineral density could be compromised, hindering its use clinically.
Bisphosphonates
Bisphosphonates (BPs) or diphosphonates are a class of drug used for treating osteoporosis by suppression of bone resorption. Although their half-life in circulation is very short, when absorbed by bone, they can remain in the bone up to several years [242]. BPs are also called pyrophosphate analogous since the only difference is the central atom of the molecule, an oxygen in pyrophosphate and a carbon in BPs. Based on chemical structure as shown in Fig. 10, there are two types of BPs: nitrogen-containing (e.g. pamidronic acid) and nitrogen-free (etidronic acid).

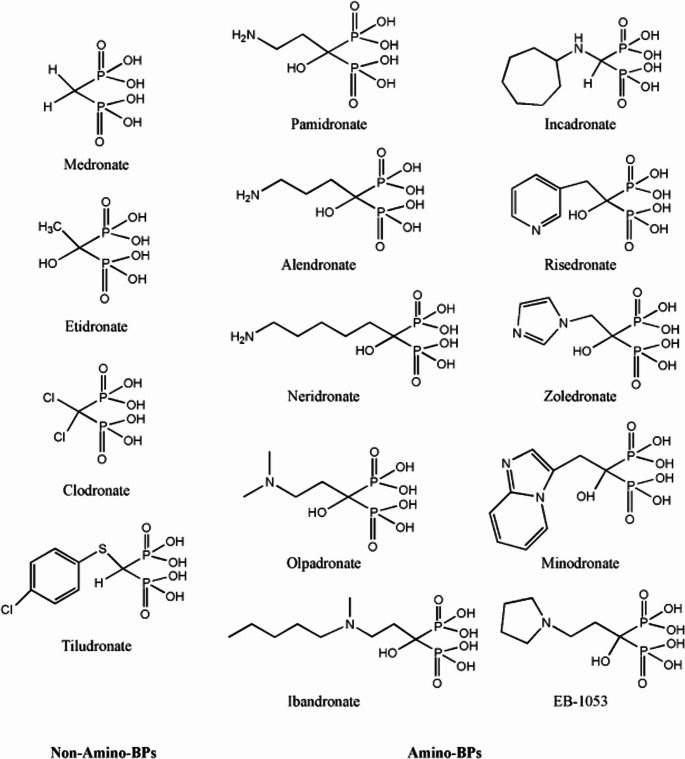

Fig. 10. Chemical structure of bisphosphonates (nitrogen-free and nitrogen containing) employed in clinical treatment of bone diseases [243]
In general, BPs have a strong affinity for HAp and calcium. Accordingly, a dual role has been proposed for BPs; they bind to the growing HAp crystals, preventing its further growth. On the other hand, the attached BPs on the HAp surface protect it from dissolution [242, 243]. In adenine-fed rat models of CKD, both types of BPs prevented aortic calcification but did not reverse it [37]. A low dosage of BP therapy did not adversely affect serum calcium or phosphorus levels despite preventing calcification. The inhibitory role of BPs thus appears to originate largely from inhibiting HAp nucleation/growth, rather than treating hypercalcemia or hyperphosphatemia. In other models of CKD, such as vitamin D_3_ [244], and warfarin-treated rats [38], BPs have prevented calcification.
While BPs have shown promising results in animal models, there is still no convincing human study suggesting their efficacy for calcification. The use of nitrogen-free etidronate (200 mg/day, orally, for 14 days, 3 times every 3 months) on 35 CKD patients prevented calcification (26/35 responded positively) [245]. However, another study on 42 CKD patients with the nitrogen-containing alendronate (18 months, 70 mg/week orally) did not reveal any significant positive outcome [246]. In addition, certain BPs may have adverse effects on the renal function when taken in high doses. For instance, nitrogen-containing pamidronate at a dosage of higher than 90 mg/month intravenously caused renal toxicity [247]. Of noteworthy is that BPs are more effective when administered intravenously rather than orally as observed in the treatment of osteoporosis [248]. The latter delivery route may also lead to gastrointestinal toxicity. Oral administration of BPs was not effective in the attenuation of calcification in patients with CKD and kidney transplants [246, 249]. However, they can potentially contribute to regression of atherosclerotic plaque by lowering serum lipid, LDL, and increasing high density lipoproteins (HDL) level [250, 251].
Polysuccinimide (PSI)
PSI, a hydrophobic polymer, is a precursor of polyaspartic acid [252–254] and acts as a strong chelating agent for different metal ions [129, 255, 256]. Several studies have been performed confirming the effectiveness of polyaspartic acid for inhibition and dissolution of calcium oxalate by the chelation effect of polyaspartic acid [158, 159]. A recent study explored the anticalcification and anti -ROS activity of PSI modified with oleylamine nanoparticle which also serves as a carrier for curcumin for the treatment of vascular calcification [39]. The application of curcumin loaded PSI-oleylamine nanoparticles have shown reduced calcification in the aorta without adversely affecting bone integrity after performing in vivo and in vitro studies (Fig. 11).

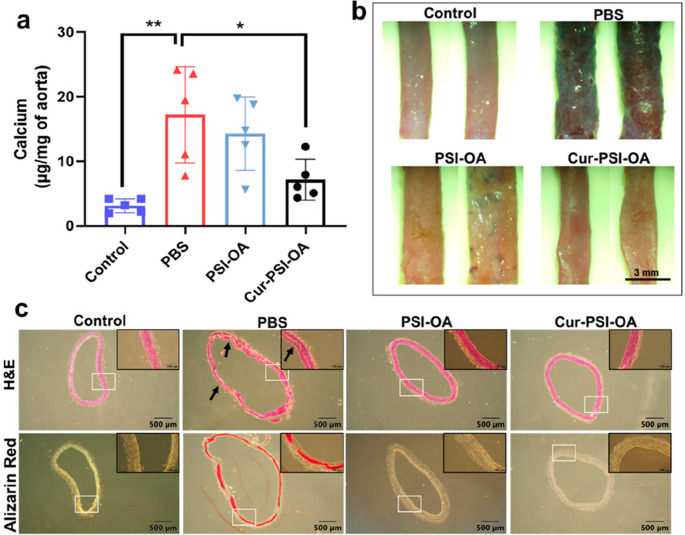

Fig. 11. Treatment of Curcumin loaded PSI OA resulting in reduced calcium levels. (A) Quantitative measurement of calcium showing resulting in reduced calcium deposition in vivo. (B) Alizarin red staining on aorta indicating reduced calcium expression in curcumin loaded PSI OA nanoparticles (C) Histological analysis of the aortas and staining with alizarin red and H&E harvested from animals indicating a reduced calcium deposition for curcumin loaded PSI OA nanoparticles [39]
Collectively, despite the promising positive effects of calcium chelators, and despite being prescribed by some practitioners, its wide clinical use is still limited due to its side effects especially on the bone integrity. Improving the bioavailability of the chelator in the vasculature, while reducing its accumulation in bone could effectively address this issue. Targeting the chelator to the vasculature by employing an appropriate antibody such as elastin antibody was shown to significantly improve the treatment efficacy while not adversely affecting the bone integrity. Furthermore, the efficacy of chelation therapy could be further enhanced through the development of the chelators that specifically chelate calcium, rather than non-specific complexation with other essential ions such as iron, and magnesium.
Others
Melatonin is an important indoleamine produced by pineal gland which has anti-inflammatory, anti-cancer, and antioxidant activities [257]. Many studies report the role of melatonin in regulating inflammation, apoptosis, and oxidative stress [258]. Melatonin attenuates VCby regulating autophagy via the AMP-activated protein kinase/mammalian target of rapamycin/Unc-51-like kinase 1 (AMPK/mTOR/ULK1) signaling pathway. In vitro results have revealed that melatonin activated AMPK protein expression, inhibited mTOR expression, and reduced VSMC calcification [40]. The effect of melatonin on VC was only studied in vitro, and in vivo studies of the effect of melatonin are not reported yet.
Metformin is an anti-diabetic and anti-hyperglycaemic agent which inhibit complex I of the mitochondrial electron transport chain and contribute to a decrease in the cell energy charge, thereby activating AMPK signalling. Metformin inhibits hyperlipidaemia-associated VC through anti-ferroptosis effects in vitro and in vivo. Ferroptosis is form of regulated cell death that involves metabolic dysfunction resulting from iron-dependent excessive lipid peroxidation and also involved in VC. Metformin have shown to inhibit ferroptosis in VSMCs, as evidenced by the upregulation of the anti-ferroptosis factors Gpx4, GSH, and SLC7A11 concomitant with the downregulation of lipid peroxidation. Moreover, metformin enhances antioxidative capacity in VC by promoting translocation of Nrf2 from the cytoplasm to the nucleus, which in turn promote transcription of genes encoding antioxidant proteins. In vivo study have shown a decrease in calcium deposition in aortic tissue [41].
Clinical trials of VC treatments
Various therapeutics for VC were tested for various diseases as enlisted in Table 2. Sodium thiosulfate (STS) is a chelating agent which has proved to be successful in preclinical studies of VCby acting as a chelating agent. By removing calcium from precipitated minerals, STS improves endothelial function and produces more soluble calcium thiosulfate [259, 260]. Sodium thiosulfate in majority of the clinical trials have shown a positive effect in the treatment of VC at phase 2 clinical trials. Coronary artery calcification (CAC) score is one important parameter which determines the progression of calcification. Clinical trials of STS for VC have shown a decreased CAC along with reduced inflammatory markers core correlating to an improvement of calcification. Some studies have shown a non-persistent in serum calcium levels throughout the study and few side effects such as anorexia, nausea and vomiting were observed in few subjects [240, 261, 262]. Magnesium was shown to inhibit phosphate-induced VC in vitro and in animal models and reduce the progression ofVC. However, clinical studies for magnesium in improvement of calcification have shown no significant change [193, 263]. Similarly EDTA -tetracycline have shown a significant decline in calcification progression during preclinical studies but its therapeutic effect hasn’t been proved in clinical studies yet as they are still in recruitment phase [234]. Bisphosphonates have also shown promising results in decreased calcification, improvement in BMD score for CKD patients and have completed phase 4 in 2009. Denosumab and Sevelamer carbonate though have shown promising results in the in vitro preclinical studies with reduced CAC score, and decreased level of calcification markers, clinical studies were terminated at phase 4 due to adverse events occurring during the entire study along with variation in calcification scores, phosphorous and Morbi-mortality during the fixed time frame [32, 186]. From the above observation, STS and bisphosphonates are potential lead candidates for further human studies and could potentially be approved by the regulatory agencies for human application. Tables 2 and 3 describes the therapeutics for VCin clinical trials and its current status.
Table 2. Clinical trials of VC treatments (those where trial registration ID was not stated)TherapeuticsStudy groupTreatment protocolObservation indicatorsResultsReference/Publication yearSTSHemodialysis secondary hyperparathyroidism patientsControl and treatment group had no limit in calcium intake, phosphate intake 800–1,000 mg/day.Treatment group given STS 0.18 g/kg in 100 ml saline three times a week for 6 monthsParathyroid hormone (PTH), calcium, phosphorus, and calcium-phosphorus, coronary artery calcification (CAC) scoreLevels of C-RP and CAC scores were significantly decreased in the treatment group (354.72 ± 45.22) than control (489.54 ± 65.47)Decrease in proportion of skin pruritus, myasthenia, bone pain, insomnia[261]Published in 2022STSAdult hyperparathyroidism patientsControl and treatment group both received conventional bicarbonate haemodylasis (HD) twice or three times per week (4 h per session). Dialysate calcium concentration (2.0 to 3.5 mEq/L).Treatment group given STS (12.5 g intravenously, 15–20 min after HD treatment twice a week for at least 4 months)Coronary artery calcification (CAC) score, bone mineral density (BMD)Increase in serum sodium and chloride, a decline in serum bicarbonate and calcium, significant decline in BMD in treatment groups. However, CAC score unchanged in treatment group (904 (range 307–3399), 1014 (range 317–2178)[240]Published in 2010STSHaemodialysis (HD) patients with calcific uraemic arteriolopathyRandomized control trial. Patients received conventional bicarbonate haemodylasis (HD) twice or three times per week (4 h per session). Dialysate calcium concentration (1.25 to 1.5 mmol/L). Treatment group given 25 g/1.73 m^2^ (area of aorta based on abdominal aorta agatson calcification score) dissolved in 100 mL saline intravenously during the last 15 minAbdominal aortic calcification score (AACS)Parathyroid hormone significantly increased in treatment group (189 (69.1–403.8) vs. 129.7 (59.8–256.1). AACS significantly increased after 6 months of therapy (4823 vs. 3879)[262]Published in 2020MagnesiumCKD patientsDouble-blinded placebo-controlled multicenter clinical trial. Treatment group provided with 52 weeks of treatment with oral slow-release MgOH twice daily (30 mmol of Mg per day)Coronary artery calcification (CAC) scoreNo significant change in CAC between treatment and control placebo group. No effect in plasma phosphate, parathyroid, and potassium levels in plasma.[263]Published in 2023MagnesiumCKD patientsDouble-blinded placebo-controlled multicenter clinical trial. Treatment group provided with 52 weeks of treatment with either oral slow-release Mg OH twice daily (30 mmol of Mg per day)CAC score, bone mineral density (BMD)Randomized control trials on human subjects have shown magnesium reduces coronary artery calcification after 52 week study[193]Published in 2017Vitamin K12End stage kidney disease patients on haemodialysis200 µg of vitamin 12 orally everyday for 1 yearCalcification of the abdominal aorta, MGPDecrease in MGP by 53% in treatment group after 3 months. Calcification score showed no significant difference[264]Published in 2019(EDTA)- tetracylineCoronary atherosclerotic heart disease patientEDTA (1500 mg)- tetracycline (500 mg) taken orally once a week for 4 monthsCoronary artery calcification (CAC) score, hs-CRP, Complete Blood Count (CBC), Metabolic Panel (CMP), Liver Functions Tests (LFT), Lipid Profile (LP), and NB ELISA antigen and NB IgG antibody serologyA significant decrease by 57% in CAC scores (1753.8 vs. 2033), improvement in lipid profile with a decrease in LDL (2.6 mmol/l vs. 2.1 mmol/l), triglycerides (2.5 mmol/l vs. 1.9 mmol/l), cholesterol (4.9 mmol/l vs. 4.2 mmol/l), and increase HDL[234]Published in 2004Bisphosphonates (alendronate)Patients with CKD70 mg alendronate administered orally once weekly for 18 monthsPulse wave velocity (PWV), BMD, Biochemical parametersC RP, and lipid profileIncrease in BMD of lumbar spine (0.84 ± 1.38 vs. 0.54 ± 1.89) and better PWV, no significant difference in kidney function however no significant difference in VCprogression between placebo and treatment[246]Published in 2010DenosumabPatients with calcific aortic stenosisDenosumab 60 mg every 6 months, placebo injection every 6 months, oral alendronic acid 70 mg once weekly.Trial end points after 12 and 24 monthsAortic valve calcium scoring, biochemical parameters.[265]Published in 2021
Table 3. Current progress of the clinical trials of vctreatments (those found from clinical trial Database)TherapeuticStudy type and phaseStudy groupTreatment protocolResultsSide effects/limitationsClinical trial referenceSTSInterventionalCompleted Phase 218 years and older (Adult, older Adult) coronary calcification on hemodialysis (n = 50)Inclusion Criteria:CAC score > 300Life expectancy > 6 monthsDialysis vintage > 6 monthsExclusion Criteria:Non-compliance to hemodialysisDrug: 25% intravenous (IV) sodium thiosulfate50 ml IV drip twice/week post hemodialysisHigh serum phosphate, calcium containing phosphate binder associated with increasing CAC. intravenous STS reduced the calcium burden in calcific uremic arteriopathy and soft tissue calcificationClinicalTrials.gov ID NCT00720772Published in 2009STSInterventionalTerminated at Phase 3 due to Company decision18 Years and older (Adult, older Adult) Calcific Uremic Arteriolopathy (n = 40)Drug: Sodium thiosulfate at 25 g in 100 ml normal sterile saline for 28 days treatment phaseDrug: PlaceboNot providedClinicalTrials.gov ID NCT02527213Published in 2017MagnesiumInterventionalCompleted Phase 218 Years and older with Chronic Kidney Disease(n = 250)Inclusion criteria:Glomerular filtration rate between 45 and 15 mL/min for > 3 monthsSerum total magnesium < 0,82 mmol/L and serum phosphate > 1,15 mmol/LExclusion criteria:Kidney donor recipient, Parathyroid hormone > 600 ρmol/L, active malignancyDietary Supplement: Mablet 360 mg twice daily for 12 monthsDietary Supplement: Placebo twice daily for 12 months.Magnesium supplementation reduced VCin CKD by increasing calcium/phosphate solubility in serum, by inhibiting calcium influx into VSMC, by inhibiting intracellular pro-calcification enzymes in VSMC and by increasing activity of intracellular anti-calcification enzymes in VSMCClinicalTrials.gov ID NCT02542319Published in 2022MagnesiumInterventional (completed)Phase: Not Applicable18 Years to 111 Years calcinosis patientsInclusion criteria:Male or female hemodialysis patients ≥ 18 years, HCO3- in venous plasma ≤ 23 mmol/LExclusion criteria:Pregnant or lactating subjects, History of alcohol abuse, illicit drug useReceives MgCl2 first, MgCl2 and Bicarbonate in second phase for 7 weeksResults not providedClinicalTrials.gov ID NCT02621762Published in 2017WarfarinRivaroxabamInterventionalCompleted Phase 318 Years to 80 Years Coronary arterial fibrillation patients (n = 50)Rivaroxaban 15 MG once daily orally + Dual anti-platelet therapy (clopidogrel (75 mg daily, orally) + aspirin (80 mg once daily, orally))Warfarin (to reach an INR goal of 2-2.5) + Dual anti-platelet therapy (clopidogrel (75 mg daily, orally) + aspirin (80 mg once daily, orally))Resolution of left ventricular thrombus at 3 months, the proportion of patients with adjudicated stroke and systemic emboliClinicalTrials.gov ID NCT05705089Published in 2023EDTA- tetracylineObservationalCurrently in recruitment phase18 Years to 80 Years ischemic heart disease (IHD) (n = 200)Diagnostic Test: Blood samplesDiagnostic Test: Collection of right atrial appendage tissue sampleClinicalTrials.gov ID NCT04533282Estimated completion 2025Bisphosphonate (Alendronate)InterventionalCompleted phase 418 Years to 85 Years CKD(n = 50)Inclusion criteria: Subjects with CKD Stage 3 (GFR between 30 and 59 ml/min)Subjects 18 years of age or olderExclusion:Pregnant, Subjects already taking bisphosphonatesDrug: Alendronate70 mg weekly orally for 18 monthsDrug: Placeboweekly orallyChange in degree of arterial stiffness, VC of superficial femoral artery and aorta, bone mineral density, serum calcium and phosphate levelsSymptoms and severity of side effects from alendronate, Episodes of hypocalcemiaClinicalTrials.gov ID NCT00395382published 2009DenosumabInterventionalTerminated phase 4 due to modified study65 Years to 95 Years CKDInclusionCKD stage 5 patient, Patient with osteoporosisExclusion: Patient with a cancer or myeloma, HIVDenosumabPatients receive subcutaneous injection of Denosumab (60 mg) every 6 months for 24 monthsNaCl (0.9%, 1 ml) (placebo)Patients receive a subcutaneous injection of NaCl every 6 months for 24 monthsRelative variation of femoral bone mineral density after 24 months of follow-up.Relative variation of lumbar bone mineral density, coronary calcification scores after 24 months of follow-upAdverse events occuring during the entire study, Relative variation of coronary calcification, abdominal aorta calcification scores after 24 monthsClinicalTrials.gov ID NCT02792413Published in 2023DenosumabDouble-Blind Randomized Controlled TrialPatients > 50 years of age with calcific aortic stenosisInclusion: Patients > 50 years with peak aortic jet velocity > 2.5 m/s and grade 2 to 4 aortic valve calcificationExclusion: Aortic valve surgery in the next 6 months; life expectancy < 2 years; inability to undergo scanning; treatment for osteoporosis with bisphosphonates or denosumabDenosumab 60 mg every 6 months, placebo injection every 6 months, oral alendronic acid 70 mg once weekly.Trial end points after 12 and 24 monthsReduced levels of Serum C-terminal telopeptide by 50% ( 0.1 mcg/l vs. 0.25 mcg/l) but no difference in calcium score between treatment and control[265]ClinicalTrials.gov ID NCT02132026Published in 2021Sevelamer carbonateInterventionalTerminated stage 4 due to low enrolment18 Years and older CKD patientsInclusion: CKD stage 3 or 4, Serum intact PTH < 500 pg/mLExclusion: HIV positive or AIDS,Pregnant or breastfeeding, MI within the last 6 monthsSevelamer carbonate 1,600 mg three times daily with meals for 12 weeksThe primary outcome measure will be the change in fibroblast growth factor FGF-23 concentrationsChange in VCbiomarker levels, endothelial dysfunction biomarker levels, inflammatory biomarker levels [Time frame: 12 weeks]ClinicalTrials.gov ID NCT01277497Published 2016Sevelamer carbonateRandomized, prospective, open-label, parallel group studyFifty patients with CKD (stages 3 and 4)Inclusion: Age more than 18 years,CKD stage 3 or 4 (eGFR 15–60 ml/min/1.73 m^2^), not expected to start dialysis for 8 months, serum intact PTH less than 500 pg/mlExclusion: Patients with diabetes, taking oral steroids, chemotherapy, and radiotherapy, and children below the age of 16 yearsTreatment groups treated with SC 1600 mg three times a day for 12 weeks by oral routeSevelamer treatment resulted in a significant decrease in levels of FGF-23, calcidiol, and calcitriol, whereas FGF-23 and calcitriol remained unchanged, significantly reduced the inflammatory markers IL-6, IL-8, IL-10, CRP, TNFα, and IFN-γLimited baselines parameters due to discontinuation of phosphate binder therapy in study subjects, who had stopped receiving it three weeks before starting the current study medications as part of a washout period[186]ClinicalTrials.gov ID NCT01277497Published 2021
Conclusion
VC refers to the ectopic deposition of HAp in the vasculature, leading to a high rate of cardiovascular mortality, especially in patients with kidney diseases. This paper reviews VC in terms of mechanism, inducers, inhibitors, and the treatments examined in vivo, in vitro, and in clinical studies. Although a considerable effort has been devoted to seeking and developing an efficacious treatment, none has yet been established due to the complex and diverse characteristics of the disease. Nevertheless, several studies have successfully identified the role of important players, which further contributes to understanding the disease pathology, thereby paving the way for advancing the treatment efficacy. For example, chronic inflammation and its characteristic biomarkers such as IL-6 have been suggested as a promising target.
A plethora of studies has indicated the utmost importance of inflammation as it contributes to the initiation and progression of calcification. Aside from apoptosis, inflammation results in the osteogenic trans-differentiation of VSMCs, upregulatingALP, the most considerable promoter of calcification. Therapeutic approaches, including phosphate binders, magnesium, vitamin K supplementation, antioxidants, chelation therapy with compounds like EDTA and STS, as well as inhibitors such as bisphosphonates and denosumab, offer potential strategies for addressingVC. Furthermore, ongoing research on novel treatments, including melatonin, metformin, and other interventions, suggests a promising avenue for future therapeutic development. In addition to the therapeutic options that target inflammation, the positive role of calcium chelators has also been indicated as they can greatly alleviate oxidative stresses by reducing the calcium activity for apoptosis and salt deposition. Clinical trials of few lead therapeutics have shown potential applications for VCsuch as STS and bisphosphonates with minimal side effects. However, regulatory approval needs to be provided by regulatory agencies for human application.
In summary, understanding the mechanisms and potential treatment modalities for VC underscores the need for comprehensive approaches that target both the underlying pathological processes and the intricate regulatory pathways involved. Further research and clinical trials are warranted to validate and optimize these potential treatments, paving the way for more effective management and prevention of VC in various clinical contexts.
