Bioinspired Vascular Bundle Structured Nanocellulose/PVDF-HFP Composite Membranes for Efficient Ion Transport and Stable All-Solid-State Lithium Batteries

TL;DR

A bioinspired nanocellulose composite membrane improves ion transport and stability in all-solid-state lithium batteries.

Contribution

A bioinspired vascular bundle structure in nanocellulose/PVDF-HFP membranes enhances battery performance and stability.

Findings

The composite membrane achieves 2.46 × 10−4 S cm−1 ionic conductivity at 30 °C.

LFP and NCM811 cells retain over 77% and 83% capacity after 1000 and 300 cycles, respectively.

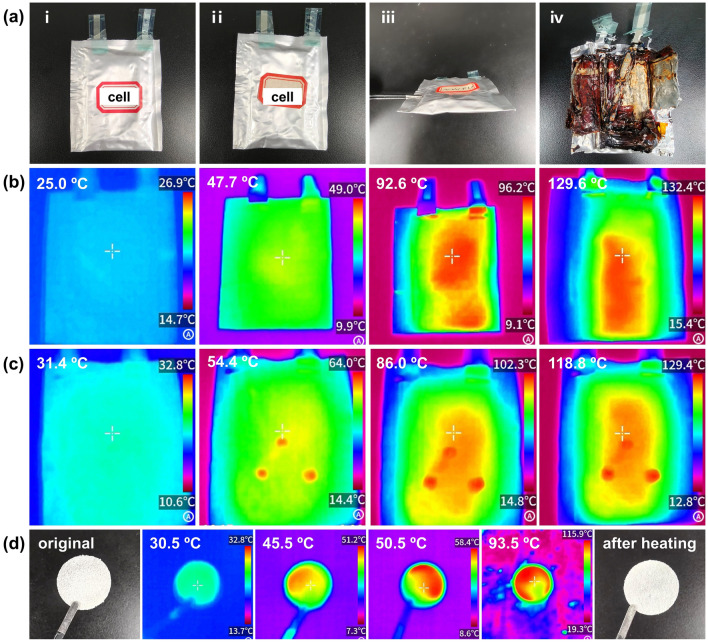

Pouch cells remain stable at temperatures up to 130 °C without thermal runaway.

Abstract

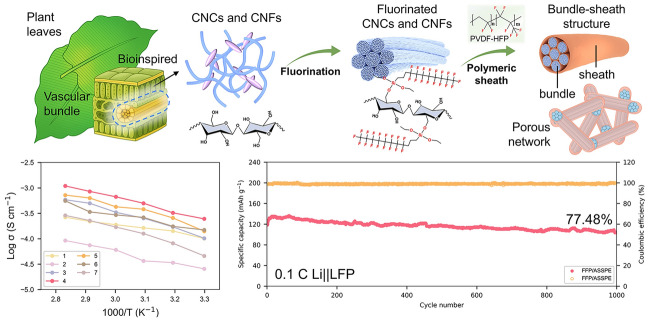

Bioinspired bundle-sheath structure improves electrochemical and thermal stability; nanocellulose composite membranes can be used as high-performance all-solid-state lithium batteries separators.The FFP/ASSPE has a high ionic conductivity of 2.46 × 10−4 S cm−1 at 30 °C.Li|FFP/ASSPE|LFP cells can maintain 77.48% capacity after 1000 cycles at 1 C, and Li|FFP/ASSPE|NCM811 cells maintain 83.94% capacity after 300 cycles of 0.1 C.

Bioinspired bundle-sheath structure improves electrochemical and thermal stability; nanocellulose composite membranes can be used as high-performance all-solid-state lithium batteries separators.

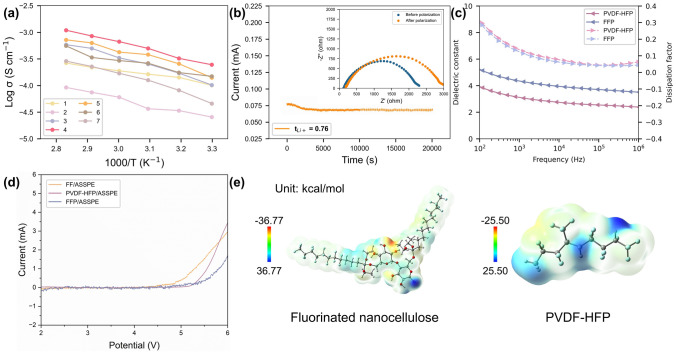

The FFP/ASSPE has a high ionic conductivity of 2.46 × 10−4 S cm−1 at 30 °C.

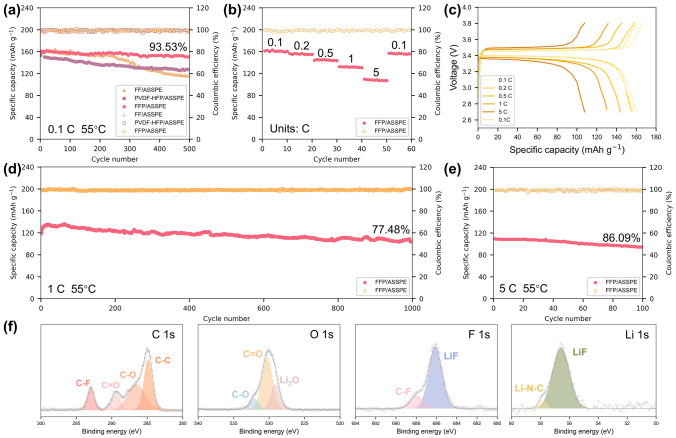

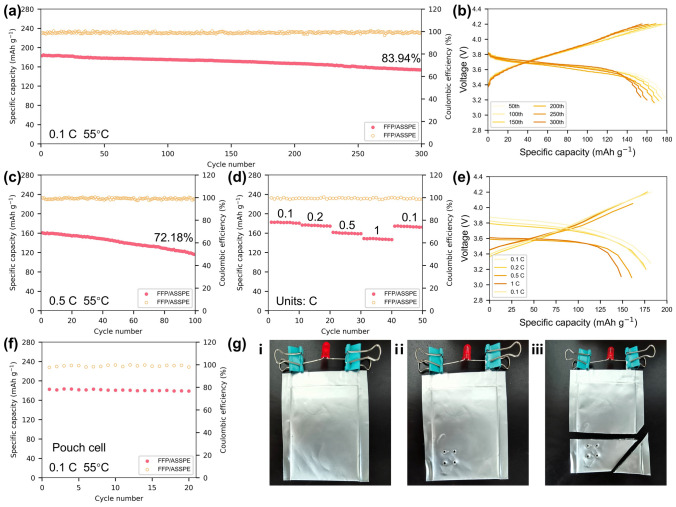

Li|FFP/ASSPE|LFP cells can maintain 77.48% capacity after 1000 cycles at 1 C, and Li|FFP/ASSPE|NCM811 cells maintain 83.94% capacity after 300 cycles of 0.1 C.

The online version contains supplementary material available at 10.1007/s40820-026-02092-0.

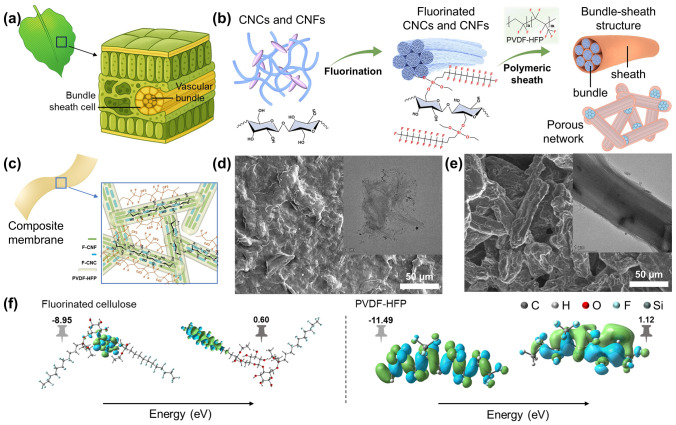

In-situ polymerization of solid-state polymer electrolytes is a promising approach for achieving mass production of all-solid-state batteries. However, inferior ionic conductivity and separator infiltration limit practical applications. Inspired by the nutrient-transporting vascular bundles in plants, a biomimetic fluorinated nanocellulose/PVDF-HFP porous composite membrane of stacked parallel nanocellulose bundles wrapped by PVDF-HFP sheaths is designed and prepared. The nanocellulose bundles assembled of fluorinated cellulose nanocrystals and cellulose nanofibers through shear-induced alignment create low-curvature ion transport channels, while the PVDF-HFP sheath facilitates lithium salt dissociation and reinforces structural stability. Benefiting from this bundle-sheath structure, the composite membrane exhibits excellent ionic conductivity, stability, and electrolyte wettability. The polymer electrolyte prepared with this composite membrane has a high ionic conductivity of 2.46 × 10−4 S cm−1 (30 °C), an electrochemical stability window (5.3 V), and cycle stability. Consequently, Li||LFP cells can retain a superior capacity of 77.48% after 1000 cycles at 1 C, and Li||NCM811 cells can maintain 83.94% capacity after 300 cycles at 0.1 C. Moreover, pouch cells can withstand temperatures up to 130 °C without thermal runaway. This biomimetic strategy provides a promising pathway to advance cellulose separators for high-performance all-solid-state batteries.

The online version contains supplementary material available at 10.1007/s40820-026-02092-0.
