Early experience with next-generation wireless technology for detecting cochlear implant electrode tip fold-over and placement without X-ray: nucleus SmartNav
Chang-Hee Kim, Bong Jik Kim, Jung Kyu Lee, Byung Yoon Choi
TL;DR
This study shows that SmartNav technology can detect cochlear implant electrode tip fold-over as effectively as X-ray, without radiation or long anesthesia.
Contribution
SmartNav provides a novel, radiation-free alternative to X-ray for real-time detection of electrode tip fold-over during cochlear implantation.
Findings
SmartNav detected all 8 tip fold-over cases confirmed by X-ray with 100% sensitivity and 99.21% specificity.
SmartNav identified a subtle distal kink that X-ray might have missed.
The technology performed reliably in cochlear nerve deficiency cases and under local anesthesia.
Abstract
To evaluate the effectiveness of the SmartNav technology in detection of the well-known phenomenon of tip fold-over (TFO) during cochlear implantation (CI) using slim modiolar electrode (SME), comparing it to intraoperative X-ray imaging. In 134 ears with normal anatomy that underwent CI using SME at a tertiary center, SmartNav results were compared to intraoperative X-ray findings, with X-ray used as the gold standard for verifying TFO. SmartNav identified all 8 TFO cases (100% sensitivity, 99.21% specificity) confirmed by X-ray, including one with subtle distal kinking that X-ray could have missed. Additionally, SmartNav technology was effective in cases with cochlear nerve deficiency and performed reliably under local anesthesia and in revision surgeries. SmartNav offers a highly sensitive and reliable method for detecting TFO during CI at least in normal cochlear anatomy,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3- —Seoul National University Hospital
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHearing Loss and Rehabilitation · Hearing, Cochlea, Tinnitus, Genetics · Ultrasound Imaging and Elastography
Introduction
The cochlear implant (CI) is surgically implanted electrically stimulating neural prosthetic device, and have been proven to be an effective rehabilitation option for severe-to-profound hearing loss. The growing use of CIs for hearing rehabilitation has been driven by technical advancement including electrode technology, and correct placement of electrode array within the scala tympani is crucial for better postoperative outcome. The gap between electrode array and auditory nerve fibers may cause shunting of the current, reducing the selectivity of electrical stimulation. In an effort to improve the electrode-nerve interface, the modiolar hugging electrodes have been introduced [1–4]. These electrodes encircle the modiolar wall during insertion, positioning them in the closest vicinity of the spiral ganglion neurons. Although these perimodiolar electrodes ensure more focused excitation, decreased stimulation thresholds and energy consumption, they may cause insertion trauma due to their large size, leading to translocation into the scala vestibuli and electrode kinking or folding [3, 5].
To overcome these drawbacks, thinner, more flexible, and atraumatic slim modiolar electrodes (SMEs) were designed, aiming to minimize cochlear damage while maintaining modiolar proximity. SMEs have been reported to demonstrate advantages in hearing preservation and speech perception [5–7]. However, SMEs are more susceptible to tip fold-over (TFO) because the thinner and more flexible the perimodiolar electrodes, the higher the likelihood of premature unloading before reaching the cochlear curvature [1, 4]. It was reported that the incidence of TFOs was 1.4–6.5% in SMEs compared to 0.005% in lateral wall electrode arrays [8]. TFOs may elicit significant disadvantages, preventing optimal outcomes. The effective insertion length of the electrode is reduced in TFOs, resulting in diminished stimulation of the mid- and low-frequency regions within the cochlea [9, 10], and stimulation of the folded tip leads to a mismatch of tonotopic information and channel interaction [11]. Furthermore, TFOs may cause intrinsic damage to the intracochlear structures and an inflammatory response in the cochlear duct, resulting in intracochlear ossification or a reduced number of spiral ganglion neurons [12, 13]. Inadequate intracochlear excitation in TFOs may potentially causes unexpected issues such as audiological discomfort, vertigo, tinnitus, and co-stimulation of the facial nerve [14, 15].
Thus, intraoperative detection of TFO is crucial for the best postoperative outcome. Among various radiological options including X-ray, cone-beam temporal bone computed tomography (TBCT), and fluoroscopy, X-ray is the most commonly used intraoperative diagnostic tool for verifying electrode placement due to its wide availability, low cost, relatively quick procedure, and low radiation exposure. However, in spite of these advantages over other imaging modalities, the issues regarding the duration of general anesthesia and surgery-related infection may still be a weakness of intraoperative X-ray. In addition to X-ray, electrophysiological measures can also be employed during surgery to offer real-time feedback on electrode arrays. CI manufacturers provided protocols for measuring electrically stimulated action potentials to determine the functionality of implanted device and auditory nerve responses to the stimulus. Although these measures can objectively evaluate individual electrode responses during surgery and confirm the functionality of the array, they cannot solely ensure the array's correct placement.
The Cochlear™ Nucleus® SmartNav System, a wireless intraoperative measurement tool using electrode voltage telemetry (EVT) was introduced in 2022. This system employs a sterile-dressed processor connected via Bluetooth to an Apple iPad, and conducts a placement check of electrode arrays using a proprietary trans-impedance matrix (TIM) algorithm. To investigate the proper electrode positioning, SmartNav System analyzes electrical currents between intracochlear and extracochlear electrodes. The TIM is produced by repeated measurements at each electrode contact, and the TIM displays a decrease in intracochlear potential as the distance from the stimulating electrode increases in case of a correctly positioned electrode array. When TFO occurs, the TIM reveals a secondary peak in intracochlear potential [16].
This study investigated the usefulness of SmartNav in detecting the presence of TFO intraoperatively compared to conventional X-ray measurement and also evaluated whether the use of Nucleus SmartNav would also be applicable in cases such as revision surgeries, local surgeries or cochlear nerve deficiency.
Patients and methods
Subjects
Among all 145 consecutive ears where CI was performed using the CI632 electrode at a single tertiary referral center between July 2024 and January 2025, cases with cochlear anomalies (n = 11) were excluded. Resultantly, a total of 134 consecutive ears from 98 patients (38 men and 60 women, 5 months–76 years old, with a mean age of 29.3 years), were included in this study. There were 36 bilateral implants and 62 unilateral implants. There were 65 cases of CI performed on the right side and 69 cases on the left side, respectively. The procedures were performed by a single surgeon, and Cochlear Nucleus CI632 (Cochlear Limited Cochlear Headquarters, Australia) were used in all cases. Only patients with normal appearance of cochlea on preoperative imaging studies were included in the present study.
Intraoperative methods and data analysis
The CP1150S Surgical Processor was wrapped in a sterile vinyl bag, and positioned on the patient’s skin directly over the receiver-stimulator. Then, the CP1150S Surgical Processor was paired to Nucleus SmartNav System via Bluetooth, and SmartNav Live Diagnostics were activated. The electrode arrays were inserted via a conventional round window or extended round window approach, and SmartNav System recorded electrode insertion speed.
After the completion of the electrode insertion, all patients underwent intraoperative x-ray scans in the operating room to verify the electrode tip placement, as recommended [17, 18]. The presence of TFO was determined based on the initial X-ray images. In cases with TFO at the initial X-ray, the electrode was retracted, reloaded, and reinserted until confirmation of correct electrode placement in the final X-ray scans. The impedance, electrode placement and electrically evoked compound action potential (ECAP) were checked using SmartNav system. When measuring ECAP responses, referred to as ‘neural response telemetry (NRT)’ using SmartNav technology, if responses could not be detected on more than two channels, the conventional method was also employed to measure ECAP responses to validate the efficacy of ECAP measurement of SmartNav technology. Statistical analysis was performed using IBM SPSS Statistics Program (Ver. 29.0, IBM). This study was approved by the Institutional Review Board of Seoul National University Bundang Hospital (No. B-2503–958-103).
Results
It was possible to verify ECAP responses and to check electrode placement using SmartNav technology for all 134 ears (98 patients) with normal cochlear anatomy where CI632 was inserted. Four cases which underwent CI even under local anesthesia tolerated SmartNav measurement. During impedance checks using SmartNav, open circuits were detected in four ears. In these cases, the conventional impedance check method was used to reverify the presence of open circuits, and the same results were confirmed. Open circuit was resolved by reloading followed by reinsertion in 2 ears and replacing them with backup devices in 2 ears.

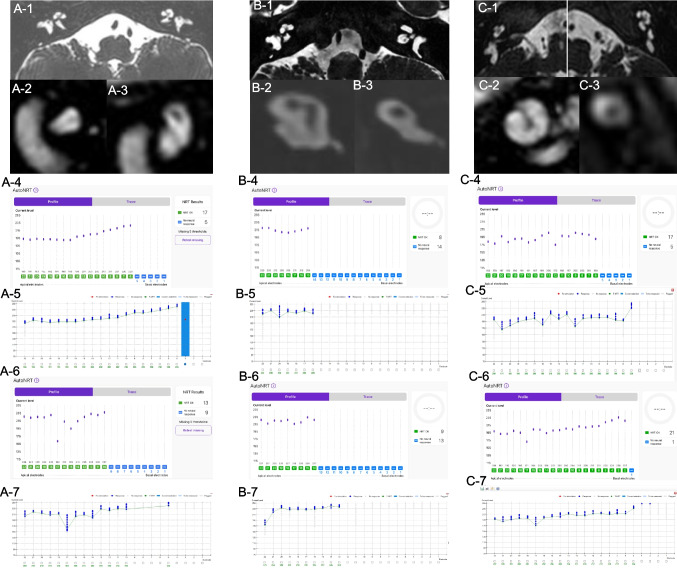

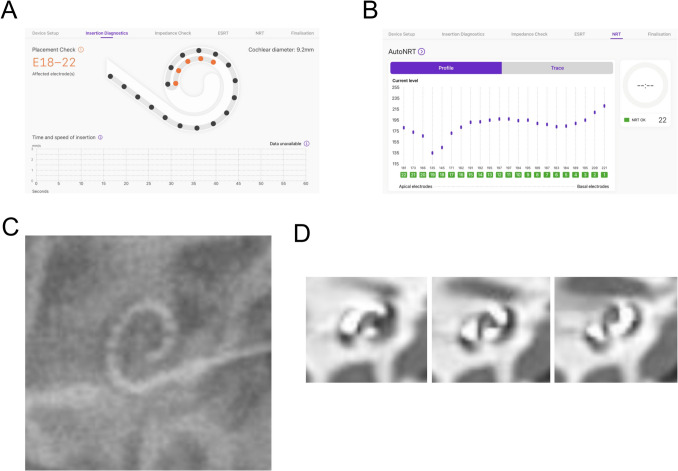

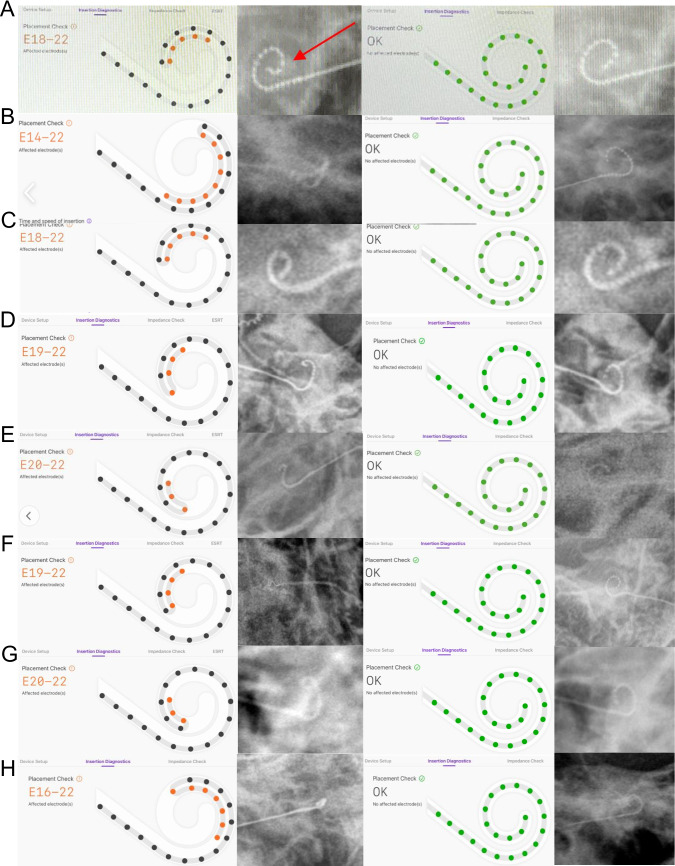

Regarding the detection of TFOs, the results of SmartNav were compared to X-ray images for each case with X-ray consistently used as the gold standard for determining TFO. In SmartNav, a TFO was defined as an abnormal finding in the placement check results, specifically when channel 22 was not positioned distal to channel 21 or channel 20 along the trajectory. Then, as previously described [17], we performed intraoperative X-ray scans on all patients in the operating room to confirm the position of the electrode tip. The detailed procedure is as follows: After electrode insertion, a placement check is first performed using SmartNav. Regardless of the SmartNav results, an intraoperative X-ray is subsequently taken. ECAP measurements are conducted only if both the SmartNav assessment and intraoperative X-ray yield normal findings. If a TFO is identified during the SmartNav placement check and this finding is confirmed on the intraoperative X-ray, the electrode is withdrawn, reloaded, and reinserted. A repeat placement check is then performed, and if the findings are normal, a follow-up intraoperative X-ray is used to confirm that the TFO has been corrected. Only then is ECAP measurement performed. Conversely, if the intraoperative X-ray shows no evidence of TFO and appears normal, ECAP measurements proceed without reinsertion. Among 134 ears, X-ray images verified electrode TFO in 8 cases (6.0%; Table 1). Of 8 cases with TFO, 4 were right-sided and 4 were left-sided implants. The TFO was also identified by SmartNav in all 8 ears. In one case, SmartNav successfully detected even the mildest form of TFO, tiny kinking of the distal electrode (Fig. 1A), which might have been easily overlooked without its assistance, even with a very meticulous review of the X-ray alone. The other 7 cases showed a classic TFO (Fig. 1B to H). In all of these 8 cases with TFO, reloading and reinsertion of the electrodes was performed in a way previously suggested to correct TFO [17]. Correction of TFO of electrodes was also verified by both SmartNav and X-ray image after reinsertion (Figs. 1A to H, third and fourth panels). In one patient, while the SmartNav showed TFO (Fig. 2A), X-ray image revealed normal configuration of the electrode (Fig. 2C), which was confirmed by postoperative coronal view of TBCT (Fig. 2D) (Table 1). Resultantly, the sensitivity and specificity of SmartNav for detection of TFO in the cochlea with normal anatomy was 100% (95% CI: 67.56% - 100%, power: 38.9%) and 99.21% (95% CI: 95.64% - 99.86%, power: 66.1%), respectively. The positive predictive value (PPV) of the SmartNav was 88.9% (power: 26.5%) and the false negative rate (FNR) was 0%.Table 1. Comparison of SmartNav to X-ray for detection of electrode tip fold-overSmartNav (n = 134)NormalTip fold-overX-ray (n = 134)Normal1251Tip fold-over08Fig. 1A tip fold-over (TFO) detected by SmartNav system. Eight cases (A to H) are demonstrated. A TFO was detected in the initial SmartNav system (first panels, A to H), which is confirmed by X-ray images (second panels, A to H). After reloading and reinsertion, correct placement of electrodes within the cochlea is verified by both SmartNav (third panels, A to H) and X-ray images (fourth panels, A to H). Note that a tiny kinking of the distal electrode (red arrow, second panel of A), which might have been overlooked when relying solely on X-ray for detection, is detected by SmartNav system (first panel of A). For the second panel of Fig. 1F, we acknowledge that the resolution is suboptimal. To enhance visual clarity, particularly in the electrode channel regions, we have added white dots to mark the positions of individual channelsFig. 2A case of false positive tip fold-over (TFO) in the SmartNav system. (A) The electrode placement check by SmartNav demonstrates TFO. (B) The NRT measurement shows normal ECAP in all 22 electrode channels. (C) The X-ray image reveals correct spiral curve of electrode array within the cochlea. (D) Coronal views of postoperative TBCT demonstrate correct positioning of electrode array
