Investigating the timing behavior of compton scattering in BGO for time-of-flight PET
Minseok Yi, Daehee Lee, Alberto Gola, Stefano Merzi, Michele Penna, Simon R Cherry, Jae Sung Lee, Sun Il Kwon
TL;DR
This study examines how inter-crystal scattering affects timing accuracy in BGO-based time-of-flight PET detectors and proposes strategies to mitigate its impact.
Contribution

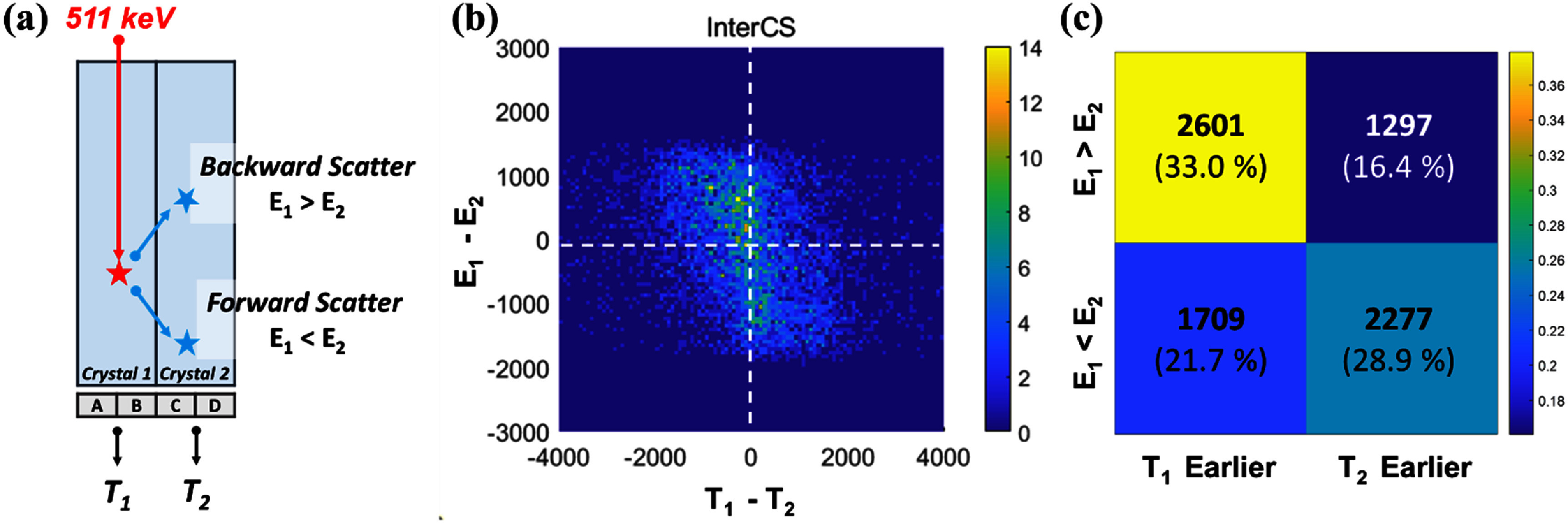

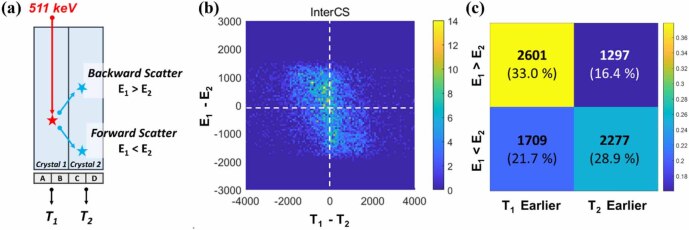

The work introduces a method to experimentally assess and mitigate timing degradation caused by inter-crystal scattering in pixelated BGO detectors.
Findings

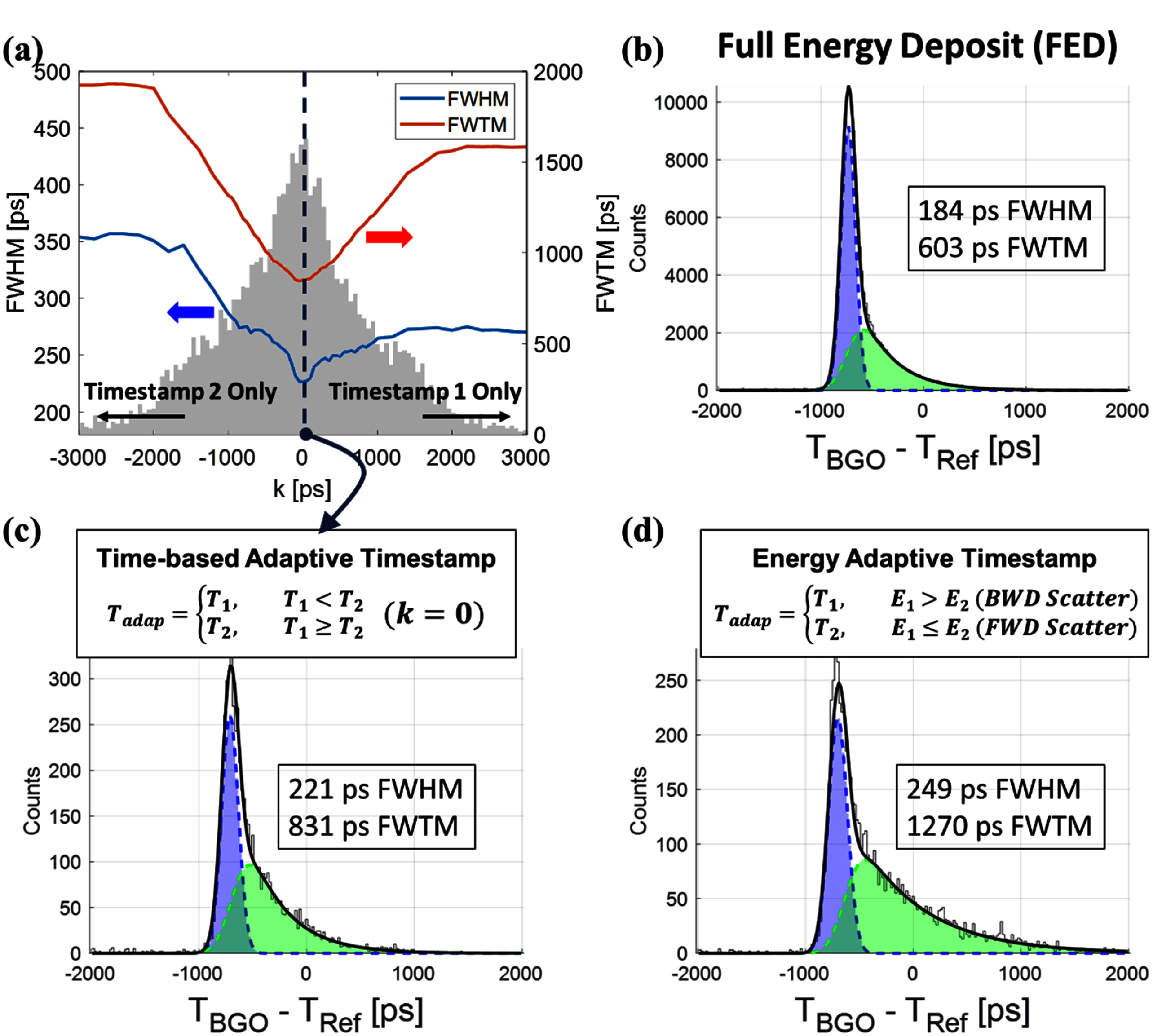

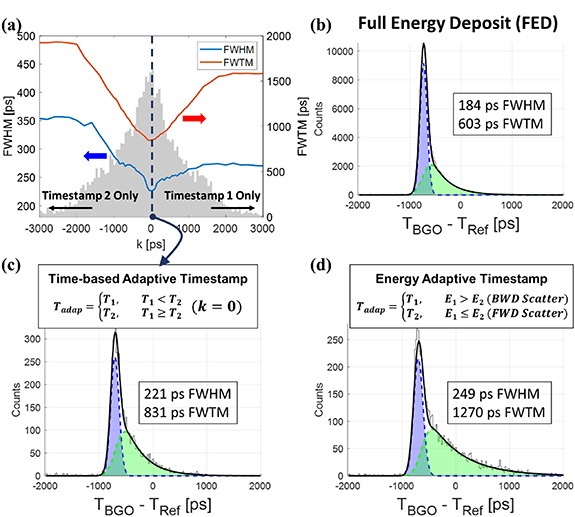

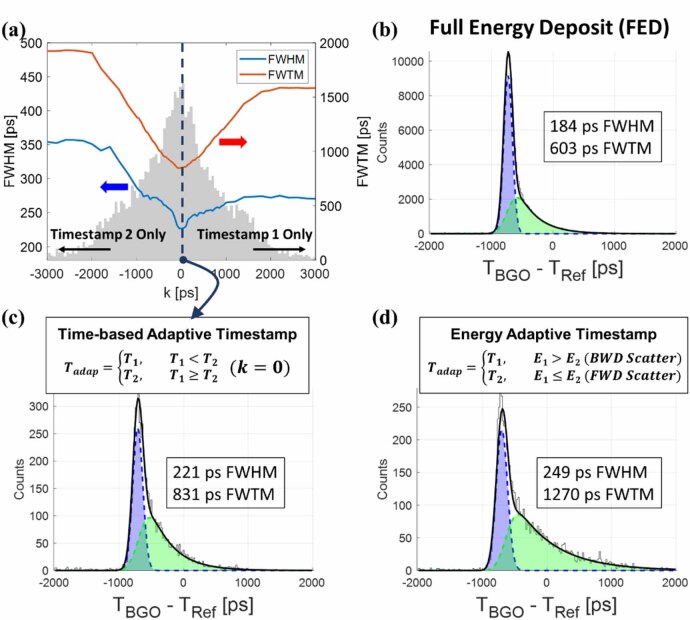

InterCS events showed a 221 ps FWHM timing resolution, worse than FED events at 184 ps FWHM.

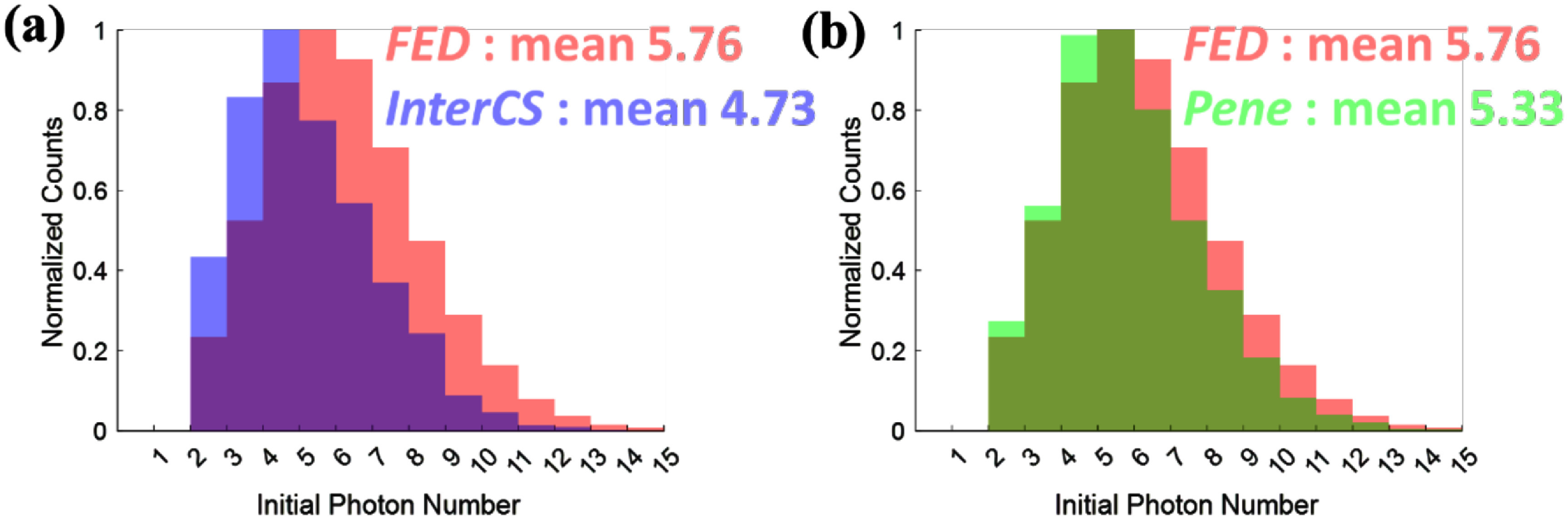

InterCS events had a 4.73 average prompt photon yield in the first 1 ns, compared to 5.76 for FED events.

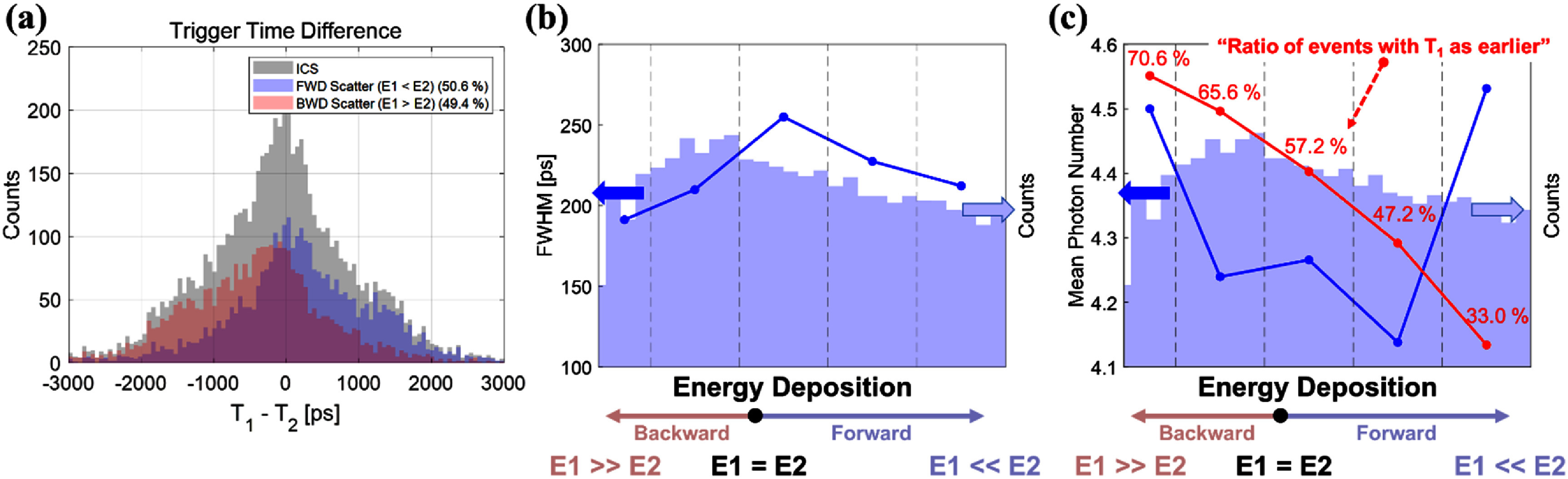

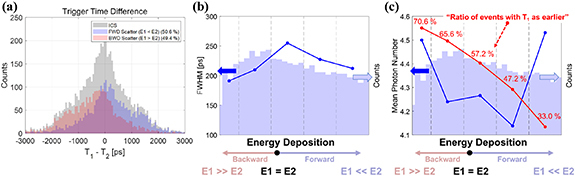

Energy-based timestamp selection was found to be suboptimal for maintaining timing accuracy.
Abstract

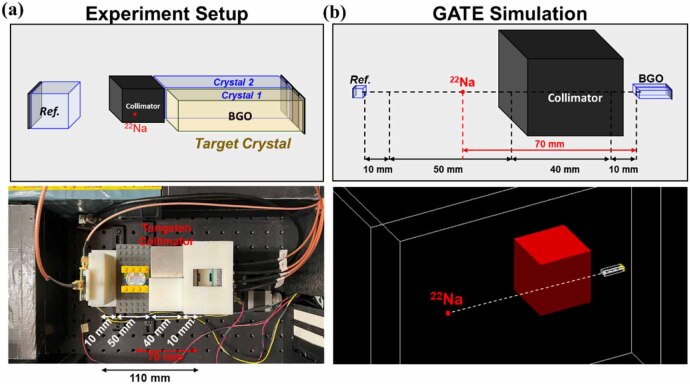

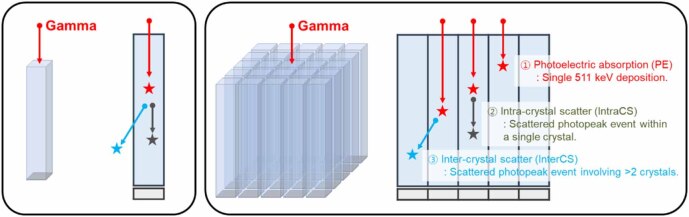

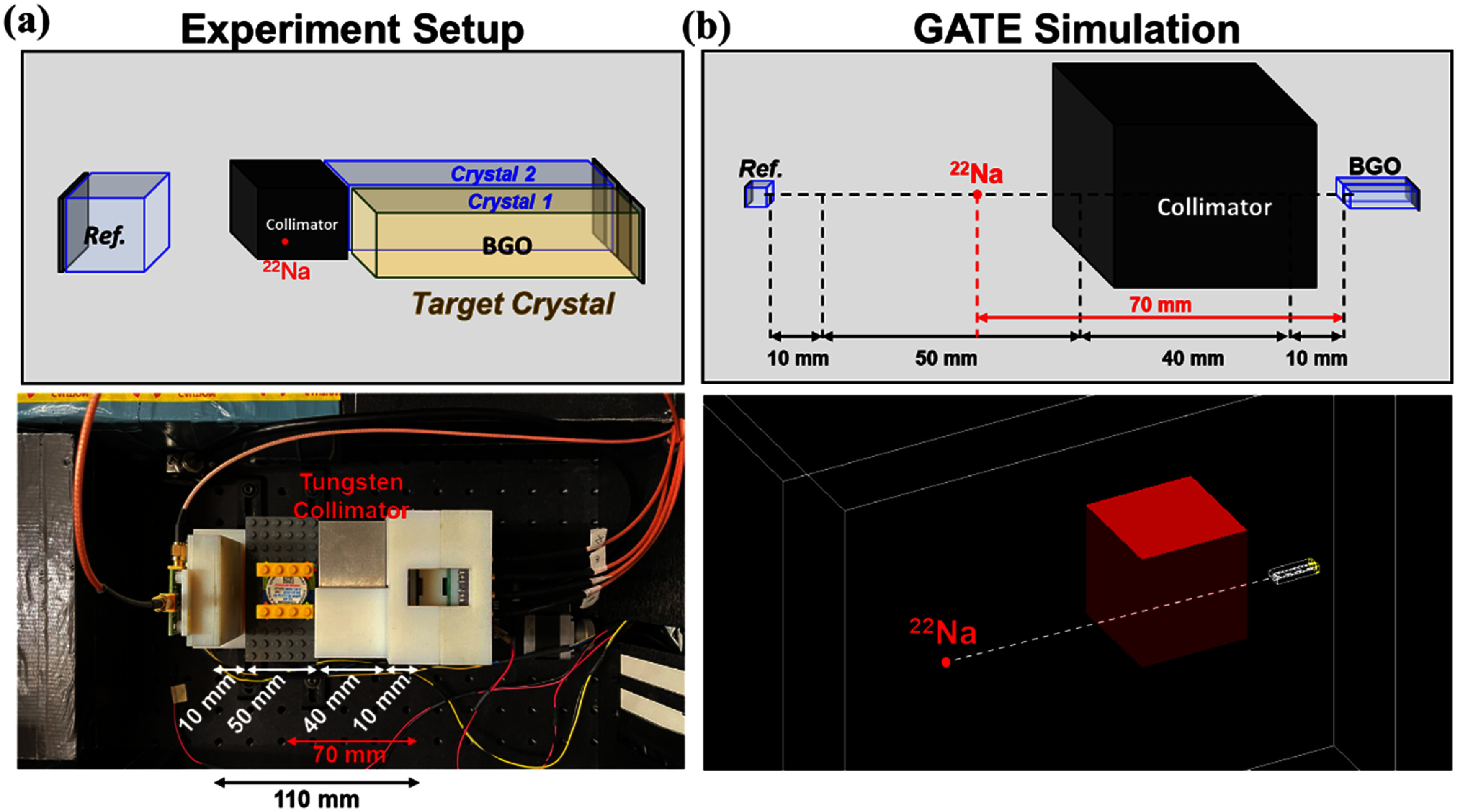

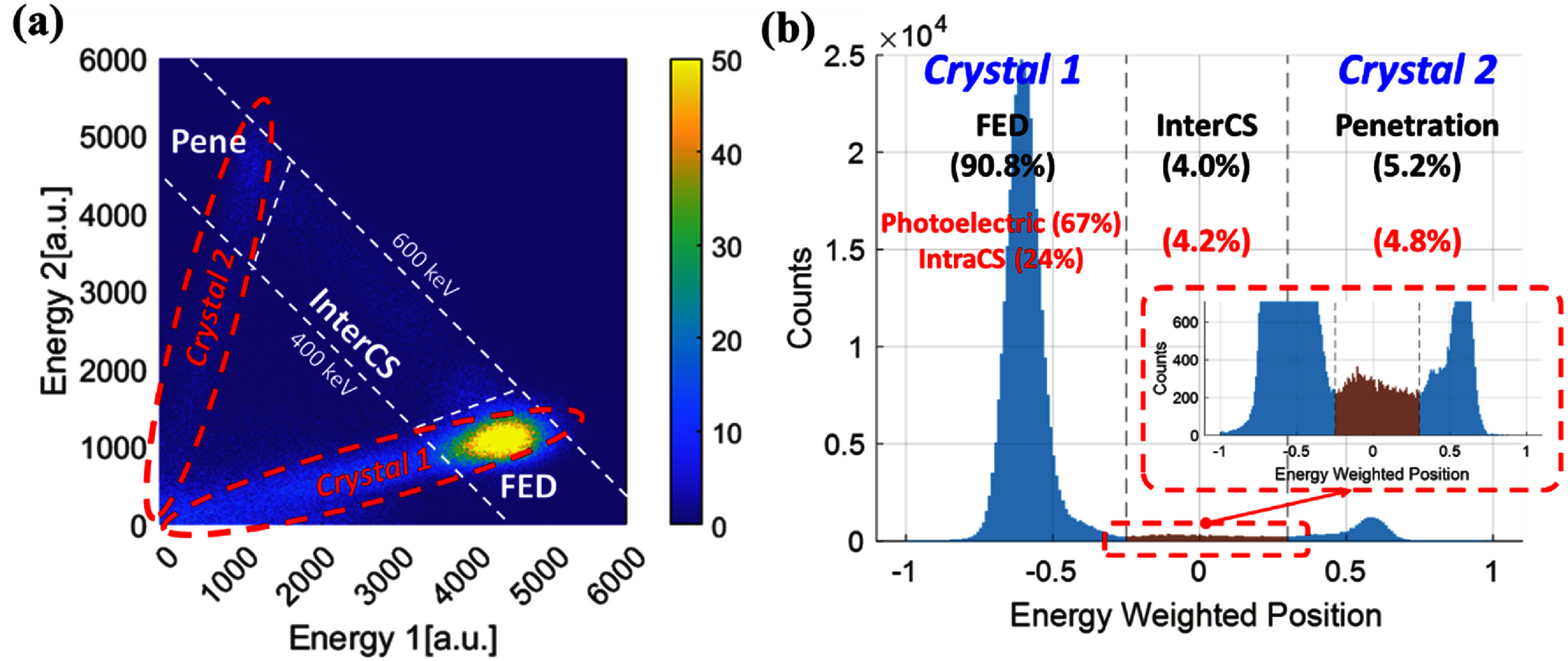

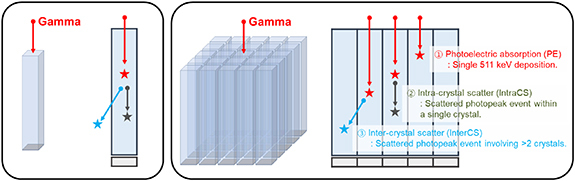

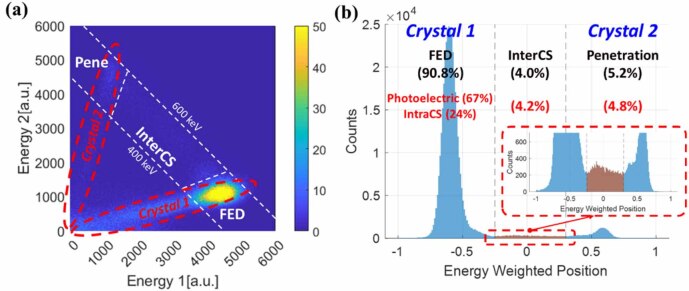

Objective. Bismuth germanate (BGO) has regained attention as a promising material for hybrid Cherenkov/scintillation time-of-flight positron emission tomography (TOF-PET). While excellent timing performance has been demonstrated in single-crystal studies using prompt Cherenkov photons, practical pixelated detector modules introduce appreciable inter-crystal scattering (InterCS) events that can degrade timing accuracy. The objective of this work was to experimentally investigate the impact of InterCS on Cherenkov-based timing in pixelated BGO detectors and to identify optimal timestamp selection strategies. Approach. A dual-pixel BGO detector was constructed and coupled to a segmented SiPM readout to enable spatially resolved energy and timing measurements. Events were classified into full-energy deposition (FED); primary crystal 511 keV absorption), InterCS, and penetration categories…
