Nonlinear viscoelastic models improve characterisation of 6 DOF intervertebral disc load response at low strain rates
Samantha Hayward, Patrick S. Keogh, Anthony W. Miles, Sabina Gheduzzi
TL;DR
Nonlinear viscoelastic models better capture the behavior of spinal discs under low-rate loading compared to traditional linear methods.
Contribution
A new method using nonlinear viscoelastic models is introduced for more accurate spinal disc load response characterization.
Findings

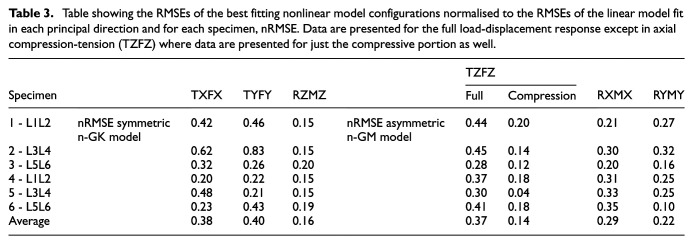

Nonlinear models reduced RMSE by 60% compared to linear stiffness models.

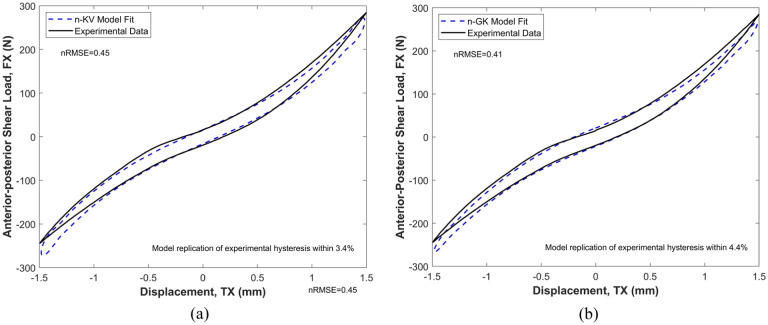

Nonlinear models replicated experimental hysteresis area within 17%.

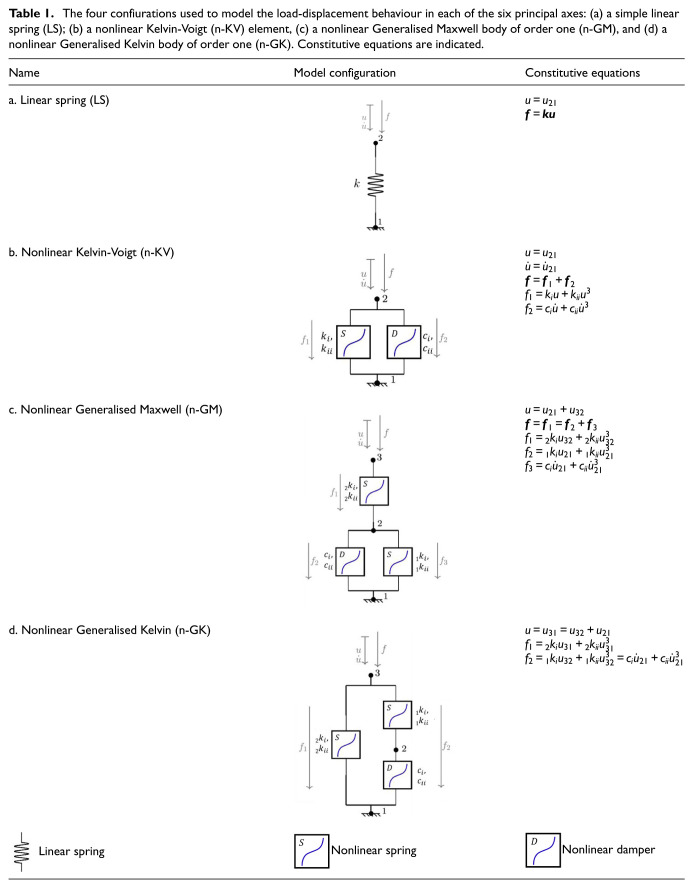

Three-element nonlinear viscoelastic models effectively capture key load response features.
Abstract

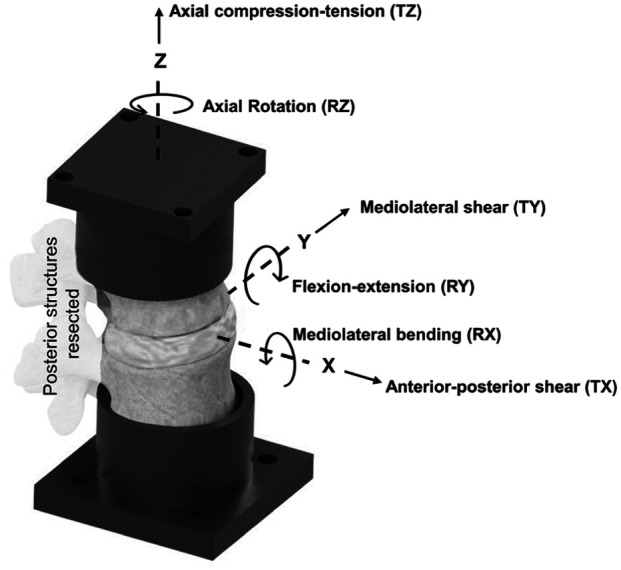

Graphical abstract The viscoelastic characteristics of the intervertebral disc (IVD) govern spinal response to applied dynamic loading which is important in understanding how the spine responds to loads experienced in everyday activity. The common method of reporting experimental load response data in terms of linear stiffnesses represents a significant oversimplification of this behaviour. This study presents a method yielding substantially increased accuracy for principal direction load-displacement response of porcine lumbar spine segments. It compares quality of fit to experimental data of nonlinear viscoelastic models and the typical linear stiffness method. Experimental load response data were recorded from six porcine lumbar spine segments tested under 6 DOF cyclic displacement control at low strain rates (0.1 Hz). Model spring and damper coefficients were determined using an…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

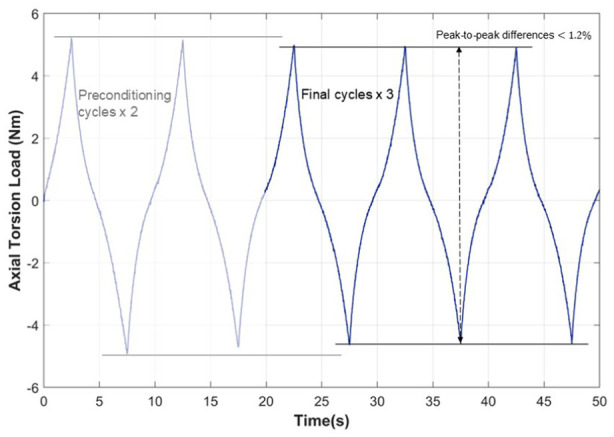

Figure 2
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5

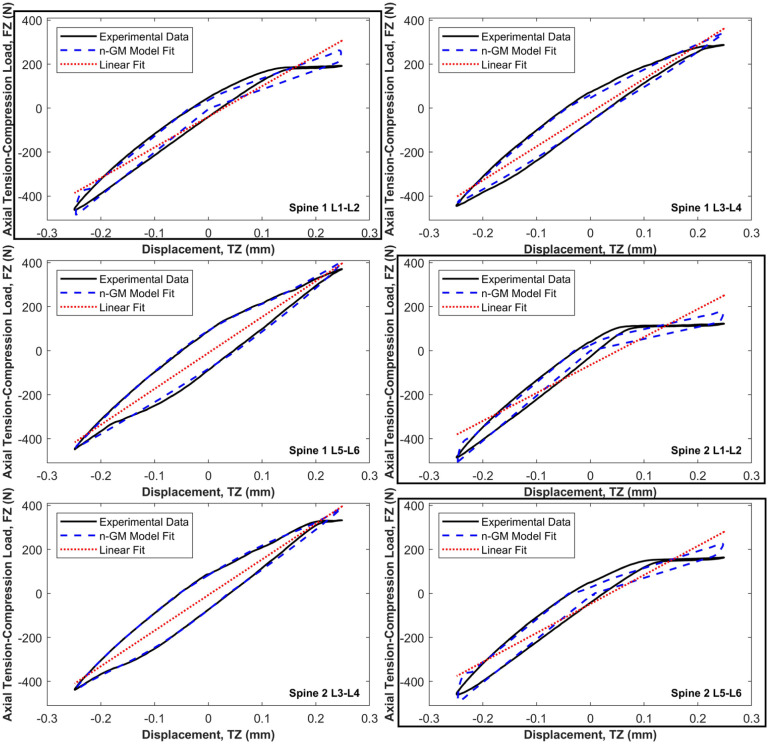

Figure 6
Figure 9
Figure 10

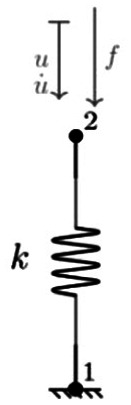

Figure 11
Figure 12
Figure 13

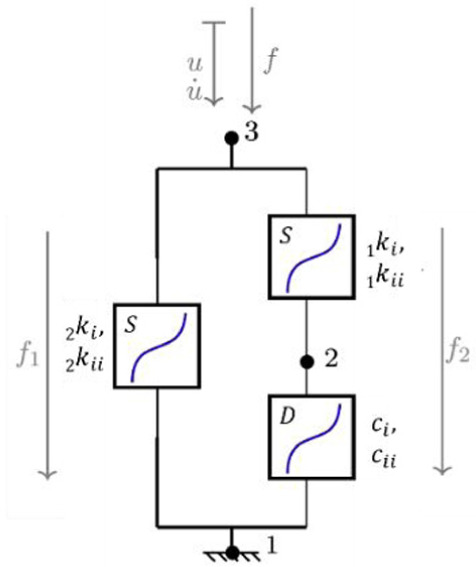

Figure 14
Figure 15
Figure 16
Figure 17
Figure 18

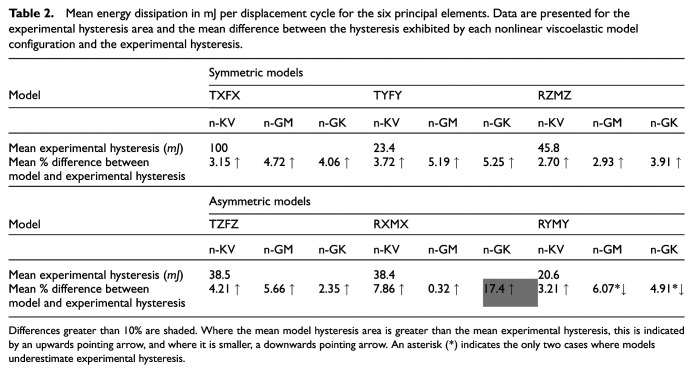

Figure 19
Figure 20
Figure 21

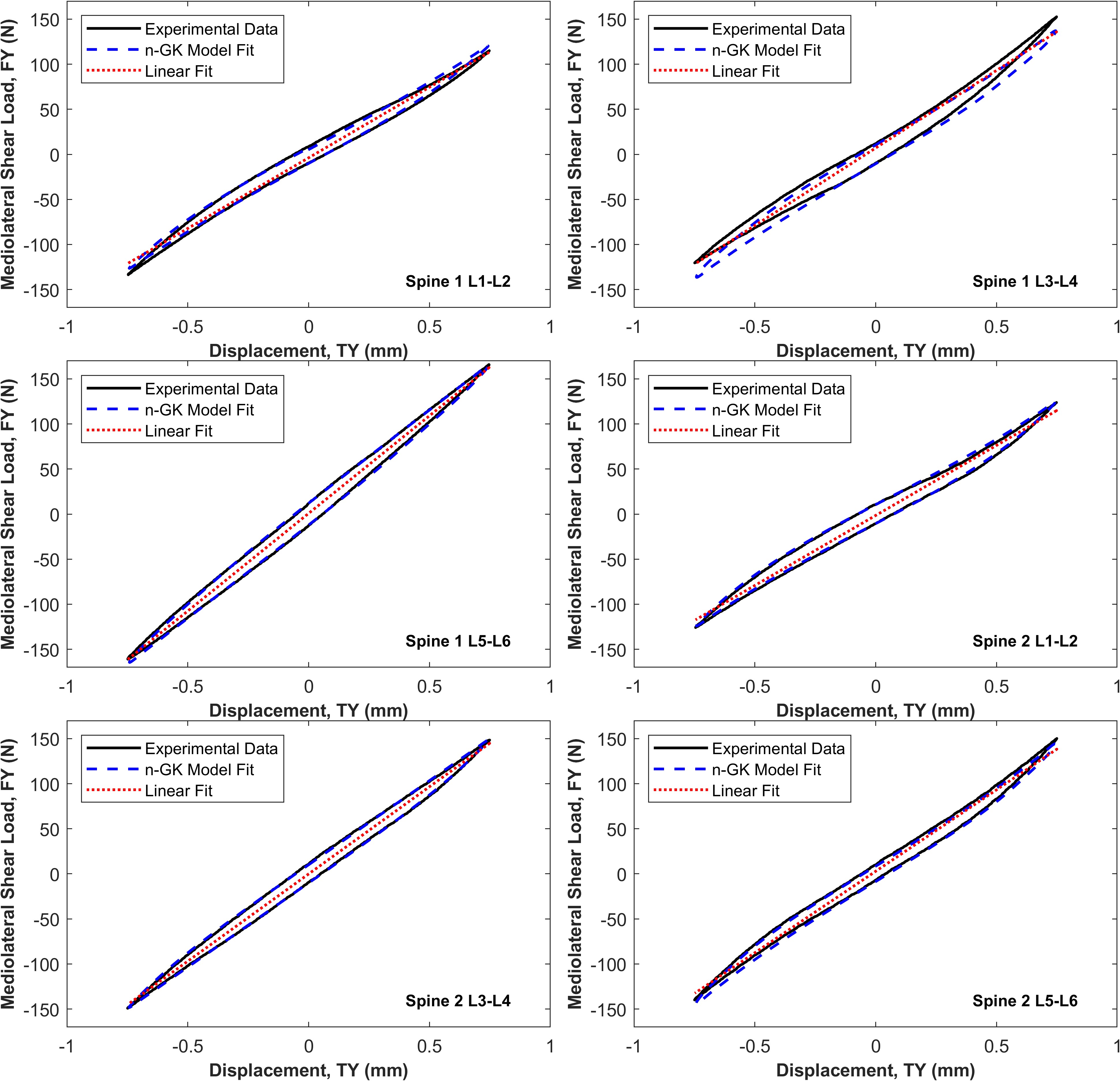

Figure 22

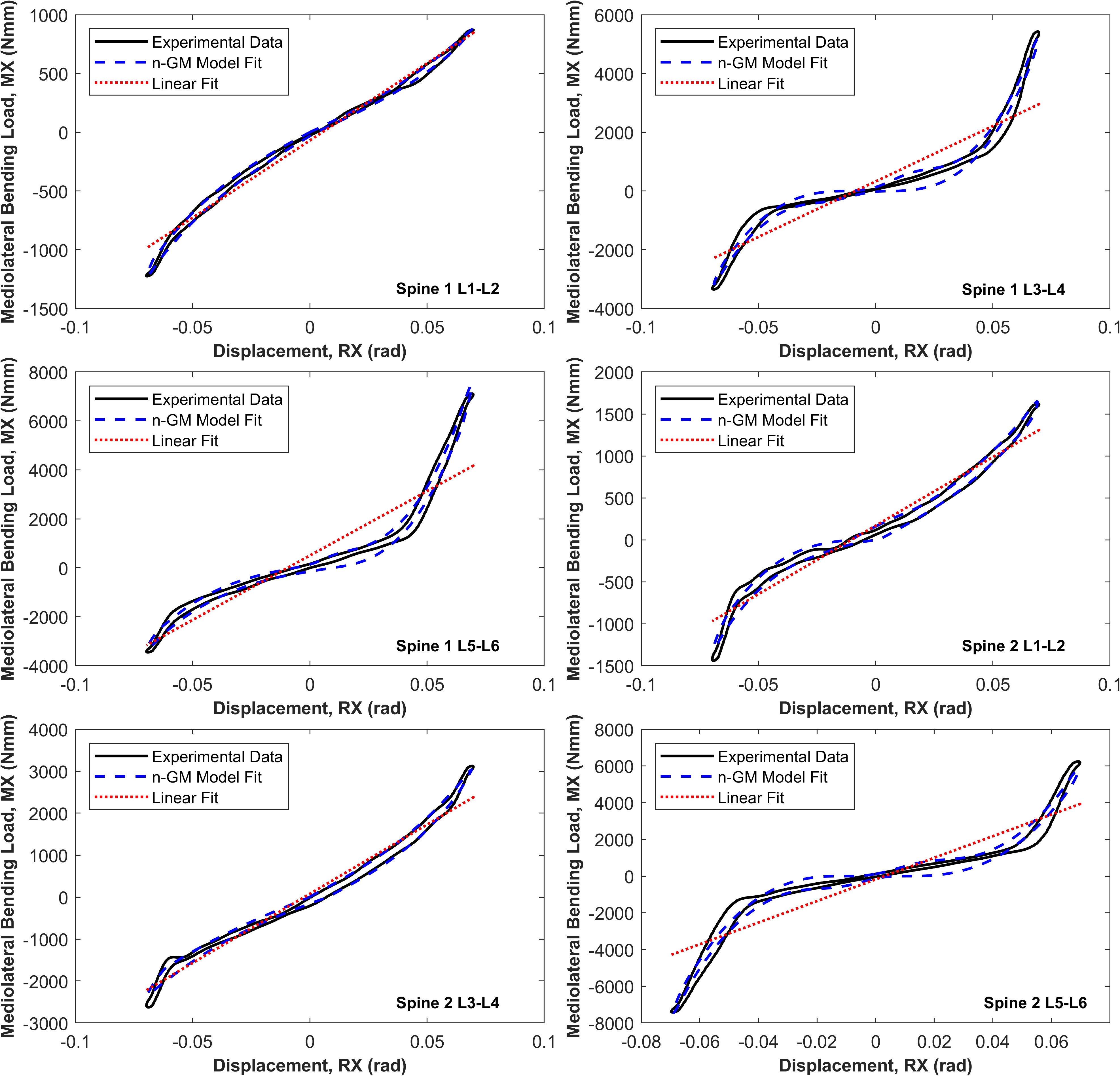

Figure 23Peer Reviews
