Diagnostic Utility of Prominent Mid-Precordial Lead Voltage in a Pediatric Population
Michael White, Mark Gormley, Erick Jimenez, Michael Evans, Bradley Clark
TL;DR
This study explores how high voltage in specific ECG leads may help identify congenital heart disease in children.
Contribution
The study identifies a potential ECG voltage threshold in mid-precordial leads for detecting CHD in pediatric patients.
Findings
A QRS voltage of 60 mV in mid-precordial leads correlates with CHD in children.
CHD patients had significantly higher mean maximum QRS voltages than controls.
A cutoff of 92.5 mV showed 100% specificity for CHD.
Abstract
ECG criteria for diagnosing chamber enlargement has poor predictive value. Elevated voltages in mid-precordial leads may have clinical utility and we hypothesized that ECGs with a single mid-precordial voltage ≥ 60 mV correlate with congenital heart disease (CHD) in a pediatric cohort. This was a retrospective analysis of pediatric ECGs at the University of Minnesota from 2006 to 2021. Included patients had a single mid-precordial lead (V2-V5) QRS voltage ≥ 60 mV and an echocardiogram within 1 month. ECG parameters including rhythm, atrial enlargement, axis deviation, hypertrophy criteria and echocardiogram findings were evaluated. Of 122 patients (mean 1.6 ± 2.5 years, 62% male), seventeen (14%) (mean 2.5 ± 3.0 years) had normal anatomy and 105 (86%) (mean 1.5 ± 2.4 years) had CHD. Mean maximum QRS voltage was 75.9 ± 13.5 mV with a significantly higher mean maximum voltage in the CHD…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCardiac Arrhythmias and Treatments · Cardiac pacing and defibrillation studies · Congenital Heart Disease Studies
Introduction
The ECG remains a vital yet limited tool in assessing cardiac disease, particularly regarding voltage criteria for chamber hypertrophy and enlargement. These limitations are highlighted in the pediatric population where normal dynamic physiology affects cardiac chambers over time, contributing to differences in normal ECG values based on age. The majority of available studies assessing the predictive utility of ECGs involve patients with normal anatomy and typically target isolated ventricular hypertrophy or lack modern anatomical validation tools. Notably, the Katz-Wachtel phenomenon described by, L.H. Katz, MD and H. Wachtel, MD demonstrates a biphasic QRS complex with greater than 50 mV in the mid-precordial leads or a summation of R and S wave amplitudes greater than 60 mV in leads V3 or V4 were associated with biventricular hypertrophy, and declared pathognomonic for CHD before ultrasound technology was available [1].
Elevated precordial lead voltages are detected frequently in modern ECG screening algorithms, and biphasic QRS complexes with increased total voltage may be found in patients with structurally normal hearts. However, the utilization of these findings has not yet been demonstrated in a cohort of congenital heart disease (CHD) patients. Available research lacks characterizations of specific ECG criteria with confirmatory echocardiography, especially in a range of pediatric age groups. We hypothesize that ECGs with a single mid-precordial lead voltage ≥ 60 mV will correlate with the diagnosis of CHD in a pediatric cohort.
Methods

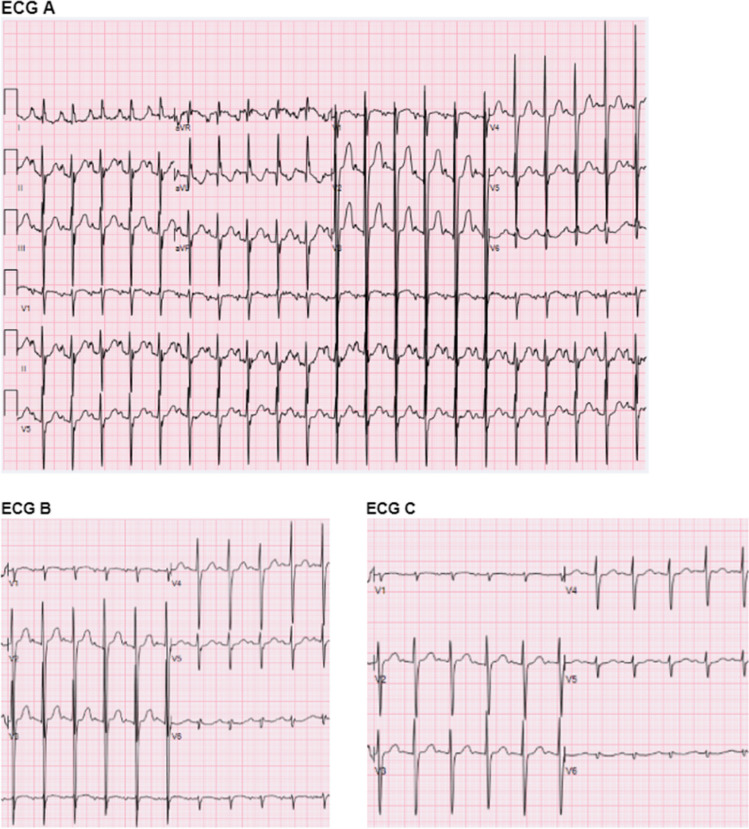

This study was approved by the Institutional Review Board at the University of Minnesota. We performed a retrospective analysis of all pediatric (age < 18 years) ECGs performed at the University of Minnesota from 2006 to 2021 via the Muse (GE Healthcare, Chicago, IL) ECG reading software database. Included patients had a single mid-precordial lead (V2-V5) containing a QRS voltage ≥ 60 mV in magnitude, an example demonstrated in Fig. 1, and an echocardiogram performed at our institution within 1 month of the ECG. Of the 352 ECGs evaluated, 122 met inclusion criteria. Each ECG performed was completed at a paper speed of 25 mm/second on the x-axis and voltage in millivolts (mV) on the Y axis. All ECGs and echocardiograms were confirmed by a pediatric cardiologist. Those with a history of orthotopic heart transplant or known cardiomyopathy or metabolic disease were excluded. Patients with a small atrial communication or patent ductus arteriosus were considered normal. Chart review to validate ECG and echocardiogram findings was performed using the electronic medical record. ECG parameters including rhythm, atrial enlargement (AE) criteria, QRS axis deviation (AD) and separate ventricular hypertrophy (VH) criteria and echocardiographic parameters including CHD diagnosis and M-mode measurements, when available, were collected. Definitions of each parameter were defined by age specific criteria and adjudicated by the reading pediatric electrophysiologist [2]. Patient characteristics were summarized using counts and percentages or means and standard deviations, and compared between CHD and normal anatomy using Fisher's exact test or the Wilcoxon rank-sum test. A receiver operating characteristic (ROC) curve was constructed to examine the sensitivity and specificity for CHD of various maximum QRS voltage thresholds. Analyses were conducted using R version 4.2.2.Fig. 1ECG with standard (ECG A), ½ (ECG B) and ¼ (ECG C) gain precordial leads of an 18 month old female with Hypoplastic Left Heart Syndrome variant with apical hypoplasia. Max voltage of 129 mV in V3
Results

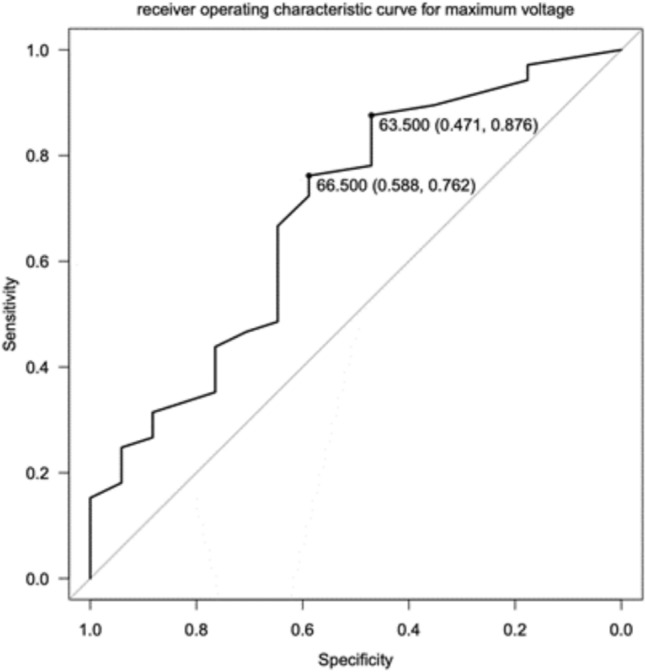

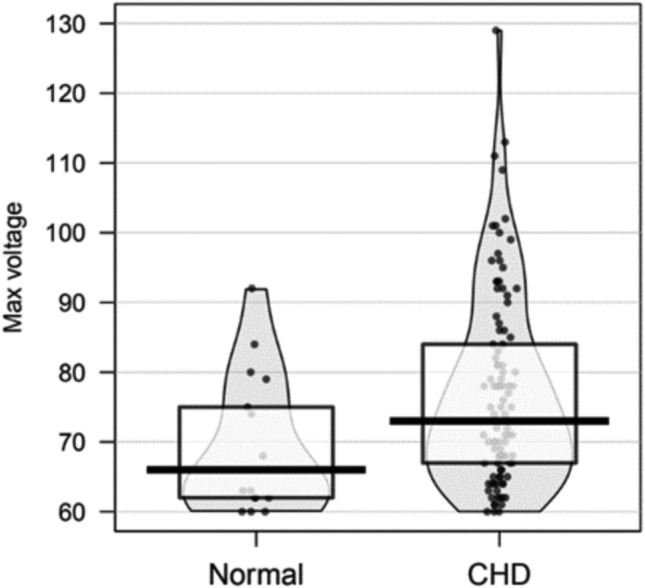

Our study included 122 patients (mean 1.6 ± 2.5 years, 62% male). Seventeen (14%) patients (mean 2.5 ± 3.0 years) had normal anatomy and 105 (86%) patients (mean 1.5 ± 2.4 years) had evidence of CHD confirmed via echocardiogram, with ventricular septal defect (n = 36, 30%) being the most common lesion. The mean maximum QRS voltage for the cohort was 75.9 ± 13.5 with a significantly higher mean maximum voltage in the CHD versus normal anatomy group (77.0 ± 13.7 vs 69.2 ± 9.7 mV, p = 0.012), shown in Fig. 2. A receiver operating characteristic (ROC) curve for maximum QRS voltage was created with an AUC of 0.691 (95% CI 0.546—0.835) demonstrated in Fig. 3. A cutoff value of 66.5 mV had the highest combination of sensitivity (76%) and specificity (59%) in our model and a value of 92.5 mV had a specificity of 100% for diagnosis of CHD. Table 1 demonstrates the sensitivity and specificity of patients that had evidence of AD, AE or VH in combination with mid-precordial lead voltage ≥ 60 mV. Overall the sensitivity of combinations were low, specificities were high including all combinations with AD having specificity of 100%.Fig. 2. Distributions of max voltages in the normal anatomy and CHD groups, including the medians (black bars), interquartile ranges (boxes), and individual observations (dots). Mean maximum QRS voltage for the cohort was 75.9 ± 13.5 with a significantly higher mean maximum voltage in the CHD versus normal anatomy group (77.0 ± 13.7 vs 69.2 ± 9.7 mV, p = 0.012). Although CHD was more present at higher voltages, its presence overlaps with voltages of normal hearts demonstrating the ECGs clinical limitations when used alone and the utilization of a 60 mV cutoffFig. 3The ROC curve, plotting sensitivity against specificity, helps give thresholds of diagnostic value with the better performing tests being top and left, maximizing sensitivity and specificity. With our cohort the threshold of 66.5 mV maximizes the sum of sensitivity (76%) and specificity (59%). CHD rates were 71% (25/35) and 92% (80/87) in patients below and above the 66.5 mV threshold. When using the conditional inference tree approach, we identified a threshold of 63.5 mV; this had higher sensitivity (88%) but lower specificity (47%), and CHD rates of 62% (13/21) and 91% (92/101) in those below and above this threshold. Despite having less than ideal sensitivity and specificity for clinical practice, these data show CHD is meaningfully present, within a clinical context, in patients with mid-precordial ECG voltages of ≥ 60 mV reiterating the need for confirmatory testing of the possible presence of CHD, when seen on an ECGTable 1Sensitivity and specificity of various ECG finding and combinations including axis deviation (AD), atrial enlargement (AE) and ventricular hypertrophy (VH) in isolation and combination in addition to the 60 mV cutoffCriteriaNSensitivitySpecificityAD390.3710.882AE260.2480.941VH80.0760.941AD and AE130.1241AD or AE520.4950.824AD and VH50.0481AD or VH420.40.824AE and VH20.0191AE or VH320.3050.882AD and AE and VH20.0191AD or AE or VH550.5240.765When any combination of multiple ECG findings are present, sensitivity tends much lower, yet this gives 100% specificity, and therefore a higher likelihood of CHD identification with an ECG aloneWhen either criteria were present, sensitivity increased at the expense of sensitivity
