The biogeochemical transport by the Gulf Stream
Richard G. Williams, Peter J. Brown, Yohei Takano, Gaël Forget, Dani Jones, Anna Katavouta, Elaine McDonagh, Vassil M. Roussenov
TL;DR
The Gulf Stream carries nutrient-rich, low-anthropogenic carbon water to the subpolar North Atlantic, enhancing carbon uptake from the atmosphere.
Contribution
The paper introduces the concept of a 'biogeochemical stream' within the Gulf Stream and its role in the carbon cycle.
Findings
Particles in dense layers of the Gulf Stream reach the subpolar gyre, enhancing carbon drawdown.
Model experiments show a 4 to 8-year timescale for connecting upstream dense waters to the subpolar region.
Climate change may reduce the delivery of nutrient-rich, carbon-depleted waters to the subpolar mixed layer.
Abstract
The Gulf Stream is important for the climate system through its transport and air-sea exchange of heat. What is less well accepted is the role of the Gulf Stream in the carbon cycle. Here we examine how the Gulf Stream provides a “biogeochemical stream”, a sub-surface horizontal flux carrying waters with high concentrations of nutrients and low concentrations of anthropogenic carbon. Model experiments reveal particles released in dense layers at the start of the Gulf Stream follow trajectories extending into the subpolar gyre, while particles released at the surface are confined to the subtropics. Following a pathway to the subpolar gyre, the biogeochemical stream carries older, nutrient-rich and anthropogenically carbon-depleted waters along density layers and, when those dense layers outcrop into the mixed layer, enhances the subpolar drawdown of atmospheric carbon. This connectivity…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8- —501100000270RCUK | Natural Environment Research Council (NERC)
- —100000104National Aeronautics and Space Administration (NASA)
- —100000893Simons Foundation
- —European Union under grant agreement no. 101083922 (OceanICU) and UK Research and Innovation (UKRI) under the UK government’s Horizon Europe funding guarantee [grant number 10054454, 10063673, 1006402
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsOceanographic and Atmospheric Processes · Marine and coastal ecosystems · Coastal wetland ecosystem dynamics
Introduction
Climate projections suggest that natural carbon sinks involving the global ocean and land are expected to diminish in their effectiveness in curbing the rise of atmospheric CO_2_^1,2^. The global ocean response to carbon emissions is widely viewed as being a consequence of surface warming leading to reduced solubility and increases in local stratification^3^ that reduce ventilation and vertical nutrient supply. However, this viewpoint ignores the crucial role of western boundary currents in redistributing older waters around ocean basins with elevated concentrations of nutrients and depleted concentrations of anthropogenic carbon.
The North Atlantic is one of the most effective locations in the global ocean for carbon uptake from the atmosphere and long-term carbon storage: north of 25*°*N, the region accounts for 23% of global air-sea CO_2_ fluxes and 15% of the global anthropogenic carbon inventory, despite covering only 7% of the surface area^4–6^. This uptake of atmospheric CO_2_ is connected to extensive surface heat loss^7^ and biological carbon drawdown over the North Atlantic (Fig. 1). The surface heat loss is a consequence of the northward delivery of warm, surface waters, while the biological production is a consequence of the northward supply of nutrients^8^, so that both are affected by the Atlantic Meridional Overturning Circulation. Air-sea CO_2_ fluxes over the North Atlantic are then potentially susceptible to impacts of circulation change and Arctic freshwater discharge.Fig. 1. Gulf Stream environment.Surface fields for the North Atlantic: (a) sea surface temperature (°C), (b) dynamic height (m) and (c) sea surface density - 1000 (kg m^−3^), for December 2022 (from Operational Mercator global ocean analysis and forecast system^53^ at 1/12^o^ horizontal resolution) with in (b) red arrows providing a schematic view of western boundary flows and blue arrow the North Atlantic Current; (d) net air to sea heat flux (negative is ocean heat loss) for December 2022 at 1/4° resolution^54^ (W m^−2^); (e) winter surface nitrate^55^ (μmol kg^−1^); (f) annual surface nitrate drawdown (from winter to summer contrast)^72^ (μmol kg^−1^); (g) annual sea-to-air CO_2_ flux at 1^o^ resolution (mol m^−2^yr^−1^) (positive is out of the ocean, negative is into the ocean) for 2019^56^, which is separated into (h) thermal and (i) biophysical components.
The Gulf Stream is a major part of the upper limb of the Atlantic Meridional Overturning Circulation. While the role of the Gulf Stream in the northward transport of heat is widely recognised, its contribution to mitigating human-driven atmospheric carbon increases is not. The Gulf Stream provides a sub-surface redistribution of nutrients and waters depleted in anthropogenic carbon over the North Atlantic, which is here referred to as a “biogeochemical stream”. This biogeochemical role of the Gulf Stream is relevant to the wider issue of how the ocean carbon system responds to climate change^9^.
The role of the Gulf Stream for heat and nutrient transfer is next reviewed, followed by an assessment of the effect of the Gulf Stream on the carbon cycle, by considering the biogeochemical properties in the Florida Straits, their downstream trajectories and property evolution over the North Atlantic. The sensitivity of the subpolar carbon content to upstream transport of carbon is then examined through new adjoint model experiments. Finally, future possible changes in carbon uptake from the atmosphere for the North Atlantic are separated into competing contributions from the rising atmospheric CO_2_ and climate change (encapsulating changes in temperature, stratification and circulation). Our viewpoint of biogeochemical streams affecting the ocean carbon sink is relevant where there are similar western boundary currents and separated jets in the rest of the global ocean.
Gulf Stream and the climate and carbon system
Gulf Stream and heat transfer
The Gulf Stream is widely viewed as being important in the climate system through its release of heat to the atmosphere^10^ and transport of heat within the ocean^11–14^ (Fig. 1a, d). The Gulf Stream advects warm tropical waters along the western boundary of the North Atlantic, separates from the coast at Cape Hatteras and its extension transports warm waters into the rest of the basin; the Gulf Stream extension after passing the Grand Banks is called the North Atlantic Current^15^ (Fig. 1b).

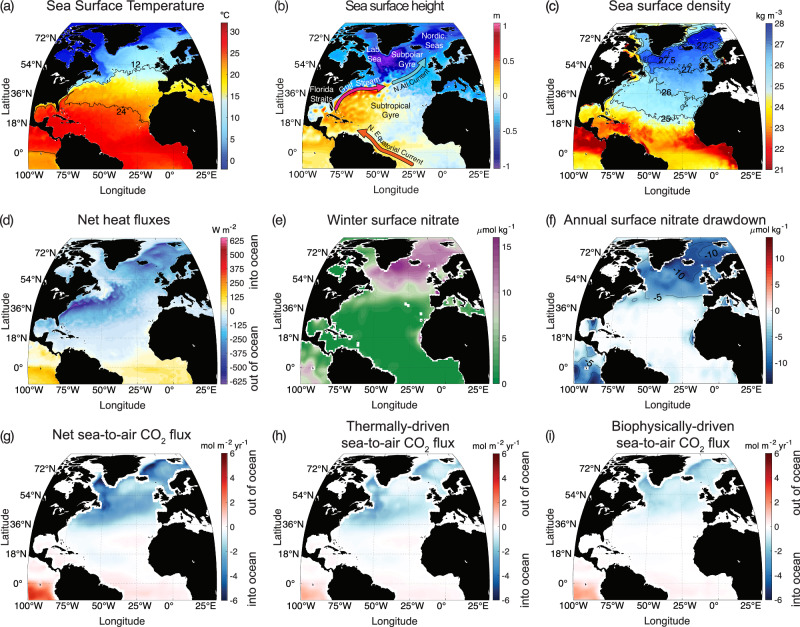

Over the Gulf Stream extension, there is a maximum in the net heat loss to the atmosphere (Fig. 1d) and the strong sea surface temperature gradient across the fast-flowing current helps localise atmospheric storm tracks^16,17^. The transport of the Gulf Stream is made up of the return flow of the wind-driven subtropical gyre circulation, augmented by tight local recirculations^18^, plus the northward upper flow of the meridional overturning circulation^13,19^. The Gulf Stream makes a crucial contribution to ocean heat transport by being part of the upper limb of the meridional overturning circulation, which carries warm water northward and colder deep water southward^20^. This heat transfer is important in warming the atmosphere with typically half of the ocean heat carried by the meridional overturning circulation at 25°N being taken up by the atmosphere by 50°N^14,21^. This ocean transport and release of heat to the atmosphere^22^, augments the seasonal heat release from the ocean to the atmosphere^23^, and together contributes to the mild winter climate of western Europe.
While the effect of the Gulf Stream on the climate system has had extensive investigation, there has been less attention on its effect on biogeochemical cycles, such as on basin-scale patterns in annual nutrient utilisation (Fig. 1f) and annual air-sea CO_2_ exchange over the North Atlantic (Fig. 1g), which includes both thermal and biological contributions (Fig. 1h, i). We next address the role of the Gulf Stream in transporting nutrients and then the redistribution of carbon; these effects together may be viewed in terms of a biogeochemical stream.
Gulf Stream and downstream nutrient transfer
The Gulf Stream is recognised as providing a nutrient transport over the basin, referred to as a “nutrient stream^24,25^. To explain this phenomenon, consider observations along 36.5°N, where the separated Gulf Stream is characterised by having fast surface velocities reaching greater than 1.5 m s^−1^ (Fig. 2a).Fig. 2. Nutrient Stream from observations of the separated Gulf Stream.Observations of the nitrate transport by the Gulf Stream^26^ across a section at 36.5°N in May 2005. a geostrophic velocity (m s^−1^); (b) nitrate (μmol kg^−1^); (c) and (d) Horizontal nitrate flux along the Gulf Stream (mmol s^−1^m^−2^) versus depth (m) and potential sigma, σθ (kg m^−3^), evaluated from the product of (a) and (b). Potential density contours included from 26 to 27.8 kg m^−3^ in (a) to (c). The inset shows the dynamic height^53^ (m) together with the section (black line).
While there is a clear sea surface temperature signal across the Gulf Stream, there is little contrast in surface nutrient concentrations (Fig. 1e). The nutrient stream of the Gulf Stream is defined by the horizontal flux of nutrients, from the product of the horizontal velocity and nutrient concentration (Fig. 2a, b), and has a subsurface maximum^26^ at depths of between 300 m and 700 m and in a potential density range from σθ= 26.5 to 27.5 kg m^−3^ (Fig. 2c, d). The nutrient stream provides a nutrient communication pathway over the basin^24,25,27^.

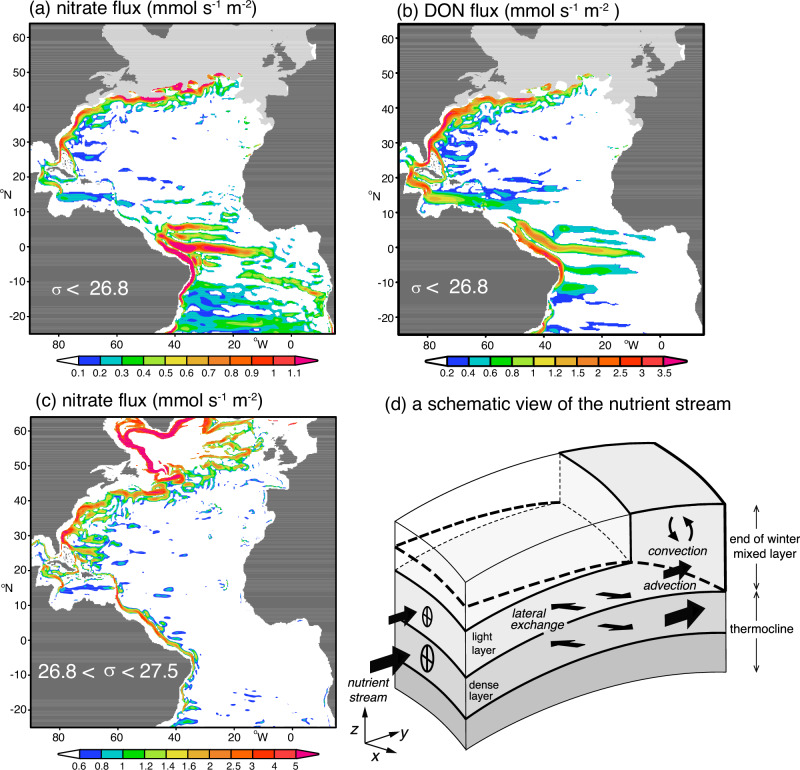

The downsteam pathway of the nutrient stream is evident in an eddy-permitting model solution, revealing maxima in the horizontal nitrate and dissolved organic nitrogen fluxes extending along the Gulf Stream within the subtropical gyre for light density layers (Fig. 3a, b) and extending into the subpolar gyre for dense layers^26^ (Fig. 3c).Fig. 3. Nutrient Stream over the Atlantic basin from an eddy-permitting model^26^.a horizontal nitrate flux (mmol s^−1^m^−2^) integrated over density layers less than σ = 26.8 kg m^−3^; (b) horizontal dissolved organic nitrogen (DON) flux (mmol s^−1^m^−2^) for the same layers as in (a); and (c) horizontal nitrate flux (mmol s^−1^m^−2^) for density layers integrated over 26.8 < σ < 27.5 kg m^−3^. The modelled horizontal nitrogen flux is from an isopycnic model (MICOM) with 0.23^o^ horizontal resolution coupled with a biogeochemical model. The associated meridional transports across the basin and a global schematic are shown in Fig. S1. In (d), a schematic figure of a nutrient stream (black arrow) transferring nutrients within a series of density layers (shaded) lying within the thermocline into the downstream mixed layer at the end of winter (base denoted by thick dashed line), where convection redistributes the nutrients in the vertical^73^. The nutrient stream within a light layer remains confined within the subtropical gyre, while the nutrient stream in denser layers passes into the subpolar gyre and provides a nutrient input into the subpolar mixed layer.
The nutrients carried in the nutrient stream consist of preformed nutrients (defined as being supplied from the mixed layer) originating mainly from outside the subtropics^28^ and regenerated nutrients supplied from biological fallout and regeneration; the preformed nutrients themselves are primarily supplied from mode and intermediate waters^29^ originating from the Southern Ocean (Fig. S1d).
The nutrients in the nutrient stream are transported within density layers that eventually outcrop at the surface, either with light layers outcropping over the northern flank of the subtropical gyre or denser layers outcropping in the subpolar gyre^26,30^ (Fig. 3d). This outcropping then transfers the nutrients into the winter mixed layer^29^, ultimately helping to sustain high-latitude biological productivity (Fig. 1e, f).
In summary, the nutrient stream^24^ provides a mechanism to supply nutrients to the winter mixed layer^29^ of the subpolar gyre and so helps sustain biological productivity there^25,31^. This nutrient transport mechanism is consistent with a tracer-based view that nutrient supply from the Southern Ocean^32^ ultimately sustains the biological productivity of the northern basins.
Gulf Stream and downstream carbon transfer
Drawing upon the role of the Gulf Stream in transporting nutrients, we next consider the effect of the Gulf Stream on the redistribution of carbon. Start by considering observations in the Florida Strait at 27 *°*N on the western boundary of the North Atlantic. The Florida Current, forming the start of the Gulf Stream by the coast, carries high concentrations of nutrients in sub-surface fresher, denser waters (with neutral density, γ > 26.8 kg m^−3^) (Fig. 4a–d); typically half of the nutrient concentrations are preformed and half regenerated from biological fallout (Fig. 4e). The combination of the velocity and nutrient concentrations leads to high northward fluxes of nutrients (Fig. 4f).Fig. 4. Biogeochemical Stream in the Florida Straits at 27^o^N.a salinity (psu) (with white contours for 12^o^C and 24°C); (b) potential temperature (°C); (c) meridional velocity (m s^−1^); (d) nitrate concentration (μmol kg^−1^); (e) nitrate profile (blue) with preformed (red) and regenerated (yellow) components (μmol kg^−1^); (f) northward nitrate flux (mol m^−2^s^−1^); (g) dissolved inorganic carbon (DIC) (μmol kg^−1^); (h) profiles of modern DIC (red) and preindustrial DIC (blue) (μmol kg^−1^), where modern DIC equals the sum of the preindustrial DIC and the anthropogenic carbon; (i) northward DIC flux (mol m^−2^s^−1^); (j) capacity of waters to hold additional anthropogenic carbon (anthropogenic carbon uptake potential, μmol kg^−1^); (k) anthropogenic carbon profile (yellow) and the maximum anthropogenic carbon that could be held if the waters are saturated (blue), and their mismatch defines the capacity to hold additional anthropogenic carbon (red); and (l) northward flux of capacity to hold additional anthropogenic carbon (mol m^−2^s^−1^). The plots include neutral density contours 26.5 to 27.5 kg m^−3^.
The Gulf Stream also carries high concentrations of dissolved inorganic carbon (DIC) in fresher, denser waters and high concentrations of anthropogenic carbon in lighter waters, which are transported northward (Fig. 4g-i). The fresher, denser waters are older and carry less anthropogenic carbon (having been last been in contact with the atmosphere when atmospheric CO_2_ was much lower). Hence, there is a capacity to hold additional anthropogenic carbon when these density layers outcrop in the mixed layer and are next in contact with the atmosphere (Fig. 4j, k).
The strong northward flow in the Florida Current then provides subsurface maxima in the northward fluxes of nitrate and the capacity to hold additional anthropogenic carbon (Fig. 4f, l). These subsurface maxima in the horizontal property fluxes define the biogeochemical stream.
The importance of this biogeochemical stream to the rest of the North Atlantic depends on the downstream circulation pathways.
Connectivity of the Gulf Stream and the subpolar gyre
There is an expectation that properties carried in the Gulf Stream directly connect with the rest of the North Atlantic. However, there is a surprising conundrum that almost no surface drifters released in the subtropical gyre are observed to pass into the subpolar gyre^33^. Lagrangian particle, numerical model experiments reveal that this lack of surface exchange between the gyres is due to the surface wind-driven, Ekman transport being directed southward at the inter-gyre boundary and that inhibits a northward surface exchange^34^. Likewise, there is a limited exchange of sea surface temperature anomalies across the inter-gyre boundary^35^. There is though communication of particles and heat within subsurface density layers from the subtropics to the subpolar latitudes, since those layers are not impacted by the surface Ekman transport^34,35^.
To illustrate how the biogeochemical stream operates, we conduct particle-tracking experiments releasing 10,000 virtual particles in the Florida Strait using an observationally-optimised ocean circulation model with the particles advected by the three-dimensional circulation (Methods^36^).

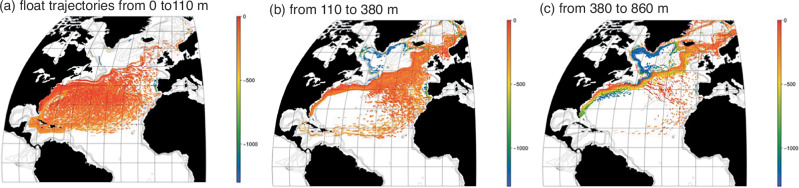

Particles released in light waters in the Florida Straits (between the surface and a depth of 110 m) primarily remain within the subtropical gyre (Fig. 5a), consistent with observations of limited gyre exchange of surface drifters^33^. In contrast, particles released in denser waters in the Florida Straits (at depths from 110 m to 380 m) are almost evenly split between those staying in the subtropical gyre and those passing into the subpolar gyre, while particles released in the most dense waters (at depths of 380 m to 860 m) nearly all pass into the subpolar gyre (Fig. 5b, c). The denser particles shoal as they move from the subtropics to the subpolar gyre (Fig. 5c, changing from yellow to orange) and then deepen around the northwest flank of the subpolar gyre (Fig. 5c, changing from orange to blue) or pass futher north into the Norwegian Sea. Hence, deeper pathways connect water masses and biogeochemical properties in the Florida Current to subpolar latitudes of the North Atlantic.Fig. 5. Pathways emanating from the Gulf Stream.Tracking of virtual seawater particles over a 10-year period. 10000 virtual seawater particles are initially released at Florida Strait in three different depth ranges: (a) 0 to 110 m, (b) 110 to 380 m, and (c) 380 to 860 m. Calculations use the monthly climatological mean three-dimensional flow fields from the ECCO4 release 2 ocean state estimate^36,62^. Colour scale is for the depth of the virtual seawater particles.
Carbon evolution along a biogeochemical stream pathway
A biogeochemical stream is proposed following a sub-surface pathway connecting the subtropics to the subpolar latitudes (consistent with the particle displacements in Fig. 5c). Our viewpoint is that biogeochemical properties in the Florida Strait (Fig. 4) are carried along this sub-surface pathway and ultimately affect the subpolar uptake of atmospheric CO_2_.
Along this pathway, sub-surface waters with high concentrations of DIC and nitrate spread northward from the subtropics to the subpolar latitudes along neutral densities 27.0 to 27.5 kg m^−3^ (Fig. 6a, b). During this spreading phase, the DIC decreases in concentration downstream through the effect of physical processes, probably involving diapycnal mixing with lighter waters or mesoscale eddy stirring along density surfaces with lower concentrations of DIC (Fig. 6d).Fig. 6. Downstream biogeochemical evolution over the North Atlantic.Biogeochemical properties along a possible Gulf Stream pathway extending from the subtropical to the subpolar gyre for (a) dissolved inorganic carbon (DIC) (μmol kg^−1^); (b) nitrate (μmol kg^−1^); (c) partial pressure of dissolved carbon dioxide (pCO_2_, μatm) ; scatterplots of biogeochemical properties along neutral density layers, γ for 27.0 to 27.5 kg m^−3^, versus latitude for (d) DIC (brown) and pre-industrial DIC (green) (μmol kg^−1^); (e) partial pressure of dissolved carbon dioxide (red) (pCO_2_, μatm) and pCO_2_ if the waters are saturated with the atmosphere (black) together with the atmospheric partial pressure of 373.1 μatm for year 2002 and 422.8 μatm for 2024 (grey dashed and red dashed horizontal lines respectively); and (f) anthropogenic carbon (yellow), saturated anthropogenic carbon (blue) and capacity to hold additional anthropogenic carbon (red) (all in μmol kg^−1^) from GLODAPv2 climatology^65^; (g) anthropogenic carbon (μmol kg^−1^); (h) the capacity to hold additional anthropogenic carbon (μmol kg^−1^); and (i) the decrease in the partial pressure of dissolved carbon dioxide due to the undersaturation of anthropogenic carbon (evaluated from the difference between the observed pCO_2_ for 2002 and the calculated pCO_2_ if the DIC was in equilibrium with an atmosphere for year 2002. This pathway is representative of a deeper trajectory as in Fig. 5c. The sections include neutral density surfaces for 26.5, 27.0 and 27.5 kg m^−3^.
The air-sea flux of CO_2_ is locally defined by the difference in the partial pressure of the dissolved CO_2_ in the surface mixed layer and the atmospheric partial pressure, pCO_2_, represented by ΔpCO_2_ (Methods). The dissolved CO_2_ signal in the mixed layer is affected by the advection of DIC and accompanying temperature and nutrients along density layers and eventual outcrop of these waters (Fig. 6c and e, red bars). Over the subpolar latitudes, the ΔpCO_2_ signal is positive along the neutral densities 27.0 to 27.5 kg m^−3^ and represents waters that are just over saturated for year 2002 (Fig. 6e, red bars versus grey dashed line). Hence, by itself, this injection of DIC along the density surface into the mixed layer elevates surface pCO_2_ values, and suggests subpolar CO_2_ outgassing for year 2002. However, there are additional thermal and biological mechanisms that subsequently affect the surface pCO_2_ values: a combination of surface heat loss and biological utilisation of nutrients (predominantly preformed) (Figs. 1d–f and 6b) lead to a lowering of surface pCO_2_ values, generating a negative ΔpCO_2_. A net annual subpolar ocean uptake of CO_2_ from the atmosphere from both thermal and biophysical drivers is thus derived^37,38^ (Fig. 1g–i).
The total carbon content of these waters also shapes the magnitude of the uptake signal. As the biogeochemical stream waters have been separated from the atmosphere over long timescales, these waters are undersaturated in anthropogenic carbon with respect to a modern atmosphere. Sub-surface waters change from having low concentrations of anthropogenic carbon in the subtropics to progressively higher concentrations in the subpolar gyre along neutral densities 27.0 to 27.5 kg m^−3^ (Fig. 6f, yellow line and g). This undersaturation of anthropogenic carbon (Fig. 6f, red bars and h) gives the waters a greater capacity to hold additional CO_2_ from the atmosphere when they outcrop into the mixed layer (and where thermal and biological processes drive pCO_2_ levels down in the surface ocean). The effect of this undersaturation in anthropogenic carbon can be represented by the difference between the actual pCO_2_ (Fig. 6e, red bars) and a hypothetical pCO_2_ the waters would have if saturated (Fig. 6e, black bars). The undersaturation of anthropogenic carbon leads to a more negative ΔpCO_2_ that varies from typically −125 μatm in the subtropics to −25 μatm in the subpolar latitudes (Fig. 6i). Hence, the undersaturation of anthropogenic carbon in the waters outcropping in the subpolar gyre enhances the subpolar ocean uptake of atmospheric CO_2_.
This viewpoint of the Gulf Stream carrying undersaturated anthropogenic carbon following the path of the nutrient stream to the subpolar gyre is consistent with the analysis first provided by Ridge and McKinley^39,40^. Ridge and McKinley additionally argue that this advective supply of waters depleted in anthropogenic carbon is sufficient to account for the area-averaged subpolar ocean uptake of anthropogenic carbon.
Sensitivity of subpolar carbon to upstream waters
To test our conjecture that the Gulf Stream provides a biogeochemical stream that affects the carbon content of the subpolar North Atlantic, we conduct a formal sensitivity study of an ocean model (referred to as an adjoint model) including a carbon cycle (Methods). An objective function is defined that measures the carbon content over the upper 500 m of the subpolar gyre (marked by red box in Fig. 7). The adjoint model provides the sensitivity of that carbon content to upstream carbon carried in a potential density layer centred on σθ = 27.5 kg m^−3^. For a lead time of 1 year, the subpolar carbon content is only sensitive to carbon held within its subpolar domain (Fig. 7a). For a lead time of 4 years, there is a band of high sensitivity running along the path of the Gulf Stream and the western side of the subtropical gyre and, for a lead time of 8 years, that high sensitivity band extends from the Gulf Stream to the southwestern side of the subtropics (Fig. 7b, c).Fig. 7. Sensitivity of the ocean carbon storage for the subpolar North Atlantic.The maps show the normalised sensitivity (Methods) of the volume-averaged, annual mean dissolved inorganic carbon (DIC) concentration in the upper 500 m of the subpolar North Atlantic Ocean (red dashed lines) to upstream DIC anomalies within a potential density layer centred on σ = 27.5 kg m^−3^ across the entire North Atlantic. Each panel depicts different lead times between the DIC anomaly and the target year of the average: (a) approximately lead time of 1 year, (b) lead time of 4 years and (c) lead time of 8 years. To highlight relative sensitivities, the fields have been scaled by their maximum value.
Hence, the model sensitivity maps reveal upstream influence from the Florida Straits and the Gulf Stream extension into the subpolar North Atlantic on lead times of 4 to 8 years. This analysis suggests that the carbon content of the subpolar gyre is influenced by waters originating from the subtropical gyre. These sensitivity maps are also consistent with a similar analysis of how Labrador Sea heat content is sensitive to the upstream sub-surface temperature carried by the Gulf Stream on a decadal timescale^41^.
Discussion and future outlook
Climate projections suggest that the effectiveness of natural ocean carbon sinks in curbing the rise of atmospheric CO_2_ is likely to diminish in the future^1^, based upon on assessment of global ocean carbon-cycle feedbacks^2^. The global ocean response to rising atmospheric CO_2_ involves competing effects from (i) the rise in atmospheric CO_2_ altering ocean chemistry and an ocean acidity feedback, and (ii) a smaller and opposing climate change effect, including the temperature-solubility feedback and effects of stratification and circulation changes. For the ocean carbon-cycle feedbacks evaluated over the North Atlantic, maps for the increase in ocean carbon storage^42^ reveal local maxima over the Gulf Stream and much of the subpolar gyre (Fig. 8a), which are primarily due to the direct effect of the rising atmospheric CO_2_ (Fig. 8b). The effect of the climate change leads to reduced ocean carbon uptake over most of the subpolar North Atlantic and Norwegian Sea (Fig. 8c).Fig. 8. Ocean carbon uptake and feedbacks for idealised climate projection.Ocean carbon response and feedbacks evaluated using projections of future carbon storage and uptake over the North Atlantic^42^. Maps of the inter-model mean of accumulated ocean carbon uptake (kgC m^−2^) on years 121–140 under a 1%yr^−1^ increase in atmospheric CO_2_ for 140 years until the CO_2_ quadruples at year 140: (a) change in total ocean carbon uptake; (b) change in ocean carbon uptake due to the carbon-concentration response and feedback to an increase in atmospheric CO_2_; and (c) change in ocean carbon uptake due to the carbon-climate feedback. Diagnostics are based on the fully coupled simulation and biogeochemically-coupled simulation for 11 CMIP6 models^2^.
The climate feedback on carbon uptake is usually viewed in terms of surface warming decreasing solubility, weakening ocean ventilation and vertical nutrient supply. However, alternatively, this climate feedback may be due to a dynamical response that affects the carbon uptake. In the Atlantic Ocean, this response is connected to changes in the Atlantic Meridional Overturning Circulation^42^. A weakening in the strength of the meridional overturning can lead to a weakening in the nutrient stream and a reduction in the delivery of nutrients to the high latitude ocean affecting biological productivity and associated atmospheric CO_2_ drawdown^8,31^, while also leading at depth to an accumulation of nutrients and additional deoxygenation^43^. In a similar manner, a weakening in the meridional overturning circulation is expected to reduce the supply of older waters with depleted anthropogenic carbon (and a capacity to hold much more anthropogenic carbon) to the surface layers. Hence a weakening in the overturning is expected to decrease the uptake of atmospheric CO_2_ over the subpolar North Atlantic. This interpretation is consistent with the high sensitivity of the subpolar carbon content to the biogeochemical stream provided by the Gulf Stream (Fig. 7b, c). Thus, the regional climate feedback for carbon uptake may be controlled by the strength of the biogeochemical streams over the North Atlantic.
The future response of the Gulf Stream is unclear as part of its transport is associated with the wind-driven gyre circulation and part with the Atlantic Meridional Overturning Circulation. Cable measurements of the Florida Current transport so far reveal a robust strength over the last 4 decades^44^ and a reconstruction of the Atlantic Meridional Overturning Circulation from available observations does not yet reveal any decline over the last 30 years^45^. However, climate model projections suggest that there is likely to be a consistent weakening of the Atlantic Meridional Overturning Circulation over this century^46^, although that overturning is projected to continue even with climate extremes^47^. Therefore, climate change is expected to lead to an eventual weakening of the biogeochemical stream^31^ associated with the expected weakening of the Atlantic Meridional Overturning Circulation.
Our analysis of the role of the Gulf Stream and its extension has focussed on its basin-scale connections over the North Atlantic. There may though be important smaller scale effects, such as involving sub-mesoscale exchanges^48,49^ and mesoscale eddy stirring^50^, that affects the downstream dilution of the biogeochemical properties carried by the Gulf Stream and its extension over the North Atlantic (as suggested in Fig. 6a, d). Biogeochemical streams should carry over for other ocean basins; for example, see the review of the biogeochemical effects of the nutrient stream for the Kuroshio in the North Pacific^51^. The biogeochemical streams for the other basins all participate in longer overturning pathways as part of the global overturning circulation^52^, so are likely to have higher values of remineralised nutrients and dissolved inorganic carbon.
In summary, the Gulf Stream provides an important contribution to the climate system through its redistribution of heat, nutrients and carbon. The Gulf Stream provides subsurface pathways, redistributing nutrients and older waters undersaturated in anthropogenic carbon over the North Atlantic basin, which may be viewed in terms of a biogeochemical stream. The subpolar carbon content is particularly sensitive to the carbon properties carried in dense layers connecting to the Gulf Stream. When these density layers outcrop into the winter mixed layer, air-sea exchange is affected by the properties carried in the biogeochemical stream, in an analogous manner to how biological production is affected by the supply of nutrients from the nutrient stream^29^ (Fig. 3d). Biogeochemical streams are particularly strong in the North Atlantic due to the western boundary current being reinforced by the upper limb of the meridional overturning circulation. The future outlook for the North Atlantic carbon sink is then affected by how climate change alters the strength of the Gulf Stream and the biogeochemical properties carried by the current.
Methods
The surface signals of the Gulf Stream and its surrounding environment (Fig. 1) are mapped using monthly output for December 2022 from an Operational Mercator global ocean analysis and forecast system^53^ at 1/12° horizontal resolution together, with ERA5 air-to-sea net surface heat flux for December 2022 at 1/4° resolution^54^ (W m^−2^) and annual nitrate utilisation from the World Ocean Atlas 2023 climatology^55^, and sea-to-air CO_2_ flux at 1^o^ resolution (mol m^−2^yr^−1^) for 2019^56^. The air-sea CO_2_ flux is calculated according to F = k**K0(ΔpC**O2), where F is the flux, k is the gas transfer velocity, K0 is the solubility, and ΔpC**O2 is the difference between pCO_2_ in surface seawater and air. The sea-to-air CO_2_ flux is further separated into thermal and biophysical components^57,58^: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta pC{O}_{2}^{observed}=\Delta pC{O}_{2}^{thermal}+\Delta pC{O}_{2}^{biophysical}$$\end{document} , where the thermal contribution is derived using an empirical^59^ temperature-pCO_2_ decomposition, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta pC{O}_{2}^{thermal}=pC{O}_{2,ann}\exp (\alpha ({T}_{month}-{T}_{ann})),$$\end{document} and the effect of biophysical changes is diagnosed as a residual; here ann represents annual mean and month represents monthly mean, and α = 0.0423 K^−1^.

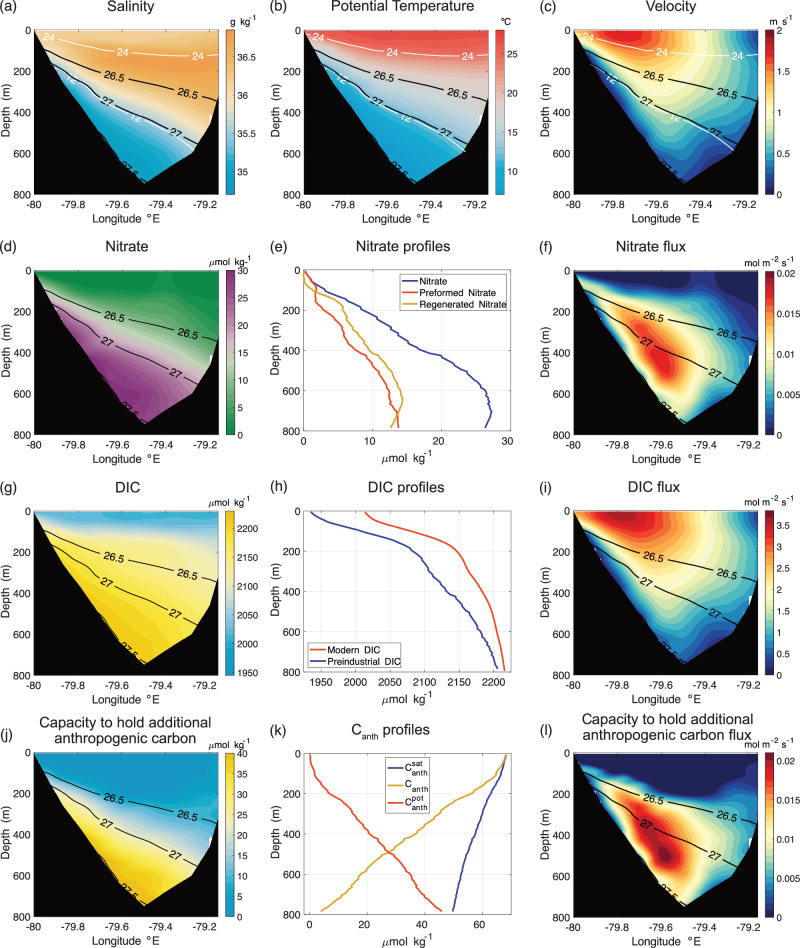

The nutrient and carbon observations across Florida Straits at 27°N are the climatological mean for all hydrographic cruises available in GLODAPv2^60^, roughly equivalent to the year 2002. The maximum anthropogenic carbon concentration is calculated as the difference between a dissolved inorganic carbon (DIC) concentration calculated using in situ alkalinity, salinity, temperature, silicate and phosphate data and a pCO_2_ of 280 μatm (for the time of the preindustrial) or 373.1μatm (for the time of the data collected in 2002) using CO2SYS^61^. The potential of waters to absorb additional anthropogenic carbon from the atmosphere, referred to as carbon uptake potential (μmol kg^−1^), is then estimated as the difference between the maximum anthropogenic carbon concentration and the estimated in situ anthropogenic carbon concentration in 2002. Horizontal property fluxes (in mol m^−2^s^−1^) were calculated by combining climatological property fields calculated from historical hydrographic occupations^60^ with a climatological velocity field calculated from historical NOAA cable calibration surveys^44^. Anthropogenic carbon is calculated following the methodology described in Brown et al.^6^.
The Gulf Stream pathways are evaluated using virtual seawater particles tracked over a 10-year period (Fig. 5) using the monthly climatological mean three-dimensional flow fields from an ocean state estimate from ECCOv4 release 2^36,62^. 10,000 virtual seawater particles are initially released at Florida Strait in three different depth ranges: 0–110 m, 110–380 m and 380–860 m. The particles are advected by the three-dimensional circulation; the trajectories are evaluated using Drifters.jl and MITgcm.jl^63,64^. To ensure a continual source of particles, every month 2% of the particles are randomly selected and their position reset to Florida Strait.

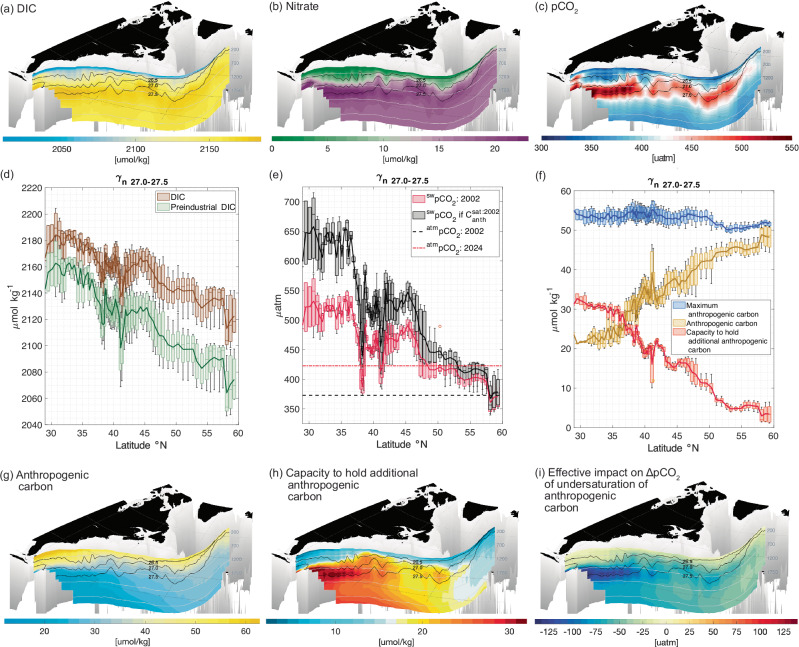

The estimates of the biogeochemical properties following a subtropical-subpolar pathway (Fig. 6a, b, g) are evaluated using DIC, nitrate and anthropogenic carbon reconstructions from gridded GLODAPv2 climatology^65^. The estimates of ocean pCO_2_ (Fig. 6c and e, red bars) are along a neutral density layer, 27.0 to 27.5 kg m^−3^, consistent with the DIC distribution and are compared with atmospheric pCO_2_ of 373.1 μatm for year 2002 and 422.8 μatm for year 2024. The ocean pCO_2_ values are also provided for a hypothetical saturated state in equilibrium with the atmosphere for year 2002 (Fig. 6e, black bars and h).
An adjoint model is used to provide an efficient means of calculating the sensitivity of a chosen ocean model output (the ‘objective function’) to all input parameters or initial conditions. This approach applies an adjoint operation to the ocean numerical model, effectively converting a ‘forward’ set of numerical integration steps into a set of ‘backward’ steps, enabling explicit calculations of how model states depend on earlier steps in the numerical integration. This procedure enables the computation of sensitivities for numerous inputs in a single backwards integration, tracing the influence of upstream properties, surface forcings, and even mixing coefficients on a selected objective function. This calculation is particularly useful for comprehensive sensitivity analyses, as it can be mathematically equivalent to hundreds or even thousands of individual perturbation experiments.

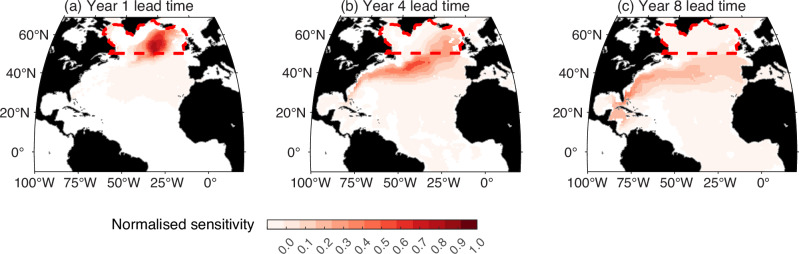

The sensitivity calculations for the subpolar carbon content (Fig. 7) are performed using the adjoint of the ocean model ECCOv4 release 2 (ECCOv4r2)^36,62^. The ECCOv4r2 model is coupled to an idealised ocean carbon cycle model that simulates the cycles of DIC, alkalinity, phosphate, dissolved organic phosphorus, and dissolved oxygen^66–68^. A 500-year spin-up of the model is performed (denoted as ECCOv4r2-DIC) under preindustrial atmospheric CO_2_ conditions (284.32 ppm, corresponding to the 1 January 1850 value following biogeochemical protocols^69^). During the 500-year spin-up phase, the detrended atmospheric forcing from the ECCOv4r2 state estimate is applied for a repeated 20 year cycle that is taken for the period 1992-2011; this approach is similar to that used in a previous study^70^, apart from detrending the forcing. After the spin-up from year 1850, the atmospheric CO_2_ concentration was increased following observational records up to year 2011^71^. The resulting ECCOv4r2-DIC simulations from years 1992 to 2011 are used for the carbon-cycle adjoint analyses.
The sensitivity of the carbon content is defined as the change in the annual DIC content, averaged over a selected “control volume” given by the upper 500 m of the subpolar North Atlantic (red dashed line in Fig. 7), in response to hypothetical 14-day scale anomalies in upstream DIC concentrations. The sensitivity fields are scaled and then normalized for each time slice. Firstly, the raw sensitivity, ∂J/∂DIC, is scaled by multiplying by the spatial standard deviation, σDIC, of the DIC and then divided by the cost function, J, such that \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${S}_{J}=\frac{\partial J}{\partial DIC}\frac{{\sigma }_{DIC}}{J}.$$\end{document} Secondly, the scaled sensitivity, SJ, is normalized by dividing by its maximum value on that isopycnal from lag year 1, allowing the sensitivities to be compared across different times. The sensitivity contains some small negative values that have a magnitude of only 1% of the maximum positive value so that we focus on the positive values for SJ. The sensitivities are mapped in space and time for a density layer centred on σ = 27.5 kg m^−3^ to reveal the upstream control of the subpolar DIC content.
