A Causal Relationship Between Boron Seeds and the Selectivity and Growth Mode of Boron Nitride Nanotubes in Inductively‐Coupled Plasma

TL;DR

This study explores how boron seed size and abundance affect the formation of boron nitride nanotubes in a plasma system.

Contribution

The paper identifies a causal relationship between boron seed characteristics and BNNT selectivity and growth mode.

Findings

BNNT selectivity scales with the abundance of boron seeds.

Nanotube diameters remain consistent despite seed size differences due to a hybrid growth mode.

Turbulence and residence time influence seed size and distribution.

Abstract

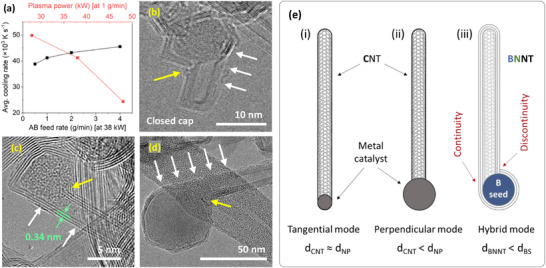

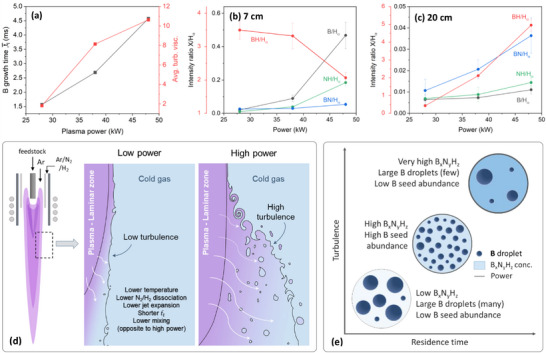

We investigate a relationship between the size and abundance of boron (B) seeds and the selectivity of BNNTs in an inductively‐coupled plasma. Key parameters influencing the size and abundance of B seeds are discussed in relation to their impact on the selectivity of BNNTs versus other BN structures. Our statistical analysis suggests that the amount of BNNTs in the as‐produced material scales with B seed abundance. B partial pressure, adjusted through feedstock's feed rate, controls the seeds' abundance while maintaining their size range. The turbulence intensity and residence time in the B droplet formation zone, adjusted through the plasma power, influence both the size and abundance of seeds. Higher turbulence and longer residence times generally lead to larger seeds and broader size distributions. These two variables affect the cooling rate in the B seed‐BNNT formation zone, which inversely correlates with the seed size. Notably, BNNT diameters are consistent across all the tested conditions despite the seed size differences. We attribute this consistency to the growth mode, which is a hybrid of tangential and perpendicular modes, giving the seed‐tube structure a golf club‐like appearance. The perpendicular component is speculated to minimize the dependence of the nanotube diameter on the seed diameter.

Boron seed formation governs BNNT selectivity in an inductively‐coupled plasma system. Local thermodynamics and flow conditions control the abundance and the size of these seeds. BNNT selectivity scales with seed abundance, while the nanotube diameters remain largely unaffected despite seed size changes. The latter is attributed to the hybrid tangential‐perpendicular growth mode that features a golf club‐like structure.
