Wide field of view multifunctional solar sensor for photovoltaic power management via measurement of solar angle and intensity

TL;DR

A new compact sensor measures solar angle and intensity over a wide field of view, improving photovoltaic power management.

Contribution

A multifunctional MEMS sensor with a ±75° field of view and high accuracy for solar angle and intensity measurement.

Findings

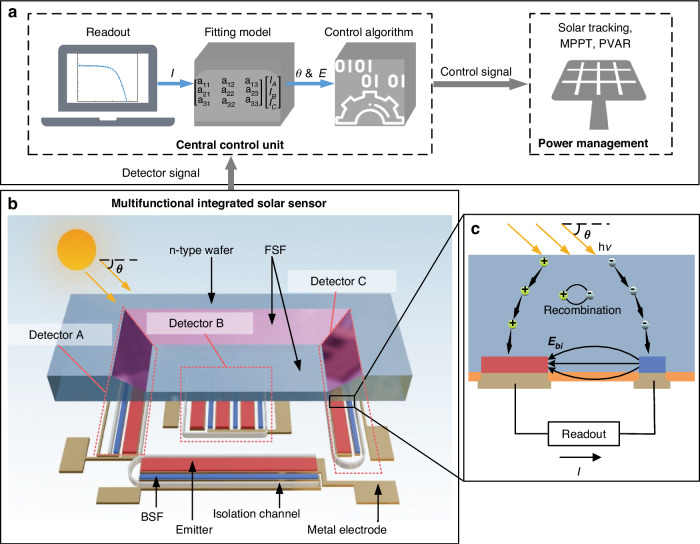

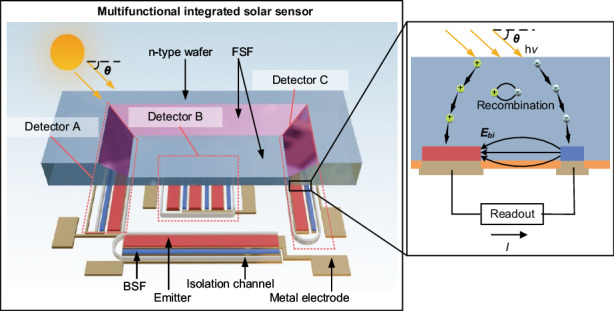

The sensor integrates three detectors on a single chip with inclined surfaces for wide-view sensing.

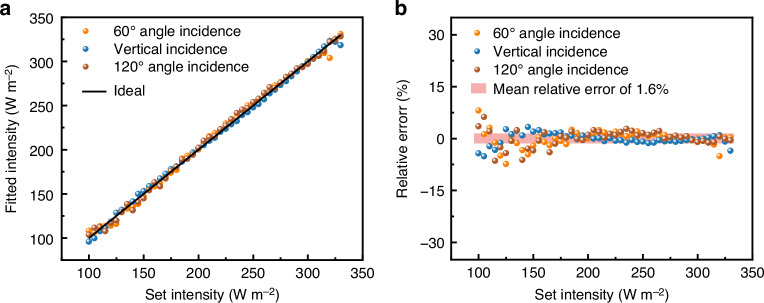

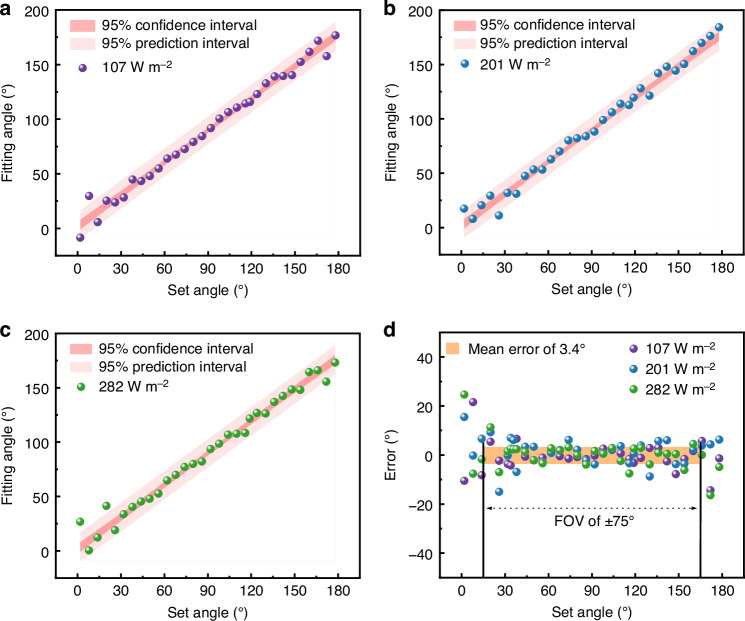

It achieves a mean angle error of 3.4° and intensity error of 1.6% with a ±75° field of view.

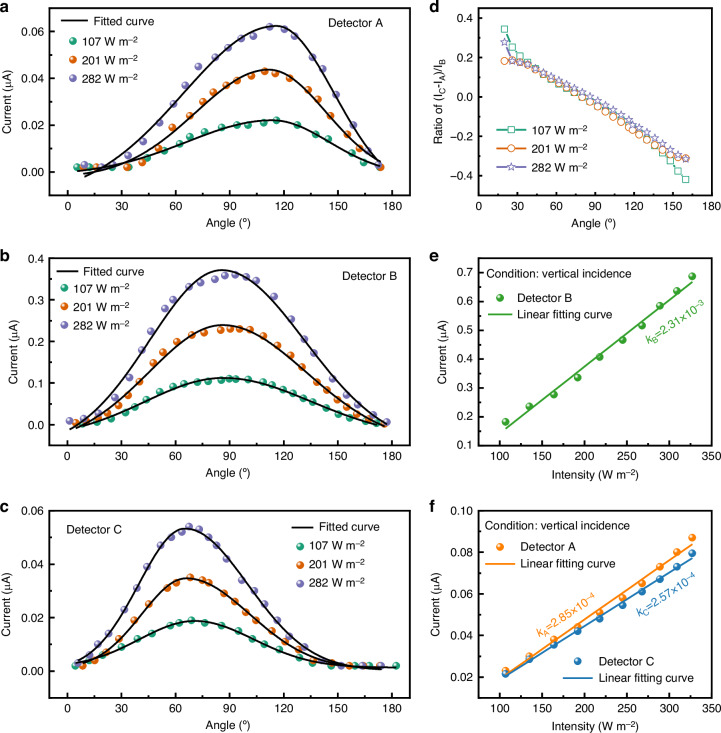

Current-to-intensity coefficients were measured at 2.85 × 10−4, 2.31 × 10−3, and 2.57 × 10−4 μA/(W/m2).

Abstract

Large-scale photovoltaic systems are a rapidly expanding contributor to sustainable energy production, and power management for these systems relies on measuring both solar angle and intensity simultaneously. However, current non-miniaturized sensors often offer a narrow field of view and measure only a single parameter, which does not meet the needs of advanced integrated photovoltaic power-management systems, motivating the need for a compact, multifunctional sensing solution. We propose a new, integrated, multifunctional sensor capable of capturing wide-view solar angle and intensity. This device integrates three detectors on a single chip, each with a differently inclined surface, to broaden the field of view. Tests under systematically varied angles and intensity levels showed that the three detectors respond most strongly at 117.5°, 87.5°, and 67.5°, with current-to-intensity coefficients of 2.85 × 10−4, 2.31 × 10−3, and 2.57 × 10−4 μA/(W/m2). The device offers an unprecedented ±75° field of view for a single-chip solar sensor while maintaining a low mean error of 3.4° for the angle and a low relative mean error of 1.6% for intensity, respectively. This multifunctional micro-electro-mechanical system (MEMS) sensor, combining a wide field of view with high accuracy, marks an important step toward enabling distributed, in-situ power management in large-scale photovoltaic systems.
