Performance evaluation of a series-connected step-up/down partial power converter for battery energy storage applications
Qian Liu, Long Jing, Wenzheng Xu, Ruidong Sun, Xuezhi Wu, Jianhua Lei, Yongbo Zhang
TL;DR
This paper introduces a new high-efficiency battery energy storage converter that reduces component stress and improves power density.
Contribution
A novel series-connected partial power converter is proposed with reduced voltage and current stress and high efficiency.
Findings
The SUDPPC reduces voltage and current stress on components compared to traditional converters.

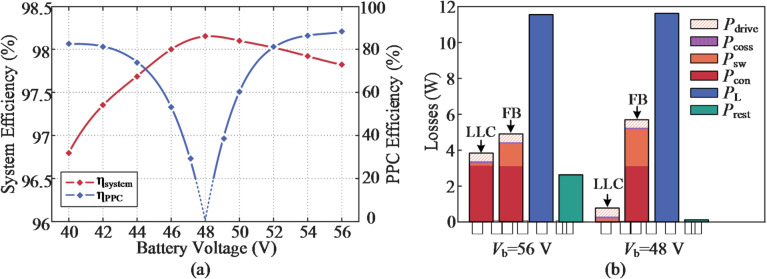

The prototype achieved 98.15% peak efficiency with only 14.3% of active power processed under full load.
Design guidelines and universal interconnection schemes were developed for practical implementation.
Abstract

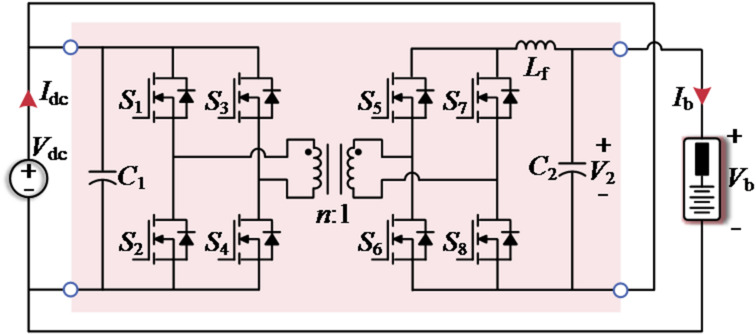

The conventional full power converter (FPC) for battery energy storage applications is limited by bulky components and suboptimal efficiency. In response, a series-connected step-up/down partial power converter (SUDPPC) with high power density is proposed in this paper. It consists of an LLC resonant converter operating at a fixed switching frequency cascaded with a full-bridge converter capable of providing bipolar output. By connecting the SUDPPC in series with the load, the voltage stress on the series side and the current stress on the parallel side are markedly reduced. The four-quadrant function provides support for further optimization of the rated power level. Universal series interconnection schemes are elaborated, and design guidelines are formulated based on power distribution characteristics. Furthermore, the topology is evaluated in terms of nonactive power and component…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

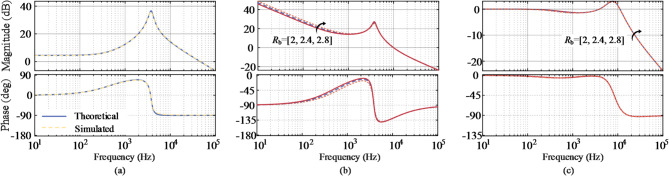

Figure 10
Figure 11

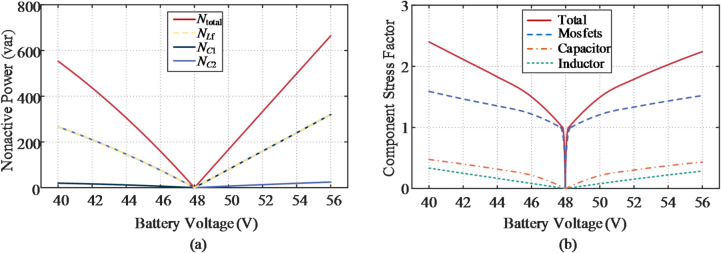

Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17

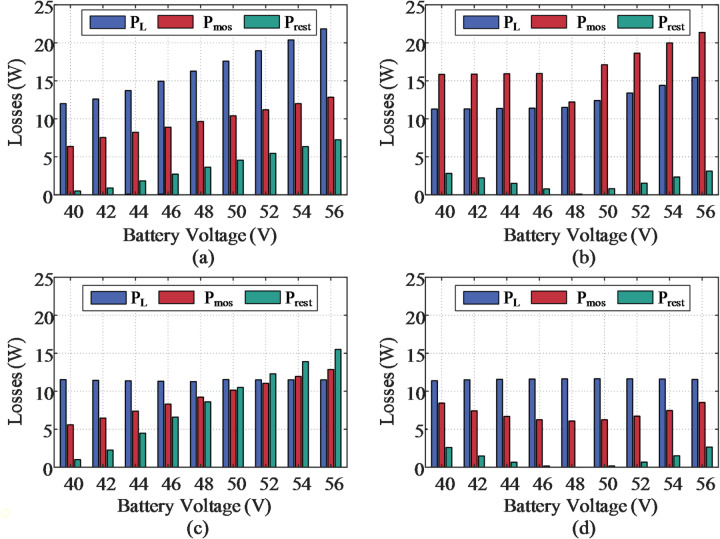

Figure 18
Figure 19
Figure 1

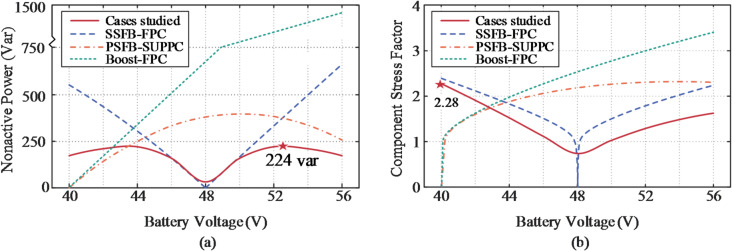

Figure 20
Figure 21
Figure 22
Figure 23
Figure 2

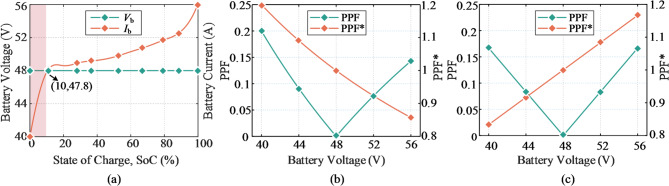

Figure 3

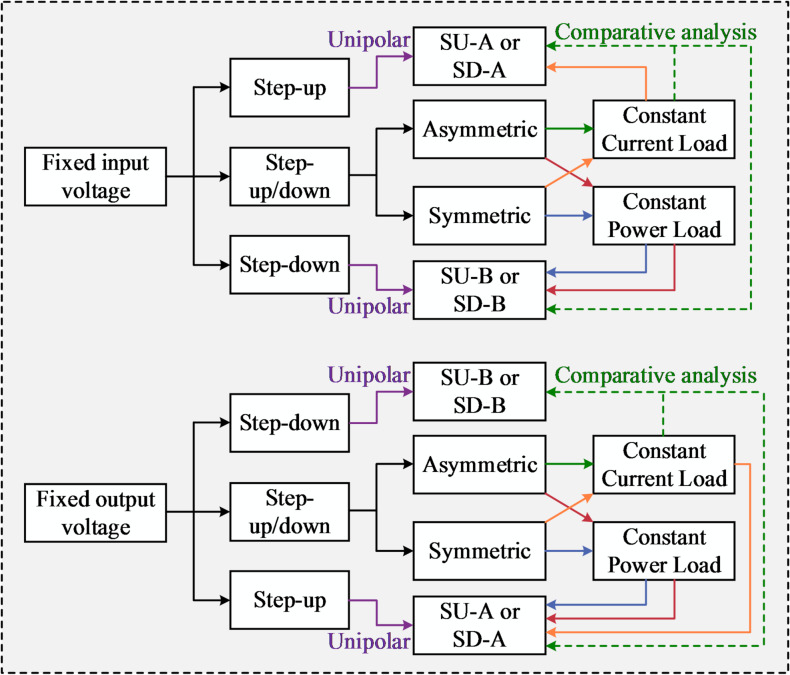

Figure 4

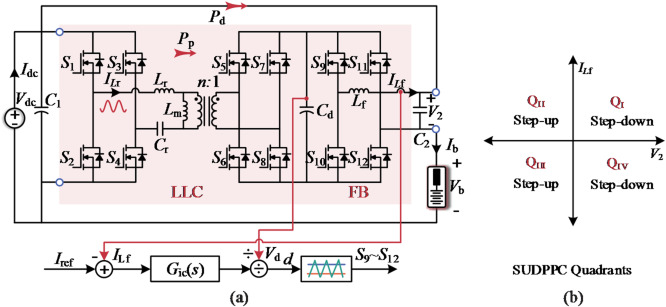

Figure 5
Figure 6
Figure 7
Figure 8

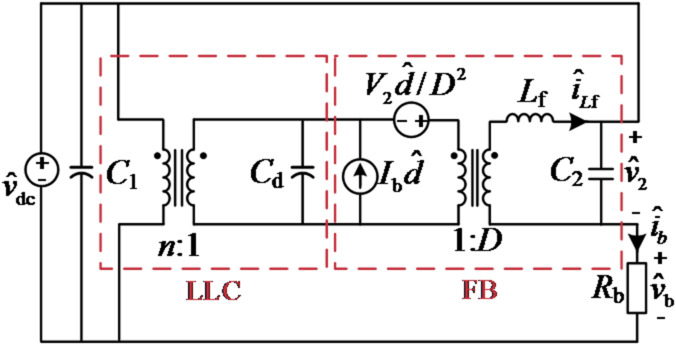

Figure 9Peer Reviews
