Spatial transcriptomics reveals immune-stromal crosstalk within the synovium of patients with juvenile idiopathic arthritis
Jun Inamo, Roselyn Fierkens, Michael R. Clay, Anna Helena Jonsson, Clara Lin, Kari Hayes, Nathan Rogers, Heather Leach, Kentaro Yomogida
TL;DR
This study uses spatial transcriptomics to map immune and stromal cell interactions in the synovium of children with juvenile idiopathic arthritis, revealing disease-specific patterns and structures.
Contribution
The study introduces a new computational pipeline for spatial colocalization analysis and identifies unique immune-stromal interactions in JIA synovial tissue.
Findings
Endothelial-fibroblast interactions are mediated by NOTCH signaling in JIA synovium.
A CXCL9/CXCR3 signaling axis connects inflammatory macrophages and CD8+ T cells in JIA.
Tertiary lymphoid structures in JIA are marked by CXCL13/CXCR5 and CCL19 signaling.
Abstract
Juvenile idiopathic arthritis (JIA) is the most prevalent chronic inflammatory arthritis of childhood, yet the spatial organization in the synovium remains poorly understood. Here, we perform subcellular-resolution spatial transcriptomic profiling of synovial tissue from patients with active JIA. We identify diverse immune and stromal cell populations and reconstruct spatially defined cellular niches. Applying a newly developed spatial colocalization analysis pipeline, we uncover microanatomical structures, including endothelial-fibroblast interactions mediated by NOTCH signaling, and a CXCL9/CXCR3 signaling axis between inflammatory macrophages and CD8+ T cells, alongside the characterization of other resident macrophage subsets. We also detect and characterize tertiary lymphoid structures marked by CXCL13/CXCR5 and CCL19-mediated signaling from Tph cells and immunoregulatory DCs,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12- —National Institute of Diabetes and Digestive and Kidney Diseaseshttps://doi.org/10.13039/100000062
- —Japan Society for the Promotion of Sciencehttps://doi.org/10.13039/501100001691
- —Uehara Memorial Foundationhttps://doi.org/10.13039/100008732
- —Mochida Memorial Foundation for Medical and Pharmaceutical Researchhttps://doi.org/10.13039/501100005865
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAutoimmune and Inflammatory Disorders Research · Rheumatoid Arthritis Research and Therapies · Immune cells in cancer
Introduction
Juvenile idiopathic arthritis (JIA) is the most common chronic arthritis of childhood, affecting 1.6–23 cases per 100,000 children (1, 2). It comprises a heterogeneous group of conditions classified into 8 subtypes (3), of which oligoarticular and rheumatoid factor–negative (RF-negative) polyarticular JIA (hereafter referred to as oligo/poly JIA) account for 60%–80% of cases in North America (4). Recent advances in therapy have transformed the overall prognosis of JIA; however, a substantial proportion of children with oligo/poly JIA continue to experience chronic, relapsing disease courses (5, 6). The biological processes that determine the prognosis remain largely unknown.
Synovial tissue, a connective tissue lining the joints, is the primary site of the inflammation in JIA. However, previous studies on JIA have relied on synovial fluid due to practical difficulties of obtaining tissue. A recent study provided a cellular atlas of treatment-naive JIA synovium, combining CITE-Seq with in situ spatial transcriptomics platform that profiled 377 genes (7). This study highlighted the age-dependent differences in synovial cell populations and identified macrophage subsets associated with disease progression.
To deepen these insights, we sought to generate a comprehensive spatial and transcriptional profile of the JIA synovium. In this study, we applied a high-plex in situ transcriptomic platform (10x Genomics Xenium Prime 5K) to JIA synovial tissue, enabling the transcriptomes of thousands of cells to be measured within their native spatial organization at near single-cell (sub-10 μm) resolution in formalin-fixed, paraffin-embedded (FFPE) tissues. We developed an analytic pipeline tailored for high-resolution spatial transcriptome data, performing spatial neighborhood enrichment analyses at both cell type and single-spot levels. Using this approach, we rediscovered the spatial interaction between fibroblasts and endothelial cells — previously identified in rheumatoid arthritis (RA) synovium (8) — in JIA tissues. Furthermore, we characterized macrophage and T cell cross-talk and defined tertiary lymphoid structures (TLS) within the JIA synovial microenvironment, providing insights into immune-stromal interactions in JIA.
Results
High-resolution spatial profiling uncovers cellular architecture in JIA synovium.

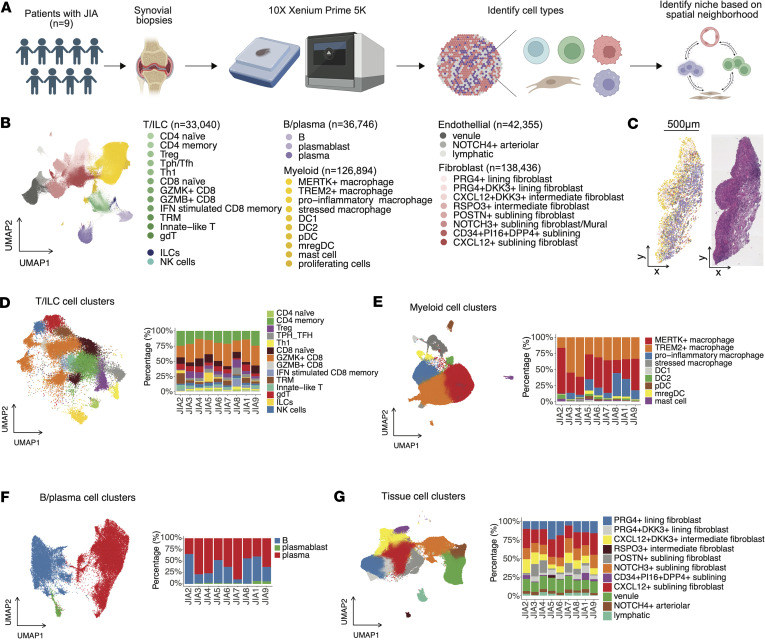

To explore the cellular diversity and spatial organization within the inflamed synovium of patients with JIA, we employed advanced spatial transcriptomic profiling on synovial biopsy samples from 9 patients with oligo/poly JIA, defined by International League of Associations for Rheumatology (ILAR) classification (3) (Supplemental Table 1; supplemental material available online with this article; https://doi.org/10.1172/jci.insight.198074DS1). All oligoarticular patients with JIA were classified as a persistent subtype at the time of biopsy. We collected synovial biopsies from treatment-naive patients (n = 3) and from patients who had received various treatments, including intraarticular steroid injections, methotrexate, leflunomide, and anti-TNF inhibitors (n = 6). All patients were negative for RF. Six patients have normal C-reactive protein (CRP) levels, a finding consistent with previous reports indicating that 50%–70% of patients with oligo/poly JIA exhibit normal CRP (9, 10). At the time of biopsy, all of our JIA samples exhibited active synovitis, as diagnosed by board-certified pediatric rheumatologists and supported by elevated Krenn inflammatory infiltrate scores (Supplemental Table 1).
Utilizing the 10X Xenium Prime 5K platform, we generated high-resolution spatial transcriptomic data capable of identifying discrete cell populations and characterizing their spatial interactions and niche formations within the tissue microenvironment (Figure 1A and Supplemental Figures 1 and 2). After preprocessing and batch correction steps (Supplemental Figure 1, A–C), we performed unsupervised clustering of the spatial transcriptomic data and, based on manual annotation using canonical markers, delineated 4 major cellular compartments: T cell–innate lymphoid cells (ILCs), B/plasma cells, myeloid cells, and tissue-associated stromal cells, which included diverse subsets of fibroblasts and endothelial cells (Figure 1, B–G). Marker genes for each subcluster are listed in Supplemental Table 2, and spatial visualization of annotated cell clusters on histological sections are provided in Supplemental Data 1–9 in an interactive format.
T cell–ILC subpopulations included fine-scaled T cell subsets as well as ILCs (Supplemental Figure 1D). The CD8^+^ T cell population encompasses CCR7^+^TCF7^+^ naive CD8^+^ T cells, along with granzyme B^+^ (GZMB^+^) and granzyme K^+^ (GZMK^+^) CD8^+^ T cells, which have been previously characterized in the synovium of patients with RA (11). We also identified a distinct CD8^+^ T cell population, tissue-resident memory T cells (TRM), marked by expression of ZNF683, which encodes HOBIT (12). IFN stimulated CD8^+^ memory T cells were enriched with IFN-stimulated genes such as IFIT1 and IFIT3. CD4^+^ T cells consisted of CCR7^+^TCF7^+^ naive CD4^+^ T cells, FOXP3^+^ Tregs (13), and an IFNG^+^TBX21^+^ population designated as type 1 helper T cell (Th1). We also identified CD4^+^ T cells expressing CXCL13 and IL21, corresponding to peripheral T cells and follicular T cells (T_PH_/T_FH_) (14). We further detected TRDC^+^ γδ T cells and innate-like T cells expressing ZBTB16 (encoding PLZF) and NK receptor KLRB1, with transcriptional profile resembling invariant NK T cells (iNKT cells) (15) and mucosal associated innate T (MAIT) cells (16). Innate subpopulations, NK cells, and ILCs were also identified. ILCs were characterized by NCAM1 and CD3E negativity and enrichment for IL5 and IL17A, suggesting the presence of ILC2 and ILC3 subset (17).
B cell–plasma cells comprised MS4A1^+^ (encoding CD20) B cells, CD38^+^ plasma cells, and MKI67^+^ plasmablast populations (Supplemental Figure 1E).
Myeloid cells encompassed diverse macrophage populations, DCs, plasmacytoid DCs (pDC), and mast cells (Supplemental Figure 1F). The macrophage clusters comprised several distinct clusters: MERTK^+^ macrophages, characterized by the enrichment of scavenger receptor CD163 and MRC1 (encoding CD206) and MERTK (18); TREM2^+^ macrophages, defined by high expression of TREM2 as well as tissue-remodeling chemokines such as MMP9 (19); proinflammatory macrophages expressing mediators such as CXCL9, CXCL10, and IL1B; and CCR2, a chemokine receptor indicative of infiltrating monocyte-derived macrophages (20–22). We also identified a subset of stressed macrophages marked by high expression of endoplasmic reticulum stress-related genes (HYOU1, PDIA4, DDIT3) (23). The DC cluster included CLEC9A^+^XCR1^+^THBD^+^ DC1 and CD1C^+^CLEC10A^+^ DC2 (24). Additionally, 1 DC cluster was characterized with LAMP3^+^, CCR7^+^, and immunomodulatory molecules such as CD274 (encoding PD-L1), corresponding to recently described mature DCs enriched in regulatory molecules (mregDCs) (25).
Stromal tissue–associated cell types included lining and sublining fibroblasts as well as endothelial cells (Supplemental Figure 1G). Fibroblasts were classified into PRG4^+^ lining, THY1^+^ sublining fibroblasts and a mixture of NOTCH3^+^ sublining fibroblast and MCAM^+^ (encoding CD146) mural cells. Lining fibroblasts were further divided based on the expression of DKK3, which could play role in repair pathways (26), into DKK3^lo^ and DKK3^hi^PRG4^+^ subsets and intermediate populations, which exhibited gene expression patterns between lining-sublining fibroblasts (27, 28), including RSPO3^+^, which could modulate Wnt/β-catenin signaling and have crucial effects on angiogenesis (29, 30). Sublining fibroblasts were further categorized based on the expression of CXCL12, CD34, DKK3, and POSTN. Endothelial cells were classified into PROX1^+^FLT4^+^ lymphatic and blood vascular vessels, the latter were further divided into LIFR^+^SELE^+^ venules and NOTCH4^+^ arteriolar endothelial cells.
To investigate the cellular sources of cytokines and receptors relevant to synovial inflammation, we examined the expression of genes from a curated cytokine signaling gene set (31) (Supplemental Figure 1H). Most cytokines and receptors showed dominant expression within specific cell populations; for instance, fibroblasts and B cells predominated among cells with detectable IL6, whereas IL18 expression was primarily restricted to macrophages and DCs.
To quantitatively characterize morphological differences across cell types, we computed cell area and circularity (Supplemental Figure 2C). Stromal cells such as fibroblasts and endothelial subsets exhibited larger and more variable cell areas compared with immune cells, whereas lymphocyte populations demonstrated higher circularity, consistent with their small, rounded morphology.
Disease-linked stromal cell population.

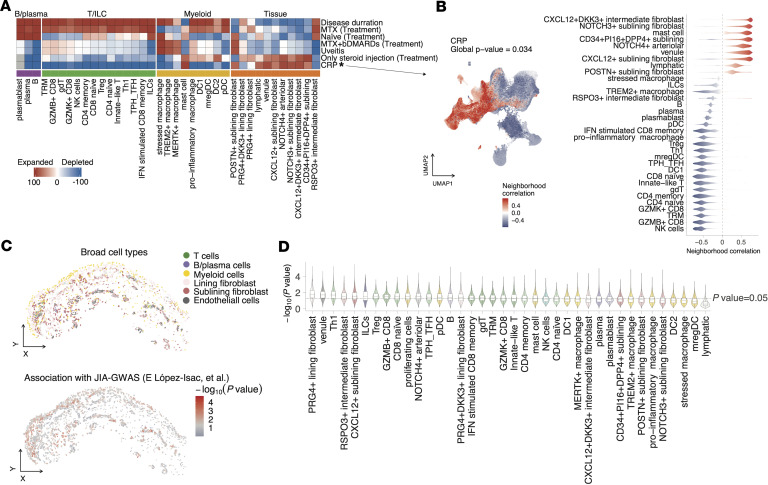

Quantitative assessment across individual biopsy samples revealed variability in cellular composition, with significant interpatient heterogeneity observed in the proportions of immune and stromal cells (Figure 1, D–G, and Supplemental Figure 2D). Correlating this heterogeneity with clinical inflammatory state using covarying neighborhood analysis (32), we found that patients with higher inflammation state defined by serum CRP levels exhibited enrichment of sublining/intermediate fibroblast and endothelial cell (venules and arteriolar endothelium) populations relative to total synovial cells, indicating a potential critical role for these cells in potentiating inflammation in JIA synovium (Figure 2, A and B), as sublining fibroblasts are known as a resource of inflammatory molecules in RA-synovium (28, 33). Conversely, some key immune populations, such as CD8^+^ T cells and proinflammatory macrophages, appeared relatively depleted in this analysis. This observation likely reflects a proportional shift rather than a decrease in absolute cell numbers; in a highly inflamed synovium, the substantial expansion of the stromal and endothelial framework can diminish the relative proportion of even an expanded immune cell compartment.
To investigate the spatial genetic relevance of cell populations within the synovium, we applied gsMap (34), a recently developed statistical framework that integrates spatial transcriptomic data with GWAS through stratified linkage disequilibrium (LD) score regression (sLDSC). This approach enables the mapping of disease heritability enrichment onto specific spatially resolved cell populations based on GWAS summary statistics of JIA (35). Notably, stromal populations — not only intermediate/sublining fibroblasts and vascular endothelial subsets, but also lining fibroblast and T cell subsets — exhibited significant enrichment of JIA-associated genetic signals (Figure 2, C and D). This suggests that these spatially localized niches — in particular, stromal cells — may contribute to not only inflammatory activity but also disease susceptibility via genetically driven mechanisms.
Together, these results offer a detailed characterization of the spatially resolved cellular landscape of JIA synovium and their association with clinical indicators and disease susceptibility.
Spatially resolved niches reveal distinct immune-stromal compositions and gene programs.

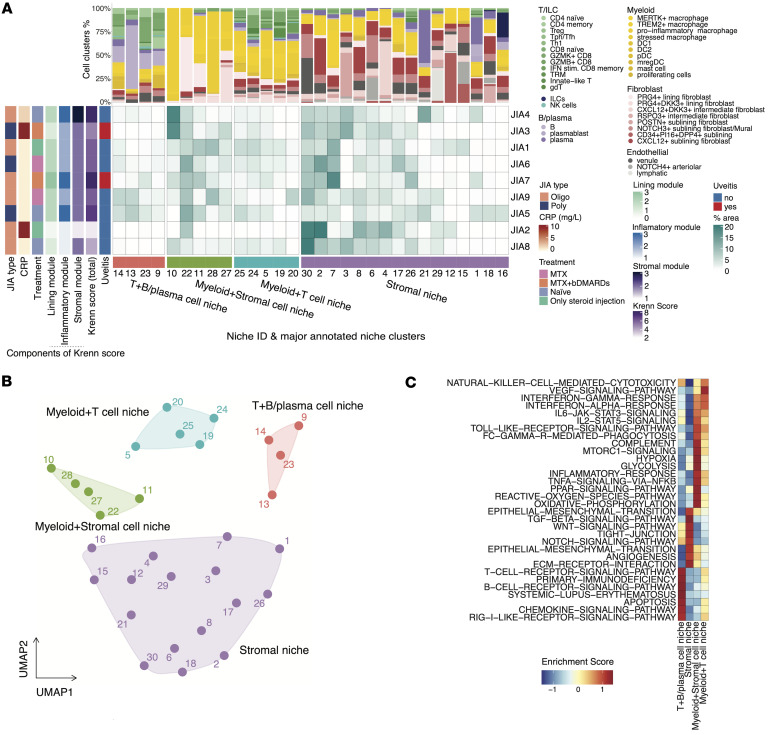

To identify tissue microenvironments with distinct immune and stromal compositions, we defined spatial “niches” based on local cooccurrence patterns of cell clusters within the synovium. A spatial “niche” was defined here for each cell by examining the composition of its 30 nearest spatial neighbors, summarizing the local abundance of each cell type. Cells with similar neighborhood compositions were grouped using k-means clustering to delineate discrete spatial niches. Each niche was then annotated by its relative enrichment in major cell lineages, resulting in 4 biologically interpretable niche classes: T+B/plasma cell niche, Myeloid+Stromal cell niche, Myeloid+T cell niche, and Stromal niche (Figure 3, A and B, and Supplemental Figure 3, A and B). Analysis of these niche classes revealed the substantial heterogeneity of the synovial microenvironment across patients (Figure 3A). Even within a major class, functional diversity was observed. For example, the Myeloid+Stromal cell niche contained functionally diverse subniches: some, like Niche 10 in patient JIA3, were enriched in macrophages and corresponded with high systemic inflammation, while others were dominated by PRG4^+^ lining fibroblasts and exhibited a less inflammatory profile (e.g., Niche 22). This intraniche and interpatient heterogeneity highlights a granular spatial organization where specialized microenvironments can differ between individuals, even those with similar clinical classifications such as elevated CRP (e.g., JIA2 vs. JIA3).
To investigate the functional states of these niches, we performed pathway enrichment analysis comparing niche clusters. This analysis revealed class-dominant pathway signatures, including IFN-α/γ signaling in Myeloid+T cell–enriched niches, inflammatory and phagocytosis-related signatures in Myeloid+Stromal–rich niches, T and B cell receptor signaling in B+T cell–enriched niches, and angiogenesis-related pathways in stromal niches (Figure 3C). In addition, several other signaling cascades known to be implicated in JIA pathogenesis were selectively enriched across spatial niches. For instance, the IL-6/JAK/STAT3 pathways — critical in T cell differentiation (36) and chronic inflammation (37) — as well as complement components, were elevated in Myeloid+Stromal cell niches. The activation of the classical complement pathway and its association with markers of disease activity, such as elevated levels of complement-bound circulating immune complexes, have been well documented in JIA (38). Meanwhile, TGF-β and WNT signaling pathways, implicated in fibroblast activation and tissue fibrosis (39, 40), and fibroblast-mediated inflammation and treatment-refractory in RA (41, 42), were more pronounced in stromal niches.

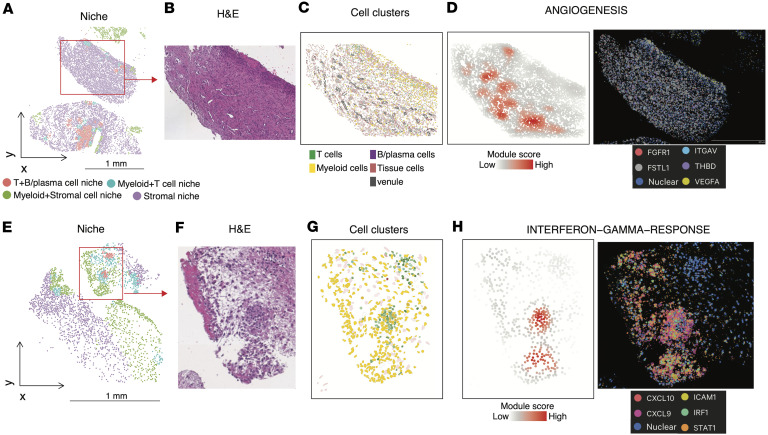

Histological mapping of niches and individual cell clusters demonstrated their anatomical relevance. For instance, stromal niches exhibited localized enrichment of the angiogenesis pathway, as visualized by spatial gene set scores (Figure 4, A–D). Another histological section also showed enrichment of IFN-γ signaling in Myeloid-T cell and Myeloid+Stromal–rich niches (Figure 4, E–H).
These findings highlight the spatial heterogeneity of the synovial immune microenvironment in JIA and demonstrate that spatial niches are associated with distinct cell type compositions and molecular programs.
Spatial neighborhood enrichment analysis reveals NOTCH3-mediated interactions between endothelial cells and sublining fibroblasts in JIA synovium analogous to RA.

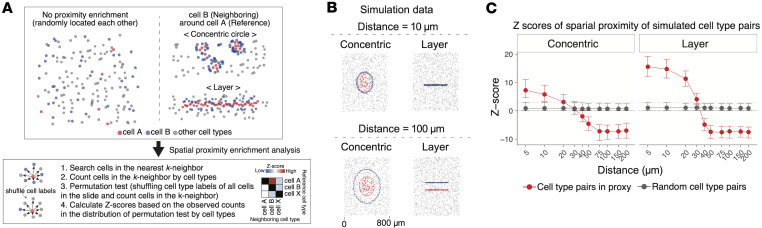

Since tissue-microenvironment shapes both the cell identity and localization, we aimed to characterize the cell-cell interaction in each niche based on spatial proximity. To achieve this, we developed a custom pipeline to statistically test the spatial proximity between these cell types (Figure 5A). We tested the performance of the pipeline using simulation data, assuming proximity pattern as concentric circle and layer, and found that it could efficiently identify pairs of cell types that were close to each other within 30 μm (Figure 5, B and C). To validate our spatial neighborhood analysis pipeline, we further utilized publicly available spatial transcriptomic data of human breast cancer and mouse brain (Supplemental Figure 4, A–D). Spatial neighborhood analysis revealed significant enrichment in proximity such as between cancer-associated fibroblasts (CAFs), cytotoxic T cells, astrocytes, and oligodendrocytes, underscoring their spatial interplay in the tissue architecture as described in the published study (43, 44). The human breast cancer and mouse brain datasets comprised 8,273 and 17,215 cells, respectively, and the analysis, using 4 parallel threads, was completed in 7.6 seconds and 31.7 seconds, respectively, demonstrating the computational efficiency of the pipeline.

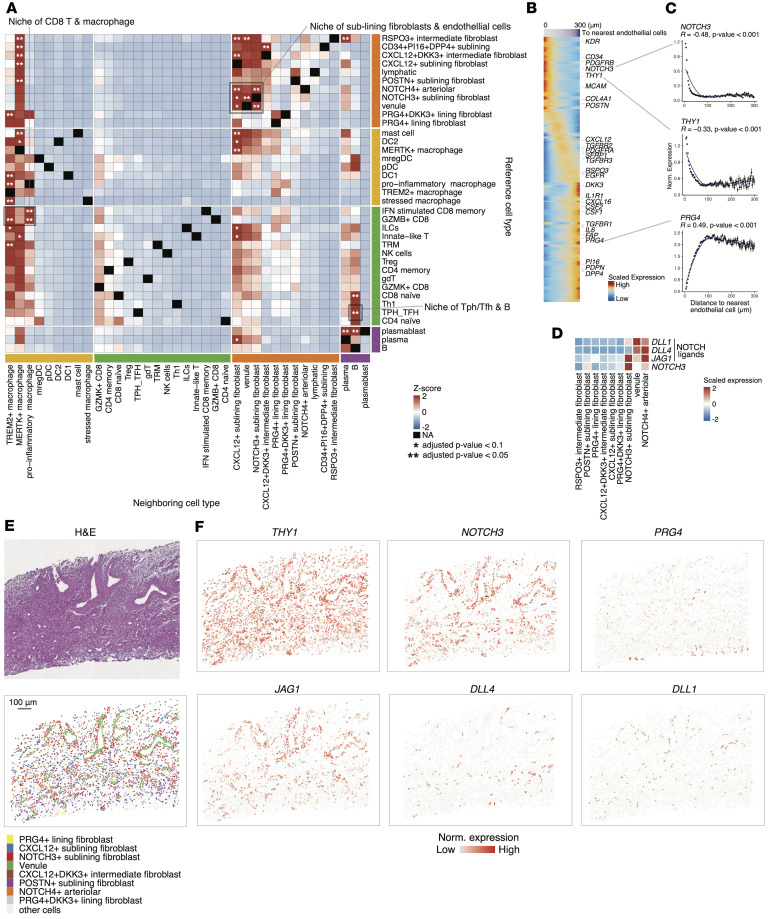

We applied this spatial neighborhood enrichment analysis pipeline to our JIA synovium spatial transcriptomic data and identified significant spatial proximities such as those between endothelial cells and sublining fibroblasts (Figure 6A). Given previous findings that endothelial cells and fibroblasts interact via NOTCH3 signaling in RA synovium (8), we further investigated whether a similar interaction exists in JIA. Indeed, we observed that THY1^+^ sublining fibroblasts were enriched in proximity to endothelial cells and simultaneously exhibited elevated NOTCH3 expression (Figure 6, B and C). Consistently, endothelial cells highly expressed the NOTCH3 ligands, such as DLL1/4 and JAG1 (Figure 6D). Representative regions highlighting the spatial niche established by these interacting cell populations demonstrated the colocalization and reciprocal signaling between endothelial cells and sublining fibroblasts (Figure 6, E and F, and Supplemental Figure 4, E and F). This observation suggests an organized microanatomical structure within the synovial tissue, reinforcing the notion that endothelial-fibroblast interactions mediated through NOTCH3 signaling might contribute to the formation and maintenance of inflammatory niches in JIA synovium.
Spatial crosstalk with T cells and vasculature orchestrates macrophage polarization.
Given the established importance of macrophages in the pathogenesis of inflammatory arthritis, we aimed to explore how macrophage gene expression is altered in relation to their spatial proximity to other cell types within the synovial tissues. Since monocytes enter through vasculature and differentiate to synovial macrophages (45–47), we first examined how gene expressions in macrophages correlated with their distance to endothelial cells (Figure 7A). Antiinflammatory or tissue-repairing markers such as MRC1, CSF1R, and MERTK, which were known to be expressed on healthy synovial tissue macrophages (48) and increased in synovium of patients with RA with remission states (18), showed higher expression in macrophages proximal to vasculature, whereas expression of proinflammatory-associated genes, including IL1RN, NFKB2, and JAK2, increased with distance from the nearest endothelial cell. We also noted that TREM2, a gene traditionally associated with tissue-repairing macrophage programs (49), exhibited a distinct spatial pattern compared with other antiinflammatory markers, as TREM2 expression increased with distance from endothelial cells. CD14 expression decreased while CD68 expression concurrently increased with distance from endothelial cells, suggesting that circulating monocytes progressively differentiate into macrophages after entry through the endothelium as they adapt to the synovial microenvironment (45–47).
Next, we aimed to characterize the microenvironmental cues that induce inflammatory gene expression in macrophages. As expected from our definitions of cell type clusters, proinflammatory macrophages exhibited the highest proinflammatory module scores (50, 51) (Figure 7B). We observed a positive correlation between proinflammatory polarization and distance from endothelial cells (R = 0.35, P < 0.001) (Figure 7C). Since we found that proinflammatory macrophages are colocalized with GZMB^+^CD8^+^ T cells (Figure 6A), we asked whether inflammatory gene expression in macrophages is induced when they are in close proximity to CD8^+^ T cells. Indeed, proinflammatory scores in macrophages gradually decreased along with distance from GZMB^+^ CD8^+^ T cells (R = −0.20, P < 0.001) (Figure 7D), and a similar trend was observed for GZMK^+^CD8^+^ T cells (R = −0.11, P < 0.001) (Supplemental Figure 5A). While the strength of these spatial correlations is modest, their statistical significance is suggestive of this pathogenic interaction. Importantly, 2-dimensional density contour plots revealed distinct spatial patterns across macrophage subsets (Figure 7E); proinflammatory macrophages were located closer to GZMB^+^ CD8^+^ T cells than endothelial cells.

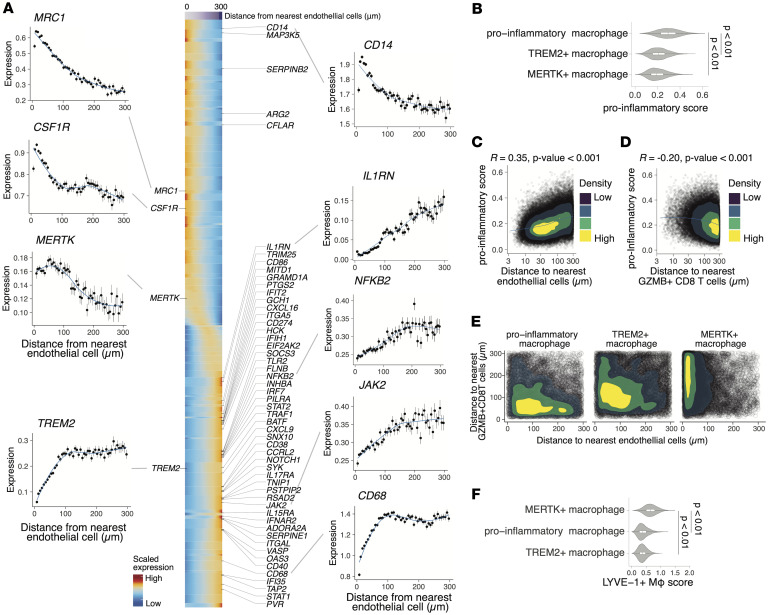

In contrast, MERTK^+^ macrophages showed a strong spatial association with endothelial cells. To further investigate the potential identity of MERTK^+^ macrophages, we examined their similarity to LYVE-1^+^ perivascular macrophages, which have been previously described as collagen-remodeling cells positioned near blood vessels in steady-state tissues. As LYVE-1 itself was not included in our Xenium probe panel, we inferred LYVE-1^+^–like phenotype by computing gene module scores across macrophage clusters using a gene signature associated with LYVE-1^+^ macrophages (18). The analysis revealed that MERTK^+^ macrophages exhibited the highest LYVE-1^+^ macrophage score among the identified subsets (Figure 7F). This result supports the notion that MERTK^+^ macrophages in JIA synovium represent a transcriptionally related population to homeostatic LYVE-1^+^ perivascular macrophages, potentially involved in vascular support and extracellular matrix turnover.
Given the reciprocal interactions of macrophages and fibroblasts (52), we examined their spatial relationships with lining fibroblasts. We observed that while several macrophage subsets were located in proximity to lining fibroblasts, this was also clearly apparent for TREM2^+^ macrophages (<50 μm) (Supplemental Figure 5B). To further characterize TREM2^+^ macrophage populations, we computed a module score using the CX3CR1^+^ lining macrophage gene signature previously defined in a murine model of joint inflammation (53). We observed significantly higher CX3CR1^+^ lining macrophage scores in TREM2^+^ macrophages, compared with other macrophage subsets (Supplemental Figure 5C). These results suggest that TREM2^+^ macrophages in our dataset may represent a human equivalent of CX3CR1^+^ barrier-forming macrophages, supporting their putative role in maintaining tissue homeostasis and limiting inflammatory responses at the synovial interface (53, 54).
Colocalization score schema highlights crosstalk between T cells and macrophage.

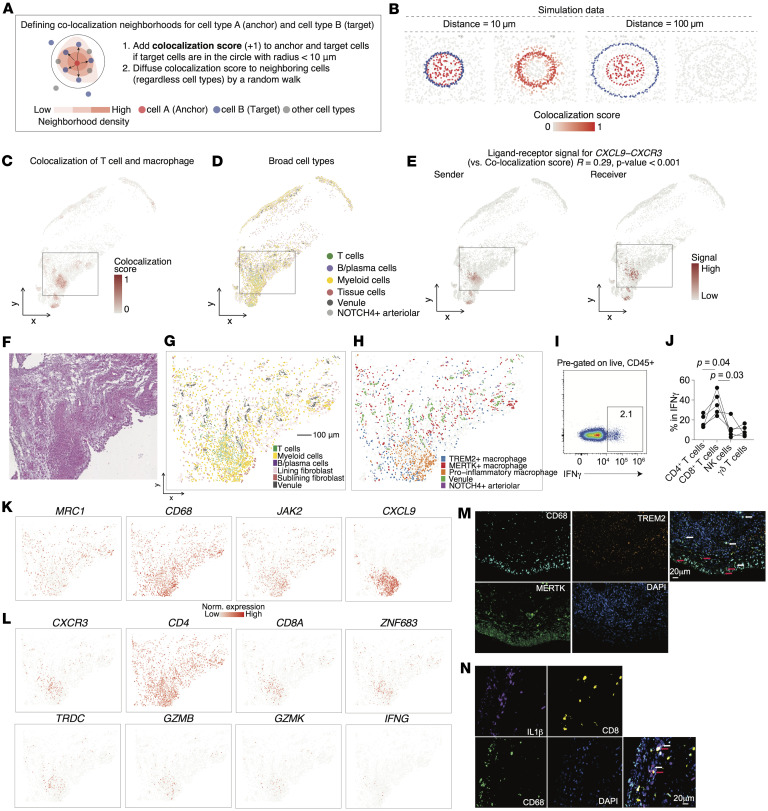

Although our spatial neighborhood enrichment analysis effectively captured cell type interactions, it did not resolve individual cell-level proximities. To overcome this limitation and enable identification of direct cellular interactions at single-spot resolution, we developed a colocalization score framework designed to precisely capture interactions between specific cell populations within spatial transcriptomics data (Figure 8A). We implemented this new scoring method, leveraging spatial coordinates to assign higher scores to cells that coexist closely within the spatial neighborhood. Using simulated and public spatial transcriptomics data, we confirmed the robustness of this approach, demonstrating that our colocalization score accurately identified known pairs of spatially proximal cells under various controlled scenarios (Figure 8B and Supplemental Figure 5, D and E).
Subsequently, we utilized the colocalization score to investigate ligand-receptor signaling interactions between macrophages and T cells by integrating ligand-receptor pair predictions from the COMMOT pipeline (55) (Supplemental Figure 5F). The distribution of correlation P values showed ligand-receptor interaction signals that were spatially covaried with macrophage–T cell colocalization scores (Supplemental Figure 5G). CXCL9/CXCR3 ligand-receptor pair exhibited the highest correlation with the macrophage–T cell colocalization scores, implicating this chemokine signaling axis as a potential critical mediator facilitating spatially organized crosstalk between these immune cells within JIA synovium (Figure 8, C–E, and Supplemental Figure 5, H–J).
We next focused on the niches composed primarily of macrophages, endothelial cells and T cells (Figure 8, F–H, and Supplemental Figure 5K). While both MERTK^+^ and TREM2^+^ macrophages were distributed across the lining and sublining layers, these subsets exhibited partially distinct spatial patterns; MERTK^+^ macrophages showed local enrichment around endothelial cells, whereas TREM2^+^ macrophages were broadly present in both lining and sublining areas. This distribution of TREM2^+^ macrophages is consistent with findings in RA, where they are observed in both compartments in the active disease state (18). On the other hand, proinflammatory macrophages were colocalized with T cells. Within the Myeloid+T cell niche, GZMB^+^CD8^+^ T cells exhibited the high expression of IFNG transcripts, which drives macrophage polarization toward a proinflammatory phenotype (Supplemental Figure 5L). We further quantified IFN-γ production by lymphocyte subsets in synovial fluid samples from oligo/poly patients with JIA, and we confirmed that CD8^+^ T cells are the predominant source of IFN-γ (Figure 8, I and J). Spatial transcriptomic mapping demonstrated enriched expression of macrophage-related inflammatory genes precisely at these niches (Figure 8, K and L, and Supplemental Figure 5M). Immunofluorescence staining of active JIA synovial samples confirmed that MERTK^+^ macrophages exhibited focal accumulation within the sublining layer, likely around endothelial cells, whereas TREM2^+^ macrophages dispersed in both lining and sublining layers (Figure 8M). Additionally, physical colocalization of CD8^+^ T cells with proinflammatory macrophages (Figure 8N) was observed in JIA synovial tissue, providing orthogonal validation of these inflammatory niches in situ.
Taken together, these findings underscore the spatial diversity of macrophage subsets in JIA synovium and suggest a dynamic phenotypical change in shaping the inflammatory macrophage phenotype via macrophage–T cell interactions, particularly through chemokine and cytokine signaling.
Spatial identification and cellular characterization of TLS in JIA synovium using T and B cell colocalization scores.

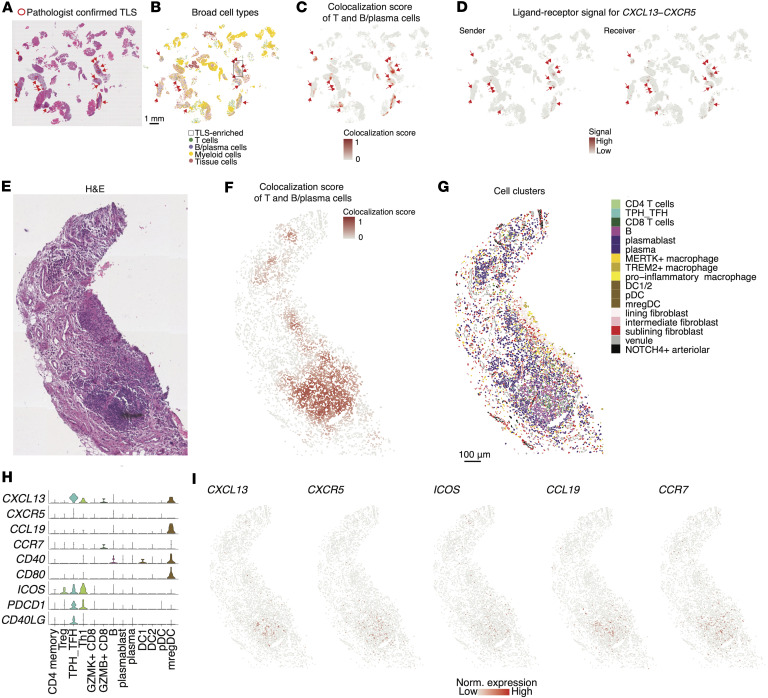

Given the established roles of TLS in chronic inflammatory conditions (56–59), we investigated their presence and cellular composition within JIA synovium. First, we applied the colocalization score framework to specifically assess interactions between T cells and B/plasma cells in order to detect potential TLS regions. These computationally identified regions matched with validated TLS regions by independent histopathological analysis performed by a blinded pathologist and T+B/plasma-rich regions by spatial mapping of broad cell types (Figure 9, A–C).
To assess the molecular mechanisms underlying TLS formation, we examined ligand-receptor signaling between T cells and B cells within identified TLS. The chemokine signaling axis CXCL13/CXCR5 showed significant enrichment in these TLS regions, suggesting a shared mechanism of TLS formation and maintenance with other chronic diseases (Figure 9D).
Histological image (Figure 9E), spatial visualization of TLS colocalization scores (Figure 9F and Supplemental Figure 6), and distribution of cell clusters confirmed the enrichment of Tph/Tfh cells within TLS-dense regions (Figure 9G). These clusters coexpressed high levels of key TLS-related genes including CXCL13, CXCR5, ICOS, and CCR7 (Figure 9, H and I). Notably, we also identified mregDCs as a likely source of CCL19, the ligand for CCR7, pointing to a potential cellular axis contributing to the establishment of TLS-associated chemotactic gradients in JIA. The elevated expression of CD40 and CD80 in mregDCs may facilitate the priming of naive T cells.

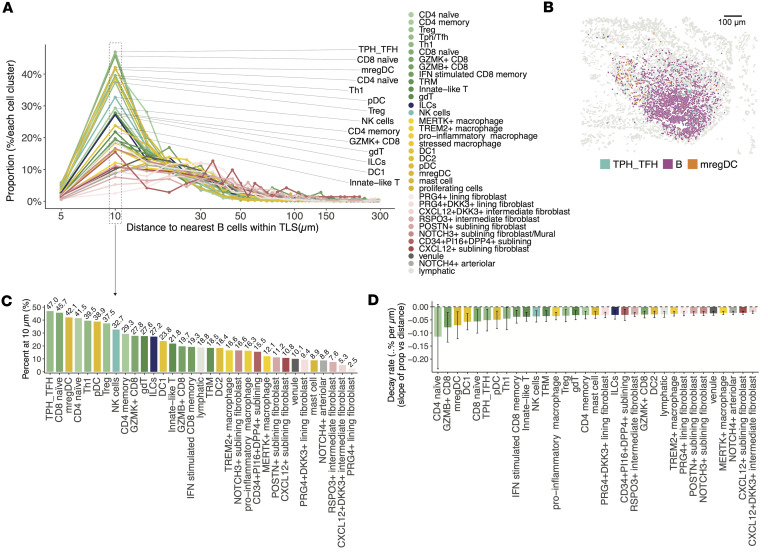

To further characterize the spatial organization of cell types within TLS, we quantified the distance from each cell to its nearest B cell across identified TLS regions and calculated the distribution of cell types across distance. This analysis revealed that several immune cell populations, particularly T cells as expected, including Tph/Tfh cells as the most enriched cell types, proxy for B cells (Figure 10A). These spatial features highlight the coordinated positioning of TLS-associated immune and stromal populations, supporting their roles in TLS formation and maintenance, likely through CXCL13/CXCR5 (T+B) and CCL19-mediated signaling from mregDCs (Figure 10B). We summarized the percentage of each cell cluster within 10 μm of B cells and compared the rate of spatial decay with distance (Figure 10, C and D). Tph/Tfh cells and mregDCs showed high enrichment and steepest decay, indicating strong localization near B cells. Together, these findings demonstrate the utility of the colocalization score in identifying TLS in JIA synovium and provide insights into the complex cellular interactions and signaling pathways driving TLS formation and maintenance.
Integrated comparison of JIA and RA synovial tissue reveals potential disease-specific cellular niches.

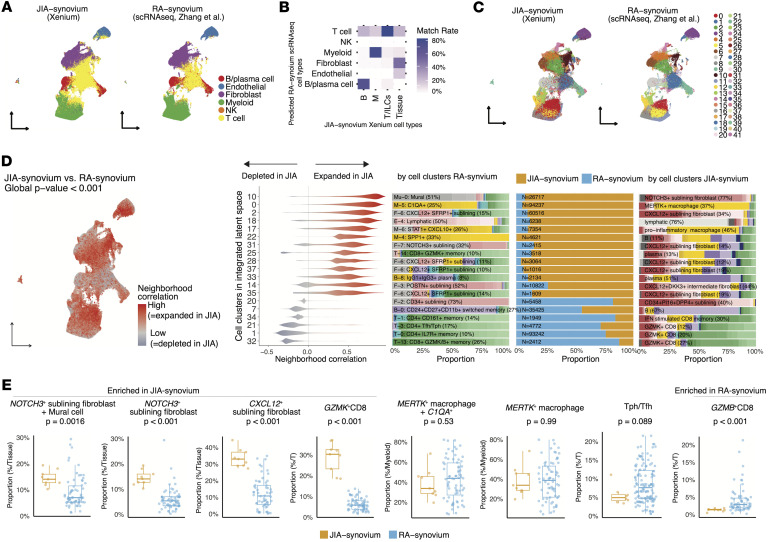

To compare the cellular architecture of JIA and RA synovium, we integrated our spatial transcriptomic data with publicly available RA synovial scRNA-Seq data (28) (Methods). RA-derived cell clusters were transferred to JIA cells in the shared latent space (Figure 11A). The transferred cell type labels showed high concordance with our annotations for major immune and stromal compartments in JIA synovium, including T cells/ILCs, B/plasma cells, myeloid cells, and stromal tissue cells (Figure 11B), with detailed results for each lineage shown in Supplemental Figure 7.
Unsupervised clustering in the integrated latent space yielded 42 shared cell clusters encompassing cells from both JIA and RA samples (Figure 11C). To identify disease-relevant cell states, we applied a CNA approach. This approach identified clusters with significantly different neighborhood compositions between the 2 conditions; for instance, integrated-clusters 10 was expanded in JIA, while integrated-clusters 21 was depleted (Figure 11D).
To mitigate potential technical artifacts arising from differences in tissue dissociation sensitivity between spatial transcriptomics and scRNA-Seq (60), we performed lineage-normalized comparisons between JIA and RA by calculating the relative abundance of key subsets within major immune lineages, with focus on cell populations, which were dominant in skewed integrated cell clusters toward JIA or RA (Figure 11E). Specifically, NOTCH3^+^ sublining fibroblasts (matched with mural cells in the RA-cluster), CXCL12^+^ sublining fibroblast cells, and GZMK^+^CD8^+^ T cells were enriched in JIA, whereas clusters enriched in RA included GZMB^+^CD8^+^ T cells. Although it did not show statistical significance, Tph/Tfh cells showed a trend toward enrichment in RA (P = 0.089). Collectively, these findings demonstrate the power of integrated spatial single-cell analysis to reveal potential cellular distinctions between JIA and RA pathogenesis.
Discussion
In this study, we present the largest subcellular-resolution spatial transcriptomic atlas, to our knowledge, of JIA synovium. We profiled whole synovial sections with single-molecule transcript detection, capturing a rich landscape of diverse immune and stromal cell populations in situ. By mapping cells in their native tissue context, our atlas reveals how innate and adaptive immune cells, fibroblasts, and endothelial cells organize into discrete pathogenic niches within the JIA joint. Key inflammatory cell states identified (e.g., proinflammatory macrophages, Tph/Tfh, GZMK^+^/GZMB^+^ CD8^+^ T cells, innate-like T cells, B/plasma cells, and distinct fibroblast subsets) spatially colocalize in patterns consistent with functional crosstalk.
Our findings corroborate the niche architecture and stromal-immune hubs as previously reported in treatment-naive JIA synovium (7). We extend that work by (a) leveraging high-plex, subcellular spatial data and a single-spot colocalization/neighborhood framework that identifies endothelial-NOTCH3^+^ sublining fibroblast and CXCL9/CXCR3 macrophage–CD8^+^ T cell circuits in situ; (b) linking JIA genetic risk to defined fibroblast states; and (c) quantitatively resolving TLS composition and chemokine context.
The identification of spatially resolved tissue niches within JIA synovium reveals distinct immune-stromal architectures that likely underpin localized pathogenic processes. Our unsupervised classification of microanatomical niches into 4 major classes — T+B/plasma cell, Myeloid+Stromal, Myeloid+T cell, and Stromal — reflects the complex cellular crosstalk shaping the inflamed synovial landscape. The Myeloid+T cell and T+B/plasma cell niches exhibited enrichment for IFN-α/γ signaling and adaptive immune pathways, respectively, echoing findings from adult RA studies in which Th1-type cytokines and B cell–T cell interactions dominate lymphoid-rich synovitis (28). The presence of angiogenesis-associated signatures within stromal-rich niches further supports prior work suggesting that fibroblast cells with enrichment for genes associated with the vasculogenesis program sustain chronic inflammation (61, 62). These spatially confined signaling environments may facilitate niche-specific therapeutic resistance or responsiveness, as prior study has shown that pauci-immune synovium with abundant fibroblasts is associated with poor therapeutic response in RA (28, 63). Future studies integrating spatial proteomics and longitudinal biopsy cohorts could clarify how these niches evolve over disease course or in response to therapy, ultimately advancing precision medicine strategies in JIA.
Synovial fibroblasts are broadly classified into lining and sublining fibroblasts: sublining fibroblasts exhibit a secretory phenotype characterized by high expression of inflammatory molecules such as IL-6, CXCL12, and CCL2, which recruit monocytes, whereas lining fibroblasts are the source of the metalloproteinase as the main driver of invasion and cartilage degradation (64, 65). A striking finding in our study is the spatial coupling of sublining fibroblasts with the synovial endothelium via NOTCH3 signaling, a niche interaction that mirrors observations in RA (8). In RA, endothelium-derived NOTCH signals imprint a positional identity on perivascular fibroblasts, promoting an aggressive inflammatory phenotype (8). The shared endothelial-fibroblast niche architecture in JIA and RA underscores a fundamental pathological circuit and raises the hypothesis that targeting the NOTCH3 pathway could attenuate fibroblast pathogenicity in JIA, echoing therapeutic insights previously shown in RA models (8). Interestingly, when integrating the JIA Xenium spatial transcriptomic data with RA scRNA-Seq data, many of the NOTCH3^+^ fibroblasts in JIA synovium were predicted to align with mural cell identities, suggesting continuous cell states between them. This finding is congruent with the previous study showing that there are no universal specific markers to distinguish fibroblasts and mural cells (66) and that mural cells can arise from perivascular fibroblast-like cells through NOTCH signaling (67). Furthermore, when we applied gsMap, PRG4^+^ lining fibroblasts showed the strongest association with JIA GWAS signals. This finding stands in contrast to the inflammatory sublining fibroblasts enriched in patients with high CRP and suggests that distinct fibroblast phenotypes may be differentially involved in disease susceptibility versus disease activity or progression. Such a model parallels observations in systemic lupus erythematosus (SLE), where gene programs associated with disease-state differ from those linked to severity (68).
Our spatial analysis also uncovered intimate interactions between infiltrating T cells and synovial macrophages that appear to form a positive feedback loop driving proinflammatory-polarized inflammation. In JIA synovium, CXCR3^+^ T cells were frequently colocalized with CXCL9^+^CXCL10^+^ proinflammatory macrophages. CXCL9/CXCR3 or CXCL10/CXCR3 chemokine axis is known to recruit and activate Th1 cells in inflamed joints (69): synovial macrophages (and lining cells) secrete CXCR3 ligands CXCL9/CXCL10 under IFN-γ stimulation (70), which align with enrichment of IFN-α/γ signaling in Myeloid+T cell niches described in our analysis. Our data support this model in situ, suggesting that T cells and proinflammatory macrophages engage in reciprocal activation — effector T cells maintain macrophages in a proinflammatory state, and macrophage-derived CXCL9/CXCL10 attracts more T cells into the tissue. Importantly, our spatial transcriptomic data reveal that, while GZMB^+^CD8^+^ T cells are a rare population (representing < 2% of total T cells), they exhibit the highest per-cell expression of IFN-γ transcripts, highlighting them as a small but potent potential source of this key cytokine.
MERTK^+^ macrophages and TREM2^+^ macrophages identified in our study correspond to functional analogs of LYVE-1^+^ perivascular macrophages and CX3CR1^+^ lining macrophages previously described in mouse models, respectively (53, 71). In parallel, RA remission has been associated with MERTK^+^ macrophage subsets, including LYVE1^+^ and TREM2^hi^ populations (18). The spatial proximity of MERTK^+^ macrophages to endothelial cells, combined with their transcriptional signature, supports a role for these cells in vascular maintenance and resolution of inflammation in the pediatric synovium. In RA, MERTK^+^LYVE1^+^ macrophages predominantly reside in the lining layer during homeostasis and remission but shift to perivascular regions in the sublining layer during active inflammation (18). The localization of MERTK^+^ macrophages in our JIA samples mirrors this pattern and may reflect the inflammatory state of the tissue, as all biopsies in our study were obtained from clinically active joints. Moreover, recent work has highlighted a specialized vascular-immune interface at the synovial lining-sublining boundary, where fenestrated PV1^+^ endothelial (proxy for venules in our dataset) cells permit entry of circulating immune complexes, initiating inflammatory responses (47). These are sensed by resident macrophages and nociceptor neurons, which act as components of the synovial defense system and potential secondary effectors of fibroblasts. The enrichment of endothelial-fibroblast interactions and the anatomical proximity of perivascular macrophage subsets in JIA synovium are consistent with this emerging model of immune surveillance.
Using spatial colocalization analysis, we identified organized aggregates of B cells, T cells, and DCs in the synovium, often with structures reminiscent of germinal centers. These TLS-like aggregates in JIA closely mirror those observed in adult autoimmune diseases such as RA and SLE, amplifying local autoimmunity and inflammation (72, 73). Likewise, JIA TLS may serve as sites of local antigen presentation and lymphocyte activation, potentially driving epitope spreading or autoantibody production even in a pediatric setting, although the specific antigens involved remain unknown. In the context of JIA, lymphoid aggregates in the synovium have been reported (58). Intriguingly, a prior study by Gregorio et al. reported that these nascent TLS in JIA did not strongly associate with disease duration or severity, though they found them to be more common in antinuclear antibody^+^ (ANA^+^) cases. The TLS we observed shared molecular features with TLS in other disorders — for example, JIA TLS areas showed upregulation of lymphoid chemokines CXCL13 from Tph/Tfh cells and CCL19 from mregDCs, and CD40 in B cells (74). These findings encourage further study of TLS as a prognostic marker and as a potential therapeutic target, especially given that some of the agents targeting TLS-related pathways are currently in clinical trials for RA (75).
While JIA and RA are distinct diseases (1), our findings might enable a cross-comparison of pediatric vs. adult synovial pathogenesis. Within stromal cells, the cellular composition of inflamed JIA synovium skewed toward inflammatory elements, including NOTCH3^+^ and CXCL12^+^ sublining fibroblasts compared with RA. The preferential enrichment of GZMK^+^CD8^+^ T cells in JIA and *GZMB^+^*CD8^+^ T cells in RA suggests that divergent modes of tissue inflammation and immune activation via GZMK and GZMB pathways (76, 77) may contribute to different pathogenic mechanisms in pediatric versus adult arthritis. Furthermore, they may reflect differences between seronegative JIA (RF-negative) and seropositive RA, the latter of which includes the majority of patients with RA in our comparison, with over 75% testing positive for anticyclic citrullinated peptide antibodies. We therefore acknowledge that these findings are preliminary and that future studies in larger, prospectively matched cohorts are needed to confirm these cellular distinctions. Nonetheless, these contrasts between adult and pediatric arthritis, although preliminary, provide hypotheses about how age and immune maturation influence the inflammatory microenvironment.
Methodologically, this study introduces a computational pipeline for quantifying spatial colocalization at both cell-type and single-spot levels. The latter approach yielded quantitative “colocalization scores” for cell pairings and enabled linking with the established framework for inferring ligand-receptor signals. While prior single-cell studies in RA inferred cell interactions from dissociated cells (78–81), our pipeline provides a spatially resolved view of cell communications, adding confidence by requiring physical proximity in tissue. We envision that this analytic framework can be applied to other spatial omics datasets, enabling a deeper understanding of tissue organization and cross-talk in health and disease.
This work has several limitations that warrant discussion. First, the number of patient samples is modest, reflecting the difficulty of obtaining pediatric synovial biopsies; thus, the generalizability of some findings (e.g., TLS presence or specific rare cell populations) will need confirmation in larger JIA cohorts. Relatedly, while we systematically tested associations between all cell populations and multiple clinical covariates — including disease duration, treatment status (e.g., MTX, bDMARDs, steroid injection), and the presence of uveitis — we found no statistically significant associations apart from CRP levels, underscoring the need for validation in larger cohorts to better define the relationship between synovial cell composition and clinical phenotypes. Second, our comparisons between JIA and RA relied on integrating our spatial transcriptomics data with published scRNA-Seq data from adult RA, and we acknowledge that such cross-study comparisons are inherently indirect due to differences in tissue processing and assay platforms. However, these differences can also offer complementary insights. For instance, spatial transcriptomics has a higher capture rate of stromal cells compared with dissociative scRNA-Seq, which often underrepresents these cell types (60). This allowed us to characterize immune-stromal interactions more comprehensively in JIA synovium.

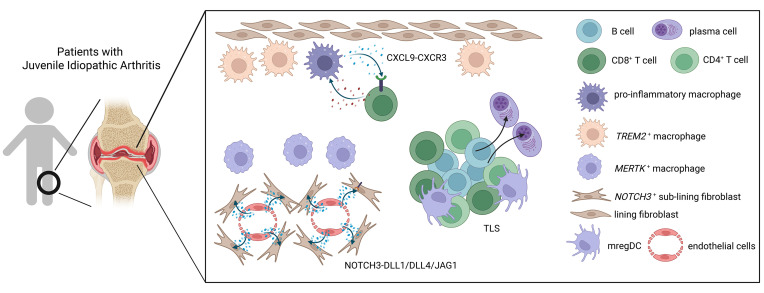

In conclusion, our high-resolution spatial transcriptomic data of oligo/poly JIA synovium in combination with potentially new computational pipelines charted the inflammatory cell atlas and microanatomy of the disease with unprecedented detail, paving the way for future studies to leverage spatial omics in understanding tissue-level immunology. By combining spatial genomics with multi-omics and experimental validation, we move closer to unraveling the cellular choreography of arthritis and translating these insights into targeted therapies for children and adults suffering from joint inflammation.
Methods
Supplemental Methods are available online with this article.
Sex as a biological variable.
This study considered sex as a biological variable and included both female and male patients. The patient cohort, detailed in Supplemental Table 1, consists of a higher proportion of female patients, which is representative of the known sex predominance in the epidemiology of JIA. To account for potential confounding effects, sex was included as a covariate in relevant statistical models.
Subject recruitment and clinical data collection.
Children who met the ILAR classification criteria for a diagnosis of JIA (3) and were seen at Children’s Hospital Colorado were recruited for the study. Clinical information was obtained through a review of medical records. ANA and RF were considered positive if detected at any titer and at any point during the disease course. CRP levels were measured within 3 months of the procedure.
Statistics.
The statistical tests performed are indicated in the figure legends or Methods. For the analysis of our data, the Wilcoxon rank-sum test was used for comparing continuous variables between 2 groups. Spearman’s rank correlation was utilized to examine the relationship between 2 continuous variables. We corrected for multiple comparisons using the Benjamini-Hochberg procedure to control the false discovery rate. Adjusted p values less than 0.05 were considered significant.
Study approval.
This study was approved by the Institutional Review Board at University of Colorado School of Medicine (protocol number 23-2268). The design and conduct of this study fully complied with all relevant regulations regarding the use of human study participants, including the U.S. Department of Health and Human Services regulations for the protection of human subjects (45 CFR 46), and adhered to the ethical principles outlined in the Declaration of Helsinki.
Data availability.
All raw and processed data will be available at dbGAP (accession no. phs004370.v1.p1). Spatial transcriptome data for benchmarking spatial neighborhood analysis and colocalization score was downloaded from https://www.10xgenomics.com/jp/support/software/xenium-onboard-analysis/latest/resources/xenium-example-data We used publicly available software for the analyses. Newly developed R package for spatial neighborhood enrichment analysis and colocalization scoring system and vignette using simulation data and public 10X spatial transcriptome data will be available on Github (https://github.com/juninamo/spatialCooccur; commit ID 6039663). Other analytic codes to generate figures are available on Github (https://github.com/juninamo/JIA_Xenium; commit 71010db). Values for all data points in graphs are reported in the Supporting Data Values file.
