Titanium Surface Roughness Mediated Macrophages Polarization-Influenced Osteogenic Differentiation of Periodontal Ligament-Derived Mesenchymal Stromal Cells

TL;DR

This study shows that titanium implant surface roughness affects macrophage behavior, which in turn influences the bone-forming potential of periodontal ligament stem cells.

Contribution

The novel finding is that medium surface roughness on titanium implants promotes M2 macrophage polarization and enhances osteogenic differentiation of PDL MSCs.

Findings

Medium surface roughness (Ti-MR) reduced pro-inflammatory gene expression in macrophages.

Ti-MR increased anti-inflammatory and osteogenic gene expression in PDL MSCs.

Ti-MR led to the highest population of CD163+ macrophages and improved calcium deposition.

Abstract

Implant surface topography significantly influences cell behavior, including macrophages and bone cell interactions. The polarization of macrophages, key immune cells, is influenced by implant surface characteristics. This research aimed to examine periodontal ligament mesenchymal stromal cells (PDL MSCs) responses to the polarized macrophages induced by titanium surface roughness.

RAW 264.7 macrophages were cultured with various surface roughness of titanium disks. Macrophage adhesion and polarization were evaluated by scanning electron microscope, gene expressions profiling, and flow cytometry. PDL MSCs were treated with conditioned medium of macrophages and analyzed with 3-[4,5-dimethylthiazol-2yl]-2,5-diphenyl-2H-tetrazolium bromide assay, real-time polymerase chain reaction, and Alizarin red staining.

Data was statistically analyzed using GraphPad Prism 9 for Windows 11. The one-way analysis of variance test was used to compare the groups. Dunn post hoc test was used to compare the difference between the groups when appropriate. Significance was accepted when
p
 < 0.05.

Medium surface roughness (Ti-MR) consistently inhibited tumor necrosis factor-α, interleukin-1β (IL-1β), and IL-6 gene expressions (
p
 < 0.001) and upregulated transforming growth factor-β, vascular epithelial growth factor, and IL-10 expressions (
p
 < 0.01). Confirmatory flow cytometry analysis showed consistent results, with Ti-HR and Ti-MR exhibiting the highest population of CD163+ cells (99.1 and 90.7%, respectively), while Ti-LR exhibited the lowest M1/M2 ratio (0.93). Furthermore, treatment of RAW 264.7 conditioned medium increased osteopontin, alkaline phosphatase, collagen type-1 A-1 chain, osteocalcin, runt-related transcription factor-2, and bone sialoprotein gene expressions and calcium deposition (
p
 < 0.01).

Titanium implant surface topography influences macrophage polarization and osteogenic differentiation of PDL MSCs, with Ti-MR being the most effective in polarizing macrophages toward M2 and inducing optimal osteogenic responses from PDL MSCs.

Figures

The wettability of surfaces was tested by water contact angle using low bond-axisymmetric drop shape analysis (LB-ADSA) method ( n  = 6). A significant difference between groups was indicated by * p  < 0.001.

Cell morphology. ( A ) Representative image of RAW 264.7 cell morphology on titanium surfaces was observed using scanning electron microscope (SEM) at 2,000× and 3,000× magnification (the scale bar is 20 and 10 μm, respectively). ( B ) Immunofluorescence microscope observation 40× magnification (the scale bar is 30 μm).

M1/M2 macrophage gene expression of RAW 264.7 cells ( n  = 3). A significant difference between groups was indicated by * p  < 0.05, p  < 0.01, and * p  < 0.001.

Polarization of macrophages was evaluated by the expressions of M1 (CD86) and M2 (CD163) markers using flow cytometry.

Comparison of cell proliferation and osteogenesis of periodontal ligament mesenchymal stromal cells (PDL MSCs). ( A ) Comparison of cell proliferation with 3-[4,5-dimethylthiazol-2yl]-2,5-diphenyl-2H-tetrazolium bromide (MTT) value of 70% set as threshold for cytotoxicity ( n  = 3). ( B ) Osteogenesis-related gene expression of PDL MSCs ( n  = 3). A significant difference between groups was indicated by * p  < 0.05, p  < 0.01, and * p  < 0.001.

Representative images of Alizarin red staining ( A ; the scale bar is 200 μm) and ( B ) quantitative analysis of calcium deposition ( n  = 3). A significant difference between groups was indicated by * p  < 0.05, p  < 0.01, and * p  < 0.001.

Tables

Table 1. Primer sequences used for RT-PCR

Target genes	Forward primer	Reverse primer
IL-1B	5′-AGCCCATCCTCTGTGACTCAT-3′	5′-CATTGAGGTGGAGAGCTTTC-3′
IL-6	5′-CTTGGGACTGATGCTGGTG-3′	5′-TTCCACGATTTCCCAGAGA-3′
TNF-a	5′-TCGTAGCAAACCACCAAGTG-3′	5′-CCTTGAAGAGAACCTGGGAGT-3′
IL-10	5′-GAGAAGCATGGCCCAGAAATC-3′	5-GAGAAATCGATGACAGCGCC-3′
TGF-B	5′-TGGAGCAACATGTGGAACTC-3′	5′-TGCCGTACAACTCCAGTGAC-3′
VEGF	5′-TTACTGCTGTACCTCCACC-3′	5′-ACAGGACGGCTTGAAGATG-3′
GAPDH	5′-TGTGTCCGTCGTGGATCTGA-3′	5′-CCTGCTTCACCACCTTCTTGAT-3′
ALP	5′- GCAACTTCCAGACCATTGGC -3′	5′-TCCCACTGACTTCCCTGCTT-3′
OPN	5′-ACATCCAGTACCCTGATGCTACAG-3′	5′-TGGCCTTGTATGCACCATTC-3′
Col1A1	5′- TCTGCGACAACGGCAAGGTG -3′	5′-GACGCCGGTGGTTTCTTGGT-3′
OCN	5′-GCTACCTGTATCAATGGCTG-3′	5′-GGAAGAGGAAAGAAGGGTG-3′
BSP	5′-GATTTCCAGTTCAGGGCAGTAG-3′	5′-CCCAGTGTTGTAGCAGAAAGTG-3′
Runx2	5′-ATGCTTCATTCGCCTCAC-3′	5′-ACTGCTTGCAGCCTTAAAT-3′
18s	5′- TGGACAACAAGCTCCGTGAA -3′	5′-TCGAGGTAGGCAGGGAGATG-3′

Full text

Introduction

The surface topography of titanium implants plays a critical role in influencing cell behavior, including the responses of bone cells and macrophages. Various studies have demonstrated that specific surface features, such as roughness and texture, can modulate cell adhesion, proliferation, and differentiation, which are crucial for successful osseointegration. 1 2 3

Macrophages, key players in the immune response, exhibit a range of polarization states that significantly impact tissue healing and regeneration. Macrophages can adopt different activation states or phenotypes, broadly classified into proinflammatory M1 and anti-inflammatory M2 phenotypes 4 and can be influenced by the physical characteristics of the implant surface. 5 6 M1 macrophages are generally proinflammatory, producing cytokines like tumor necrosis factor-α (TNF-α), while M2 macrophages are associated with anti-inflammatory responses and tissue repair, secreting factors such as interleukin (IL)-10 and Arg-1. 7 8 The ability of implant surfaces to sway macrophage polarization thus holds significant implications for bone healing and integration of implants. 9 10

Periodontal ligament mesenchymal stromal cells (PDL MSCs) are a population of stromal cells capable of differentiating into various cell types involved in periodontal tissue regeneration. These cells have been shown to interact closely with macrophages, a type of immune cell crucial for both inflammatory responses and tissue repair processes. The interaction between PDL MSCs and macrophages is vital for regulating the immune microenvironment in periodontal tissues.

Macrophage polarization has a profound impact on the osteogenic differentiation of PDL MSCs. M1 macrophages, which produce proinflammatory cytokines such as TNF-α and IL-1β, can create an inflammatory microenvironment that inhibits MSCs proliferation and osteogenesis. 11 12 In contrast, M2 macrophages secrete anti-inflammatory cytokines like IL-10 and transforming growth factor-β (TGF-β), promoting a regenerative environment that enhances MSCs differentiation into osteoblasts. 13 14 PDL MSCs exposed to M2 macrophage-conditioned media exhibit an increase in mineralization and higher expression of osteogenic markers, underscoring the importance of M2 macrophages in facilitating bone regeneration. 15 16

Despite the established importance of surface topography on cell behavior and macrophage polarization, the specific effects of titanium surface roughness on PDL MSCs-mediated macrophage polarization and their subsequent roles in osteogenesis remain unclear. Our study aims to bridge this gap by examining whether polarized macrophage induced by surface topographical cues of titanium implants influences the osteogenic potential of PDL MSCs. Understanding these interactions is crucial for optimizing implant design to enhance bone regeneration and ensure long-term success of dental implants.

Materials and Methods

Preparation and Surface Characterization of Titanium Disks

Titanium disks (diameter 12 mm; thickness 2 mm) were obtained from Pudak Scientific, Indonesia, with various surface roughness. Scanning electron microscope (SEM; FEI-quanta 650, Zeiss, Germany) analysis revealed roughness values (Ra) of low roughness (Ti-LR), medium roughness (Ti-MR), and high roughness (Ti-HR) titanium were 0.82, 2.42, and 3.66 μm, respectively. The contact angles measured using low bond-axisymmetric drop shape analysis with ImageJ (National Institutes of Health, United States), ranged from 59 to 73 degrees, indicating a moderate hydrophilicity ( Fig. 1 ). All disks were sterilized by 25 kGy gamma irradiation prior to cell seeding.

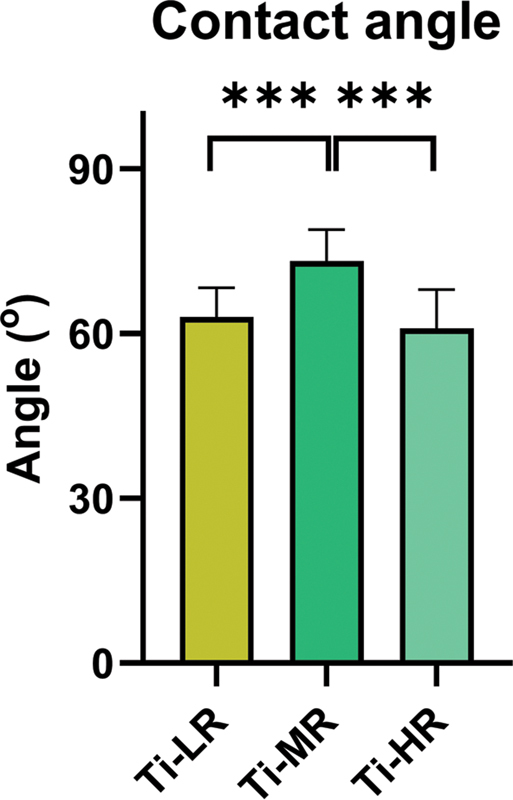

The wettability of surfaces was tested by water contact angle using low bond-axisymmetric drop shape analysis (LB-ADSA) method ( n  = 6). A significant difference between groups was indicated by *** p  < 0.001.

RAW 264.7 Cell Culture

RAW 264.7 cells were cultured in Iscove's Modified Dulbecco's Medium supplemented with 10% heat-inactivated fetal bovine serum (FBS), 1% penicillin-streptomycin, and 1% amphotericin-B and incubated at 37°C and 5% CO 2 in 95% humidified atmosphere. All medium and reagents in this study were obtained from Gibco, United States, unless otherwise specified. Titanium Ti-LR, Ti-MR, and Ti-HR were placed in 24-well plates. A total of 1 × 10 ^5^ RAW 264.7 cells suspended in 50 μL were added to titanium disks in each well ( n  = 3), ensuring complete coverage of the titanium by the cells, and incubated for 1 hour for cell adhesion and stabilization. Cells cultured in medium only served as the control group. Independent experiments were repeated at least two times and performed in triplicate.

Cell Adhesion Morphology

Following cells cultured with titanium disks for 24 hours, cells were fixed with 2.5% glutaraldehyde for 2 hours and dehydrated in a gradient series of ethanol. Cell adhesion on the different samples was examined using SEM and immunofluorescence staining. Samples were stained with Phalloidin blue (Abcam) at 1:1,000 dilution for 90 minutes. Nuclear staining was carried out using 5 μg/mL Hoechst 33342 (Abcam), incubated for 60 minutes, mounted with mounting medium, and observed using an inverted fluorescence microscope (Zeiss AxioCam MRc5, Germany).

Flow Cytometry

The surface markers of M1 macrophages (CD86) and M2 macrophages (CD163) were examined using flow cytometry. Briefly, RAW 264.7 macrophages cultured on different samples were isolated by trypsinization and washed with phosphate-buffered saline (PBS) two times. Subsequently, the cells incubated with allophycocyanin-conjugated CD163 (Elabscience) and phycoerythrin-conjugated CD86 (Elabscience) for 15 minutes. Last, cells were washed with PBS and then analyzed using a flow cytometer.

Real-Time Polymerase Chain Reaction

Real-time polymerase chain reaction (RT-PCR) was performed using primers as listed in Table 1 . The cells were lysed with Trizol (Thermo Fisher, United States) at 4°C overnight. Complementary deoxyribonucleic acid (cDNA) was synthesized from total ribonucleic acid (RNA) and standardized to concentration 7.5 ng/μL in thermal cycler (Thermo Fisher). RT-PCR was conducted using 5 μL of sample cDNA with a denaturation step at 85°C for 15 seconds, annealing and extension at 60°C for 1 minute, for a total of 45 cycles. Target gene expression was normalized to the housekeeping gene glyceraldehyde 6-phosphate (GAPDH) and 18s ribosomal RNA (18s), and data were calculated using the 2 ^‒ΔΔCt^ method.

PDL MSCs Regulation Toward RAW 264.7 Response

The conditioned medium (CM) of RAW 264.7 macrophage cultured with titanium disks for 24 hours were collected. PDL MSCs under the sixth passage were cultured in Alpha Modified Eagle's Medium supplemented with 10% FBS, 1% penicillin-streptomycin, and 1% amphotericin-B. PDL MSCs were seeded at a density of 1 × 10 ^4^ cell per well in a 96-well plate and subjected to serum starvation for 24 hours. Macrophages CM were added in medium at 1:1, 1:3, and 3:1 ratio for 24 hours. A proliferation assay using 5 mg/mL of 3-[4,5-dimethylthiazol-2yl]-2,5-diphenyl-2H-tetrazolium bromide (MTT; Sigma-Aldrich, United States) was performed to evaluate cell proliferation. The absorbance values were determined at 600 nm.

Alizarin red staining and RT-PCR were performed to evaluate differentiation. PDL MSCs were cultured in medium with macrophage CM at 1:1 ratio for 72 hours, followed by cultured in an osteogenic medium containing 10 mM β-glycerophosphate, 100 nM dexamethasone, and 0.2 mM L-ascorbic acid for 7 and 14 days. Cells were fixed with 4% paraformaldehyde and stained with 2% Alizarin red (Thermo Fisher) solution. Images of the stained calcium nodules were captured using a digital camera and light microscope (Zeiss, Germany). The mineralized nodules were dissolved in 10% hexadecylpyridinium chloride (Thermo Fisher) and quantified using a microplate reader at 600 nm.

Statistical Analysis

Data was statistically analyzed using GraphPad Prism 9 for Windows 11. The one-way analysis of variance test was used to compare the groups. Dunn post hoc test was used to compare the difference between the groups when appropriate. Significance was accepted when p  < 0.05.

Results

RAW 264.7 Macrophage Adhesion

RAW 264.7 macrophages were cultured on various titanium disks and observed using SEM and immunofluorescence ( Fig. 2 ). The cells cultured on Ti-LR displayed a morphology that was quite similar to those cultured on Ti-HR, characterized by a rounded shape with numerous filopodia projections. Despite this similarity in cell shape, it was noted that the cell colonies formed on the Ti-HR substrate were more abundant compared to those on Ti-LR. The macrophages on Ti-MR appeared more flattened. Instead of typical filopodia, the cell attachment on Ti-MR was characterized by lamellipodia, evidenced by broad, sheet-like extensions, at the leading edge of the cells ( Fig. 2A ). The fluorescence microscopy findings further confirmed cell morphologies that were observed under SEM. Lamellipodia in cells cultured on Ti-MR were clearly depicted by broad sheet-like extensions. In addition to Ti-MR, flattened cells were also observed in some cells on Ti-LR and Ti-HR. Cells on Ti-LR exhibited more diverse morphologies, including elongated cells and some that were flattened. The majority of cells on Ti-HR showed less pronounced flattening compared to those on Ti-MR, with cell adhesion on Ti-MR being evident through thin actin filaments extending from the cell edges to form pseudopodia ( Fig. 2B ).

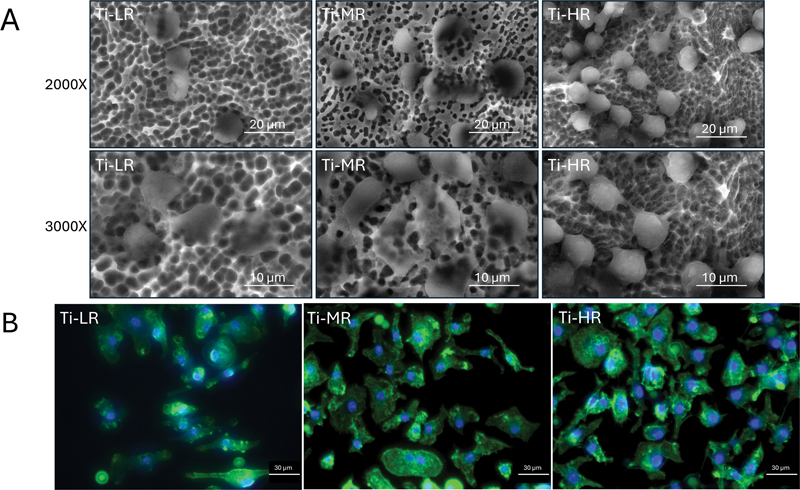

Cell morphology. ( A ) Representative image of RAW 264.7 cell morphology on titanium surfaces was observed using scanning electron microscope (SEM) at 2,000× and 3,000× magnification (the scale bar is 20 and 10 μm, respectively). ( B ) Immunofluorescence microscope observation 40× magnification (the scale bar is 30 μm).

Titanium Surfaces Induce Specific Macrophage Polarization

The gene expression of M1 macrophage (IL-1β, IL-6, and TNF-α) and M2 macrophage markers (IL-10, vascular epithelial growth factors [VEGFs], and TGF-β) was further investigated to analyze macrophage polarization on each titanium surface ( Fig. 3 ). The Ti-LR surface exhibited a significant increase in TNF-α expression but decrease in IL-1β expression. Ti-MR and Ti-HR showed a significant decrease in IL-1β and TNF-α expressions. In contrast, the analysis of M2 markers revealed distinct patterns. There was a significant increase in the expression of VEGF, IL-10, and TGF-β genes on the Ti-MR surface. All titanium groups show an increase in TGF-β expression.

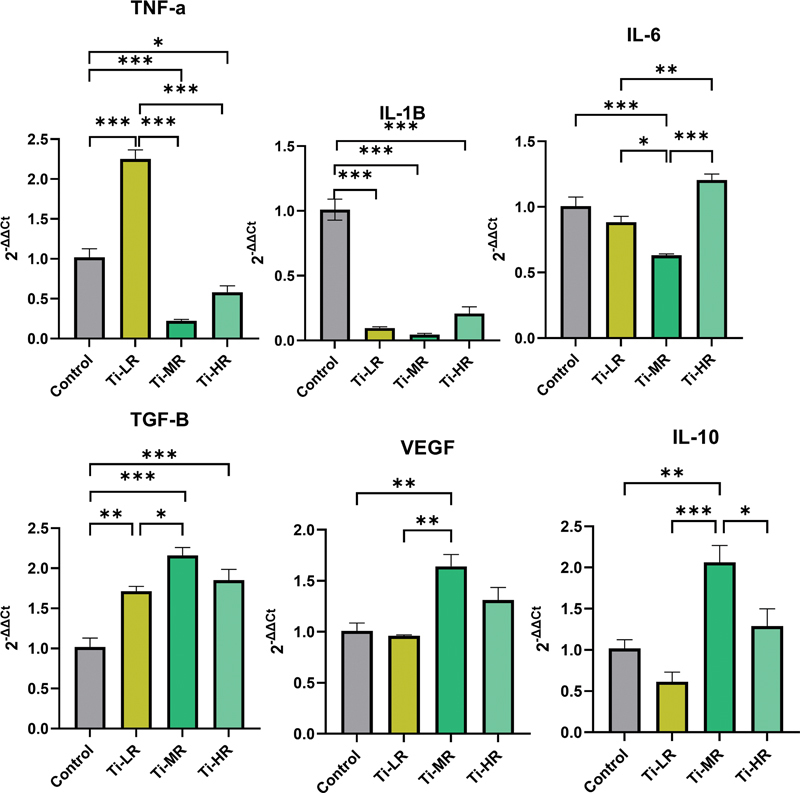

M1/M2 macrophage gene expression of RAW 264.7 cells ( n  = 3). A significant difference between groups was indicated by * p  < 0.05, ** p  < 0.01, and *** p  < 0.001.

To further confirm the phenotype of polarized macrophages on different samples, CD86 was selected as markers for M1 macrophages, while CD163 was used as markers for M2 macrophages. Flow cytometry analysis was conducted to evaluate macrophage polarization. As shown in Fig. 4 , the proportion of cell populations varied across samples compared to control group. Ti-LR exhibited a reduction in the proportion of CD86 ^+^ and enhancement of CD163 ^+^ . In contrast, Ti-MR and Ti-HR displayed an increase in the proportion of all cell populations. Further analysis was conducted by comparing the M1/M2 ratio across all groups. The results revealed the following trend: Ti-LR (0.93) < control (0.96) < Ti-HR (1.00) < Ti-MR (1.03).

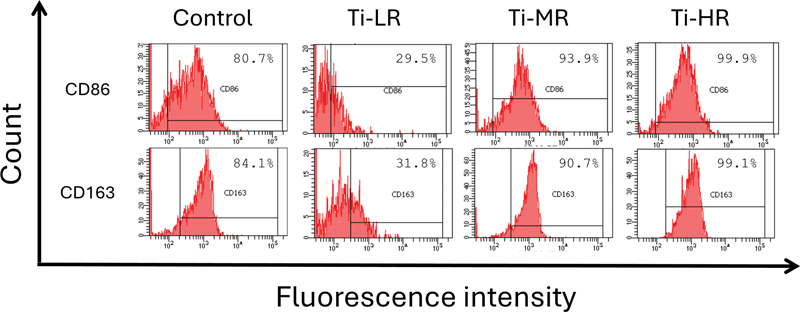

Polarization of macrophages was evaluated by the expressions of M1 (CD86) and M2 (CD163) markers using flow cytometry.

Influence of RAW 264.7 Macrophages on the PDL MSCs Proliferation and Osteogenic Differentiation

The result of MTT assay and osteogenic gene expressions are presented in Fig. 5 . All groups demonstrated MTT values above 70% indicating that the titanium samples are biocompatible ( Fig. 5A ). RAW 264.7 macrophage CM significantly increased osteogenic gene expression in the Ti-MR and Ti-HR groups compared to the control ( Fig. 5B ). Interestingly, PDL MSCs exposed to macrophage CM derived from RAW 264.7 cells stimulated with IL-4 exhibited elevated expression of all three M2 markers, and this increase was not significantly different from that observed in the Ti-MR group. Furthermore, an increase in calcium deposition was demonstrated in the Ti-MR and Ti-HR groups ( Fig. 6A and B ).

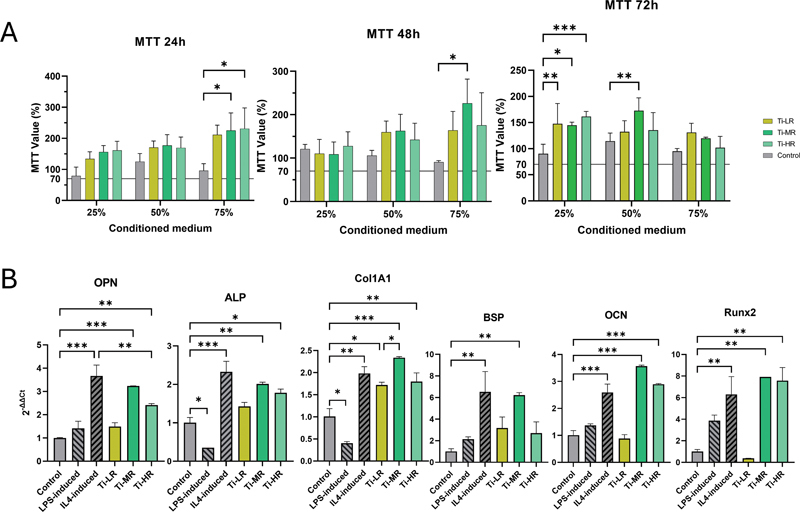

Comparison of cell proliferation and osteogenesis of periodontal ligament mesenchymal stromal cells (PDL MSCs). ( A ) Comparison of cell proliferation with 3-[4,5-dimethylthiazol-2yl]-2,5-diphenyl-2H-tetrazolium bromide (MTT) value of 70% set as threshold for cytotoxicity ( n  = 3). ( B ) Osteogenesis-related gene expression of PDL MSCs ( n  = 3). A significant difference between groups was indicated by * p  < 0.05, ** p  < 0.01, and *** p  < 0.001.

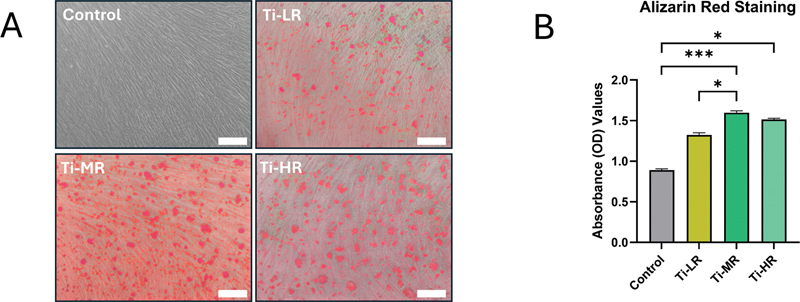

Representative images of Alizarin red staining ( A ; the scale bar is 200 μm) and ( B ) quantitative analysis of calcium deposition ( n  = 3). A significant difference between groups was indicated by * p  < 0.05, ** p  < 0.01, and *** p  < 0.001.

Discussion

The present study evaluated the impact of polarized macrophage induced by surface topographical cues of titanium implants on the osteogenic potential of PDL MSCs. The characterization of titanium surfaces reveals intriguing insights into the complex relationship between surface roughness, wettability, and cellular behavior. Contrary to the traditional view that increased hydrophilicity enhances cell adhesion and proliferation, 17 Ti-MR demonstrated superior cell performance. Intermediate roughness levels, like those found in Ti-MR, provide a balanced surface topology that facilitates effective mechanical interlocking and supports better cell attachment and proliferation. 18 19 The Ti-MR's roughness creates an optimal microenvironment, promoting favorable interactions between cells and the substrate. 20

The morphology of RAW 264.7 macrophages were varying in the different titanium surfaces, highlighting the impact of surface characteristics on cell behavior. Our results showed that macrophages on both Ti-LR and Ti-HR surfaces generally exhibited a rounded morphology with numerous filopodia projections. Despite similar morphology, macrophages formed more abundant colonies on Ti-HR compared to Ti-LR. This suggests that while surface roughness does not significantly alter the initial shape of macrophages, it influences cell proliferation and colony formation. 6 7 In contrast, macrophages on Ti-MR surface displayed a markedly different, flattened morphology characterized by lamellipodia rather than filopodia. These broad, sheet-like extensions suggest a different mode of attachment and interaction with the substrate, potentially indicating a distinct activation state or functional response. 21 Such morphological changes might be associated with macrophage polarization states, where the presence of lamellipodia could signify a transition to an anti-inflammatory M2 phenotype, which is typically involved in tissue repair and remodeling. 22 This is consistent with previous studies that have demonstrated that surface roughness and topography can influence macrophage polarization and function. 23

Consistent with the gene expression results, flow cytometry analysis across the three titanium groups showed an increase in the proportion of cells expressing M2 markers, with Ti-MR and Ti-HR exhibiting a substantial rise compared to Ti-LR. These findings confirm the anti-inflammatory properties of Ti-MR and Ti-HR in comparison to the control and Ti-LR groups. Interestingly, a notable observation was made regarding M1/M2 ratio in the Ti-LR group: while the expression of M1-related genes decreased, the M1/M2 ratio of Ti-LR was the lowest among all groups, indicating a higher proportion of M2 macrophages compared to M1. This finding contrasts with the RT-PCR analysis, which revealed an increase in TNF-α gene expression, suggesting a heightened proinflammatory state. The discrepancy between the flow cytometry and RT-PCR results is likely because TNF-α is a nonexclusive cytokine from the macrophage perspective. It is known that subtypes of M2 macrophages, namely, M2b, M2c, and M2d, also produce TNF-α. 24 The microenvironmental effects of titanium are suspected to play a role in this phenomenon, where exposure to titanium may create conditions that transiently support proinflammatory cytokine gene expression while simultaneously promoting a transition to an anti-inflammatory (M2) phenotype over time. Thus, time-course analyses to map the dynamics of gene expression and phenotypic changes are essential for a more comprehensive understanding of these findings.

This study also identified nearly identical proportions of CD163 ^+^ and CD86 ^+^ cells in all groups, particularly Ti-HR, reflecting a high degree of macrophage plasticity and a wide range of immunophenotypes with overlapping characteristics. For instance, previous studies have reported that CD86 can be expressed by both M1 and M2 macrophages, despite their distinct functional profiles. 25 26 Similarly, CD163 is also expressed by all macrophages; however, its expression level in classically activated macrophages (M1) is significantly lower than in alternatively activated macrophages (M2). 27 Nevertheless, the overlapping cell populations observed in this study warrant further investigation in future research.

Our study presents evidence that macrophage-CM cultured with various titanium surface roughness enhances PDL MSCs proliferation. The Ti-MR surfaces consistently enhance MSCs proliferation at both 24 and 48 hours, suggesting that the CM from macrophages on Ti-MR surfaces positively impacts MSCs proliferation. This finding aligns with studies demonstrating that Ti-MR promotes M2 macrophages polarization, which is associated with the release of cytokines and growth factors that support MSCs proliferation and bone regeneration. 28 29 The consistent positive effect of Ti-MR surface may be due to the sustained release of supportive factors such as IL-10 and TGF-β from M2 macrophages, which facilitates MSCs growth and osteogenesis. 30 31 Overall, Ti-MR surfaces appear to provide consistently supportive environment for MSCs proliferation, underscoring their potential for enhancing regenerative outcomes in clinical applications. Further studies are needed to explore the underlying mechanisms and optimize titanium surface modifications for improved MSCs growth.

The regulatory role of RAW 264.7 macrophages in response to different samples on osteogenesis of MSCs were reported in this study and highlighted the significant impact of titanium surface properties and macrophage polarization on the osteogenic differentiation of PDL MSCs. These findings align with literatures indicating that M2 macrophages, particularly those promoted by Ti-MR surface, secrete cytokines such as IL-10 and TGF-β that facilitate osteogenesis. 32 33 The anti-inflammatory cytokines create a favorable microenvironment for MSCs differentiation into osteoblasts, enhancing bone formation. 34 35 36 37 In contrast, the role of M1 macrophages in osteogenic differentiation is more complex. The M1 macrophages are typically associated with proinflammatory responses, characterized by the secretion of cytokines like TNF-α and IL-1β, which can inhibit osteogenesis and contribute to a catabolic environment. 12 Although the study observed calcium nodule formation in the Ti-LR group despite of the upregulation of M1 markers, this could reflect an initial response to inflammation that may eventually inhibit bone formation due to sustained inflammatory environment. 38 39 40 Thus, while M1 macrophages might induce early response that supports MSCs activity, their long-term effects could be detrimental to osteogenesis if the inflammation persists.

The limitation of the present study includes its in vitro design, which demonstrates the potential to enhance the viability of Bone marrow-derived macrophages (BMDMs) and the osteogenic potential of PDL MSCs. However, the mineralization tendency of PDL MSCs should be assessed using a preclinical animal model in future studies. Despite the limitations, this study may provide a better understanding of surface characteristic-induced M1/M2 macrophage and facilitate the surface design generating desired immunological response toward dental implants in clinical practice.

Conclusion

Titanium implant surface topography influences macrophage polarization and osteogenic differentiation of PDL MSCs, with Ti-MR being the most effective in polarizing macrophages toward M2 and inducing optimal osteogenic responses from PDL MSCs.
