Automated 4D flow MRI pipeline for the quantification of advanced hemodynamic parameters in the left atrium
Xabier Morales, Ayah Elsayed, Debbie Zhao, Filip Loncaric, Ainhoa Aguado, Mireia Masias, Gina Quill, Marc Ramos, Adelina Doltra, Ana García-Alvarez, Marta Sitges, David Marlevi, Alistair Young, Martyn Nash, Bart Bijnens, Oscar Camara
TL;DR
A new automated pipeline for 4D flow MRI improves the analysis of blood flow in the left atrium, offering better insights into heart health.
Contribution
A robust computational framework for analyzing 4D Flow MRI data in the left atrium is introduced.
Findings
The framework enables accurate segmentation and analysis of advanced hemodynamic parameters in the left atrium.
4D Flow MRI-derived parameters outperform conventional tools in distinguishing healthy from pathological states.
The pipeline is robust across multicenter data with varying quality.
Abstract
The left atrium (LA) plays a pivotal role in modulating left ventricular filling, yet its hemodynamics remain poorly understood due to the limitations of conventional ultrasound analysis. Four-dimensional flow magnetic resonance imaging (4D Flow MRI) holds promise for enhancing our understanding of atrial hemodynamics, but its analysis is hindered by the inherently low velocities within the chamber and the modest spatial resolution of 4D Flow MRI. Heterogeneity in acquisition protocols and MRI vendors, and the lack of standardized computational frameworks further complicates the creation of large, comparable datasets needed to assess the prognostic value of hemodynamic markers provided by 4D Flow MRI. To address these challenges, we introduce a computational framework tailored to the analysis of 4D Flow MRI in the LA, enabling the qualitative and quantitative analysis of advanced…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9- —Agency for Management of University and Research Grants of the Generalitat de Catalunya
- —https://doi.org/10.13039/501100001505Health Research Council of New Zealand
- —https://doi.org/10.13039/501100004587Instituto de Salud Carlos III
- —https://doi.org/10.13039/501100000781European Research Council
- —Maria de Maeztu Units of Excellence Programme
- —Spanish Ministry of Economy and Competitiveness
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCardiovascular Function and Risk Factors · Cardiac Arrhythmias and Treatments · Cardiac Imaging and Diagnostics
Introduction
The left atrium (LA) plays a pivotal role in modulating left ventricular filling. Although the left ventricle (LV) was long held as the sole determinant of cardiac health prognosis, alterations in LA structure, function, and hemodynamics are now recognized as pivotal factors in various cardiovascular disorders, including atrial fibrillation (AF), heart failure, and ischemic and valvular heart disease^1,2^. For instance, AF-related hemodynamic disruption of the LA can lead to thrombus formation, increasing the risk of cerebrovascular thromboembolic events^3^. Additionally, abnormalities in LA hemodynamics often precede the clinical manifestation of LV diastolic dysfunction (LVDD), which remains difficult to characterize non-invasively^4,5^.
Despite its importance, LA hemodynamics has garnered less attention than more prominent structures such as the LV or the aorta^6^. This issue is compounded by the fact that spectral Doppler, the clinical gold standard for flow assessment, is inadequate to characterize the intricate 3D hemodynamics present in the LA^7^, as it can only provide velocity in one dimension along the beam line. In addition, precise measurements of the pulmonary veins (PV) through transthoracic echocardiography (TTE), relevant for the diagnosis of LVDD, become extremely challenging due to their far-field location^8^.
3D time-resolved phase-contrast magnetic resonance imaging (MRI), widely known as 4D Flow MRI, is a promising cardiovascular imaging modality for comprehensive in vivo hemodynamic studies. It acquires time-resolved 3D blood velocity with full volumetric coverage, allowing retrospective flow quantification in a single non-invasive examination^9^. This enables scrutiny of intrinsically three-dimensional structures such as vortices^10^ and concurrent analysis of all four PV, seldom possible with conventional TTE analyses^11^.
However, the use of 4D Flow MRI in the LA is severely hampered by the low blood velocities present and the low spatial resolution necessary to maintain reasonable acquisition times. Moreover, existing commercial and free 4D Flow MRI analysis pipelines primarily focus on aortic or ventricular flow^12^. The heterogeneous nature of 4D flow MRI acquisition, characterized by varying spatiotemporal resolution and noise levels among different MRI vendors, magnetic field strengths, acquisition protocols, and contrast utilization further complicates standardization of analysis pipelines necessary to amass large, multicenter cohorts. Consequently, few studies have utilized 4D Flow MRI to investigate LA hemodynamics^13–19^ and even fewer have thoroughly explored the wide array of novel hemodynamic parameters as potential prognostic biomarkers.
In light of these challenges, this study introduces an automated computational pipeline specifically designed for the analysis of 4D Flow MRI in the LA. This pipeline can handle multicenter data of varying quality, and enables comprehensive visualization of LA hemodynamics and accurate quantification of advanced 4D Flow MRI hemodynamic parameters. Furthermore, this pipeline fully relies on open-source code and software aiming to make this tool accessible to the wider clinical community, encouraging further research and innovation in LA hemodynamics to improve understanding and treatment of related conditions.
The developed computational pipeline (see Fig. 1) was applied to a multicenter cohort of 68 patients with varying degrees of LVDD, including healthy controls, hypertensive patients, and patients with hypertrophic cardiomyopathy (HCM) to explore the potential prognostic value of advanced 4D Flow MRI hemodynamic parameters.Fig. 1. Overview of the computational framework for the advanced analysis of 4D flow magnetic resonance imaging of the left atrium. Only data from lower magnetic field strength acquisitions undergoes denoising and upsampling^20^. Next, a PC-MRA is computed^21^, followed by automatic segmentation^22^. The resulting segmentation mask facilitates the isolation of the structure of interest for subsequent quantitative and qualitative hemodynamic characterization. The entire pipeline relies exclusively on open-source software and code, ensuring accessibility and reproducibility. PC-MRA: Phase-contrast Magnetic Resonance Angiogram; Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {crit}_{500}$$\end{document} : Ratio of Q-criterion > 500 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {s}^{-2}$$\end{document} . Images created using ParaView (version 5.13.3) and 3D Slicer (version 5.9.0).
Results
Population characteristics
Table 1. Study population of the quantitative analysis: Controls; HCM: Hypertrophic cardiomyopathy with no left ventricular diastolic dysfunction (LVDD); G1: HCM with grade I LVDD; G2: HCM with grade II LVDD; G2 - SAM: HCM with grade II LVDD and systolic anterior motion of the mitral valve; Hypertensive.ControlsHCMG1G2G2 - SAMHypertensiveN = 6819956425Age (years)36.3 ± 2.642.9 ± 5.158.4 ± 7.252.1 ± 7.0166.8 ± 3.754.4 ± 1.1Sex (M%)657020507556BSA(Dubois) ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$m^2$$\end{document} )1.93 ± 0.061.92 ± 0.042.05 ± 0.071.91 ± 0.131.78 ± 0.111.93 ± 0.04Diabetes (%)0102016.6700Hypertension (%)0508066.675084.38SAM (M%)00001000LAV (ml)60.4 ± 3.280.7 ± 7.5116.9 ± 15.9103.1 ± 24.1150.5 ± 23.997.9 ± 4.6LVEDV (ml)86.1 ± 5.374.5 ± 7.799.1 ± 4.168.4 ± 4.449.5 ± 4.675.3 ± 3.6 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {LVMass}_i$$\end{document} ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g/m^2$$\end{document} )62.8 ± 2.475.8 ± 6.174.3 ± 6.676.2 ± 11.887.3 ± 4.156.0 ± 1.9LVEF (%)64.1 ± 0.963.4 ± 2.159.1 ± 6.756.9 ± 3.558.3 ± 5.160.1 ± 0.9
Although all patients were included during segmentation training, only those who underwent TTE and had a defined LVDD degree of LVDD were included in the biomarker quantitative and qualitative analysis. Controls and hypertensive patients with indeterminate or non-zero LVDD grades were excluded, yielding a final cohort of 68 patients. HCM patients were classified by LVDD grade as follows: no LVDD (HCM), grade I LVDD (G1), and grade II LVDD (G2). G2 patients were further subdivided based on the presence of systolic anterior motion (G2-SAM), as the associated mitral valve regurgitation sufficiently alters LA hemodynamics to warrant separate analysis. Patient clinical characteristics are summarized in Table 1.
Segmentation

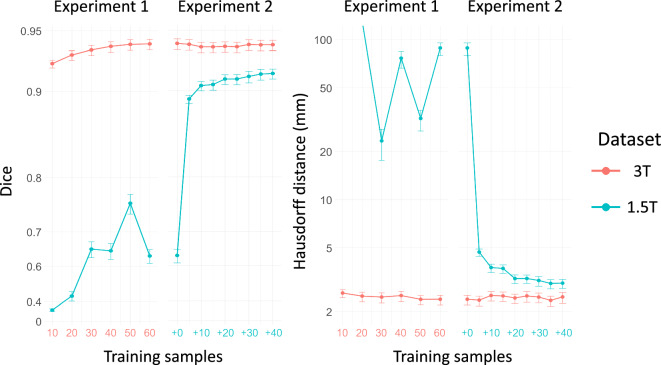

Fig. 2. Dice score and Hausdorff 95 distance (mm) for the segmentation experiments of the left atrium. For Experiment 1, the x-axis is the total number of training cases from dataset 3 T (in red), while in Experiment 2, it is the amount of 1.5 T cases (in blue) added on top of the complete 3 T training dataset.
Figure 2 illustrates segmentation accuracy across both experiments, with representative contour visualizations provided in Supplementary Fig. S3. Experiment 1 yielded an average Dice score of 0.924 and an HD95 distance of 2.61 mm for 3 T cases from the outset, with minimal improvement from more training data. Conversely, 1.5 T cases showed poor accuracy in both metrics, with only marginal Dice score improvement despite increased training data. In Experiment 2, accuracy remained stable for the 3 T dataset. The inclusion of just five 1.5 T training cases significantly boosted the average Dice score from 0.635 to 0.892 and HD95 distance from 88.5 mm to 4.70 mm in low-resolution data. Although performance improved with additional 1.5 T training cases, it still lagged behind the accuracy in the 3 T data.
Left atrial volume

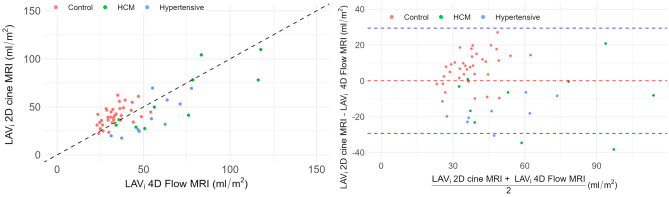

The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {LAV}_{i}$$\end{document} results are shown in Fig. 3. A strong correlation (Pearson correlation coefficient = 0.75, 95% confidence interval 0.57-0.86) was observed between the 2D cine MRI-derived biplane method and the PC-MRA-based \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {LAV}_{i}$$\end{document} . Bland-Altman analysis revealed a bias of 0.1 ml/ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {m}^2$$\end{document} and 95% limits of agreement (LoA) of (-29.3, 29.4). Cohort-specific biases emerged as evident in Fig. 3. Controls showed a positive bias of 6.7 ml/ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {m}^2$$\end{document} (LoA: -12.9 to 26.3 ml/ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {m}^2$$\end{document} ), and pathological cases a negative bias of -12.5 ml/ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {m}^2$$\end{document} (LoA: -41.8 to 16.8 ml/ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {m}^2$$\end{document} ).Fig. 3. Comparison of the maximal left atrium volume indexed by body surface area ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {LAV}_i$$\end{document} ) derived from 2D cine and 4D flow magnetic resonance imaging. On top: scatter plot with the identity line for reference. Bottom: Bland-Altman plot with the bias as a dashed red line, while the 95% confidence intervals are represented by dashed blue lines.
Flow rate

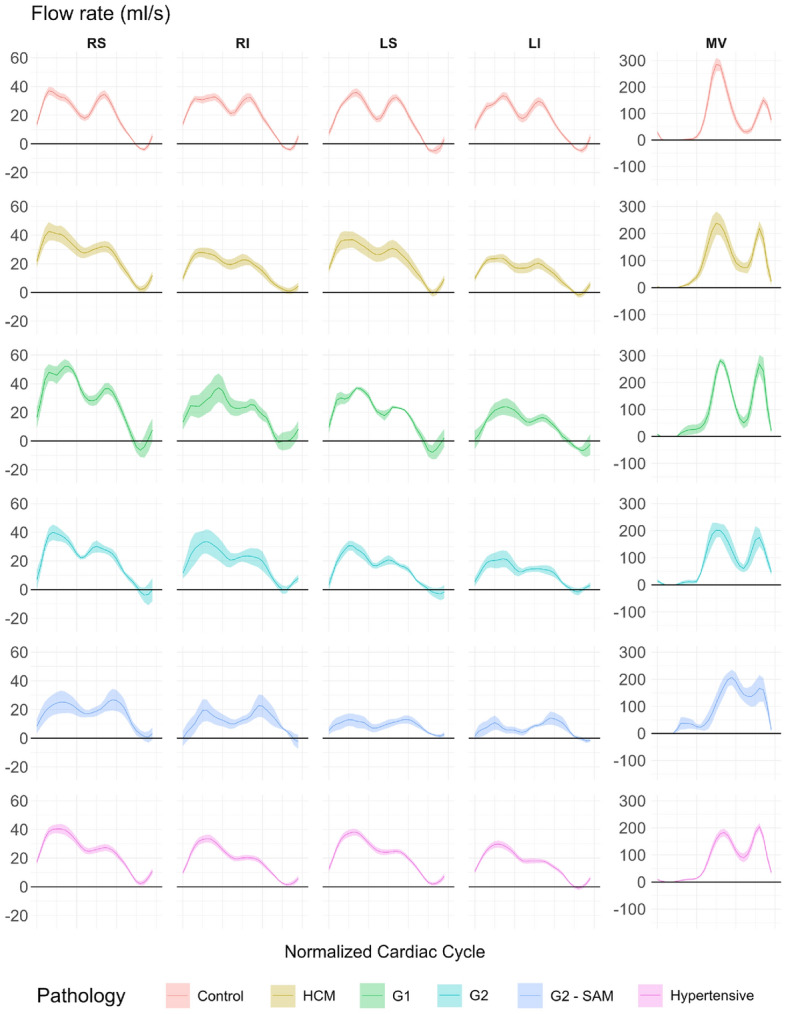

Figure 4 displays average flow rates (ml/s) for the 4 PVs and MV across pathology groups; peak values are detailed in Table S4. The total mitral volume expelled during passive and active filling was also computed.
The relationship between the PVs varies by pathology. Healthy patients show balanced PV flow peaks, whereas pathological cases often exhibit the lowest flow in the left inferior (LI) PV. Only left PVs show significant inter-group differences during the S wave, as shown in Table S4. Although not significant post hoc, G2 SAM patients demonstrate notably reduced flow in both left PVs. a reduction that persists in the D wave. No significant differences were observed in the D wave, but left PV flow remains reduced in G2 - SAM patients.
The S/D ratio is generally stable across the four PVs, except in G2 - SAM patients. In the rest of pathological groups, the ratio is significantly higher than in healthy controls, with the highest values in G1 and hypertensive patients. ANCOVA is significant for all PVs except the right superior. For peak PV reversal flow (Ar), all groups except G1 show significantly lower peak values than controls across all PVs, independent of age. MV E/A ratios differ significantly whether based on peak flow or total volume and are not linearly related.Figure 4. Mean and standard error of the mean of the flow rate (ml/s) of the four pulmonary veins and the mitral valve. RS: Right superior; RI: Right inferior; LS: Left superior; LI: Left inferior; MV: Mitral valve; HCM: Hypertrophic cardiomyopathy with no left ventricular diastolic dysfunction (LVDD); G1: HCM with grade I LVDD; G2: HCM with grade II LVDD; G2 - SAM: HCM with grade II LVDD and systolic anterior motion of the mitral valve.
Energy quantification

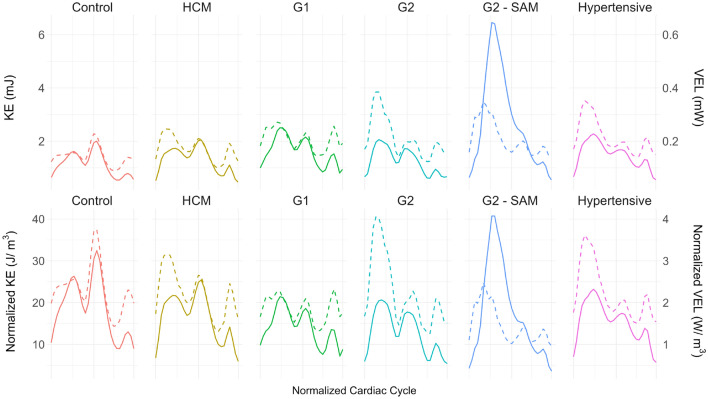

Fig. 5. Top: Mean kinetic energy (KE) as the solid line and mean viscous energy loss (VEL) as the dashed line in the left atrium (LA). Bottom: KE and VEL normalized by LA volume. HCM: Hypertrophic cardiomyopathy with no left ventricular diastolic dysfunction (LVDD); G1: HCM with grade I LVDD; G2: HCM with grade II LVDD; G2 - SAM: HCM with grade II LVDD and systolic anterior motion of the mitral valve.
Mean kinetic energy (KE) and viscous energy loss (VEL) values are shown in Fig. 5. When LA volume, average KE per unit volume equalizes across groups, though its cardiac cycle distribution varies. Both parameters show triphasic behavior, with an initial systolic peak related to pulmonary inflow during the S wave, followed by passive and active filling.
In healthy subjects and HCM patients, early diastolic KE predominates, despite reduced systolic and E wave peaks in the latter. Other pathological groups show a shift towards a predominant systolic KE peak due to decreased early diastolic KE. Table S1, indicates significantly higher systolic peak values in G2 patients with SAM. While E wave KE differences exist across groups, these are age-dependent according to ANCOVA. Lastly, the A wave KE peak is lower in all Grade II LVDD groups.
Regarding VEL, the early diastolic peak predominates in controls. However, the systolic peak already predominates in HCM, contrary to KE. HCM, G2, and hypertensive cohorts exhibit elevated systolic VEL. Both systolic VEL and KE/VEL ratios show the most significant differences with a considerable effect size. Controls, G1, and especially G2-SAM patients display the highest values.Fig. 6. Top: Mean vorticity magnitude (solid line) and standard error of the mean with mitral valve (MV) flow rate (dashed line) for temporal reference. Bottom: Ratio of voxels in the left atrium with Q-criterion > 500 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {s}^{-2}$$\end{document} (solid line), indicating vortex core areas. HCM: Hypertrophic cardiomyopathy without left ventricular diastolic dysfunction (LVDD); G1: HCM with grade I LVDD; G2: HCM with grade II LVDD; G2 - SAM: HCM with grade II LVDD and systolic anterior motion of the MV.
Vorticity

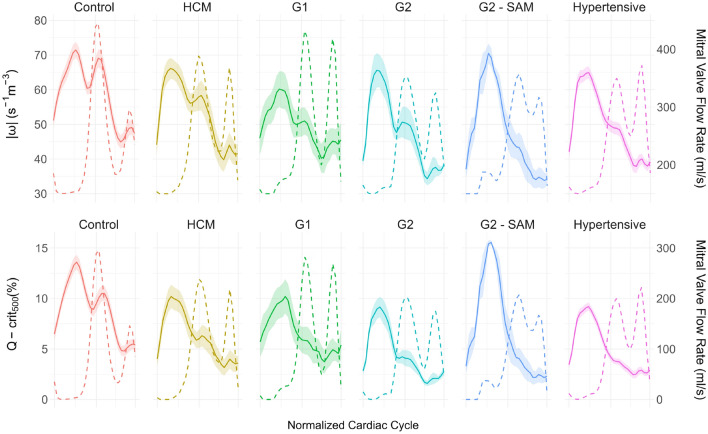

Figure 6 shows the temporal evolution of vorticity and the Q-criterion. Both measurements exhibit three peaks, though the A peak is almost negligible. All metrics, except systolic \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$|\omega _{LA}|$$\end{document} , are statistically significant, age-independent, and have substantial effect sizes (Table S2). G2 - SAM and control groups display the highest systolic vorticity, particularly in Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {crit}_{500}$$\end{document} . In controls, early systolic and diastolic \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$|\omega _{LA}|$$\end{document} peaks are identical, whereas Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {crit}_{500}$$\end{document} shows a noticeable gap. This gap is present in \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$|\omega _{LA}|$$\end{document} for other cohorts but remains more prominent in Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {crit}_{500}$$\end{document} The early diastolic peak is delayed relative to the E wave, peaking as the passive filling decelerates and it weakens progressively with LVDD severity. Vorticity is significantly lower during atrial contraction, with only G1 patients showing values comparable to controls.
Relative pressure \documentclass[12pt]{minimal}
\usepackage{amsmath}
\usepackage{wasysym}
\usepackage{amsfonts}
\usepackage{amssymb}
\usepackage{amsbsy}
\usepackage{mathrsfs}
\usepackage{upgreek}
\setlength{\oddsidemargin}{-69pt}
\begin{document}$$\Delta P$$\end{document}

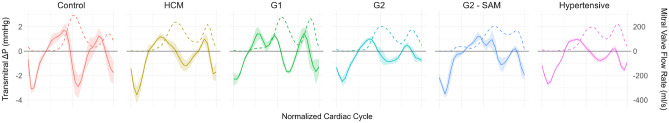

Fig. 7. Mean and standard error of the mean of the relative pressure (mmHg) between the left atrium and left ventricle, measured using the vWERP method (solid line), accompanied by the mitral valve flow rate (dashed line). HCM: Hypertrophic cardiomyopathy with no left ventricular diastolic dysfunction (LVDD); G1: HCM with grade I LVDD; G2: HCM with grade II LVDD; G2 - SAM: HCM with grade II LVDD and systolic anterior motion of the mitral valve.
The atrioventricular pressure gradient is shown alongside the mitral flow in Figure 7. Positive gradient values indicate higher LA pressure, while negative values signify higher LV pressure. Diastole shows two positive and two negative peaks, corresponding to the acceleration and deceleration of the E and A wave, respectively. Notably, the saddle points align with the zero crossings of the relative pressure curve.
Both E peak acceleration ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{max}$$\end{document} ) and deceleration ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{min}$$\end{document} ), exhibit age-independent statistically significant differences with a large effect size (Table S3). Controls exhibit the highest pressure gradients. \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta$$\end{document} Emaxlacks a consistent pattern across pathological groups, though G1 and G2-SAM patients tend to have slightly higher values. Some LVDD groups, show a jagged \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{max}$$\end{document} , without a well-defined single maxima. The start of the E wave acceleration is also delayed in G2 - SAM patients. \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{min}$$\end{document} is also the highest in controls and progressively decreases with worsening LVDD. The A wave acceleration peak ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {A}_{max}$$\end{document} ) mirrors vorticity, with higher values in controls and G1 patients. No significant differences are observed in the A wave deceleration peak ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {A}_{min}$$\end{document} ).
Visualization

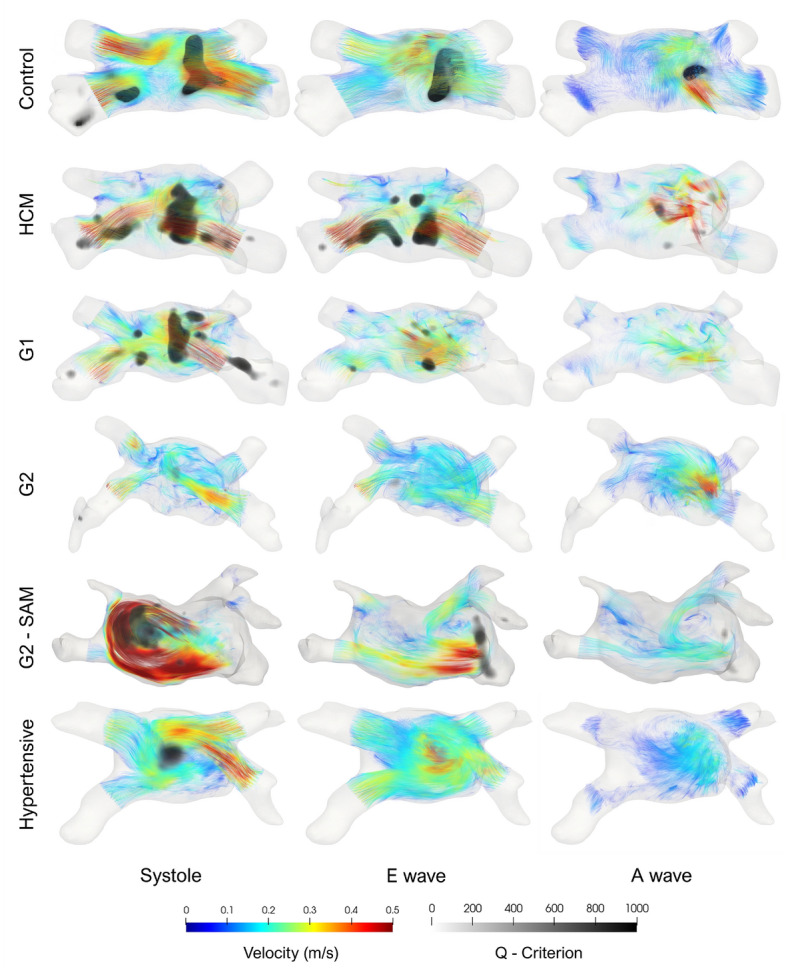

Fig. 8. An axial view of the central left atrial vortex across diverse cardiac disorders. The visualization combines the pathlines of particles emitted from the pulmonary veins, color-coded by velocity, and a volumetric rendering of the Q-criterion, indicating the core of the vortices. HCM: Hypertrophic cardiomyopathy with no left ventricular diastolic dysfunction (LVDD); G1: HCM with grade I LVDD; G2: HCM with grade II LVDD; G2 - SAM: HCM with grade II LVDD and systolic anterior motion of the mitral valve. Images created using ParaView (version 5.13.3).
Figure 8 depicts the central LA vortex for one representative of each cohort at three points during the cardiac cycle aligning with Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {crit}_{500}$$\end{document} peaks described above. The evolution of the vortex closely resembles the progression of the group averages shown in Fig. 6. The vortex is strongest during systole across all patients but is notably weakened in G2 patients and particularly strong in G2 patients with SAM. After the E wave, the vortex remains robust in the control and is still noticeable in the HCM patient but disappears in the remaining pathological cases. No coherent vortical structures are observed during atrial contraction.
Discussion
This study introduces a novel 4D Flow MRI analysis framework focused on the LA. We demonstrated the feasibility of automatic neural network segmentation of the LA over 4D Flow MRI-derived PC-MRA, enabling a comprehensive quantitative and qualitative analysis of novel 4D flow MRI indices in the LA across a diverse, multicenter patient cohort, marking the first time their values were reported across a large cohort of patients with varying degrees of LVDD.
This pipeline aims to lay the groundwork for standardizing 4D Flow MRI analysis in the LA, allowing faster and more reproducible studies. Our framework was designed to balance flexibility with usability, moving beyond commercial software to allow the implementation of novel LA flow metrics while still providing tools to minimize the learning curve. Although users still need minimum proficiency in programming and 3D software, by standardizing data handling, offering template functions and dockerization, and automating most repetitive steps, we aimed to reduce technical barriers and ensure reproducibility across sites. With neural network–based segmentation, a full case can now be analyzed in under 10 minutes, making large-scale studies increasingly feasible.
The results shown in Fig. 2 evidence that a small dataset with high-quality annotations may suffice to automate 4D Flow MRI segmentation. This aligns with prior studies indicating neural networks achieve accurate segmentation with limited data^23^, challenging the presumed advantages of alternative approaches such as atlas-based segmentation^24^.
Experiment 2 underscores the adaptability of the network across diverse datasets. Despite originating from a different vendor, center, and protocol, and undergoing upsampling-denoising, adding only five 1.5 T cases to the training dataset significantly improved segmentation accuracy without compromising the performance on the 3 T data. In the context of 4D Flow MRI, where data is often limited, this approach could substantially expedite the compilation of multicenter datasets for more comprehensive clinical studies.
Turning to volumetric assessment, a strong correlation with minimal bias was observed between 2D cine and 4D Flow MRI-derived \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {LAV}_i$$\end{document} , aligning with previous comparisons between the biplane method and 3D imaging modalities^25^. However, the bias differed significantly between control and pathological groups. This discrepancy may stem from the fact that 2D cine images are not always aligned with the LA axes, whereas 4D Flow MRI, due to its 3D nature, is not affected by such misalignment. Moreover, the geometric assumptions of the biplane method do not account for remodeling-induced changes in LA shape^11^. Similar underestimation of LA volumes in pathological cases using the biplane method has been reported in patients with atrial fibrillation^25^.
Although not its primary purpose, we have shown that 4D Flow MRI can reasonably estimate LA volume. However, further studies are needed to validate its accuracy against reference 3D sequences like CT. While our focus was on \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {LAV}_{i}$$\end{document} given the use of a static PC-MRA, time-resolved segmentation could enable analysis of LA function by tracking volume changes throughout the cardiac cycle.Despite its limitations in spatiotemporal resolution, 4D Flow MRI remains unique in its ability to simultaneously evaluate LA size, function, and hemodynamics. Although the limitations of 2D methods are widely known, the demand for specialized expertise and software has hindered wider clinical adoption of 3D modalities. We postulate frameworks like ours can foster broader acceptance.
In terms of hemodynamic quantification, unlike conventional TTE, 4D Flow MRI can quantify flow rates and volumes without assuming a specific flow profile, making it more robust and less sensitive to noise. Notably, E/A ratios derived from flow rates have been shown to outperform TTE in evaluating LVDD^26^. Furthermore, a key limitation of using peak velocities is that they do not account for changes in vessel cross-sectional area. For instance, PV distensibility can be affected by pulmonary circulation alterations or postural changes^27^, which impact the maximum observed velocity, whereas the flow rate remains constant.
The statistical analysis in Table S4 shows significant differences in peak E/A ratios between flow rates and total volumes. While flow rates are robust, they are single-snapshot measurements. Volumes, however, capture the entire filling phase, providing a comprehensive LVDD assessment by reflecting the passive-to-active filling ratio.
We hypothesize that PV flow rates may also offer more reliable measurements for parameters like S and D peaks, S/D ratio, and pulmonary reversal flows compared to conventional peak velocity measurements. The absence of S/D ratios less than one likely indicates a limited number of advanced LVDD cases in the dataset. Notably, the RS vein shows the least variation between across pathologies, while the other three PVs, seldom measured with TTE, exhibit the most statistically significant differences and largest effect sizes. This raises the question of whether clinically relevant diagnostic information is being overlooked by focusing exclusively on the RS PV in routine practice^11^. Finally, patients with SAM exhibit a marked difference between the left and right PVs during the S and D wave, supporting the hypothesis that the postolaterally directed mitral regurgitation jet obstructs left pulmonary inflow.
With respect to energy quantification, Fig. 5 shows results consistent with previously reported KE temporal evolution in the LA^15,28,29^ in a limited number of healthy subjects and HCM patients. In healthy subjects, and to a lesser extent in HCM patients without LVDD, the early diastolic peak reflects a compliant LV. In the remaining four groups, the KE curve shifts toward a predominant systolic peak. This shift is most pronounced in SAM patients, where mitral regurgitation induces a characteristic rotational flow pattern (Fig. 8). In Grade I and II LVDD and hypertensive patients, the systolic KE predominance appears related to an increased S/D ratio.
The KE/VEL ratio reflects flow efficiency, with higher values indicating greater energy use for transport and less loss to friction. The systolic increase in this ratio in both controls and G2-SAM patients may relate to elevated vorticity, as rotational flow better preserves KE^28^. However, the higher systolic efficiency in G1 compared to HCM or G2 patients remains unclear. No significant group differences were seen during diastole, but the marked decline from E wave to A wave suggests that active filling is less efficient at conserving momentum, beyond the energy required for atrial contraction.
Regarding vorticity, knowledge of rotational flow in the LA dates back to 2001^1^. Vortices are thought to preserve momentum^28^ and may help prevent thrombus formation^16^. Importantly, vortex structures are sensitive markers of heart disease, making the study of vorticity highly compelling for detecting early changes in LA function^16,30,31^.
The optimal approach to detect vortical structures remains contentious in fluid dynamics^32^, including in 4D Flow MRI. A key consideration is whether to normalize vorticity metrics by total volume, as simply summing vorticity across all voxels biases results in patients with dilated LAs. For instance,^16^ reported a positive correlation between vortex size and both age and LA remodeling, even though LA function typically declines with age. Similarly, Spartera et al.^18^ found that AF patients had larger vortex sizes compared to those in sinus rhythm, despite the weakened S wave and absence of diastasis in fibrillation patients, the only phases in the cardiac cycle where the atrial vortex is visible. In addition, although often not explicitly stated^33,34^, it is also common to measure vorticity based on magnitude alone, which can be misleading. Increased velocity along a non-straight flow path will invariably elevate the magnitude of vorticity, introducing a spurious term unrelated to the presence of a vortex.
Parameters such as the Q-criterion and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\lambda _2$$\end{document} are explicitly designed to address these limitations and distinguish rotational from strain-dominated regions. More specifically, the Q-criterion identifies vorticity-dominant areas and enables the visualization of different scale structures by adjusting the threshold value, where a higher threshold emphasizes large-scale vortex cores. We empirically chose a threshold of 500 based on Fig. 8, with consistent results for all values above 100.
Discrepancies observed between Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {Crit}_{500}$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$|\omega _{LA}|$$\end{document} , particularly during early filling, likely stem from the aforementioned velocity-driven term. Supporting this, we found that peak \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$|\omega _{LA}|$$\end{document} occurs, on average, 15 ms earlier and is closer in time to the E wave peak. Visualizations in Fig. 8 also align more closely with Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {Crit}_{500}$$\end{document} curves in Fig. 6. For instance, although G2 patients with SAM exhibit the most visually intense rotational flow during systole as a result of mitral regurgitation, their \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$abs{omega_{LA}}$$\end{document} is not higher than that of controls. Likewise, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$|\omega _{LA}|$$\end{document} fails to capture the progressive weakening of vorticity from systole to early diastole as effectively as Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {Crit}_{500}$$\end{document} .
Vortex formation in the LA is primarily attributed to PV inflow collisions. Our findings reinforce this notion, with vorticity peaks aligning with both pulmonary flow maxima. Conversely, vorticity drops significantly during atrial contraction, which actively opposes pulmonary inflow.
By utilizing a specialized vortex metric normalized by the LA volume, we effectively quantified LA vorticity dynamics in a manner consistent with previous qualitative studies^30^. Most importantly, vorticity measurements, and particularly the Q- \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {Crit}_{500}$$\end{document} , exhibit statistically significant differences between groups, irrespective of age. The early diastolic vorticity peak, in particular, shows potential as a non-invasive marker of LVDD, as it appears to gradually deteriorate with worsening diastolic dysfunction.
Lastly, while transmitral relative pressure had been previously estimated using vWERP in 4D Flow MRI data^35^, the study was limited to a small cohort with a single LVDD patient^35^. Our study provides the first comprehensive evaluation of vWERP in the left heart across a larger, more diverse LVDD patient population. As expected, healthy subjects show the highest \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{max}$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{min}$$\end{document} , indicating a compliant LV with efficient relaxation. Elevated \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{max}$$\end{document} in G2-SAM patients may be linked to mitral regurgitation, which distends the LA and delays passive filling, resulting in a steeper initial pressure gradient.
In our cohort, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{min}$$\end{document} appears to better reflect LVDD progression than \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{max}$$\end{document} . \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{min}$$\end{document} can be considered analogous to the TTE-derived mitral flow deceleration time (DT)^36^. Unlike DT, which is not recommended in patients with E and A wave fusion (e.g., hypertensives and G2-SAM patients in our study), \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {E}_{min}$$\end{document} can readily identify the end of the E wave where the pressure gradient crosses zero, as shown in Fig. 7.
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {A}_{max}$$\end{document} shows the expected progression across LVDD stages in HCM patients. An initial significant increase from HCM to G1 suggests compensatory atrial contractility for impaired relaxation. Afterward, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \hbox {A}_{max}$$\end{document} progressively decreases with deteriorating atrial function in G2 and G2-SAM patients.
Although vWERP and hemodynamic forces^37^ offer promising alternatives to invasive catheterization, they remain proxies for absolute pressures. Nonlinear E and A wave changes during LVDD progression can create ambiguity, especially without knowledge of absolute LA or LV filling pressures. This complicates differentiation between LVDD grades or between healthy individuals and those with pseudonormal filling. Thus, the clinical impact and predictive power of 4D Flow MRI-derived atrioventricular pressure gradients require further dedicated evaluation.
A major limitation of this study is the lack of temporally resolved segmentation. While dynamic manual segmentation using time-resolved PC-MRA from^21^ is likely feasible during high-velocity cardiac intervals, the low signal-to-noise ratio in the LA during the remaining intervals makes single-step segmentation challenging and irreproducible. Moreover, the annotation workload would would also increase by 20-30 fold. Consequently, previous attempts have relied on manually segmented end-diastolic and end-systolic frames, combined with non-rigid registration to estimate remaining frames, raising concerns about intermediate timestep accuracy^24^. Incorporating 4D convolutions to make the segmentation networks aware of temporal consistency, along with the use of sparse loss functions, could reduce the manual segmentation burden to just 20% of the total dataset^38^, while improving intermediate timestep prediction.
Registration of 4D Flow MRI to sequences with better myocardium-to-blood contrast sequences, such as 3D bSSFP MRI, is another viable alternative^39^. However, given that bSSFP is not always available and considering the overarching goal of integrating multicenter data, we chose to focus on the magnitude and phase images, which are an intrinsic part of 4D Flow MRI acquisitions. Finally, time-resolved segmentation would also require additional preprocessing, such as the need to track the mitral valve and the four PVs for accurate flow rate measurement^40^.
Another limitation is related to acquisition orientation. In our study, all images were obtained in axial orientation, and oblique or sagittal acquisitions were not specifically evaluated. Although the nnU-Net preprocessing step automatically resamples all images to a common voxel spacing and reorients them into a standardized reference frame, thereby reducing the impact of acquisition orientation^22^, the network’s performance on non-axial orientations remains to be formally validated.
Time-averaged segmentation can include static tissue, violating Navier-Stokes continuity assumptions and increasing vWERP estimation error. However, vWERP has proven reliable for assessing intracardiac pressure gradients in dynamic flow domains^35^, provided the static mask approximates an intersection segmentation (i.e., remains within the flow domain throughout). Time-averaged PC-MRA is biased toward regions of signal accumulation, i.e., constant flow, where vWERP remains accurate. Minor segmentation dilations have negligible impact on pressure gradient estimation^35,41^, even when some static tissue is included at the edges.
The datasets from both centers included in this study were not were not specifically tailored for the low-velocity atrial environment, but rather for broader cardiovascular assessment, meaning that the VENC of the acquisition was higher than ideal for atrial flow quantification. Nevertheless, a strength of our framework is that it still yielded high-quality segmentations and statistically significant differences between patient groups even when data are not optimally tailored to the LA. Future studies may benefit from acquisition protocols specifically tailored for atrial hemodynamics, such as dual-VENC or adaptive VENC approaches, which can help improving velocity-to-noise ratio (VNR) without compromising the analysis of other cardiac chambers and major vessels^42^. In addition, the 1.5 T data were acquired during free breathing without explicit respiratory motion correction. Navigator-gating, retrospective image registration, and quality assurance were applied to mitigate motion effects; however, residual respiratory motion may still affect intra-atrial velocities, especially near the pulmonary veins.
Regarding 4D Flow MRI data denoising and upsampling, 4DFlowNet was trained with synthetic CFD data from the aorta and tested on single-center, single-magnetic-field-strength in vivo data. Ideally, 4DFlowNet should be validated with paired low- and high-resolution 4D Flow MRI acquisitions in the LA, but such data are challenging to obtain. Retraining with domain-specific CFD simulations can reduce prediction error^43^. However, despite advances in wall motion boundary conditions based on dynamic CT^44^, LA CFD simulations are not yet realistic enough to offer significant advantages over the original network^45^.
Caution is warranted when interpreting the statistical analysis due to small cohort sizes, particularly across LVDD grades. The primary aim of this preliminary study is to demonstrate the framework’s potential, report benchmark values for novel 4D Flow MRI indices in the LA, and lay the foundation for future research. Publicly releasing the entire process aims to facilitate larger 4D flow MRI dataset collection in the LA, which could corroborate or challenge our findings. Notably, the most statistically significant differences were observed in parameters exclusive to 4D flow MRI. Existing non-invasive guidelines for the assessment of LVDD have a sensitivity as low as 35%^46^, underscoring the need to identify new parameters for assessing diastolic relaxation abnormalities independently of confounding factors such as age^4^.
However, given the heterogeneity in LVDD etiology, it is unlikely that a single parameter will provide a definitive diagnosis. Moreover, much of the quantitative analysis in this study, and most clinical guidelines, rely on measuring discrete peak values from inherently time-resolved signals at specific cardiac cycle points. Moreover, modalities like 4D flow MRI generate vast amounts of data that exceed human interpretation capabilities. Unsupervised machine learning methods could better integrate such data, as they excel at identifying underlying patterns in time-resolved, high-dimensional datasets to generate interpretable and clinically relevant phenogroups^47^.
Conclusions
In the present study, we present a novel computational pipeline for the comprehensive analysis of multiple center 4D Flow MRI data in the LA. Segmentation was fully automated, leveraging well-established neural networks, and generalizing to data from two distinct centers, even with a limited number of training cases. Furthermore, a comprehensive analysis of novel 4D Flow MRI indices in the LA was conducted in a diverse cohort with varying LVDD degrees. The results demonstrate the potential of 4D Flow MRI to provide a more comprehensive assessment of LA hemodynamics compared to conventional echocardiographic methods, particularly in the context of LVDD. By making the entire framework open-source, we hope to encourage further research into 4D Flow MRI-based characterization of LA hemodynamics by contributing to the standardization and acceleration of its analysis.
Methods

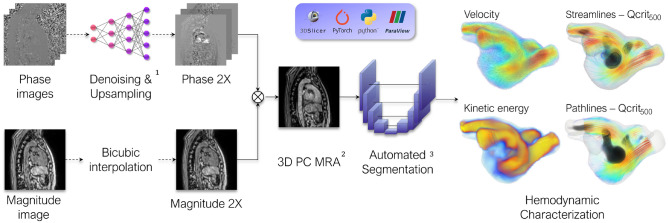

Figure 1 provides a high-level overview of the framework. First, lower-resolution acquisitions undergo denoising and upsampling. Afterward, the phase and magnitude images are combined to generate a time-averaged phase-contrast magnetic resonance angiogram (PC-MRA) that is automatically segmented. The resulting segmentation is then used to mask the flow data, which is transformed into a format suitable for subsequent qualitative and quantitative analysis.
