Choroidal thickness changes in patients with systemic lupus erythematosus treated with hydroxychloroquine using three dimensional maps
Francisco de Asís Bartol-Puyal, María Chacón González, Damián García Navarro, Borja Arias-Peso, Silvia Méndez-Martínez, Luis Pablo
TL;DR
This study found that patients with lupus treated with hydroxychloroquine have thicker choroids in certain eye regions compared to healthy people, but treatment duration had no effect.
Contribution
The study introduces a novel method of analyzing choroidal thickness using 3D maps in SLE patients treated with hydroxychloroquine.
Findings
Choroidal thickness in central nasal zones was significantly higher in SLE patients compared to healthy controls.
Neither disease duration nor hydroxychloroquine treatment duration influenced choroidal thickness.
Other choroidal regions showed no significant differences between SLE patients and healthy subjects.
Abstract
To compare variations in choroidal thickness (CT) between patients with systemic lupus erythematosus (SLE) treated with hydroxychloroquine (HCQ) and healthy subjects for at least one year. Cross-sectional study enrolling patients between 30 and 55 years of age with SLE and treated with HCQ for at least one year, and aged-matched healthy subjects. Exclusion criteria included any other ophthalmological disorder or previous treatment, and systemic treatment with immunosuppressive drugs or a dose of corticosteroids higher than 5 mg/d. Macular CT was measured automatically in a grid of 30 × 30 cubes using Triton swept-source optical coherence tomography (Topcon). These were merged into 25 zones (each one comprising 6 × 6 cubes). Three-dimensional (3D) CT maps were created using Microsoft Excel and mean CT values in the grid of 30 × 30 cubes. One eye of each patient was randomly selected for…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4- —Universidad de Zaragoza
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsRetinal Diseases and Treatments · Ocular Diseases and Behçet’s Syndrome · Drug-Induced Ocular Toxicity
Introduction
Systemic lupus erythematosus (SLE) is a disease that may affect the musculoskeletal system, the skin, the nervous system, the cardiovascular system, lungs, kidneys, and eyes, among others. It usually starts in young women, and its prevalence is estimated between 1.5 and 7.4 cases per 100,000 person-years [1]. Different autoantibodies are present in blood, such as anti-nuclear antibodies, anti-DNA (anti-deoxyribonucleic acid), anti-Sm (anti-Smith), anti-Ro, or anti-La. Hydroxychloroquine (HCQ) is usually a first-line treatment because it increases life expectancy [2, 3].
Although skin affection and dry eye disease are the most common, other ophthalmological disorders may occur. SLE can cause retinal microangiopathy, retinal vasculitis, or occlusion of retinal vessels [4]. A Purtscher-like retinopathy has also been described in these patients, as well as a coroidopathy [5], with implication of anti-retinal pigmented epithelium antibodies.
Hydroxychloroquine is well-known for its ophthalmological toxicity due to its high affinity towards melanin [6]. It usually starts in parafoveal locations, and finally extends to the entire macula. Once it appears, it might not stop despite discontinuing treatment with HCQ. Therefore, patients with SLE treated with HCQ can present retinal affection secondary to HCQ or to SLE itself.
Choroidal thickness (CT) may vary in patients with SLE without ophthalmological affection [7, 8]. Additionally, HCQ has a significant influence on CT [9], as well. In addition, CT may vary with age, multiple conditions, diseases and treatments. In most studies, CT is measured in one of the three following ways. First, manual measurements on horizontal optical coherence tomography (OCT) slabs. Second, automatic measurements on horizontal OCT slabs. Third, automatic measurements in every sector of the ETDRS (Early Treatment Diabetic Retinopathy Study) grid. Although they are adequate methods, the choroid may vary differently depending on the condition or disease, as it has been reported in case of age, diabetic retinopathy or high myopia [10]. Previous research showed that CT can vary differently depending on the location where it is measured [10–12], so the most adequate way to assess CT changes should be analyzing the entire macula. In case of SLE or HCQ, no detailed study has ever been conducted, as far as we know. Furthermore, no three-dimensional (3D) representations have ever been published.
The aim of this study is to compare variations in CT between patients with SLE treated with HCQ and healthy subjects for at least one year.
Methods
A cross-sectional study was conducted after receiving approval from the regional ethics committee (EPA19/063). It adhered to the tenets of the Declaration of Helsinki. Inclusion criteria were Caucasian patients between 30 and 55 years of age diagnosed of SLE, and being treated with HCQ for one or more years. Age-matched healthy controls were enrolled afterwards. Exclusion criteria included amblyopia, any ophthalmological disorder or previous ophthalmological surgery, any systemic disease different from SLE, immunosuppressive drugs, systemic corticosteroids at a dose higher than 5 mg/d, pregnancy or puerperium. Patients diagnosed of active phase of SLE in the last year were excluded. Active phase was defined according to SLEDAI (Systemic Lupus Erythematosus Disease Activity Index) criteria and assessed by an experienced rheumatologist. One eye of each participant was randomly selected for the study. Evidence of retinal toxicity secondary to HCQ was an exclusion criterion if detected in funduscopy, OCT, visual field and/or electroretinogram. Sample size was calculated considering the following conditions: bilateral test, 95% level of confidence, statistical power of 90%, precision of 10 μm, variance of 500μm^2^. Therefore, sample size should be 105 patients.
Patients were examined at the same day time (between 16.00 and 20.00 h) by the same examiner between November 2020 and April 2022. They underwent a deep ophthalmological examination, and their medical records were revised to ensure they met inclusion criteria, but no exclusion criteria. Patients with SLE treated with HCQ were additionally examined with a visual field to discard possible retinopathy secondary to SLE or HCQ. The examination included mesopic best corrected visual acuity (BCVA) with ETDRS charts at a four-meter distance (logMAR scale), intraocular pressure (IOP) with Goldmann tonometry, refraction with refractometer, and axial length (AL) measurement with IOLmaster 500 (Carl Zeiss, Jena, Germany).
Finally, they were examined with Triton DRI swept-source OCT version 1.1.7 (Topcon Corporation, Tokyo, Japan). A 7 × 7 mm fovea-centered macular cube analysis was performed, and internal software measured CT automatically. These CT measurements were obtained in a grid of 30 × 30 small cubes, which were later merged into bigger ones. Every of these bigger cubes comprised 6 × 6 small cubes, so that 25 CT zones were obtained, as displayed in Fig. 1. Segmentation was verified by an experienced ophthalmologist, and in case of errors, they were manually corrected. Three-dimensional (3D) CT maps were created using Microsoft Excel (Microsoft Office 2019, Microsoft Corporation, Redmond, WA, USA). Left eyes were outcomes were transformed into right eye format.Fig. 1. Choroidal division of the macula in a right eye model
Statistical analysis was performed using Statistical Package for Social Sciences (SPSS) software for Windows v.27 (IBM Corporation, Somers, NY, USA). Normality was checked with Kolmogorov–Smirnov test. Means and standard deviations were calculated for quantitative variables. ANOVA test was used for comparisons between groups, with Bonferroni post-hoc analysis. Bonferroni was used for multiple comparisons adjustment. Multiple lineal regression analyses were performed to analyze possible factor influencing CT. Statistical significance was established at p < 0.05.
Results
60 eyes of 60 patients with SLE treated with HCQ, and 54 eyes of 54 healthy subjects were recruited. All patients with SLE were treated with HCQ exclusively. None of the patients received any other medications. Demographic data are displayed in Table 1. There were no differences in age, BCVA, IOP, SE or AL.Table 1. Demographic dataStudy grouppHealthySLE + HCQFemale/male participants, number43/1159/1Right/left eyes, number31/2330/30Age, years43.79 ± 8.9845.16 ± 6.43.346BCVA, logMAR − 0.03 ± 0.090.00 ± 0.12.137IOP, mmHg14.72 ± 2.8613.63 ± 2.76.271SE, D − 0.82 ± 1.80 − 0.43 ± 1.33.219AL, mm23.67 ± 0.8723.52 ± 0.96.400SLE duration, months–125.58 ± 63.10 (120.05)–HCQ durantion, months–87.87 ± 52.13 (85.23)–Mean daily HCQ dose, mg–225.62 ± 85.71 (200.00)–Mean cumulative HCQ dose, g–605.05 ± 358.18 (586.70)–SLE systemic lupus erythematosus, HCQ hydroxychloroquine, BCVA best corrected visual acuity, IOP intraocular pressure, SE spherical equivalent, AL axial lengthOutcomes are expressed as means ± standard deviations. Median values are displayed in bracketsStatistical p values are highlighted in bold

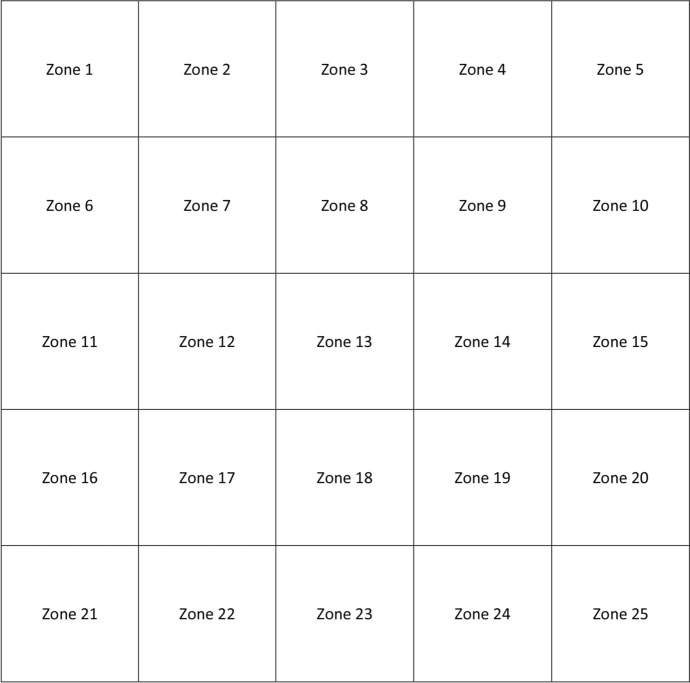

Table 2 shows CT in the 25 zones in both study groups with p values. We found differences in zones 9, 14, 15, 19 and 20, that is, in central-nasal locations. CT was higher in patients with SLE and HCQ than in healthy subjects. No segmentation errors were detected in any patient.Table 2. Mean choroidal thickness with standard deviation in every choroidal zoneStudy grouppHealthySLE + HCQZ1249.38 ± 66.48258.79 ± 67.39.455Z2278.16 ± 62.74289.02 ± 64.36.364Z3284.17 ± 58.70299.34 ± 67.52.202Z4261.25 ± 65.57280.41 ± 73.96.145Z5226.36 ± 65.99246.76 ± 77.20.131Z6226.95 ± 68.19233.30 ± 69.59.624Z7264.34 ± 60.73277.74 ± 64.75.257Z8277.45 ± 60.08295.47 ± 69.96.142Z9251.89 ± 66.00278.36 ± 73.51**.045Z10210.85 ± 75.93232.90 ± 77.29.128Z11218.83 ± 68.44221.83 ± 67.45.815Z12259.47 ± 62.40268.14 ± 67.25.477Z13273.06 ± 63.28293.41 ± 69.28.104Z14248.30 ± 70.58282.84 ± 76.81.014Z15205.36 ± 82.08238.18 ± 84.50.038Z16220.48 ± 74.58215.17 ± 66.23.690Z17249.74 ± 69.67253.43 ± 69.02.777Z18259.36 ± 68.86276.34 ± 75.12.213Z19236.68 ± 72.73267.36 ± 78.73.033Z20196.07 ± 79.93232.06 ± 82.09.020**Z21211.93 ± 74.60215.85 ± 67.05.769Z22239.71 ± 72.27245.83 ± 70.76.649Z23254.86 ± 72.16260.72 ± 77.44.676Z24236.49 ± 69.84250.41 ± 80.69.326Z25204.83 ± 73.04228.20 ± 82.72.112SLE systemic lupus erythematosus, HCQ hydroxychloroquineStatistical p values are highlighted in bold

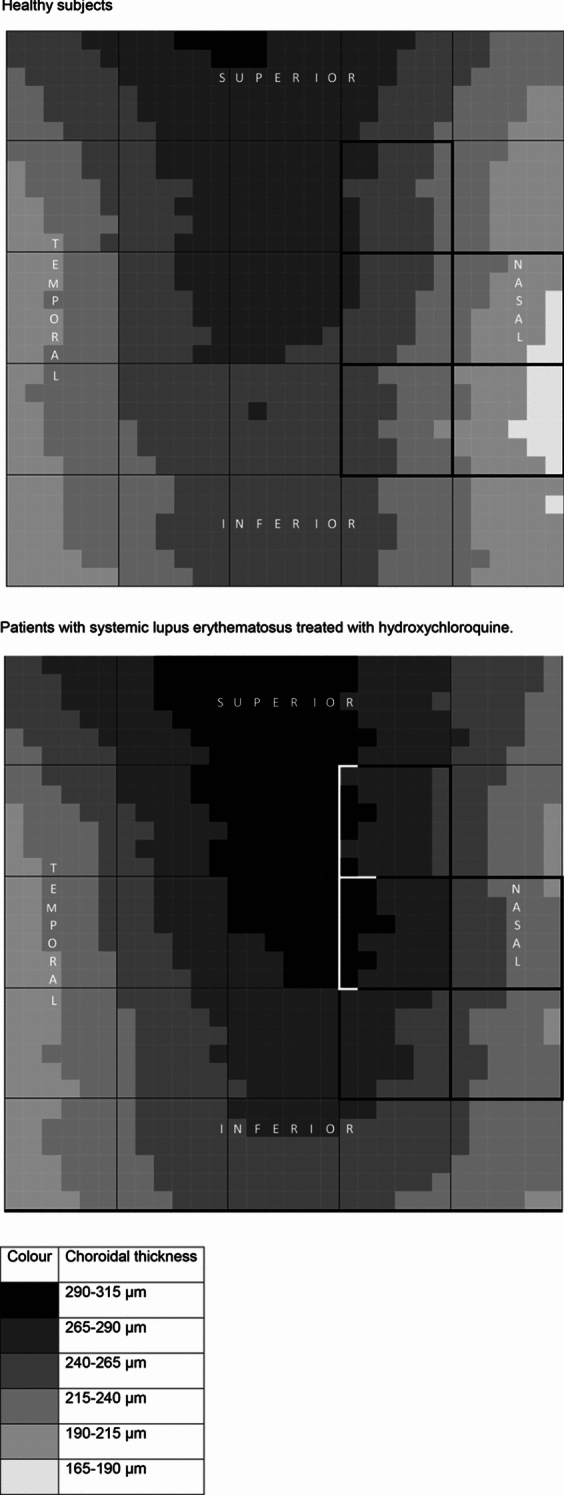

Figure 2 shows CT in right eye format in healthy subjects and patients with SLE and HCQ. These figures were created according to CT values obtained in the 30 × 30 cubes grid, that is, according to 900 macular CT values. Choroidal zones with statistical differences are highlighted.Fig. 2. Two-dimension choroidal thickness representations on a right-eye model

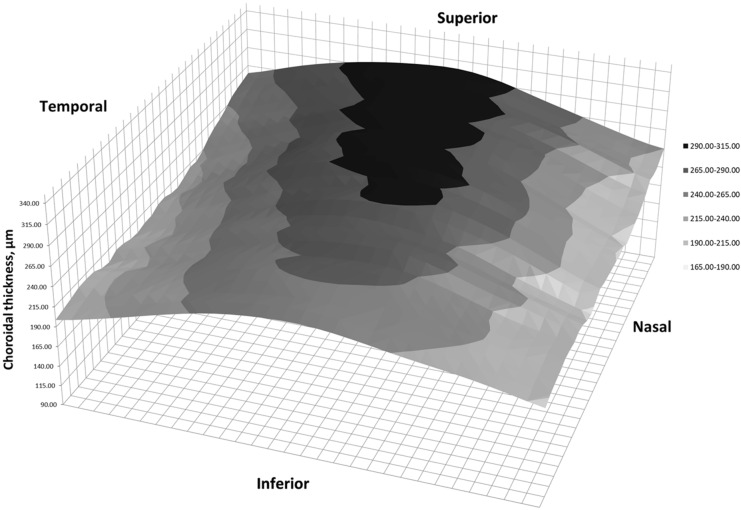

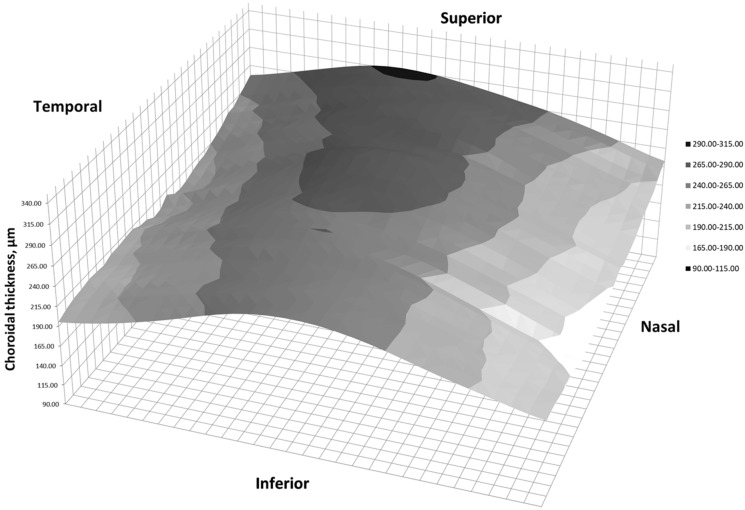

Figure 3 shows three-dimensional (3D) representations of CT in healthy subjects, and Fig. 4 in SLE patients, in right eye format.Fig. 3. Two-dimension representation of choroidal thickness in a right eye of a healthy subjectFig. 4Three-dimension representation of choroidal thickness in a right eye of a patient with SLE treated with HCQ
