Sketchbook: logical model inference from Boolean network sketches
Ondřej Huvar, Nikola Beneš, Luboš Brim, Samuel Pastva, David Šafránek

TL;DR
Sketchbook is a tool that helps design and analyze Boolean network models using partial specifications and logical constraints.
Contribution
Sketchbook introduces a framework for partial Boolean network modeling with a graphical interface and efficient inference engine.
Findings
Sketchbook efficiently computes all admissible candidate models from Boolean network sketches.
The tool combines static and dynamic logical constraints for model inference.
Software and data are freely available for reproducible research.
Abstract
Sketchbook is a tool for design and analysis of Boolean network sketches, a framework for partial specification of Boolean network models combining static and dynamic logical constraints. The tool combines an intuitive graphical interface with a high-performance inference engine able to efficiently compute the whole set of all admissible candidate models. All software and data are freely available as a reproducible artefact at https://doi.org/10.5281/zenodo.15828328. The up-to-date version of the tool is accessible through https://github.com/sybila/biodivine-sketchbook.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2| Model name | Number of variables | Number of BNs consistent with PSBN | Number of BNs consistent with whole sketch | Sketchbook computation time (s) |
|---|---|---|---|---|
| Cell Div B | 9 | 4.1e6 | 1.4e4 | 0.2 |
| E Protein | 35 | 1.8e22 | 1008 | 2.5 |
| NSP4 | 60 | 7.5e22 | 128 | 2.1 |
| ETC | 84 | 4.7e21 | 3.1e6 | 370.1 |
| Interferon I | 121 | 1.0e31 | 6.8e5 | 170.7 |
| NSP9 | 252 | 8.5e37 | 5.5e10 | 28.3 |
| Macrophage | 321 | 2.0e31 | 7.8e11 | 332.2 |
- —Czech Science Foundation10.13039/501100001824
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsGene Regulatory Network Analysis · Bayesian Modeling and Causal Inference · DNA and Biological Computing
1 Introduction
Boolean networks (BNs, see e.g. Wang et al. 2012) represent a simple yet expressive formalism for modelling various processes in living cells. An important modelling problem is how to build the model from available information (prior knowledge, experimental data, etc.); the so-called BN inference problem. In Beneš et al. (2023), we have presented an inference method based on the concept of Boolean network sketches, a formalism that integrates partial knowledge about the network topology and update logic with dynamical constraints representing knowledge or assumptions about the system’s behaviour (e.g. the attractor landscape). We now present Sketchbook, a tool that allows to design BN sketches in a semi-graphical way and implements the inference method presented in Beneš et al. (2023).
A Boolean network sketch consists of several parts, as depicted in blue on the right-hand side of Fig. 1. The first part is an influence graph, which describes the topology of the modelled network. Formally, it is a binary relation that consists of all the possible regulations between the variables of the BN. The second part, a partially specified Boolean network (PSBN), builds on the influence graph by assigning each variable an expression that determines how it is updated. Unlike standard BNs, these expressions may contain function symbols representing unknown parts of the update mechanism to be determined by the inference method. By substituting concrete Boolean functions in place of the function symbols (called an interpretation) we obtain a standard BN. All the BNs obtainable by this mechanism are called consistent with the PSBN.

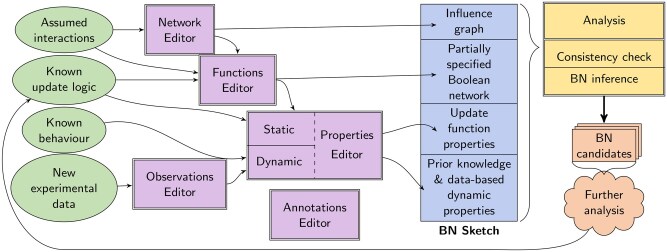

Illustration of the structure of Sketchbook and the workflow within. Elliptical nodes, highlighted in green, represent inputs: prior knowledge (or possible hypotheses) about the topological structure of the interactions, about the update logic and behaviour of the model, as well as experimental data that has been binarized. Purple, double-outlined rectangles denote the core components of the Sketchbook’s graphical editor. The blue rectangle represents the Boolean network sketch, the internal data structure used for inference. The mapping between the editor’s components and the constituent parts of a Boolean network sketch is illustrated with arrows. The yellow rectangle indicates the Sketchbook’s Analysis tab and Inference Session, responsible for consistency checks and the BN inference computation. Note that the resulting set of Boolean network candidates can be further processed to obtain new knowledge (or new hypotheses) which can then be used to refine the original input.
The third part of the sketch reflects further prior knowledge about the update mechanism of the BN variables and restricts the allowed interpretations. We call this part the update function properties. Formally, these properties are defined in the first-order logic over Booleans. The logic allows us to describe regulations as essential (i.e. having an effect in all BNs), positively or negatively monotone (i.e. activations or inhibitions), and much more; for detailed examples see the Supplementary Material of Beneš et al. (2023).
The last part of the sketch represents (prior or data-based) knowledge about the dynamic behaviour of the system to be modelled. These dynamic properties are formally expressed in the hybrid extension of Computation Tree Logic (CTL), called HCTL (Lange 2009). HCTL allows reasoning about the system’s long-term and transient dynamics, such as attractors and their relationships, complex periodic behaviour, stabilities, etc. Common HCTL properties can be automatically derived by Sketchbook from experimental observations. Here, the observations can be of steady state or time-series behaviour. However, we assume the input data is already binarized by some preexisting tool. Typically, the data come from transcriptomics (gene expression), but any data assessing the activity of the BN variables can be used. A detailed description of the syntax, semantics, and example properties of HCTL can be found in the Supplementary Material of Beneš et al. (2023).
The Sketchbook tool allows users to create, manipulate, and analyse Boolean network sketches via a graphical interface. The goal of the analysis is to obtain the set of all BNs consistent with the sketch, thus providing a logical approach to the BN inference problem. The results are produced in a compact representation of the whole set and can be used for further processing. We give a brief overview of the tool’s implementation and describe the various components from user perspective in the Tool structure section. Following that, in Section 3, we demonstrate the applicability of the tool on a short case study, including a comparison with related tools (see below). Further details about the tool, including the screenshots and evaluation results, are given in the Supplementary Material, available as supplementary data at Bioinformatics Advances online.
1.1 Related tools
In terms of logical approaches to BN inference, the closest related tools are Griffin (Muñoz et al. 2018), BoNesis (Chevalier et al. 2024), RE: IN (Yordanov et al. 2016) and its reimplementation BRE: IN (Goldfeder and Kugler 2019). The main differences between these tools and Sketchbook are (i) none of these tools offer an interactive graphical user interface allowing easy manipulation of the network, (ii) all of these tools employ enumerative methods, producing the candidate networks one at a time, while Sketchbook builds a symbolic representation of the whole candidate set (this allows, for example, true uniform random sampling of solutions, even if the solution space is too large to enumerate); (iii) the dynamic properties dealt with by these tools are more limited compared to the full expressive power of HCTL utilized by Sketchbook; and (iv) the tools typically restrict the possible shapes of the update functions to a fixed set of options. Note that BoNesis allows arbitrary update functions, but provides the user with the possibility to limit the number of DNF clauses, which is necessary to deal with large in-degree influence graphs.
The tools also differ with respect to the Boolean network semantics. Griffin uses synchronous semantics only, RE: IN and BRE: IN allow to choose between synchronous and fully asynchronous semantics, and BoNesis uses the so-called most-permissive semantics (Paulevé et al. 2020). Our tool currently only supports the fully asynchronous semantics. Despite the difference in semantics, we give at least some insight into the tools’ differences performance-wise in Section 3 by providing a comparison on a case that lies within a common fragment of the tools’ inputs.
In addition to the logic-based approaches, there also exists a distinct group of methods based on heuristic optimization techniques, recently reviewed in Pušnik et al. (2022). While often effective in fitting experimental data, they generally produce only a single candidate or a small subset of plausible networks and can lack formal guarantees regarding the completeness or stability of the inferred solutions.
2 Tool structure
The functionality of Sketchbook is divided into two main parts. The Editor Window enables users to design and edit all parts of a BN sketch in a user-friendly manner. The subsequent Inference Session is responsible for the inference computation and allows users to examine the results. The tool combines a Rust back end for intensive computations with a TypeScript-based front end for the user interface, integrated into a unified desktop application.
The main workflow of the tool and its various components are illustrated in Fig. 1. Importantly, there is a mapping of how the components of the editor correspond to the formal definition of a Boolean network sketch. We also provide screenshot snippets of a few selected components of the tool in Fig. 2, with a more extensive collection of screenshots provided throughout Section 2 of the Supplementary Material, available as supplementary data at Bioinformatics Advances online.

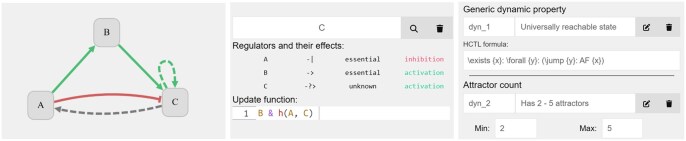

Screenshot snippets of selected components of the tool. The left-most snippet showcases the graph-based interface of the Network Editor on a small model of three variables. The style and colour of the arrows illustrates properties of the regulations—green arrows are activations, red are inhibitions, and dashed regulations are non-essential. The middle snippet displays the Functions Editor, showing the regulators and update function of the variable C. The right-most snippet shows examples of two dynamic properties (part of the Properties Editor). The first is a user-defined property written in HCTL stating that there has to exist a universally reachable state. The second property is created using one of our templates, stating the desired attractor count.
