Characterization of ESR1 alterations in patients with breast and gynecologic cancers
Gargi D. Basu, Paige E. Innis, Angela K. Deem, Arthur Starodynov, Sameer S. Udhane, Szabolcs Szelinger, Min Wang, Janine R. LoBello, Frederick L. Baehner, Jean-Paul De La O, Joyce O’Shaughnessy
TL;DR
This study characterizes ESR1 gene changes in breast and gynecologic cancers, showing they are more common in metastatic tumors and may help guide treatment decisions.
Contribution
The study provides new insights into the frequency and clinical relevance of ESR1 alterations in metastatic breast cancer and gynecologic cancers.
Findings
ESR1 alterations were more frequent in metastatic compared to local breast cancer samples.
CCDC170 was the most common fusion partner in ESR1 fusion genes across both cancer types.
Therapeutically actionable co-alterations were identified in ESR1-altered HR+/HER2- breast cancer samples.
Abstract
ESR1 alterations present a common mechanism of resistance to endocrine therapy (ET) in hormonally driven tumors. The clinical significance of these alterations continues to evolve with newly approved targeted therapies and a range of ongoing investigational trials. A retrospective study of 2574 breast cancer (BC) and 1110 gynecologic cancer samples that underwent whole exome and whole transcriptome profiling was conducted to assess the distribution of ESR1 and associated co-alterations in local (primary breast or regional lymph node) versus metastatic BC samples and in the major BC subtypes. Prior treatment history was unknown. ESR1 alterations were present in 6.2% (n = 159/2574) of BC samples and 3.4% (n = 38/1110) of gynecologic cancer samples. In HR + /HER2- BC, ESR1 alterations overall and ESR1 missense mutations were more frequent in samples from metastatic compared to…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsEstrogen and related hormone effects · Breast Cancer Treatment Studies · BRCA gene mutations in cancer
Background
The estrogen receptor α (ER) is a ligand-dependent transcription factor encoded by the ESR1 gene. The ER-ligand complex regulates numerous cellular activities, including differentiation, proliferation, and survival by binding specific DNA sequences called estrogen response elements to regulate expression of estrogen-responsive genes. Estrogen receptor α can also bind the plasma membrane, where it interacts with PI3K and activates PI3K/AKT/mTOR signaling. Dysregulated ER activity can result in pathological processes that promote tumorigenesis, progression, and invasion as well as affect the response to endocrine therapy (ET) in patients with hormonally dependent cancers.
Almost 70% of all breast cancer (BC) cases diagnosed in the United States are hormone receptor positive (HR +) [1], which are defined as tumors in which at least 1% of tumor cells express either ER or progesterone receptor [2]. Estrogen receptor-positive BC is the most common molecular subtype in early as well as advanced disease [3], and the therapeutic landscape for these cancers is expanding with new classes of drugs for patients with de novo and recurrent BC. Endocrine therapy, which involves either estrogen deprivation using aromatase inhibitors (AIs) or ER modulation with the selective estrogen receptor modulator (SERM) tamoxifen, is commonly prescribed as an adjuvant treatment to women with HR + BC. Recently, the addition of CDK4/6 inhibitors to ET as first-line therapy for metastatic disease has improved overall survival (OS) and progression-free survival [4–7]; however, nearly all patients eventually develop disease progression through various mechanisms of endocrine resistance [8].
ESR1 alterations are recognized as a key mechanism of resistance to ET in HR + advanced and metastatic BC [9–11], and these events have been characterized broadly in BC patients [12]. Multiple categories of genomic aberrations have been documented including missense mutations, genomic rearrangements (including gene fusions), and copy number variations. ESR1 alterations are associated with more aggressive biology and poorer prognosis [13] and are mainly detected by circulating tumor DNA (ctDNA) in patients with metastatic disease [12]. In HR + /HER2- BC, ESR1 alterations are most frequently acquired after first-line AI therapy [14–16], resulting in AI resistance and necessitating a change in treatment. Screening for ESR1 alterations, which drive ligand-independent activation of ER, is now standard of care for patients with HR + /HER2- metastatic disease that has progressed on adjuvant or metastatic ET [17].
Second-line targeted therapies have been developed to combat ET resistance mechanisms, including ESR1 alterations. For instance, selective estrogen receptor degraders (SERDs), which are competitive ER agonists that target the receptor for proteasome-dependent degradation, have been developed to overcome ESR1-mediated resistance [18, 19]. Fulvestrant was the first SERD approved by US FDA for the treatment of HR + /HER2- metastatic BC [20]. Although some ESR1-altered HR + /HER2- BCs may remain responsive to fulvestrant, it has limited bioavailability and must be administered in monthly intramuscular injections [21]. In January 2023, elacestrant was approved as an orally available SERD for the treatment of ER + /HER2- ESR1-mutated advanced or metastatic BC that has progressed after ET [22], making this therapy more accessible for patients with AI resistance. There are multiple ongoing clinical trials evaluating the effectiveness of next-generation SERDs in this patient population [23]. For patients with disease that has progressed on ET and that harbor activating mutations in the PI3K/AKT pathway (including AKT and PIK3CA mutations or PTEN loss-of-function alterations), the FDA has approved use of either capivasertib or alpelisib plus fulvestrant [24, 25] or inavolisib in combination with palbociclib and fulvestrant [26].
Certain gynecologic cancers also commonly express ER, and ET can be considered as treatment for advanced cancers, in particular, ovarian and low-grade endometrial cancers. However, the landscape of ESR1 alterations in gynecologic cancers has not been widely reported. In one large cohort of gynecologic cancer samples, 3% had an ESR1 alteration [27], which were enriched in carcinomas with endometrioid histology. In another study, an ESR1 hotspot mutation was detected in 15% (9/60) of primary ovarian cancer tissues [28]. Although less frequent compared to advanced BC, detection of ESR1 alterations in gynecologic tumors provides important information for clinical decision-making [27].
The clinical significance of ESR1 alterations continues to evolve with newly approved targeted therapies and a widening landscape of ongoing investigational trials. Here, we characterize ESR1 alterations in patients with breast or gynecologic cancer that underwent whole exome and whole transcriptome profiling. We also evaluate the clinical relevance of co-occurring alterations in ESR1-altered breast and gynecologic cancers.
Materials and methods
Patient population
This was a retrospective study of 3684 samples from patients with breast or gynecologic solid tumors obtained between April 2018 and March 2024 and analyzed with the OncoExTra® assay, formerly known as the GEM ExTra® assay (Exact Sciences, Phoenix, Arizona, USA). Patients with more than one BC subtype listed on different reports, presumably due to subtype switching, were excluded. All patient data were deidentified prior to inclusion, and the study was approved under IRB 20–001 (approval #201,818,630).
Tumor genomic sequencing
Matched-normal whole exome sequencing and whole transcriptome sequencing were performed on tumor and blood samples obtained as part of routine clinical care in a College of American Pathologists (CAP)-accredited, Clinical Laboratory Improvement Amendments (CLIA)-certified laboratory using the OncoExTra comprehensive genome profiling assay methodology, which was previously published [29]. Breast and gynecologic tumor tissue was evaluated by a pathologist and when necessary macrodissection was performed to ensure that samples contained > 20% tumor cells and < 60% necrotic tissue. Briefly, DNA from all samples was extracted and sheared using commercially available kits (Qiagen). Targeted sequences from prepared DNA and RNA libraries (Roche) were captured using a custom oncology-specific probe set (Integrated DNA Technologies). The captured regions were amplified, and the DNA and RNA samples were pooled and sequenced (Illumina). Sequencing data were processed using a custom analysis pipeline. The DNA workflow of the OncoExTra assay reports on single nucleotide variants (SNVs), indels, copy number amplifications and deletions, tumor mutational burden (TMB), and microsatellite instability (MSI). The RNA workflow reports on gene fusions and on five alternative transcripts: ARv7, METe14, EGFRvIII, and EGFRvIVa/b.
Identification of co-occurring alterations
Unless otherwise indicated, for analyses of co-alterations, genes were included if they were present in at least 2.5% of ESR1-altered or ESR1-non-altered samples and the alterations were considered actionable. Actionable alterations were defined as somatic alterations with documented response to US FDA-approved drugs (including in the cancer type with the approval (on-label) or in a different cancer type (off-label)), with investigational agents available in matched clinical trials, or with evidence of response in cancer guidelines or the literature with possible matched therapies. For the analysis of co-altered genes that confer resistance to ET, the following genes were included: BRAF, CTCF, EGFR, ERBB2, ERBB3, FOXA1, HRAS, KRAS, MAP2K1, MYC, NF1, RB1, TBX3, and TP53 [10, 30].
Data interpretation and statistical analyses
All analyses were performed separately for breast and gynecologic cancers. Specimen sites were grouped into local/regional, metastatic, or undefined (gynecologic only) categories. Local/regional BC specimen sites included breast, axillary and other regional lymph nodes, with all other sites grouped as metastatic. Local/regional gynecologic cancer sites were defined based on reported tumor type and specimen site. Tumor specimens that could not be categorized to either local/regional or metastatic were called ‘Undefined’. BCs were evaluated both overall and by breast cancer subtype (HR + /HER2-, HER2 + , triple negative BC (TNBC), and BC not otherwise specified (NOS)). In BC overall and in each BC subtype, metastatic sites of disease that represented < 5% of total metastatic samples or fewer than 2 samples were categorized as ‘Other’. Gynecologic cancer types were evaluated overall and by gynecologic cancer type, including ovarian, endometrial, and cervical cancers; less common gynecologic cancers (carcinoma of fallopian tube, malignant tumor of female genital organ, malignant tumor of vulva, squamous cell carcinoma of vagina) were analyzed together as ‘Other’ gynecologic tumors. For gynecologic cancer samples, metastatic sites of disease that represented < 5% of the total metastatic samples were categorized as ‘Other’.
Descriptive statistics were used to summarize samples by tumor type, BC subtype, age, specimen site (local/regional or metastatic), metastatic site, and ESR1 alteration status (yes/no). The distribution of sample characteristics by ESR1 alteration status was evaluated using Chi-Square or Fisher’s Exact tests. Pairwise comparisons were adjusted using Bonferroni correction. Variant allele frequency (VAF) by specimen site was evaluated using the Wilcoxon Rank-Sum test. Co-alteration analysis was performed using Fisher’s Exact test, with Benjamini–Hochberg correction for false discovery rate (FDR), where applicable. SAS 8.4 software was used to perform all analyses and R Version 4.4.0, RStudio 2024.01.1 Build 748 and cBioPortal were used to generate figures. The level of statistical significance was set at P < 0.05.
Results
Study population
A total of 2574 BC and 1110 gynecologic cancer samples were included in this study (Table 1). Most of the BC samples were from HR + /HER2- tumors (n = 1748 (67.9%)), with smaller proportions of HER2 + (n = 369 (14.3%)), triple-negative BC (TNBC; n = 387 (15.0%)), and not otherwise specified (NOS; n = 70 (2.7%)) samples. Among gynecologic cancer samples, ovarian cancer (n = 475 (42.8%)) and endometrial cancer (n = 461 (41.5%)) were most prevalent, while 102 samples (9.2%) and 72 samples (6.5%) were from cervical cancer and other gynecologic cancers, respectively. Most BC samples were obtained from a local/regional tumor site (n = 2102 (81.7%)). In contrast, approximately half of gynecologic samples (n = 572 (51.5%)) were excised from a local/regional tumor site, and 40.8% (n = 453) were from metastatic sites (site was unknown for 85 samples (7.7%)). For both BC and gynecologic cancer, most samples were obtained from patients ≥ 50 years old (n = 1869 (72.6%) and n = 890 (80.2%), respectively).
Table 1. Tumor sample characteristics in BC and gynecologic cancer patients, overall and by ESR1 alteration statusCharacteristicsOverallESR1 alterationNo ESR1 alterationP-value^a^All BC samples2574159 (6.2%)2415 (93.8%)Receptor subtypeHER2 + 369 (14.3%)14 (3.8%)355 (96.2%) < 0.001HR + /HER2-1748 (67.9%)139 (8.0%)1609 (92.0%)TNBC387 (15.0%)1 (0.3%)386 (99.7%)NOS70 (2.7%)5 (7.1%)65 (92.9%)Age (years) < 50702 (27.3%)23 (3.3%)679 (96.7%) < 0.001 ≥ 501869 (72.6%)135 (7.2%)1734 (92.8%)Missing3 (0.1%)1 (33.3%)2 (66.7%)Specimen site^b^Local/regional2102 (81.7%)65 (3.1%)2037 (96.9%) < 0.001Metastatic472 (18.3%)94 (19.9%)378 (80.1%)Metastatic site^c^Liver151 (32.0%)48 (31.8%)103 (68.2%) < 0.001Bone53 (11.2%)17 (32.1%)36 (67.9%)Skin55 (11.7%)5 (9.1%)50 (90.9%)Chest Wall41 (8.7%)4 (9.8%)37 (90.2%)Lung37 (7.8%)2 (5.4%)35 (94.6%)Brain24 (5.1%)3 (12.5%)21 (87.5%)Soft Tissue19 (4.0%)3 (15.8%)16 (84.2%)Other92 (19.5%)12 (13.0%)80 (87.0%)All gyn samples111038 (3.4%)1072 (96.6%)Tumor typeOvary475 (42.8%)12 (2.5%)463 (97.5%)0.21Endometrial461 (41.5%)25 (5.4%)436 (94.6%)Cervix102 (9.2%)0 (0.0%)102 (100.0%)Other gynecologic^d^72 (6.5%)1 (1.4%)71 (98.6%)Age (years) < 50216 (19.5%)3 (1.4%)213 (98.6%)0.07 ≥ 50890 (80.2%)35 (3.9%)855 (96.1%)Missing4 (0.4%)0 (0.0%)4 (100.0%)Specimen site^e^Primary572 (51.5%)19 (3.3%)553 (96.7%)0.80Metastatic453 (40.8%)15 (3.3%)438 (96.7%)Undefined85 (7.7%)4 (4.7%)81 (95.3%)Metastatic site^f^Omentum91 (20.1%)4 (4.4%)87 (95.6%)0.94Lymph Node45 (9.9%)1 (2.2%)44 (97.8%)Colon35 (7.7%)1 (2.9%)34 (97.1%)Peritoneum32 (7.1%)0 (0.0%)32 (100.0%)Abdominal Mass23 (5.1%)0 (0.0%)23 (100.0%)Other227 (50.1%)9 (4.0%)218 (96.0%)^a^P-values were derived from Chi-Square Tests; Comparisons across ESR1 alterations exclude missing values^b^Local/regional defined as specimen site including breast/lymph node/axilla; Metastatic defined as any other specimen site^c^Denominator is number of patients with metastatic site; Metastatic sites that occur in < 5% of metastatic sites and less than 2 samples by BC subtype are categorized as 'Other'^d^Other gynecologic samples included carcinoma of fallopian tube, malignant tumor of female genital organ, malignant tumor of vulva, squamous cell carcinoma of vagina^e^Primary defined as reported tumor type and specimen site; Metastatic defined as any other specimen site^f^Denominator is number of patients with metastatic site; Metastatic sites that occur in < 5% of metastatic samples are categorized as 'Other'
Characterization of ESR1 alterations in BC
Overall, ESR1 alterations were detected in 6.2% of BC samples (n = 159) and were enriched in HR + /HER2- BC samples (n = 139; 8.0%) (P < 0.001; Fig. 1A, Table 1). Samples obtained from patients with BC ≥ 50 years of age were more likely to have an ESR1 alteration (P < 0.001) (Table 1). The frequency of ESR1 alterations was significantly higher in metastatic BC samples overall and in HR + /HER2- BC samples compared to local/regional samples (overall: n = 94 of 472 (19.9%) versus n = 65 of 2102 (3.1%), respectively; HR + /HER2-: n = 86 of 321 (26.8%) versus n = 53 of 1427 (3.7%), respectively; P < 0.001 for both comparisons) (Fig. 1A). No metastatic TNBC samples harbored an ESR1 alteration. Because we observed a significant difference in the distribution of ESR1 alterations across metastatic sites (P < 0.001) (Table 1), we examined ESR1 alteration frequency by BC subtype and by metastatic site. The distribution remained significantly different across 139 ESR1-altered metastatic and local/regional HR + /HER2- BC samples (P < 0.001) as well as in BC NOS, although the latter category only included 5 events (P = 0.005) (Supplemental Table 1). In metastatic BC samples, ESR1 alterations were most prevalent in liver (n = 48 (10.2%) and bone (n = 17 (3.6%)) and least prevalent in skin and lung metastases, and pairwise comparisons uncovered a statistically significant difference between ESR1 alteration prevalence in both of these tissues compared to metastases in either skin or lung (P < 0.05 for all comparisons; Fig. 1B and Supplemental Table 2).

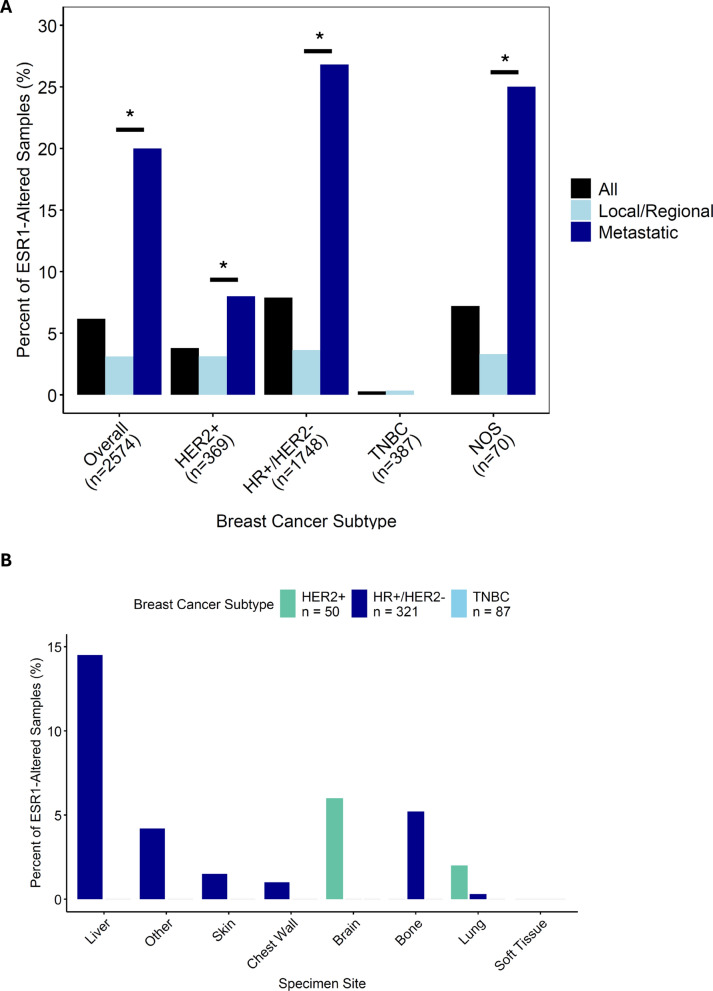

Fig. 1. Prevalence and distribution of ESR1 alterations in BC, overall and by specimen site. A. Prevalence of ESR1 alterations in local/regional and metastatic BC samples overall and by subtype. B. Distribution of ESR1-altered metastatic BC samples by subtype. Statistical comparisons were performed using Chi-Square or Fisher’s Exact Tests. *P < 0.001
Table 2. Actionable co-alterations in HR + /HER2- BC samples, overall and by ESR1 alteration statusCo-mutated BiomarkerOverall(N = 1748)ESR1 alteration(N = 139)No ESR1 alteration(N = 1609)q-value^a^ FGF3 169 (9.7%)30 (21.6%)139 (8.6%) < 0.001 FGF4 162 (9.3%)29 (20.9%)133 (8.3%) < 0.001 FGF19 216 (12.4%)34 (24.5%)182 (11.3%) < 0.001 CCND1 254 (14.5%)33 (23.7%)221 (13.7%)0.013 FGFR1 125 (7.2%)17 (12.2%)108 (6.7%)0.14 CDKN2A 25 (1.4%)5 (3.6%)20 (1.2%)0.15 PIK3CA 796 (45.5%)52 (37.4%)744 (46.2%)0.15 WHSC1L1 19 (1.1%)4 (2.9%)15 (0.9%)0.15 PPM1D 36 (2.1%)5 (3.6%)31 (1.9%)0.44 NF1 37 (2.1%)5 (3.6%)32 (2.0%)0.44 PTEN 140 (8.0%)7 (5.0%)133 (8.3%)0.48 ARID1A 114 (6.5%)12 (8.6%)102 (6.3%)0.50 AKT1 88 (5.0%)4 (2.9%)84 (5.2%)0.50 IGF1R 44 (2.5%)5 (3.6%)39 (2.4%)0.59 ERBB2 52 (3.0%)2 (1.4%)50 (3.1%)0.60 TP53 408 (23.3%)36 (25.9%)372 (23.1%)0.61 MDM2 49 (2.8%)5 (3.6%)44 (2.7%)0.72 MAP2K4 55 (3.1%)3 (2.2%)52 (3.2%)0.72 SF3B1 45 (2.6%)4 (2.9%)41 (2.5%)0.86 BRCA2 81 (4.6%)7 (5.0%)74 (4.6%)0.87 MAP3K1 182 (10.4%)15 (10.8%)167 (10.4%)0.89Genes included if present in at least 2.5% of ESR1-altered or non-altered samplesSorted by descending significance of co-alteration^a^Fisher's Exact Test adjusted using Benjamini–Hochberg FDR q-value
We noted differences in the distribution of ESR1 alteration types among BC subtypes and specimen sites (Fig. 2A). A total of 99 (62.3%) of the 159 samples with ESR1 alterations across all BC samples had missense mutations, and 92.9% (n = 92) of samples with missense mutations were in HR + /HER2- BC (Fig. 2A, B and Supplemental Table 3). We also observed four samples with polyclonal ESR1 missense mutations in the HR + /HER2- cohort (Fig. 3A). In TNBC, only one ESR1 missense mutation in a local/regional sample was observed among 387 samples (0.3%; Fig. 2A, B and Supplemental Table 3). In both overall BC and HR + /HER2- BC samples, missense mutations were significantly more frequent in metastatic samples versus local/regional samples (n = 76 (16.1%) versus n = 23 (1.1%) and n = 72 (22.4%) versus n = 20 (1.4%), respectively; P < 0.001 for both comparisons) (Fig. 2A and Supplemental Table 3). In HR + /HER2- BC, where activating mutations in the ESR1 ligand-binding domain (LBD) can necessitate a change in therapy owing to ET resistance, we observed a concentration of mutations in known hotspots, including D538G (n = 36, 2.1%) and Y537S/N/C (n = 40, 2.3%) mutations (Figs. 2B and 3A). Among HR + /HER2- BC samples with ESR1 missense mutations, the distribution of median VAF for missense ESR1 mutations was lower for local/regional compared with metastatic samples (median = 15 vs. 23, respectively; P = 0.019) (Supplemental Table 4).

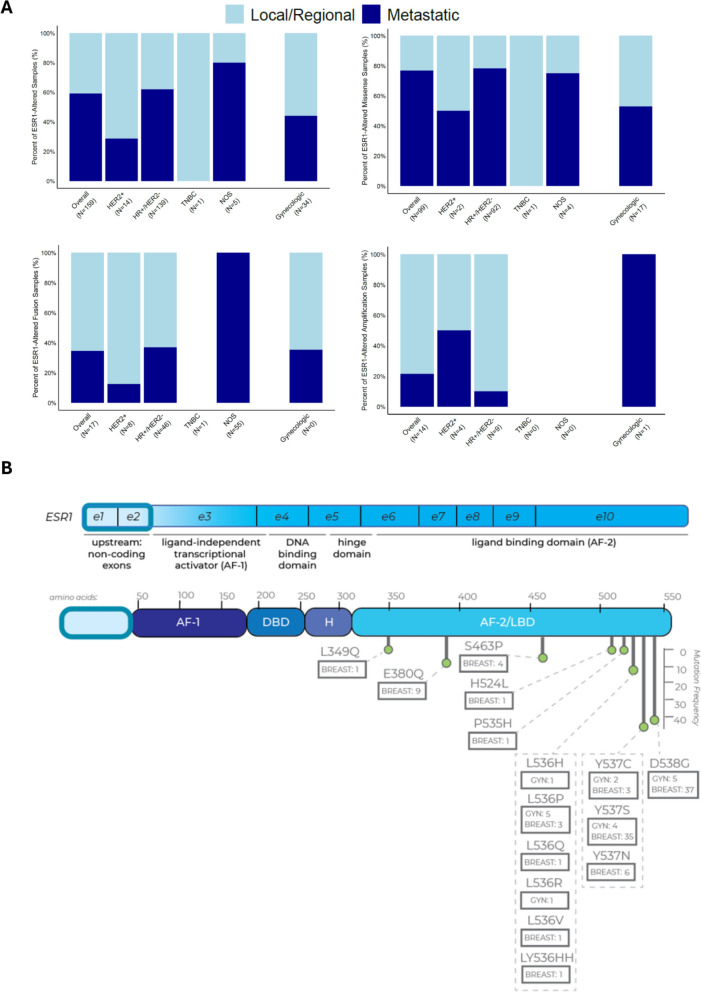

Fig. 2. Characterization of ESR1 alterations in BC and gynecologic cancer samples. A. Distribution of ESR1 alteration types in BC by subtype and gynecologic cancer samples. Black and white numbers in bars indicate the number of indicated alterations in local/regional or metastatic samples, respectively. B. Distribution of ESR1 mutations in the LBD in breast and gynecologic cancer patients
Table 3. Co-alterations in HR + /HER2- BC samples that confer resistance to ET, overall and by ESR1 alteration statusCo-mutated BiomarkerOverall(N = 1748) ESR1 (N = 139)No ESR1 alteration(N = 1609)q-value^a^ BRAF 1 (0.1%)1 (0.7%)0 (0.0%)0.80 NF1 37 (2.1%)5 (3.6%)32 (2.0%)0.84 KRAS 23 (1.3%)0 (0.0%)23 (1.4%)0.84 ERBB2 52 (3.0%)2 (1.4%)50 (3.1%)0.93 TP53 408 (23.3%)36 (25.9%)372 (23.1%)0.93 RB1 27 (1.5%)1 (0.7%)26 (1.6%)1.00 MYC 33 (1.9%)2 (1.4%)31 (1.9%)1.00 ERBB3 16 (0.9%)1 (0.7%)15 (0.9%)1.00 EGFR 8 (0.5%)0 (0.0%)8 (0.5%)1.00 HRAS 1 (0.1%)0 (0.0%)1 (0.1%)1.00^a^Fisher's Exact Test adjusted using Benjamini–Hochberg FDR q-valueSorted by descending significance of co-alteration

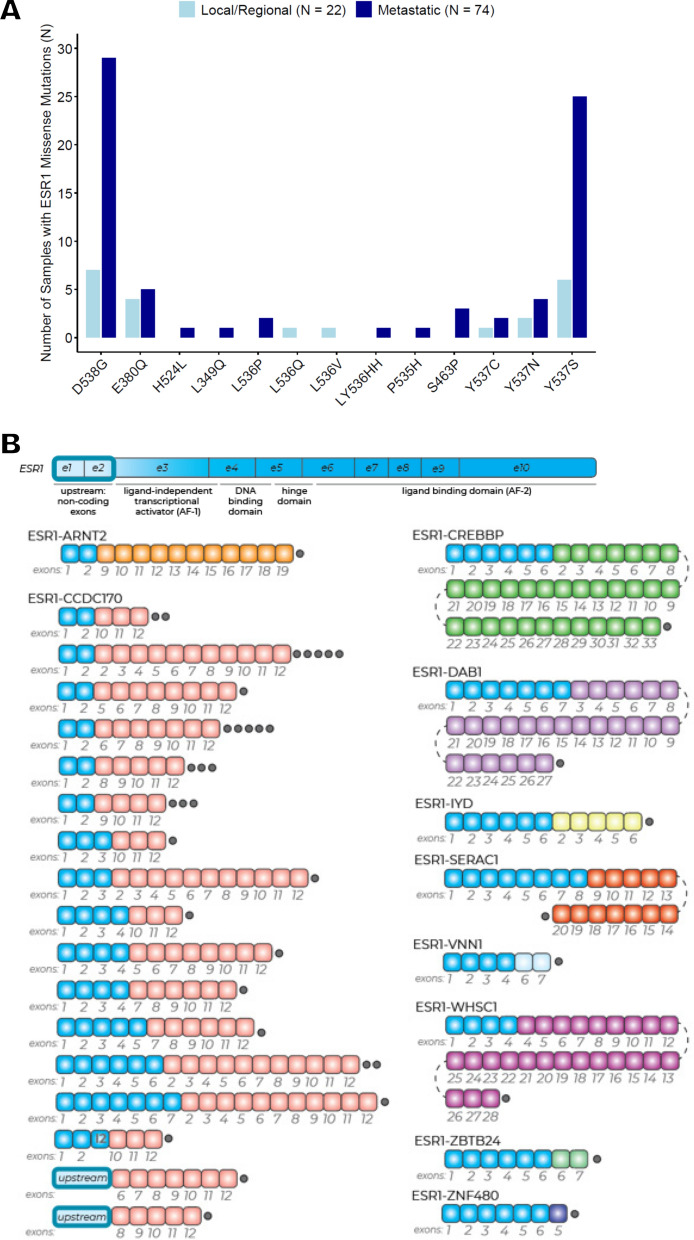

Fig. 3. Molecular characteristics of LBD mutations and ESR1 fusions in HR + /HER2- BC. A. Distribution of ESR1 missense mutations in HR + /HER2- BC samples. Four samples had polyclonal mutations with more than one ESR1 mutation present: D538G and L536V, P535H and Y537S, E380Q and S453P, and D538G and Y537S. B. ESR1 fusions in HR + /HER2- BC samples. Gray dots indicate number of events
Table 4PIK3CA alterations in HR + /HER2- BC samples with ESR1 missense mutations, overall and by specimen sitePIK3CA mutation^a^All Samples^b^(N = 92)n (%)Local/Regional(N = 20)n (%)Metastatic(N = 72)n (%)P-value^c^Any PIK3CA Mutation35 (38.0%)7 (35.0%)28 (38.9%)0.49PIK3CA (H1047R)17 (18.5%)3 (15.0%)14 (19.4%)PIK3CA (E542K)6 (6.5%)1 (5.0%)5 (6.9%)PIK3CA (N345K)5 (5.4%)1 (5.0%)4 (5.6%)PIK3CA (E545K)3 (3.3%)0 (0.0%)3 (4.2%)PIK3CA (H1047L)3 (3.3%)1 (5.0%)2 (2.8%)PIK3CA (E545A)1 (1.1%)1 (5.0%)0 (0.0%)^a^Included alterations are companion diagnostic biomarkers for FDA-approved PIK3CA inhibitor therapy^b^Denominator is total number of samples with missense ESR1 mutations^c^Fisher's Exact Test
ESR1 fusions were detected in 55 (2.1%) BC samples, and they were enriched in metastatic (4.0%) compared to local/regional (1.7%) samples (P = 0.002) (Fig. 2A and Supplemental Table 3). In the HR + /HER2- subtype, ESR1 gene fusion frequency was significantly higher in metastatic (5.3%) compared with local/regional (2.0%) samples (P < 0.001) (Supplemental Table 3). Among these events, CCDC170 was the most frequent ESR1 fusion partner (n = 37 (77.1%)), with 11 other fusion partners identified (22.9%) (Fig. 3B). ESR1 amplifications were rare (n = 14 (0.5%)) and were found only in HR + /HER2- (n = 10 (0.6%)) and HER2 + (n = 4 (1.1%)) BC, with no difference in frequency of amplifications between local/regional versus metastatic HR + /HER2- BC samples (Fig. 2A and Supplemental Table 3).
Co-alterations in HR + /HER2- BC
Endocrine therapy is an important therapeutic modality for HR + /HER2- BC, but both intrinsic and acquired resistance mechanisms can result in inadequate clinical response to modulation of ER signaling. Information regarding the molecular mechanisms driving ET resistance and the genomic landscape of ET-resistant tumors can inform therapy selection to improve patient outcomes. Therefore, we examined the frequency of actionable gene co-alterations with ESR1 in HR + /HER2- BC. We detected 21 actionable alterations in at least 2.5% of *ESR1-*altered or -non-altered samples, and co-occurring amplification of FGF3, FGF4, FGF19, and CCND1, which reside next to each other on the 11q13 chromosome locus, were significantly associated with ESR1 alterations (q ≤ 0.05 for all comparisons) (Table 2, Fig. 4A). We also identified genes that were not co-altered with ESR1 in HR + /HER2- BC samples, although no formal statistical comparisons were made: BRCA1 (n = 24 (1.4%)), KRAS (n = 23 (1.3%)), PRKDC (n = 13 (0.7%)), CCNE1 (n = 9 (0.5%)), CREBBP (n = 9 (0.5%)), KDM5C (n = 9 (0.5%)), EGFR (n = 8 (0.5%)), and NOTCH2 (n = 8 (0.5%)) (Supplemental Table 5). Notably, three of these genes, KRAS, CCNE1, and EGFR, have known roles in ET resistance, and a single alteration in HRAS, which can also contribute to ET resistance, was observed in an ESR1-wild-type HR + /HER2- BC sample. We found no statistically significant association with ESR1 alterations among ten other genes known to confer ET resistance (Table 3).

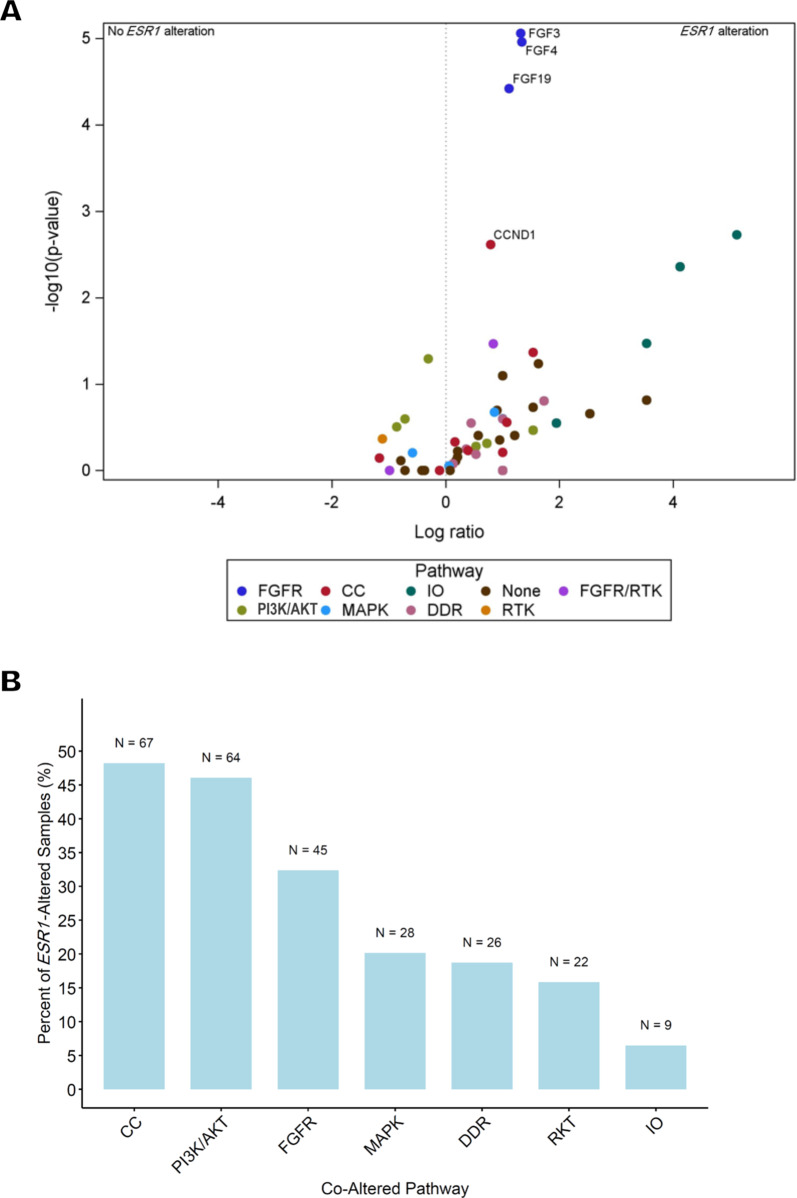

Fig. 4. Association of cancer-relevant signaling pathways with ESR1 alteration status in HR + /HER2- BC samples. A. Co-alterations with ESR1 in HR + /HER2- BC samples. Magnitude of co-alteration enrichment indicated on the x axis expressed as log2 (percent in ESR1-altered / percent ESR1 wild type). Statistical significance of the association on the y axis expressed as -log10 P value (Fisher’s exact test). Labeled biomarkers represent those that are part of pathways or present in at least 2.5% of ESR1-altered or -wild type samples that are significantly associated with ESR1 alteration status. Significantly enriched co-alterations based on q < 0.05 (Benjamini–Hochberg test). Biomarkers in pathways are grouped by color. FGFR/RTK (Purple) category represents three genes that are included in both cancer-relevant pathways. B. Frequency of co-alteration in at least one gene in seven cancer-relevant pathways in ESR1-altered HR + /HER2- BC samples
Next, to gain a better understanding of the biological mechanisms driving ESR1-altered versus ESR1-wild-type disease, we identified HR + /HER2- BC samples with at least one alteration in one of seven cancer-relevant pathways: immuno-oncology (IO), fibroblast growth factor receptor (FGFR), cell cycle (CC), DNA damage repair (DDR), mitogen-activated protein kinase (MAPK*)* signaling, PI3K/AKT signaling, and receptor tyrosine kinase (RTK) signaling (see Supplemental Table 6 for a list of genes included in each of these pathways). From this analysis, we identified a significant association after multiple comparisons correction (q < 0.05) between an ESR1 alteration and activation of the FGFR signaling pathway (Fig. 4A). Then, we considered all 139 HR + /HER2- BC samples with an ESR1 alteration and found that co-alterations were most frequent in the cell cycle (n = 67, 48.2%), PI3K/AKT signaling (n = 64, 46.0%), and FGFR signaling (n = 45, 32.4%) pathways (Fig. 4B).
In addition to ESR1, ET resistance can also occur due to dysregulation of the PI3K/AKT pathway, and co-alteration of ESR1 and PI3K/AKT signaling has also been reported in patients with HR + /HER2- BC [31–33]. Importantly, there are reports of clinical benefit of elacestrant plus alpelisib in patients with co-alteration in PIK3CA and ESR1 [22, 34, 35]. Therefore, we evaluated co-occurring ESR1 and PIK3CA/PTEN/AKT1 alterations approved for elacestrant, alpelisib, and capivasertib treatment in HR + /HER2- BC samples. Our data showed that, in 92 HR + /HER2- BC samples with ESR1 missense mutations, 35 samples (38.0%) had alterations detected in PIK3CA and 17 (18.5%) were clinically relevant H1047R/L mutations in the kinase domain (Table 4). There was no difference in the distribution of PIK3CA alterations between local/regional and metastatic samples with ESR1 missense mutations. In HR + /HER2- BC samples, 34 samples (1.9%) had co-occurring ESR1 and PIK3CA alterations, 4 samples (0.2%) had co-occurring ESR1 and AKT1 alterations, and 4 samples (0.2%) had co-occurring ESR1 and PTEN alterations associated with FDA-approved therapies (on-label; see Methods) (Fig. 5).

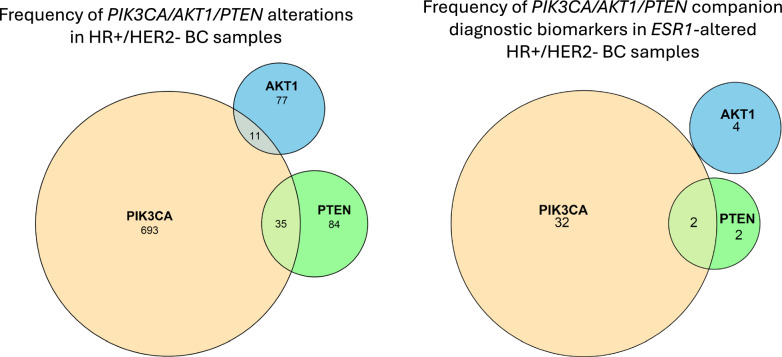

Fig. 5. Co-occurrence of ESR1 and PIK3CA/AKT1/PTEN pathway alterations in HR + /HER- BC samples
ESR1 alterations in gynecologic cancer samples
Overall, an ESR1 alteration was detected in 3.4% of gynecologic cancer samples (38 samples), and the frequency of ESR1 alterations was not significantly different across cancer type, between age groups, or between local/regional versus metastatic site subgroups (Table 1). The distribution of ESR1 by alteration type also did not differ between local/regional and metastatic sites (Fig. 2A and Supplemental Table 7). Missense mutations were the most common ESR1 alteration (18 samples (1.6%), with one sample harboring two ESR1 mutations) and were observed in known hotspots, including Y537C/S (n = 6 (0.05%)), D538G (n = 5 (0.5%)), and L536P (n = 5 (0.5%)) (Fig. 2B and Supplemental Table 8). Among 21 samples (1.9%) with ESR1 fusions, CCDC170 was the most common fusion partner (20 of 21 events), and only one other event was an ESR1-EYA2 fusion (Fig. 6, Supplemental Table 9). Evaluation of 68 biomarkers in all gynecologic cancer samples did not identify any significant associations with the presence or absence of ESR1 alterations after correcting for multiple comparisons (Supplemental Table 10).

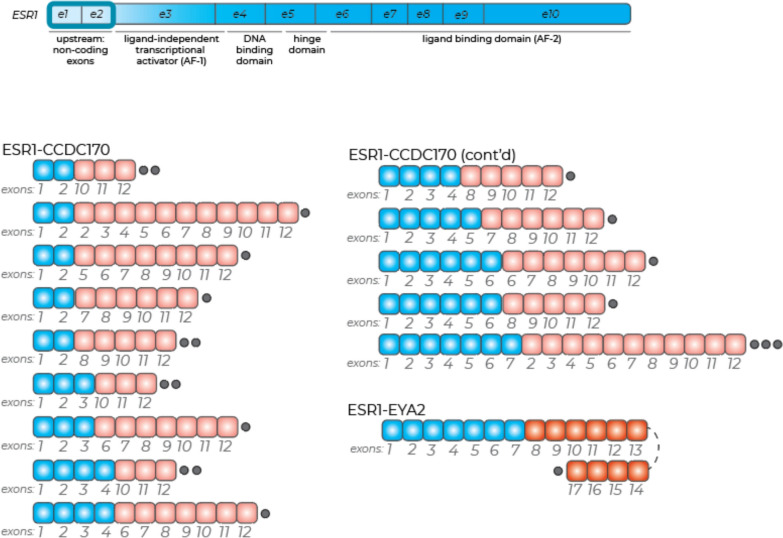

Fig. 6. Characterization of ESR1 fusions in gynecologic cancer samples. Gray dots indicate number of events
Discussion
ESR1 is a known oncogenic driver in breast and, to a lesser extent, endometrial cancers, and ET can be used to inhibit ESR1 transcriptional and non-genomic activity to achieve therapeutic benefit. Moreover, ESR1 alterations are a critical mechanism of acquired ET resistance in HR + /HER2- BC and other ER-driven tumor types. In this retrospective study, we observed expected enrichment of ESR1 alterations in HR + /HER2- metastatic BC tissues at frequencies consistent with previous reports describing acquired resistance alterations in advanced disease, although this study lacked clinical treatment data. We also uncovered pathogenic co-alterations along with ESR1 which could inform clinical decision-making. Finally, we report what, to our knowledge, is the most comprehensive characterization of ESR1 alterations in gynecologic cancers to date.
The reported somatic mutation landscapes of primary and metastatic BC have shown that, although metastatic lesions share truncal mutations with the primary tumor, acquired alterations that contribute to therapeutic resistance and disease progression occur under the selective pressure of treatment, resulting in subclonal and/or polyclonal alterations [10, 36–38]. In ET-resistant HR + BC, ESR1 LBD mutations in solid tissue samples have been reported at frequencies ranging from approximately 10–40% [16, 39–44]. Although our study lacked treatment data, we observed a similar frequency of ESR1 LBD mutations (22.4%) in metastatic HR + /HER2- BC samples, which have been proposed to arise late and in a subclonal manner, likely the consequence of acquired ET resistance [39]. In comparison, the frequency of ESR1 LBD mutations in our study in local/regional HR + /HER2- BC samples was only 1.4%, significantly lower than in the metastatic tissues, and consistent with previous reports of ESR1 alteration frequency in primary BC samples [10, 15, 45]. These observations underscore the need to conduct NGS of metastatic instead of primary BC tissues to detect mutations acquired under the selective pressure of ET, including ESR1 LBD mutations.
Some studies that have reported relatively higher ESR1 alteration frequencies tested ctDNA in liquid biopsy samples. Circulating tumor DNA detection of ESR1 alterations can be more suited for capturing intrapatient mutational heterogeneity, and it can be used for longitudinal sampling, which is relevant given the positive correlation between increased lines of therapy and emergence of ESR1 resistance mutations [14, 42, 44, 46–49]. Mutational analysis of ctDNA versus matched tumor sample often showed additional ESR1 mutations beyond the one identified in the tumor sample, suggesting superiority of ctDNA testing in integrating data from different metastatic sites [39]. We also analyzed presence of multiple ESR1 missense mutations in the same sample and found 4 samples in the HR + /HER2- cohort and 1 sample in the gynecologic cancer cohort with polyclonal events, likely arising from divergent clones. While this represented 4.3% of ESR1-mutated HR + /HER2- BC samples in our population, other reports using ctDNA analysis have reported higher frequencies [39]. Moreover, ctDNA monitoring for acquired resistance mutations in ESR1 is shaping the positioning of oral SERDs in the clinic [50]. A notable example is the SERENA-6 trial, which showed that switching from AI plus CDK4/6 inhibitor therapy to the oral SERD camizestrant plus continued CDK4/6 inhibitor therapy upon detection of circulating mutated ESR1 significantly improved PFS [51].
We observed a non-random distribution of ESR1 alterations among distant organs, with the highest prevalence in liver (48 of 151 liver samples (31.8%)) and bone (17 of 53 bone samples (32.1%)). In pairwise comparisons, both liver and bone were significantly enriched in ESR1 alterations compared with other metastatic sites. Significant enrichment of ESR1 alterations in liver metastases from patients with BC have been reported previously [10, 12, 52–55], and ESR1-altered cases of ER + BC have a higher incidence of liver metastases, suggesting patients with ESR1-altered BC may benefit from monitoring for liver lesions [56]. It was also shown that ESR1-altered liver metastases had distinct transcriptional programs that may regulate liver metastatic potential as well as a higher frequency of AGO2 copy number amplifications, which is known to interact with pro-metastatic protein LASP1 [56]. Other studies have reported enrichment of ESR1 mutations in 20% of bone metastases [12]. One possible explanation for different patterns of organotropism across studies could be the BC subtype composition, as subtype influences organotropic metastasis [57, 58]. It is also possible that our data reflect imbalances in treatment decisions rather than a direct influence of metastatic site on the genetic profile. With the dataset available, it is not possible to distinguish between these possibilities.
Y537C/N/S and D538G have been reported to be the most common ESR1 LBD mutations [10, 45]. Indeed, the frequencies of these mutations among the HR + /HER2- BC samples that harbored an ESR1 LBD mutation—43.5% and 39.1%, respectively—were each higher than the combined frequencies of all other ESR1 LBD alterations (21.7%) in our HR + /HER2- BC cohort. Functional studies and clinical data indicate that, although all LBD mutations are considered activating mutations, their effects on downstream signaling and responsiveness to therapy can vary widely. For example, Y537S and D538G mutations have been shown to promote increased binding of ESR1 with co-regulators of ER-ligand complexes, and Y537S can more potently enhance hormone-independent transcriptional regulation in BC cells [42, 43]. Importantly, the conformational changes introduced by Y537S and D538G mutations substantially decrease ER binding affinity to some SERMs and SERDs by up to tenfold [45, 59, 60, 61]. Moreover, Y537S-mutant ESR1 promotes transcription of more genes and more aggressive disease in animal models compared to D538G-mutant ESR1 [62].
ESR1 fusion genes are less common than missense mutations, and their biological and therapeutic significance in BC is less well characterized. These fusion constructs almost uniformly lose the ESR1 LBD, leading to ET resistance [63–65]. Generally, N-terminal ESR1 sequences lacking the hormone-binding domain fuse to other proteins, where they can act as a promoter trap leading to increased expression of possibly oncogenic proteins/protein truncations [64]. Studies suggest that ESR1 fusions more frequently occur in ET-resistant, progressive disease, and occur in 2.1% of luminal B subtype BC in the TCGA ER + BC cohort [66]. Similarly, in our cohort, ESR1 fusions were significantly more frequent in metastatic compared with local/regional BC tissues overall (P = 0.002), including in the HR + /HER2- BC subtype (P < 0.001).
Utilization of whole transcriptome sequencing with our assay identified 11 rare ESR1 fusion partners, each of which occurred once. Two of the gene partners, ARNT2 [67] and PLEKHG1 [68], have been reported previously. In agreement with previous reports, CCDC170 was the most common partner gene found among HR + /HER2- BC samples in our study (77.1% of all ESR1 fusion events in HR + /HER2- BC samples) [69]. One of the most common fusions observed in our study and others involves the first two ESR1 exons fusing to C-terminal CCDC170, generating a truncated CCDC170 protein that has been shown to enhance BC cell growth and decrease tamoxifen sensitivity [66, 70, 71], supporting a role for these fusions in ET resistance. Another study found that exon 2 and exon 8 ESR1-CCDC170 fusion transcripts identify a more aggressive subset of ER-positive breast cancer patients and have prognostic value [72]. Notably, it has been shown that CDK4/6 inhibitors can suppress ESR1-fusion-driven growth in some instances, indicating that inhibiting kinases downstream of ER may be an effective therapeutic strategy [64, 73, 74]. However, increased signaling through SRC/HER2/HER3/AKT in breast cancers with ESR1-CCDC170 gene fusions was demonstrated in preclinical models, suggesting additional therapeutic vulnerabilities [71]. Consistently, a case study demonstrated activation of SRC/HER2/HER3/AKT in a BC harboring an ESR1-CCDC170 fusion, and these cells were sensitive to HER2 (lapatinib) and SRC (dasatinib) inhibition [75].
Examination of co-alterations in HR + /HER2- BC samples at the gene or pathway level revealed associations between ESR1 alterations and cell cycle regulation, FGFR signaling, and PI3K/AKT signaling. FGF3, FGF4, FGF19, and CCND1 amplifications were significantly more frequent in ESR1-altered compared to ESR1-wild-type samples. These genes reside on the 11q13 chromosome locus, which is amplified in approximately 15% of BCs [76, 77]. Evidence suggests that these findings could have important therapeutic implications for patients with ESR1-altered tumors. Amplification of FGF3/4/19 has been associated with responsiveness to sorafenib in patients with advanced hepatocellular carcinoma (HCC) [78, 79], and clinical benefit with RTK inhibitors in FGFR-pathway-altered solid tumors has also been reported [80]. In the MONALEESA-7 trial, greater benefit from the CDK4/6 inhibitor ribociclib was observed in patients with HR + /HER2- BC with CCND1 amplification [81] and inhibition of CDK4/6 inhibitors has been considered as a therapeutic strategy to overcome endocrine resistance in patients with PIK3CA- or *ESR1-*mutant BC [82]. In the MONALEESA-2 trial of first-line ET plus ribociclib, the presence of FGFR1 amplification was associated with reduced effectiveness of ribociclib. Thus, the observed co-occurrence of FGFR1 amplification and ESR1 mutations in a subset of patients suggests that combined inhibition of these alterations will be needed to achieve therapeutic benefit [83].
Besides ESR1 alterations, the selective pressure of ET has been reported to result in other resistance alterations. Razavi et al. found ERBB2 gain-of-function mutations and NF1 loss-of-function mutations to be significantly more common in ET-treated compared to treatment-naïve metastatic BC samples, and that these alterations mostly occurred in ESR1-wild-type samples [10]. In the same study, a pathway analysis of treated and untreated metastatic BC samples uncovered hotspot mutations in genes in the MAPK pathway (ERBB3, KRAS, HRAS, BRAF, and MAP2K1) that were mutually exclusive with ESR1 alterations in post-treatment samples; these were associated with poor response to AI therapy as well as diminished PFS. Similarly, we observed that KRAS and HRAS alterations only occurred in ESR1-wild-type samples. Combined with the ER-negative phenotype of BC cells with upregulated MAPK signaling [84], these results add further evidence that the MAPK cascade can underly ET resistance and disease progression in BC. Our study as well as that of Razavi’s team [10] also found that EGFR focal amplifications were only present in ESR1-wild-type samples. In the latter study, these alterations occurred in patients who had received tamoxifen and/or AI therapy, suggesting a possible role in acquired therapy resistance. Thus, genomic profiling of BC at the time of progression on ET could uncover evidence of multiple resistance mechanisms that may be addressable with EGFR or MAPK-pathway inhibitors.
As in HR + BC, ESR1 alterations in gynecologic cancers can occur in response to ET exposure [27]. ESR1 LBD mutations have been associated with poor prognosis in women with endometrial cancer [85]. Interestingly, it was reported that a patient with stage IIIC low grade primary peritoneal serous carcinoma with an activating mutation in ESR1 had clinical benefit with ER-targeted therapy [27]. In our cohort of combined gynecologic cancers, ESR1 alteration was detected in 3.4% of samples, which is consistent with the frequencies reported for specific gynecologic tumor types in smaller studies. ESR1 fusions and missense mutations occurred at similar frequencies (1.9% and 1.6%, respectively), and one sample had co-occurring fusion and missense mutation. This suggests that the distribution of ESR1 alteration types may differ between gynecologic cancer and BC. Furthermore, the potential clinical relevance of this finding is unclear, as the biological characterization of specific ESR1 alterations in gynecologic tumors is under-reported compared to BC.
Our evaluation of 21 ESR1 fusions in gynecologic cancer samples showed that, like in HR + /HER2- BC samples, the majority (20 of 21) of events occurred with the partner gene CCDC170, and that these commonly involved only the first few ESR1 exons, likely serving as a promoter trap. Another fusion partner, EYA2, was only observed in gynecologic cancer samples. Also similar to HR + /HER2- BC samples, the most common ESR1 LBD mutations in our gynecologic cancer cohort were Y537C/S (0.5%) and D538G (0.5%). In vitro, the D538G mutant was shown to exert estrogen-independent neomorphic activities [86], suggesting that, like BC, particular LBD mutations may have important implications for therapy selection in ESR1-altered gynecologic tumors. Several studies have shown emergence of ESR1 mutations in endometrial cancer patients on ET, and several trials are underway targeting mutant ESR1 with oral SERD combination therapies in these patients [87–89]. These findings emphasize the need for further evaluation of ESR1 mutation status in gynecologic tumors, functional characterization of specific alterations in relevant models, and trials of oral SERDs alone and in combination with CDK4/6 and AKT inhibitors, especially in metastatic endometrial cancer.
Increasing access to genomic profiling has expanded our understanding of the molecular complexity, heterogeneity, and evolution of tumors that drive ET resistance, which is defining the dynamic therapeutic landscape. Although the relevance of ESR1 alterations for ET resistance is known, the field continues to evaluate how to best treat patients with these molecular alterations. Based on results from the Elacestrant versus Standard Endocrine Therapy for ER + /HER2- Advanced BC (EMERALD) trial, elacestrant is now the first drug approved specifically for patients with ESR1-altered HR + /HER2- BC that progressed on prior CDK4/6 inhibitor therapy [22]. There are also novel SERDs currently in late-stage clinical development, including camizestrant, imlunestrant, and giredestrant [21, 90, 91]. In addition, the combination of elacestrant with inhibitors of the PI3K/AKT pathway, including capivasertib, alpelisib, and inavolisib, is being evaluated in multiple clinical trials, such as the ELEVATE trial (NCT05563220). Thus, increasingly, genomic profiling to identify ESR1 alterations, including the less common gene fusion events, presents an important clinical opportunity to tailor targeted therapy for patients with HR + BC or gynecologic malignancies.
The limitations of this study should be considered when interpreting these findings. First, this was a retrospective study of a database that lacked treatment or outcomes information. Our study also lacked longitudinal samples to inform molecular drivers of disease progression. Finally, some of the alterations evaluated for co-occurrence or mutual exclusivity with an ESR1 alteration were detected in a small number of samples, which could affect the statistical outcomes. Nevertheless, our work presents important genomic characterization of relatively large cohorts of BC by subtype as well as, to our knowledge, represents the largest study characterizing ESR1 alterations in gynecologic cancers to date. In addition, the use of whole exome and whole transcriptome profiling enabled a thorough evaluation of the frequency of co-occurring alterations, including companion diagnostic biomarkers currently in clinical use to qualify patients with ESR1-altered metastatic BC for therapy with elacestrant.
Conclusions
Overall, ESR1 alterations, including missense mutations in the LBD and fusions, were most common in HR + /HER2- BC samples. In this BC subtype and in BC overall, missense mutations and fusions were more common in metastatic biopsy than local/regional samples. In HR + /HER2- BC, cell cycle and FGFR signaling, including amplification of the chromosome locus containing FGF3, FGF4, FGF19, and CCND1, were significantly associated with the presence of an ESR1 alteration. Clinically relevant co-occurring alterations in ESR1 and the PI3K/AKT/PTEN pathway were detected in 2.3% of HR + /HER2- BC samples. Finally, we characterized the distribution of ESR1 fusions and missense mutations in a large cohort of gynecologic cancer samples and provide new insights into the nature of these alterations.
Supplementary Information
Supplementary material 1
