Queryable Gaseous Adsorption Properties of Pure Components and Mixtures in Metal–Organic Frameworks
Jui Tu, Chi-Chun Tang, Pi-Chien Chuang, Li-Chiang Lin
TL;DR
This paper introduces a new database for predicting gas adsorption in metal-organic frameworks under various conditions, enabling faster material screening and separation analysis.
Contribution
A novel MPD-based adsorption database that allows reweighting to any pressure and temperature conditions and supports mixture isotherms via IAST.
Findings
MPD-based database enables instant adsorption predictions for CO2, N2, CH4, and CO in 2900 MOFs.
Database supports mixture isotherms for multicomponent separations using IAST.
Structure-performance relationships for separation behavior are uncovered efficiently.
Abstract
Grand canonical Monte Carlo (GCMC) has been the most common simulation method for high-throughput screening of metal–organic frameworks (MOFs) in adsorption applications. However, GCMC results are inevitably limited to specific pressure and temperature conditions, limiting their applicability across the varying conditions in industrial operations. To address this, we develop a macrostate-probability-distribution-based (MPD-based) adsorption database for several key gas molecules (i.e., CO2, N2, CH4, and CO) in approximately 2900 rigid MOF structures. Crucially, MPD computed from flat histogram Monte Carlo can be analytically reweighted to any pressures and temperatures, enabling instant access to adsorption uptakes under any desired conditions. By integrating the ideal adsorbed solution theory (IAST), the database also provides mixture isotherms at user-defined compositions to allow…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

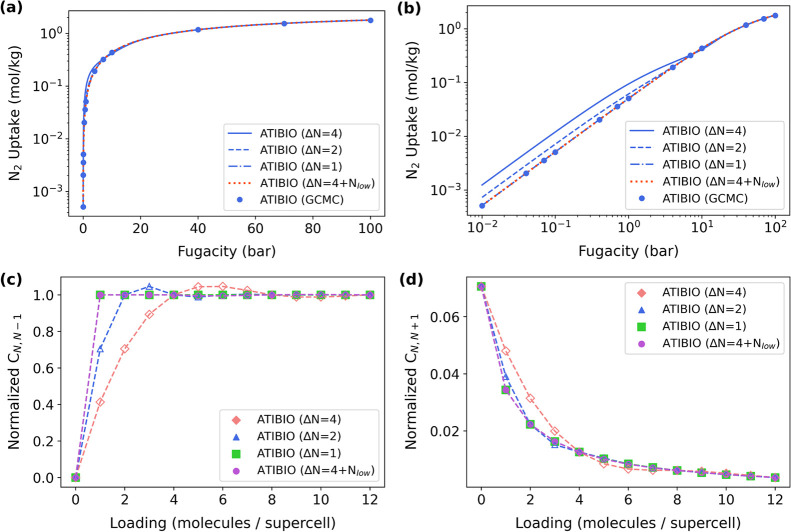

Figure 1

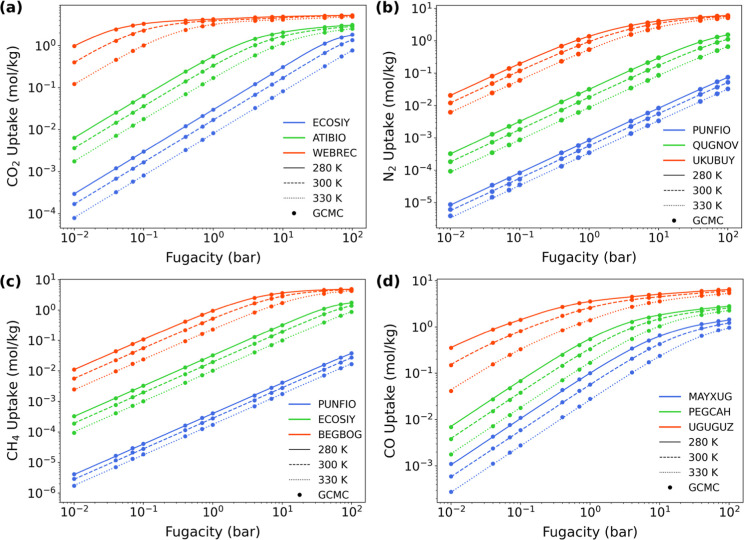

Figure 2

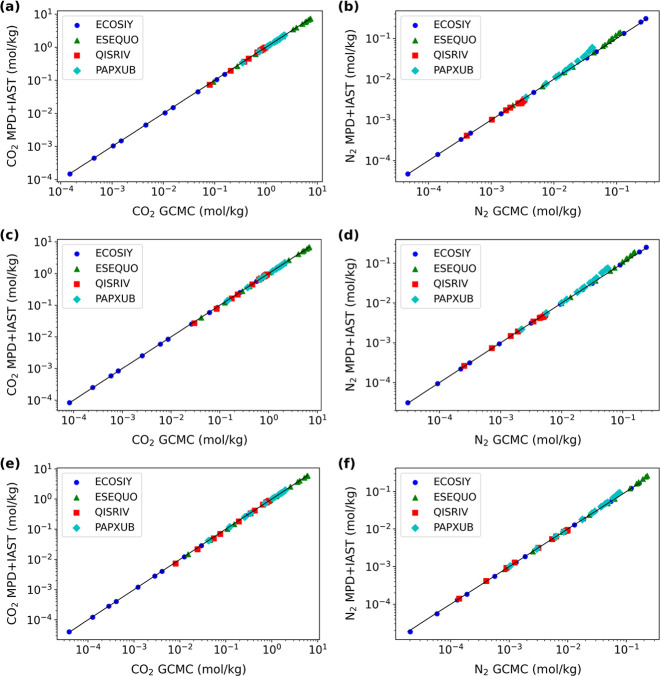

Figure 3

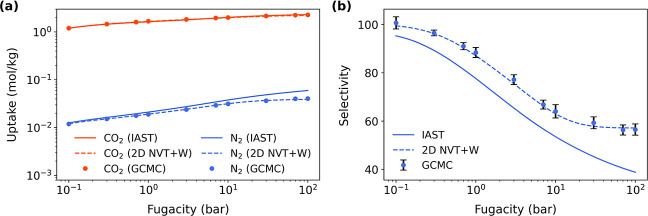

Figure 4

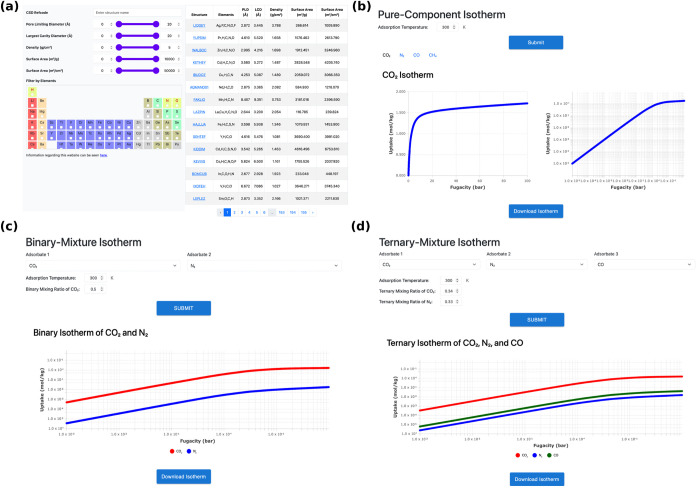

Figure 5

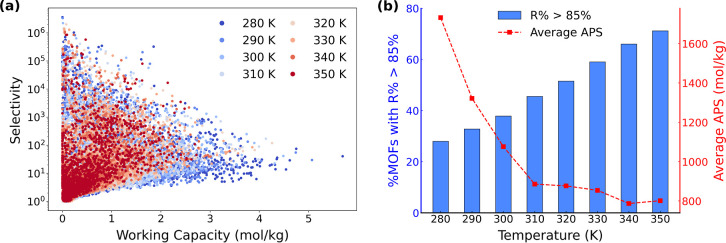

Figure 6

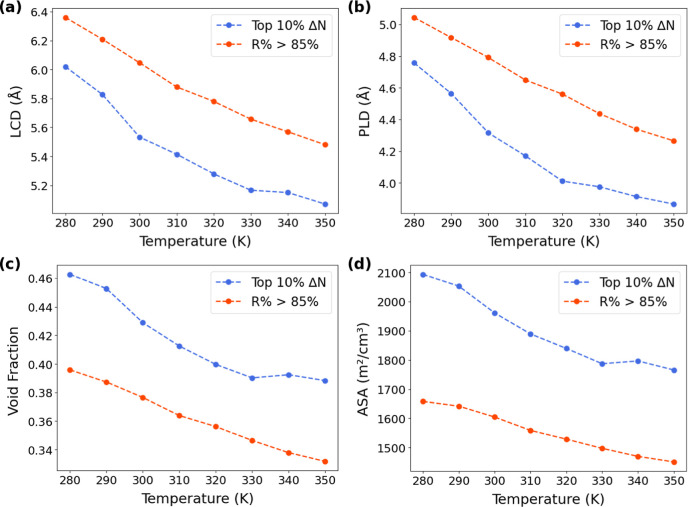

Figure 7
Figure 8

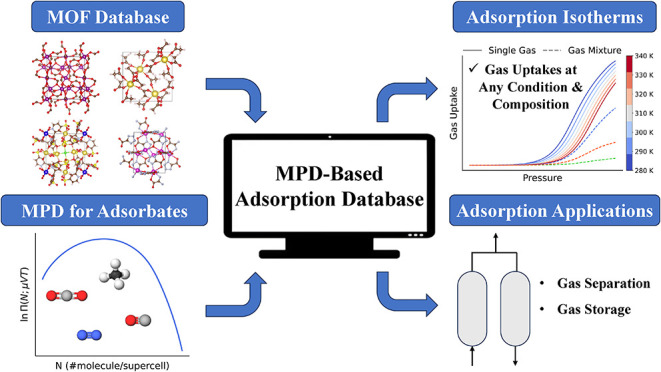

Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMetal-Organic Frameworks: Synthesis and Applications · Carbon Dioxide Capture Technologies · Phase Equilibria and Thermodynamics
