Template-in-template assembly nanostructured microspheres for high performance chromatography

TL;DR

Scientists developed a new method to create precise, nanostructured microspheres that improve chromatography performance by resolving difficult molecular separations.

Contribution

A novel template-in-template assembly strategy enables precise synthesis of mesoporous microspheres with tailored nanostructures for high-performance separations.

Findings

TiTAN strategy produces microspheres with uniform morphology (CV = 3%) and ordered mesoporous structures.

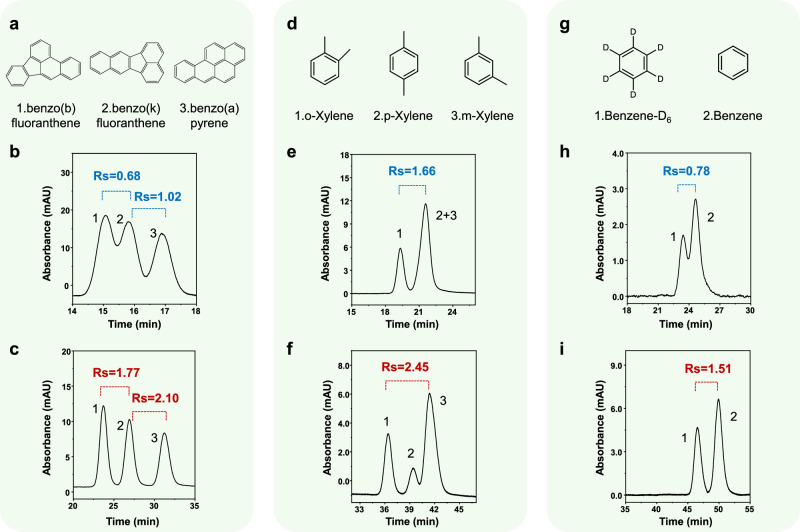

The method resolves critical molecular pairs with selectivity approaching 1, achieving separation in the shortest possible time.

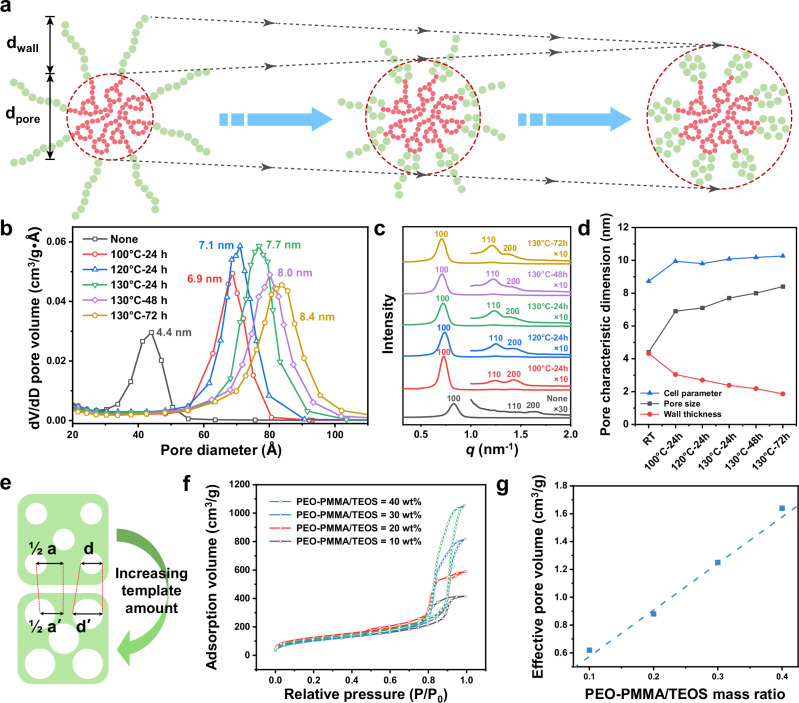

Structural parameters can be fine-tuned with 2 Å spatial resolution using hydrothermal condition regulation.

Abstract

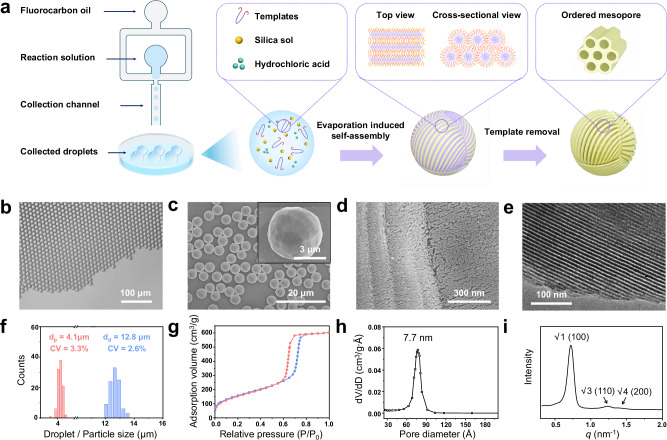

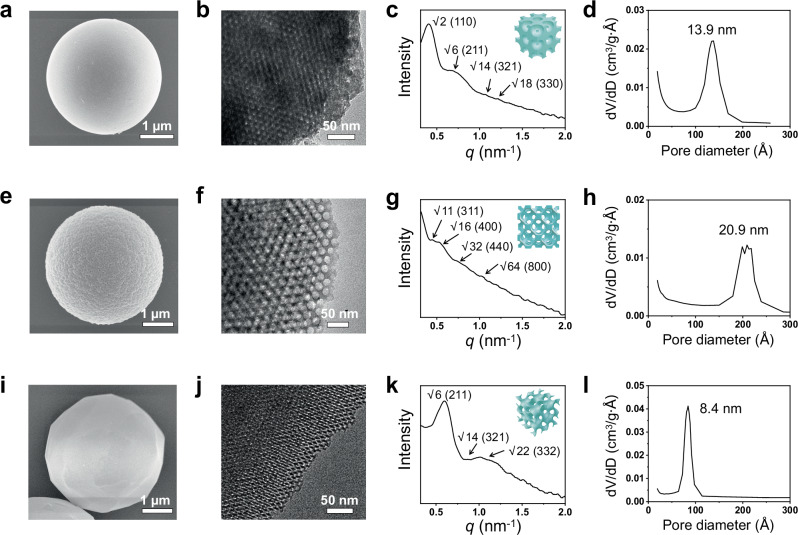

Concurrent precision architecture of morphology and nanostructure in mesoporous microspheres is pivotal for high performance separations. Herein, we develop a template-in-template assembly nanostructuring (TiTAN) strategy to precisely synthesize monodisperse microspheres with ordered mesoporous nanostructure. Microfluidic droplet templating ensures uniform particle morphology (CV = 3%), while structure-directing agents within droplets enable tailored pore configurations, including 2D hexagonal, body-centered cubic, face-centered cubic, and cubic double gyroidal mesostructures. Through regulating hydrothermal conditions, structural parameters can be fined-tuned with 2 Å spatial resolution. By extending this manufacturing capability to a variety of material chemistries, chromatographic materials can now be de novo architectured with rationales, with the performance demonstrated by the solution of a classical separation challenge: resolving critical pairs (whose selectivity, α, infinitely approaching to 1), and with the shortest possible time. Beyond separation medium, the TiTAN strategy also suggests a route towards general synthesis of porous material with precision macroscopic morphology and microscopic nanostructure.

As predominant separation medium, mesoporous microspheres demand precision architecture to transform separation performance. The authors report a method for precision synthesis and nm-μm cross-dimensional ordered assembly of porous material, and achieve resolution of critical molecular pairs.

Figures
