Non-lethal heat shock unlocks SOD gene family diversity for enhanced bacterial resistance in Procambarus clarkii
Xin Zhang, Xiuhong Cai, Shirui Yue, Zhangxuan Chen, Lei Cheng, Shunchang Wang
TL;DR
A study finds that non-lethal heat shock boosts bacterial resistance in Procambarus clarkii by activating SOD genes and stress response pathways.
Contribution
The study reveals a novel SOD-ERS stress response mechanism in crustaceans triggered by heat shock pretreatment.
Findings
Five PcSOD genes show structural diversity and tissue-specific expression patterns.
Heat shock pretreatment modulates PcSOD gene expression timing and intensity under bacterial challenge.
PcSOD genes correlate with ERS-related genes in hemocytes after heat shock and bacterial exposure.
Abstract
Oxidative stress and endoplasmic reticulum stress (ERS) are critical for crustaceans’ stress responses. Genome-wide identification of superoxide dismutase (SOD) genes in Procambarus clarkia is essential for understanding its stress adaptation and aquaculture disease control. Five PcSOD genes were identified, with analyses of their structure, motif, chromosomal distribution and phylogeny. Their tissue-specific expression, expression under Vibrio parahaemolyticus challenge, correlation with ERS-related genes, and changes in T-AOC/SOD activity were detected, along with the effect of heat shock pretreatment. PcSOD genes showed structural diversity and tissue specificity, with time-dependent expression under bacterial challenge. Heat shock pretreatment regulated their expression timing and intensity. Significant correlations between PcSOD and ERS genes were observed in hemocytes under NLHS…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9| Gene_Name | Gene_ID | Chromosome | Number of amino acid | Molecular weight | Theoretical pI | Instability index | Aliphatic index | Grand average of hydropathicity |
|---|---|---|---|---|---|---|---|---|
|
| 642 | 70,854.91 | 5.73 | 34.11 | 83.99 | -0.469 | ||
|
| 642 | 70,864.95 | 5.67 | 35 | 84.3 | -0.462 | ||
|
| 647 | 71,168.32 | 5.28 | 35.85 | 77.6 | -0.483 | ||
|
| 635 | 69,433.29 | 5.49 | 33.81 | 82.33 | -0.457 | ||
|
| 638 | 69,882.92 | 5.23 | 37.94 | 77.7 | -0.443 |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsInvertebrate Immune Response Mechanisms · Endoplasmic Reticulum Stress and Disease · Vibrio bacteria research studies
Introduction
1
Superoxide dismutase (SOD) is a key enzyme in the biological antioxidant defense system. It maintains cellular redox homeostasis by catalyzing the dismutation of superoxide anion (O_2_^2^) into oxygen (O_2_) and hydrogen peroxide (H_2_O_2_) (1, 2). Based on metal cofactors, the family includes CuZnSOD, MnSOD, FeSOD, and NiSOD—with CuZnSOD and MnSOD being functionally crucial in eukaryotes (3–5). Under pathogen or environmental stress, SOD precisely regulates reactive oxygen species (ROS) accumulation to balance host defense and self-protection (4, 6–8). For example, ecCuZnSOD expression is significantly upregulated in Litopenaeus vannamei infected with Vibrio alginolyticus, with enzyme activity positively correlated with disease resistance (9). SOD3 in Acipenser baikalensis is also rapidly induced under Aeromonas hydrophila stimulation, highlighting its critical role in mucosal immunity (10). Additionally, SOD family expression is linked to environmental adaptability—Cyprinus carpio upregulates sod genes synergistically with gpx to mitigate cadmium-induced oxidative damage (11).
The endoplasmic reticulum (ER), as the central hub for protein synthesis and folding, is vital for maintaining cellular homeostasis in aquatic animals (12). Thermal stress from temperature fluctuations disrupts ER function in ectothermic species, triggering the unfolded protein response (UPR). UPR impairs protein synthesis, induces misfolded protein accumulation and oxidative stress, and disrupts mitochondrial function, immunity, and energy metabolism—ultimately reducing feed efficiency and increasing disease susceptibility. SOD is involved in modulating ER stress (ERS) (12), with excess ROS under stress altering SOD activity or expression to influence ERS levels. For instance, xiaoaiping exposure reduced SOD activity and increased ERS gene expression in zebrafish embryos (13). Nitrite exposure induced ERS and antioxidant imbalance in L. vannamei (14), while Ulva prolifera exposure reduced hepatic SOD activity and induced ERS in Paralichthys olivaceus (15). Under carbonate alkalinity stress, SOD activity in shrimp gills showed a transient rise followed by a decline, while ERS genes remained elevated (16). In crucian carp, beta-cypermethrin exposure caused dynamic SOD changes linked to ERS pathway activation (17). These findings highlight the importance of SOD–ERS balance in stress adaptation, where imbalance may aggravate cellular damage.
As key taxa in aquatic ecosystems and important targets of aquaculture, crustaceans are of great interest in studies of the SOD gene family, which plays a critical role in innate immunity and environmental adaptation. Recent progress has been made in crustacean SOD gene cloning and functional analysis. For example, ecCuZnSOD expression is upregulated upon pathogenic challenge in Portunus trituberculatus, associated with enhanced immune protection (18) and Eriocheir sinensis (19), correlating with enhanced immune protection and pathogen clearance. These findings confirm the conserved immune role of crustacean SOD genes, but comprehensive family identification, evolutionary analysis, and regulatory network characterization remain unexplored.
Procambarus clarkii is one of the most widely cultured crayfish species globally, known for its rapid growth and strong environmental adaptability (20). However, its production and quality are compromised by pathogenic infections and environmental stresses such as temperature fluctuations (21). Previous work cloned two P. clarkii SOD genes (ecCuZnSOD and mtMnSOD) from hemocytes, showing high expression in hepatopancreas, gills, and hemocytes (22). Their expression and enzymatic activities increased significantly under pathogenic stimulation, confirming their immune role (22). Nevertheless, this study only identified two SOD members and lacked comprehensive family-wide analysis. In contrast, research on Callinectes sapidus has emphasized that complete identification of the SOD gene family is essential to understand functional redundancy and divergence (23). Additionally, the interaction between abiotic stresses and pathogen infection—common in aquaculture—remains uninvestigated. The lack of genome-wide analysis limits understanding of the family’s evolutionary patterns, gene structures, and regulatory elements, hindering insights into its functional network (22).
Non-lethal heat shock (NLHS) can enhance tolerance to subsequent stress by inducing heat shock proteins (HSPs) and increasing antioxidant enzyme activity. In L. vannamei, NLHS upregulated HSP70 and immune-related transcripts but did not improve resistance to V. harveyi, suggesting a complex relationship between thermal stress and pathogen defense (24). In Artemia franciscana, thermal acclimation regulated stress- and immunity-related genes, potentially enhancing resilience (25). These effects may result from HSPs stabilizing intracellular conditions and maintaining protein function (26, 27), plus modulation of antioxidant systems (28). In our prior study, we identified fifteen P. clarkii Hsp70 genes via genome-wide analysis (29). We found NLHS induces their upregulation, which enhances resistance to V. parahaemolyticus by regulating the TLR signaling pathway—revealing Hsp70’s role in NLHS-enhanced immunity. However, whether NLHS enhances P. clarkii resistance to V. parahaemolyticus through regulating SOD family expression and ERS responses remains unknown. Genome-wide identification of the SOD family is essential to elucidate its roles in antioxidant defense, ERS regulation, and immune response. It enables comprehensive analysis of gene members, structures, chromosomal distribution, and evolutionary relationships, laying a foundation for understanding functional divergence (11). In common carp, for instance, genome-wide mining revealed significant expansion of the gpx family, with subtype-specific responses to cadmium stress, providing insights into antioxidant gene diversity (11). Transcriptome integration can further map SOD expression across tissues, developmental stages, and combined stresses, revealing regulatory networks (30). This would not only address gaps in gene identification in P. clarkii but also identify molecular targets underlying NLHS-enhanced immunity, supporting stress-resilient breeding and healthy aquaculture.
Based on our prior finding that NLHS induces Hsp70 upregulation to enhance P. clarkii’s resistance to V. parahaemolyticus, we proposed this exploratory hypothesis: NLHS may modulate specific PcSOD expression and their interaction with the ERS pathway, forming an antioxidant-stress network to improve bacterial resistance. To validate this, we aimed to: (1) identify P. clarkii SOD family via genomic tools and characterize their structure, evolution, and tissue expression; (2) establish a NLHS+V. parahaemolyticus model to detect SOD expression dynamics; (3) analyze SOD-ERS interaction to clarify their role in “heat preconditioning–immune enhancement.” This work enriches crustacean SOD function knowledge, reveals P. clarkii’s immune mechanisms, and provides a basis for optimizing aquaculture stress/disease strategies.
Materials and methods
2
Identification and characterization of SOD gene family members in P. clarkii
2.1
The genomic assembly and corresponding annotation files of P. clarkii (accession number: GCA_040958095.1) were retrieved from the NCBI database (https://www.ncbi.nlm.nih.gov/). To identify candidate SOD family members, the Hidden Markov Model (HMM) profile of the Sod_Cu domain (PF00080), Sod_Fe_N domain (PF00081), Sod_Fe_C domain (PF02777) were obtained from the Pfam database (https://www.ebi.ac.uk/interpro/entry/pfam/). This HMM seed file was employed as a query using HMMER software (version 3.2; http://hmmer.org/) to screen the annotated protein-coding sequences in the P. clarkii genome for potential Sod domain-containing proteins. In parallel, SOD protein sequences from E. sinensis, Drosophila melanogaster, and L. vannamei were retrieved from the NCBI database and used to conduct BLASTP searches against the P. clarkii protein dataset, with an e-value cutoff of 1e−5, to ensure comprehensive identification. All candidate sequences were then cross-validated for the presence of the conserved SOD domain using the Conserved Domain Database (CDD; https://www.ncbi.nlm.nih.gov/Structure/bwrpsb/bwrpsb.cgi) and Simple Modular Architecture Research Tool (SMART) (http://smart.embl-heidelberg.de/). Sequences lacking the characteristic domain were excluded from further analysis. The final set of confirmed SOD family members was analyzed using the ExPASy ProtParam tool (http://web.expasy.org/protparam/) to determine their primary physicochemical properties, including amino acid length, molecular weight (MW), and theoretical isoelectric point (pI).
Structural features of SOD genes and proteins in P. clarkii
2.2
Gene structure information, including exon–intron organization of the identified P. clarkii SOD genes, was extracted from the genome annotation file in GFF3 format using TBtools software (31). To explore the conserved structural features at the protein level, motif analysis was performed using the MEME suite (https://meme-suite.org/meme/), with the maximum number of motifs set to 10. The distribution of conserved motifs and exon–intron structures were both visualized using TBtools. For secondary structure prediction, the full-length amino acid sequences of SOD proteins were analyzed using the SOPMA online tool. Tertiary structures were modeled using the SWISS-MODEL server, and only predicted models with a sequence identity greater than 30% to their respective templates were retained for downstream analysis.
Chromosomal mapping and phylogenetic analysis of P. clarkii SOD genes
2.3
The genome annotation file of P. clarkii was used to determine the chromosomal positions of SOD family members, along with the corresponding chromosome lengths. This information was extracted using the “Gene Location Visualize” function within the GTF/GFF module of TBtools software. Based on these data, a chromosomal distribution map of PcSOD genes was constructed. For evolutionary analysis, a phylogenetic tree was generated using the Neighbor-Joining (NJ) method implemented in MEGA 6.0 software (32). The analysis was performed with 1,000 bootstrap replicates to assess branch reliability, while other parameters were maintained at their default settings.
Experimental animals and sample collection
2.4
P. clarkii individuals (body weight: 15–20 g) were obtained from a commercial aquaculture farm located in Huainan, Anhui Province. A total of 300 crayfish were used in this study. Prior to experimentation, the crayfish were acclimated under standard aquaculture conditions, including routine feeding and water quality management. After a 7-day stabilization period to establish uniform physiological baselines, 260 healthy crayfish with stable overall conditions were selected for subsequent experiments (the remaining 40 individuals were excluded as backups due to minor health inconsistencies).
The experimental design consisted of two sequential phases:
Heat Shock Phase (HSS):
a) NT group (Non-Treated Control): Individuals were maintained in water at 26 °C for 6 h without any thermal treatment.b) HT group (NLHS-Treated): Individuals were subjected to heat stress by exposure to a 32 °C water bath for 2 h, followed by a 4 h recovery at 26 °C.
Pathogen Challenge Phase (PIS):
a) HTC group: Individuals from the HT group were intramuscularly injected with 30 μL of sterile normal saline (NS).b) HTV group: Individuals from the HT group were injected with 30 μL of V. parahaemolyticus suspension (1.0 × 10^8^ CFU/mL).c) NTC group: Individuals from the NT group were injected with 30 μL of NS.d) NTV group: Individuals from the NT group received 30 μL of V. parahaemolyticus (1.0 × 10^8^ CFU/mL).
At 3 h, 12 h, 24 h, and 48 h post-treatment in PIS phases, hemolymph samples were collected from six individuals per group (n = 6 per time point per group). Hemolymph was centrifuged at 2000 × g for 10 minutes at 4 °C. The supernatant was discarded, and the hemocyte pellets were immediately flash-frozen in liquid nitrogen and stored for subsequent RNA extraction. Detailed information regarding the experimental groups has been elaborated in our previous study (29).
Tissue-specific expression profiling and expression analysis of SOD genes in response to bacterial infection Following NLHS
2.5
The expression profiles of five SOD genes across seven tissues of P. clarkii—hemocytes (He), gills (Gi), hepatopancreas (Hp), eyestalks (E), intestines (I), stomachs (St), and muscles (Mu)—will be characterized. Total RNA was extracted from hemocytes using TRIzol reagent (Invitrogen, USA), and RNA quality and concentration were assessed via NanoDrop 2000 spectrophotometry (Thermo Scientific, USA) and agarose gel electrophoresis. For each sample, 1 µg of total RNA was reverse-transcribed into cDNA using M-MLV reverse transcriptase (Promega, Madison, WI, USA).
Quantitative real-time PCR (qPCR) was conducted to assess gene expression levels in hemocytes subjected to various treatments. Gene-specific primers (listed in Supplementary Table S1) were designed to amplify target fragments of 200–300 bp. The P. clarkii glyceraldehyde-3-phosphate dehydrogenase (Gapdh; Accession No. AB094145) gene was used as the internal reference, as its stable expression under the experimental conditions was validated. PCR reactions were performed on a Roche LightCycler 96 thermal cycler using 10× SYBR Green Master Mix (Yisheng, Shanghai, China), 9 µL of diluted cDNA template, and 0.5 µL of each primer (10 μM). Thermal cycling conditions included an initial denaturation at 95 °C for 1 minute, followed by 40 amplification cycles of 95 °C for 15 seconds and 60 °C for 1 minute. A melting curve analysis was performed post-amplification to confirm the specificity of the PCR products. Relative expression levels were calculated using the 2^–ΔΔCT method for data normalization (33).
All reactions were carried out in triplicate. For statistical analysis: 1) For tissue-specific expression profiling, differences in gene expression across tissues were evaluated using one-way analysis of variance (ANOVA) followed by Tukey’s HSD post-hoc test with IBM SPSS Statistics 20; 2) For pathogen-induced expression analysis (group comparisons under infection conditions), differences were assessed using t-test via the same software. A p-value < 0.05 was considered statistically significant. To visualize expression profiles, a heatmap was generated using R software (v4.5.0). In addition, to further corroborate the expression patterns of SOD genes and their potential roles in immune regulation, previously obtained RNA-Seq data (PRJNA1107630), generated under identical experimental conditions, were re-analyzed.
Expression patterns of ERS-related genes in response to bacterial infection following NLHS
2.6
To investigate the involvement of ERS in the immune response of P. clarkii under NLHS, the transcriptional expression of five key ERS-related genes—inositol-requiring protein-1 (IRE1), activating transcription factor 4 (ATF4), activating transcription factor 6 (ATF6), X box-binding protein 1 (XBP1), and eukaryotic translation initiation factor 2 (EIF2)—was analyzed using qPCR. Total RNA extraction, cDNA synthesis, primer design, and qPCR conditions followed the protocols described in Section 2.5. Relative expression levels were calculated using the 2^–ΔΔCT method, with Gapdh as the internal control. Each reaction was performed in triplicate. Statistical analysis was conducted using IBM SPSS Statistics 20, with differences considered significant at p < 0.05. Gene expression patterns were visualized as heatmaps generated in R (v4.5.0).
Measurement of SOD and T-AOC activity
2.7
Hemolymph samples were collected from P. clarkii individuals across different treatment groups and centrifuged at 2000 × g for 10 minutes to obtain the supernatant. The activity of SOD and total antioxidant capacity (T-AOC) in the supernatant was determined using a commercial assay kit (Nanjing Jiancheng Bioengineering Institute, Nanjing, China), following the manufacturer’s instructions. Absorbance values were measured at the specified wavelength using a Varioskan LUX microplate reader (Thermo Scientific, USA). All assays were performed in triplicate for each group to ensure reproducibility and accuracy.
Results
3
Genome-wide identification and functional characterization of P. clarkii SOD genes
3.1
A comprehensive genome-wide analysis identified five SOD gene members in P. clarkii, each annotated based on chromosomal position and gene structure (Table 1). The corresponding proteins displayed notable functional diversity, with predicted amino acid lengths ranging from 205 to 313 residues and molecular weights between 21.4 and 34.0 kDa. This variation implies potential specialization in stress adaptation and protein regulatory functions. Theoretical pI, calculated to range from 5.69 to 9.1, indicate that these proteins are predominantly acidic, which may influence their subcellular distribution and protein–protein interactions, particularly under fluctuating intracellular pH conditions induced by environmental stress (Table 1).
Conserved motifs, CDD domains, and gene structures of P. clarkii SOD genes
3.2

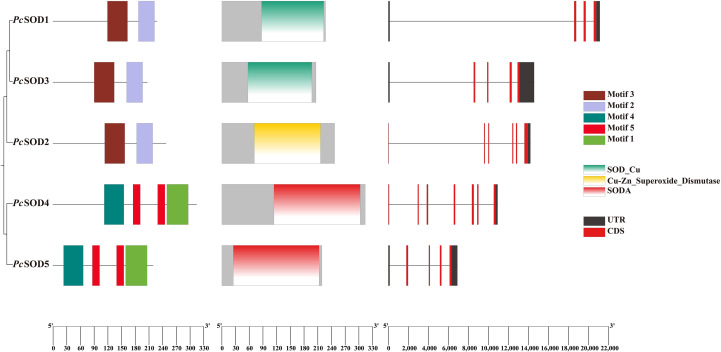

As shown in Figure 1, conserved motif analysis of P. clarkii SOD proteins revealed three highly conserved SOD domains present across different family members, which is essential for their enzymatic function in oxidative stress defense. These core domains reflect a shared functional mechanism, allowing these proteins to catalyze the dismutation of superoxide radicals and maintain cellular redox balance. While most motifs corresponded to this canonical SOD domain, certain variations in non-core motifs were observed among different gene members (Figure 1).
Protein domains and gene structures of the PcSODs family. Different motifs and domains are displayed using colorful bars. Exons and 5′ UTR/3′ UTR are displayed using black bars and red bars. Gray lines denote introns.
Chromosomal distribution of P. clarkii SOD genes
3.3

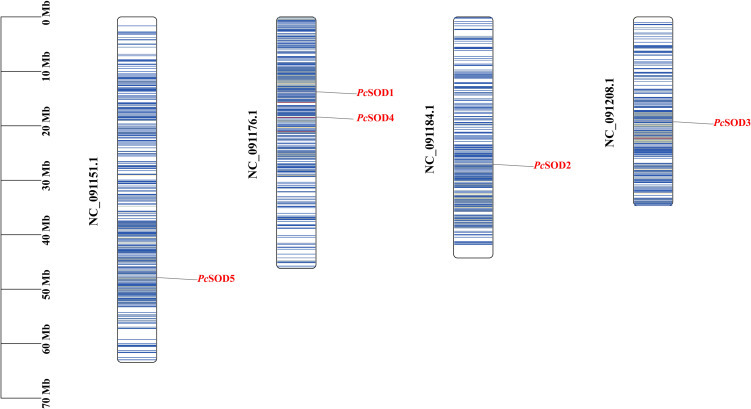

The chromosomal localization of P. clarkii SOD genes was examined, revealing that five PcSOD genes were unevenly distributed across four chromosomes (Figure 2). Most genes were dispersed at various positions without evident clustering. Among them, PcSOD1 and PcSOD4 were both located on chromosome NC_091176.1. The remaining three members—PcSOD2, PcSOD3, and PcSOD5—were individually mapped to chromosomes NC_091151.1, NC_091184.1, and NC_091208.1, respectively (Figure 2).
Chromosome distribution of PcSODs.
Structural modeling and phylogenetic analysis of P. clarkii SOD proteins
3.4
Homology modeling of the five identified PcSOD proteins was conducted using the SWISS-MODEL server. The predicted structures revealed a conserved spatial configuration characterized primarily by α-helices and coiled regions, with several members displaying similar folding topologies. These structural similarities suggest a conserved three-dimensional framework that may reflect shared enzymatic functions or a common evolutionary origin (Figure 3).
The predicted 3D structure of PcSODs. (A-E) The 3D-structure of PcSOD1, PcSOD2, PcSOD3, PcSOD4, and PcSOD5, respectively.
Phylogenetic analysis revealed that PcSOD proteins clustered into two distinct subfamilies: Mn-SOD and Cu/Zn-SOD, consistent with their sequence homology and functional classification. PcSOD1, PcSOD2, and PcSOD3 grouped with Cu/Zn-SOD proteins from various species, while PcSOD4 and PcSOD5 clustered closely with Mn-SOD homologs from other crustaceans. These phylogenetic patterns highlight the evolutionary divergence and taxonomic specificity within the PcSOD family (Figure 4).

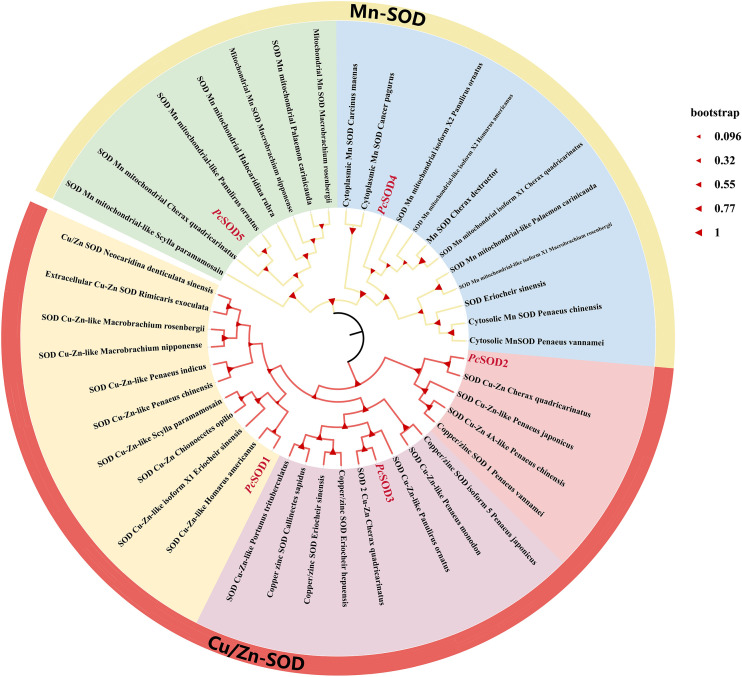

Phylogenetic analysis of PcSODs from selected organisms. A phylogenetic tree was constructed by MEGA6 with the Neighbor Joining method and bootstrap of 1000 replications. Percent bootstrap values (1000 bootstrap replications) are indicated in every branch.
Expression patterns of PcSOD genes in different tissues
3.5

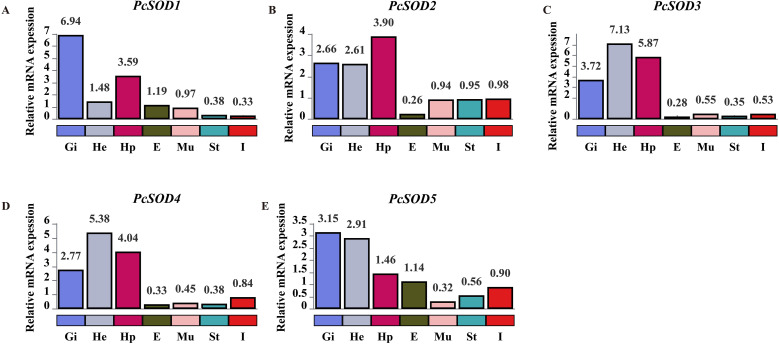

The tissue-specific expression patterns of five SOD genes in seven tissues of P. clarkii were analyzed using qPCR. As shown in Figure 5, distinct expression profiles were observed across different tissues. Hemocytes exhibited relatively high expression levels of multiple SOD genes, with PcSOD4 showing the highest expression (5.38), followed by PcSOD5 (2.91) and PcSOD2 (2.61). In gill tissue, PcSOD1 was predominantly expressed (6.94), displaying a significantly higher level compared to other genes. The hepatopancreas showed robust expression of PcSOD3 (5.87), PcSOD4 (4.04), and PcSOD2 (3.90). Notably, PcSOD4 also had detectable expression in eyestalks (0.33), albeit at a lower level than in hemocytes and hepatopancreas. Intestine-specific high expression was observed for PcSOD5 (1.46). In contrast, SOD gene expression in stomach and muscle was generally low, with PcSOD1 in stomach reaching only 0.38 and most SOD genes in muscle showing expression levels below 1. These results indicate that SOD genes in P. clarkii exhibit tissue-specific expression patterns, which may be associated with the distinct physiological functions and antioxidant demands of each tissue (Figure 5).
The expression profiles of SOD genes in hemocytes (He), gill (Gi), hepatopancreas (Hp), eyestalk (E), stomach (St), intestine (I), and muscle (Mu). (A-E) correspond to the expression profiles of PcSOD1 to PcSOD5, respectively. Statistical analysis was performed using one-way ANOVA followed by Tukey’s HSD post-hoc test.
Expression analysis of SOD genes in response to bacterial challenge after NLHS
3.6

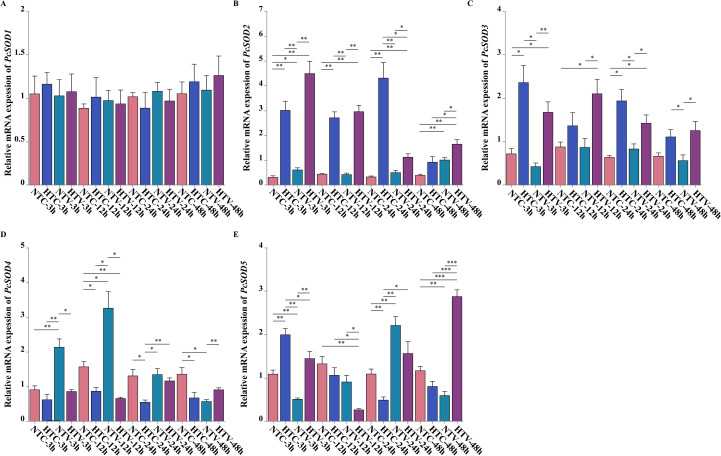

Distinct expression profiles of the five SOD genes were observed in hemocytes of P. clarkii following V. parahaemolyticus challenge. PcSOD1 maintained relatively stable expression across all experimental groups, including HTC, and time points, with minimal differential regulation (Figure 6A). In the HTC group, the expression of PcSOD2, PcSOD3, PcSOD4, and PcSOD5 remained at relatively low levels across the 3–48 h period, showing no significant fluctuations (Figures 6B–E). In contrast, PcSOD2 and PcSOD4 showed marked acute-phase responses, with significantly elevated expression at 3 h and 12 h post-challenge in the pathogen-exposed groups (HTV and NTV) compared to HTC, and this upregulation was particularly pronounced in the HTV group. PcSOD3 and PcSOD5 displayed a distinct temporal pattern, with mid-to-late-stage upregulation peaking at 24 h and 48 h in both HTV and NTV groups compared to HTC, and heat shock pretreatment further augmented their late-phase expression. These results indicate that SOD genes in P. clarkii exhibit time-specific expression patterns in hemocytes in response to V. parahaemolyticus challenge, with heat shock pretreatment modulating the magnitude and timing of these antioxidant-related transcriptional changes (Figure 6).
Expression dynamics of PcSOD genes in response to V. parahaemolyticus infection following NLHS. (A–E) qPCR analysis of PcSOD1, PcSOD2, PcSOD3, PcSOD4, and PcSOD5 expression under different treatment groups. Expression levels were normalized to the reference gene Gapdh. * represents p < 0.05; ** represents p < 0.01; *** represents p < 0.001.
Expression analysis of ERS-related genes in response to bacterial challenge after NLHS
3.7

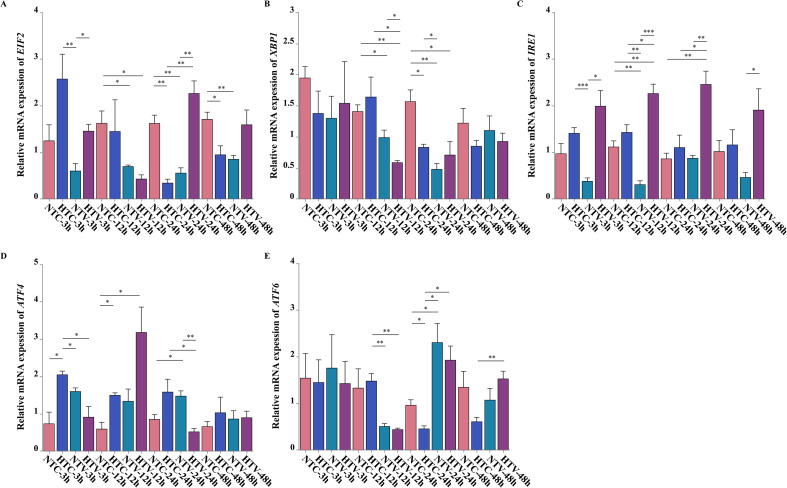

The expression dynamics of five ERS-related genes (EIF2, XBP1, IRE1, ATF4, ATF6) in P. clarkii hemocytes were analyzed via qPCR after V. parahaemolyticus challenge, across different groups and time points. For EIF2, pathogen-challenged groups (HTV, NTV) showed significantly higher expression than saline-injected controls (HTC, NTC) at multiple time points, with HTV exhibiting more pronounced upregulation (e.g., 3 h: p < 0.01; 12 h and 24 h: sustained difference) (Figure 7A). XBP1 displayed early-to mid-stage upregulation in HTV/NTV versus controls, with HTV showing stronger and prolonged induction (3 h: p < 0.05; 12 h and 24 h: p < 0.05) (Figure 7B). IRE1 had marked mid-to late-stage upregulation in pathogen-challenged groups, with HTV drastically higher than HTC (12 h: * p < 0.001; 24 h and 48 h: p < 0.01) (Figure 7C). ATF4 showed a bimodal response: significant upregulation in HTV/NTV versus controls at 3 h (p < 0.05, HTV stronger), and a secondary peak at 24 h in HTV (p < 0.01) (Figure 7D). ATF6 exhibited late-stage upregulation, with HTV significantly elevated at 24 h (p < 0.05) and sustained at 48 h (p < 0.01) versus HTC (Figure 7E). Collectively, ERS-related genes in P. clarkii showed time-specific expression patterns during V. parahaemolyticus challenge, with heat shock pretreatment modulating transcriptional response magnitude and timing, reflecting a coordinated ERS defense strategy against pathogenic stress.
Expression dynamics of ERS-related genes in response to V. parahaemolyticus infection following NLHS. (A–E) qPCR analysis of EIF2, XBP1, IRE1, ATF4, and ATF6 expression under different treatment groups. Expression levels were normalized to the reference gene Gapdh. * represents p < 0.05; ** represents p < 0.01; *** represents p < 0.001.
Correlation analysis between SOD and ERS-related genes in P. clarkii
3.8

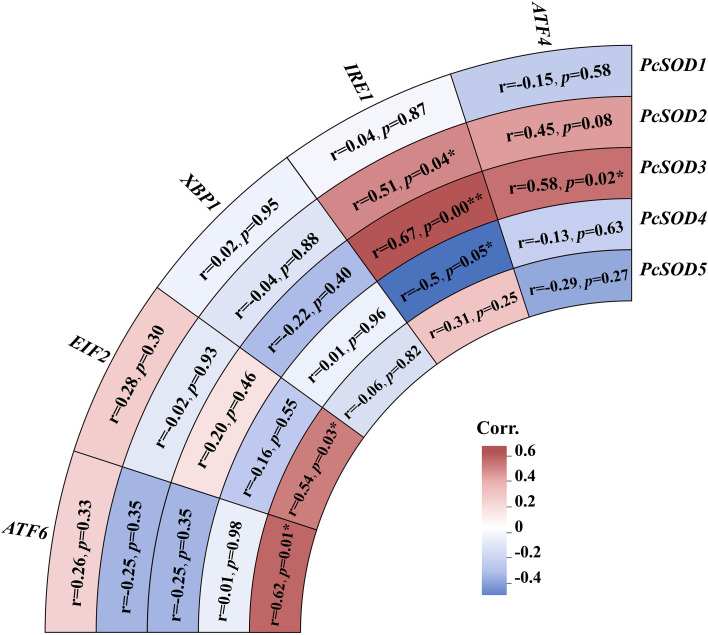

A correlation heatmap was constructed to analyze the expression relationships between five SOD genes (PcSOD1–PcSOD5) and five ERS-related genes (EIF2, XBP1, IRE1, ATF4, ATF6) in P. clarkii. The color scale represented correlation coefficients, with red indicating positive correlations, blue indicating negative correlations, and white/light colors representing no significant correlation. Statistical significance was denoted by * (p < 0.05) and ** (p < 0.01). Notable positive correlations were observed: XBP1 showed a highly significant positive correlation with PcSOD3 (correlation coefficient = 0.00**, p < 0.01), suggesting coordinated expression in maintaining cellular homeostasis during stress. IRE1 was significantly positively correlated with PcSOD3 (0.04*, p < 0.05) and PcSOD4 (0.05*, p < 0.05), implying synergistic responses between the UPR pathway and antioxidant system. Additionally, ATF6 had a significant positive correlation with PcSOD3 (0.01*, p < 0.05). Some pairs, like XBP1 with PcSOD1 (0.88) and XBP1 with PcSOD4 (0.96), showed high correlation coefficients without statistical significance, indicating potential associations requiring further validation. These results reveal that SOD genes and ERS-related genes do not act independently but form a coordinated defense network, integrating antioxidant functions and ERS responses to cope with pathogenic and environmental stresses in P. clarkii. This provides a genetic basis for understanding the interactive regulation of oxidative stress and ERS in crustacean immunity (Figure 8).
*The correlation relationships between PcSODs and ERS-related genes predicted to have interaction with them. Color intensity indicates Pearson correlation coefficient (r-value); asterisks denote statistical significance: *p < 0.05, *p < 0.01.
T-AOC and SOD activity profiles and intergroup differences in P. clarkii across treatment groups
3.9

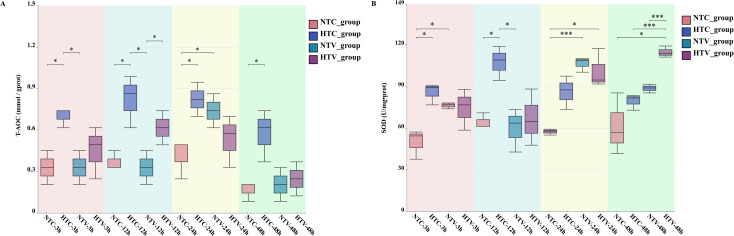

T-AOC and SOD activity in P. clarkii were measured across four groups (NTC, HTC, NTV, HTV) at 3, 12, 24, and 48 h post-V. parahaemolyticus challenge. Pathogen-challenged groups (NTV, HTV) showed significantly higher T-AOC than controls (NTC, HTC) at multiple time points: the HTV group exhibited elevated levels at 3 h (vs NTC, p < 0.05; vs NTV, p < 0.05) and remained higher at 12 h (vs NTC, p < 0.05; vs NTV, p < 0.05). Additionally, the HTC group was higher than the NTC group at 12 h (p < 0.05), indicating heat shock pretreatment prolonged T-AOC activation. For SOD activity, the HTV group displayed higher activity at 12 h (vs NTC, p < 0.05; vs NTV, p < 0.05) and sustained elevation at 24 h (vs NTC, *** p < 0.001; vs NTV, p < 0.05), with the HTC group also higher than the NTC group at 12 h (p < 0.05), reflecting that heat shock pretreatment extended SOD-mediated defense. These results indicate that V. parahaemolyticus challenge induces time-specific antioxidant activation in P. clarkii (increased T-AOC and SOD activity), and heat shock pretreatment enhances the magnitude and duration of these responses, supporting a coordinated defense mechanism against pathogenic stress (Figure 9).
*Dynamics of T-AOC and SOD activity in P. clarkii in response to V. parahaemolyticus challenge following NLHS. (A) T-AOC levels and (B) SOD activity in hemocytes of P. clarkii across four treatment groups (NTC, HTC, NTV, HTV) at 3, 12, 24, and 48 h post-treatment. Statistical analysis was performed using independent samples t-test. Statistical significance is indicated as *p < 0.05 and **p < 0.001.
Discussion
4
As a key freshwater aquaculture crustacean, P. clarkii relies heavily on its antioxidant defense system to combat pathogen invasion (34). In this study, we systematically characterized the structural features of the SOD gene family in P. clarkii at the genomic level, examined their tissue-specific expression profiles, and analyzed their dynamic regulatory responses to bacterial infection. Furthermore, we explored the potential crosstalk between SOD family members and ER-stress pathways, highlighting their cooperative roles in immune defense. Notably, we observed that NLHS enhances the antioxidant capacity of P. clarkii, and our data suggest that the synergistic regulation between SOD genes and ER-stress signaling plays a central role in strengthening resistance against pathogens. These findings offer new insights into the mechanisms of antioxidant-mediated immune regulation in crustaceans.
Regarding the cross-talk between ERS and SOD in P. clarkii, our prior work showed NLHS induces Hsp70 upregulation (which enhances V. parahaemolyticus resistance via TLR signaling) (29). HSP70 likely acts as a bridge, as it stabilizes ER protein folding to reduce excessive ERS (35). Consistent with crustacean studies (e.g., L. vannamei), HSP70 can indirectly regulate antioxidant enzymes, though interspecific regulatory differences may exist (14). Based on the correlation between Hsp70 (29) and PcSOD expression in P. clarkii, we infer “ERS may modulate SOD via Hsp70,” with direct causal links to be validated.
In P. clarkii, five SOD genes whose encoded proteins exhibit considerable variation in amino acid length, molecular weight, and pI were successfully identified. Such differences likely underpin their functional specialization. In Chlamys farreri, for example, the Cu/Zn-SOD family has undergone gene expansion, a trait not universal to aquatic invertebrates (36). Our data confirm that P. clarkii’s five SOD genes have achieved functional specialization via differences in amino acid length and molecular weight. All SOD proteins in P. clarkii harbor highly conserved SOD domains, consistent with orthologs in Pseudosciaena crocea (37). This structural similarity suggests potential catalytic conservation, though interspecific functional nuances remain unconfirmed.
Phylogenetic analysis classified the five PcSODs into two distinct subfamilies, including Cu/Zn-SODs (PcSOD1–3) and Mn-SODs (PcSOD4–5), consistent with the clustering patterns observed in Hypophthalmichthys molitrix, and reflecting evolutionary divergence based on metal cofactors (38). Typically, Cu/Zn-SODs are localized in the cytoplasm or extracellular space, while Mn-SODs are primarily mitochondrial, indicating their distinct roles in oxidative stress responses (39). Homology modeling showed PcSODs feature α-helical and coiled motifs, similar to SODs in Acipenser baerii (10).
Notably, chromosomal mapping showed the five PcSOD genes are unevenly distributed across four chromosomes, with PcSOD1 and PcSOD4 co-localized. This genomic arrangement, not systematically reported in previous studies on P. clarkii, may have arisen from tandem duplication events—similar to the chromosomal linkage observed between Cu/Zn-SOD2 and SOD3 in C. farreri (36). This co-localization is unique to P. clarkii, and compared with the scattered SOD gene distribution in L. vannamei, the linkage of PcSOD1 and PcSOD4 may enable potential synergistic transcriptional regulation under NLHS, facilitating rapid antioxidant responses—this genomic feature may further contribute to P. clarkii’s strong environmental adaptability. The co-localization of PcSOD1 and PcSOD4 may facilitate coordinated stress-induced expression, consistent with SOD upregulation in Eriocheir hepuensis, though stressors and regulatory pathways vary by species (40).
The PcSOD genes in P. clarkii exhibited distinct tissue-specific expression patterns. PcSOD4 and PcSOD5 were highly expressed in hemocytes, PcSOD1 in the gills, and PcSOD2, PcSOD3, and PcSOD4 in the hepatopancreas, reflecting the functional compartmentalization of antioxidant responses in aquatic species. The high expression of PcSOD4 and PcSOD5 in hemocytes is consistent with their role in neutralizing ROS generated during immune activation (41, 42). Similar findings have been reported in Pacific abalone, where HdhCu/Zn-SOD is upregulated in hemocytes following LPS stimulation (43). In gills, elevated PcSOD1 expression may protect against waterborne pathogens, similar to the Mn-SOD upregulation observed in H. molitrix under hypoxia (38). In the hepatopancreas, high levels of PcSOD2, PcSOD3, and PcSOD4 likely support its functions in metabolism and detoxification, as also seen in P. crocea during V. alginolyticus infection (37). This study analyzed seven tissues, expanding on earlier work focused mainly on the hepatopancreas and gills (22). Notably, PcSOD5 was highly expressed in the intestine, possibly to manage ROS from microbial metabolism, while PcSOD4 showed low expression in the eyestalk, consistent with lower oxidative stress in neural tissues (22). Low SOD expression in the stomach and muscle may relate to oxidative metabolism levels (41), and in muscle, redox balance may instead be maintained by other systems such as glutathione peroxidase (GPx) (44).
After infection with V. parahaemolyticus following NLHS, the SOD genes in P. clarkii displayed a clearly time-dependent expression pattern. During the early response phase (3–12 h), PcSOD2 and PcSOD4 were significantly upregulated, particularly in the HTV group, suggesting their involvement in mitigating the acute oxidative burst triggered by pathogen invasion. Components of the pathogen, such as lipopolysaccharides (LPS), are known to activate NADPH oxidase in immune cells, leading to a rapid accumulation of ROS. At this stage, the rapid induction of SOD is essential to prevent oxidative damage (45, 46). A similar response has been reported in P. crocea, where Cu/Zn-SOD was upregulated ninefold within 24 h after V. alginolyticus infection (37). This parallel does not equate to a conserved mechanism across aquatic animals, instead our qPCR data directly show that PcSOD2 and PcSOD4 are specifically upregulated in P. clarkii during the early phase 3–12 h of V. parahaemolyticus challenge, a species-specific strategy to mitigate acute oxidative bursts. In the middle to late stages of infection (24–48 h), PcSOD3 and PcSOD5 remained highly expressed, with the HTV group showing greater upregulation than the NTV group, indicating that heat shock pretreatment enhances sustained antioxidant capacity. As pathogen clearance progresses, physiological processes such as apoptosis and inflammatory cytokine release continue to generate ROS; thus, prolonged SOD expression is crucial for maintaining redox homeostasis (47, 48). This temporal pattern mirrors the delayed upregulation of Mn-SOD previously observed in P. clarkii following S. eriocheiris infection, possibly reflecting the need for mitochondrial repair (22). Notably, PcSOD1 showed minimal differential regulation across groups and time points, with two potential explanations. On one hand, its predominant expression in gills rather than hemocytes suggests it is not a key subtype for hemocyte-mediated V. parahaemolyticus defense. On the other hand, similar to X. maculatus, its function may rely on post-translational modifications instead of transcriptional changes, which explains the stable mRNA levels observed (49). These will be verified by future PcSOD1 protein and subtype-specific activity detection.
The regulatory mechanism of NLHS may be associated with HSP cooperation (29). Heat shock induces molecular chaperones like HSP70, which may enhance SOD activity by stabilizing its structure or promoting translation (50). Correlation analysis shows strong positive links between PcSOD and ERS genes—PcSOD3 with IRE1/ATF4, and PcSOD5 with ATF6/EIF2—suggesting a potential coordinated response. This aligns with C. carpio findings (GPx-ERS co-regulation), though causal links need validation (11).
During pathogen-induced oxidative stress, excessive ROS triggers ER unfolded protein response (UPR) (12). UPR factors (XBP1, IRE1) may regulate SOD via shared pathways (e.g., MAPK), forming an “antioxidant–ER protection” response. XBP1 promotes antioxidant gene transcription, while IRE1 attenuates inflammation via TRAF2–JNK; SOD reduces ROS-related cytokines, implying potential synergy (12). Here, XBP1-PcSOD3 correlation suggests possible promoter binding, and IRE1-PcSOD4 may involve the IRE1–TRAF2–JNK axis (12). NLHS-enhanced SOD-ERS correlation may relate to HSP70 stabilizing ER protein folding (51).
T-AOC and SOD activity assays confirm NLHS strengthens the magnitude and duration of SOD responses. This transcriptional upregulation matches enzyme activity increases, supporting NLHS-enhanced pathogen clearance. Notably, this differs from L. vannamei (NLHS upregulated HSP70 but not Vibrio resistance), likely due to P. clarkii’s unique PcSOD dynamics (24). HSP activation may underpin this via SOD folding maintenance and NF-κB activation (52).
In summary, this study comprehensively analyzes the P. clarkii SOD gene family, characterizing its key features (gene structure, chromosomal distribution, conserved motifs, tissue-specific expression). Moreover, it provides new insights into the species’ antioxidant defense mechanisms post-NLHS and subsequent V. parahaemolyticus challenge. Specifically, it identifies correlative links between NLHS-induced PcSOD expression and ERS gene levels in P. clarkii hemocytes. These findings provide a valuable genomic resource for crustacean antioxidant research and generate targeted hypotheses to clarify their role in bacterial resistance. This work not only lays a theoretical foundation for understanding how the SOD family enhances P. clarkii’s resistance to V. parahaemolyticus under NLHS but also reveals potential cooperative mechanisms between antioxidant and stress response pathways. These findings also offer practical implications for pathogen control in P. clarkii aquaculture and support sustainable industry development.
