CAR-T triggers TAM reeducation and adaptive anti-tumor response via TREM2 deficiency or CD40 agonist
Ting Liu, Huixin Gao, Zhihui Xi, TianTian Yu, Yimei Gu, Hanbing Mai, Hui Yuan, Yafang Liu, Haikuan Liu, Qiaoxuan Zhang, Xianzhang Huang, Wenzhe Fan, Jizhou Tan
TL;DR
This study shows that targeting TREM2 or using a CD40 agonist can improve CAR-T therapy effectiveness in liver cancer by reprogramming immune cells.
Contribution
The study reveals that TREM2+ macrophages cause resistance to CAR-T therapy and that TREM2 deficiency or CD40 agonism can overcome this resistance.
Findings
TREM2+ macrophages are critical for resistance to GPC3-CAR-T therapy in hepatocellular carcinoma.
Trem2 deficiency reprograms tumor-associated macrophages and activates tumor-specific CD8+ T cells.
CD40 agonism mimics the effects of Trem2 deficiency and enhances CAR-T efficacy.
Abstract
Chimeric antigen receptor (CAR)-T therapy targeting GPC3 shows unsatisfactory clinical efficacy in hepatocellular carcinoma (HCC). Combining clinical data and the immunocompetent orthotopic HCC model, we demonstrate that TREM2+ tumor-associated macrophages (TAMs) are critical mediators of GPC3-CAR-T resistance. We find that Trem2 deficiency synergizes with GPC3-CAR-T to enhance tumor control by expanding endogenous tumor-specific CD8+ T cells (not CAR-T amplification) and reeducating TAMs to an anti-tumor CXCL9hi/SPP1lo phenotype via metabolic reprogramming. Mechanistically, this combination enhances oxidative metabolism while suppressing glycolysis through JAK-STAT1 triggering, AMPK activation, and PI3K-AKT-mTOR inhibition. Crucially, Trem2 deficiency up-regulates CD40 expression, enabling CD40 agonism to phenocopy Trem2-deficiency effects via AMPK activation and STAT1-driven CXCL9…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCAR-T cell therapy research · Immune cells in cancer · Neuroinflammation and Neurodegeneration Mechanisms
Introduction
Hepatocellular carcinoma (HCC) is the most common form of liver cancer.1 Current immunotherapy options for HCC, particularly cellular therapy, have shown limited effectiveness, which underscores the highly immunosuppressive nature of the hepatic tumor microenvironment (TME).2 Glypican-3 (GPC3) demonstrates predominant expression in HCC cells, while being virtually absent in normal tissues. The distinctive characteristic should position GPC3-targeted chimeric antigen receptor (CAR)-T cell therapy as one of the most promising therapeutic strategies for HCC.3^,^4^,^5 However, CAR-T cells have limited efficacy in solid tumors, including HCC.5^,^6^,^7 David Steffin et al. found that the conventional GPC3-CAR-T was safe but produced no objective antitumor responses and reached peak expansion at 2 weeks.8 The efficacy of CAR-T cells was limited in solid tumors due to the TME, which contained inhibitory signals that block immune responses.9^,^10 Therefore, remodeling the TME of HCC to enhance GPC3-CAR-T efficacy will emerge as a critical breakthrough in this field.11^,^12 Tumor-associated macrophages (TAMs) represent a crucial cellular component within the TME. Importantly, the functional modification of TAMs toward either anti- or pro-tumor phenotypes can be modulated through external interventions, a process termed macrophage reeducation.13^,^14 Marit J. van Elsas et al. showed that immunotherapy induced skewed late-stage-activated M1-like macrophages via CCR5 signaling and recruitment of intratumoral CD8^+^ T cells, which were critical for effective tumor control.14 The synergistic cooperation between adaptive CD8^+^T cells and anti-tumor TAMs is indispensable for effective immunotherapy, providing novel strategic insights for combination therapies.
Triggering receptor expressed on myeloid cells 2 (TREM2) is a molecule expressed on TAMs and has been reported to induce immunosuppression in many solid tumors, especially HCC.15^,^16^,^17 Trem2 knockout (KO) or blockade can enhance antitumor immunity.18^,^19 Our previous work revealed that TREM2^+^ TAMs suppressed the efficacy of immune checkpoint blockers in HCC.20 Based on this, we hypothesized that TREM2^+^ TAMs in HCC may constitute a key immunosuppressive component within the TME that functionally impairs GPC3-CAR-T cell efficacy and Trem2-KO potentially enhances the therapeutic efficacy of CAR-T cells.
In the mechanistic studies, it was discovered that Trem2-KO combined with CAR-T therapy promoted the formation of anti-tumor TAMs, which secreted abundant CXCL9 to recruit endogenous CD8^+^ T cells for sustained tumor killing. However, in clinical settings, TREM2 inhibitors carry the risk of central neurotoxicity. TREM2-dependent microglia hyper-activation promotes neuroprotection, while Trem2 deficiency elevates synaptic loss and neurodegenerative biomarkers in cerebrospinal fluid.21 The neuroprotective functions of microglia are closely associated with TREM2, as mutations or deficiency in TREM2 can increase the risk of neurodegenerative disorders including Alzheimer’s disease (AD) and frontotemporal dementia-like syndromes.22^,^23^,^24 Therefore, we have identified an alternative approach to TREM2 blockade that has demonstrated both safety and efficacy in clinical settings. Notably, we found that CD40 was highly expressed on Trem2-KO TAMs and it shared the transcription factors with CXCL9. This finding suggested that CD40 agonism combined with CAR-T therapy may similarly induce the generation of such anti-tumor TAMs, thereby achieving an effect similar to that of Trem2-KO. Studies had shown that CD40 agonism can activate and stimulate the expression of pro-inflammatory marker genes in TAMs, driving reeducation of TAMs toward an anti-tumor phenotype.25^,^26^,^27 Pu-Ste Liu et al. found that CD40 signaling promoted fatty acid oxidation (FAO) to trigger the epigenetic reprogramming of anti-tumor polarization of macrophage.28
Therefore, we postulated that Trem2-KO and CD40 agonism might share mechanistically similar pathways in reeducating TAMs. This suggested that combining GPC3-CAR-T therapy with either Trem2-KO or CD40 agonism could represent a promising therapeutic paradigm to substantially enhance immunotherapeutic outcomes.
Results
TREM2+ TAMs hinder the therapeutic effectiveness of GPC3-CAR-T cells

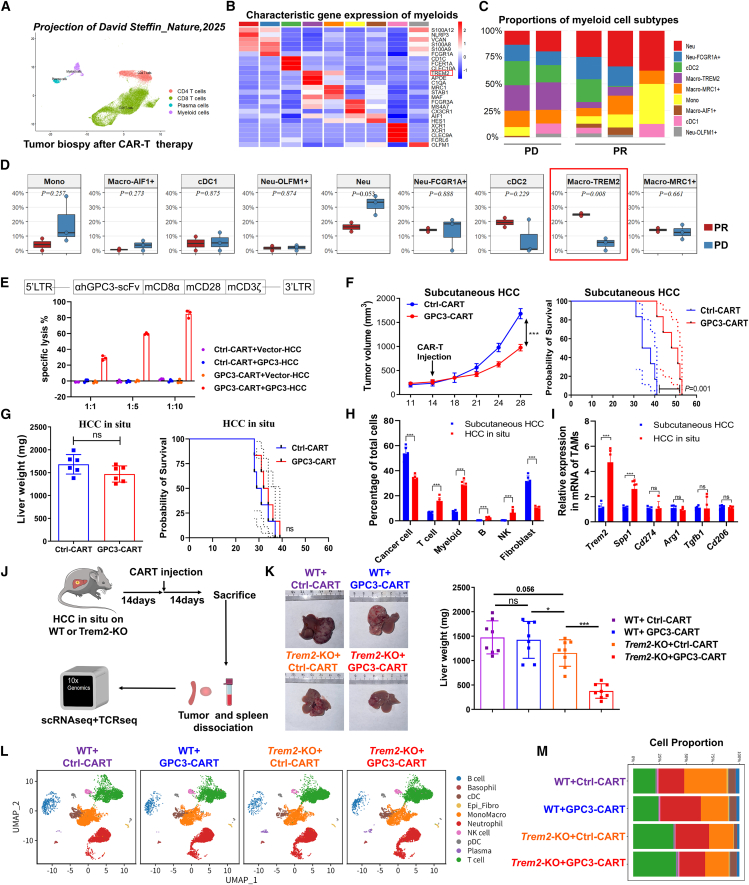

A recent clinical trial revealed that the GPC3-CAR-T therapy demonstrated unsatisfactory efficacy in HCC treatment,8 that the conventional GPC3-CAR-T therapy showed a 0% objective response rate (ORR), and that the IL-15-modified GPC3-CAR-T achieved a 30% ORR. Single-cell sequencing data of the above study was obtained from the Gene Expression Omnibus (no. GSE253352), which was based on tumor biopsy samples after taking IL-15-GPC3-CAR-T therapy (Figure 1A). Myeloid cells were categorized into nine subpopulations, with their subset-specific gene signatures also characterized (Figure 1B). Macro-TREM2 was identified as the only myeloid subset showing significant intergroup differences between progressive disease (PD) and partial response (PR) groups (p = 0.008); they were highly enriched in the PD group (Figures 1C and 1D). This suggests that TREM2^+^ macrophages in HCC immune microenvironment may contribute to GPC3-CAR-T resistance. To verify this and investigate the underlying mechanism of CAR-T resistance in orthotopic liver TME, the Hepa1-6 tumor cell line stably expressing human GPC3 was established in the immunocompetent murine model. The generated human-GPC3-targeted CAR-T cells from murine CD8^+^ T cells were used to evaluate tumor-killing activity. In vitro experiments demonstrated that GPC3-CAR-T cells exhibited potent cytotoxicity against GPC3-HCC cells (Figure 1E). Subcutaneous in vivo experiments demonstrated that GPC3-CAR-T cells significantly suppressed tumor growth and prolonged survival in immunocompetent mice (Figure 1F). Notably, the antitumor efficacy of GPC3-CAR-T cells was significantly attenuated in orthotopic HCC models, exhibiting limited growth-inhibitory effects (Figure 1G), consistent with the clinical study.8 This discrepancy may stem from the liver-specific immunosuppressive niche. Therefore, we analyzed the proportion of immune cell subsets between these two models by flow cytometry. It revealed an increase in myeloids in orthotopic HCC, which may be associated with the CAR-T resistance (Figure 1H). Quantitative reverse-transcription PCR (RT-qPCR) analysis of sorted TAMs revealed a significant up-regulation of Trem2 gene expression in orthotopic HCC (Figure 1I), suggesting that TREM2^+^ TAMs acted as a barrier hindering GPC3-CAR-T therapy in orthotopic HCC. For mechanistic exploration, orthotopic HCC was induced in Trem2-KO mice, followed by GPC3-CAR-T infusion. Tumor tissues and spleens were processed for single-cell RNA sequencing (scRNA-seq) at progression endpoints (Figures 1J and S1A–S1D). It revealed that the Trem2-KO mice following GPC3-CAR-T intervention exhibited significantly enhanced tumor control, while wild-type (WT) mice displayed marginal therapeutic response (Figure 1K). Uniform manifold approximation and projection (UMAP) visualization and cellular proportion analysis revealed an increase in T cell infiltration in Trem2-KO tumors, and both Trem2-KO samples were similar (Figures 1L and 1M), suggesting potential alterations in immune cell landscape.Figure 1TREM2^+^ TAMs hinder the therapeutic effectiveness of GPC3-CAR-T cells(A) UMAP visualization of scRNA-seq data from tumor biopsies following IL15-GPC3-CAR-T therapy (data from Steffin et al., Nature 2025; GEO: [GSE253352](GSE253352)).(B) The heatmap displayed the signature differentially expressed genes across distinct myeloid cell subpopulations.(C) The bar chart showed the proportions of myeloid cell subsets in the PD and PR groups.(D) The boxplot demonstrated the statistical differences among various myeloid subpopulations.(E) In vitro cytotoxicity measured by lactate dehydrogenase (LDH) release at indicated effector cell vs. target cell ratios (E:T ratios) using Hepa1-6 cells overexpressing human GPC3 or vector control were co-cultured with Ctrl-CAR-T (targeted CD19) or GPC3-CAR-T cells.(F) Subcutaneous tumor growth and survival in C57BL/6J mice (n = 6/group) inoculated with GPC3-Hepa1-6 cells and treated with Ctrl- or GPC3-CAR-T cells (1 × 10^6^) via tail vein.(G) Orthotopic liver tumor model: tumor weight at day 28 and survival in mice receiving intrahepatic GPC3-Hepa1-6 implants followed by CAR-T treatment.(H) Flow cytometric analysis of immune and stromal cell populations in tumors from subcutaneous and orthotopic models following GPC3-CAR-T treatment.(I) Expression of TAM-associated genes (Trem2, Spp1, Cd274, Arg1, Tgfb1, and Cd206) in F4/80^+^ TAMs sorted from tumors of GPC3-CAR-T-treated mice, measured by RT-qPCR.(J) Schematic of the orthotopic HCC model for CAR-T therapy in Trem2-WT/KO mice.(K) Tumor representative photographs of different groups were shown. Dot plots showed liver weight, liver-to-body weight ratio, per liver, n = 8.(L) UMAP plots of individual groups displayed distinct intratumoral cell populations. n = 2 for all treatment groups on scRNA sequence.(M) Proportion of the distinct intratumoral cell populations. Data were represented by mean ± SEM. ns, no significance, ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001.
The dual intervention of Trem2-KO and GPC3-CAR-T induced profound remodeling of T cell ecosystems in both tumor and splenic microenvironments

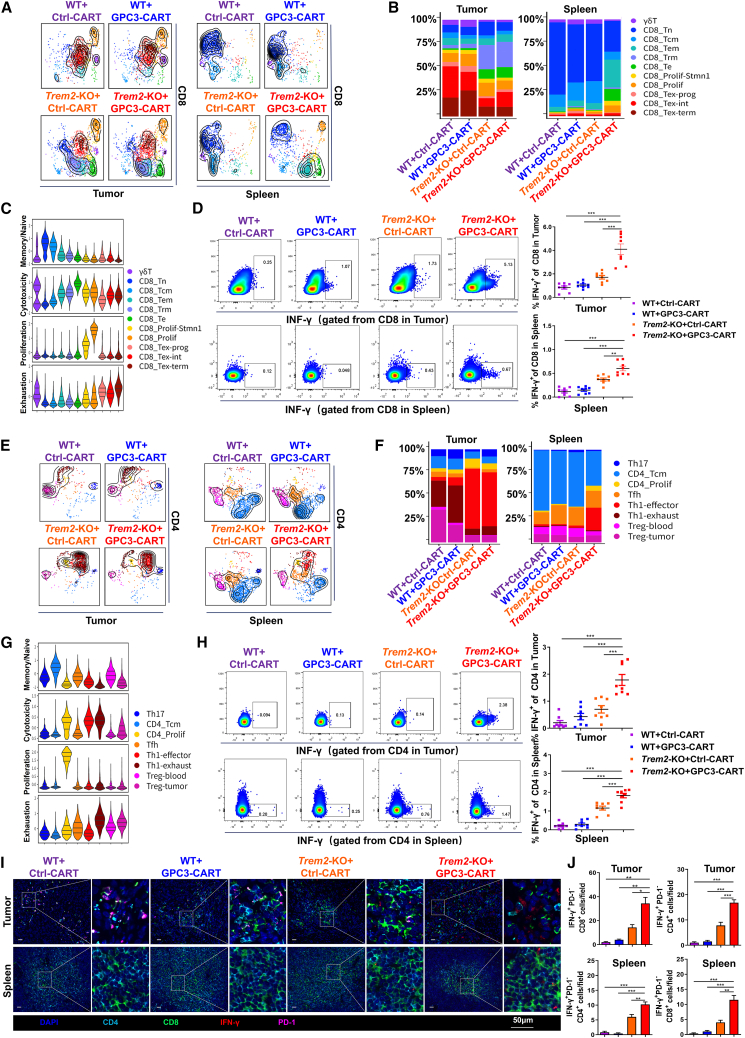

Single-cell subpopulation analysis stratified CD8^+^ T cells into 11 transcriptionally unique subsets (Figures S1C, S1E, and S1G). Subpopulation analysis of CD4^+^ T cells at single-cell resolution identified 8 heterogeneous clusters (Figures S1D, S1F, and S1H). Clustering methodology followed the established protocols.29^,^30^,^31 Cellular proportion analysis revealed that Trem2-KO increased CD8_Trm (tissue-resident memory) and CD8_Te (effector cytotoxic) subsets, while depleting CD8_Tex (exhausted) populations in tumors. Combined Trem2**-**KO and GPC3-CAR-T therapy increased the proportions of CD8_Te and CD8_Tem (effector memory) subsets in the spleen (Figures 2A and 2B). These increased CD8 subsets exhibited enhanced cytotoxic phenotype and minimal exhaustion levels (Figure 2C). Flow cytometric validation revealed a significant expansion of IFN-γ^+^CD8^+^ T cell populations in both tumor and splenic compartments following combined Trem2-KO and GPC3-CAR-T therapy (Figure 2D). Cell proportion analysis revealed that Trem2-KO significantly expanded the Th1_effector compartment and concurrently diminished Th1_exhausted and Treg_tumor subsets in the TME. Notably, combinatorial therapy of Trem2-KO and GPC3-CAR-T synergistically augmented the Th1_effector subset in splenic lymphocytes (Figures 2E and 2F). Importantly, the Th1_effector subset exhibited robust cytotoxic potential while maintaining minimal exhaustion level, suggesting enhanced antitumor phenotypic characterization (Figure 2G). Flow cytometry confirmed significant expansion of IFN-γ^+^CD4^+^ T cells in both tumor and spleen following combined Trem2-KO and GPC3-CAR-T therapy (Figure 2H). Multiplex immunofluorescence consistently demonstrated co-localized accumulation of IFN-γ^+^PD-1^−^CD8^+^ and IFN-γ^+^PD-1^−^CD4^+^ T cells in both tumor parenchyma and splenic white pulp following Trem2-KO and GPC3-CAR-T combination therapy (Figures 2I and 2J). This dual intervention reshaped both adaptive immune compartments toward enhanced effector functionality with reduced exhaustion, suggesting potent synergy for antitumor immunity.Figure 2. The dual intervention of Trem2-KO and GPC3-CAR-T induced profound remodeling of T cell ecosystems in both tumor and splenic microenvironments(A) UMAP clusters showed projection of cells onto a reference CD8^+^T cell atlas (colored T cell subtypes) in tumor and spleen.(B) Proportion of the distinct CD8^+^ TILs and intrasplenic CD8^+^ T cell subtypes in tumor and spleen.(C) Violin plots revealed cell function based on each cell state scored by gene expressions of exhaustion, proliferation, cytotoxicity, and memory/naive phenotypes from CD8^+^T subtypes in tumor, with medians and quartiles indicated.(D) Flow cytometry and quantification plots of IFN-γ^+^CD8^+^ T cells (effector CD8) in tumor and spleen. n = 8.(E) UMAP clusters showed projection of cells onto a reference CD4^+^T cell atlas (colored T cell subtypes) in tumor and spleen.(F) Proportion of the distinct CD4^+^ TILs and intrasplenic CD4^+^ T cell subtypes in tumor and spleen.(G) Violin plots revealed cell function based on each cell state scored by gene expressions of exhaustion, proliferation, cytotoxicity, and memory/naive phenotypes from CD4^+^T subtypes in tumor, with medians and quartiles indicated.(H) Flow cytometry and quantification plots of IFN-γ^+^CD4^+^ T cells in tumor and spleen. n = 8.(I and J) Multiple immunofluorescence images of tumor and spleen tissue between groups. Scale bars, 50 μm. Quantification of cells numbers from three random fields per mouse (n = 8 mice/group). Data were represented by mean ± SEM. ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001.

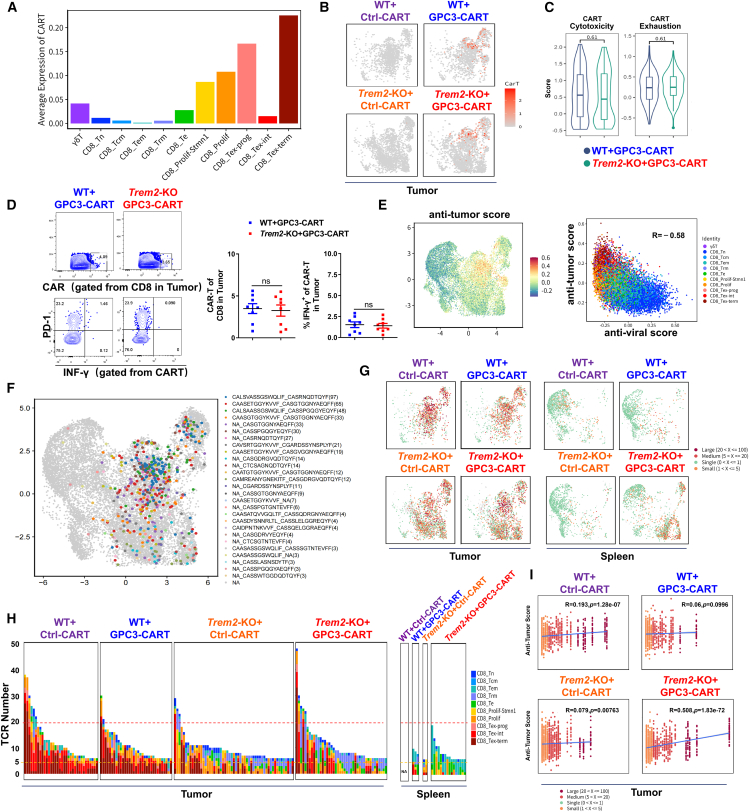

The dual intervention of Trem2-KO and GPC3-CAR-T promoted the expansion of non-exhausted tumor-specific T cells
To investigate the cellular origin of the expanded effector subpopulations resulting from the dual intervention, we performed analysis on CAR-T cell components and the T cell receptor (TCR) sequencing profiling on non-CAR-T cells. Results showed CAR-T cells were predominantly enriched in the TME, with the majority localized on the exhausted subpopulations (Figures 3A and 3B). Surprisingly, we found no significant differences in either the exhaustion score or cytotoxicity score of CAR-T cells between Trem2-KO and WT groups (Figure 3C). Flow cytometry validation further demonstrated no significant differences in either the quantity of CAR-T cells or the proportion of IFN-γ^+^CAR-T cells between the above two groups (Figure 3D). These findings indicated that the expansion of the effector T cell subpopulations we identified originated from endogenous adaptive immune T cells, most likely tumor-specific T cells. We scored the anti-tumor activity using multiple tumor-specific T cell markers (including ENTPD1, ITGAE, CXCR6, PDCD1, TNFRSF9, HAVCR2, and GZMB),32^,^33^,^34 revealing that tumor-specific CD8^+^T cells were predominantly enriched in CD8_Tex, and partial CD8_Te/Trm subpopulations (Figure 3E). It showed strong transcriptional similarities to the experimentally confirmed tumor-reactive tumor-infiltrating lymphocytes (TILs), whereas T-naive/Tcm (central memory) cluster was enriched in signatures of T cells with reported viral antigen-specific TILs.32^,^35 The TCR repertoire profiling of these tumor-specific CD8^+^T cells, including clonotype distribution and clone sequence, further corroborated these findings (Figure 3F). To further validate, we classified all expanded tumor-specific TCR clones into four categories based on clonal abundance: large, medium, small, and single (Figure 3G). Notably, the combination intervention group exhibited a higher proportion of large and medium TCR clones, with preferential enrichment in CD8_Te/Trm subsets. Moreover, the splenic TCR clonal expansion in the combination therapy group surpassed that of other groups, with these expanded clones exclusively belonging to CD8_Te subset (Figure 3H). These results indicated that the dual intervention not only enhanced tumor-specific TCR clonal expansion but also improved functional quality, suggesting superior anti-tumor score (Figure 3I). The analysis of CD4^+^T cells similarly revealed a higher proportion of medium-sized TCR clones in the combination therapy group, with predominant enrichment in the Th1-effector subset (Figures S2A–S2C).Figure 3. The dual intervention of Trem2-KO and GPC3-CAR-T promoted the expansion of non-exhausted tumor-specific T cells(A) The average expression of CAR-T cells among different CD8^+^ subsets.(B) Normalized expression of the indicated GFP or CAR sequence among different groups.(C) Violin plots showed the cytotoxicity and exhaustion for CAR-T cells.(D) Flow cytometry plots and quantification of CAR-T cells from TILs. n = 8.(E) UMAPs of CD8^+^ T cells were colored based on the score of the published gene signatures of tumor-specific CD8^+^ TILs and demonstrated by antitumor score (left plot). The right plot revealed the correlation between antiviral score (based on the score of the published gene signatures of bystander CD8^+^ TILs) and antitumor score among different CD8^+^ subsets.(F) UMAPs of TCR clone types recognized from tumor-specific CD8^+^ TILs in (E). The sequences of TCRs and their numbers were revealed.(G) Visualization of tumor-specific TCR clonal expansion classes identified in CD8^+^ T cell clusters between groups. Four expansion classes were listed.(H) Bar chart depicting tumor-specific TCR clonotype frequencies across groups. Each bar on the x axis represents a TCR clone type. The y axis represented the cell number of each TCR. The red dotted line represented the dividing line of large-expansion TCR clone, and the orange dotted line represented the dividing line of medium-expansion TCR clone.(I) Correlation analysis between expanded cell number of tumor-specific TCRs and anti-tumor score in different groups in tumor (tested using the Spearman correlation test).
These results demonstrated that dual targeting of Trem2-KO and GPC3-CAR-T synergistically expanded non-exhausted tumor-specific T cell clones, primarily by enhancing endogenous adaptive immunity rather than modulating CAR-T cell functionality. The TAM reprogramming may play a significant role in this process.
Trem2-KO combined with GPC3-CAR-T derived TAM reprogramming toward anti-tumor phenotype

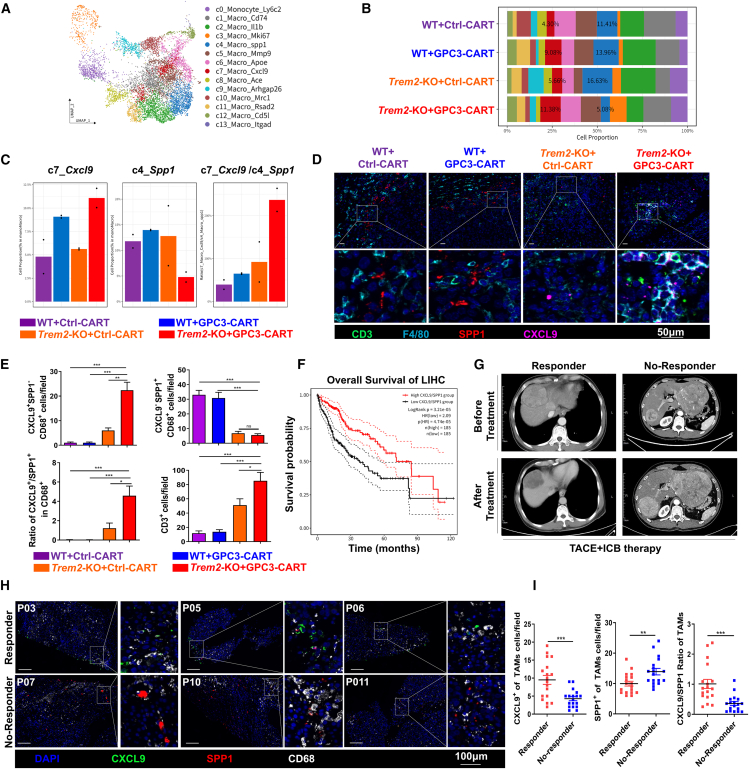

TAMs were re-clustered into 14 sub-populations (Figures 4A and S3A). The study found that the Trem2-KO combined with GPC3-CAR-T treatment group exhibited the highest proportion of Macro_Cxcl9 subset and the lowest proportion of Macro_Spp1 subset (Figures 4B and S3B). Importantly, the Cxcl9/Spp1 ratio was the highest in the Trem2-KO combined with GPC3-CAR-T treatment group, and this ratio had been confirmed as a key predictive biomarker for immunotherapy efficacy36 (Figures 4C, S3C, and S3D). The immunofluorescence analysis in murine models demonstrated a significant reduction in SPP1^+^TAMs but an increase in CXCL9^+^TAMs, along with an elevated CXCL9/SPP1 ratio, in the Trem2-KO mice treated with GPC3-CAR-T therapy (Figures 4D and 4E). Clinically, the analysis of liver hepatocellular carcinoma (LIHC) data from The Cancer Genome Atlas (TCGA) database revealed that a high CXCL9/SPP1 ratio was associated with longer overall survival (Figure 4F). To confirm this finding, 12 HCC patients treated with transcatheter arterial chemoembolization (TACE) plus anti-PD-1 antibody afterward were included into study and were divided into responder and no-responder groups (Figure 4G). The numbers of CXCL9^+^TAMs in the responder group were more than those in the no-responder group; the reverse is true for SPP1^+^ TAMs. The ratio of CXCL9/SPP1 in the responder group was also higher than in the no-responder group (Figures 4H and 4I). These results disclosed that CXCL9/SPP1 ratio might be a potential prognostic indicator in HCC immunotherapy therapy.Figure 4Trem2-KO combined with GPC3-CAR-T-derived TAMs reprogramming toward anti-tumor phenotype(A) UMAP of subclusters of TAMs.(B) Proportion of the distinct TAMs in different groups.(C) Bar plots revealed the proportion of Macro_Cxcl9 and Macro_Spp1 in TAMs and the ratio of Macro_Cxcl9/Macro_Spp1 among different groups.(D and E) Multiple immunofluorescence images of tumor tissue between groups. Scale bar, 50 μm. Statistical plot represented the relative number of TAM subsets. Quantification of cells numbers from three random fields per mouse (n = 8 mice/group).(F) Plots of Kaplan-Meier overall survival curves from the TCGA LIHC database, grouped by low and high CXCL9/SPP1 ratio.(G) Computed tomography scans of representative patients from responder and no-responder groups were performed before and after TACE combined with anti-PD-1 immunotherapy. The treatment evaluation criteria referred to imRECIST Refining Guidelines.(H and I) Multiple immunofluorescence images of CXCL9^+^ and SPP1^+^ TAMs in punctured tumor tissue between responder and no-responder groups. Scale bars, 100 μm. (Quantification) Data are presented as mean ± SEM. The quantification of cell numbers was performed by analyzing three random low-power fields per patient.∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001.
Trem2-KO combined with IFN-γ promoted metabolic reprogramming of TAMs

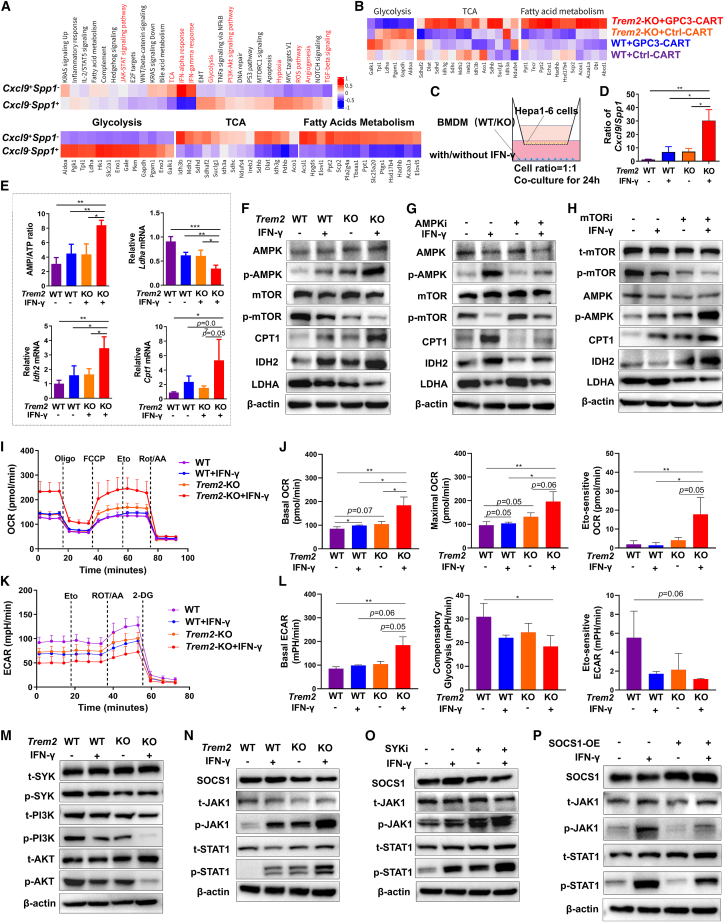

Next, we performed Kyoto Encyclopedia of Genes and Genomes (KEGG) comparative analysis of Cxcl9^+^Spp1^−^TAMs versus Cxcl9^−^Spp1^+^TAMs, revealing distinct pathway associations: Cxcl9 was linked to the JAK-STAT signaling pathway, interferon (IFN) signaling, fatty acid metabolism, and the tricarboxylic acid (TCA) cycle, whereas Spp1 was associated with the PI3K-AKT signaling pathway, hypoxia, angiogenesis, and glycolysis (Figure 5A). The genes related to pathways of TCA and fatty acid metabolism and IFN response were significantly up-regulated in Cxcl9^+^TAMs than Spp1^+^TAMs, whereas the genes associated with glycolysis and PI3K-AKT pathways were up-regulated in Spp1^+^TAMs than Cxcl9^+^TAMs (Figures 5A and S3E–S3G). Consistent with this, in vivo TAMs from Trem2-KO mice receiving CAR-T therapy exhibited attenuated glycolytic capacity but enhanced TCA cycle and FAO activity (Figure 5B). To validate these findings, we established an in vitro tumor-educated macrophage model. Bone marrow-derived macrophages (BMDMs) isolated from Trem2-KO or WT mice were educated for 24 h in a transwell system with cancer cells, with or without IFN-γ intervention, since IFN-γ is known to be CAR-T cells’ pivotal effector molecule37 (Figure 5C). RT-qPCR analysis revealed that Trem2-KO combined with IFN-γ significantly elevated the Cxcl9/Spp1 ratio (Figure 5D). Furthermore, this combined treatment upregulated the AMP/ATP ratio, the TCA cycle genes (Idh2 and Sdha), and the FAO genes (Cpt1a and Acaa1a), while downregulating the glycolytic genes (Ldha and Glut1) (Figures 5E and S4A).Figure 5Trem2-KO combined with IFN-γ promotes metabolic reprogramming in TAMs(A) Heatmap of KEGG pathways and differential gene set analysis of glycolysis, TCA, and fatty acid metabolism. Results were applied separately to Cxcl9^+^ and Spp1^+^ subtypes.(B) Heatmap of differential gene set analysis of glycolysis, TCA, and fatty acid metabolism. Results were applied separately to each group of CAR-T-treated WT or Trem2-KO mice.(C) Schematic representation of in vitro tumor-educated macrophage model. BMDMs isolated from Trem2-KO or WT mice were educated for 24 h in a transwell system with cancer cells, with or without IFN-γ (40 ng/mL) intervention.(D) Relative mRNA expression levels of Cxcl9 and Spp1 in BMDMs were quantified by RT-qPCR, and the ratio of Cxcl9/Spp1 was calculated.(E) AMP and ATP concentrations in BMDMs were measured using dedicated assay kits, and the AMP/ATP ratio was calculated from these values. Relative mRNA expression levels of Ldha, Idh2, and Cpt1 in BMDMs were quantified by RT-qPCR.(F) Relative protein expression levels of indicated molecules were assessed by western blot (WB) and normalized to β-actin.(G, H, and O) BMDMs were pretreated for 2 h with the AMPK inhibitor compound C (20 μM; G), mTOR inhibitor rapamycin (1 μM; H), or SYK inhibitor R406 (1 μM; O), followed by 24 h co-culture with tumor cells in the presence or absence of IFN-γ (40 ng/mL). Protein expression was analyzed by WB and normalized to β-actin.(I and J) The real-time changes of OCR of BMDMs were stimulated with or without IFN-γ in the basal state and following the additions of oligomycin (Oligo), fluorocarbonyl cyanide phenylhydrazone (FCCP), etomoxir (Eto), and rotenone + antimycin A (Rot/AA). The average of basal OCR, maximal OCR, and Eto-sensitive OCR were revealed.(K and L) The real-time measurement of ECAR of BMDMs was stimulated with or without IFN-γ in the basal state and following the additions of glucose (Gluc), oligomycin (Oligo) and 2-deoxy-D-glucose (2-DG). The average of basal ECAR, maximal ECAR, and glycolytic reserve were revealed.(M and N) The relative protein expression levels of indicated molecular were assessed by WB and normalized to β-actin.(P) The iBMDMs were transiently transfected to overexpress SOCS1 for 48 h, followed by 24-h stimulation with or without IFN-γ (40 ng/mL). Indicated molecular protein expression levels were tested by WB and normalized to β-actin. Data were represented by mean ± SEM. ns, no significance, ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001.
Studies have reported that adenosine monophosphate-activated protein kinase (AMPK) and mammalian target of rapamycin (mTOR) are master regulators of these metabolic pathways.38^,^39 Building on the observed metabolic shift, we explored AMPK/mTOR regulation. Trem2-KO combined with IFN-γ robustly enhanced AMPK phosphorylation, while suppressing mTOR activation. This was accompanied by increased protein expression of CPT1 (FAO rate-limiting enzyme) and IDH2 (TCA cycle enzyme), with decreased LDHA (glycolytic enzyme)—findings consistent with transcriptional data (Figure 5F). Together, these data suggest a model in which rem2-KO synergized with IFN-γ to redirect metabolic flux toward FAO and TCA cycles in a process associated with AMPK-driven mTOR suppression. To dissect AMPK-mTOR crosstalk, we employed pharmacological inhibitors. AMPK inhibition attenuated AMPK phosphorylation, restored mTOR activity, suppressed CPT1/IDH2 expression, and enhanced LDHA (Figure 5G). Conversely, mTOR inhibition potentiated AMPK phosphorylation and further elevated CPT1/IDH2 levels (Figure 5H), supporting the existence of reciprocal regulation in the maintenance of metabolic homeostasis. Mechanistically, as AMPK activation is governed by AMP/ATP ratio,38 we quantified these metabolites. The mTOR inhibition significantly increased AMP/ATP ratio, while AMPK inhibition reduced it under IFN-γ co-stimulation (Figure S4B), which is consistent with AMPK’s role as an energy-sensing effector.
To further validate the functional phenotypes associated with metabolic reprogramming, we designed seahorse experiments based on the aforementioned in vitro model. We observed that IFN-γ-treated Trem2-KO TAMs showed a robust increase in basal oxygen consumption rate (OCR) and maximal OCR, indicating enhanced oxidative respiration. The addition of etomoxir,40^,^41 an inhibitor of FAO, revealed an increased etomoxir-sensitive OCR in Trem2-KO TAMs treated with IFN-γ, which suggested enhanced FAO level (Figures 5I and 5J). Meanwhile, IFN-γ-treated Trem2-KO TAMs showed a decrease in basal electron consumption rate (ECR), compensatory glycolysis ECR, and eto-sensitive extracellular acidification rate (ECAR), suggesting impaired glycolytic activity (Figures 5K and 5L).
Given Trem2 signals through SYK to activate PI3K-AKT-mTOR,42 we hypothesized that Trem2-KO disrupts this axis. Combined Trem2-KO and IFN-γ treatment drastically reduced phosphorylation of SYK, PI3K, and AKT (Figure 5M). Critically, SYK inhibitor treatment elevated Cxcl9/Spp1 ratio and phenocopied Trem2-KO, suppressing PI3K/AKT phosphorylation (Figures S4C and S4D), indicating that Trem2-ablation is associated with disruption of SYK-dependent immunometabolic signaling. Consistent with our prior observation that JAK-STAT signaling regulates CXCL9 expression in Figure 5A, we found that Trem2-KO combined with IFN-γ robustly amplified JAK1-STAT1 phosphorylation while suppressing SOCS1 (Figure 5N)—a canonical inhibitor of IFN-γ-driven JAK-STAT activation.43 Notably, SYK inhibition mirrored these effects, enhancing JAK1-STAT1 activation while reducing SOCS1 levels (Figure 5O), which was consistent with previous studies.44 To functionally validate SOCS1’s role, we over-expressed it in immortalized BMDMs (iBMDMs). SOCS1 overexpression attenuated JAK1-STAT1 phosphorylation and reduced Cxcl9/Spp1 ratios (Figure 5P), supporting the conclusion that SOCS1 functions as a gatekeeper in IFN-γ-driven polarization.
In summary, our findings support a model whereby Trem2-KO synergized with IFN-γ to reprogram TAMs toward an anti-tumor CXCL9^hi^/SPP1^lo^ phenotype. This reprogramming was accompanied by coordinated suppression of SYK signaling along with enhanced oxidative metabolism. Concurrently we observed potentiated JAK1-STAT1 signaling, SOCS1 downregulation, and AMPK-mediated energy sensing, which collectively correlated with metabolic rewiring away from glycolysis.
CD40 agonism triggers a metabolic reprogram of TAMs similar to that of Trem2-KO
The above results suggested that metabolic reprogramming of TAMs represented a viable strategy to enhance CAR-T therapy efficacy. However, clinical translation of TREM2-targeted agents faces challenges due to potential neurotoxicity risks, given TREM2’s predominant expression in the central nervous system (CNS) compared to peripheral tissues.45 Consequently, we pursued safer TAM reeducation strategies via repurposing clinically approved drugs. We focused on highly expressed genes within Cxcl9-positive TAM subpopulation, identifying Cd40 as significantly enriched in this subset (Figure 6A). Molecular analysis indicated that Cd40 and Cxcl9 share key transcriptional regulators including STAT1 (Figure 6B) and exhibit strongly correlated expression patterns (Figure 6C). Critically, in vitro experiments showed that Trem2-KO TAMs stimulated with IFN-γ exhibited markedly elevated CD40 protein expression (Figure 6D). These findings lend support to our hypothesis that CD40 agonism combined with IFN-γ may effectively reeducate TAMs.Figure 6CD40 agonism triggers a metabolic reprogram of TAMs similar to that of Trem2-KO(A) Heatmap of differential gene set analysis in TAM subpopulations. Genes were enriched in Mac_Cxcl9 cluster.(B) The network diagram illustrated the highly expressed genes in Mac_Cxcl9 cluster and their interactions with shared transcription factors.(C) Correlation analysis between the ratio of Cd40^+^TAMs and Cxcl9^+^TAMs. Each dot represented a single-cell sequencing sample of tumor and spleen.(D) BMDMs isolated from Trem2-KO or WT mice were educated for 24 h in a transwell system with cancer cells, with or without IFN-γ intervention. Relative protein expression levels of CD40 were assessed by WB and normalized to β-actin.(E) Schematic representation of in vitro tumor-educated macrophage model. BMDMs isolated from WT mice were educated for 24 h in a transwell system with cancer cells, with or without IFN-γ (40 ng/mL) and CD40 agonism (crosslinked FGK45, 20 ng/mL) intervention.(F) Relative mRNA expression levels of Cxcl9 and Spp1 in BMDMs were quantified by RT-qPCR, and the ratio of Cxcl9/Spp1 was calculated. n = 3.(G and H) The real-time changes of OCR of BMDMs were stimulated with or without IFN-γ and CD40 agonism in the basal state and following the additions of oligomycin (Oligo), FCCP, etomoxir (Eto), and rotenone + antimycin A (Rot/AA). The average of basal OCR, maximal OCR, and Eto-sensitive OCR were revealed. n = 3.(I and J) The real-time measurement of ECAR of BMDMs were stimulated with or without IFN-γ and CD40 agonism in the basal state and following the additions of glucose (Gluc), oligomycin (Oligo), and 2-deoxy-D-glucose (2-DG). The average of basal ECAR, maximal ECAR, and glycolytic reserve were revealed. n = 3.(K, L, O, and P) BMDMs from WT mice were co-cultured with tumor cells in transwells for 24 h with or without IFN-γ (40 ng/mL) and CD40 agonism (crosslinked FGK45, 20 ng/mL) (K and O). For inhibitor studies, BMDMs were pre-treated with AMPK inhibitor (20 μM) (L) or STAT1 inhibitor (100 μM) (P) for 2 h prior to co-culture. Protein levels were analyzed by western blot and normalized to β-actin.(M and N) AMP and ATP concentrations in BMDMs were measured using dedicated assay kits, and the AMP/ATP ratio was calculated from these values. n = 3.(Q) Mechanism schema diagram. Data were represented by mean ± SEM. ns, no significance, ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001.

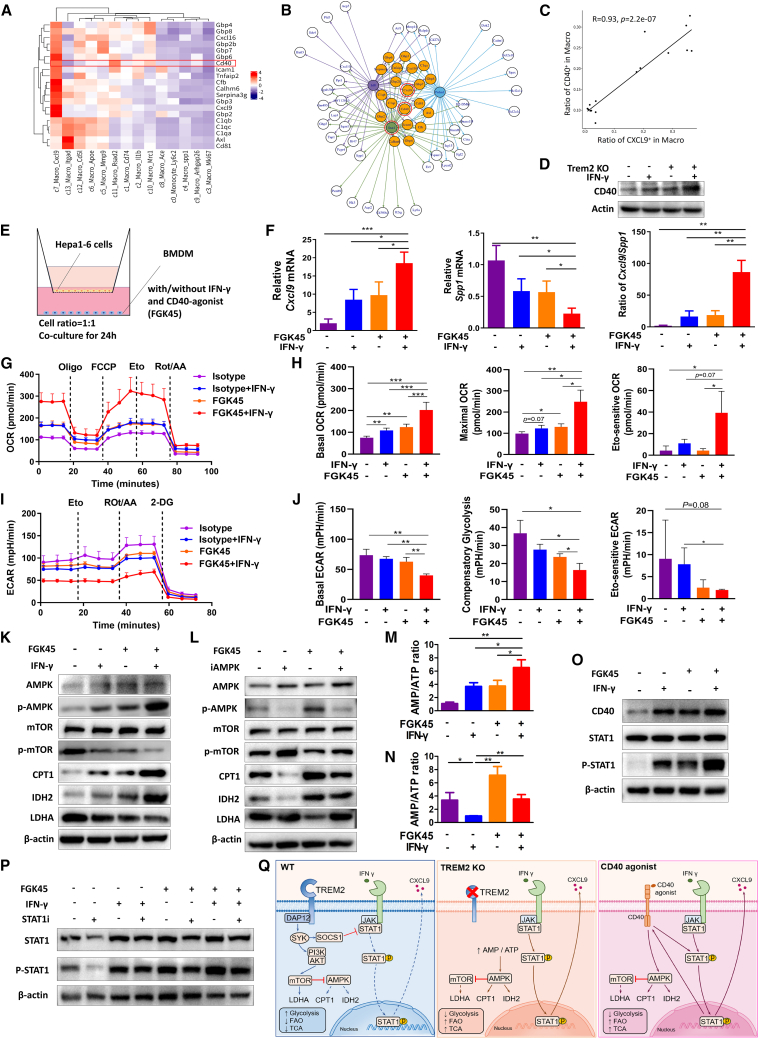

Using the in vitro model (Figure 6E), we observed that co-administration of CD40 agonism (FGK45) and IFN-γ synergistically enhanced Cxcl9 transcription, while suppressing Spp1 expression, consequently elevating the Cxcl9/Spp1 ratio (Figure 6F). To assess whether CD40 agonism recapitulates the metabolic reprogramming phenotype of Trem2-KO in TAMs, we performed seahorse assays on CD40 agonism-treated macrophages. The IFN-γ plus CD40 agonism group exhibited markedly elevated basal and maximal OCR, demonstrating enhanced oxidative metabolism. Etomoxir treatment revealed increased FAO-dependent OCR (Figures 6G and 6H). Conversely, these cells showed reduced basal ECAR and glycolytic capacity, indicating suppressed glycolysis (Figures 6I and 6J).
Further analysis revealed that CD40 agonism with IFN-γ suppressed mTOR phosphorylation and enhanced AMPK activation, alongside corresponding decreases in LDHA and increases in CPT1 and IDH2 (Figure 6K). This metabolic profile mirrors that seen with Trem2-KO. AMPK inhibitor treatment reversed these CD40-agonism-mediated changes in mTOR, LDHA, CPT1, and IDH2 (Figure 6L) and abrogated the increase in AMP/ATP ratio (Figures 6M and 6N), supporting a role for AMPK in CD40-driven metabolic rewiring, as reported.28 CD40 agonism plus IFN-γ also enhanced CD40 expression and STAT1 phosphorylation, similar to Trem2-KO (Figure 6O). STAT1 inhibition blocked this activation (Figure 6P), suggesting that both AMPK and STAT1 contribute to the recapitulation of Trem2-KO-like effects and associated antitumor immunity.
Collectively, we propose a model wherein TREM2 associates with SYK and a PI3K-AKT-mTOR-glycolysis profile, alongside suppressed AMPK and oxidative metabolism. SYK signaling correlates with SOCS1 elevation and reduced JAK-STAT1 activation and CXCL9 production. TREM2 KO disrupts this network, enhancing AMPK activity and, with IFN-γ, the JAK-STAT1-CXCL9 axis. CD40 agonism mirrors this by engaging both AMPK and STAT1, which synergizes with IFN-γ signaling (Figure 6Q).
The combination of CD40 agonism with GPC3-CAR-T therapy held promising application prospects in the treatment of HCC
In vivo testing of CD40 agonism FGK45 combined with GPC3-CAR-T was performed. The tumor model and experimental procedure were shown (Figure 7A). The FGK45^+^GPC3-CAR-T group demonstrated the strongest therapeutic effects (Figures 7B–7D), with superior tumor control compared to other treatment groups. Multiple immunofluorescence assays revealed a decrease in SPP1^+^ TAMs and an increase in CXCL9^+^ TAMs, along with a higher CXCL9/SPP1 ratio in the FGK45^+^GPC3-CAR-T group. Besides, it also demonstrated an elevated numbers of IFN-γ^+^CD8^+^ and IFN-γ^+^ CD4^+^ T cells in the FGK45^+^GPC3-CAR-T group (Figures 7E and 7F). The trend was further confirmed by flow cytometry (Figures 7G and 7H). Notably, neither the number nor the proportion of effector and exhausted CAR-T cells differed significantly across groups (Figure S5A). In the splenic microenvironment, both flow cytometry (Figures S5B and S5C) and immunofluorescence assays (Figures S5D–S5F) showed an increase in the frequency and number of IFN-γ^+^PD-1^−^ CD8^+^/CD4^+^ T cells in the FGK45^+^GPC3-CAR-T group.Figure 7. The combination of CD40 agonism with GPC3-CAR-T therapy held promising application prospects in the treatment of HCC(A) Schematic procedure of HCC model constructed by Hepa1-6 cell orthotopic injection. GPC3-CART and CD40 agonist (FGK45) were injected.(B) Tumor representative photographs of different groups were shown.(C) Dot plots showed liver weight of mice in different groups. n = 8.(D) Survival curves of each group of mice. n = 8.(E and F) Multiple immunofluorescence images of TAMs, CD8^+^, and CD4^+^ T cells in tumor tissue between groups. Scale bar, 50 μm. Quantification of cells numbers from three random fields per mouse (n = 8 mice/group). Data were represented by mean ± SEM. ∗∗∗p < 0.001.(G and H) Flow cytometry and quantification plots of IFN-γ^+^CD8^+^ T cells and IFN-γ^+^CD4^+^ T cells, as well as IFN-γ^−^CD8^+^ T cells and IFN-γ^-^CD4^+^ T cells from TILs in vivo. N = 8. Data were represented by mean ± SEM. ∗p < 0.01, ∗∗∗p < 0.001.(I) Schematic procedure of a therapeutic breast cancer liver metastasis model constructed by 4T1 cell expressing hTrop2 protein. Murine hTrop2-CAR-T and CD40 agonist (FGK45) were injected.(J) Tumor representative photographs of different groups were shown.(K) Dot plots showed liver weight of mice in different groups. n = 8. Data were represented by mean ± SEM. ns, no significance, ∗∗∗p < 0.001.(L) Survival curves of each group of mice. n = 8.(M) Schematic representation of the transendothelial migration assay. TAMs were isolated from human HCC tissue. Sotigalimab (20 ng/mL) and h-IFN-γ (40 ng/mL) were added. Flow cytometry quantification of migrated CD8^+^ T cells (CellTrace Far Red labeled, n = 5). Data were represented by mean ± SEM. ns, no significance, ∗∗p < 0.01, ∗∗∗p < 0.001.(N) Schematic representation of the transendothelial migration assay. DTS was isolated from human GPC3^+^ HCC tissue. GPC3-CAR-T was added at indicated ratio, with or without sotigalimab. Flow cytometry quantification of migrated CD8^+^ T cells (CellTrace Far Red labeled, n = 5). Data were represented by mean ± SEM. ns, no significance, ∗∗∗p < 0.001.

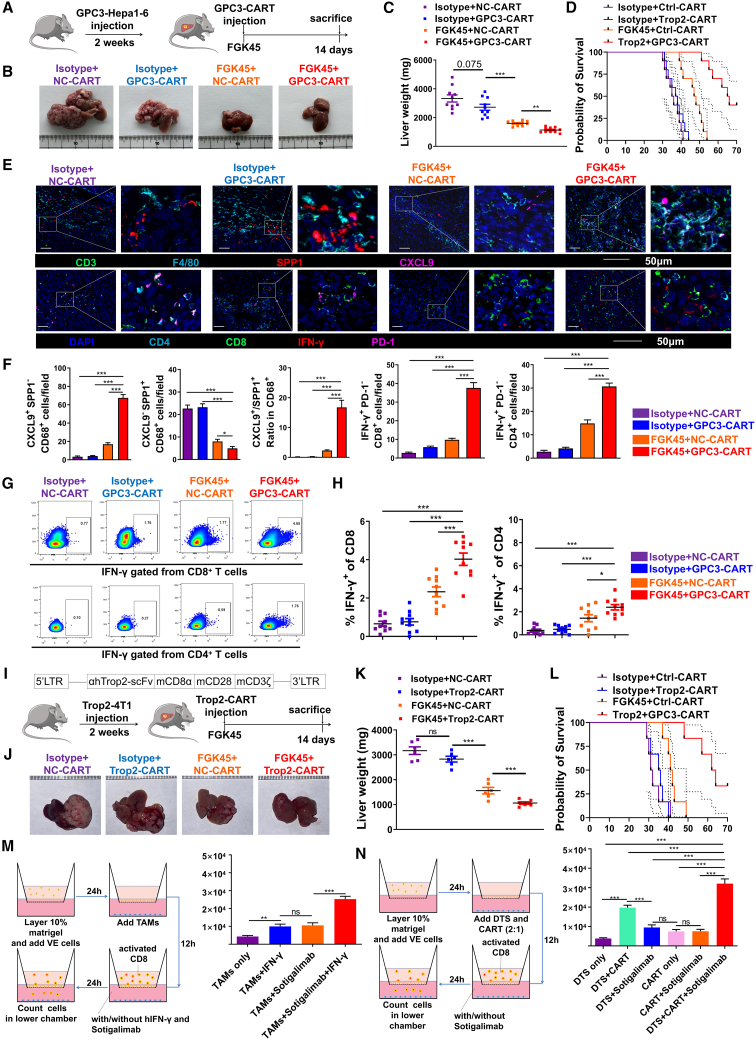

We evaluated the combination of CD40 agonist FGK45 with GPC3–CAR-T cells in vivo (Figure 7A). The FGK45^+^GPC3-CAR-T group showed superior tumor control versus other groups (Figures 7B–7D). Multiple immunofluorescence assays revealed a shift in TAM polarization, with decreased SPP1^+^ and increased CXCL9^+^ TAMs and a higher CXCL9/SPP1 ratio in this group, along with elevated numbers of IFN-γ^+^CD8^+^ and IFN-γ^+^CD4^+^ T cells (Figures 7E and 7F). Flow cytometry corroborated these trends (Figures 7G and 7H). Notably, neither CAR-T cell number nor exhaustion proportion differed significantly across groups (Figure S5A). In the splenic microenvironment, flow cytometry and immunofluorescence both indicated increased frequency and number of IFN-γ^+^PD-1^−^CD8^+^ and CD4^+^ T cells with combination treatment (Figures S5B–S5F). We further tested this strategy in a breast cancer liver metastasis model using 4T1-hTrop2 cells and Trop2^−^CAR-T cells (Figure 7I). FGK45^+^Trop2^−^CAR-T resulted in stronger antitumor efficacy (Figures 7K and 7L). Safety assessment showed that combining FGK45 with CAR-T did not increase IL-6 and only modestly elevated IFN-γ, both remaining low compared to a cytokine release syndrome positive control, supporting its favorable safety profile (Figure S6A).
Sotigalimab, a humanized monoclonal antibody, exhibits high-affinity binding to CD40 and effectively activates antigen-presenting cells, being generally well tolerated and achieving path complete response (CR) rates that compare favorably with historical data.46^,^47 The transendothelial migration assays revealed that an increased number of migrated CD8^+^ T cells was observed when TAMs were treated with human IFN-γ plus sotigalimab, compared to other groups (Figures 7M and S7A). The maximum migration of CD8^+^ T cells was observed in the group with the digested tumor suspension (DTS) plus CAR-T and sotigalimab (Figures 7N and S7B). These in vitro results demonstrated the therapeutic potential of sotigalimab combined with GPC3-CAR-T in HCC, mediated through TAM reeducation to enhance CD8^+^ T cell recruitment.
Discussion
Although GPC3-CAR-T therapy for HCC has shown promising clinical potential, its therapeutic outcomes have not yet met expectations.4^,^5^,^48^,^49^,^50 To enhance the effectiveness of CAR-T cell therapy in solid tumors, it is critical to elucidate the key factors within the TME that influence treatment success. In this study, the conventional GPC3-CAR-T production was used for in vivo testing, which was introduced into clinical practice and demonstrated an excellent safety profile.11^,^12 Hepa1-6 cells expressing hGPC3 were combined with hGPC3-targeted murine CAR-T cells to create an immunocompetent gene-KO model. This system allowed the study of TME dynamics under combined CAR-T and genetic modification pressures, offering advantages over immune KO models for assessing intact immune responses. In this study, GPC3-CAR-T therapy showed reduced efficacy against orthotopic versus subcutaneous HCC, due to differences in TME composition. Orthotopic tumors had more TAMs, particularly Trem2^+^ subsets, creating a stronger immunosuppressive environment. GPC3-CAR-T alone showed limited efficacy against the “cold” Hepa1-6 orthotopic HCC, unlike the more responsive MC38 model.51^,^52 Combining Trem2-KO with GPC3-CAR-T cells better controlled orthotopic HCC progression than monotherapies and reshaped the TME immune landscape. The combination therapy effectively remodeled the TME, characterized by increased CD8_Trm, CD8_Tem, CD8_Te, and Th1_effector populations. Notably, Trem2-KO plus CAR-T therapy expanded cytotoxic, less-exhausted CD8_Tem, CD8_Te, and Th1_effector subsets in spleen.
CAR-T cells alone showed no enhancement in infiltration or function when combined with other therapies. Notably, the combination therapy increased effector and memory TCR clones in both the TME and spleen, suggesting accelerated renewal of tumor-reactive T cells. These cells likely originated from infiltrating peripheral effectors and expanded in the spleen, resembling stem-like effector memory T cells found in tumor-draining lymph nodes—a subset known to robustly respond to PD-1/PD-L1 blockade.53^,^54 While this spleen-mediated expansion is atypical, it may be attributed to the liver tumor’s proximity to the spleen.55^,^56
Accumulating data highlighted the profound effect of TAM reprogramming on both tumor prognosis and therapeutic response to immunotherapies.57^,^58 However, the conventional M1/M2 polarization has proven inadequate for characterizing TAMs’ heterogeneity and function.59 Recent studies have demonstrated a high CXCL9/SPP1 ratio in TAMs correlated with improved clinical outcomes, and it served as a functional marker for antitumor activity.36 Our data demonstrated that Trem2-KO combined with CAR-T therapy markedly elevated the CXCL9/SPP1 ratio, suggesting CAR-T-derived IFN-γ may drive Trem2-KO TAMs toward an antitumor phenotype. The TREM2 ligation-induced SYK phosphorylation, followed by activation of the PI3K-AKT-mTOR pathway, was consistent with their involvement in hypoxia response, angiogenic promotion, and glycolytic reprogramming,20^,^60 which was resulting in pro-tumorous cellular activation.42^,^61 Meanwhile, SYK can suppress JAK1/STAT1 phosphorylation via SOCS1, thereby inhibiting CXCL9 transcription.44^,^62 The TREM2/SYK-driven mTOR activation inhibited AMPK phosphorylation, leading to compromised oxidative metabolism in TAMs.38^,^39^,^42^,^63
The anti-tumorous CXCL9^+^ TAMs derived from IFN-γ stimulation on Trem2-KO TAMs were mainly powered by oxidative metabolism and IFNgR/JAK1/STAT1 pathway. Currently, TREM2-targeting antibodies or inhibitors remain unavailable in clinical trials, primarily due to potential CNS-related adverse effects.45 This concern arises from the substantially higher expression levels of TREM2 in the CNS compared to other tissues.64 Consequently, we identified CD40 as a marker strongly correlated with CXCL9 expression and hypothesized that CD40 agonism may promote the differentiation of TAMs into an anti-tumorigenic phenotype. Notably, sotigalimab has been verified safe and can achieve path CR rates that compare favorably with historical data.46^,^47
CD40 agonism mediated signaling-derived pro-inflammatory and anti-tumorigenic polarization in TAMs.28 Consistent with prior findings, our study demonstrated that CD40 agonism combined with IFN-γ shifted TAMs toward an anti-tumorigenic phenotype by elevating the CXCL9/SPP1 ratio via enhanced oxidative metabolism. This mechanism contrasted with the classical lipopolysaccharide (LPS)-driven M1 polarization of infectious macrophage model, which depends on increased glycolysis and TCA cycle disruption.65^,^66 Notably, while LPS-mediated M1 polarization inactivated AMPK,66 CD40 signaling was shown to induce AMPK phosphorylation at Thr172, thereby promoting macrophage survival.67 Importantly, both CD40 agonism plus IFN-γ and Trem2-KO combined with IFN-γ enhance AMPK phosphorylation at Thr172—a key indicator of oxidative metabolism and improved mitochondrial function.68 In the clinical application prospect, sotigalimab plus CAR-T therapy showed strong potential to enhance T cell infiltration in vitro.
The combination of CD40 agonism with GPC3-CAR-T for HCC treatment offered several advantages as below. GPC3-CAR-T directly eliminates GPC3^+^ HCC cells, releasing neoantigens to initiate subsequent adaptive immune responses. The CD40 agonism and IFN-γ secreted by CAR-T promoted TAM reeducation toward an anti-tumor phenotype, with CXCL9 secretion recruiting endogenous CD8^+^ T cells to infiltrate tumors, establishing an endogenous immune response. While CAR-T served as the triggering mechanism, the endogenous adaptive immune response became the main anti-tumor force. Compared to CAR-T monotherapy that relied solely on CAR-T persistence, endogenous CD8^+^ T cells exhibit broader antigen recognition and can eliminate GPC3-negative tumor cells, reducing immune escape. Given that HCC was generally resistant to radiotherapy and chemotherapy, and lacks effective neoadjuvant options commonly used in other cancers,3 this approach may represent a promising neoadjuvant strategy, particularly for “immune-cold” HCC.
In conclusion, combining CD40 agonism or Trem2-KO with CAR-T therapy may reeducate TAMs toward an anti-tumorigenic phenotype, promoting tumor-reactive T cell recruitment, although CAR-T infiltration and function in solid tumors were not enhanced. This suggests an alternative strategy to improve CAR-T efficacy: rather than solely modifying CAR-T cells, targeting TAMs offers a promising approach to boost adaptive anti-tumor immunity.
Limitations of the study
This study is limited by its reliance on in vitro data using only sotigalimab, which does not fully capture the in vivo TME or enable comparison with other CD40 agonists. To address this, we will utilize humanized NSG-SGM3 mice reconstituted with human CD34^+^ cells and orthotopic HCC models to evaluate both sotigalimab and selicrelumab in combination with GPC3-CAR-T cells. This will allow us to optimize dosing, assess safety and efficacy, and validate the therapeutic potential of this combination approach for clinical translation. Further experiments are warranted to evaluate the hypothesis in the future.
Resource availability
Lead contact
Requests for further information and resources should be directed to and will be fulfilled by the lead contact, Jizhou Tan ([email protected]).
Materials availability
All unique/stable reagents generated in this study will be made available on request, but we may require payment and/or a completed materials transfer agreement if there is potential for commercial application.
Data and code availability
- •The long-term outcome data of GPC3-CAR-T-treated patients were obtained from the published article in Nature (2025) by Steffin et al. (https://doi.org/10.1038/s41586-024-08261-8). The single-cell RNA-seq data of patients were obtained from the Gene Expression Omnibus (no. GSE253352). The raw fastqs generated in this study are available on the public NCBI Database of Sequence Read Archive (SRA) website with the accession number PRJNA1303879 (https://www.ncbi.nlm.nih.gov/bioproject/PRJNA1303879/).
- •This paper does not report original code.
- •Any additional information required to reanalyze the data reported in this work paper is available from the lead contact upon request.
Acknowledgments
This work was supported by grants from 10.13039/501100001809National Natural Science Foundation of China (82202986, 82574817, and 82472080), the 10.13039/501100003453Natural Science Foundation of Guangdong Province (2023A1515220017, 2024A1515012867, 2025A1515010135, and 2023A1515010481), Young Doctor “Sailing” project of Science and Technology Department of Guangzhou (2024A04J3291), Outstanding Young Talents Seedling Program of Guangdong Hospital of Traditional Chinese Medicine (SZ2023QN03), Youth Science and Technology Innovation Talent of Guangdong TeZhi plan (0720240275), Scientific research project of Guangdong provincial administration of Traditional Chinese Medicine (20251147), and the national nature cultivation project of Guangdong Hospital of Traditional Chinese Medicine (YN2024GZRPY061).
Author contributions
J.T., T.L., H.G., and Z.X. wrote the manuscript. J.T. and T.L. designed the experiments. T.L., H.G., Z.X., T.Y., Y.G., H.M., H.Y., H.L., and Q.Z. performed experiments and analyzed data. X.H. participated in article revision, W.F. provided clinical samples and data, and J.T., T.L., and W.F. supervised the project.
Declaration of interests
The authors have declared that no conflict of interest exists.
STAR★Methods
Key resources table
REAGENT or RESOURCESOURCEIDENTIFIERAntibodiesanti-CD3eBioscienceCat#16-0031-85anti-CD28eBioscienceCat#16-0281-85anti-mouse CD40 (FGK45)BioXCellCat#BP0016-2anti-rat IgG2a isotype controlBioXCellCat#BP0089anti-CD45-Pacifific BlueBiolegendCat#304022Goat Anti-Rabbit IgG H&L (HRP)AbcamCat#ab205718Rabbit Anti-mouse CD8 alpha antibodyAbcamCat#ab209775TSA reagent iFluor® 488 tyramideaatbioCat#16985rabbit Anti-mouse CD4 antibodyAbcamCat#ab183685TSA reagent iFluor® 430 TyramideaatbioCat#45096Rabbit anti-mouse IFN-γ antibodyAffinityCat#DF6045TSA reagent CY3 tyramideaatbioCat#11065Rat anti-mouse PD-1 antibodyAbcamCat#ab214421TSA reagent CY5 tyramideaatbioCat#11066Rabbit anti-mouse F4/80 antibodyCSTCat#70076Rabbit anti-mouse CD3 antibodyAbcamCat#ab237721Rabbit anti-Mouse CXCL9 AntibodyAbcamCat#ab202961Rabbit anti-Mouse SPP1 antibodyAbcamCat#ab283656Rabbit anti-mouse CD3 antibodyAbcamCat#ab237721DAPIThermo FisherCat#D1306anti-CD16/CD32BioLegendCat#101302PerCP/Cyanine5.5 anti-mouse CD3BiolegendCat#100218PE anti-mouse CD8aBiolegendCat#100708Brilliant Violet 421 anti-mouse PD-1BiolegendCat#135217Pacific Blue anti-mouse IFN-γBiolegendCat#505818Pacific Blue anti-mouse CD3BiolegendCat#100213Alexa Fluor® 488 anti-mouse CD11bThermoFisherCat#53-0112-82APC anti-mouse F4/80BiolegendCat#123116PE anti-mouse CXCL9BiolegendCat#515603PE anti-mouse SPP1R&DCat#IC808Phuman IgG1 antibodySelleckCat#A2051SotigalimabSelleckCat#A2635goat anti-rat immunoglobulin GBioLegendCat#405401Syk (PT0468R) PT® Rabbit mAbCSTCat. #YM83025Syk (Phospho Tyr525/526) (PT0753R) PT® Rabbit mAbImmunowayCat. #YM8562Jak1 Rabbit mAbImmunowayCat. #YM8467JAK1 (Phospho Tyr1022) Rabbit pAbImmunowayCat. #YP0154STAT1 α Rabbit mAbCSTCat. #9172Phospho-Stat1 (Tyr701) Rabbit mAbCSTCat. #9167SOCS-1 Rabbit pAbImmunowayCat. #YT4362CD40 Rabbit pAbImmunowayCat.#YT0763PI3 Kinase p85 Rabbit mAbCSTCat. #4292PI 3 kinase p85/p55 (Phospho Tyr467/199) Rabbit pAbImmunowayCat. #YP0224Akt1 Rabbit mAbCSTCat. #2938Phospho-Akt (Thr450) Rabbit mAbCSTCat.#4060mTOR Rabbit mAbCSTCat.#2972Phospho-mTOR (Ser2448) Rabbit mAbCSTCat. #2971LDHA Antibody RabbitCSTCat. #2012AMPKα Rabbit mAbCSTCat. # 5831TPhospho-AMPKα (Thr 172) Rabbit mAbCSTCat. #2535TIDHP Rabbit pAbCSTCat. #YT6168CPT1A (PT0640R) PT® Rabbit mAbCSTCat. #YM8449anti-HA-TagCSTCat. #3724Santi-β-actinABCAMCat. #ab6276Biological samplesHuman tissue samplesThe First Affiliated Hospital of Sun Yat-sen UniversityN/AChemicals, peptides, and recombinant proteinsmurine IL-2R&DCat#402-ML-050RetroNectinTakara BioCat#T100A/BcyclophosphamideSigmaCat#C0768complete DMEM mediumGIBCOCat#11054001Fetal calf serum (FBS)GIBCOCat#16140071ACK red blood cell lysis bufferGIBCOCat#A1049201LIVE/DEAD Zombie NIR Fixable Viability KitBiolegendCat#423105Intracellular Fixation & Permeabilization Buffer SetThermo FisherCat#88-8824-00Lipofectamine 2000ThermofisherCat#11668019Opti-MEM mediumGIBCOCat#31985070matrigel matrixCorningCat#354230rh-IFN-γPeproTechCat#300-02-100UGCellTrace FarredCat#C34572ThermoFisherrm-IFN-γPeproTechCat#315-05-20UG;SYK inhibitor R406SelleckCat. #S1533STAT1 inhibitor FludarabineSelleckCat. #S1491AMPK inhibitor Dorsomorphin 2HClSelleckCat. #S7306mTOR inhibitor RapamycinSelleckCat. #S1039sensor cartridgeAgilentCat#103793-100calibration bufferAgilentCat#103793-10010 mM glucoseAgilentCat #103577-1001 mM pyruvateAgilentCat#103578-1002 mM glutamineAgilentCat #103579-100etomoxirSelleckCat#S8244Critical commercial assaysmouse CD8+T cell negative enrichment kitBDCat#558471Tumor Dissociation KitMiltenyiBiotecCat#130-096-730gentle MACS DissociatorMiltenyiBiotecCat#130-093-235FITC Annexin V Apoptosis Detection Kit IIBDCat#556570human CD3/CD28 Streptamer KitIBACat#6-8900-050ATP Content Assay KitBeyotimeS0026AMP Content Assay KitAbcamab273275Seahorse 96-well culture platesAgilentCat#103793-100XF DMEM assay mediumAgilentCat#103575-100Seahorse XF Glycolytic Rate Assay KitAgilentCat#103015-100Seahorse XF Glycolytic Rate Assay KitAgilentCat#103344-100Mouse IL-6 ELISA KitMultiSciencesCat#70-EK206/3-96Mouse IFN-γ (Interferon Gamma) ELISA KitMultiSciencesCat#E-HSEL-M0007Deposited datasingle-cell sequencing of HCC patientsGene Expression Omnibusno. [GSE253352](GSE253352)Original western blot imagesThis paperSupplemental figuresOriginal data of the single-cell sequencing of miceThis paperhttps://www.ncbi.nlm.nih.gov/bioproject/PRJNA1303879/Experimental models: Cell linesHepa1-6 cell lineATCCCat#CRL-1830233T cell lineATCCCat#CRL-1573Human vascular endothelial (VE) cellsProcellCat#CRL-03104T1 cell lineCat#CRL-2539Experimental models: Organisms/strainsC57BL/6-Trem2em1SmocShanghai Model Biological CenterCat#NM-KO-190402OligonucleotidesPrimersSee Table S1 for primersN/ARecombinant DNAanti-human GPC3 scFv- mouse CD8αThis paperN/Aantihuman CD19 scFv-mouse CD8αThis paperN/ASoftware and algorithmsPrism 9.0GraphPadhttps://www.graphpad.com/scientific-software/prism/FlowJo v10TreeStarhttps://www.flowjo.com/solutions/flowjo/downloadsImaris (version 7.4)BITPLANE (Oxford Instruments)https://imaris.oxinst.com/; RRID: SCR_007370ImageJNational Institutes of Healthhttps://imagej.en.softonic.com
Experimental model and study participant details
Mice and in vivo studies
Male Trem2-KO mice (C57BL/6-Trem2em1Smoc) were purchased from Model Organisms, Shanghai, China, which knockout exon2 zone of Trem2. The wild-type (WT) control male C57BL/6 mice were purchased from the same Model Organisms, and were used as WT controls. For HCC subcutaneous tumor model, C57BL/6J mice were subcutaneously inoculated with GPC3-Hepa1-6 cells of 5×10^5^ cells. Fifteen days post-inoculation, mice received an intravenous tail vein injection of Control (Ctrl)-CAR-T or GPC3-CAR-T cells of 1×10^6^ cells. Tumor volumes were measured every 3–4 days. Survival rates were monitored at the endpoint of death or 2000 mm^2^ tumor volume. For HCC orthotopic tumor model, 5×10^5^ Hepa1-6-GPC3 cells or 4T1 cells were injected in 6-week-old mice orthotopically into the liver. 13days after tumor inoculation the cyclophosphamide at 80 mg/kg was administered intraperitoneally (i.p.), and 1×10^6^ GPC3-CAR-T cells or Trop2-CAR-T cells were injected intravenously at next day. For antibody treatment, 10 mg/kg InVivo Plus anti-mouse CD40 or rat IgG2a isotype control was administered by i.p. injection every 3 days after the injection of CAR-T cells. All experimental protocols were approved by the Animal Care Committee of Sun-Yat sen University (SYSU-IACUC-2022-000394).
Cell lines
Hepa1-6, an HCC cell derived from C57BL/6 was transduced with recombinant retroviruses carrying human GPC3 and GFP moiety to establish Hepa1-6-GPC3^+^GFP^+^ cells, followed by FACS sorting. 4T1, a breast cancer cell derived from BALB/C was transduced with recombinant retroviruses carrying human Trop2 and GFP moiety to establish 4T1-Trop2^+^GFP^+^ cells, followed by FACS sorting. These cell lines were maintained in Dulbecco’s modified Eagle’s medium (DMEM) (Gibco, Grand Island, NY, USA). Media were supplemented with 10% heat-inactivated FBS, 10 mM HEPES, 2 mM glutamine and 1% penicillin/streptomycin. All cells were cultured at 37°C in an atmosphere of 5% carbon dioxide.
Human tissue samples
Tumor samples were obtained from patients with hepatocellular carcinoma (HCC) after obtaining written informed consent. All procedures were approved by the Institutional Ethics Committee of The First Affiliated Hospital of Sun Yat-sen University (protocol 2024[400]) under the supervision of Professor Wenzhe Fan. A total of 12 patients with HCC at Interventional oncology of The First Affiliated Hospital of Sun Yat-sen University from 2023 to 2024 were enrolled in the research. Samples were taken by needle biopsy before treatment, and then received drug-eluting beads transcatheter hepatic arterial chemoembolization (DEB-TACE) plus anti-PD-1 therapy. Based on treatment response, six patients were classified as responders and six as non-responders (age range 36–71 years, median 57.5; all males). Additionally, surgical specimens were obtained from 5 HCC patients (age range 49–54 years, median 52; all males) enrolled from 2024 to 2025. Fresh tissues from these patients were used for macrophage isolation and preparation of digested tumor solution for in vitro studies.
Method details
CART generation
The human-GPC3-specific murine CAR was generated by linking antihuman GPC3 single-chain variable fragment (scFv) to the mouse CD8α hinge domain, mouse CD28 transmembrane and the cytoplasmic domain, and the intracellular signaling domain of mouse CD3ζ. The human Trop2-specific murine CAR (T2-m28z) was generated by linking anti-human Trop2 scFv to the mouse CD8α hinge domain, mouse CD28 transmembrane and the cytoplasmic domain, and the intracellular signaling domain of mouse CD3ζ. For negative control, the human-CD19-specific murine CAR was generated by linking antihuman CD19 scFv to the mouse CD8α hinge domain, mouse CD28 transmembrane and the cytoplasmic domain, and the intracellular signaling domain of mouse CD3ζ. CAR genes were then cloned into the retroviral vector MIGR1 which was used as previously described.69 293T cells were transfected with the CAR-expressing retrovirus plasmid and pCL-Eco packaging plasmid by using calcium phosphate method. The culture supernatants were harvested and frozen for gene transduction after 48 h. Mouse T cells isolated from WT C57BL/6 mouse splenocytes were purified with a mouse CD8^+^T cell negative enrichment kit. T cells were activated with 0.25 μg/mL hamster anti-CD3, 1 μg/mL hamster anti-CD28 and 10 ng/mL murine IL-2 for 24 h. The activated T cells were then infected with retroviral supernatants in the presence of RetroNectin and transduction efficacy was determined in GFP^+^ with flow cytometry analysis.
Single cell suspension preparation for tumor of mice
Fresh HCC tumor samples were surgically removed from mouse liver and transported by complete DMEM medium and 10% FBS in ice container. Selected samples were cut into small pieces of diameter 1mm, and removed necrotic, hemorrhagic and fibrous connective tissues. Fragments of tissue samples were digested with 5mL enzyme in Tumor Dissociation Kit. Then tissue were digested into single cell suspension by gentle MACS Dissociator followed by ordering instructions. Digested cells went through a 70 mm nylon mesh filter and then a 40 mm nylon mesh filter. Filtered cell suspensions were centrifuged and resuspended in 5 mL ACK red blood cell lysis buffer for 5 min, then immediately diluted with 10 mL of PBS buffer containing 0.5% FBS. Cells were centrifuged and subsequently resuspended in viability dye solution (1:500 in PBS) with FITC Annexin V Apoptosis Detection Kit II, followed by 15 min incubation in the dark. Following viability dye staining, cells were allocated for testing viability and sorting for single-cell RNA-seq by flow cytometry.
Sorting for live CD45+ cells
Cells stained with viability dye (1×10^7^) were resuspended in 100 mL of FACS wash buffer (PBS+2%FBS, 1mM EDTA) with the addition of the following antibodies: CD45-Pacifific Blue. Cells were incubated on ice for 20 min, washed with 1 mL PBS buffer containing 0.5% FBS, and then resuspended in 500 mL PBS buffer containing 0.5% FBS for sorting on a FACS Aria II. For most samples, 1×10^5^ live CD45^+^ cells were sorted into lymphocyte media (RMPI+10%FBS) and immediately transferred to ice.
Single cell library construction
The previous sorted CD45^+^ single cells were loaded to the single-cell chip for GEM (Gel bead-in-emulsions) generation using the 10x Chromium controller to construct single cell library (https://www.10xgenomics.com/solutions/single-cell/). The single cell 5′ cDNA and TCR V(D)J library were constructed using the Chromium Single cell 5′ Regent Kit v3 and Single cell V(D)J Reagent kits (10x Genomics). In the kits, gel beads coated with unique primers consisting of 10x cell barcodes, unique molecular identifiers (UMI) and poly-dT sequences were used to separately index the transcriptomes of each cell. After reverse transcription and amplification, the constructed libraries were sequenced on the Illunima NovaSeq 6000 platform to generate the 2x 150-bp paired end reads of which R1 holds the UMI and cell barcodes and R2 holds transcriptomes.
Single cell RNAseq (scRNAseq) preprocess
The sequenced raw fastq reads were processed by Cell Ranger toolkit (10x Genomics, version 7.0.0) with “count” sub program to generate the count matrix and immune repertoire of TCR. Reference genome (version refdata-gex-mm10-2020-A-GFP-CART, see below) was used for read alignment. The gene-barcode matrix of UMI counts were then analyzed with Seurat (version 4.0.4) for quality control, data normalization, batch effect removal, dimensional reduction, clustering and visualization. Quality control on scRNAseq data was performed by filtering cells expressing less than 500 genes or more than 6000 genes. We also filtered out cells with more than 10% transcripts from mitochondrial genes. Then R package DoubletFinder (version 2.0.3) was used to identify the potential doublet cells which would be filtered out from the count matrix. In addition, cells expressing multiple canonical cell type-specific markers were also filtered out. In the end, we retained a total of 83191 cells for further downstream analysis.
Detection of CAR-T insertion and Trem2 deletion in cells
To identify the CAR-T insertion status in cells, we integrated the sequences of GFP-CAR transcripts into the original reference genome as an extra chromosome-like sequence, then rebuilt the refdata-gex-mm10-GFP-CART reference genome with Cell Ranger “mkref” sub program. CAR-T cells were identified by the detection of GFP or CAR transcripts. To identify the Trem2 deletion status, we first extracted reads mapped to Trem2 in each cell from the bam file generated by Cell Ranger and assigned reads to the exact exons in Trem2. Based on the validation result of our knock-out experiment, expression of exon-2 in Trem2 was used to identify the deletion status and the expression level of Trem2.
Identification of cell clusters
Based on the quality-controlled count matrix, R package Seurat was applied for downstream analysis. Function “SCTransform” from Seurat was used for gene expression normalization and highly variable gene identification with default parameters. To avoid the cluster enriched by highly expression of mitochondrial genes or other similar situations, mitochondrial genes were removed, and cell cycle effect was regressed out. Principal component analysis was performed by “RunPCA” function. To remove the potential batch effects between batches, function “RunHarmony” from the R package harmony (version 0.1.0) was applied on the PCA matrix. After batch correction, function “ElbowPlot” in Seurat was used to identify the significant corrected components for cell clustering. Dimension reduction based on the selected components were performed by uniform manifold approximation and project (UMAP) and t-distributed stochastic neighbor embedding (tSNE) via the function “RunUMAP” and “RunTSNE”. The selected components were also used to get the final clusters with the specific resolution parameters by function “FindNeighbors” and “FindClusters”. Finally, we utilized the function “FindAllMarkers” function to detect the cluster-specific expressed genes which were identified as > 0.25-fold difference (log-scale) on average between two groups of cells and detectable expression in more than 25% of cells in either of the two cell populations. For the clustering of all cells and sub clustering of monocytes and macrophages, the top 30 PCs were selected with a resolution parameter 0.6. For the sub clustering of CD4^+^ and CD8^+^ T cells, the top 30 PCs and resolution 0.8 were used. Based on the cell clustering, we annotated the cell clusters manually with canonical cell type-specific markers, including B cells (Ms4a1, Cd79a, Cd79b, Jchain, Sdc1, the last 2 additionally for plasma cell), T cells (Cd3d, Cd3e, Cd3g, Cd4 for CD4 T cells, Foxp3 and Ctla4 for Treg, Cd8a and Cd8b1 for CD8 T cells), NK cells (Ncr1, Ncam1, Prf1, Klrd1), cDC (Clec9a, Cd209a, Xcr1, Ccr7, Fscn1, Ccl22), pDC(Lilra4, Irf8, Siglech), Monocytes or Macrophages (Ms4a4c, Cd14, Cd68, Csf1r, Adgre1, C1qa, C1qb, C1qc), Neutrophils (Csf3r, G0s2, s100A8, S100A9, Clec4a, Ly6g), Basophils (Prss34, Mcpt8, Cpa3, Cd200r3), Platelet (Pf4, Ppbp, Gp9), fibroblast (Dcn, Col3a1), endothelial cells (Eng, Kdr), epithelial cells (Krt8, Epcam). The same workflow was performed for the sub-clustering of each interested cell type and sub-clusters were annotated based on the cluster markers and their functionality.
CD8^+^ T cell subsets were classified as follows: γδ T cells were identified based on TCR γ/δ chain expression. CD8_Tn (naive) was characterized by CCR7, LEF1, and TCF7. CD8_Tcm (central memory) was defined by IL7R, TCF7, and SELL. CD8_Tem (effector memory) exhibited an effector-memory profile by IL7R, IFNG, and GZMM. CD8_Trm (tissue-resident memory) was identified by CXCR3, CXCR6, and TNF. CD8_Te (effector cytotoxic) displayed high expression of cytotoxicity-related genes of GZMB, PRF1, but lacked exhaustion markers. CD8_prolif (proliferating) was two clusters showing proliferation signatures of MKI67, and TOP2A. CD8_Tex (exhausted) was further stratified into three progressive states based on exhaustion marker levels of PDCD1, LAG3, and HAVCR2. CD8_Tex-prog (progenitor exhausted) was low exhaustion signature. CD8_Tex-int (intermediate exhausted) was moderate exhaustion. CD8_Tex-term (terminally exhausted) was high exhaustion. Th17 cells exhibited high expression of IL17A, IL23R, and RORC. CD4_Tcm (central memory T cells) displayed a canonical memory phenotype, marked by CCR7, LEF1, and SELL. CD4_prolif, a proliferative subset, was characterized by elevated MKI67 and STMN1. The Tfh (follicular helper T cell) cluster expressed key markers such as CXCR5, BCL6, and BTLA. Th1_effector cells showed robust expression of cytotoxicity-associated genes but minimal exhaustion-related signatures. In contrast, Th1_exhausted cells exhibited high levels of exhaustion markers alongside moderate cytotoxicity gene expression. Two distinct Treg populations were identified: Treg_blood, expressing FOXP3, IL2RA, and IKZF2; and Treg_tumor, which upregulated FOXP3, TNFRSF9, and TNFRSF18.
For macrophages, C0_Monocyte_Ly6c2 displayed a monocyte-like phenotype, marked by high expression of Ly6c2, Lyz2 and S100A4. C1_Macro_Cd74 represented inflammatory TAMs, characterized by IL1b, Cxcl2 and Ccl2. C3_Macro_Mki67 was identified as a proliferating subset. C4_Macro_Spp1 exhibited immunosuppressive and pro-angiogenic features of Spp1, Arg1, and Vegfa. C6_Macro_Apoe resembled lipid-associated TAMs, with elevated Apoe, Trem2 and C1qa/b/c. C7_Macro_Cxcl9 demonstrated pro-inflammatory and antigen-presenting capabilities expressed Cxcl9, Cxcl10 and MHC class II genes. C8_Macro_Acematched a previously described subset expressed Ace, Adgre4 and Nr4a1. C12_Macro_Rsad2 was enriched for interferon-inducible regulatory genes. The remaining clusters were annotated based on their top marker genes, with no direct correlates in existing literature.
Differential expressed gene analysis
Function “FindMarkers” in the Seurat was used to identify the differential expressed genes between different groups (KO vs. WT, GPC3-CART vs. NC-CART) in macrophages, CD8^+^ T cells and CD4^+^ T cells. Significant differential genes were identified by absolute log2-scale fold change >0.25 and adjusted p value <0.05 by Wilcoxon Rank-Sum Test.
Single cell TCRseq (scTCRseq) data analysis
The sequenced raw TCR fastq reads were also processed by Cell Ranger toolkit with “vdj” sub program and the R package scRepertoire (version 1.0.0). Briefly, fastq reads were aligned to mouse GRCm38 V(D)J reference genome (version refdata-cellranger-vdj-GRCm38-alts-ensembl-7.0.0) to generate the assembled TCR contigs, corresponding annotation to CDR3 region (V, D, J, C genes) and TCR clonotypes. Quality control on scTCRseq data was performed by filtering clonotypes with no “raw_consensus_id” and non-productive TCR. TCR that had no cells in filtered cells from scRNAseq data were also removed. After quality control, each TCR was assigned to corresponding cells in scRNAseq by their cell barcode. For cells with only one TRA or TRB chain, cells with identical TRA and TRB chains were defined as a T cell clone. For cells with paired TRA and TRB chains, cells shared at least one pair of identical TRA and TRB chains were defined as one clone, while identical paired TRA and TRB which were shared by three or more cells were defined as an expanded clone. A shared clone was an expanded clone from which cells were distributed in different clusters in each individual. The number of shared clone types were calculated by the sum of numbers of the shared clones. We grouped these TCR clonotypes based on their expansion level into single (x = 1), small (1 < x<=5), medium (5 < x<=20), large(20 < x < 100), hyper (100 < x, which was not observed), where x was the number of cells sharing the same clonotype. To investigate the correlation between clonal expansion and anti-tumor function in CD8^+^ T cells, the weighted Pearson correlation was used to adjust the size effects among different TCR clonotype groups.
Cell development trajectory for CD8+ T cells
The cell lineage trajectory between different functional clusters of CD8^+^ T cells was inferred by Monocle2 (version 2.18.0). During the trajectory construction, clusters like γδ T cells and proliferative cells were removed according to their TCR identity or fixed phenotypes related to other CD8^+^ T cells. Using function “as.CellDataSet” in Seurat, we converted the “Seurat object” to “Monocle CellDataSet”. The converted data object was then analyzed following the Monocle2 workflow. The differential genes were identified by function “differentialGeneTest” in monocle and used to order the cells in the pseudotime analysis.
Definition of cell scores and signatures
To illustrate the cell function or status in each cell cluster, a set of genes was collected for visualization. The function “AddModuleScore” in Seurat was used for scoring relative change of such gene sets between clusters. For the functional annotation of T cells, four states were identified by the expression of related genes: a) Exhaustion (Havcr2, Ctla4, Tox, Tigit, Lag3, Pdcd1), b) Proliferation (Mki67, Top2a, Ube2c, Stmn1, Pclaf, Birc5), c) Cytotoxicity (Gmza, Gzmb, Gzmk, Gzmm, Ifng, Nkg7, Tnf, Fasl), d) Memory or Naive (Ccr7, Il7r, Sell, Tcf7, Lef1). To annotate the anti-viral or anti-tumor functionality in T cells, gene sets highly expressed by T cells with the experimental validated anti-viral or anti-tumor function were used: a) anti-viral (Anxa1, Il7r, Ccr7, Gpr183, Tcf7, Glul, Perp, Tc2n, Epha4, Itga5, Klrg1, Cd300a, Klf3, Sell, Trmo, Dkk3, Gpr132, Aoah, Aust2, Samd3), b) anti-tumor (Mcm5, Itgae, Linc01871, Dusp16, Layn, Krt86, Igflr1, Slc2a8, Clic3, Kir2dL4, Cxcr6, Entpd1, Tox, Lmna, Batf, Cd27, Syngr2, Ctsw, Lag3, Lsp1, Ahi1, Tnfrsf18, Gem, Mtss1, Gzmb, Ptms, Acp5, Havcr2, Phlda1, Ctla4, Pdcd1, Rgs2, Hmox1, Id3, Cxcl13, Tnfrsf9, Vcam1, Hspb1, Hla-dra, Rgs1). Genes were converted to homologous genes in mouse and scored by “AddModuleScore”.
Pathway analysis
For the pathway annotation or metabolism phenotypes including glycolysis, TCA cycle and fatty acid metabolism of macrophages, gene sets related to each pathway and phenotype from GO/KEGG/MSigDB/PathCards were used as inputs to calculate average expression level in each sub-cluster by function “AverageExpression” and were then analyzed by Gene Set Variance Analysis (GSVA, version 1.38.2) for comparison.
Survival analysis and validation on TCGA
The Cancer Genome Atlas (TCGA) liver hepatocellular carcinoma (LIHC) data were used to evaluate the prognostic performance of individual genes or gene sets derived from specific cell clusters by the R package survival (version 3.2.7). The gene expression data and the clinical data were obtained from the GDC website (https://portal.gdc.cancer.gov/), UCSC Xena (http://xena.ucsc.edu/) and GEPIA2 (http://gepia2.cancer-pku.cn/#index). The gene expression of each cell signature was defined using the TPM or FPKM and visualized in the log2-scale. For cell signature in myeloid cells, gene expressions were normalized by the expression of canonical genes C1qb, Lyz, Aif1, Cd68, Cd163 and Cst3. For cell signature in T cells, gene expressions were normalized by the expression of Cd3d, Cd3e, Cd3g, Cd4, Cd8a, Cd8b and Foxp3 for each T cell sub lineages. For cell signatures in immune cells, PTPRC were used for normalization. For the cytotoxic score, the mean expression of Gzma, Gzmb, Gzmk, Gzmm, Ifng, Nkg7, Tnf and Fasl were used. To validate the clinical effect of CXCL9 and SPP1 on prognosis, samples in LIHC were grouped into high or low groups based on the median values of expression ratio of CXCL9 to SPP1. To validate the metabolism effects mediated by SPP1 or CXCL9, the correlation between SPP1 or CXCL9 and metabolism related genes like SCL2A, VEGFA was also identified in the LIHC. Kaplan–Meier survival curves were plotted to show differences in overall survival time or disease-free survival time, and hazard ratio and log rank p values reported by the Cox regression models implemented in the R package survival were used to determine the statistical significance.
Reverse transcription Quantitative PCR (RT-QPCR)
The renal mRNA expression levels of IL-1βand TNF-αwere assessed using qPCR. Total RNA was extracted from tissues using Trizol reagent, following the supplier’s instructions. Gene expression was normalized to β-actin, and relative transcript levels were calculated using the method. Primer sequences used are listed in Table S1.
Multiple immunofluorescence staining
For immunofluorescence, sections of formalin-FIxed, paraffin-embedded tumors from mice were dewaxed in xylene, rehydrated through an alcohol gradient, and subjected to antigen retrieval in EDTA buffer (pH 8.0). Subsequently, sections were incubated with goat serum for 30 min at 37°C and incubated with primary antibodies overnight at 4°C, then with secondary antibodies 45min at 37°C. For details, all the primary antibodies were rabbit-derived mabs, and all secondary antibodies were Goat Anti-Rabbit IgG H&L (HRP). After staining with the primary and secondary antibodies, the corresponding TSA reagents were used for color development. DAPI was used for the staining of the nucleus. Fluorescent signals were detected using the laser scanning confocal microscope (ZEISS LSM 800). To quantify immunofluorescence results, the images were further analyzed with Imaris software (Version 7.4, BITPLANE). The “Spot” function was used to locate and enumerate cells based on size and intensity threshold. Alternatively, the absolute numbers of cells spotted per mm^2^ in nine high-power fields of interested areas were also statistically analyzed (three separate fields from each mouse and three mice from each group).
Flow cytometry
Tumor cell suspensions were centrifuged and resuspended. Cells were resuspended in FACS buffer with 5μg/ml anti-CD16/CD32 for blocking Fc receptors and then first stained with LIVE/DEAD Zombie NIR Fixable Viability Kit for 30 min at 4°C. Following antibodies for cell surface staining were added for 30 min. Following incubation, cells were washed for intracellular staining. Cells were then fixed and permeabilized by Intracellular Fixation & Permeabilization Buffer Set for 30 min. Cells were washed before proceeding to intracellular staining with the antibody. Flow cytometric analysis was performed on a FACS Canton II or FACS Fortessa (BD, USA).
Bone marrow-derived macrophages (BMDMs) isolation and culture
BMDMs were isolated from tibiae of 4-6-week-old Trem2 knockout (KO) and WT C57BL/6J mice as previously described,20 with modifications. Briefly, bone marrow cells were flushed from dissected tibiae using cold PBS. After red blood cell lysis ACK buffer, cells were plated at 1 × 10^6^ cells/mL in petri dishes and cultured in DMEM supplemented with 10% heat-inactivated FBS, 1% penicillin/streptomycin, and 30% L929 cell-conditioned supernatant (as a source of M-CSF) for 7 days, with media refreshment on day 3. Differentiated BMDM purity was consistently >95% as confirmed by flow cytometry analysis of CD11b and F4/80 expression.
Plasmid construction and cell transfection
Plasmids containing murine Socs1 with an HA tag was constructed. Full length genes were amplified by reverse transcription-PCR and cloned into PSG5 vector. The constructed plasmid was confirmed by sequencing and their expressions in 293T cells were detected by western blot with anti-Tag antibodies. Immortalized BMDMs (iBMDM) were transfected with negative control (empty PSG5 vector control) or constructed plasmids using Lipofectamine 3000 according to the manufacturer’s instructions. 6 h post transfection, Opti-MEM medium was discarded and refreshed with complete DMEM medium with 10% (v/v) FBS, L-Glutamine (2 mM), and penicillin-streptomycin (100 U/ml). 48 h later, cells were processed for the following experiments.
CD8+ T cell transendothelial migration assay
Human vascular endothelial (VE) cells were seeded (10,000/well) on a transwell insert that was precoated with 10% matrigel matrix). The VE cells were cultured for 24 h to form a compact monolayer, which was verified by visual inspection using an inverted microscope. Then, TAMs (5×10^5^) sorted by MACS as previous described,and human GPC3 positive digested tumor suspension (5×10^5^) or human GPC3-CART cells (2.5×10^5^) were added to the lower chamber of each transwell. The lower chambers were filled with RPMI plus 10% fetal calf serum, along with rh-IFN-γ (40 ng/mlA) or Sotigalimab (50ng/ml), which was a humanized monoclonal antibody. And a human IgG1 antibody was used as isotype control (50ng/ml) in TAMs only and TAMs+IFN-γ group. Digested tumor suspension (DTS) was derived from GPC3^+^ HCC fresh samples surgically removed. The CD8^+^ T cells were sorted from peripheral blood mononuclear cells and activated by the human CD3/CD28 Streptamer Kit for 24h. Then, CD8^+^ T cells were dyed by CellTrace Farred, and then added to the upper layer of the transwell 24 h later. After 12h incubation, the medium in the lower chamber was collected, and the suspended cells that migrated were manually counted using a flow cytometry.
In vitro tumor-educated macrophage model
BMDMs or the immortalized BMDM (iBMDM) cell line were plated into 6-well transwell plates at a density of 5×10^5^ cells per well and incubated for 4 h to allow adherence. Subsequently, digested Hepa1-6 cell suspension was added to the upper chamber containing a 0.4 μm porous membrane at a density of 5×10^5^ cells per well. In the lower compartment, IFN-γ (40 ng/mL) was added to induce macrophage polarization as required by the experimental design. For inhibitor studies, BMDMs were pre-treated with inhibitors for 2 h prior to co-culture: SYK inhibitor R406 (1 μM), STAT1 inhibitor Fludarabine (100 μM), AMPK inhibitor Dorsomorphin 2HCl (20 μM), mTOR inhibitor Rapamycin (1 μM). Equivalent solvent controls (e.g., 0.1% DMSO) were included. For CD40 agonism, anti-mouse CD40 (FGK45; 20 ng/mL) was crosslinked with goat anti-rat immunoglobulin G for 30 min at room temperature before being added to the DMEM culture medium. Complete control groups: Rat IgG2a isotype control (20 ng/mL); IFN-γ (40 ng/mL) + IgG2a; FGK45 alone; IFN-γ + FGK45. Cells were co-cultured for 24 h (standard). Finally, BMDMs or iBMDMs were co-cultured with Hepa1-6 cells for 24 h, after which macrophages were collected at the indicated time points for RNA extraction and Western blot analysis.
Intracellular ATP and AMP measurement
The intracellular ATP or AMP levels of BMDM or iBMDM cultured in 6-well plates for 24 h were measured using the ATP Content Assay Kit or the AMP Content Assay Kit. Cells were collected and mixed with extraction buffer following the instructions of the ATP and AMP assay kit. The solution was maintained at 0°C for 10 min, after which it was centrifuged to isolate the supernatant fraction. A multifunctional microplate reader was used to measure the ATP or AMP content.
Western blot
Equivalent amount (20 μg) of protein extracts were separated by SDS-PAGE electrophoresis and then transferred to polyvinylidene difluoride (PVDF) membrane. Membranes were blocked in PBS-Tween20 (pH 7.4, 0.5% Tween 20) containing 5% BSA for 1 h at room temperature (RT) and then incubated overnight at 4°C with primary antibodies. Then the membranes were incubated with appropriate horseradish peroxidase (HRP)-conjugated secondary antibodies at RT for 1 h, followed by the visualization with GE Image Quant LAS 500 using an ECL kit (Fdbio Science).
Seahorse XF Cell Mito stress assay and seahorse XF Cell glycolysis rate assay
Oxygen consumption rate (OCR) and extracellular acidification rate (ECAR) were measured using the Agilent Seahorse XFe96 Analyzer, following the manufacturer’s instructions. In brief, the sensor cartridge was hydrated overnight in a 37°C incubator with calibration buffer. TAMs (3 × 10∧^5^ cells/well) were then seeded in Seahorse 96-well culture plates for 12 h. The culture medium was washed twice with detection solution and replaced with 180 μL of fresh detection solution. The detection solution consisted of XF DMEM assay medium (pH 7.4), supplemented with 10 mM glucose, 1 mM pyruvate, and 2 mM glutamine. OCR was assessed through the acute injection of the Seahorse XF Glycolytic Rate Assay Kit and etomoxir, with the following final concentrations of inhibitors: oligomycin (4 μM), FCCP(1.6 μM), rotenone (0.5 μM), antimycin A (0.5 μM), and etomoxir (18 μM). ECAR levels were also measured using the Seahorse XF Glycolytic Rate Assay Kit and etomoxir, with cells treated with rotenone (0.5 μM), antimycin A (0.5 μM), etomoxir (18 μM), and 2-DG (50 mM). Each condition was performed in 3 replicates, and the OCR and ECAR readings from each well were normalized to the protein content.70^,^71^,^72
Quantification and statistical analysis
Statistical analyses were performed using Graphpad prism 9.5. Spearman’s correlation coefficient was used for correlation matrices. Kaplan–Meier survival curves were compared by the log rank test. Data samples were compared using the Wilcoxon test. For immunofluorescence quantification, cell counts from three random fields per sample were averaged, with n representing biologically independent samples. Statistical significance was determined using Student’s t test (two groups) or ANOVA with Tukey’s multiple comparison test (three or more groups). Data were presented as mean ± SEM. p > 0.05 (NS), ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001, and ∗∗∗∗p < 0.0001 were considered statistically significant.
