Synergistic remediation of Cd/Pb contamination in paddy soils using iron-based sulfur-rich material combined with foliar Zn fertilizer

TL;DR

A new method combining iron-based materials and zinc fertilizer reduces cadmium and lead in rice while improving soil health and crop yield.

Contribution

The study introduces a synergistic approach using iron-based sulfur-rich material and foliar zinc to mitigate Cd/Pb contamination in rice.

Findings

The ISF treatment reduced Cd and Pb in rice grains by over 50% and increased rice biomass by nearly 50%.

Soil pH increased by 1.4 units, and bioavailable Cd/Pb decreased, with Cd transforming into less mobile fractions.

The treatment enriched soil microbial diversity and strengthened nutrient cycling functions.

Abstract

Addressing the limitations of single-technology approaches to mitigate cadmium (Cd) and lead (Pb) co-contamination in rice, this study elucidates the synergistic mechanism between iron-based soil immobilization and foliar zinc (Zn) barrier control. A pot experiment with four treatments was conducted: CK (control), FBA (foliar Zn fertilizer), IBS (iron-based sulfur-rich material), and ISF (IBS combined with Zn). The ISF treatment showed particularly remarkable efficacy. Compared to the CK, it increased rice biomass by 49.6%, reduced Cd and Pb concentrations in grains by 53.8 and 54.2%, respectively (to 0.2 mg/kg), and enhanced Zn accumulation by 311.8%. This treatment raised soil pH by 1.4 units, decreased bioavailable Cd and Pb by 31.2 and 18.5%, and promoted the transfomation of Cd into the Fe-Mn oxide-bound fraction (FMO, + 389.1%) and the residual fraction (RES, + 5.3%), while simultaneously increasing the FMO-bound proportion of Pb by 29.6%. Furthermore, ISF significantly enhanced soil enzyme activities (e.g., urease), increased total microbial OTUs with 187 unique OTUs, enriched Nitrospirotaphyla, Desulfobacterota, and Geobacterales, strengthened nitrogen/sulfur/iron cycling functions, and improved microbial network robustness. This research provides a theoretical foundation for heavy metal mitigation and nutritional fortification in rice production systems.

Figures

Concentrations of (A) Cd, (B) Pb, and (C) Zn in rice grain following treatments with FBA, IBS, and ISF. Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

Changes in total (A,B) and available (C,D) fractions of Cd and Pb in soil amended with FBA, IBS, and ISF. Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

Chemical fractions of (A) Cd and (B) Pb in soils amended with FBA, IBS, and ISF: (A1,B1) EXC: Exchangeable, (A2,B2) CBC: Carbonate-bound, (A3,B3) FMO: Fe/Mn oxide-bound, (A4,B4) OM: Organic matter-bound, (A5,B5) RES: Residual. Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

(A) pH values in amended soils. (B) Interactive Mantel test correlation heatmap: EXC, Exchangeable; CBC, Carbonate-bound; FMO, Fe/Mn oxide-bound; OM, Organic matter-bound; RES, Residual. Revealing interrelationships among grain Cd, Pb, and Zn content, environmental factors: Edge width corresponds to the strength of correlation represented by the absolute value of Mantel’s r (|R|). Color gradient: red signifies positive, blue signifies negative. Pearson significance levels: *P ≤ 0.05, P ≤ 0.01, *P ≤ 0.001 (n = 16). Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

Effects of FBA, IBS, and ISF on the activities of (A) catalase (S-CAT), (B) urease (S-UE), (C) alkaline phosphatase (S-AKP), and (D) dehydrogenase (S-DHA). Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

Effects of ISF on rhizosphere soil bacterial community structure and composition: (A) Intersection analysis of bacterial taxa (Upset plot). (B) Beta diversity (Principal component analysis, PCoA). (C) Taxon abundance distribution (Circos diagram). (D,E) Biomarker identification (LEfSe). Asterisk denotes significant difference relative to the control group: *P < 0.05.

Co-occurrence network between environmental factors and bacterial phylum-level communities.

Variation of the main ecological functions profiles of bacterial communities by FAPROTAX. Relative abundance of (A) carbon (C) cycle, (B) nitrogen (N) cycle, (C) sulfur (S) cycle and (D) iron (Fe) cycle. Asterisk denotes significant difference relative to the control group: *P < 0.05, P < 0.01.

Microbial association networks: (A) CK, (B) ISF.

Full text

Introduction

1

The co-contamination of cadmium (Cd) and lead (Pb) presents a particularly severe threat in soils polluted by heavy metals. Characterized by high toxicity, persistence, and bioaccumulation potential, this contamination significantly endangers global agricultural product safety and ecosystem health (Xia et al., 2024; Sun et al., 2022; Wen et al., 2020). Cd and Pb are readily absorbed by crops and enter the food chain, causing irreversible damage to human renal, skeletal, and neurological systems (Tóth et al., 2016; Zhang et al., 2024). Rice serves as a staple food for half of the global population (Zhou et al., 2021). However, insufficient zinc (Zn) biofortification in this crop exacerbates hidden hunger. This deficiency further compromises immune function, while also impeding child growth and development (Wang X. J. et al., 2024). In China, intensified industrial and agricultural activities have led to excessive Cd/Pb levels in some croplands, severely constraining rice yield and nutritional quality enhancement. This has emerged as a critical barrier to sustainable agricultural development and has weakened the market competitiveness of agricultural products (Meng et al., 2019; Chen et al., 2025c).

The technique of in situ chemical immobilization is commonly utilized for the cleanup of soil contaminated with heavy metals, owing to its straightforward operation and economical nature (Li et al., 2014; Liu et al., 2021; Chen et al., 2025b). Traditional immobilizing agents, such as lime, apatite, clay minerals, and biochar, primarily reduce heavy metal bioavailability through adsorption, precipitation, or co-precipitation mechanisms (Li et al., 2025; Wei et al., 2025; Gao et al., 2019). However, single immobilizing agents often demonstrate insufficient efficiency for the simultaneous immobilization of Cd and Pb. Additionally, the long-term stability of immobilization effects is vulnerable to fluctuations in soil conditions, such as pH, organic matter, and redox potential (Lu et al., 2023; Lasisi et al., 2023; Yang et al., 2019). Furthermore, relying solely on soil immobilization inadequately controls heavy metal translocation to crop edible parts, resulting in limited efficacy for ensuring agricultural product safety.

To overcome the aforementioned limitations, a synergistic strategy that combines subterranean immobilization with phytophysiological inhibition in aerial parts shows promising potential. Regarding aerial parts, foliar Zn application effectively antagonizes Cd and Pb uptake and translocation. This occurs through competition for absorption sites and regulation of transporter expression (e.g., ZIP family proteins) (Zhong et al., 2024; Rodrigues et al., 2024). Additionally, it significantly improves crop growth status and enhances grain yield.

For subterranean remediation, iron-based materials have been demonstrated as efficient Cd/Pb immobilizing agents due to their strong adsorption capacity, surface complexation, and ability to induce iron oxide co-precipitate formation (Yin et al., 2017; Zhang et al., 2020; Lyu et al., 2018). Additionally, these materials are notable for their stability, nutrient retention capability, and the high reactivity of their iron constituents (Wan et al., 2022; Wang et al., 2025). Notably, resource-utilized Fe-rich sulfur-containing materials (e.g., modified industrial flue gas desulfurization byproducts) are enriched with reactive iron species such as FeOOH and Fe_3_O_4_ (Luo et al., 2025). These materials exhibit advantages of high specific surface area and low cost (Chen et al., 2025a).

Their application in soil remediation achieves environmental co-benefits through the principle of “using waste to treat contamination,” while providing abundant reactive iron sources. Although the individual effects of foliar Zn application have been studied, the impacts of soil iron-based material amendment have also been examined separately. However, the comprehensive inhibitory effects of their synergy on Cd and Pb migration and accumulation in soil-rice systems remain unclear. The underlying mechanisms behind this synergy are still not fully understood. Crucially, the efficacy and mechanistic role of resource-utilized iron-rich sulfur-containing materials within this synergistic system have yet to be elucidated.

Soil microbial communities serve as key biological indicators for evaluating soil health (Wang F. et al., 2024; Tang et al., 2022). Heavy metal contamination not only directly alters microbial composition and diminishes functional diversity but also hampers critical nutrient cycling and pollutant detoxification processes. Compared to fungi, bacteria show greater sensitivity to heavy metal stress (Rieder and Frey, 2013; Stefanowicz et al., 2010), rendering them as early-warning indicators for responses to remediation efforts. Soil enzyme activities, such as those of phosphatase and peroxidase, quantify the efficiency of microbe-mediated nutrient cycling and detoxification capacity (Siczek and Lipiec, 2016; Wang et al., 2021; Bellotti et al., 2022). Microbial diversity underpins enzyme synthesis, while enzyme activity directly mirrors the intensity of functional output. Together, they unveil soil response mechanisms under contamination stress and the efficacy of remediation measures (Yang et al., 2022).

Based on this, our study systematically evaluates the impacts of foliar Zn application and soil-applied iron-based materials on key processes within the soil-rice system. This evaluation is conducted through integrated pot experiments. These experiments combine chemical analysis with high-throughput sequencing techniques. These processes include: (1) rice physiological responses and the accumulation of Cd, Pb, and Zn in various tissues; (2) the evolution of soil pH and the dynamic changes in Cd and Pb fraction; and (3) the responses of microbial community structure and function, including enzyme activities. This study aims to elucidate the synergistic mechanism of “aboveground Zn blocking and underground Fe-based immobilization,” thereby providing a scientific basis for developing efficient farmland remediation strategies.

Materials and methods

2

Experimental materials

2.1

The paddy soil was sourced from the upper 0–20 cm layer of a rice paddy in Guiyang City, Guizhou Province (27°12′0″N, 107°13′10″E), exhibiting a pH of 7.03 (Supplementary Table 1). The total Cd and Pb contents in the soil were 1.31 and 292.39 mg/kg, respectively, significantly surpassing the agricultural risk screening values stipulated by the National Soil Environmental Quality Standard (GB 15618-2018) (Cd: 0.3 mg/kg, Pb: 120 mg/kg). Based on multi-year field screening results in Kaiyang, the rice cultivar Chuankangyou 6107, known for its high Cd/Pb accumulation characteristics, was selected for pot experiments (Chen et al., 2025c). Amendment materials included: (1) Foliar Zn fertilizer (Zn ≥ 160 g/L) purchased from Qingdao Yasefu Trading Co., Ltd.; (2) The iron-based sulfur-rich material, supplied by Hunan Iron & Steel Group (Changsha) with a pH of 10.7, has been classified as an environmentally friendly material through safety assessment (Feng et al., 2022) and requires sieving through a 0.149-mm mesh prior to use.

Pot experiment design

2.2

This study was conducted from May to October 2022 in the greenhouse of Guizhou Normal University (106°37′E, 26°23′N, altitude 1155.5 m) using a pot experiment. Each pot contained 3 kg of soil sieved through a 2-mm mesh. Soil amendments were uniformly mixed into the soil at a rate of 1% (w/w). Subsequently, the soil surface was flooded to a depth of 3 cm with water and maintained under outdoor flooded conditions for 1 month. Basal fertilizers comprising urea (0.2 g/kg) and ammonium dihydrogen phosphate (0.1 g/kg) were mixed into the soil 1 week before transplanting, with dosages calculated per kg of soil. The seeds underwent surface sterilization using 5% hydrogen peroxide for a duration of 20 min, followed by a thorough rinse with deionized water, and were subsequently arranged on moist filter paper within Petri dishes. Germination was induced by incubation at 28°C in a plant growth chamber (LRH-1000A-GSIE, China) under dark conditions for 48 h. The resulting seedlings were transferred to vermiculite nursery trays and regularly supplied with nutrient solution until reaching the four-leaf stage. Uniform seedlings were selected and transplanted into pots at a density of two hills per pot and three seedlings per hill. Four treatments were established: CK (control), FBA (foliar Zn fertilizer), IBS (iron-based sulfur-enriched material), and ISF (IBS combined with Zn).

During the tillering phase, 1.2 mL of Zn-based foliar fertilizer stock solution was diluted directly to 800 mL. For the heading phase, the volume was doubled to 2.4 mL and diluted to 1,600 mL. Prior to spraying, the soil surface in each pot was tightly covered with plastic film to prevent solution contact. At the tillering stage, 100 mL of the diluted solution was sprayed per pot; at the heading stage, 200 mL was sprayed per pot. Spraying was conducted until fine droplets uniformly covered the leaf surfaces. After natural drying, the plastic film was removed. The CK was synchronously sprayed with an equivalent volume of deionized water. Throughout the experimental period, pot positions were rotated regularly, and the soil was loosened periodically to maintain soil moisture at approximately 70% of the field capacity.

Samples selection and collection

2.3

After cultivating rice for 120 days, the entire plants were harvested, with fresh rhizospheric soil adhering to the roots. A sample of this soil was stored at −80°C in an ultra-low freezer (DW-HL340, China) for the purpose of microbial analysis, while the remainder was air-dried, ground, and sieved for the analysis of physicochemical properties and heavy metal fractions. Productive panicle numbers and grain yields were recorded prior to washing the plants with tap water and rinsing them three times with deionized water. Plant height and root length were measured, and the plants were separated into roots, stems, and leaves. Initially, the tissue samples were deactivated in a drying oven (DZF-6050, China) at 105°C for a duration of 30 min, followed by drying them at 75°C until a constant weight was achieved. Finally, the samples were ground using a grinder (BJ-800A, China). The grains were air-dried and dehulled using a brown rice sheller (JLGJB-45, China) to separate the brown rice from the husks. Both the brown rice and husks were dried at 60°C and ground. Ground samples of brown rice, husks, roots, stems, and leaves were stored separately in zip-lock bags for future chemical analysis.

Experimental methods

2.4

A 10.00 g soil sample was added to a 50 mL beaker and combined with 25 mL of distilled water that was free of CO_2_ (with a soil-to-water ratio of 1:2.5, w/w). The mixture was stirred vigorously for 1 min and then allowed to settle for 30 min. The pH of the resulting supernatant was determined using a pH meter (S210, China). Cd, Pb, and Zn concentrations in soil and rice tissues were quantified by inductively coupled plasma mass spectrometry (ICP-MS, ICAP RQ, United States), following acid digestion. For soil digestion, 0.2000 g of a 100-mesh sieved sample was accurately weighed into a polytetrafluoroethylene (PTFE) crucible, digested on a hotplate with sequential additions of 7 mL HNO_3_, 5 mL HF, and 5 mL HClO_4_ until complete dissolution, cooled, diluted to 50 mL, centrifuged, and the supernatant collected for analysis. Rice plant digestion involved weighing 0.2000 g of powdered sample into a digestion tube, adding 10 mL of HNO_3_-HClO_4_ mixed solution (9:1, v/v), capping and soaking overnight, then heating on a hotplate until the digestate turned colorless or pale yellow, cooling, and diluting to 25 mL with 1% HNO_3_. Bioavailable Cd and Pb in soil were extracted using the DTPA-CaCl_2_-TEA buffer according to Chinese National Standard HJ 804-2016, with extracts analyzed by ICP-MS. Chemical fractions of Cd/Pb in rhizosphere soil was performed using the Tessier five-step sequential extraction procedure (Wang M. et al., 2024; Supplementary Figure 1). Soil enzyme activities were measured according to Kong and Wu (2012): alkaline phosphatase (S-AKP) activity via disodium phenyl phosphate colorimetry; urease (S-UE) activity via indophenol blue colorimetry; dehydrogenase (S-DHA) activity via optimized TTC reduction; catalase (S-CAT) activity via potassium permanganate titration.

Bacterial community profiling

2.5

DNA was isolated from soil microorganisms employing the E.Z.N.A.^®^ Soil DNA Kit (Omega Bio-tek, United States). Subsequent evaluation of DNA quality involved 1% agarose gel electrophoresis, with concentration and purity quantification performed on a NanoDrop 2000 spectrophotometer (Thermo Scientific, United States). Amplification of the 16S rRNA gene V3-V4 region utilized barcoded primers 515F (5′-GTGCCAGCMGCCGCGG-3′) and 907R (5′-CCGTCAATTCMTTTRAGTTT-3′), using total DNA as the template. The resultant PCR amplicons were recovered by 2% agarose gel electrophoresis, cleansed via a DNA Gel Extraction Kit (PCR Clean-Up Kit, China), and precisely measured using a Qubit 4.0 Fluorometer (Thermo Fisher Scientific, United States).

Library preparation was performed with purified amplicons using the NEXTFLEX^®^ Rapid DNA-Seq Kit (Bioo Scientific, United States). Pair-end sequencing was conducted on an Illumina NextSeq 2000 system (Illumina, United States) through Majorbio BioPharm Technology Co., Ltd. (China). Raw paired-end reads underwent quality control via fastp (v0.19.6) (Chen et al., 2018) and were assembled with FLASH (v1.2.11) (Magoč and Salzberg, 2011). After quality filtering, sequences were clustered into operational taxonomic units (OTUs) at 97% sequence similarity followed by chimera removal. To normalize sequencing depth, all samples were rarefied to 20,000 sequences per sample (post-rarefaction Good’s coverage averaging 99.09%). Taxonomic classification of OTUs was executed using the RDP classifier (v2.11) (Wang, 2007) against the SILVA 16S rRNA database (release 138) with a 70% confidence cutoff, and community composition was evaluated across multiple taxonomic ranks.

Alpha diversity indices under rarefied sampling were calculated using mothur (v1.48.0) (Schloss et al., 2009). Community structural similarity was evaluated through Principal Coordinate Analysis (PCoA) employing Bray-Curtis distances, and intergroup divergences were assessed for statistical significance using PERMANOVA with 999 permutations. Sample-species relationships were visualized using Circos. Significantly differential taxa from phylum to order level were identified by LEfSe (LDA > 2, α = 0.05) (Segata et al., 2011). Spearman correlations between environmental factors and phylum-level abundances (|R| > 0.5, P < 0.05) were computed using the Hmisc (v5.2.3) package; correlation networks were constructed via ggraph (v2.2.2) and node importance evaluated by degree centrality. Microbial co-occurrence networks were constructed in Gephi (v0.10.1) employing the Fruchterman-Reingold layout algorithm with correlation thresholds of |R| > 0.8 and P < 0.001, followed by quantification of topological properties and network robustness analysis with ggClusterNet (v2.0). Bacterial functional profiles were ultimately predicted using FAPROTAX.

Computational and statistical approaches

2.6

Data were organized in Microsoft Excel 2021 (Microsoft Corp., United States). Results are expressed as mean ± SD. Statistical comparisons were performed using one-way ANOVA followed by LSD post hoc tests (P < 0.05) in IBM SPSS Statistics 27 (IBM Corp., United States), with distinct lowercase letters designating significant differences in multiple comparisons. Data visualization was conducted with Origin 2022 (OriginLab Corp., United States) and GraphPad Prism 10.4.0 (GraphPad Software, United States).

Results

3

Rice growth and its contents and transfer coefficients of Cd, Pb, and Zn

3.1

Compared with the CK, the rice yield of the FBA, IBS, and ISF treatment groups increased by 12.1–49.6%, the number of productive tillers by 15.1–30.1%, and root length by 3.9–23.7%, with the ISF group showing the most significant increase. Conversely, plant height decreased by 6.36–6.75% (P < 0.05) (Supplementary Figure 2). The concentrations of Cd and Pb in rice grains decreased by 30.8–53.8% and 16.7–54.2% across all treatments, respectively (Figures 1A,B). Both the IBS and ISF groups exhibited Cd and Pb levels below the limits specified in GB 2762-2022. Notably, the ISF treatment increased Zn accumulation in rice grains by 311.8% (Figure 1C).

Concentrations of (A) Cd, (B) Pb, and (C) Zn in rice grain following treatments with FBA, IBS, and ISF. Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

Analysis of element translocation pathways (Supplementary Figure 3) indicated reduced translocation factors (TFs) for Cd and Pb across all treatment groups. These reductions occurred both from roots to stems/leaves and from stems/leaves to grains. All experimental groups (FBA, IBS, ISF) showed lower TFs compared to the CK group. Notably, the Cd TF from stems/leaves to husks increased in the FBA group, whereas it decreased in the IBS and ISF groups. In contrast, the Pb TF from stems/leaves to husks showed an increasing trend in all three treatments. The Zn TF from roots to stems and leaves, as well as from stems and leaves to husks and grains, was significantly higher in the FBA and ISF treatments.

Soil Cd/Pb content and fractions distribution

3.2

Compared with the CK, no significant differences (P > 0.05) were detected in the total Cd/Pb content of soil among the FBA, IBS, and ISF treatment groups (Figures 2A,B). The bioavailable Cd fraction decreased by 12.5–31.2%, and the bioavailable Pb fraction by 0.4–18.5% (Figures 2C,D). Notably, the ISF and IBS groups exhibited significantly greater reductions in bioavailable fractions than the FBA group (P < 0.05). Tessier sequential extraction (Figure 3) revealed that the IBS and ISF treatments resulted in lower levels of exchangeable (EXC) and carbonate-bound (CBC) Cd/Pb fractions, while the Fe/Mn oxide-bound (FMO) Cd fraction increased by 389.1% and Pb by 29.6%, with no significant change in the organic matter-bound (OM) fraction. The residual (RES) Cd fraction increased by 5.3%, whereas the residual Pb fraction showed no significant change.

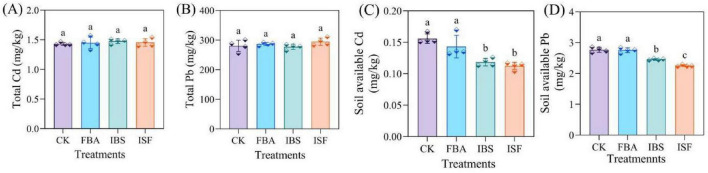

Changes in total (A,B) and available (C,D) fractions of Cd and Pb in soil amended with FBA, IBS, and ISF. Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

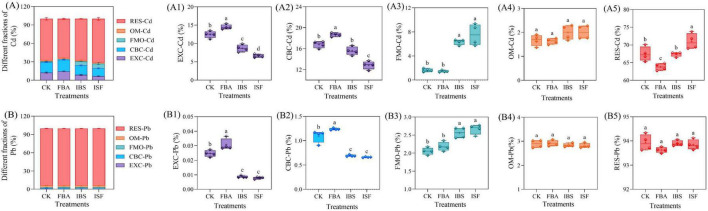

Chemical fractions of (A) Cd and (B) Pb in soils amended with FBA, IBS, and ISF: (A1,B1) EXC: Exchangeable, (A2,B2) CBC: Carbonate-bound, (A3,B3) FMO: Fe/Mn oxide-bound, (A4,B4) OM: Organic matter-bound, (A5,B5) RES: Residual. Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

Soil pH and correlation analysis

3.3

The soil pH in iron-based material treatments (IBS and ISF) increased by 1.3–1.4 units compared to the CK (Figure 4A). Pearson correlation analysis (Figure 4B) demonstrated highly significant negative associations (P ≤ 0.001) between soil pH and DTPA-extractable/EXC-Cd/Pb concentrations, along with significant negative correlations (P ≤ 0.05) for CBC-Cd/Pb. Conversely, soil pH exhibited significant positive correlations (P ≤ 0.05) with FMO-Cd/Pb, OM-Cd, and RES-Cd. Moreover, highly significant positive correlations (P ≤ 0.001) were observed between EXC-Cd/Pb and CBC-Cd/Pb, whereas both EXC and CBC fractions showed significant negative correlations (P ≤ 0.05) with FMO-Cd/Pb, OM-Cd, and RES-Cd. Mantel tests further confirmed that both soil pH and Cd/Pb speciation significantly influenced Cd and Pb accumulation in grains (P ≤ 0.05; R > 0.25), but had no significant effect on grain Zn content.

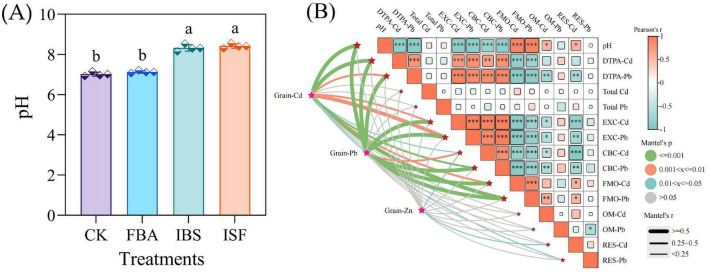

*(A) pH values in amended soils. (B) Interactive Mantel test correlation heatmap: EXC, Exchangeable; CBC, Carbonate-bound; FMO, Fe/Mn oxide-bound; OM, Organic matter-bound; RES, Residual. Revealing interrelationships among grain Cd, Pb, and Zn content, environmental factors: Edge width corresponds to the strength of correlation represented by the absolute value of Mantel’s r (|R|). Color gradient: red signifies positive, blue signifies negative. Pearson significance levels: *P ≤ 0.05, **P ≤ 0.01, **P ≤ 0.001 (n = 16). Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

Soil enzyme activity

3.4

Compared with the CK, the ISF treatment significantly enhanced the activities of soil S-UE, S-AKP, and S-DHA (P < 0.05), with increases of 39.1, 23.%, and 45.8%, respectively. However, it had no significant effect on S-CAT activity (Figure 5). In contrast, the IBS treatment significantly increased S-CAT activity by 10.3%. The FBA treatment significantly reduced S-UE activity by 10.9%, while showing no significant effects on S-AKP, S-DHA, or S-CAT activities. Overall, ISF exhibits a pronounced promoting effect on the activities of S-UE, S-AKP, and S-DHA.

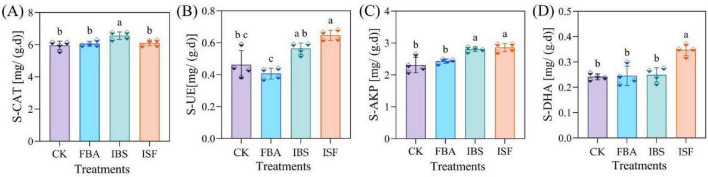

Effects of FBA, IBS, and ISF on the activities of (A) catalase (S-CAT), (B) urease (S-UE), (C) alkaline phosphatase (S-AKP), and (D) dehydrogenase (S-DHA). Distinct letter superscripts denote statistical significance (P < 0.05). Data are expressed as mean ± SD (n = 4).

Impact of ISF treatment on the rhizosphere microbial community

3.5

The read-coverage-based rarefaction curve (Supplementary Figure 4) indicated that the soil bacterial sequencing depth approached saturation at approximately 4,000 sequences. Good’s coverage indices exceeded 0.96 across all samples (Supplementary Table 2). These results demonstrate sufficient sequencing depth to capture the majority of microbial diversity.

Alpha diversity analysis revealed no statistically significant differences (P > 0.05) in Chao1, Shannon, or Simpson indices between the ISF treatment and the CK. At the OTU level, the ISF treatment group displayed a higher total OTU count compared to the control and harbored 187 unique additional OTUs (Figure 6A).

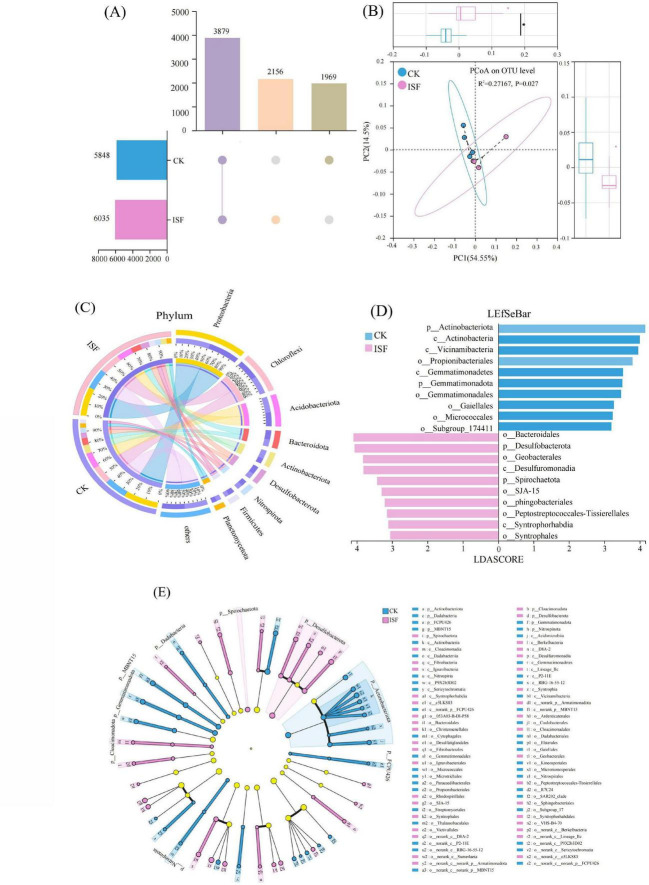

*Effects of ISF on rhizosphere soil bacterial community structure and composition: (A) Intersection analysis of bacterial taxa (Upset plot). (B) Beta diversity (Principal component analysis, PCoA). (C) Taxon abundance distribution (Circos diagram). (D,E) Biomarker identification (LEfSe). Asterisk denotes significant difference relative to the control group: P < 0.05.

Based on beta diversity analysis, further examination was conducted using PCoA and PERMANOVA testing (Figure 6B). The PERMANOVA results revealed an R2 value of 0.27 (P = 0.02). In PCoA, the contribution rates of the principal coordinate (PC) axes 1 and 2 were 54.55 and 14.50%, respectively, which were associated with the compositional distribution of CK and ISF communities.

Analysis of community structure (Figure 6C) indicated significant changes between ISF treatment and CK group. The ISF treatment increased the relative abundances of Desulfobacterota and Nitrospirota phyla. Conversely, it decreased the proportions of Acidobacteriota and Actinobacteriota phyla. Notably, the CK group showed a significantly higher abundance of Actinobacteriota. The LEfSe analysis (Figure 6D) identified Bacteroidales (LDA = 4.09), Desulfobacterota (LDA = 4.06), and Geobacterales (LDA = 3.82) as indicator taxa for the ISF group, whereas the CK group was characterized by Actinobacteriota (LDA = 4.15).

Phylogenetic tracing (Figure 6E) indicated that Desulfobacterota (δ-proteobacteria) enriched in ISF were predominantly distributed within Syntrophorhabdales and Geobacterales orders. In contrast, Actinobacteriota (Actinobacteria) enriched in CK exhibited distinct taxonomic distributions. Co-occurrence network analysis (Figure 7) revealed that Desulfobacterota had positive correlations with FMO-Pb, S-UE, S-AKP, and pH (P < 0.05), but negative correlations with CBC-Cd/Pb and DTPA-Pb (P < 0.05).

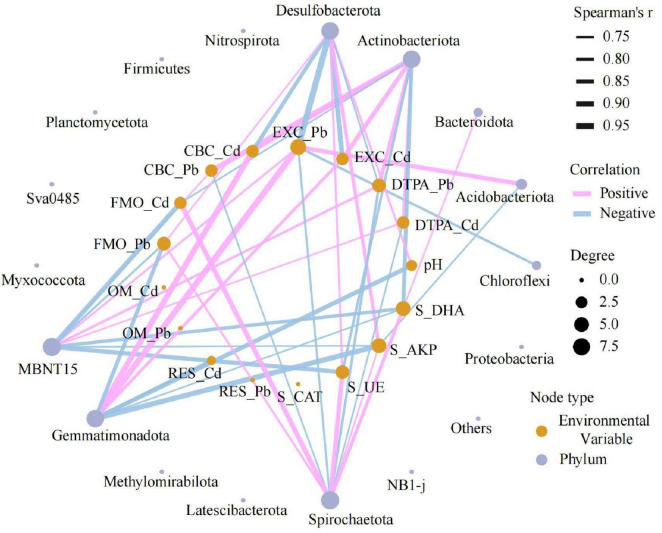

Co-occurrence network between environmental factors and bacterial phylum-level communities.

FAPROTAX and microbial co-occurrence networks

3.6

The ecological functional analysis of soil bacteria, utilizing FAPROTAX (Figure 8), revealed that ISF significantly improved carbon (C) cycling functions (P < 0.05) compared to the CK. This enhancement particularly included fermentation, oxygenic photoautotrophy, and hydrocarbon degradation. Additionally, ISF substantially boosted nitrogen (N) fixation, nitrate reduction, and nitrate respiration within the nitrogen cycle (P < 0.05), and intensified dark oxidation of sulfur compounds, sulfur respiration, and sulfate respiration in the sulfur (S) cycle (P < 0.05). Notably, the stimulation effect on iron respiration within the iron (Fe) cycle was particularly significant (P < 0.01).

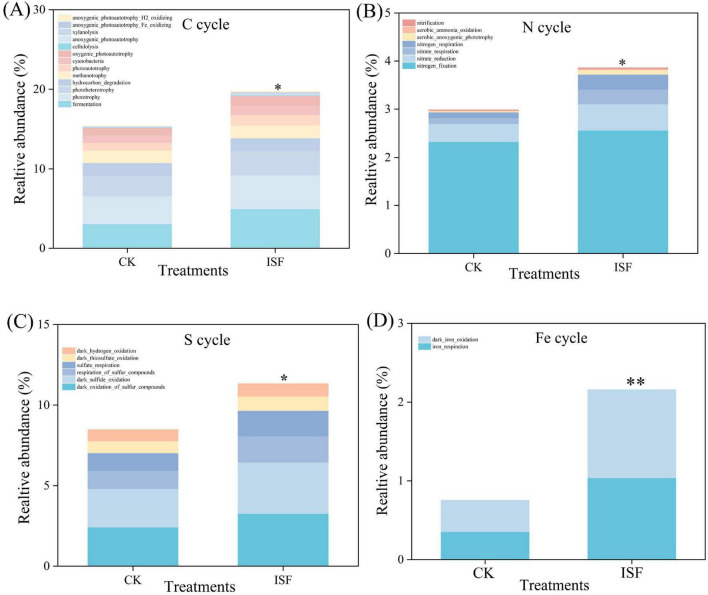

*Variation of the main ecological functions profiles of bacterial communities by FAPROTAX. Relative abundance of (A) carbon (C) cycle, (B) nitrogen (N) cycle, (C) sulfur (S) cycle and (D) iron (Fe) cycle. Asterisk denotes significant difference relative to the control group: *P < 0.05, *P < 0.01.

The analysis of the bacterial association networks revealed that, compared to the CK group (344 nodes, 3751 edges, with 49.77% positive edges), the ISF treatment group showed an increase in the number of nodes, the number of edges, the average degree, and the network density (Supplementary Table 3). Both networks exhibited high modularity (modularity index > 0.85; CK group: 0.899) and a similar composition of dominant bacterial phyla (Figures 9A,B). In the robustness analysis (Supplementary Figure 5), both ISF and CK groups showed identical absolute linear regression slope values of −0.001. However, the coefficient of determination (R^2^) was higher in the ISF group (0.821) than in the CK group (0.021).

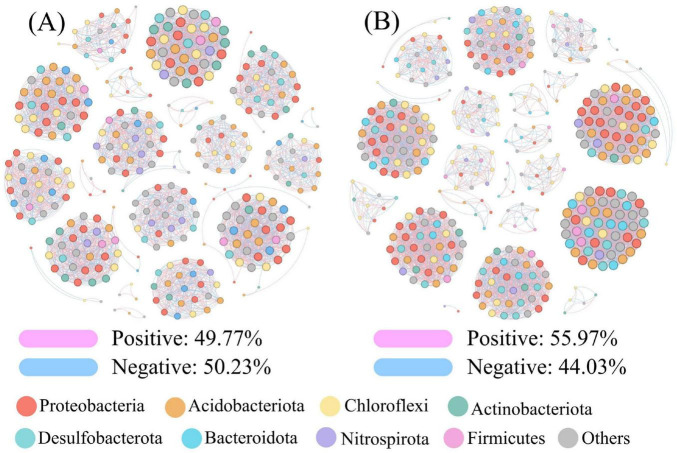

Microbial association networks: (A) CK, (B) ISF.

Discussion

4

ISF drives the transformation of Cd/Pb into stable fractions through pH modulation

4.1

Previous studies (Lan et al., 2020; Umar et al., 2025; Wang F. et al., 2024) indicate that the success criterion for remediating heavy metal-contaminated farmland soil lies in significantly reducing heavy metal content in crops. This remediation must simultaneously maintain or improve crop yield and quality. This study revealed that ISF treatment significantly reduced the concentrations of Cd and Pb in rice grains by 65.3 and 54.2%, respectively (Figures 1A,B), bringing them below the national safety standards. Concurrently, the rice yield increased by 49.6% (Supplementary Figure 2). These effects were achieved through the optimization of soil physicochemical properties, the reshaping of the microbial community, and synergistic regulation via foliar Zn application.

At the soil chemistry level, the high alkalinity of iron-based materials (pH 10.9) elevates soil pH, thereby increasing the negative charge density in the soil matrix. This enhances the adsorption capacity for Cd^2+^ and Pb^2+^, while facilitating the formation of insoluble precipitates such as Fe/Mn oxides with these heavy metal ions (Luo et al., 2025; Chen et al., 2025a,d). Pearson correlation analysis confirmed a significant positive correlation (P ≤ 0.05) between elevated pH and Fe/Mn oxide-bound Cd fractions, verifying that pH-driven speciation transformation constitutes the core mechanism of Cd passivation (Yang et al., 2023; Zhou et al., 2024). This likely explains the 389.1% increase in Fe/Mn oxide-bound Cd and the 5.3% rise in residual Cd fractions. However, the Fe/Mn oxide-bound Pb fraction increased by only 29.6%, potentially due to competitive inhibition from soil organic matter (Wang S. et al., 2024). With no significant conversion to residual fractions, the passivation efficiency for Pb remained lower than for Cd, revealing differential immobilization mechanisms for Cd and Pb by the material.

ISF optimize the structure and function of bacterial communities

4.2

At the microbiological level, we further found that the ISF treatment effectively restructured the soil microbial community through targeted reconstruction, facilitating efficient bio-immobilization of Cd and Pb. Although the alpha diversity indices showed no significant differences (Supplementary Table 2), the ISF group contained 187 unique OTUs at the operational taxonomic unit level. Simultaneously, significantly divergent beta diversity was observed (R^2^ = 0.27, P = 0.02). These findings collectively demonstrated the successful restructuring of the microbial community composition (Figures 6A,B). Analysis of the community structure (Figures 6C–E) revealed specific enrichment of Desulfobacterota (implicated in heavy metal transformation) and Nitrospirota (involved in nitrogen cycling) (Bell et al., 2022; Zhang et al., 2025; Zhao et al., 2025). This enrichment was concurrent with significant suppression of Actinobacteriota (indicator taxa for low-disturbance environments) and Acidobacteriota (acid-sensitive phyla) (Das et al., 2021; Mitra et al., 2022). This shift signifies targeted selection of functional microbiota endowed with heavy metal resistance. Specifically, the abundance of Desulfobacterota exhibited a significantly negative correlation with DTPA-extractable Cd/Pb levels (Figure 7). This confirms its role in reducing SO4^2–^ to S^2–^/HS^–^ via the sulfate respiration pathway. Thereby, it generates CdS and PbS precipitates for heavy metal immobilization (Bell et al., 2022; Dyksma and Pester, 2024). Concurrently, this process activated the soil enzyme system (S-UE, S-AKP, S-DHA), significantly enhancing organic matter metabolic efficiency (Cui et al., 2017; Jat et al., 2020). Furthermore, ISF treatment substantially enhanced iron respiration (P < 0.01). The Fe(III) reduction to Fe(II) mediated by iron-reducing bacteria facilitated heavy metal coprecipitation (Liu et al., 2025; Shang et al., 2024), establishing a “sulfide-hydroxide dual immobilization barrier” (Sun et al., 2025).

Notably, microbial interaction network reconstruction further enhanced remediation sustainability (Figure 9). ISF treatment augmented network complexity and functional synchronicity (Huang et al., 2024). This established modular architectures with resilient buffering capacity (Fan et al., 2018). The coefficient of determination (R^2^) increased dramatically to 0.821, representing a 40-fold rise over the control (R^2^ = 0.021). Such optimization enabled microbial communities to maintain niche differentiation. Concurrently, it substantially strengthened system resilience against disturbances (Chen et al., 2024). These effects collectively provide critical micro-ecological assurance for sustained heavy metal immobilization.

ISF inhibits Cd and Pb transport to rice grains through synergistic regulation

4.3

At the plant translocation level, foliar application of Zn was performed. This reduced specific translocation factors for Cd and Pb in rice plants (Supplementary Figure 3). The reduction occurred to varying degrees. Ultimately, Cd and Pb accumulation in rice grains decreased. Cd^2+^ and Zn^2+^ have similar outer electron configurations. This similarity confers analogous chemical properties (Cao et al., 2024). When rice roots absorb metal ions from soil, an antagonistic relationship exists between Zn^2+^ and Cd^2+^ within rice plants. Increased Zn^2+^ levels may reduce binding sites of transmembrane transporters in roots (Wu et al., 2024). Consequently, this inhibits Cd^2+^ translocation to grains. Additionally, foliar Zn application may partially suppress transpiration. This consequently influences Cd absorption, translocation, and redistribution in rice (Rizwan et al., 2019). As an essential cofactor for key enzymes, Zn enhances photosynthetic efficiency and stress resistance (Jiang et al., 2023; Gao et al., 2025; Guo et al., 2024). Simultaneously, sulfur metabolism co-regulates Zn transporter expression (Dai et al., 2025), driving a 311.8% increase in Zn accumulation in rice grains (Figure 1C). These synergistic mechanisms collectively elucidate the superior remediation efficacy of ISF over IBS/FBA, providing an innovative and efficient solution for safe utilization of contaminated farmland.

Conclusion

5

This study found that the iron-based, sulfur-rich material combined with foliar Zn fertilizer (ISF) demonstrates significant synergistic benefits in remediating heavy metal contamination in paddy soils. Specifically, the ISF treatment increased rice biomass by 49.6%, while simultaneously reducing Cd and Pb concentrations in grains by 53.8 and 54.2%, respectively (both below national safety thresholds), and enhancing Zn accumulation by 311.8%. Concurrently, the bioavailable fractions of Cd and Pb in the soil decreased by 31.2 and 18.5%, respectively, whereas the Fe/Mn oxide-bound species increased by 389.1% (for Cd) and 29.6% (for Pb), with residual Cd showing a 5.3% increase. Notably, soil pH increased by 1.4 units, which was negatively correlated with heavy metal bioavailability, serving as a key immobilization mechanism. ISF also significantly improved the activities of critical enzymes (e.g., urease), increased total microbial OTU richness and 187 unique OTUs, while enriching key functional taxa including Desulfobacteriota, Nitrospirota, and Geobacterales. These changes promoted nitrogen fixation, sulfate/iron respiration and reinforced the stability of microbial interaction networks.

Future studies will clarify how the application of Zn to foliage enhances the efficacy of chelating Cd and Pb by recruiting Zn-adapted microbiota through the regulation of root exudates, while also examining their interactions with iron and sulfur-cycling microbial communities to promote the transformation into more stable, residual-like fractions with reduced bioavailability. It is important to note that these findings are based on short-term trials. The long-term remediation efficacy and potential ecotoxicological risks of the iron-based, sulfur-rich material (industrial solid waste) need to be validated through field trials.
