Regulation of tension-dependent localization of LATS1 and LATS2 to adherens junctions
Chamika De Silva, Brian A. Kelch, Dannel McCollum
TL;DR
This paper explains how mechanical strain regulates the localization of LATS1 and LATS2 proteins to cell junctions through interactions with LIMD1.
Contribution
The study identifies a bipartite mechanism involving LIM domains and an N-terminal region for LATS1/2 recruitment to adherens junctions.
Findings
LIMD1 recruits LATS1/2 to adherens junctions via LIM domains and an N-terminal IDR.
The LATS-LATCH motif is essential for LIMD1 binding and strain-dependent recruitment of LATS1/2.
Mutations in LATS2-LATCH disrupt its binding to LIMD1 and localization to junctions.
Abstract
The LIM domain protein LIMD1 is a critical regulator of the Hippo signaling pathway, acting to sequester the kinases LATS1/2 to adherens junctions (AJs) in response to mechanical strain. Here, we identify the molecular basis for LIMD1 binding and recruitment of LATS1/2 to AJs. We show that while the LIM domains of LIMD1 are sufficient for AJ localization and binding to LATS1/2, recruitment of LATS1 to AJ requires both the intrinsically disordered region (IDR) in the N-terminus as well as the LIM domains. We further dissected the LIM domains and found that LIM1 and LIM2, but not LIM3, are necessary for LATS1 AJ localization. Point mutations that disrupt strain sensitivity in either the first or second LIM domain disrupt both binding and recruitment of LATS1/2 to AJs. Mechanistically, LIMD1 binds LATS1/2 through a conserved linear motif, the LATS-LATCH, which we identified by AlphaFold…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5- —http://dx.doi.org/10.13039/100000002National Institutes of Health
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHippo pathway signaling and YAP/TAZ · Cellular Mechanics and Interactions · Wnt/β-catenin signaling in development and cancer
Introduction
The Hippo pathway kinases LATS1/2 regulate the transcriptional co-activator YAP to control cell density dependent inhibition of growth, cell proliferation, apoptosis, stem cell maintenance, and differentiation [1,2]. A major function of LATS1/2 is to control cellular responses to mechanical forces experienced by cells such as changes in cell density, substrate stiffness, shear stress, and tension [3]. Pioneering work in Drosophila [4] and subsequent studies in mammalian epithelial cells showed that mechanical strain at adherens junctions (AJs) inhibits LATS1/2 by sequestering it at AJs[5, 6]. Integral to this regulation is a conserved family of LIM domain proteins related to the Drosophila protein JUB that play a central role in strain dependent LATS1/2 regulation [5,6]. LIMD1, the mammalian homolog of the Drosophila JUB protein, is essential for strain-dependent regulation of LATS1/2 [5,7]. In response to mechanical strain LIMD1 localizes to AJs and recruits LATS1/2. The details of how LIMD1 is recruited to AJs by mechanical strain and stimulated to bind LATS1/2 are poorly understood. Recent work revealed that a subfamily of LIM domain proteins (including LIMD1) recognize strain at AJs [8–10]. The LIM domains of these proteins bind F-actin filaments only when the filament is subjected to mechanical strain, raising the possibility that they could act as tension sensors. In addition, we previously showed that LIMD1 needs to be able to bind strained F-actin in order to associate with LATS1 [7]. This suggests that binding to strained F-actin somehow stimulates binding to LATS1/2. A key question is how does LIMD1 binding to F-actin under strain trigger binding to and recruitment of LATS1/2 to AJs. Little is known about how LIMD1 binds to LATS1/2. Therefore, we investigated how LIMD1 interacts with LATS1/2. Through a combination of computational modeling, biochemical, and cell biological experiments we show that the first two LIM domains of LIMD1 bind to a conserved region of LATS1/2 that we call the LATCH. Surprisingly we also find that the non-conserved intrinsically disordered region (IDR) of LIMD1 is required for recruitment of LATS1 to AJs even though it does not directly bind LATS1/2. Together these results suggest possible models for how LIMD1 recruits LATS1/2 to AJs in response to mechanical strain.
Materials and methods
Cell culture
Human embryonic kidney cell lines, HEK293, HEK293A and HEK293T were grown in Dulbecco’s Modified Eagle medium (DMEM) (Gibco) supplemented with 10% (v/v) fetal bovine serum (FBS) (Gibco) and 1% (v/v) penicillin/streptomycin (Invitrogen). MCF10A human mammary epithelial cells were cultured in Dulbecco’s Modified Eagle Medium/Nutrient Mixture F-12 (DMEM/F12) (Gibco) supplemented with 5% (v/v) horse serum, 20 ng/mL epidermal growth factor (PeproTech), 0.5 ug/mL hydrocortisone (Sigma), 100 ng/mL cholera toxin (Sigma), 10 ug/mL insulin (Sigma) and 1% (v/v) penicillin/streptomycin (Invitrogen). All cell lines were cultured in a humidified incubator at 37°C with 5% CO_2_. For immunostaining and live cell imaging cells were grown on either 18 mm round cover glasses or µ-Slide 2 well glass bottom chambered coverslips (Ibidi USA), respectively, coated with 0.6 mg/mL collagen (collagen I, rat tail, Gibco) in 20 mM acetic acid solution as previously reported [11].
Plasmids and molecular cloning
The psPAX2 and pMD2.G plasmids for lentiviral production were a gift from Didier Trono (Addgene plasmid # 12260 and Addgene plasmid # 12259). Lentiviral vector pLJM1-EGFP containing a puromycin resistance gene was used to generate stable cell lines expressing various GFP-fusion proteins. pLJM1-EGFP was a gift from David Sabatini (Addgene plasmid # 19319) [12]. Vectors pIC113 and pcDNA3.1(+) (Invitrogen) were used to produce constructs used for transient expression in HEK293 derived cell lines. The pIC113 plasmid was a gift from Iain Cheeseman & Arshad Desai (Addgene plasmid # 44434) [13].
All plasmid constructs used in this study were constructed using the Gibson assembly strategy. Linear DNA fragments encoding genes of interest and vectors with overlapping ends were PCR amplified using Herculase II Fusion DNA Polymerases (Agilent). PCR amplified genes were cloned into appropriate vectors according to the Gibson Assembly Master Mix (New England Biolabs) protocol. Synthetic DNA encoding LATS2-LATCH-4mut was purchased from Twist Bioscience. Lentiviral plasmid constructs were transformed and maintained in NEB Stable Competent E. coli (High Efficiency) (New England Biolabs, C3040H). All other plasmids were transformed and maintained in NEB 5-alpha Competent E. coli (High Efficiency) (New England Biolabs, C2987H). All constructs were confirmed by sequencing.
Lentivirus production and generation of stable cell lines
Lentiviral pLJM1-EGFP constructs, lentiviral packaging plasmid (psPAX2), and the envelop plasmid (PMD2.G) were mixed in a 2:2:1 ratio and transfected into HEK293T cells according to the Effectene Transfection Reagent (QIAGEN) protocol. After 24 hours of transfection, the lentiviral packaging mix was replaced with complete DMEM. The following day the lentivirus containing supernatants were collected and filtered using a 0.45 um pore size filter. MCF10A LIMD1 knockout (LIMD1-KO) cells grown to about 70% confluency were infected with lentiviral supernatant containing 10 mg/mL polybrene in complete DMEM/F12 media for 24 hours. The following day, the media was replaced with complete DMEM/F12 media and incubated until the cell culture reached 90–95% confluency. Transduced cells were selected by passaging in DMEM/F12 media supplemented with 1 ug/mL puromycin (Gibco).
Cell transfection, co-immunoprecipitation, and Western blotting
HEK293 or HEK293A cells were transiently transfected for 6 hours using Lipofectamine 2000 Transfection Reagent (Invitrogen) in Opti-MEM (Gibco) media in 6-well tissue culture treated polystyrene plates (CytoOne). Equal amounts of plasmid DNA encoding bait proteins or prey proteins (interacting protein) were transfected into separate wells. Following the 6-hour transfection, media was replaced with complete DMEM media and incubated for 48 hours. Cells were then lysed in immunoprecipitation buffer (10% (v/v) glycerol, 20 mM Tris-HCl, pH = 7, 137 mM NaCl, 2 mM EDTA, 1% (v/v) NP-40) supplemented with 1x protease inhibitor cocktail (Sigma-Aldrich), 1 mM phenylmethylsulfonyl fluoride (PMSF), 1 mM sodium orthovanadate and 10 mM sodium fluoride and incubated on ice for 10 minutes. Crude cell lysates were cleared by centrifugation at 15,000 x g at 4°C for 10 minutes and 10% volume from each lysate was saved for input samples. From this point onwards all the remaining steps were performed in a cold room at 4°C. Cleared cell lysates containing bait protein or prey protein were combined in a 2:1 volume ratio and incubated at 4°C with gentle shaking for 1 hour to allow protein-protein interaction to take place. Combined lysates were then pre-cleared using 50 uL of magnetic Dynabeads Protein G beads (Invitrogen). Immunoprecipitation was carried out using 1 ug of rabbit anti-LIMD1 (Novus biologicals, NBP2–56448), mouse anti-Myc (Cell Signaling, 2276) or mouse anti-FLAG antibody (Sigma-Aldrich, F1804) coupled to 50 uL of Dynabeads at 4°C with gentle shaking for 1 hour. Appropriate isotype control antibodies coupled to Dynabeads were used as controls. Immune complexes were separated using a magnetic rack and washed with immunoprecipitation buffer and resuspended in 50 uL of 1 x Laemmli SDS-sample buffer. Both the input and immunoprecipitated fractions were separated by 10% (w/v) SDS-PAGE followed by Western transfer to a nitrocellulose membrane. Membranes were blocked in 5% (w/v) non-fat dry milk dissolved in 0.1% (v/v) Tris-buffered saline with Tween 20 (TBST) and incubated overnight at 4°C with primary antibodies (rabbit anti-LATS1 (1:500, Cell Signaling, 3477S), rabbit anti-LATS2 (1:500, Cell Signaling, 5888S), rabbit anti-LIMD1 (1:500, Novus biologicals, NBP2–56448), mouse anti-V5 (1:1000, Cell Signaling, 80076S) or chicken anti-GFP (1:1000, Abcam, ab 13970)). Secondary antibody incubation was done at room temperature for 1 hour using horseradish peroxidase (HRP) conjugated goat anti-mouse, goat-anti-rabbit (Bio-Rad) or goat anti-chicken (Novus biologicals, NB7608) antibodies diluted at 1: 2000. Nitrocellulose membranes were developed using chemiluminescent substrate Clarity Western ECL Blotting Substrate (Bio-Rad) and imaged using Amersham ImageQuant 800 Western blot imaging system (Cytiva). Images were processed, quantified and assembled using the ImageJ/Fiji software [14].
Fixed-cell immunofluorescence
MCF10A cells were cultured on glass coverslips coated with 0.6 mg/mL collagen and grown to 70% confluence. Note that 70% confluence was used as our standard high tension state because at that density cells have well-formed AJs and display localization of mechanical strain sensitive proteins such as vinculin, TRIP6, and LIMD1 at AJs. Under these conditions, the localization of the strain sensitive proteins to AJs is lost when tension is disrupted by treatment with the myosin inhibitor blebbistatin [6,7]. Cells were fixed with 4% (v/v) paraformaldehyde in UB (UB; 150 mM NaCl, 50 mM Tris pH 7.4) for 10 minutes and permeabilized with 0.5% (v/v) Triton X-100 in UB for 5 minutes at room temperature, then washed three times in UB. Cells were then blocked with 10% (w/v) BSA (Sigma) in UB for 1 hour at room temperature and incubated overnight at 4°C with primary antibody (mouse anti-TRIP6 (1:1000, Santa Cruz, sc-365122), rabbit anti-LATS1 (1:500, Cell Signaling, 3477), rabbit anti-LIMD1 (1: 500, Novus biologicals, NBP2−56448), rabbit anti-alpha-E-Catenin (1: 500, Cell Signaling, 3236) and rabbit anti-E-Cadherin (1: 1000, Cell Signaling, 3195)). Cells were then washed three times and incubated with goat anti-rabbit and goat anti-mouse secondary antibodies conjugated to Alexa Flour 488 or 568 diluted at 1:1000 (Invitrogen) for 1 hour at room temperature. Following incubation with secondary antibodies the cells were washed three times. Coverslips were then mounted onto glass slides using Prolong Gold Antifade reagent containing the nuclear stain 4′,6-diamidino-2-phenylindole (DAPI) (Invitrogen) and left to cure at room temperature overnight. Images were acquired using NIS-Elements-BR software on a Nikon Eclipse Ni-E upright fluorescence microscope using a Plan Apo λ 60x/1.40 oil objective. Images were processed, quantified and assembled using ImageJ/Fiji software [14].
Live cell imaging
LIMD1-KO MCF10A cells stably expressing EGFP-tagged proteins were cultured in µ-Slide 2 well glass bottom chambered coverslips (Ibidi USA) coated with 0.6 mg/mL collagen. When cells were about 70% confluent, the GFP signal was observed and images were captured using an EVOS M7000 Imaging System (Thermo Fisher Scientific) equipped with an onstage incubator to maintain standard cell culture conditions (37°C with 5% CO_2_ and humidity). Images were acquired with the EVOS M7000 Imaging System software using an Olympus UPlanXApo 40x/0.95 objective. Images were processed and assembled using ImageJ/Fiji software [14].
Drug treatments
MCF10A cells were cultured in collagen coated µ-Slide 2 well glass bottom chambered coverslips. To inhibit tension, cells were treated with DMEM/F12 media supplemented with 25 uM blebbistatin dissolved in dimethyl sulfoxide (DMSO) for 2 hours. As a negative control, cells were treated with DMEM/F12 media supplemented with DMSO. Following drug treatment, cells were imaged using the EVOS M7000 Imaging System.
Quantification of LATS1 junction to cytoplasm ratio
An in-house macro was developed using ImageJ/Fiji [14] to batch process merged multi-channel images and quantify mean intensities of the LATS1 junction to cytoplasm ratio. Images (16-bit) stained for TRIP6 were used to generate junctional masks by first performing background subtraction, followed by a bandpass filter to enhance junctional structures. The processed images were then converted to 8-bit and thresholded using the Intermodes auto threshold algorithm to produce binary junctional masks. Nuclei masks were generated using DAPI images with the auto threshold algorithm Yen. To measure the LATS1 cytoplasm signal, the junctional and nuclear regions were first removed from the LATS1 image using their respective binary masks. Then cytoplasm was segmented using the auto local threshold algorithm Phansalkar. Mean LATS1 intensity within junctions and cytoplasm was measured on the LATS1 (16-bit) images and the junction to cytoplasm ratio was calculated for each image.
Statistical analysis
Statistical analyses and graphical representations were generated using GraphPad Prism version 10.5.0. Normality and lognormality of each dataset were assessed using the Shapiro–Wilk test. Comparisons between control and experimental groups were performed using ordinary one-way analysis of variance (ANOVA).
Results
LIMD1-LATS1/2 binding is mediated by the LIMD1 LIM domains, but both the LIM domains and IDR region are required to recruit LATS1 to adherens junctions
LIMD1 is required to recruit LATS1 to AJs [5,7]. We investigated how LIMD1 binds and recruits LATS1/2 to AJs in response to mechanical strain. We first tested which regions of LIMD1 and LATS1/2 bind to each other. Although we expect that binding between LIMD1 and LATS1/2 in cells is stimulated by LIMD1 binding to strained F-actin, binding can still be observed in immunoprecipitation experiments with overexpressed protein that lack strained F-actin [15], perhaps because elevated protein levels allow a fraction of LIMD1 to occasionally achieve the conformation for binding that is enhanced by strained F-actin. In vitro binding experiments showed that both LATS1 and LATS2 bound the carboxy-terminal (aa 468–676) but not the amino-terminal (aa 1–467) region of LIMD1 (Fig 1A-C), which is consistent with previous studies showing that LIMD1 related proteins (Ajuba, Zyxin, and TRIP6) bind LATS2 through their 3 tandem LIM domains [6,15–17] and that the first two LIM domains of LIMD1 are required for it to bind and inhibit LATS1/2 [15]. To test whether the LIM domains are sufficient to recruit LATS1 to AJs, we used LIMD1 knockout (LIMD1-KO) MCF10A cells [7] (S2 Fig) to map domains of LIMD1 required for localization and recruitment of LATS1 to AJs. (Note that because endogenous LATS2 is very difficult to detect, all studies involving endogenous proteins focused on LATS1.) For this analysis various LIMD1 deletion mutants were stably expressed in previously described [7] LIMD1-KO cells and assessed for their ability to localize to AJs and to restore localization of endogenous LATS1 to AJs. TRIP6 was used as a marker for AJs (S2 Fig) [7,18]. We first examined the LATS1/2 binding carboxy-terminal LIM domain-containing region (aa 468–676) and the amino-terminal region (aa 1–467) described above. As we showed previously [7], LIMD1-(468–676), but not LIMD1-(1–467), can localize to AJs (Fig 1E) (Note that localization of all GFP fusions to LIMD1 (Figs 1–3) (and LATS1/2 (Figs 4, 5)) was determined using imaging of live cells since GFP fluorescence did not survive fixation and staining procedures.). Interestingly, both LIMD1-(1–467) and LIMD1-(468–676) are not sufficient for localization of LATS1 to AJs (Fig 1D, F). The carboxy-terminal LIM domains (aa 468–676) are presumably required because they bind LATS1/2 (Fig 1B-C). Why the amino-terminus is required is unclear. The poorly conserved amino-terminus is predicted by AlphaFold to be disordered except for 2 helical regions in the first 68 amino acids. To test whether the helical region in the LIMD1 amino-terminus is important, we deleted the first 94 amino acids, which contains the predicted helical region. This mutant still localized to AJs and was capable of recruiting LATS1 (Fig 1D-F) indicating that the intrinsically disordered region of the LIMD1 amino-terminus is critical for LATS1 recruitment to AJs.

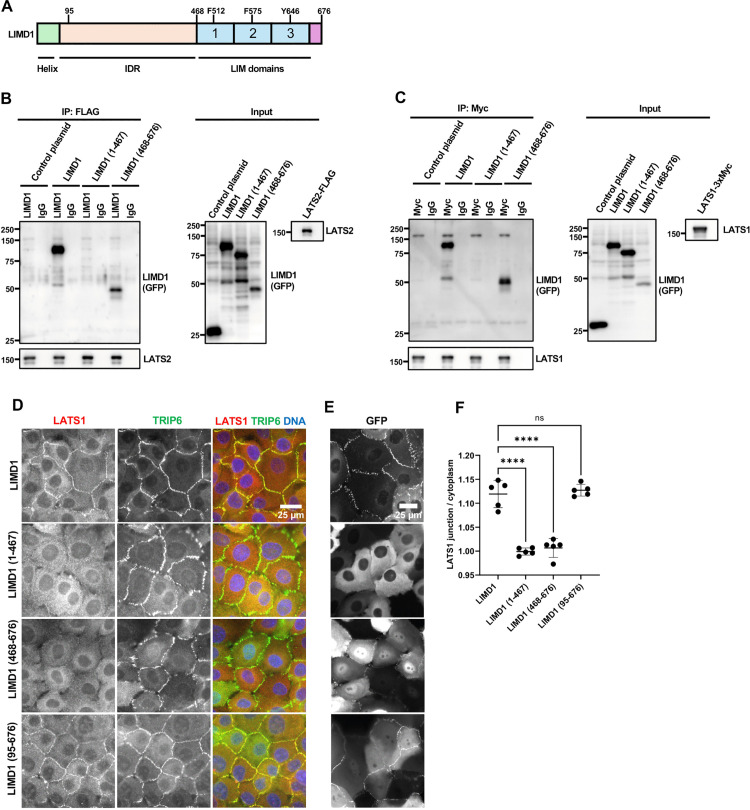

*Role of LIM domain and IDR regions of LIMD1 in binding to LATS1/2 and recruiting LATS1 to adherens junctions.(A) Schematic diagram of LIMD1 protein, with amino terminal helical region (Helix), intrinsically disordered region (IDR), and LIM domains (1, 2, and 3) indicated. Conserved residues required for binding to strained F-actin (F512, F575 and Y646) are indicated on their respective LIM domains. (B-C) The ability of LIM domain and IDR regions of LIMD1 to bind with LATS1/2 were tested by co-immunoprecipitation. (B) LATS2 was tested for binding to full-length (LIMD1), the amino-terminal half (1-467), or the carboxy-terminal half (468-676) of LIMD1 by co-immunoprecipitation. GFP (Control plasmid) was used as a control. GFP, GFP-LIMD1 variants, and LATS2-FLAG were separately transfected in HEK293A cells. HEK293A cell lysates transfected with GFP/GFP-LIMD1 variants were combined with LATS2-FLAG lysates. Anti-FLAG or control (IgG) antibodies were used to isolate immune complexes. Immune complexes and lysates were probed by Western blotting for GFP/GFP-LIMD1 variants (GFP) and LATS2-FLAG (LATS2). (C) LATS1 was tested for binding to full-length (LIMD1), the amino-terminal half (1-467), or the carboxy-terminal half (468-676) of LIMD1 by co-immunoprecipitation. GFP (Control plasmid) was used as a control. GFP, GFP-LIMD1 variants, and LATS1-3xMyc were separately transfected in HEK293A cells. HEK293A cell lysates transfected with GFP/GFP-LIMD1 variants were combined with LATS1-3xMyc lysates. Anti-Myc or control (IgG) antibodies were used to isolate immune complexes. Immune complexes and lysates were probed by Western blotting for GFP/GFP-LIMD1 variants (GFP) and LATS1-3Myc (LATS1). (D-E) LIMD1 knockout (LIMD1-KO) MCF10A cells stably expressing GFP tagged wild-type LIMD1 and LIMD1 variants were established by lentiviral transduction and imaged using fixed and live-cell imaging. (D) The indicated cell lines were stained using anti-LATS1 and anti-TRIP6 antibodies. Merged images show LATS1 (red), TRIP6 (green) and DNA (blue). (E) The GFP-LIMD1 fusion expressing cell lines from part (D) were imaged live for GFP fluorescence. (F) Quantification of the LATS1 junction to cytoplasm mean intensity ratio for cells in (D). Error bars represent the standard deviation. ANOVA statistical comparisons between wild-type LIMD1 and LIMD1 variants are indicated above the plot (mean ± SD; n = 5; ***P < 0.0001, ns non-significant).

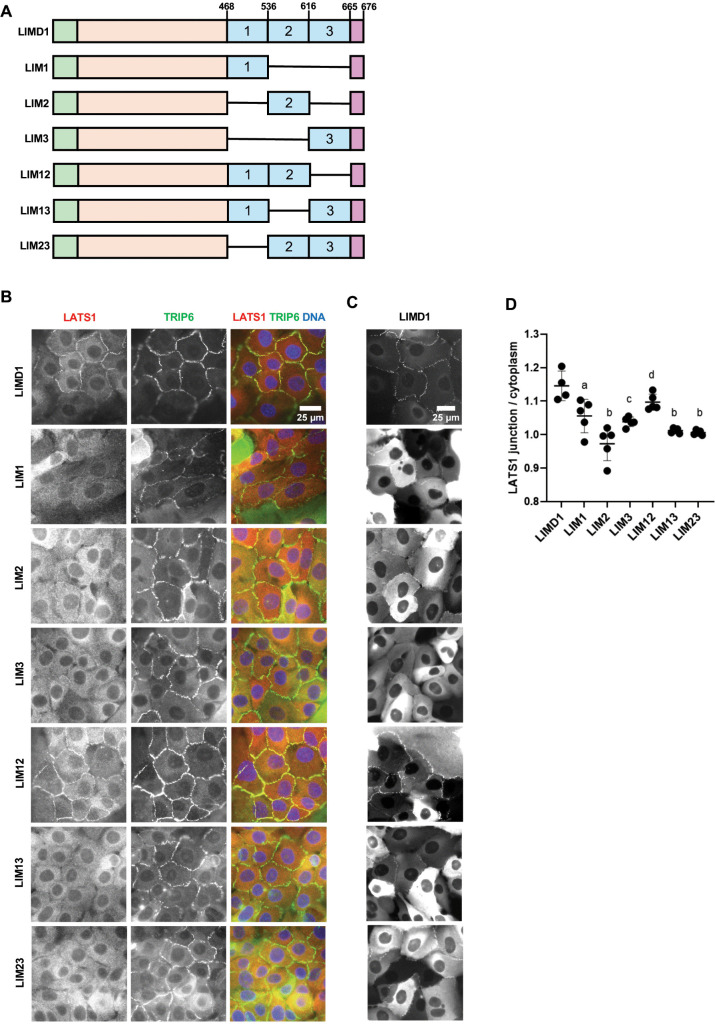

*Localization of LIM domain deletion variants of LIMD1 and their ability to recruit LATS1 to adherens junctions.(A) Schematic diagrams of the different LIM domain deletion variants of LIMD1 used. Each LIM domain is designated by a number (1, 2, or 3). Single horizontal lines denote regions deleted. (B-C) LIMD1 knockout MCF10A cells stably expressing GFP tagged LIMD1 deletion mutants shown in (A) were established by lentiviral transduction and imaged using fixed and live-cell imaging. (B) The indicated cell lines were stained using anti-LATS1 and anti-TRIP6 antibodies. Merged images show LATS1 (red), TRIP6 (green) and DNA (blue). (C) The indicated cell lines from part (B) were imaged live for GFP fluorescence. (D) Quantification of the LATS1 junction to cytoplasm mean intensity ratio. Error bars represent the standard deviation. ANOVA statistical comparisons between wild-type LIMD1 and LIM domain deletion variants of LIMD1 are indicated above the plot using different letters (mean ± SD; n ≥ 4; **P = 0.01 (a), ***P = 0.001 (c), ***P < 0.0001 (b), ns non-significant (d)).

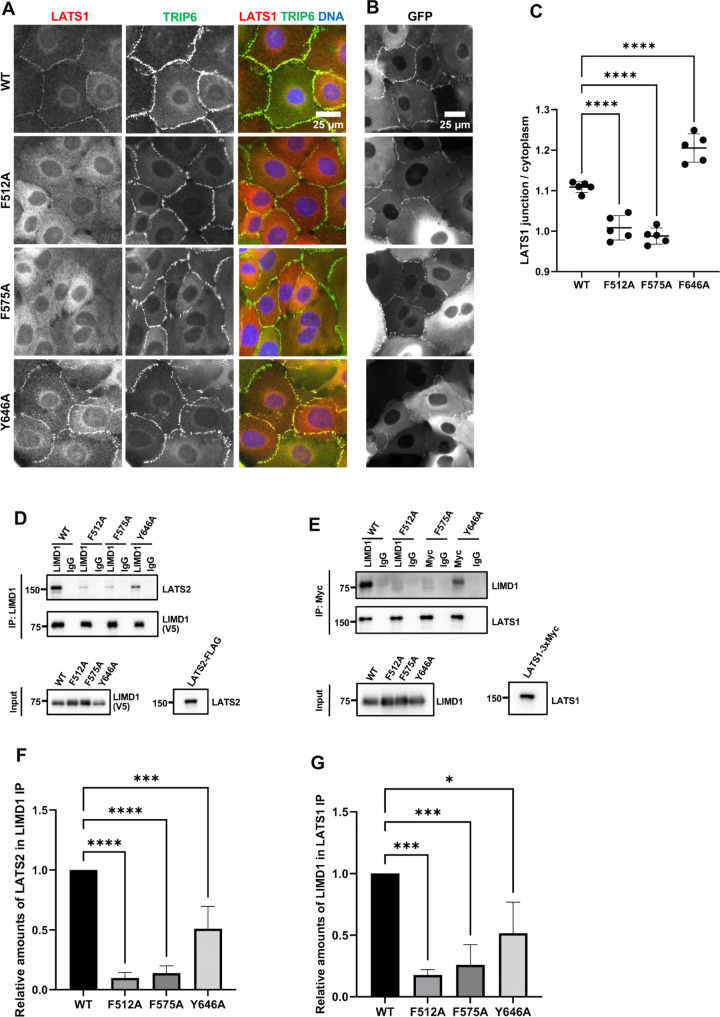

*Effect of mechanical strain insensitive LIMD1 mutants on LATS1 recruitment to adherens junctions and LATS1/2 binding.(A-B) LIMD1-KO MCF10A cells stably expressing GFP tagged wild-type LIMD1 (WT) or LIMD1 strain insensitive mutants (F512A, F575A, and Y646A, see also Fig 1A.) were established by lentiviral transduction and imaged using fixed and live-cell imaging. (A) The indicated cell lines were stained using anti-LATS1 and anti-TRIP6 antibodies. Merged images show LATS1 (red), TRIP6 (green) and DNA (blue). (B) The indicated cell lines from part (A) were imaged live for GFP fluorescence. (C) Quantification of the LATS1 junction to cytoplasm mean intensity ratio. Error bars represent the standard deviation. ANOVA statistical comparisons between wild-type LIMD1 and mechanical strain insensitive LIMD1 mutants are indicated above the plot (mean ± SD; n = 5; ****P < 0.0001). (D-E) LATS1/2 were tested for their ability to bind to strain insensitive mutants of LIMD1 by co-immunoprecipitation. (D) LATS2 was tested for its ability to bind to wild-type (WT) and mechanical strain insensitive mutants (F512A, F575A or Y646A) of LIMD1 by co-immunoprecipitation. V5-tagged WT and mutants of LIMD1 and LATS2-FLAG were separately transfected in HEK293A cells. HEK293A lysates from cells transfected with V5-tagged WT and mutants of LIMD1 were combined with LATS2-FLAG lysates. Anti-LIMD1 or control (IgG) antibodies were used to isolate immune complexes. Immune complexes and lysates were probed by Western blotting for V5-tagged WT and mutants of LIMD1 (V5) and LATS2-FLAG (LATS2). (E) LATS1 was tested for binding to wild-type (WT) and mechanical strain insensitive mutants (F512A, F575A or Y646A) of LIMD1 by co-immunoprecipitation. V5-tagged WT and mutants of LIMD1, and LATS1-3xMyc were separately transfected in HEK293A cells. HEK293A lysates from cells transfected with V5-tagged LIMD1 variants were combined with LATS1-3xMyc lysates. Anti-Myc or control (IgG) antibodies were used to isolate immune complexes. Immune complexes and lysates were probed by Western blotting for V5-tagged WT and mutants of LIMD1 (LIMD1) and LATS1-3xMyc (LATS1). (F) Quantification of relative amounts of LATS2 (normalized to wild-type LIMD1 in the IP fraction) immunoprecipitated by wild-type LIMD1 and mechanical strain insensitive LIMD1 mutants in part (D). ANOVA statistical comparisons between wild-type LIMD1 and mechanical strain insensitive LIMD1 mutants are indicated above the graph (mean ± SD; n = 3; ***P = 0.001, ****P < 0.0001). (G) Quantification of relative amounts of wild-type LIMD1 and mechanical strain insensitive LIMD1 mutants (normalized to wild-type LIMD1 in the input fraction) immunoprecipitated by LATS1-3xMyc from part (E). ANOVA statistical comparisons between wild-type LIMD1 and mechanical strain insensitive LIMD1 mutants are indicated above the graph (mean ± SD; n = 3; *P < 0.05, **P = 0.001).

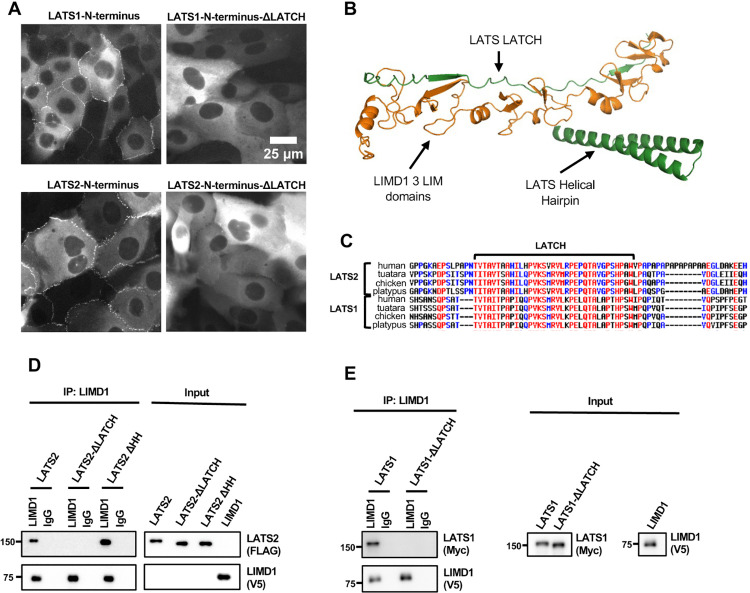

LATS-LATCH is necessary for LATS1/2 recruitment to AJs and for LATS1/2 binding to LIMD1.(A) Live-cell imaging of MCF10A cells stably expressing GFP tagged LATS1 or LATS2 N-terminal regions (aa 1-635 in LATS1, aa 1-598 in LATS2) with and without (∆LATCH) the LATCH regions (aa 472-520 in LATS1, aa 418-466 in LATS2) as indicated. (B) AlphaFold2 model showing the three tandem LIM domains of LIMD1 (orange) and two regions of LATS2 (green) that are predicted to interact (LATS-LATCH and the Helical Hairpin). (C) Multiple sequence alignments of LATS1/2 from the indicated species showing the conserved LATCH region. (D-E) The requirement of the conserved LATCH sequence of LATS1/2 to bind with LIMD1 was tested by co-immunoprecipitation. (D) Full-length LATS2 (LATS2) or LATS2 with either the LATCH deleted (LATS2-∆LATCH, aa 418-466 deleted) or with the helical hairpin region deleted (LATS2-∆HH, aa 599-667 deleted) tagged to FLAG and (E) Full-length LATS1 (LATS1) or LATS1 with the LATCH deleted (LATS1-∆LATCH, aa 472-520 deleted) tagged with 3xMyc were tested for binding to LIMD1 by co-immunoprecipitation. FLAG-LATS2 variants, LATS1-3xMyc variants, and LIMD1-V5 were separately transfected in HEK293 cells. HEK293A cell lysates transfected with either FLAG-LATS2 variants (D) or LATS1-3xMyc variants (E) were combined with V5-tagged LIMD1. Anti-LIMD1 or control (IgG) antibodies were used to isolate immune complexes. Immune complexes and lysates were probed by Western blotting for LATS2 variants (FLAG) (D), LATS1 variants (Myc) (E) and LIMD1 (V5).

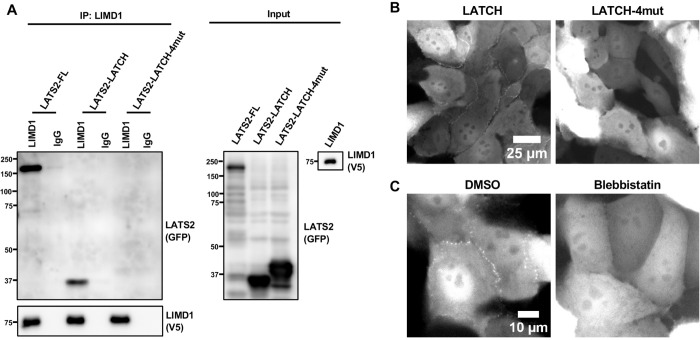

The LATS-LATCH is sufficient to bind to LIMD1 and localize to AJs in a tension-dependent manner.(A) Full-length LATS2, LATS2-LATCH and LATS2-LATCH-4mut, were tested for binding to LIMD1 by co-immunoprecipitation. Lysates were prepared from HEK293A cells separately transfected with GFP-tagged LATS2, LATS2-LATCH, LATS2-LATCH-4mut, or LIMD1-V5. Lysates from cells expressing LIMD1-V5 were mixed separately with those expressing the different GFP-LATS2/LATCH constructs, and anti-LIMD1 or control (IgG) antibodies were used to isolate immune complexes. Immune complexes and lysates were probed by Western blotting for LATS2/LATCH (GFP) and LIMD1 (V5). (B) Live-cell imaging of MCF10A cells stably expressing GFP tagged LATS2-LATCH or LATS2-LATCH-4mut. (C) Live-cell imaging of MCF10A cells stably expressing GFP tagged LATS2-LATCH treated with (Blebbistatin) or without (DMSO) Blebbistatin.
The first two LIM domains of LIMD1 are required for LATS1 recruitment to adherens junctions
We next examined the requirements for the individual LIM domains of LIMD1 for localization and LATS1 recruitment to AJs. Different combinations of LIM domains were deleted in the context of the full-length protein (Fig 2A). Analysis of mutants with just one LIM domain showed that either LIM1 or LIM2, but not LIM3, were sufficient for localization to AJs (Fig 2C). However, none of the three single LIM mutants were able to direct LATS1 to AJs (Fig 2B, D). We examined mutants with different combinations of two LIM domains. All combinations (LIM1,2, LIM1,3, LIM2,3) were able to localize to AJs (Fig 2C), but only the mutant that had both LIM1 and LIM2 (LIM1,2) was able to recruit LATS1 (Fig 2B, D). Together these results show that both LIM1 and LIM2 are critical for localization to F-actin strain sites and recruitment of LATS1/2 to AJs.
We next examined whether LATS1 recruitment to AJs depends on the ability of the individual LIM domains of LIMD1 to bind to F-actin strain sites. A previous study showed that virtually all LIM domain proteins that bind to F-actin strain sites have a conserved phenylalanine in each LIM domain [8]. Mutation of that phenylalanine to alanine in each LIM domain additively disrupts localization to F-actin strain sites [7,8]. The third LIM domain in LIMD1 and several related LIM domain proteins have several distinctive features compared to the other two LIM domains [8]. Specifically, it has two additional insertions and lacks the conserved phenylalanine but does have either a phenylalanine or tyrosine (tyrosine in the case of LIMD1) in an adjacent position. We previously showed that mutating all three positions in LIMD1 interfered with its localization to AJs and ability to recruit LATS1 in response to mechanical strain [7]. Here we individually mutated the phenylalanine (LIM1 (F512), LIM2 (F575)) or tyrosine (LIM3 (Y646)) to alanine and examined the mutant protein’s ability to localize to AJs and recruit LATS1 (Fig 3A-C). Consistent with our LIM domain deletion results, all single mutants were still able to localize to AJs, but mutations in either LIM1 or LIM2 disrupted recruitment of LATS1 to AJs (Fig 3A-C). If these mutations specifically affect binding to F-actin strain sites as proposed [8] then our results indicate that both LIM1 and LIM2 must be engaged with strained F-actin to bind and recruit LATS1 to AJs. Alternatively, these mutations may also affect binding to LATS1/2 independent of their effects on binding to F-actin strain sites. Therefore, we assessed how well single LIM domain mutants bound to LATS1/2. We found that single mutants in LIM1 or LIM2 almost completely disrupted bind to LATS1/2 (Fig 3D-G). The single mutant in LIM3 impaired LATS1/2 binding to a lesser extent (Fig 3D-G). That these mutations affect both binding to LATS2 and strained F-actin suggests that they either generally perturb LIM domain structure, or they are directly involved in both binding interactions. Either way they confirm the importance of the first two LIM domains in binding to LATS1/2.
LIMD1 binds LATS1/2 through a conserved “LATCH” site
How the LIM domains of LIMD1 bind to LATS1/2 is not known. To address this issue, we first examined which region of LATS1/2 is required for localization to AJs. We found that the largely disordered N-terminus of the LATS1 and LATS2 (aa 1–635 in LATS1, aa 1–598 in LATS2) contained the AJ targeting region (Fig 4A). This region overlaps with a region in LATS2 (amino acids 376–660), identified using 2-hybrid screening, as required for binding to the LIMD1 related protein Ajuba [16]. To identify potential regions of LATS1/2 that bound to the LIM domains of LIMD1 we used AlphaFold 2/3 [19,20] to model interaction between LIMD1 and this previously identified Ajuba binding region of LATS2 (amino acids 376–660). AlphaFold predicts that the 3 LIM domains of LIMD1 have 2 distinct binding sites in LATS1/2 (Fig 4B). The first region (aa431–465 of LATS2), which we term the LATS LATCH is a highly conserved region (Fig 4C) that is predicted to run as a linear peptide along the length of the 3 LIM domains, with the highest confidence scores for the regions interacting with LIM domains one and two (Fig 4B). The second predicted binding site in LATS1/2 overlaps with the known MOB1 binding site on the LATS1/2 [21]. This helix turn helix region adjacent to the kinase domain has been termed the helical hairpin [21]. This prediction fits with our earlier results showing that the LIMD1 related protein TRIP6 can compete with MOB1 for binding to LATS2 [6]. Deletion of each of these regions in LATS2 showed that the LATS-LATCH is the most important for LIMD1 binding since deletion of the LATCH, but not the helical hairpin, disrupted LATS2 binding to LIMD1 (Fig 4D). Deletion of the LATCH region from LATS1 also disrupted its binding to LIMD1 (Fig 4E). In addition, deletion of the LATCH region from the N-terminal regions of both LATS1 and LATS2 disrupted their localization to AJ (Fig 4A). Furthermore, the GFP-LATS2-LATCH alone was sufficient for binding to LIMD1 (Fig 5A). The LATS2-LATCH region alone fused to GFP localized to AJ in a manner that depended on mechanical tension (Fig 5B-C). A LATS2-LATCH mutant targeting four amino acid residues (4mut: L441G, V444A, K445D, R448D) predicted by the AlphaFold2 structure as important contact residues with LIM2 of LIMD1 fails to localize to AJs (Fig 5B) and is unable to bind LIMD1 (Fig 5A). Together our results support the AlphaFold model showing that the LIMD1 LIM domains interact with the LATCH region of LATS1/2.
Discussion
It has been known for many years that the Hippo pathway kinases LATS1/2 are regulated by mechanical strain [3]. Although strain-dependent regulators of LATS1/2, such as LIMD1, have been identified, the molecular mechanisms governing how strain is sensed and transduced into regulation of LATS1/2 have remained elusive. To gain insight into this question, we investigated the molecular basis for the mechanical strain-dependent interaction between LIMD1 and LATS1/2. As a first step towards understanding why LIMD1-LATS1/2 association at AJs is strain sensitive we defined the region of each protein required for this interaction. AlphaFold modeling provided critical testable hypotheses for how the proteins interacted by predicting that a linear peptide from LATS1/2 (the LATCH) binds along the length of the three LIM domains of LIMD1, with the highest confidence scores for interaction of the LATS-LATCH with the first two LIM domains of LIMD1. The AlphaFold model also suggested a potential interaction between the LIM domains and the helical hairpin region of LATS1/2. The helical hairpin has been shown to bind the LATS1/2 activator MOB1 to promote LATS1/2 activating autophosphorylation [21]. Our experiments have confirmed several aspects of this model, in particular the interaction between the first two LIMD1 LIM domains and the LATS-LATCH. We observe that the first two LIM domains of LIMD1 are required for binding and recruitment of LATS1/2 AJs. Second, the LATCH sequence is necessary and sufficient for binding to LIMD1 and recruitment of LATS1/2 to AJs. Third, mutations in predicted interface residues in the LATS2-LATCH disrupt binding to LIMD1 and localization to AJs. The other potential binding site for LIMD1 on LATS1/2 (the helical hairpin) was not required for LIMD1-LATS2 binding. This is consistent with the predicted LIMD1-LATCH interface having a ~4.5 fold greater sized interface than the LIMD1-helical hairpin interface. However, there is some reason to suspect that the predicted LIMD1-helical hairpin interaction may be relevant in vivo. For example, we previously showed that TRIP6, a LIMD1 related protein, competes for binding to LATS2 with MOB1, a LATS1/2 activator that binds the helical hairpin. One possibility could be that the LATCH acts as a strain-dependent tether to allow the weaker LIMD1-helical hairpin interaction to compete for binding with MOB1. Further biochemical experiments will be needed to test this possibility.
A key question is why binding of the LATCH to LIMD1 depends on mechanical strain in vivo. Although we can detect binding between LIMD1 and LATS1/2 in vitro, we suspect that the in vitro binding is weak since we can only detect it with overexpressed proteins. We think that binding of the LIM domains to strained F-actin filaments somehow makes them better at binding the LATS-LATCH sequence. Possible models include the LIM domains undergoing a conformational change when bound strained F-actin that enhances binding to the LATS1/2 LATCH or alternatively binding to strained F-actin may bring the individual LIM domains into register to enhance binding to the LATCH sequence. Another model could be that when LIMD1 binds strained F-actin the LATCH actually binds both the LIM domains and the strained F-actin filament. In all these models a high affinity binding site for the LATCH would only be created when LIMD1 is bound to strained F-actin. Our observation that strain-insensitive LIMD1 mutations in LIM1 (F512) and LIM2 (F575) impair LATS1 recruitment to AJs, suggests that binding to strained F-actin is required for this process. However, because these mutants also have defects in binding LATS1/2 in vitro when strain is absent, interpretation of the mutant phenotype is complicated. The LATS1/2 binding defect of the F512A and F575A mutants suggests that these residues could contribute to binding to both strained F-actin and LATS1/2. Alternatively, these mutations could have more general effects on the folding of the LIM domains. Together these results indicate that some caution is warranted when assuming that these mutations solely affect binding to strained F-actin.
One of the surprising findings of this work is that the IDR region of LIMD1 is required for recruitment of LATS1 to AJs. This result is surprising because the LIM domains of LIMD1 are sufficient both for binding to LATS1/2 and localization of LIMD1 to AJs. How the LIMD1 IDR region promotes LATS1 localization to AJs is not known. One intriguing possibility is that the IDR region of LIMD1 may promote liquid-liquid phase separations (LLPS) that are important for LATS1 accumulation at AJs. This would be consistent with previous work showing that the IDR region of LIMD1 is important for LLPS formation and recruitment of proteins to focal adhesions [22]. LLPS has been implicated in other aspects of Hippo pathway signaling [23–29]. Further studies will be needed to test whether LIMD1 driven LLPS formation drives LATS1 localization to AJs.
In summary, this study uncovers the molecular mechanism by which the mechanosensitive protein LIMD1 recruits the Hippo pathway kinases LATS1/2 to AJs in response to mechanical strain. Using domain mapping, mutagenesis, and AlphaFold modeling, our work shows that LIMD1 uses its first two LIM domains to bind LATS1/2 via a conserved “LATS-LATCH” motif in the LATS N-terminus. These LIM domains also interact with strained F-actin, suggesting that mechanical tension enhances LATCH binding, potentially through conformational changes or a three-way binding interface between LIMD1, LATS1/2, and strained F-actin. Our surprising discovery that LIMD1’s IDR is also required for LATS1 recruitment raises the possibility that the IDR promotes liquid–liquid phase separation to concentrate signaling components. Together, the findings show how LIMD1 recruitment of LATS1/2 to AJs integrates direct protein-protein binding with cytoskeletal engagement to provide new insight into how mechanical forces regulate Hippo signaling at cell-cell junctions.
Supporting information
S1 FigRaw images showing full blots for all blots shown in the figures.(PDF)
S2 FigTRIP6 co-localization to adherens junctions.Wild-type (WT) and LIMD1 knockout (LIMD1-KO) MCF10A cells were stained using anti-TRIP6 antibody together with (A) anti-alpha-E-Catenin, (B) anti-E-cadherin or (C) anti-LIMD1 antibody as indicated. Merged images show alpha-E-Catenin/ E-cadherin/LIMD1 (red), TRIP6 (green) and DNA (blue).(PDF)
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1Driskill JH, Pan D. Control of stem cell renewal and fate by YAP and TAZ. Nat Rev Mol Cell Biol. 2023.10.1038/s 41580-023-00644-537626124 · doi ↗ · pubmed ↗
- 2Thrash HL, Pendergast AM. Multi-Functional Regulation by YAP/TAZ Signaling Networks in Tumor Progression and Metastasis. Cancers. 2023;15(19).10.3390/cancers 15194701 PMC 1057201437835395 · doi ↗ · pubmed ↗
- 3Dasgupta I, Mc Collum D. Control of cellular responses to mechanical cues through YAP/TAZ regulation. J Biol Chem. 2019.10.1074/jbc.REV 119.007963 PMC 687320631594864 · doi ↗ · pubmed ↗
- 4Rauskolb C, Sun S, Sun G, Pan Y, Irvine KD. Cytoskeletal tension inhibits Hippo signaling through an Ajuba-Warts complex. Cell. 2014;158(1):143–56. doi: 10.1016/j.cell.2014.05.035 24995985 PMC 4082802 · doi ↗ · pubmed ↗
- 5Ibar C, Kirichenko E, Keepers B, Enners E, Fleisch K, Irvine KD. Tension-dependent regulation of mammalian Hippo signaling through LIMD 1. J Cell Sci. 2018;131(5):jcs 214700. doi: 10.1242/jcs.214700 29440237 PMC 5897721 · doi ↗ · pubmed ↗
- 6Dutta S, Mana-Capelli S, Paramasivam M, Dasgupta I, Cirka H, Billiar K, et al. TRIP 6 inhibits Hippo signaling in response to tension at adherens junctions. EMBO Rep. 2018;19(2):337–50. doi: 10.15252/embr.201744777 29222344 PMC 5797958 · doi ↗ · pubmed ↗
- 7Ray S, De Silva C, Dasgupta I, Mana-Capelli S, Cruz-Calderon N, Mc Collum D. The ability of the LIMD 1 and TRIP 6 LIM domains to bind strained f-actin is critical for their tension dependent localization to adherens junctions and association with the Hippo pathway kinase LATS 1. Cytoskeleton. 2024.10.1002/cm.21847 PMC 1136604038426816 · doi ↗ · pubmed ↗
- 8Sun X, Phua DYZ, Axiotakis L Jr, Smith MA, Blankman E, Gong R, et al. Mechanosensing through Direct Binding of Tensed F-Actin by LIM Domains. Dev Cell. 2020;55(4):468–82.e 7. doi: 10.1016/j.devcel.2020.09.022 33058779 PMC 7686152 · doi ↗ · pubmed ↗
