Topotactic Phase Transition in Epitaxial La0.7Sr0.3MnO3‐δ Films Induced by Oxygen Getter Assisted Thermal Annealing
Chenyang Yin, Lei Cao, Xue Bai, Suqin He, Hengbo Zhang, Tomáš Duchoň, Felix Gunkel, Yunxia Zhou, Mao Wang, Anton Kaus, Janghyun Jo, Rafal E. Dunin‐Borkowski, Shengqiang Zhou, Thomas Brückel, Oleg Petracic
TL;DR
A new method using aluminum to remove oxygen from La0.7Sr0.3MnO3-δ films triggers a structural and magnetic phase transition.
Contribution
A simple thermal vacuum annealing method using aluminum as an oxygen getter is introduced for inducing topotactic phase transitions.
Findings
X-ray Diffraction confirms a PV to BM phase transition in La0.7Sr0.3MnO3-δ thin films.
The material transitions from ferromagnetic to antiferromagnetic and metallic to insulating states.
Surface segregation and cation redistribution are observed via advanced microscopy techniques.
Abstract
Oxygen vacancies play a crucial role in controlling the physical properties of complex oxides. In La0.7Sr0.3MnO3‐δ, the topotactic phase transition from Perovskite (PV) to Brownmillerite (BM) can be triggered, e.g., via oxygen removal during thermal annealing. Here, a very efficient thermal vacuum annealing method is reported using aluminum as an oxygen getter material. The topotactic phase transition is characterized by X‐ray Diffraction, which confirms a successful transition from PV to BM in La0.7Sr0.3MnO3‐δ thin films grown via physical vapor deposition. The efficiency of this method is confirmed using La0.7Sr0.3MnO3‐δ micron‐sized bulk powder. The accompanying transition from the original Ferromagnetic (FM) to an Antiferromagnetic (AF) state and the simultaneous transition from a metallic to an insulating state are characterized using Superconducting Quantum Interference Device…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4- —German Research Foundation10.13039/501100001659
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMagnetic and transport properties of perovskites and related materials · Electronic and Structural Properties of Oxides · Advancements in Solid Oxide Fuel Cells
Introduction
1
Complex oxides have been the subject of extensive research in recent decades, owing to their wide‐ranging potential applications.^[^ 1, 2, 3, 4, 5 ^]^ A practical strategy to control the properties of complex oxides is by adjusting the concentration of oxygen vacancies. The movement and diffusion of oxygen vacancies can provide a resistive switching mechanism or introduce sites for surface reactions, thereby supporting applications such as gas sensors and catalysts.^[^ 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17 ^]^ In solid oxide fuel cells, oxygen vacancies are crucial for the devices' operation and performance, facilitating oxygen transport in electrolytes and electrodes.^[^ 18, 19, 20, 21 ^]^
The extraordinary role of controlling the concentration of oxygen vacancies also extends to spintronic properties of materials. In a multivalent system involving transition metal ions, the oxidation state of the 3d cations is directly related to the oxygen off‐stoichiometry. Consequently, controlling the concentration of oxygen directly influences several physical properties such as electronic transport and magnetic properties.^[^ 22, 23, 24, 25, 26 ^]^
An oxygen vacancy induced topotactic phase transition from Perovskite (PV, ABO_3_) phase to the oxygen‐vacancy‐layered Brownmillerite (BM, ABO_2.5_) phase has been reported in La_1‐x_Sr_x_MnO_3‐δ_ ^[^ 27, 28, 29, 30, 31 ^]^ and in other analogous perovskite systems e.g. La_1‐x_Sr_x_CoO_3‐δ_ ^[^ 32, 33, 34, 35 ^]^, SrFe_1‐x_Co_x_O_3‐δ_ ^[^ 36 ^]^, SrFeO_3‐δ_ ^[^ 37 ^]^ and SrCoO_3‐δ_.^[^ 38, 39, 40 ^]^ Via the (primarily) structural topotactic phase transition, simultaneously a phase transition in the magnetic and electron transport properties can be triggered.^[^ 32 ^]^ The PV‐BM topotactic phase transition can hereby be realized using various methods, e.g., thermal annealing^[^ 36 ^]^, thermal vacuum annealing^[^ 28, 29, 32, 33 ^]^, voltage pulse control^[^ 27 ^]^, Ionic Liquid Gating (ILG)^[^ 38, 41 ^],^ or Ionic Gel Gating (IGG)^[^ 34 ^],^ and reduction gas annealing.^[^ 30, 31 ^]^
Among various post‐treatment methods, metals have been reported to exhibit oxygen‐getting ability that can trigger topotactic phase transitions.^[^ 42 ^]^ Metallic aluminum and titanium show clearly higher efficiency than, e.g., metallic silver, copper, and gold. Previous studies on metallic aluminum have mainly focused on a direct‐contact approach, i.e., depositing metal directly on the sample surface.^[^ 43, 44, 45 ^]^ However, such a direct approach can introduce unexpected sample contamination and near‐surface interdiffusion. These effects hinder direct magnetometry and electrical transport measurements due to spurious signals from the surface oxygen‐getter region. Furthermore, because the sample surface is covered during the phase transition, the formation and observation of new surface phases, surface segregation, and other reconstruction phenomena are strongly affected. Hence, a non‐contact gas‐phase approach is more favorable. Compared with gas‐phase reactions involving reducing gases such as H_2_ ^[^ 30 ^]^, which can lead to hydrogen incorporation^[^ 46 ^]^, using an oxygen‐getter material to indirectly remove oxygen from the sample under vacuum is preferred. In this context, strong oxygen‐getter materials, e.g., sodium hydride (NaH), calcium hydride (CaH_2_), and aluminum powder, have been reported.^[^ 25, 47, 48, 49 ^]^ Nevertheless, these oxygen‐getter materials are highly unstable in air and exhibit significant flammability, which increases the complexity and safety of the annealing experiments.
In our study, we develop a simple non‐contact gas‐phase oxygen‐getter‐assisted thermal vacuum annealing protocol, in which all sample loading and preparation steps can be performed under ambient conditions, offering greater simplicity and operability. We employ bulk aluminum as an oxygen getter material to increase the efficiency of the thermal vacuum annealing process. The PV (La_0.7_Sr_0.3_MnO_3_) to BM (La_0.7_Sr_0.3_MnO_2.5_) transition is successfully achieved and characterized using X‐ray Diffraction (XRD). In addition to the thin film sample, a successful phase transition is also observed in micron‐sized powder. The physical properties changes are characterized using SQUID‐magnetometry and AC resistivity measurements. X‐ray Absorption Spectroscopy (XAS) probes the near‐surface oxidation states of the multivalent manganese ions. The variations of the surface and the interface before and after annealing are investigated using X‐ray Reflectivity (XRR) and Atomic Force Microscopy (AFM). The cation stoichiometry is probed via Rutherford Backscattering Spectroscopy (RBS).
These results suggest a controlled PV to BM transition, accompanied by a complex near‐surface structural rearrangement and cation redistribution. This is confirmed via Scanning Transmission Electron Microscopy (STEM) measurements. Hence, this finding can be of vital importance for the understanding and the function of devices such as those used in catalysis and fuel cells, where the surface and the interface play a crucial role.
Results and Discussion
2
Compared with the Fe or Co systems, it requires relatively high temperatures and prolonged durations to trigger the PV to BM topotactic phase transition using thermal annealing in La_0.7_Sr_0.3_MnO_3‐δ_ (LSMO).^[^ 28, 29 ^]^ Here, we employ bulk aluminum as an oxygen getter to increase the efficiency of the thermal annealing process. Epitaxial LSMO films were grown using a High Oxygen Pressure Sputtering Device (HOPSD) on SrTiO_3_ (STO) substrates with (100) orientation. The growth temperature was 800 °C at an oxygen partial pressure of 2 mbar. The detailed growth procedure is illustrated in the subhead “HOPSD” under Experimental Section. Selected films, e.g., for the STEM studies, were grown by Pulsed Laser Deposition (PLD) for an improved surface morphology and reduced surface roughness, see in subhead “PLD” under Experimental Section. The as‐prepared films were pre‐characterized to ensure a good thin film quality for the subsequent oxygen getter‐assisted thermal vacuum annealing. Aluminum, being a reactive metal, forms a surface oxide film upon exposure to oxygen. This oxide layer passivates the surface, thereby inhibiting further oxidation. A ≈3 nm thick surface oxide layer is formed according to the chemical reaction: 4Al+3O_2_ →2Al_2_O_3_ on the time scale of ≈1 day.^[^ 50 ^]^
In addition, the thickness of this oxide layer can be increased to ≈200 nm at temperatures exceeding 400 °C.^[^ 51 ^]^ In this study, we employed regular aluminum foil as the getter material. By removing the surface oxide layer by mechanical polishing, the aluminum foil with the exposed bare aluminum surface can act as an efficient oxygen getter material during thermal vacuum annealing. In our study, the as‐prepared LSMO films are sealed together with freshly polished aluminum foil in a quartz tube, which is subsequently evacuated to a high vacuum of 10^−5^–10^−6^ mbar. The sealed tubes are then annealed in a temperature‐controlled furnace at 350 or 400 °C for 12 h, respectively. In subhead “Oxygen Getter Assisted Thermal Annealing” under the Experimental Section describes the details of the oxygen getter‐assisted thermal annealing experiment.
XRD is employed for crystal structure characterization before and after annealing. The results are illustrated in Figure 1b,c. The as‐prepared LSMO film grown via HOPSD, labelled as “PV‐LSMO” state, shows (002) Bragg reflections at the scattering vector *Q_Z_
- = 3.261 ± 0.002 Å^−1,^ which corresponds to an out‐of‐plane lattice parameter of 3.853 ± 0.002 Å. The clear Laue oscillations in the vicinity of the (002) reflection indicate the good crystal quality of the as‐prepared thin film. The Reciprocal Space Mapping (RSM) results are shown in Figure 1f. The film and the substrate exhibit the same in‐plane lattice parameter, confirming a fully strained film growth.

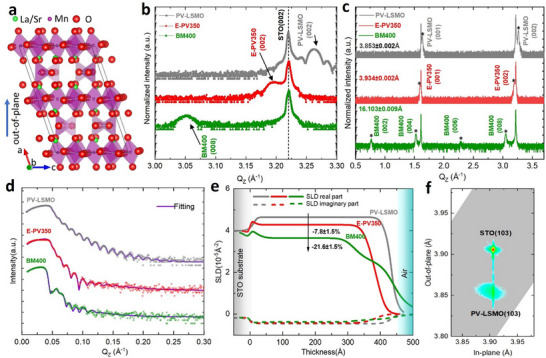

*a) Crystal structure schematics of the BM phase, plotted using the software VESTA[
57
], data taken from ICSD‐166141 (ICSD release 2024.1).[
54
] b) XRD patterns of the as‐prepared (grey) and the annealed LSMO films, annealed for 12 h at 350 °C (red) and for 12 h at 400 °C (green), respectively. XRD measured at room temperature with the QZ range between 3 and 3.3 Å−1. The black arrows indicate the thin film (002) Bragg reflection. c) XRD patterns with QZ range between 0.5 and 3.75 Å−1. Stars indicate the film Bragg reflections. The out‐of‐plane lattice parameters as calculated are shown. d) XRR patterns of the as‐prepared (grey) and annealed samples (red and green) recorded at room temperature. The fitting curves using the software GenX are shown in purple. e) Real (Re.) and imaginary (Im.) SLD profiles as derived from the fitting. The thickness on the horizontal axis refers to the distance to the substrate, i.e., 0 refers to the position on the STO substrate surface. f) RSM pattern of the as‐prepared LSMO film. The (103) Bragg reflection is probed for the thin film and for the STO substrate to compare the in‐plane strain state. A fully strained film on the substrate is hence confirmed.*
Subsequently, the films were treated using Al‐assisted thermal annealing at various temperatures to trigger the topotactic phase transition. One as‐prepared film was annealed at 350 °C for 12 h. Its (002) reflection shifts to a lower *Q_Z_
- position without the emergence of new reflections. This indicates a lattice expansion within the existing PV framework. This expanded PV state is labelled as “E‐PV350”. At this state, the out‐of‐plane lattice parameter is 3.934 ± 0.002 Å. Thus, it shows an expansion by 2.1 % compared with the as‐prepared state, i.e., 3.853 ± 0.002 Å. This expansion can be interpreted as a result of the oxygen vacancies VO·· created. The presence of vacancies results in a lower oxidation state of the Mn ions in order to compensate for the charge imbalance due to the missing O^2−^ ions. These cations have a larger ionic radius. In addition, the lattice parameter increases due to the electrostatic repulsion of (in the absence of some oxygen ions) unscreened cations.^[^ 52, 53 ^]^
To improve transition efficiency, the temperature was increased to 400 °C for another as‐prepared film, while keeping the annealing time at 12 h. The corresponding XRD pattern shows clear superlattice Bragg peaks, which indicate an oxygen‐vacancy‐layered structure and are considered characteristic fingerprints of the BM structure (Figure 1a,c).^[^ 54 ^]^ The label “BM400” is assigned to this state in the subsequent discussion. Section S1 (Supporting Information) shows the detailed sample information.
The surface and in‐depth information is probed via XRR (Figure 1d,e) and AFM. We fit the XRR pattern using a three‐layer model using the software GenX.^[^ 55 ^]^ Thickness and roughness for each layer and the corresponding Scattering Length Density (SLD) are determined from fitting (Figure 1e). The Section S2 (Supporting Information) displays the fitting models and results. We find that the central layer SLD of E‐PV350 is decreased from 4.64 ± 0.05 × 10^−5^ to 4.28 ± 0.05 × 10^−5^ Å^−2^ (−7.8 ± 1.5 %). The reduction in SLD can be attributed to the oxygen vacancy‐induced lattice expansion. We also observe a decrease in film thickness, i.e., 41.9 ± 0.5–37.5 ± 0.5 nm (−10.5 ± 1.7 %). This may be a counterintuitive result and can be attributed to, e.g., the breakdown of the crystal structure and the redistribution of cations, which will be discussed in more detail below.
The three‐layer model exhibits a poor fitting quality when applied to the BM400 sample. Hence, we assume the formation of a new layer near the surface. Since X‐rays exhibit a low sensitivity to light elements, e.g., oxygen, this additional layer is likely due to a cation redistribution. The complex situation inside the BM400 still cannot be described by a simple four‐layer model, resulting in imperfect fitting results as well. In this four‐layer model, the main LSMO layer near the substrate shows a SLD of 3.64 ± 0.05 × 10^−5^ Å^−2^ (−21.6 ± 1.5 %). This SLD decrease, i.e., −21.6 ± 1.5 %, is much larger than the oxygen vacancy induced SLD change from bulk La_0.7_Sr_0.3_MnO_3_ to bulk La_0.7_Sr_0.3_MnO_2.5_ (−11.3 %). This implies a strong cation‐related redistribution and segregation. The bulk La_0.7_Sr_0.3_MnO_3_ and La_0.7_Sr_0.3_MnO_2.5_ SLD values were calculated using the data from ICSD‐50717 (ICSD release 2024.1) and from ICSD‐166141 (ICSD release 2024.1), respectively.^[^ 54, 56 ^]^ Section S3 (Supporting Information) illustrates the results of the samples annealed at 300 °C with different aluminum content and at 450 °C. Section S4 (Supporting Information) shows the stability of the E‐PV350 and BM400.
To further test the Al‐assisted annealing method, micron‐sized LSMO bulk powder was used. Compared with the LSMO thin films, the significantly larger diffusion paths in the powder particles should significantly inhibit the topotactic phase transition. However, a PV to BM topotactic phase transition is successfully achieved using Al‐assisted vacuum annealing at 550 °C for 20 h. For details, please see Section S7 (Supporting Information). This annealing condition is still lower or comparable to the conventional vacuum annealing conditions applied to thin films.^[^ 28, 29 ^]^ This again confirms the efficiency of the Al‐assisted thermal annealing.
AFM provides information about the thin film surface morphology (Figure 2a–f). The PV‐LSMO film shows a surface with granular morphology with an average height of 5 nm. The Root Mean Square (RMS) roughness is calculated to be 1.9 ± 0.2 nm. After annealing, the E‐PV350 exhibits a comparable RMS of 1.4 ± 0.2 nm and a less granular surface structure. For the sample BM400, which is obtained with annealing at higher temperatures, i.e., at 400 °C, the RMS increased to 2.7 ± 0.2 nm together with the formation of larger lateral structures, which hints at surface segregation.

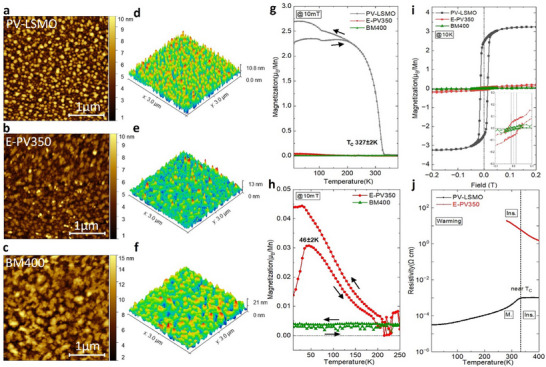

a–c) AFM images: 2D morphology of the as‐prepared and the annealed films. Measurements were performed at room temperature. d–f) Corresponding 3D morphology. g) Magnetization vs. temperature measurements of the as‐prepared and the annealed films. ZFC and FC curves are displayed. Measurements were conducted at a magnetic field of 10 mT. The arrows denote the temperature scan direction during measurement. h) Zoom‐in of the ZFC and FC curves of the annealed films for a better comparison. i) Magnetization vs. field hysteresis loops measured at 10 K. j) Resistivity vs. temperature measurements. The curves were measured without a magnetic field during the warming process. The dotted line represents the transition from conductor to insulator for the as‐prepared film.
The oxygen vacancies, as well as the induced structural changes, have an impact on the magnetic exchange interactions between manganese ions and hence on the overall magnetic behavior and the electric transport properties. To elucidate the role of oxygen vacancies on the magnetic and transport properties, SQUID‐magnetometry and resistivity measurement were performed. For the PV‐LSMO, the average manganese oxidation state is calculated to be Mn^3.3+^ by the stoichiometry of La_0.7_Sr_0.3_MnO_3‐δ_ with the assumption of oxidation states for La^3+^, Sr^2+,^ and O^2−^ and δ close to zero after the growth under high oxygen pressure.^[^ 28 ^]^ The magnetic exchange interactions via oxygen bridges among manganese ions with different oxidation states, e.g., Mn^3+^ and Mn^4+^, promote double‐exchange interactions and thus overall ferromagnetic behavior.^[^ 58 ^]^ As illustrated in Figure 2g, the ferromagnetic behavior is confirmed from the magnetization vs. temperature Field Cooling (FC) curve. The Curie temperature is determined to be 327 ± 2 K. The kink at 105 ± 2 K is due to the influence of the STO structural phase transition from cubic to tetragonal on the film magnetic anisotropy.^[^ 59 ^]^ In the hysteresis loop (Figure 2i), the PV‐LSMO sample displays a rectangular‐shaped loop, indicating that the magnetization reversal occurs by domain wall motion. The saturation magnetization is determined to be 3.24 ± 0.05 μ_B_/Mn with a coercive field of 14 ± 1 mT.
Via Al‐assisted thermal annealing, oxygen vacancies are introduced into the perovskite structure. The electron hopping between Mn sites is interrupted by the missing oxygen and thus suppresses double‐exchange interactions. This gradual breakdown of the double‐exchange paths can be considered analogous to the percolation model at first glance. However, the variation in the charge environment surrounding the manganese ions due to the oxygen vacancies leads to a lower manganese oxidation state. The reduction of the manganese oxidation state favors super‐exchange interactions between manganese ions, which in turn lead to antiferromagnetic coupling. Consequently, a more complex percolation model including both the interruption of exchange paths and the local change of the oxidation state of Mn ions needs to be considered. Such a numerical study is, however, beyond the scope of this manuscript.
For E‐PV350, the emergence of a peak at 46 ± 2 K in the Zero‐Field Cooling (ZFC) curve indeed suggests antiferromagnetic behavior (Figure 2h). In addition, the M vs H curve of this sample shows a very small saturation magnetization and a small remanent magnetization, which also hints toward antiferromagnetic behavior. Interestingly, the BM400 sample exhibits straight‐line‐shaped ZFC and FC curves without any significant magnetic signatures. This might hint toward a different magnetic behavior.
Measurements of electric transport properties are shown in Figure 2j. The PV‐LSMO sample shows an insulator‐to‐metal transition near the Curie temperature as expected.^[^ 60 ^]^ Upon annealing, the double‐exchange paths are suppressed, and super‐exchange interactions become preferred, which leads to an overall insulating behavior. A transition into an insulating state within the PV phase is also consistent with previous reports on manganites and cobaltites.^[^ 28, 32 ^]^
In order to explain the above‐described magnetic behavior, the detailed electronic structure of the magnetic ions is of critical importance. Hence, high‐energy‐resolution XAS was employed. In XAS measurements, two commonly used detection methods are the Total‐Electron‐Yield (TEY) signal and the Fluorescence‐Yield (FY) signal. Here, the TEY signal is shown due to its high surface sensitivity, which can probe a depth range of a few nanometers due to exponential intensity decay. The oxidation state of manganese can be deduced from the peak position and the line shape of the manganese L‐edge (Figure 3a). By comparing the XAS data with data from reference samples^[^ 61, 62 ^]^, Mn^3+^ is shown to dominate in the PV‐LSMO sample with some Mn^4+^ contributions corresponding to the average valence of Mn^3.3+^ as expected for a fully oxidized as‐grown sample. This result corroborates the ferromagnetic behavior induced by the double‐exchange bridges between Mn^3+^ and Mn^4+^. For the E‐PV350, the shape of the L_2_ edge becomes more oriented to that of Mn^2+,^ implying an increase of the Mn^2+^ contribution (see reference Mn^2+^ curve), thus promoting super‐exchange interactions among Mn^2+,^ leading to antiferromagnetic behavior.

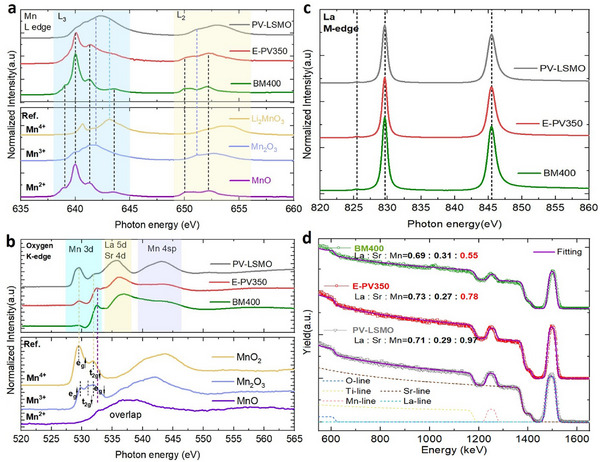

Oxidation state and stoichiometry characterization, measured at room temperature using XAS and RBS, respectively. a) XAS manganese L2,3‐edges spectra of the as‐prepared and the annealed LSMO films on STO substrate, annealed for 12 h at 350 and at 400 °C, respectively. The reference manganese oxidation data is reprinted with permission from Ref.[61, 62]. Peak features are labeled with dashed lines. b) Corresponding XAS oxygen K‐edge spectra. The different manganese, eg, and t2g orbital feature peaks are labeled. c) XAS lanthanum M‐edge spectra. d) RBS spectra of the as‐prepared and the annealed LSMO films. The dashed lines represent the contribution of each element in the as‐prepared film. The calculated cation stoichiometry determined by fitting the measurement curves is displayed.
The larger L_3_ to L_2_ branching ratio in the BM400 sample indicates an increased amount of high‐spin states and thus a larger amount of Mn^2+^ species.^[^ 62, 63 ^]^ In this sample, only the features of Mn^2+^ are observed near the sample surface. In addition, the oxygen K‐edge is shown in Figure 3b. The K‐edge originates from the electron excitation from the oxygen 1s orbitals to the conduction band, i.e., to the unoccupied hybridization orbitals between oxygen 2p orbitals and cation orbitals. The hybridization regions for different cation orbitals are labelled in Figure 3b.^[^ 29, 64 ^]^ This oxygen K‐edge can indirectly probe the occupancy of manganese 3d orbitals. After annealing, the intensity of the e_g_↑ peak decreases, and that of the t_2g_↓ peak increases. This indicates fewer unoccupied manganese 3d, e_g,_↑ hybridized orbitals available, which corresponds to more electrons in the manganese 3d orbitals compared with the as‐prepared state, thus reflecting a lower oxidation state of manganese. This result corresponds well to the results from the manganese L‐edge. In addition, the loss of structural features at larger photon energies (the O 2p, La 5d, Sr 4d, Mn 4sp range) may further indicate a loss of crystallinity in the near‐surface region.^[^ 65 ^]^ The lanthanum M‐edge is displayed in Figure 3c. The oxidation state of lanthanum stays unchanged after annealing according to the line shape. However, TEY‐XAS probes regions very near the surface. The depth‐resolved oxidation state mapping of a similar sample is shown in Figure 4.

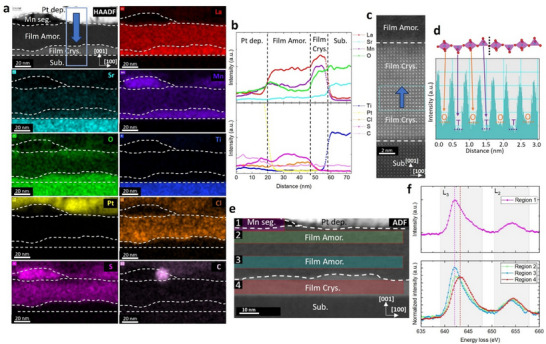

STEM measurement on the 400 °C 12 h annealed PLD sample (PLD400). Data analyzed using the Gatan DigitalMicrograph software. a) HAADF images and EDS elemental mapping. The mapping indicates clearly regions with varying elemental distributions within the annealed film. The white dotted lines are used to mark the boundaries between regions. The net intensity data is shown here. For the origin of Pt, Cl, S, and C, please see Section S8 (Supporting Information). b) Elemental intensity profile along the blue arrow depicted in (a). The data shown is the integrated signal within the blue box. c) Zoom‐in of the high‐resolution HAADF image. The upper dark region is the amorphous layer. The middle region belongs to the crystallized BM‐LSMO. The bottom region is the STO substrate. d) Profile along the blue arrow in (c). A clear oxygen octahedra and tetrahedra alternating structure is observed. e) ADF image in the EELS mapping. Scale bar recalibrated. Four regions are selected. Region 1: Manganese segregated region. Region 2: Amorphous region near the surface. Region 3: Amorphous region in the middle of the film. Region 4: Crystallized BM‐LSMO region. f) Integrated EELS signal of the different regions in (e). The signals from regions 2, 3, and 4 are normalized. For Region 1, likely due to a significant thickness difference along the [010] direction, normalization is not possible, and only the deconvoluted signal is shown.
In addition to oxygen vacancy formation, cations in perovskites can also diffuse and segregate during annealing and form, e.g., Ruddlesden‐Popper phases.^[^ 66, 67 ^]^ In order to characterize the thin film cation stoichiometry and the corresponding depth‐distribution, Rutherford Backscattering Spectroscopy was employed. This method is not sensitive to light elements, such as oxygen. Hence, only the stoichiometry of La, Sr, and Mn can be determined using this method. The La + Sr is normalized to 1 during the stoichiometry determination. The fitting is performed using a single LSMO layer model via the software SIMNRA.^[^ 68, 69 ^]^ The results show a clear overall manganese deficiency (−19.6%) in the E‐PV350 sample compared with the PV‐LSMO. In the BM400, this manganese deficiency is enhanced and reaches −43.3%. In addition, the peak shape of manganese in the BM400 indicates a different manganese concentration near the surface, which matches the findings from XRR and AFM measurements, suggesting surface segregation and cation redistribution.
The results of XRR, AFM, XAS, and RBS suggest a near‐surface structural transformation accompanied by cation redistribution. To investigate this phenomenon in detail, an LSMO thin film was prepared using PLD, which exhibits an improved surface quality, as illustrated in Section S8 (Supporting Information). This minimizes the influence of surface roughness, enabling a more accurate study of near‐surface phenomena. The annealing experiment of BM400 is repeated on this sample. Clear BM superlattice peaks emerge and are shown in Section S8 (Supporting Information). In addition, XRR analysis reveals that the PLD sample has a smaller thickness compared with the HOPSD sample (Section S8, Supporting Information). This sample is labeled “PLD400” for further reference. STEM is subsequently employed for a detailed characterization of the film structure, as demonstrated in Figure 4.
Figure 4a shows Energy Dispersive X‐ray Spectroscopy (EDS) elemental mapping. A clear manganese segregation is observed near the thin film surface. Below the segregation region, a two‐layer structure is evidenced. The top layer, near the surface, exhibits an amorphous structure and shows significantly low concentrations of lanthanum, manganese, and oxygen. The depth‐dependent elemental profile is displayed in Figure 4b. Manganese is found to be more deficient compared to other cation elements, i.e., Sr and La. This is consistent with the RBS data shown in Figure 3d. The high‐resolution HAADF image shows a clear atomic ordering for the second layer (Figure 4c) with the same orientation as the substrate. From the integrated height profile (Figure 4d), the alternating layers with high and low concentrations of oxygen vacancies are observed as expected for a BM structure. This layer is considered to be the major contribution to the BM‐LSMO signal as found from XRD measurements. The EELS oxidation state mapping is shown in Figure 4e,f. From the integrated EELS signal, a shift of the manganese oxidation state is found depending on the depth. From the manganese L_3_‐edge peak position, we conclude that the low oxidation state of Mn, i.e., close to Mn^2+^, dominates in the manganese segregated surface region and also in the amorphous layer.^[^ 70 ^]^ However, in the crystalline second layer, the oxidation state is close to Mn^3+^. The observed AF magnetic behavior for sample E‐PV350 and the unusual magnetic behavior in BM400 might hint at a novel type of spin structure involving mainly Mn^3+^ species and very likely only super‐exchange interactions. To further elucidate the magnetic and electrical transport properties in these different regions, low‐loss EELS, magnetometry measurements, and detailed discussions are provided in Section S8 (Supporting Information). A weak magnetic response was observed.
Based on the STEM results, a discussion on the influence of film thickness on the topotactic phase transition is provided in Section S8 (Supporting Information). It suggests that the thinner film exhibits a faster phase transition speed owing to the shorter bottom‐to‐surface oxygen diffusion path. Thus, it is easier to form a near‐surface amorphous layer upon further removal of oxygen from the BM phase. This corresponds well with the XRR results in Section S3 (Supporting Information), suggesting that a higher annealing temperature of 450 °C facilitates oxygen diffusion and results in a faster topotactic transformation speed, leading to an increased near‐surface amorphous layer. In Section S3 (Supporting Information), schematics illustrating annealing at different temperatures and the evolution pathways at various durations are proposed. The segregation is expected to occur concurrently with the amorphous layer formation. Section S9 (Supporting Information) illustrates that the surface segregation and the amorphous layer formation can be minimized by using optimized annealing parameters on a 200 nm film.
Conclusion
3
We demonstrate that the PV to BM topotactic phase transition in LSMO thin films can be successfully triggered by thermal vacuum annealing using aluminum as an oxygen getter at comparably lower annealing temperatures of 400 °C. The efficiency of this method is confirmed for both thin film samples and micron‐sized powder. We confirm that the LSMO films undergo a transition for the magnetic and electric transport properties from a FM to an AF state and simultaneously from a metallic to an insulating state as the manganese oxidation state decreases. The results from XRR, AFM, and RBS suggest structural transformations near the film surface accompanied by cation redistribution. STEM results reveal a clear manganese segregation at the surface and subsurface cation redistribution, where an amorphous top layer is formed. The near‐substrate layer shows a BM‐LSMO crystal structure. This method can be employed to study oxygen vacancy‐induced topotactic phase transitions also in similar oxide systems, especially where extremely high temperatures would be required.
Experimental Section
4
HOPSD
Epitaxial La_0.7_Sr_0.3_MnO_3‐δ_ thin films were initially grown using HOPSD.^[^ 71 ^]^ A stochiometric La_0.7_Sr_0.3_MnO_3_ sputtering target from the company EVOCHEM was used for the HOPS deposition. The SrTiO_3_ substrates with (100) orientation from the company SHINKOSHA were pre‐annealed at 950 °C under an oxygen partial pressure of 2 mbar for 30 min to remove surface adsorbents.^[^ 72 ^]^ Simultaneously, a target pre‐sputtering at a plasma power of 100 W was performed for 160 min to remove adatoms on the target. Subsequently, the plasma power was increased to 120 W while the substrate temperature was decreased to 800 °C for thin film growth. Thin films with a thickness of 40 nm were achieved with a growth rate of 40 nm h^−1^. The prepared samples were then cooled at 2 mbar from the growth temperature to room temperature with a rate of 5 °C min^−1^.
Oxygen Getter Assisted Thermal Annealing
Commercial lab Aluminum foil was polished using sandpaper P400 to remove the surface oxide layer. Subsequently, the polished Aluminum foil with a mass of 0.5 g was sealed together with the LSMO film (with a lateral size of ≈5 mm × 5 mm) in a quartz tube at high vacuum. Quartz wool was placed between the Aluminum foil and the LSMO film to avoid direct contact. The tube volume is ≈100 cm^3^. The annealing experiments of the sealed tubes were conducted in a temperature‐controlled furnace from the company Nabertherm.
PLD
The subsequent high‐quality epitaxial La_0.7_Sr_0.3_MnO_3‐δ_ thin film with a thickness of 30 nm was produced using a PLD system from the company Twente Solid State Technology B.V. A KrF excimer laser (LPX 300) from the company Lambda Physik was used with a wavelength of 248 nm. The SrTiO_3_ (100) substrate from the company SHINKOSHA was pre‐annealed at 850 °C in the PLD chamber under 0.24 mbar oxygen. The growth followed at the same temperature and pressure. After growth, the sample was cooled down at the growth pressure at a rate of 10 °C min^−1^.
XRD and XRR
XRD and XRR measurements were performed using the Bruker D8 Advance instruments at JCNS‐2 and at PGI‐7. Cu K_α1_ radiation with an X‐ray wavelength of 1.54 Å was used for characterization. The D8 at JCNS‐2 was equipped with two Göbel mirrors to achieve a highly collimated beam for precise XRR scans at lower angles. In addition, a channel‐cut monochromator was used for accurate XRD scans at higher angles. The D8 at PGI‐7 was equipped with a single Göbel mirror for both XRR and XRD scans.
AFM
The topographic information of thin film samples was collected by an Agilent 5400 atomic force microscope under the alternating current (AC) tapping mode. The type HQ:NSC15/Al BS AFM silicon probe coated with Aluminum as the reflection layer is from the MikroMasch company.
SQUID‐Magnetometry
Macroscopic magnetic properties, i.e., ZFC curves, FC curves, and hysteresis loops were measured via a Superconducting Quantum Interference Device (SQUID) magnetometer MPMS XL from the company Quantum Design.
PPMS
Thin film resistivity vs temperature behaviors were characterized by a Physical Properties Measurement System (PPMS) from Quantum Design via the van der Pauw method using 4 contacts.
RBS
RBS was measured at the Ion Beam Center of HZDR in Dresden. 4‐He^+^ ions were accelerated by the Rossendorf van de Graaff accelerator to 1.7 MeV. The detector was placed at the backscattering angle of 170°.
XAS
High‐resolution XAS was measured at the synchrotron BESSY in Berlin at the beamline UE56/1‐SGM. The energy probing range covers Mn L_2,3_‐edge, O K‐edge and La M‐edge. TEY signals were collected. The data normalization follows: 1) Normalization by the background current. 2) The background shift from 625 to 670 eV for manganese L_2,3_‐edges and from 520 to 570 eV for oxygen K‐edge is normalized to 1. 3) The manganese L_2,3_‐edges data is laterally shifted by +1.8 eV to match the reference data. The oxygen K‐edge data is laterally shifted by +0.237 eV to match the reference data.
STEM
The FEI Titan G80‐200 ChemiSTEM at ER‐C was employed for HAADF, ADF, EDS, and EELS data collection. The high‐brightness Schottky‐type field emission electron gun (FEI X‐FEG) operated at 200 kV. The Fischione Model 300 angular dark‐field detector recorded the HAADF and ADF images. EDS and EELS were measured using an in‐column Super‐X EDX spectroscopy unit (ChemiSTEM technology) and a Gatan Enfinium ER 977 post‐column energy filter system. For EELS, the energy range 610–630 eV was chosen as background. Plural scattering was removed. The data for regions 2, 3, and 4 were normalized using the integral between 635 and 660 eV.
Conflict of Interest
The authors declare no conflict of interest.
Author Contributions
C.Y. did the planning of the research study, sample preparation, XRD, XRR, AFM, SQUID‐magnetometry, PPMS resistivity measurements, data collection and analysis, and writing the manuscript. T.D. and S.H. performed the XAS measurements. X.B., J.J., and R.E.D.‐B. performed and discussed STEM results. M.W., Y.Z., and S.Z. performed RBS. A.K. and F.G. performed RSM and helped in PLD sample growth. T.B. did project administration and discussion. L.C. and O.P. did supervision, project administration, planning the research work, discussion, and helped in manuscript preparation. All authors read, edited, and approved the final manuscript.
