Deep learning-driven optimization and predictive modeling of LASER beam machining for XG3 steel
Adithya Hegde, Raviraj Shetty, Gururaj Bolar, V Balaji
TL;DR
This paper uses deep learning and optimization techniques to improve laser beam machining of XG3 steel, focusing on parameters that affect surface quality and machining efficiency.
Contribution
The novel use of BPANN for predictive modeling and MOGA for multi-objective optimization in laser machining of XG3 steel.
Findings
Cutting speed was the most dominant factor affecting surface roughness, machining time, surface hardness, and burr thickness.
BPANN outperformed RSM with high accuracy (R > 0.999) and low MAPE for predicting surface roughness and hardness.
Multi-objective optimization using MOGA provided balanced trade-off solutions for circular hole profiles.
Abstract
LASER Beam Machining (LBM) has emerged as a highly precise and non-contact thermal machining process, widely adopted for cutting complex geometries in advanced engineering materials. Its ability to machine difficult-to-cut alloys with minimal mechanical stress makes it particularly suitable for aerospace and defense components. This paper presents an experimental investigation and multi-objective optimization of LASER Beam Machining (LBM) for XG3 steel, a high-performance alloy used in aerospace and defense applications. The study evaluates the impact of four process parameters i.e. cutting speed (8, 10, 12 m/min), gas pressure (0.5, 0.7, 0.9 Bar), focus point (2, 4, 6 mm), and depth of cut (3, 6, 9 mm) on four output responses: surface roughness, machining time, surface hardness, and burr thickness. Experiments were conducted using a Taguchi L27 orthogonal array on three distinct hole…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

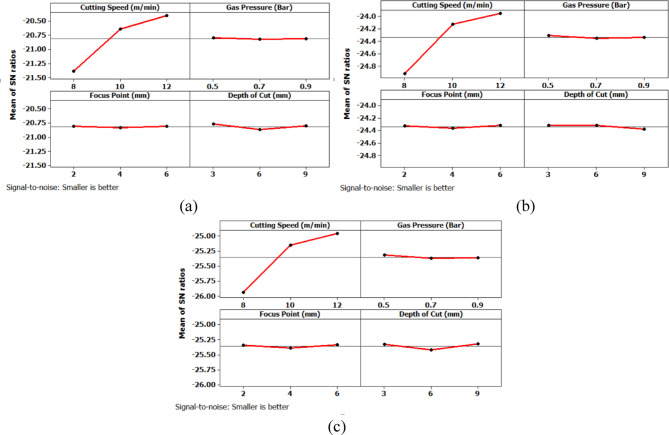

Figure 10
Figure 11

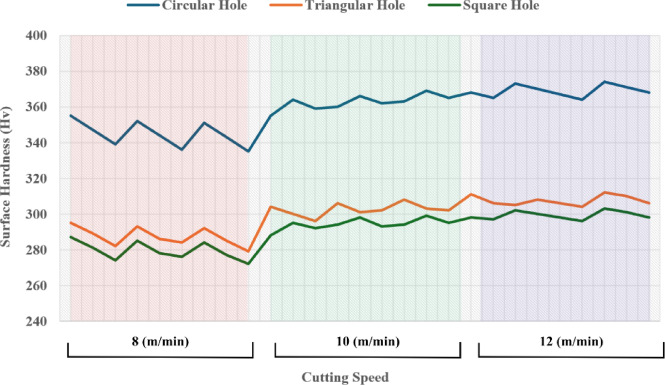

Figure 12

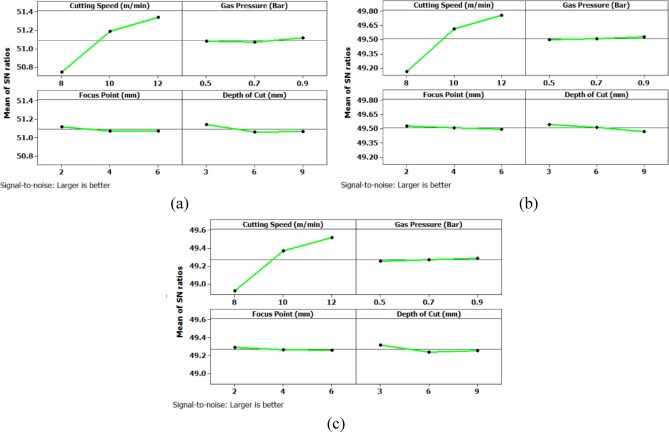

Figure 13

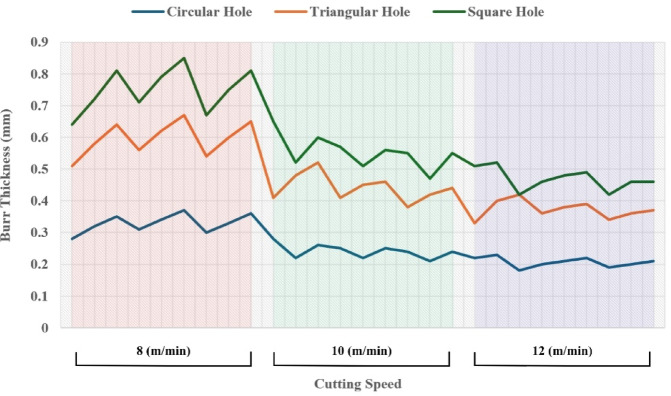

Figure 14

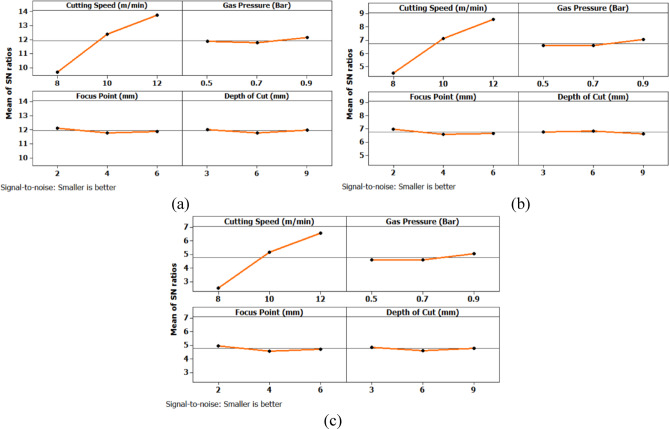

Figure 15

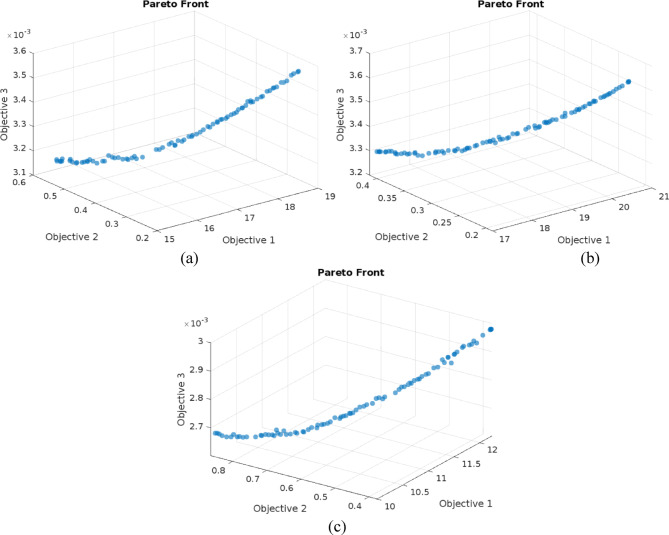

Figure 16
Figure 17

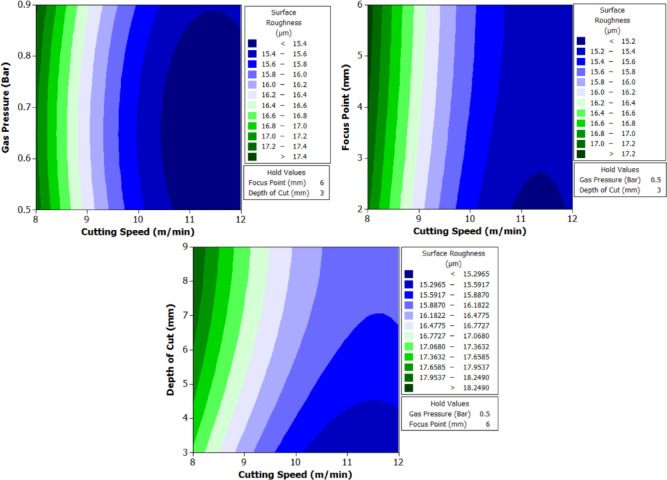

Figure 18
Figure 19
Figure 1

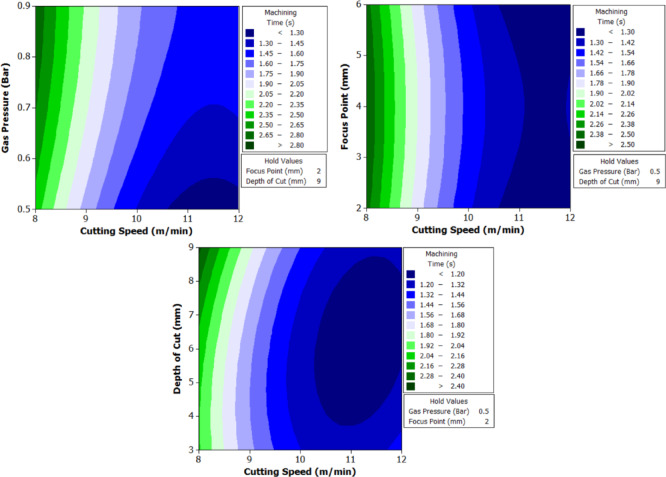

Figure 20

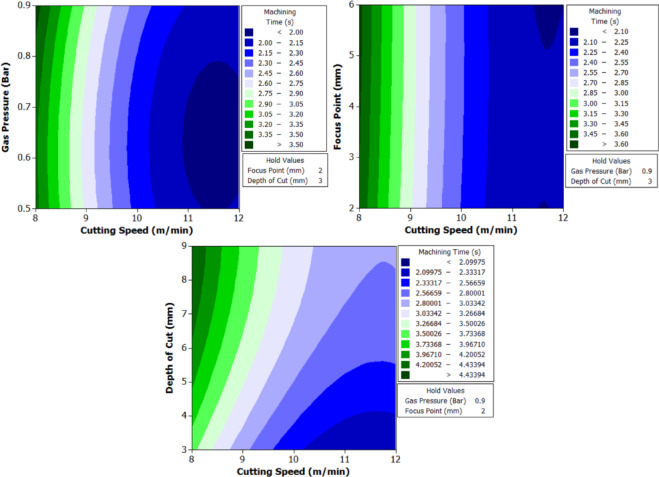

Figure 21
Figure 22

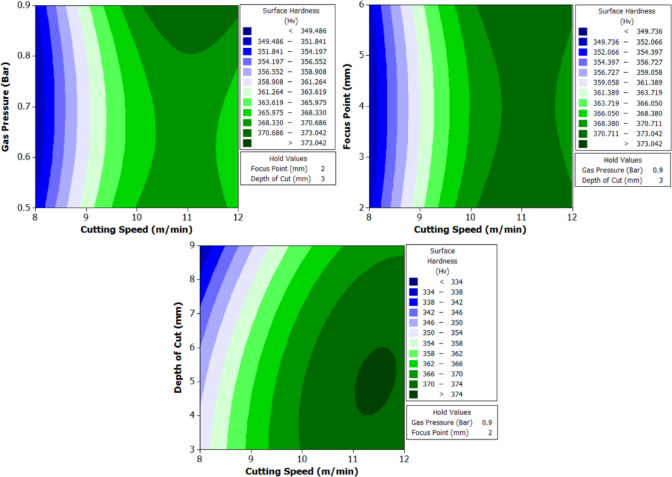

Figure 23

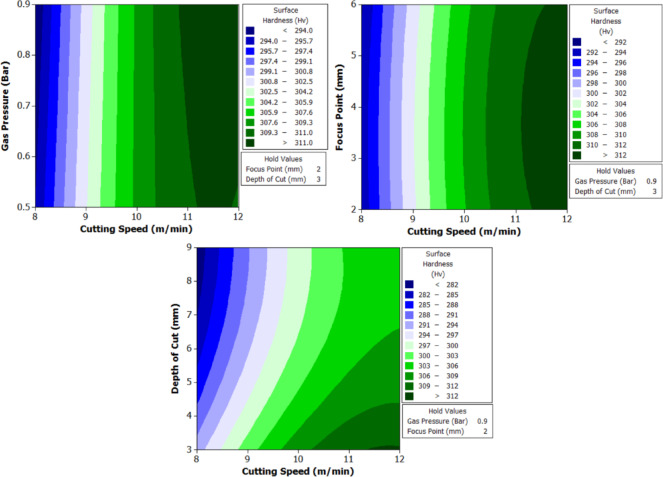

Figure 24

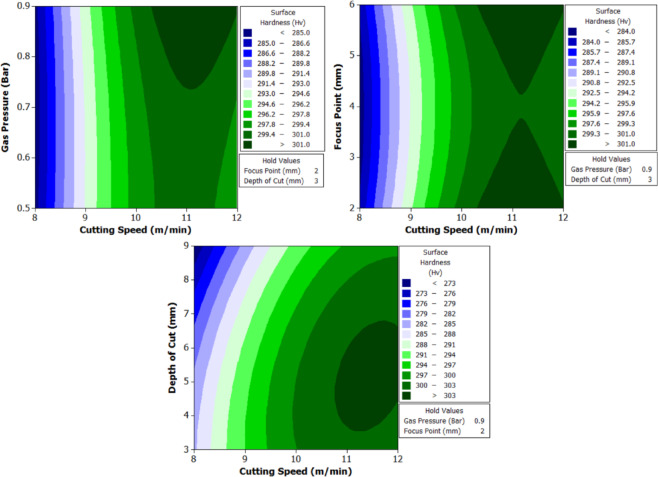

Figure 25

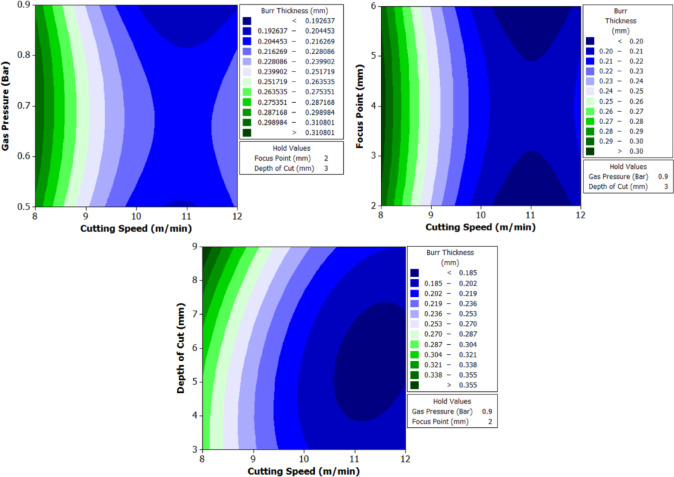

Figure 26
Figure 27

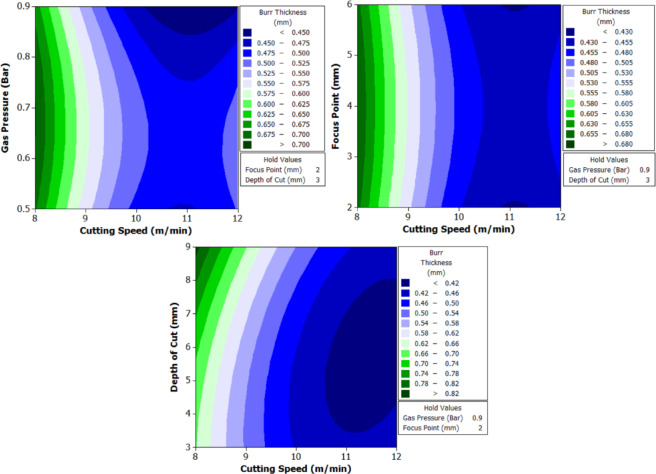

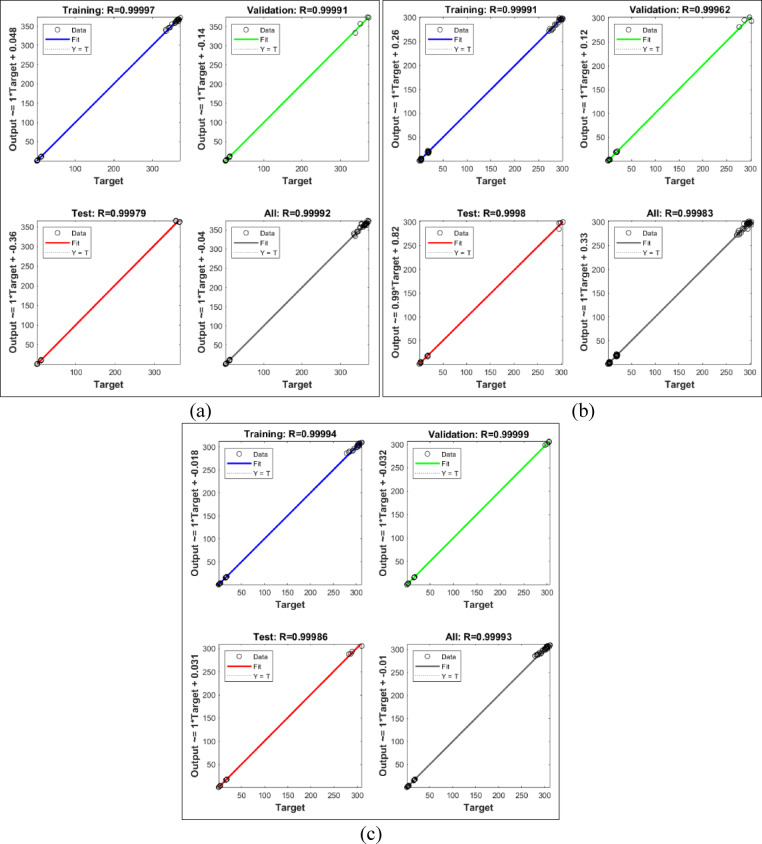

Figure 28
Figure 29

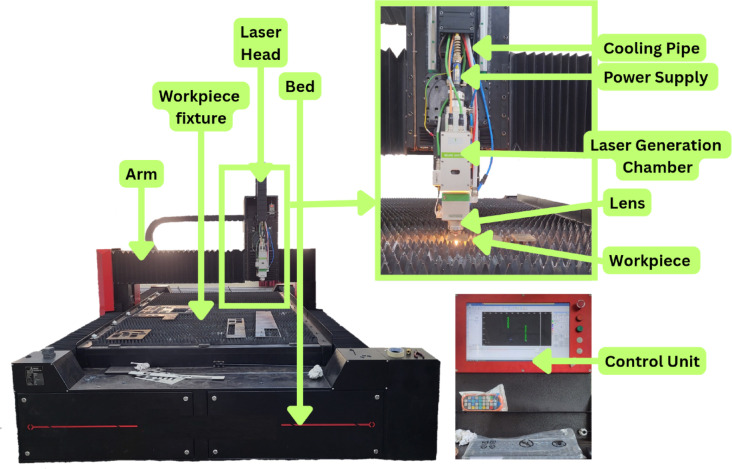

Figure 2

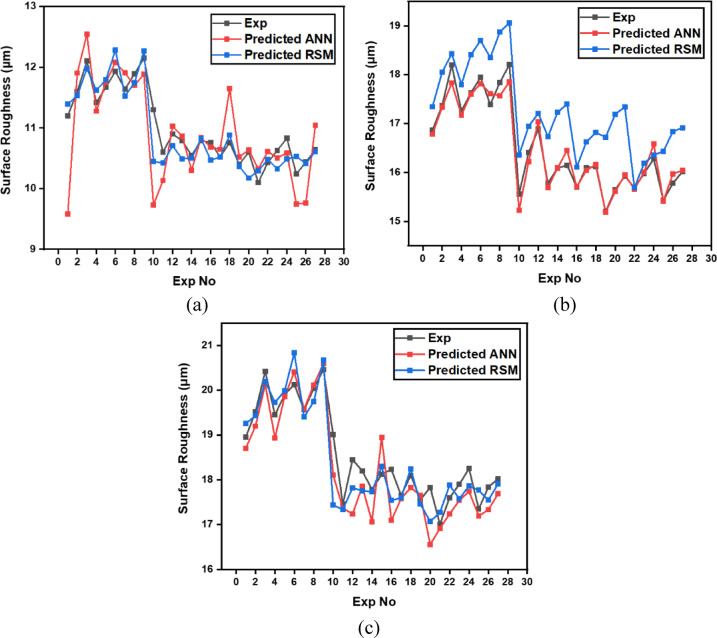

Figure 30

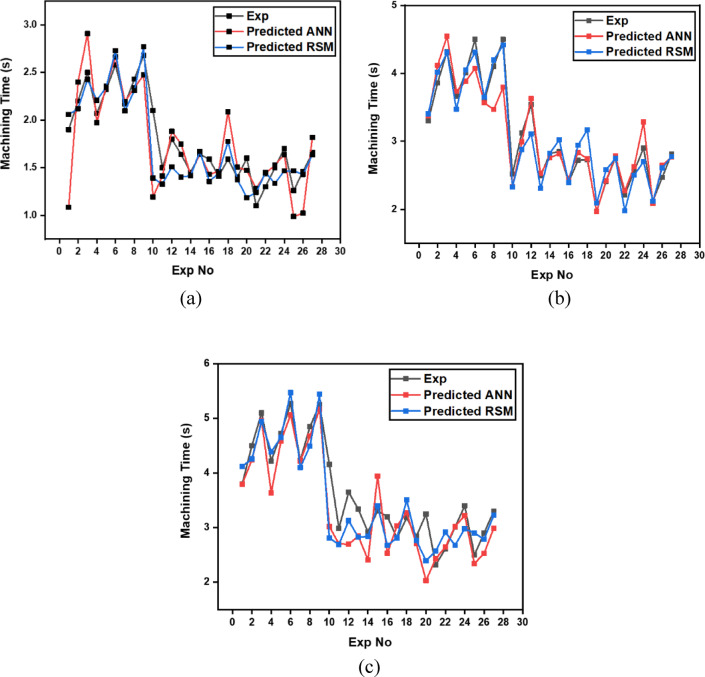

Figure 31

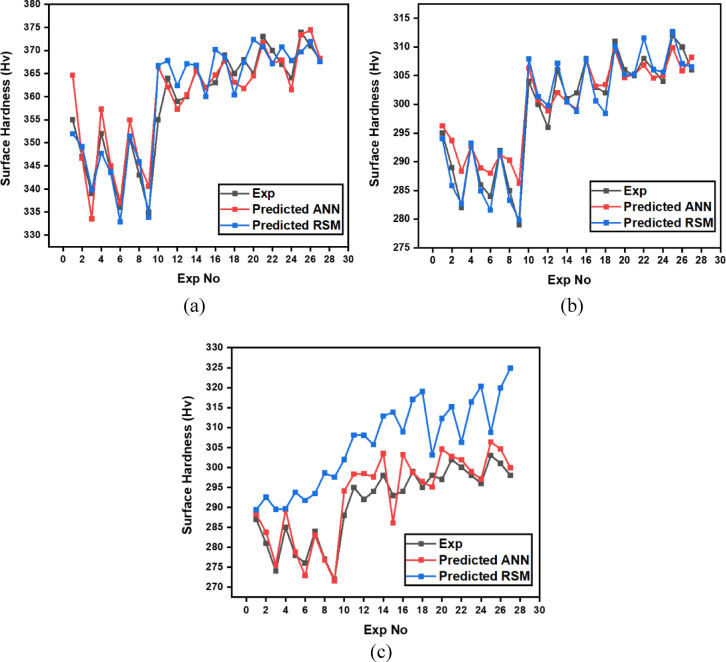

Figure 32

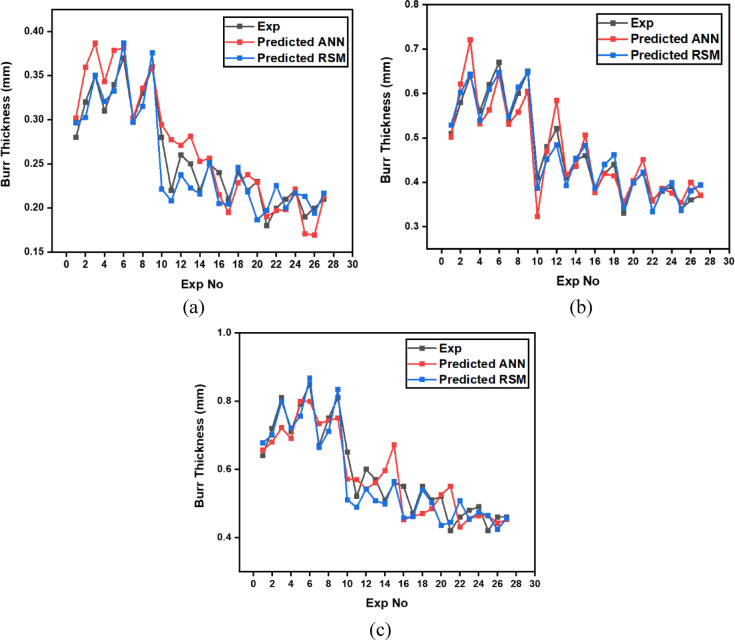

Figure 33

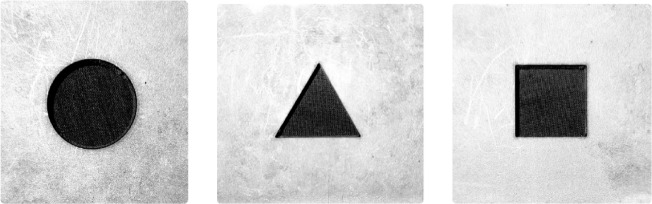

Figure 3

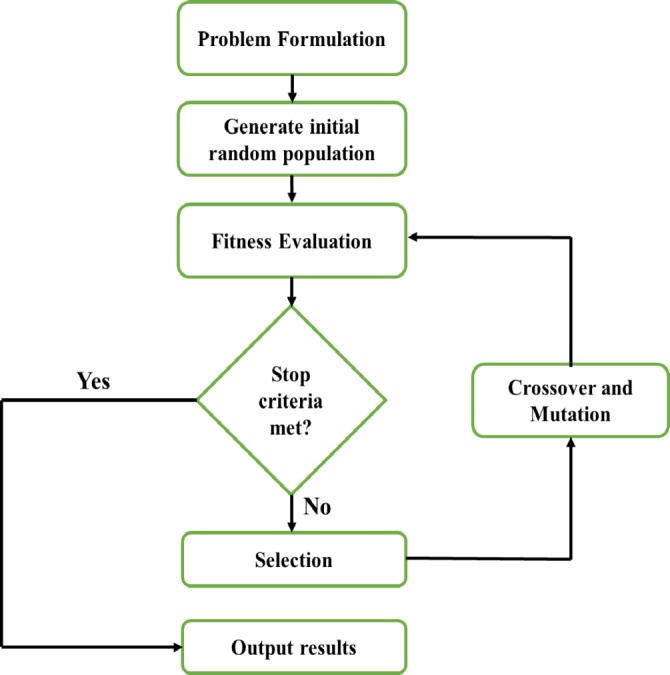

Figure 4
Figure 5

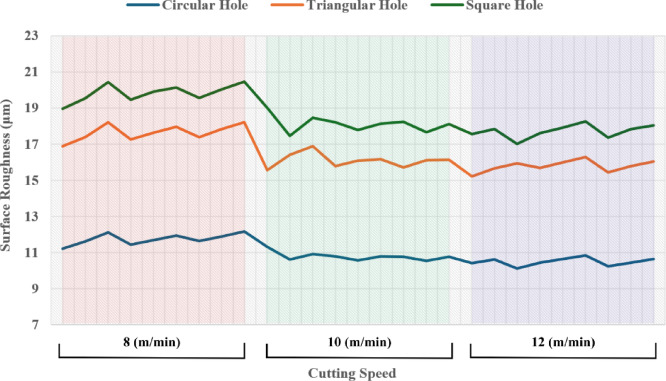

Figure 6
