Microstructure & physicochemical properties dataset of NaCl-based salt mixtures for concentrating solar power

TL;DR

This paper provides a dataset on the properties of NaCl-based molten salts for use in solar power systems, which could improve energy storage and efficiency.

Contribution

The dataset introduces comprehensive microstructural and physicochemical data for NaCl-based mixtures at high temperatures beyond current commercial limits.

Findings

The dataset includes thermal expansion, conductivity, and viscosity of NaCl-based mixtures.

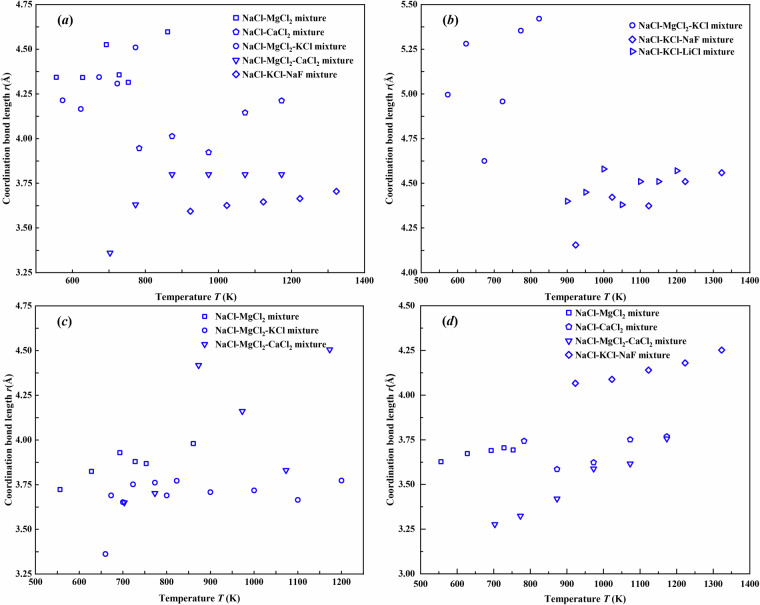

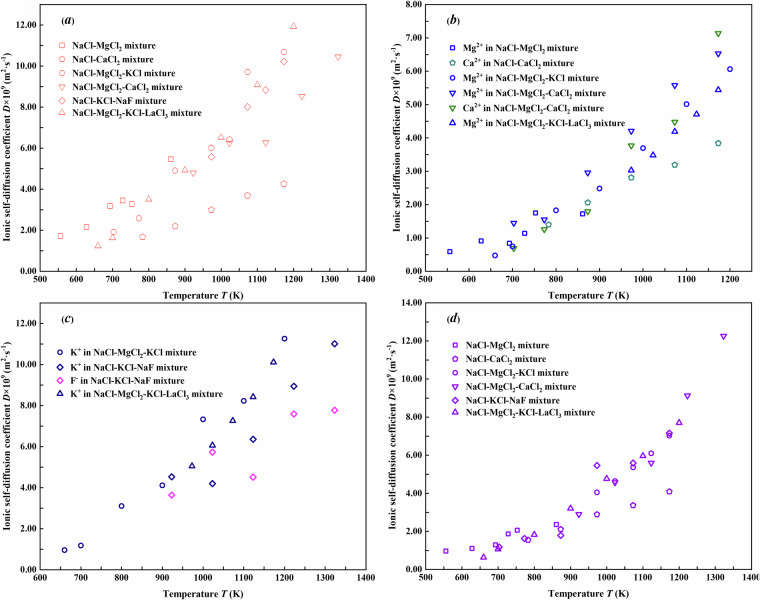

Microstructure properties like coordination bond angles and ionic diffusion coefficients are detailed.

The data spans a wide temperature range, exceeding current commercial solar salt limits.

Abstract

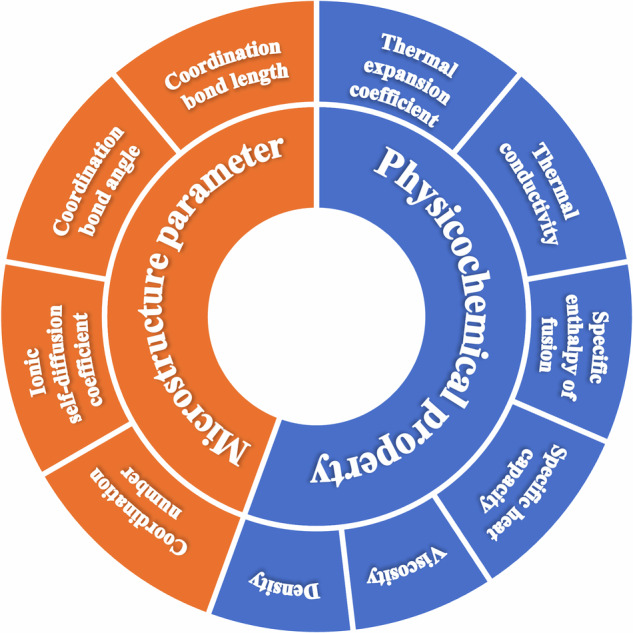

Concentrating solar power is a pivotal technology in global transition toward renewable energy, providing a viable pathway for dispatchable and base-load electricity generation. An important component of the concentrating solar power system is molten salts, particularly NaCl-based mixtures, which serve as both efficient heat transfer fluids and high-capacity thermal energy storage media. The influence mechanisms of micro-ionic interactions and microstructure on physicochemical properties of NaCl-based molten salt mixtures play a decisive role in exploration of more efficient molten salt formulations. We present a dataset of microstructure and physicochemical properties of NaCl-based molten salt mixtures for concentrating solar power, which involves thermal expansion coefficient, thermal conductivity, specific enthalpy of fusion, specific heat capacity, density, and viscosity of mixtures, ionic self-diffusion coefficient, coordination bond angle and coordination bond length of ion pairs, and coordination number of ions across varying elemental compositions and a wide temperature ranges from 556 K to 1400 K, which significantly exceeds the current operating limits of commercial nitrate-based solar salt. The dataset may help to integrate concentrating solar power with other renewable energy technologies, which is essential for maximizing its impact on global climate change mitigation efforts.

Figures
