Calibration of discrete element parameters for spinach seeds and optimization of seed-metering device design
Jiaxing Qing, Xusheng Gong, Xuan Cai, Weijie Tan, Hanzhou Hao, Xinyi Liang, Zi’ang Gao, Chao He
TL;DR
This study improves spinach seed planting by creating a simulation model and optimizing a seed-metering device to accurately place two seeds per hole.
Contribution
A novel method for calibrating discrete element parameters and optimizing seed-metering device design for spinach seeds is proposed.
Findings
Calibrated contact parameters for spinach seeds and PVC plate interactions were determined using simulation and physical tests.
Optimized seed-metering hole dimensions achieved a 92.23% qualified seeding rate at 10 r/min.
The device design meets agronomic requirements for precise spinach seed planting.
Abstract
Due to the lack of an exact simulation model for spinach seeds, existing seed-metering devices exhibit poor seeding performance and struggle to achieve precise seeding of two seeds per seed-metering hole. This study proposes a method for calibrating discrete element parameters of spinach seeds and develops a seed-metering device with rectangular seed-metering holes tailored to the two-seeds-per-hole requirement. Firstly, a spinach seed discrete element model was constructed. Based on the Box-Behnken Design experimental scheme, simulations of angle of repose and fluidity, combined with physical of angle of repose (38.27°) and physical mass flow rate (18.60 g/s), were used to calibrate contact parameters: (1) between spinach seed models (coefficient of restitution: 0.385; coefficient of static friction: 0.481; coefficient of rolling friction: 0.042); and (2) between seed models and PVC…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

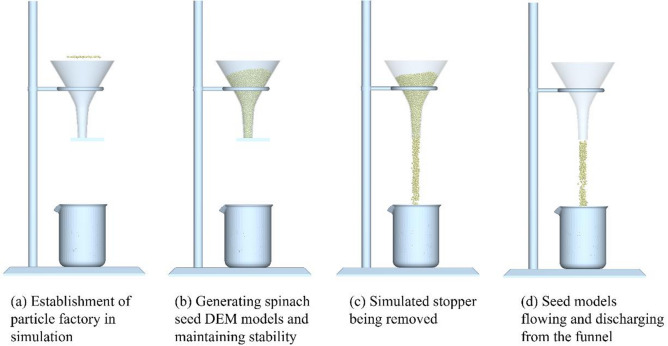

Figure 10

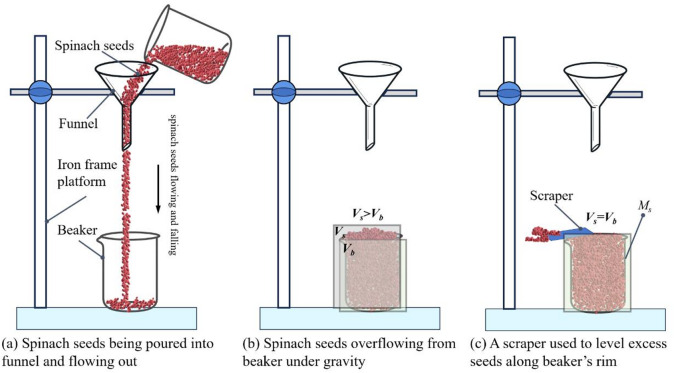

Figure 11

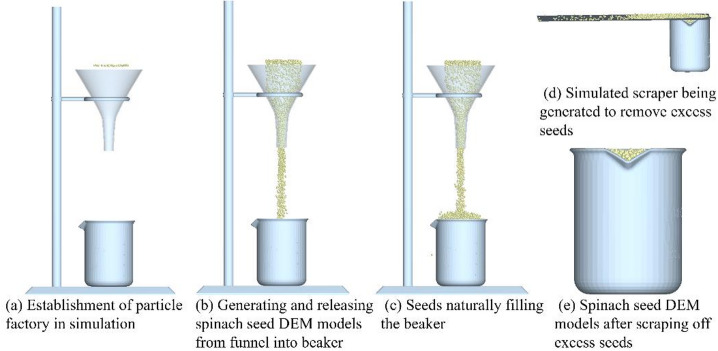

Figure 12
Figure 13

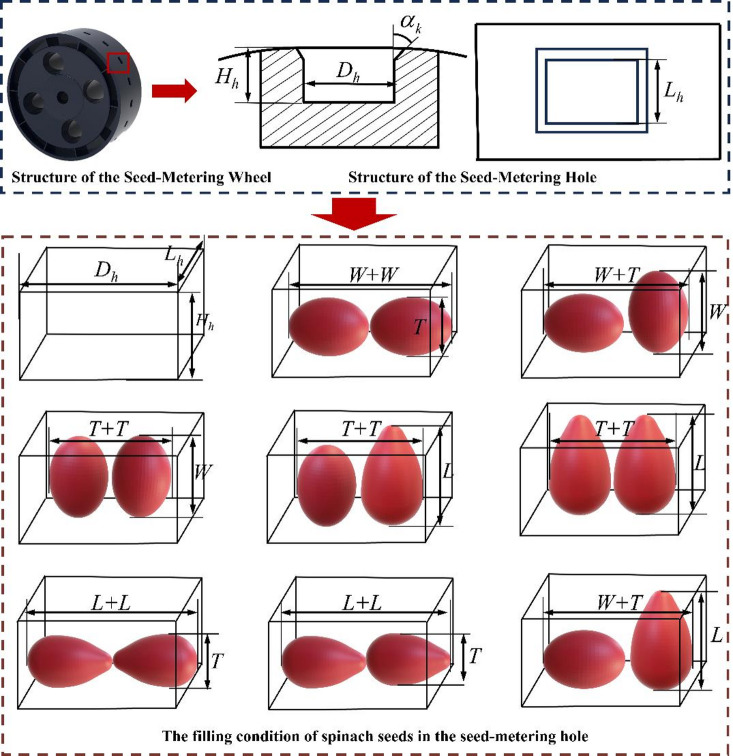

Figure 14

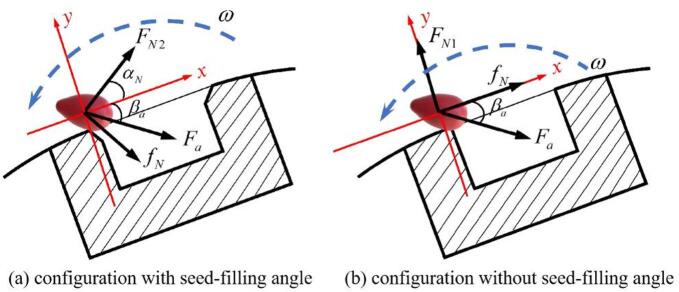

Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 1
Figure 2
Figure 3

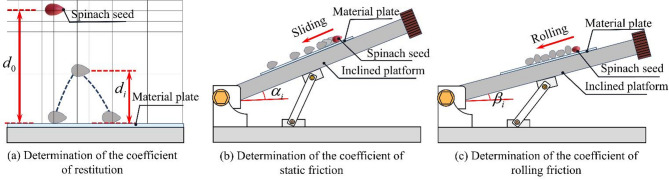

Figure 4
Figure 5

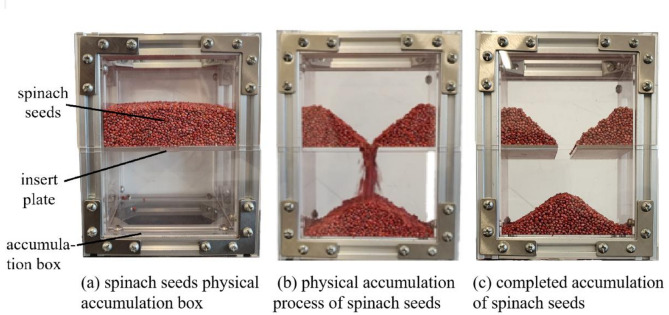

Figure 6

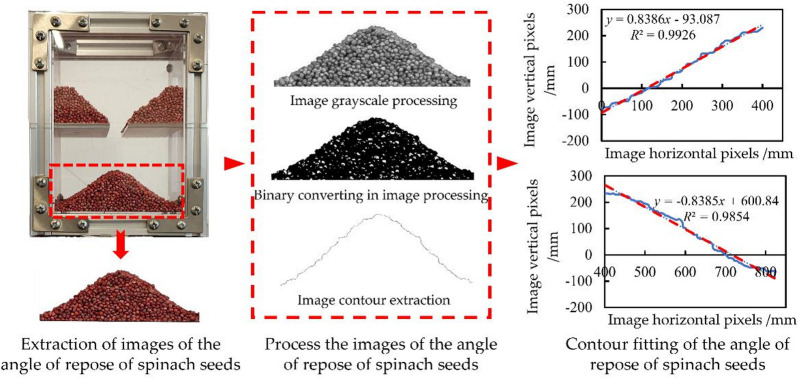

Figure 7
