High-throughput multi-camera array microscope platform for automated 3D behavioral analysis of swimming zebrafish larvae

TL;DR

A new microscope system captures 3D movements of 48 zebrafish larvae at once, revealing behaviors and traits that 2D methods miss.

Contribution

A high-throughput 24-camera array microscope with mirrored well plates enables automated 3D tracking of multiple zebrafish larvae.

Findings

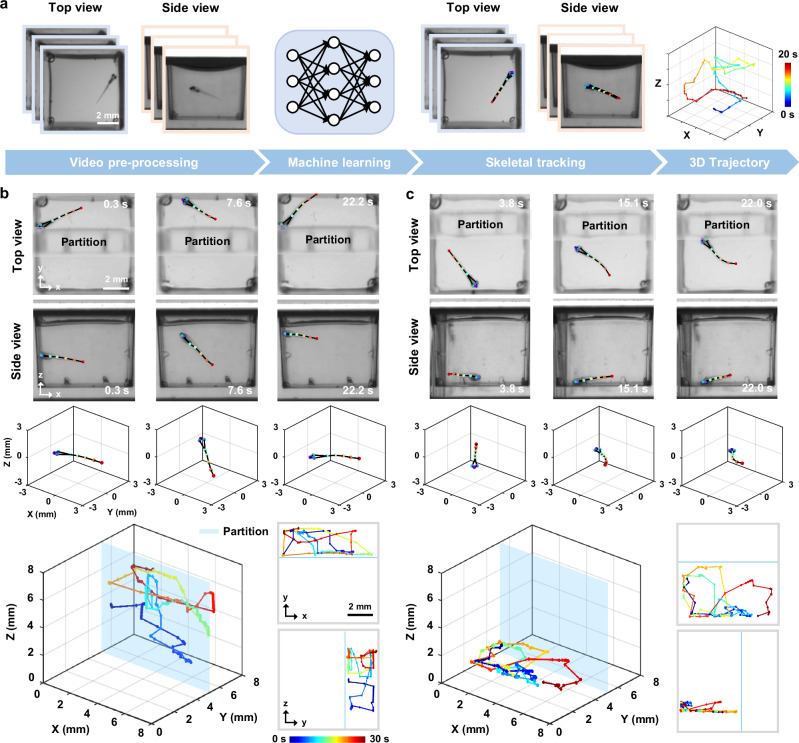

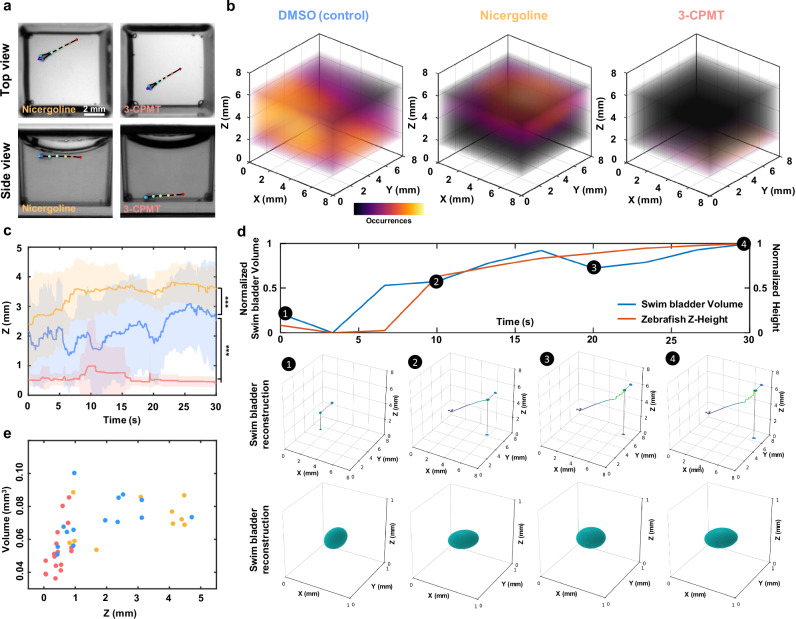

The system captures 3D skeletal tracking and swim bladder dynamics of up to 48 larvae simultaneously.

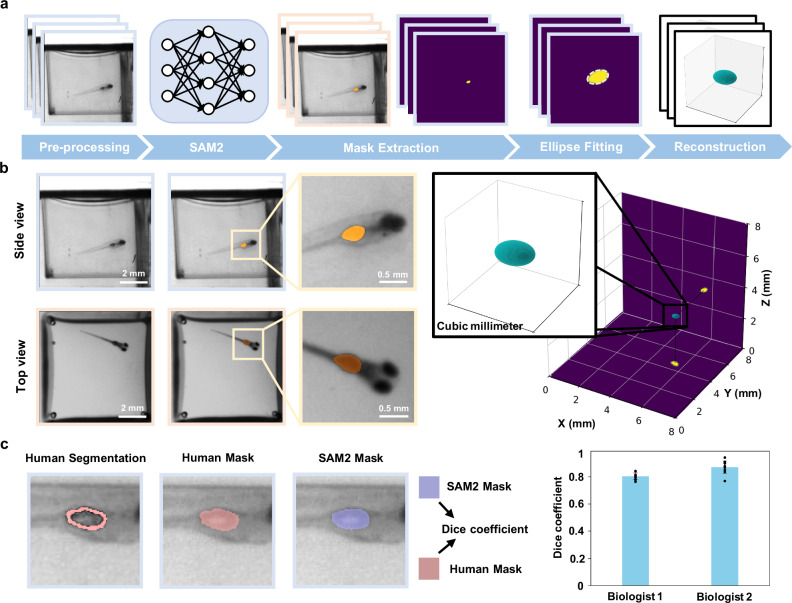

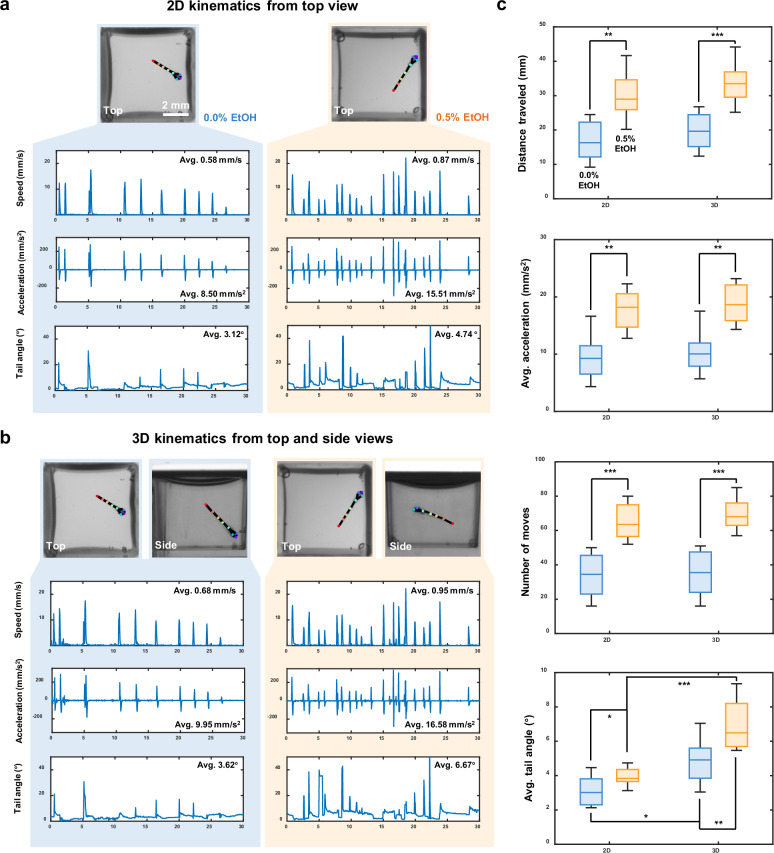

A machine learning algorithm enables efficient and scalable 3D behavioral analysis at high frame rates.

The approach is compatible with standard lab workflows in pharmacology, toxicology, and neuroscience.

Abstract

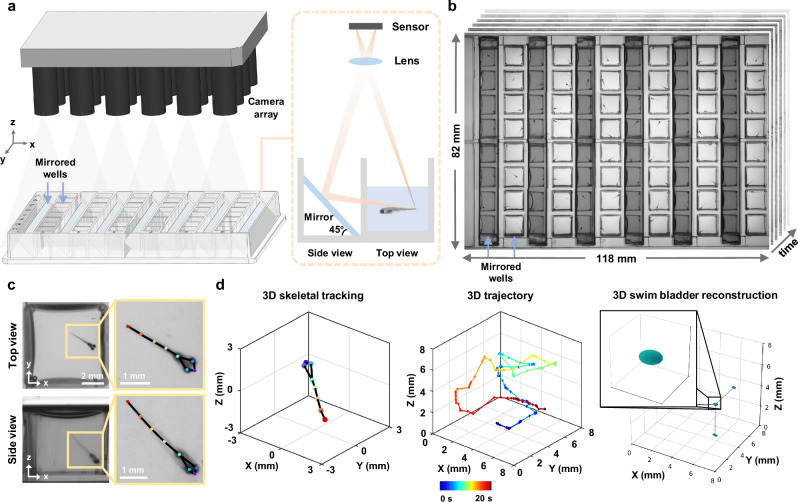

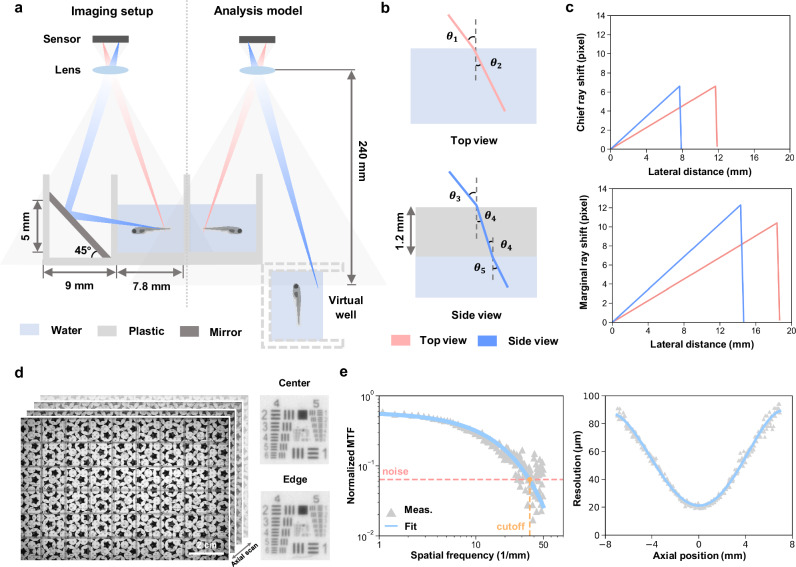

Understanding the behavioral and morphological dynamics of moving model organisms like the zebrafish larvae requires accurate, high-throughput 3D analysis. However, traditional single-view 2D video tracking fails to capture the full scope of natural 3D movements and postural dynamics. Here, we present a novel high-throughput 24-camera array microscope with a co-designed “mirrored well plate" that allows for snapshot imaging of up to 48 wells over a 118 mm × 82 mm field of view from two orthogonal directions (i.e., a top-view and side-view). Accurate 3D position estimation and tracking is achieved with an efficient machine learning algorithm that scales well to high-throughput measurements. The proposed approach automates parallelized 3D model organism behavioral analysis, providing 3D skeletal tracking, swim bladder morphological dynamics, and kinematics of up to 48 swimming zebrafish larvae at up to several hundred frames per second. The result is an efficient and scalable solution for high-throughput 3D behavioral studies with broad compatibility with standard workflows across laboratories and procedures working with pharmacology, toxicology, and neuroscience.

Array microscope with mirrored well plates enables automated, scalable 3D behavioral analysis of 48 zebrafish larvae in parallel, revealing complex kinematics and phenotypes missed by conventional 2D methods.
