Mapping the Spatial Sensitivity of Aquitard Hydraulic Parameters on Pumping Test Drawdowns
Martijn D. van Leer, Willem J. Zaadnoordijk, Alraune Zech, Jasper Griffioen, Marc F. P. Bierkens
TL;DR
This study explores how aquitard properties affect water level changes during pumping tests, helping improve aquifer testing methods.
Contribution
The study introduces spatial sensitivity maps to identify which aquitard areas influence drawdowns in different observation wells.
Findings
Sensitivity patterns in the pumped aquifer form symmetrical ellipses around pumping and observation wells.
Sensitivity in the overlying aquifer depends on the transmissivity ratio between aquifers.
Sensitivity areas expand and shift over time under semiconfined boundary conditions.
Abstract
This study investigates the spatial and temporal sensitivity of aquitard hydraulic conductivity and specific storage on drawdowns in pumping tests. The objective is to understand which area of the aquitard is represented by drawdowns in different observation wells. A three‐layered MODFLOW 6 model was used to simulate pumping tests on a circular Voronoi grid for three transmissivity scenarios and both confined and semiconfined top boundary conditions. A local sensitivity analysis was performed using PEST++ to determine how perturbations in hydraulic conductivity and specific storage of the aquitard affect head changes at observation wells in the pumped and overlying aquifer. Results indicate that for observation wells in the pumped aquifer, sensitivity forms an elliptical shape that is symmetrical around the observation well and the pumping well for all scenarios. The sensitivity map for…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7- —TNO—Geological Survey of the Netherlands
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsGroundwater flow and contamination studies · Hydraulic Fracturing and Reservoir Analysis · Geophysical and Geoelectrical Methods
Introduction
Pumping tests are commonly used to determine hydraulic parameters of aquifers and aquitards. Typically, the parameters are identified using analytical solutions from drawdown measurements. The simplest solutions that consider aquitards only use observation wells in the pumped aquifer and include a hydraulic conductivity and specific storage value for confining layers (Hantush and Jacob 1955). However, these solutions account for leakage of the aquifer through both the overlying and underlying aquitards, resulting in a single value for both vertical flow directions, which leaves ambiguous results regarding the aquitards.
To achieve unambiguous interpretation of the aquitard hydraulic parameters, observation wells in surrounding aquifers must also be considered (Neuman and Witherspoon 1969, 1972; Hemker and Maas 1987). This requires pumping tests to be sufficiently long to let the drawdown propagate through the aquitard. Additionally, observation wells have to be installed in the overlying and/or underlying aquifer. This makes a pumping test more costly and requires more complex solutions for interpretation. Partly due to these challenges, aquitards are often neglected in favor of aquifers in pumping test design and interpretation (Fogg and Zhang 2016).
Analytical solutions for pumping test interpretation typically assume homogeneous hydrogeological units. However, this is not the case in reality. Multiple studies have investigated pumping tests assuming heterogeneity (Leven and Dietrich 2006; Zech et al. 2015; Demir et al. 2017; Müller et al. 2022; Manewell et al. 2023). These studies have focused on the heterogeneity of the pumped aquifers, without considering aquitards. The heterogeneity of aquitards during pumping tests has been considered from a leaky aquifer perspective with wells only in the pumped aquifer (Copty et al. 2008) and in an applied case through model calibration (van Leer et al. 2023). Little is known about the information to be gained from pumping tests regarding effective aquitard parameters. Furthermore, it remains unclear which area of the aquitard influences the effective aquitard parameters obtained and how they relate to the aquitard heterogeneity.
This study is the first to identify the spatial sensitivity of aquitard hydraulic conductivity and specific storage for pumping test drawdowns in the pumped aquifer and the aquifer above. This information is not only valuable to assess the heterogeneity of the aquitard, but is particularly relevant to optimize pumping test design for aquitard characterization. The latter is key information for solute transport studies and the parameterization of regional groundwater models.
Methods
Conceptual Model
We performed a sensitivity analysis using a numerical model that simulates a pumping test in a three‐layer setting. Figure 1 shows the conceptual model, which consists of two aquifers separated by an aquitard. All layers are of equal thickness D (L). The horizontal hydraulic conductivity in the aquifers is referred to as K 1 (upper aquifer 1) and K 2 (lower aquifer 2) (L/T). Vertical hydraulic conductivity in the aquifers is the same as the horizontal hydraulic conductivity. The aquitard is characterized by the hydraulic resistance c.

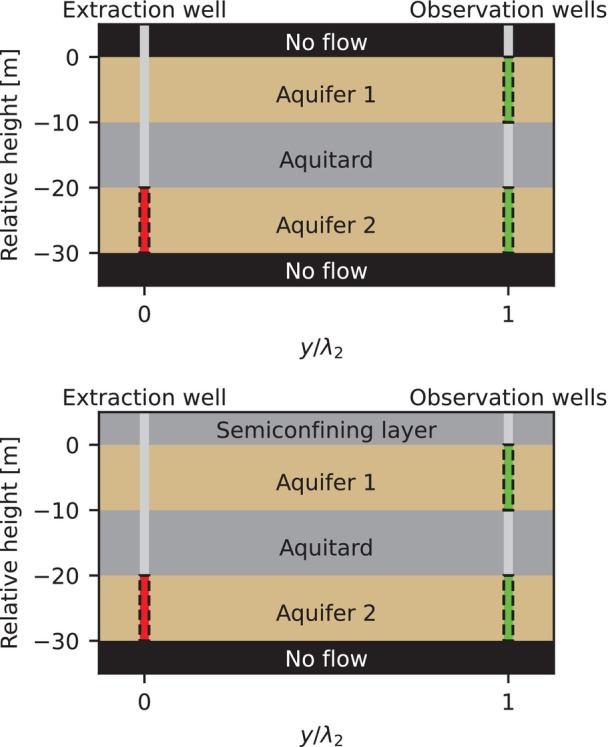

Conceptual representation of the three‐layer model used in the pumping test with (top) confined upper boundary and (bottom) semiconfined upper boundary layer.
Two wells are placed: one pumping well which is pumping from the second aquifer and an observation well which has observation screens in both aquifers.
We test two situations for the upper boundary of the system: (1) a confined top representing a system not impacted by other layers and (2) a semiconfined top which represents settings with surface water or leaky aquitards.
Dimensionless Variables
To make our findings generalizable and scalable, we use dimensionless variables. Neuman and Witherspoon (1969) described flow through an aquitard by five parameters: leakage factors λ1 and λ2 for both aquifers, leakage parameters β1 and β2 for both aquifers, and dimensionless time tD. In this study, we will only consider λ1, λ2, and tD.
We use the leakage factor relating the lower aquifer to the aquitard λ2=K2Dc (L), (withK2 [L/T] is the hydraulic conductivity, D [L] the thickness of the lower, pumped aquifer, and c [T] the resistance of aquitard) to define a dimensionless distance L:
where lA is the actual distance (L). Dimensionless time is defined as:
with K2 (L/T) being the hydraulic conductivity and S2 (L^−1^) the specific storage of the pumped aquifer, t (T) is the actual time and l (L) is the distance from the pumping well.
Since the drawdown in the whole system is triggered by the drawdown in the pumped aquifer, we define the dimensionless drawdown as:
where s (L) is the drawdown (L) and Q (L^3^/T) is the discharge of the pumping well (assumed to be constant in time).
Both the dimensionless time and drawdown are only based on properties of the pumped aquifer and the aquitard. We cover the properties of the other aquifer by testing the impact of hydraulic conductivity K1 in different scenarios.
Groundwater Flow Model
The pumping test was simulated using the MODFLOW 6 model, created with FloPy (Bakker et al. 2016; Hughes et al. 2024). The 3D model contains three layers in the vertical direction and a circular Voronoi grid in the horizontal direction. This type of grid construction starts with cell centers, which are then transformed into grid cells using the Voronoi tessellation in FloPy, allowing for arbitrary cell shapes and sizes instead of creating the grid based on cell sizes beforehand, as is usual in structured grids. The grid is visualized in Figure 2 and is the same in all layers. There are approximately 22,000 grid cells in total. The smallest cell sizes are chosen so there are approximately 40 cells between the pumping and extraction well. The irregular grid allows for decreasing cell sizes toward the center. The circular shape of the grid is suitable for radial flow toward a well. Also, the central cell with the pumping well is a polygon that is approximately circular, which gives more accurate results locally than square grid cells.

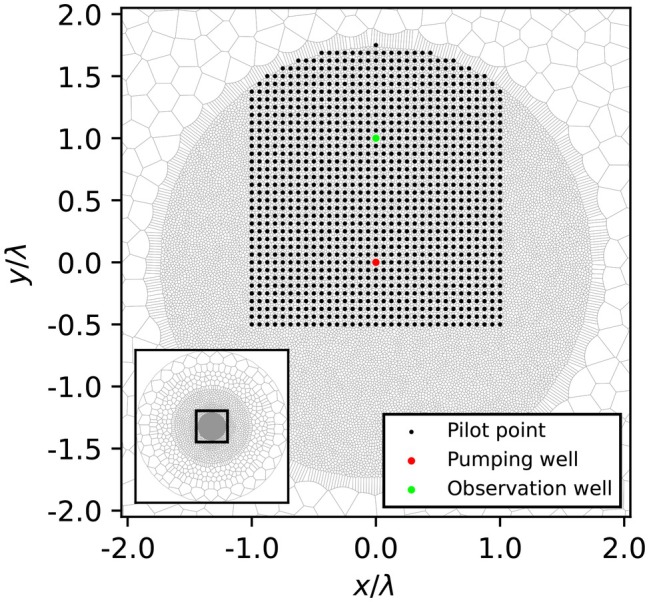

Model grid (top view) with pumping well, observation well, and pilot point locations. The inset shows the full grid.
The domain is large enough (L = 10, see Equation 1) to ensure boundary effects are minimized, similar to the infinite domain assumption from analytical solutions. The observation well is placed at L = 1 (one dimensionless distance) from the pumping well (Figure 2). It has screens in both aquifers (Figure 1). The MODFLOW model is validated with TTim (Bakker 2013) which provides analytical or semi‐analytical solutions for the same flow settings.
The initial head is set to 0 everywhere. The two top boundary settings are implemented separately. A no‐flow upper boundary is used for the confined top layer. The semiconfining top layer is simulated with a General Head Boundary with a head of 0 and a conductance that is equivalent to the hydraulic resistance of the aquitard.
Beside the two upper boundary settings, we test three scenarios for the relation of hydraulic conductivity/leakage factors in both aquifers: we test equal parameters λ1=λ2, a more conductive upper aquifer λ1=2λ2 and a more conductive lower (pumped) aquifer λ1=0.5λ2. Due to the square root relationship of leakage factor to hydraulic conductivity, K 1 is varied by a factor 4. These values are selected as they are expected to change the flow pattern enough to investigate the effects of these parameters, while still remaining within realistic bounds. We only changed the transmissivity of the upper aquifer, as the solution will be independent on the transmissivity in the pumped aquifer, due to the conversion to dimensionless time and dimensionless drawdown (Equations 2 and 3). The influence of the specific storage has not been investigated and the value is kept constant in both aquifers. The three transmissivity scenarios (K 1 > K 2, K 1 = K 2, K 1 < K 2) in combination with the two boundary conditions (confined, semi‐confined) result in six scenarios in total.
Sensitivity Analysis
We determine sensitivity maps of the aquitard for the head changes at the observation wells through perturbations at individual pilot points (Figure 2). The values of aquitard hydraulic conductivity K and specific storage S are systematically perturbed for each pilot point, and the changes in head are determined at the observation well. This way, the sensitivity is determined of the part of the aquitard influenced by each pilot point for the head in the observation well. The analysis is performed with PEST++ (White et al. 2020), specifically using the PESTPP‐GLM (Gauss–Levenberg–Marquardt) software and pyemu (version 1.3.8), the Python implementation of PEST++.
We chose to use pilot points instead of the grid cells for the perturbations because the fine grid resolution needed for accurate flow calculation is not necessary for the sensitivity maps. We placed the pilot points on a structured grid in the area surrounding the pumping and observation well (Figure 2). Points are L = 0.0625 apart, so there are 16 pilot points between the observation well and the pumping well.
We used default settings in PEST++/pyemu, meaning the perturbations of K and S were 1% of the log‐transformed initial values. We used a logarithmic transformation as K and S cannot be negative, but can cover multiple orders of magnitude. Sensitivity in this paper is defined as the absolute values of the Jacobian matrix, converted to dimensionless drawdown using Equation 3. This means it is a finite‐difference approximation of the derivative of the change in observation for hydraulic conductivity the sensitivity is defined by ∆sD∆Log(K) (−), and for specific storage with and ∆sD∆Log(S) (−). The sensitivities are converted to absolute values, meaning that high sensitivity zones represent areas that affect drawdown substantially, while low sensitivity zones represent areas that do not affect the drawdown. When the aquitard is considered heterogeneous, indirectly, any parameters that will be inversely computed from these drawdowns will also have this sensitivity pattern, and represent a spatial averaging of the layer parameters, weighted based on the sensitivity values.
Results
Model Validation
Figure 3 shows the drawdowns for all six scenarios for both the MODFLOW model and TTim simulations. The R ^2^ between the drawdowns at the observation wells of the two models is greater than 0.99 for each scenario. This confirms that the choices of grid and boundary conditions in the MODFLOW model are well suited for the analysis.

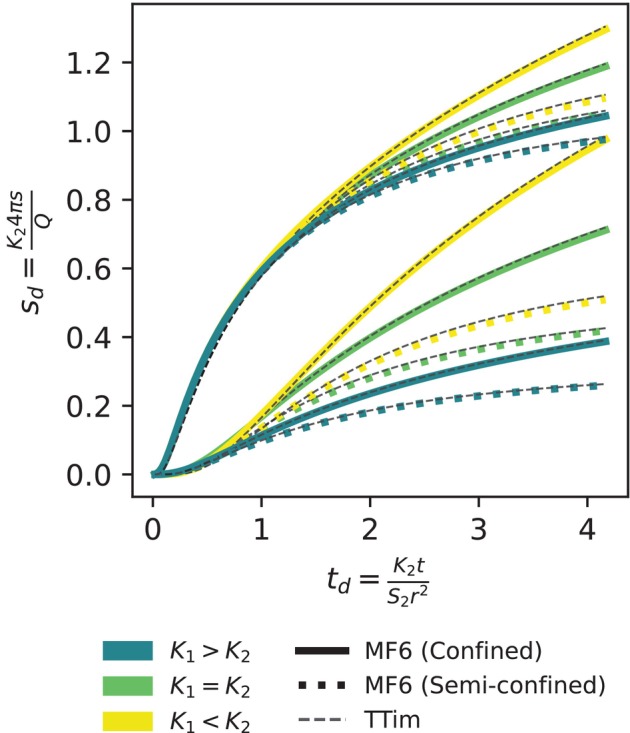

Pumping test drawdown at an observation well for three transmissivity scenarios (colors): Solid lines show the confined top boundary condition, while the dotted line represents the semi‐confined boundary condition. The dashed lines represent the TTim model results. The top curves represent the drawdown observed in the pumped aquifer; the bottom curves represent the drawdown observed in the overlying aquifer.
Observation Well in Pumped Aquifer
Sensitivity maps of the aquitard resistance c for drawdown at the observation well in the pumped aquifer are shown in Figure 4 for the confined case. At early times, the sensitivity forms a narrow zone between both wells, with maxima at both wells and rapidly diminishing sensitivity away from the wells. Over time, the area of the sensitivity zone expands, while the maximum sensitivity values increases, except in the K1<K2 scenario, where the maximum value is slightly lower in the latest timestep than in the one before. In this scenario the signal propagates through the pumped aquifer first, meaning the drawdown here stabilizes quickly, reducing sensitivity. Generally, this affirms the notion that longer pumping provides more accurate results regarding aquitard hydraulic conductivity. While absolute sensitivity values are shown, the sign is the same throughout the whole domain before this conversion, which differs from the sensitivity pattern for hydraulic conductivity in aquifers, where the sign is different between the wells compared to outside of the wells (Leven and Dietrich 2006).

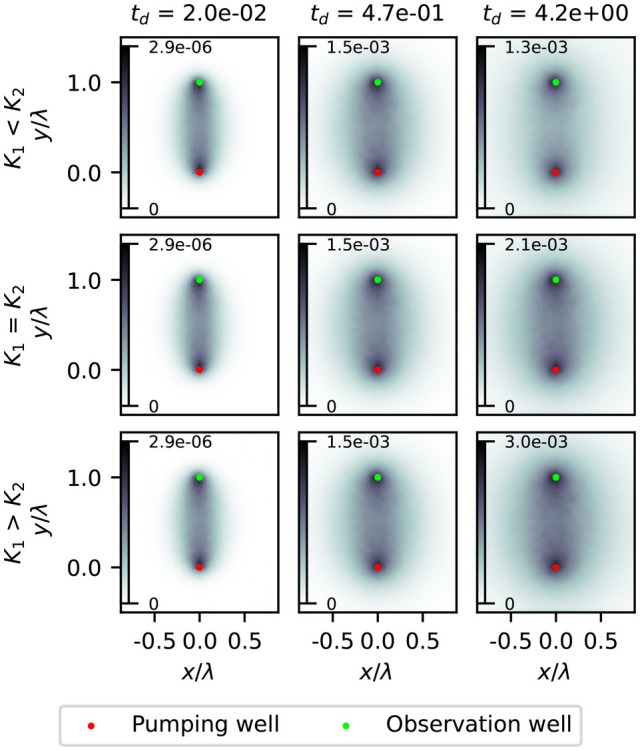

Sensitivity maps of aquitard hydraulic conductivity for drawdowns observed in the pumped aquifer with a confined top boundary. Sensitivity values are dimensionless. Dimensionless time increases from left to right. Top to bottom represents the three transmissivity scenarios.
The spatial distribution is similar across all scenarios; only the exact values differ due to the difference in measured drawdown between the scenarios (Figure 3). Since the sensitivity pattern is the same, the top boundary condition does not affect the sensitivity of the observation well in the pumped aquifer. The sensitivity analysis for specific storage shows this pattern in all scenarios as well. The sensitivity maps of both the specific storage and hydraulic conductivity of the semiconfined case can be found in the Supporting Information S1–S3.
Observation Well in Overlying Aquifer
The sensitivity maps of the aquitard hydraulic conductivity for the drawdown in the observation well in the overlying aquifer are shown in Figure 5 for the confined top layer scenarios. Moreover, Figure 5 shows flow directions over time and diagrams of signal propagation at early and late times. In contrast to the situation for the pumped aquifer, the sensitivity pattern of the observed drawdown in the overlying aquifer depends on the K values of both aquifers. When the K values are equal, the sensitivity pattern is like the one in Figure 4 for the observation in the pumped aquifer.

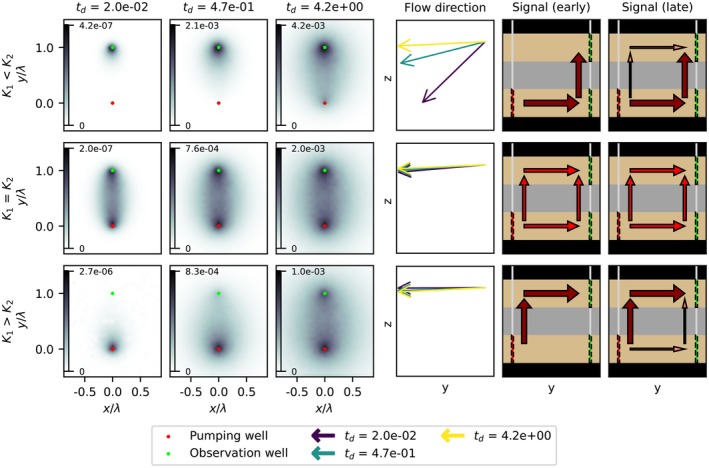

Left: Sensitivity maps of aquitard hydraulic conductivity for drawdowns observed in the overlying aquifer with a confined top boundary. Dimensionless time increases from left to right. Center: Flow direction in the observation well cell in the upper aquifer, showing the flow direction has a strong vertical component in the K1<K2 case for early time steps, shifting to horizontal toward late time steps. Right: Conceptual signal propagation for early and late times. Arrows represent the magnitude of the signal propagation from the pumping well to the observation well. Top to bottom are the three scenarios of hydraulic conductivity relation between the two aquifers.
When K values differ between the aquifers, the sensitivity is concentrated at one of the two wells, especially at early times. The drawdown signal takes the route of least resistance, favoring the aquifer with the highest transmissivity (Figure 5). This pattern is confirmed by the change in time of the flow direction in the observation well; in the scenario where the hydraulic conductivity is higher in the pumped aquifer (K1<K2), the flow at the observation well initially has a large vertical component, shifting over time to a more horizontal direction. At later times, the sensitivity of the aquitard at the pumping well increases, indicating the signal eventually reaches the well through that route, but remains less strong. When K1>K2, the sensitivity starts at the pumping well and the flow direction is initially horizontal and shifts slightly downward later. Figure 6 shows the sensitivity maps for the specific storage for observation wells in the overlying aquifer. The main difference is that the magnitude of the sensitivity for specific storage is generally lower, meaning it affects drawdown less than hydraulic conductivity. Also, in the case of K1>K2 the maximum sensitivity is lowest in late timesteps, as opposed to the hydraulic conductivity pattern, were the maximum sensitivity is lowest in the K1<K2 scenario.

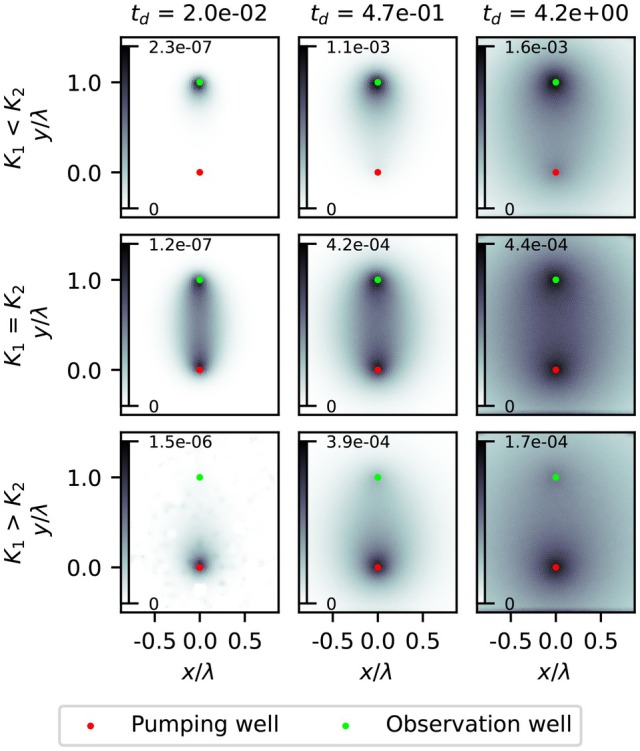

Sensitivity maps of aquitard specific storage for drawdowns observed in the pumped aquifer with a confined top boundary. Sensitivity values are dimensionless. Dimensionless time increases from left to right. Top to bottom represents the three transmissivity scenarios.
The hydraulic conductivity sensitivity maps for the semiconfined top boundary are shown in Figure 7. The general pattern is similar to the confined boundary case (Figure 5). With the semiconfined top boundary, the sensitivity shifts toward the observation well over time for all three scenarios. The flow vectors in the observation well have a larger vertical component compared to the confined case, especially at later times. This can be explained by the reduction of the drawdown signal through the overlying aquifer.

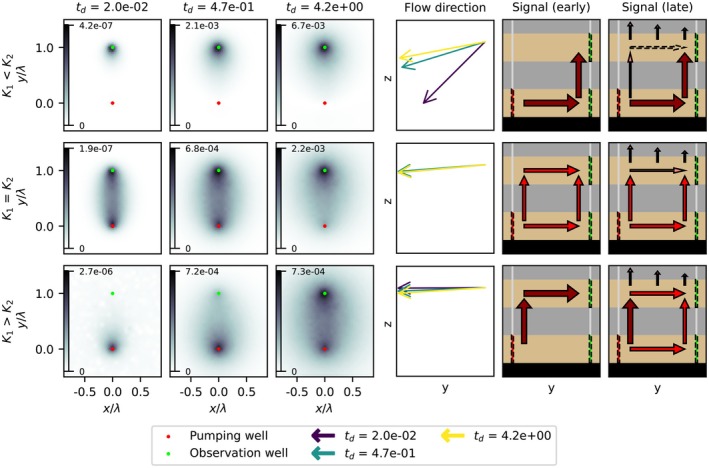

Left: Sensitivity maps of aquitard hydraulic conductivity for drawdowns observed in the overlying aquifer with a semiconfined top boundary. Dimensionless time increases from left to right. Center: Flow direction in the observation well cell in the upper aquifer, showing the flow direction has a strong vertical component in the K1<K2 case for early time steps, shifting to horizontal toward late time steps. Right: Conceptual signal propagation for early and late times. Arrows represent the magnitude of the signal propagation from the pumping well to the observation well. Top to bottom are the three scenarios of hydraulic conductivity relation between the two aquifers.
