Single-Crystal NMR for 17O in Alanine Enantiomers

TL;DR

This study uses advanced NMR techniques to explore the electronic structure of oxygen atoms in crystalline alanine enantiomers, shedding light on molecular chirality.

Contribution

The first comprehensive characterization of 17O NMR tensors in alanine enantiomers using single-crystal ssNMR combined with X-ray and DFT.

Findings

Eight magnetically nonequivalent 17O resonances were observed and assigned in alanine enantiomers.

DFT calculations revealed antisymmetric components of chemical shift tensors previously unobserved.

The integration of ssNMR, X-ray diffraction, and DFT advanced understanding of molecular chirality in amino acids.

Abstract

Single-crystal solid-state nuclear magnetic resonance
(ssNMR) spectroscopy,
which enables detailed analysis of the electronic structures of crystalline
molecules, offers a unique opportunity to investigate molecular chiralityan
essential feature with broad implications for understanding the origin
and function of life. In this study, we employ single-crystal ssNMR
spectroscopy, in combination with X-ray diffraction and density functional
theory (DFT) calculations, to examine the electronic structure of 17O nuclei in crystalline forms of alanine enantiomers. Eight
magnetically nonequivalent 17O resonances within the unit
cell were observed and successfully assigned, and their corresponding
NMR tensor parameters were determined. These resonances are comprised
of pairs of chemically distinct oxygens in each of four symmetrically
related sites. The experimental findings were compared with previous
NMR studies as well as with DFT calculations performed in this work.
The DFT results not only supported the assignment of crystallographically
distinct 17O sites but also revealed previously unobserved
antisymmetric components of the chemical shift tensors. This study
presents the first comprehensive characterization of 17O NMR tensors in alanine enantiomers and underscores the power of
integrating single-crystal ssNMR with X-ray diffraction and DFT calculations
to advance our understanding of molecular chirality in amino acids.

Figures

(a) Photograph of front view of the probe. The arrow shows rotation of the goniometer inside the RF coil. Inset shows l-alanine crystal glued to the tenon. The tenon may be mounted on three different orientations in the goniometer so that three orthogonal rotations of the sample can be achieved. (b) Photograph of side view of the probe showing goniometer mechanism and probe coils. (c) Rotation of tenon around an axis that is perpendicular to magnetic field. The three mutually perpendicular rotations are achieved by mounting the tenon plate into dovetails for −x T , y T , and −z T rotations. (This figure is modified from ref under CC-BY 4.0 license, copyright T. Vosegaard.)

Synthesis of 17O-Labeled Alanine

(a, b) Two views of the orthorhombic crystal structure of l-alanine the crystallographically nonequivalent O sites, related by a screw axis, labeled as O1 and O2. All the eight O nuclei are magnetically nonequivalent. The arrows represent directions and scaled magnitudes of the computed chemical shielding tensors in the crystal frame. O, C, N, and H nuclei are shown in red, black, blue, and white, respectively. (H nuclei on carbons omitted for clarity.)

Single-crystal 17O NMR spectra at 14.1 T for l-alanine. The spectra were recorded at 15° increments for rotation about (a) mounting −x T , (b) mounting y T , and (c) mounting −z T .

Single-crystal 17O NMR spectra at 14.1 T for d-alanine. The spectra were recorded at 10° increments for rotation about (a) mounting −x T , (b) mounting y T , and (c) mounting −z T .

Rotation plots for 17O central transition in l-alanine showing experimental resonances with two crystallographically nonequivalent 17O sites each having four magnetically nonequivalent 17O nuclei (marked as ○, □, △, ×) under rotation of the three orientations of the crystal sample. The curves are constructed from optimized coefficients (see Table ).

Rotation plots for 17O central transition in d-alanine showing experimental resonances with two crystallographically nonequivalent 17O sites each having four magnetically nonequivalent 17O nuclei (marked as ○, □, △, ×) under rotation of the three orientations of the crystal sample. The curves are constructed from optimized coefficients (see Table ).

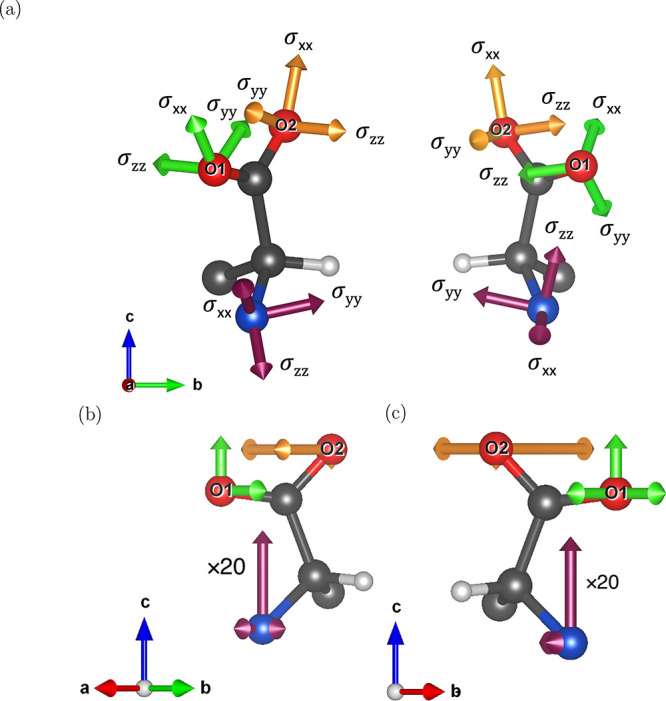

Depictions of (top) the shielding tensor eigenvectors and (bottom) the ACS pseudovectors for the O1 and O2 oxygen sites, and the nitrogen site in (left) l-alanine and (right) d-alanine, where V x ∥ a, V y ∥ b, and V z ∥ c. The tensors at the N site are scaled by a factor of 20 so they are visible on the same scale as the O tensors. The coordinate axes in the pseudovector depiction have been rotated so that the structural symmetry is emphasized. Note that the V x pseudovector on O1 is obscured by the atom and the V z pseudovector on O2 is very small. C, N, O, and H atoms are shown in black, blue, red, and white, respectively. All hydrogens, except that on the chiral carbon, have been omitted for clarity.

Tables

1. Crystallographic Data for d-Alanine and l-Alanine at 295 K

	l-alanine	d-alanine
empirical formula	C3H7NO2	C3H7NO2
formula weight	75.08	75.08
crystal system	orthorhombic	orthorhombic
space group	P212121	P212121
a	6.036 (3) Å	6.025 (3) Å
b	12.342 (5) Å	12.324 (5) Å
c	5.788 (3) Å	5.783 (3) Å
Z	4	4
Z'	1	1
cell volume	431.2 Å3	429.4 Å3

2. Average Root-Mean-Square Deviations in Nuclear Positions after Optimization of l- and d-Alanine from Literature Crystal Structures

		RMS deviation/10–4 Å
nucleus	# centers	l-ala (295 K)	d-ala (295 K)	l-ala (60 K)	d-ala (60 K)
H	28	2.48	2.50	1.72	1.10
C	12	5.53	5.60	3.21	5.16
N	4	1.54	1.47	1.59	0.63
O	8	9.23	7.70	9.73	9.36
All	52	4.87	4.46	4.33	4.51

3. Optimized Coefficients (in kHz) for 17O Rotation Data of l-Alanine (up to 3 Significant Figures)

mounting	nucleus	A	B	C	D	E
–x T	1	14.7	–3.37	–1.05	–4.51	4.25
y T		20.2	–1.06	3.90	8.08	2.59
–z T		20.6	10.9	2.99	0.0857	0.151
–x T	2	15.1	–3.05	0.266	–4.81	5.09
y T		17.8	3.54	–3.81	7.41	–1.81
–z T		19.4	9.26	0.309	0.972	0.523
–x T	3	17.9	1.69	2.62	8.68	–2.39
y T		13.7	–2.99	–4.76	–2.61	–1.80
–z T		18.6	–0.238	–10.1	–1.17	0.00316
–x T	4	11.4	4.52	–4.75	1.77	–5.42
y T		14.2	–3.35	–3.13	–3.54	–1.75
–z T		20.2	–2.81	–11.4	0.125	0.289
–x T	5	18.6	–1.19	–4.39	0.646	–8.69
y T		17.0	–3.58	3.85	–6.80	0.814
–z T		13.8	1.36	–1.27	0.00303	2.00
–x T	6	13.5	9.16	–2.22	5.72	–4.05
y T		16.1	–3.60	2.31	–5.84	3.21
–z T		13.3	0.387	–0.628	0.812	–0.167
–x T	7	9.90	–2.60	2.00	0.187	0.391
y T		17.8	–5.53	–1.83	5.76	–4.37
–z T		13.5	0.0178	0.0635	0.00522	–0.667
–x T	8	8.95	–2.69	1.82	0.333	0.188
y T		14.0	–2.32	0.210	5.41	1.76
–z T		12.8	1.35	0.0144	–1.04	–0.714

4. Optimized Coefficients (in kHz) for 17O Rotation Data of d-Alanine (up to 3 Significant Figures)

mounting	nucleus	A	B	C	D	E
–x T	1	14.7	7.22	–3.12	1.49	–7.19
y T		16.8	–2.66	5.99	–4.81	1.26
–z T		17.7	5.26	10.8	–0.297	0.450
–x T	2	15.6	5.46	–1.24	2.31	–7.60
y T		15.5	–1.64	5.97	–2.77	2.32
–z T		16.4	5.96	8.18	0.555	0.773
–x T	3	15.2	0.0720	–5.50	–5.49	–5.99
y T		17.3	–1.32	4.26	5.32	2.95
–z T		17.9	10.7	–5.69	0.159	–0.638
–x T	4	15.0	0.311	–8.01	–5.37	–4.87
y T		18.4	–2.32	–4.82	6.52	0.922
–z T		16.5	10.1	–3.54	1.14	0.382
–x T	5	13.6	–2.57	2.12	0.876	4.43
y T		17.2	–1.31	–6.04	–4.35	–3.78
–z T		15.6	–0.358	3.83	–0.928	–2.24
–x T	6	11.4	–2.15	1.44	0.601	3.22
y T		15.8	–0.694	–5.21	–1.64	–4.58
–z T		15.0	–1.94	2.06	1.29	–0.925
–x T	7	10.9	–2.86	1.726	1.46	2.08
y T		15.1	–8.97	–3.20	2.06	4.02
–z T		15.0	–0.337	–2.65	–0.337	1.64
–x T	8	10.9	–0.0933	3.80	0.263	2.75
y T		13.3	–7.79	0.598	3.76	–0.998
–z T		15.5	1.93	–3.02	–2.57	–0.0608

5. Experimental and Computed Quadrupolar Couplings, Chemical Shift Anisotropies, Isotropic Chemical Shift, and Relative Orientations of the Two Tensors for 17O and 14N Nuclei in l-Alanine and d-Alanine

compound	nucleus	site	|C Q|/MHz	ηQ	δCS/ppm	ηCS	δiso /ppm	a/°	b/°	c/°	reference	method
experimental
l-alanine	17O	1	6.5 ± 0.4	0.34 ± 0.16	173 ± 27	0.4 ± 0.4	227	2.3	86 ± 3	92 ± 14	this study	SCNMR
		2	6.6 ± 0.4	0.63 ± 0.17	189 ± 22	0.5 ± 0.2	238.8 ± 7.8	32 ± 16	86 ± 3	89 ± 5
	17O	1	7.86 ± 0.05	0.28 ± 0.02			284.0 ± 0.5					MAS
		2	6.53 ± 0.05	0.70 ± 0.02			260.5 ± 0.5
	17O	1	8.1 ± 0.3				285 ± 8				,	DAS
		2	7.2 ± 0.3				268 ± 8
	14N		1.14 ± 0.03	0.24 ± 0.03			3.1 ± 0.3					MAS
d-alanine	17O	1	7.1 ± 0.2	0.24 ± 0.09	188 ± 15	0.4 ± 0.12	235.5 ± 4.9	24 ± 10	89.1 ± 1.5	86 ± 10	this study	SCNMR
		2	5.91 ± 0.13	0.70 ± 0.06	153 ± 7	0.83 ± 0.09	224.8 ± 2.8	27 ± 3	88.1 ± 1.0	91.0 ± 1.3
	17O	1	7.60 ± 0.02	0.60 ± 0.01			275 ± 5					MQMAS
		2	6.40 ± 0.02	0.65 ± 0.01			262 ± 5
calculated
PBEsol + GIPAW
l- and d-alanine	17O	1	8.09	0.22	282	0.48	– 30.7	39	89	97	this study
		2	6.49	0.65	202	0.68	– 11.9	29	88	95
	14N		1.29	0.25	10.4	0.99	186.4	125	150	150	this study

6. Experimental Euler Angles Relating the PAF­(Q) to Goniometer and Crystal Axis Frame for Magnetically Equivalent 17O Nuclei for Two Crystallographically Nonequivalent Sites in l-Alanine

site	nucleus	αQG	βQG	γQG	ζ	λ	ν
1	1	48	47	336	82	66	73
	2	310	24	102	–12	11	–1
	3	129	50	203	–85	68	–22
	4	118	7	58	79	28	34
2	1	263	9	150	–24	30	11
	2	223	1	2	–46	34	28
	3	170	38	323	20	64	60
	4	145	56	38	6	42	–54

7. Experimental Euler Angles Relating the PAF­(Q) to Goniometer and Crystal Axis Frame for Magnetically Equivalent 17O Nuclei for Two Crystallographically Nonequivalent Sites in d-Alanine

site	nucleus	αQG	βQG	γQG	ζ	λ	ν
1	1	304	21	80	67	78	25
	2	308	19	80	71	79	23
	3	248	35	80	8	71	37
	4	–90	39	70	20	75	44
2	1	318	39	348	–2	122	31
	2	210	19	19	–84	98	25
	3	37	36	180	88	66	–20
	4	342	66	40	70	94	73

8. Calculated quadrupolar (in MHz) and Chemical Shielding (CS) Tensors (in ppm), Rounded to Three Decimal Places, for One of the Magnetically Equivalent 17O Site for Crystallographic Site O1 in Enantiomers of Alanine

	enantiomer
component	l-alanine	d-alanine
quadrupolar	(−4.1200.726−1.1870.726−3.6231.702−1.1871.7027.743)	(−4.1200.7261.1870.726−3.623−1.7021.187−1.7027.743)
total CS	(−51.128209.77855.794180.674120.849−83.96419.534−46.887−161.699)	(−51.139209.781−55.794180.676120.75183.968−19.53246.886−161.799)
isotropic CS	(−30.659000−30.659000−30.659)	(−30.729000−30.729000−30.729)
symmetric CS	(−51.128195.22637.664195.226120.849−65.42537.664−65.425−161.699)	(−51.139195.229−37.663195.229120.75165.427−37.66365.427−161.799)
antisymmetric CS	(014.55218.130−14.5520−18.539−18.13018.5390)	(014.553−18.131−14.553018.54118.131−18.5410)

9. Calculated quadrupolar (in MHz) and Chemical Shielding (CS) Tensors (in ppm), Rounded to Three Decimal Places, for One of the Magnetically Equivalent 17O Site for Crystallographic Site O2 in Enantiomers of Alanine

	enantiomer
component	l-alanine	d-alanine
quadrupolar	(0.942−1.0124.634−1.012−0.817−3.5804.634−3.580−0.125)	(0.942−1.012−4.634−1.012−0.8173.580−4.6343.580−0.125)
total CS	(−63.835165.365−76.405168.44477.81226.0257.265−23.272−49.805)	(−63.854165.37776.405168.44977.714−26.028−7.26923.276−49.924)
isotropic CS	(−11.943000−11.943000−11.943)	(−12.021000−12.021000−12.021)
symmetric CS	(−63.835166.905−34.57166.90577.8121.376−34.5701.376−49.805)	(−63.854166.91334.568166.91377.714−1.37634.568−1.376−49.924)
antisymmetric CS	(0−1.539−41.8351.539024.64841.835−24.6480)	(0−1.53641.8371.5360−24.652−41.83724.6520)

10. Calculated quadrupolar (in MHz) and Chemical Shielding (CS) Tensors (in ppm), Rounded to Three Decimal Places, for One of the Magnetically Equivalent 14N Site in Enantiomers of Alanine

	enantiomer
component	l-alanine	d-alanine
quadrupolar	(0.433−0.236−0.975−0.236−0.4210.283−0.9750.283−0.012)	(0.433−0.2360.975−0.236−0.421−0.2830.975−0.283−0.012)
total CS	(188.7701.781−4.136−1.286176.790−2.976−4.771−3.925193.611)	(188.7661.7794.136−1.286176.6962.9804.7703.925193.518)
isotropic CS	(186.390000186.390000186.390)	(186.327000186.327000186.327)
symmetric CS	(188.7700.248−4.4530.248176.790−3.450−4.453−3.450193.611)	(188.7660.2464.4530.246176.6963.4534.4533.453193.518)
antisymmetric CS	(01.5340.318−1.53400.474−0.318−0.4740)	(01.532−0.317−1.5320−0.4720.3170.4720)

Full text

Introduction

Biological homochirality is a fundamental feature of terrestrial life. ?,? Analysis of a number of carbonaceous meteorites have revealed an excess of l-amino acids compared to the d *-*enantiomers. ?−? ? These findings suggest that abiotic mechanism(s) operating in the stellar environments may be responsible for generating this enantiomeric excess (ee).? Several abiotic models ?−? ? ? ? have been proposed to explain the observed ee of amino acids. Among them, the magnetochiral model calculates ee of as high as 0.02% for alanine, positive ee for many α-amino acids, and up to 0.01% for cationic isovaline and zwitterionic alanine. ?−? ?

The orientation dependence arising from optical isomerism influences the relative nuclear interaction rates of chiral ^14^N nuclei in amino acids with relativistic leptons, such as electron antineutrinos (ν̅_e_), potentially leading to their conversion into ^14^C. This mechanism may contribute to the preferential destruction of d-amino acids over their l-counterparts. In single-crystal ssNMR experiments, the orientation of chiral molecules in high magnetic fields affects the electronic environment such that the antisymmetric components of the magnetic shielding tensor are altered to exhibit reflection symmetry.

The initial motivation of this work was to experimentally test the predictions of the magnetochiral model. The primary aim was to examine the antisymmetric chemical shielding (ACS) tensor components of the ^14^N nucleus in amino acid samples. That target has proven elusive (see Results and Discussion). Instead, we turned to the oxygen atoms in the carboxylate moiety of the amino acids. Of the three stable oxygen isotopes: ^16^O, ^17^O, and ^18^O, only ^17^O (I = 5/2) is NMR active. Being a quadrupolar nucleus as well, ^17^O can serve as a proxy for the ^14^N as a probe of the chiral environments of most amino acids.

While ^17^O NMR studies in solution have provided valuable insights, ?,? solution studies alone cannot fully capture the detailed electronic and structural information on these systems; too much information is lost due to randomized molecular orientations. ACS contributions to the CSA have been indirectly inferred through relaxation studies in solution-state NMR. ?,? Some aspects of electronic structure, such as quadrupolar coupling and chemical shield anisotropy (CSA), can be obtained through solid-state NMR.? For quadrupolar nuclei (I > 1/2), the quadrupolar and ACS components are coupled to each other and this can also be measured using solid-state NMR spectroscopy. ?,? To achieve a more complete understanding of the molecular structure of amino acids, and to better characterize the electronic state of oxygen in biologically important molecules, advanced solid-state NMR techniques such as single-crystal NMR (SCNMR) must be utilized.?

In this work, we have investigated the quadrupolar tensor and the chemical shielding anisotropy tensor for ^17^O nuclei in both enantiomers of isotopically enriched alanine. The relative orientations of these tensors were determined through SCNMR spectroscopy. Due to its low natural abundance (∼0.04%), isotopically enriched samples are required for rapid and facile ^17^O NMR spectroscopy experiments.? The experimental findings were compared with previously reported NMR studies on alanine enantiomers, ?−? ? as well as with periodic density functional theory (DFT) calculations using the published crystal structures.? The DFT models were performed using the PBEsol exchange-correlation functionals.? The NMR tensors were calculated using the gauge-including projector augmented wave (GIPAW) method.? We also present similar calculated data for the ^14^N nuclei.

Theory

The NMR rotating frame Hamiltonian of an isolated quadrupolar nucleus, considered in the Zeeman interaction frame includes contributions from chemical shielding and quadrupolar interactions and is expressed as?

$$[eqn]$$

with

$$[eqn]$$ $$[eqn]$$

and

$$[eqn]$$

In the above equations, $[eqn]$ , $[eqn]$ , $[eqn]$ represent the first order quadrupolar interaction, second-order quadrupolar interaction, and first order chemical shift anisotropy, respectively. The term δ_iso_ denotes the isotropic chemical shift, and the components R 2,λ ^ξ^ (with ξ = CSA or Q, and λ = 2, 1, 0, −1, or −2) represent the spatial part of tensors defined in the laboratory (rotating) frame. Here, I is the nuclear spin quantum number, I _ z _ is the z-component of the angular momentum operator, and eQ is the nuclear quadrupole moment, γ is the gyromagnetic ratio, and ω_0_ is the nuclear Larmor frequency. The spherical tensors R 2,λ ^ξ^, defined in the laboratory frame, can be related to the corresponding G 2,λ ^ξ^ tensors defined in the goniometer-tenon frame through a single-step coordinate transformation using the polar angle θ and an azimuthal angle ϕ according to ?,?

$$[eqn]$$

After explicitly performing this transformation and re-expressing the spherical tensors G 2,λ ^ξ^ into Cartesian tensors G mn ^ξ^ (where m and n are x, y, or z) for easier interpretation, the expression for R 2,λ ^ξ^ and R 2,λ ^ξ^ R _2λ*′* _ ^ξ^ can be written as functions of G mn ^ξ^, θ, and ϕ, as described previously.?

As shown in Figure below, the goniometer tenon, to which the sample crystal is glued for mounting in the SCNMR probe, is designed to allow rotations about the −x, y, and −z axes. The relevant expressions used to interpret the −x ^ T ^ rotation (θ = −Θ; ϕ = π/2), y ^ T ^ rotation (θ = Θ; ϕ = 0), and −z ^ T ^ rotation (θ = π/2; ϕ = −Θ) patterns for the transitions of ^17^O (I = 5/2) can be derived from the eqs–? above by considering transitions among different energy levels. Here, Θ represents the rotation angle applied experimentally by rotating the crystal about an axis that is oriented 90° relative to the external magnetic field (see Figure). For the central transition |1/2⟩↔|−1/2⟩, all three rotation patterns can be rearranged into the following expressions for explicit curve fitting, incorporating the first-order CSA and second-order quadrupolar contributions:

$$[eqn]$$ $$[eqn]$$

where α ∈ {−x ^ T ^, y ^ T ^, −z ^ T ^} and the coefficients Γ_ m _ ^ξ^ (with Γ = A, B, C, ···, E) are defined in terms of the G mn ^ξ^ tensors,? which are (3 × 3 matrices). Note that the dominant first-order quadrupolar Hamiltonian vanishes for symmetric transitions such as |1/2⟩↔|−1/2⟩, due to its quadratic dependence on I _ z _ ^2^.

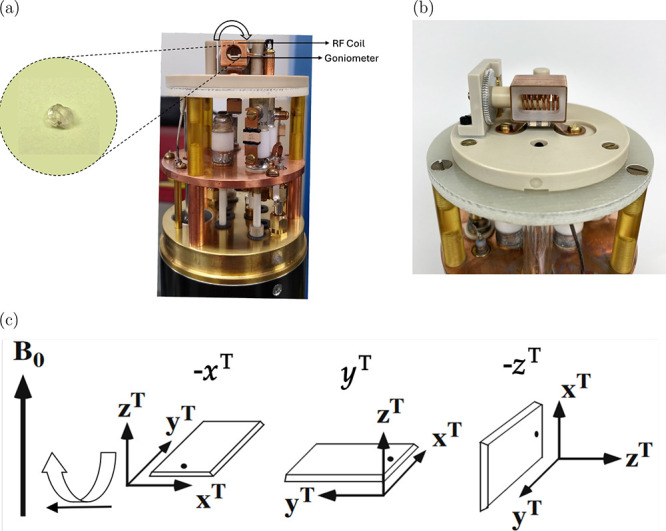

*(a) Photograph of front view of the probe. The arrow shows rotation of the goniometer inside the RF coil. Inset shows l-alanine crystal glued to the tenon. The tenon may be mounted on three different orientations in the goniometer so that three orthogonal rotations of the sample can be achieved. (b) Photograph of side view of the probe showing goniometer mechanism and probe coils. (c) Rotation of tenon around an axis that is perpendicular to magnetic field. The three mutually perpendicular rotations are achieved by mounting the tenon plate into dovetails for −x

T , y

T , and −z

T rotations. (This figure is modified from ref under CC-BY 4.0 license, copyright T. Vosegaard.)*

The CSA and quadrupolar tensor parameters G mn ^ξ^ in the goniometer–tenon frame are determined by performing least-squares curve fitting of the experimentally acquired −x ^ T ^, y ^ T ^, and −z ^ T ^ rotation patterns using the expressions above.? The tensor parameters in the respective principal axis frames (PAFs) of the CSA and quadrupolar tensors are then obtained via matrix diagonalization. The corresponding eigenvector matrices yield the relative orientations of each tensor with respect to the goniometer–tenon frame. These principal components represent unique molecular properties and provide a generalized framework for describing the corresponding NMR tensor interactions. In the principal axis frame (PAF), the CSA tensor can be represented using the Haeberlen convention? as follows:

$$[eqn]$$ $$[eqn]$$ $$[eqn]$$

where

$$[eqn]$$

The quadrupolar coupling constant (C Q) and asymmetry parameter (η_Q_) for electric field gradient (EFG) tensor can be expressed using the Haeberlen–Spiess convention? as

$$[eqn]$$ $$[eqn]$$

with

$$[eqn]$$

The CSA and EFG tensors can be defined in their corresponding PAF using NMR parameters defined above (see Supporting Information).

Tensors defined in the principal axis frame (PAF) and the goniometer–tenon frame are connected via a unitary transformation. In most cases, the PAF of the quadrupolar interaction is chosen as the common reference frame, enabling expression of the CSA tensor’s PAF–and when applicable, the crystal frame from X-ray diffraction–in the same coordinate system. When the crystal frame is adopted as the common reference, both the quadrupolar and CSA PAFs can be mathematically converted into the goniometer–tenon frame, which corresponds to the physical orientation of the mounted crystal, using the following tensor transformations each consisting of three consecutive passive rotations involving an Euler’s angle set (α_1_, β_1_, γ_1_):

$$[eqn]$$

Thus, the tensors in each frame, (e.g., A and B) are related by a unitary transformation as?

$$[eqn]$$

Experimental Details

17O Labeling

The colorless d- and l- enantiomers of alanine were individually labeled by a saponification reaction of the corresponding alanine methyl ester hydrochloride (Ala-OMe·HCl) with sodium ethoxide (NaOEt) and isotopically enriched water (H_2_ ^17^O), following a procedure previously described.? Both enantiomers of Ala-OMe·HCl and NaOEt were purchased from Sigma-Aldrich while H_2_ ^17^O with nominal 40% enrichment was purchased from Cambridge Isotope Laboratories (CIL). The relevant chemical reaction is given in Scheme. Details of the synthesis may be found in the Supporting Information. In this reaction, only one of the two carbonyl oxygens will originate from the labeled water reagent, so the product will have only half the starting atom-% label.

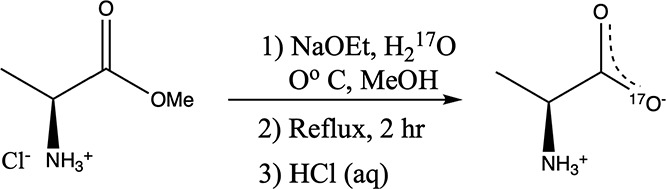

Synthesis of 17O-Labeled Alanine

Incorporation of the ^17^O label in the two alanine enantiomers was measured to be similar to the predicted 20 atom-% label by solution NMR, where the intensity of the ca. 265 ppm carboxylate resonance was referenced to that of the natural abundance ^17^O of the D_2_O solvent. Mass spectrometric analysis confirmed the isotope incorporation for each labeled compound (see Supporting Information). The ^1^H and ^13^C NMR spectra, all collected in D_2_O, were consistent with previous literature.?

Single crystals for both d- and l-alanine were prepared separately by slow evaporation at room temperature after dissolving ∼1.5 g of product in ∼9 mL cold deionized (DI) water. After about 45 days, crystals were harvested. The crystals were quickly washed with cold DI water to remove any surface impurities and stored at room temperature. Single crystals for the study were screened using the cross-polarized light microscopy technique? to eliminate twinned and polycrystals; essentially, samples were observed while rotating them under crossed polarizers to verify uniform light transmission. The single crystals selected for the study had dimensions of approximately 4 × 5 × 2 mm^3^ for l-alanine and 3 × 5 × 2 mm^3^ for d-alanine. The crystals were glued to a tenon mounting plate for the goniometer NMR probe using epoxy resin.

Single-Crystal X-ray Diffraction

The lattice structure parameters were determined using powder X-ray diffraction (XRD) analysis at the Electron Microbeam Analysis Laboratory (EMAL), University of Michigan. Powdered d- and l-alanine samples were analyzed in reflection mode in Bragg–Brentano geometry on a X-ray diffractometer (Rigaku Ultima IV). The Cu anode X-ray beam (40 kV, 44 mA) was filtered by a 20 μm thick nickel foil to remove Cu Kβ, giving monochromatic Cu Kα X-rays. The divergence, scattering and receiving slits were set at 2/3°, 2/3°, and 0.6 mm, respectively. The scanning 2θ range was from 5 to 70° with step size of 0.02° at a scan rate of 1° min^–1^. The unit cell parameters (a, b, c, α, β, γ) were recovered by assigning the appropriate triple of Miller indices (hkl) to each observed interplanar spacing (d _ hkl _).The indexing process was performed using EXPO2014? via the N-TREOR09 program,? the evolution of the N-TREOR software.? Powder XRD confirmed that the unit cells match the reported crystal structures;? our measured d- and l-alanine crystal parameters are given in Table.

1: Crystallographic Data for d-Alanine and l-Alanine at 295 K

The orientation of the mounted single crystals was determined using the so-called “Omega-Scan” method described elsewhere.? The mounted crystal’s surface normal and edge plane directions were used to find the orientation matrix and ultimately the orientation of the crystal frames relative to the tenon frames. The Euler angles relating the crystal frame to the goniometer frame for the d-alanine crystal are 352.7, 90.0, 135.0° and for the l-alanine crystal are 333.5, 33.7, 90.0° (see Supporting Information for details).

SCNMR Spectroscopy

NMR spectra for both samples were acquired using a Bruker Avance III console running Topspin 3.6 (Bruker Biospin GmbH) at the National High Magnetic Field Laboratory (NHMFL) in Tallahassee, FL. A custom-built low-E 600 MHz static HX probe (Figurea,b), developed at NHMFL, was used for the measurements. The probe features a cross-coil arrangement of a 6.5 mm ID round 9-turn X-channel detection solenoid coil mounted inside and orthogonal to a low inductance ^1^H-channel loop gap resonator was employed for the measurements. The low-E coil and associated probe circuitry have been thoroughly described in the literature.?

This probe was optimized for ^17^O detection with ^1^H decoupling and operated inside a 600 MHz (14.1 T), 89 mm bore magnet. The tenon plate, with the crystal glued on it, was mounted in the dovetail track of the goniometer and positioned within the 6 mm inner diameter loop-gap resonator-type NMR sample coil, enabling stepwise rotation to acquire SCNMR spectra across defined rotation patterns. The mounting configuration was designed to allow positive rotations of the tenon about the −x ^ T ^, y ^ T ^, and −z ^ T ^ axes, as defined by the dovetail pattern inscribed in the goniometer.? Details of the goniometer mechanism and sample mount construction have been previously described.? Figure shows the probe, the single crystal sample mounted on the tenon, and the three orthogonal tenon rotations relative to the magnetic field, which vary depending on how the plate is mounted in the goniometer.

The mounted samples were rotated from 0 to 180° using the goniometer’s worm-gear mechanism, measured by adjusting an analog micrometer scale at the bottom of the probe. To minimize backlash error, all rotations were carried out in a single direction. The 90-degree pulse lengths were 4 μs for the ^17^O channel and 2.5 μs for the ^1^H channel, respectively. Both the low frequency (^17^O) and high frequency (^1^H) channels were manually retuned and rematched at least every other angular increment. All spectra were acquired at room temperature (ca. 22 °C) with air cooling.

For each rotation axis, spectra were recorded with spectral width of 200 kHz and acquisition time of 0.02 s for l-alanine and spectral width of 100 kHz and acquisition time of 0.04 s for d-alanine. Between 256 and 512 transients were collected per spectrum, as needed to maintain a consistent signal-to-noise ratio (SNR). The rotation patterns were verified by observing smooth curves connecting the recorded resonance frequencies and by comparing the spectra at the starting and ending rotational positions, as well as key check points such as 0°(−x ^ T ^) = 0°(y ^ T ^), 90°(−x ^ T ^) = 90°(−z ^ T ^), and 0°(−z ^ T ^) = 90°(y ^ T ^). Spectral calibration was carried out using an external reference sample of tap water with the ^17^O chemical shift defined at 0.0 ppm.

Computational Modeling

The literature neutron-diffraction crystal structures? were used as the bases for the corresponding computed structures for l-alanine at 60 K (278467.cif) and 295 K (278464.cif) and for d-alanine at 60 K (278466.cif). The reference structure reported to be d-alanine at 295 K (278465.cif), was found to be the l-enantiomer, so a proxy for the d-enantiomer was created by inverting the c-axis of the l-alanine. The 60 K d-alanine structure has the N–C*–C angle oriented opposite those in the l-alanine structures, relative to the a-axis, so the literature structure was transformed by rotation about the c-axis to obtain equivalent computational starting points, where the only major differences between the two enantiomer structures was the relative orientation of the hydrogen and methyl groups on the chiral carbons (C*). All crystal operations were carried out using VESTA.? Conversion of the neutron structure.cif files to the CASTEP.cell input files was completes using cif2cell.?

Although it is common practice to optimize experimental crystal structures prior to calculating magnetic parameters, we also calculated the electric field gradient (EFG) and chemical shielding tensors for the unoptimized structures to enable direct comparison with a previous literature report.? These calculations were performed using both the rPBE functional? with a 650 eV cutoff and the PBEsol functional with a 741 eV cutoff employing a 2 1 2 Monkhorst–Pack k-point grid? in both cases (see Supporting Information).

The Electric Field Gradients? (EFG) and chemical shielding tensors? of both crystal enantiomers were computed through ultrasoft pseudopotentials ?,? using GIPAW (Gauge Including Projector Augmented Waves) approach, ?,? as implemented in the CASTEP-NMR package. The NMR parameters were then calculated using eqs–? and eqs–? and the mutual orientation of the two tensors was determined using eq.

For comparison, the EFG and shielding tensors were also calculated using optimized neutron structures (see Supporting Information). These calculations were conducted under 3D periodic boundary conditions using the CASTEP software package,? employing the PBEsol exchange-correlation functional, ?,?,? and “precise” basis set precision with automatic finite-basis-set correction? and Tkatchenko-Scheffler semiempirical dispersion correction.? The planewave cutoff energy was 741 eV, and a 2 1 2 Monkhorst–Pack k-point grid was again used. During optimization, unit-cell parameters were fixed to their literature values, while atomic positions were allowed to relax. ?−? ? The minor differences between the experimental and optimized structures are summarized as root-mean-square displacements in Table.

2: Average Root-Mean-Square Deviations in Nuclear Positions after Optimization of l- and d-Alanine from Literature Crystal Structures

Results and Discussion

Crystal Structure

As shown in Figure, the unit cell for alanine has two nonequivalent carboxylate O sites in each of the four molecules of the unit cell, related by screw symmetry, leading to four magnetically nonequivalent O nuclei in each site. As a result, an independent resonance frequency is expected from each of the magnetically nonequivalent O nuclei.

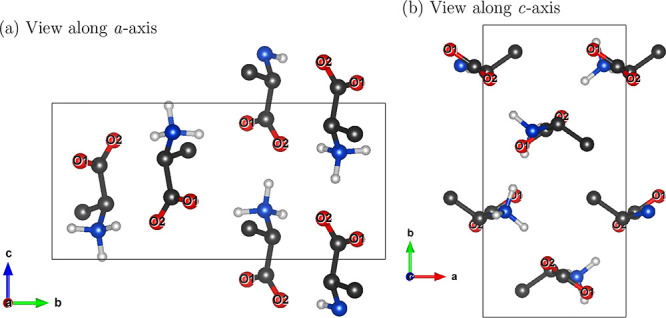

(a, b) Two views of the orthorhombic crystal structure of l-alanine the crystallographically nonequivalent O sites, related by a screw axis, labeled as O1 and O2. All the eight O nuclei are magnetically nonequivalent. The arrows represent directions and scaled magnitudes of the computed chemical shielding tensors in the crystal frame. O, C, N, and H nuclei are shown in red, black, blue, and white, respectively. (H nuclei on carbons omitted for clarity.)

Single-Crystal 17O NMR

The single-crystal ^17^O NMR spectra for l-alanine rotation about −x ^ T ^, y ^ T ^, and −z ^ T ^ axes are shown in Figure and those for d-alanine in Figure. A maximum of eight equally intense transitions for each orientation of the single crystal were observed, as expected from eight magnetically nonequivalent O sites. While we were able to observe the satellite transitions (see Supporting Information), limited time and resources prevented us from measuring the systematic shift of satellite transitions required to extract the quadrupolar ACS cross-coupling terms. We believe that differences in the signal-to-noise intensity between angles were related to relative sample filling factor.

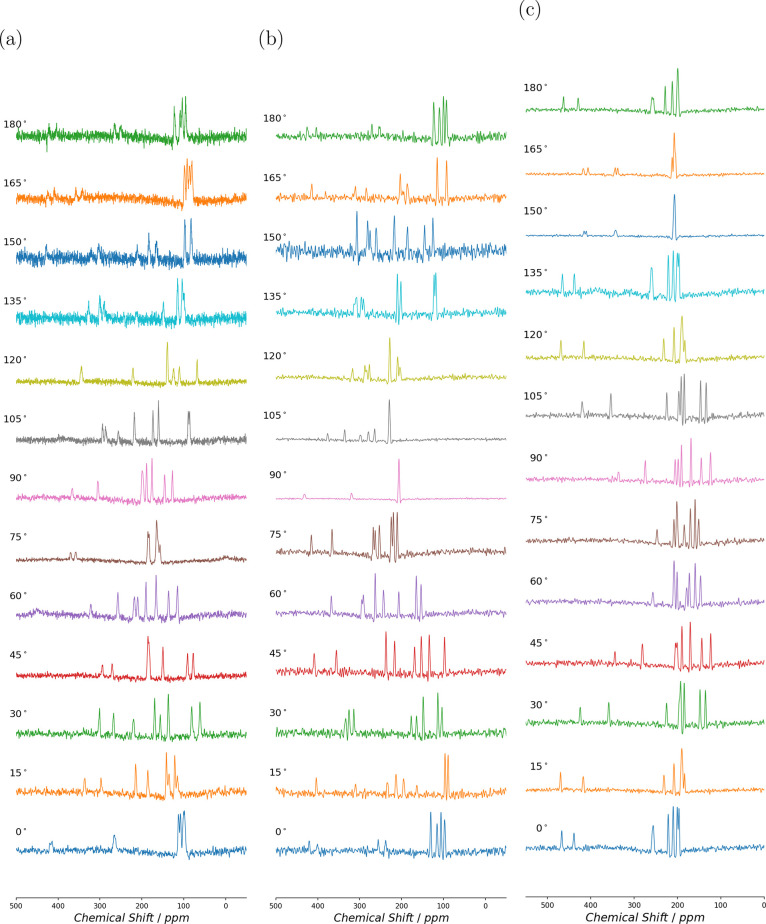

*Single-crystal 17O NMR spectra at 14.1 T for l-alanine. The spectra were recorded at 15° increments for rotation about (a) mounting −x

T , (b) mounting y

T , and (c) mounting −z

T .*

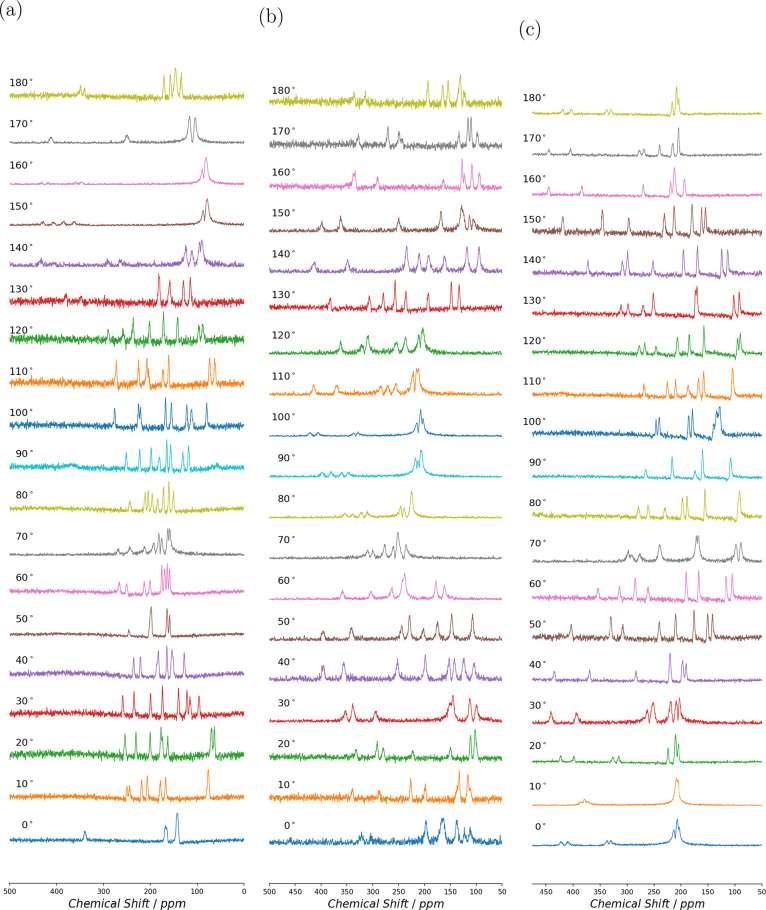

*Single-crystal 17O NMR spectra at 14.1 T for d-alanine. The spectra were recorded at 10° increments for rotation about (a) mounting −x

T , (b) mounting y

T , and (c) mounting −z

T .*

The correlations of the rotation plots and peak assignments was assisted by the fact that the NMR chemical shift frequency of each site remains the same for certain pairs of crystal orientations (eqs–?), where the mountings are as shown in Figurec. The pairwise correlation is not obvious from the spectra shown in Figures and ?, since the crystal axes are not generally aligned with the tenon axes, but it may be observed in the rotation plots in Figures and ?. This pairwise coincidence results from NMR interactions being insensitive to rotation parallel to the magnetic field axis.?

$$[eqn]$$ $$[eqn]$$ $$[eqn]$$

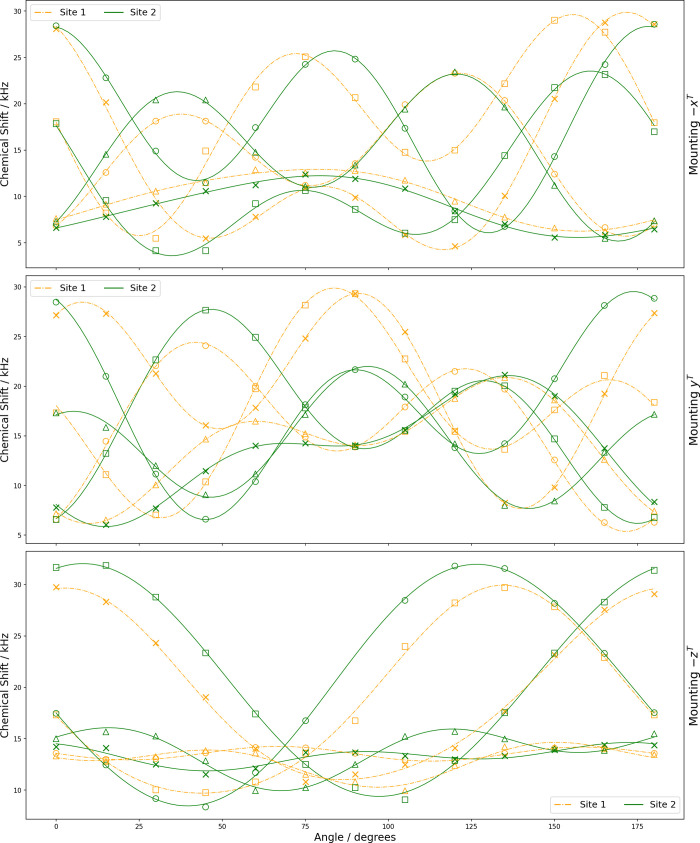

Rotation plots for 17O central transition in l-alanine showing experimental resonances with two crystallographically nonequivalent 17O sites each having four magnetically nonequivalent 17O nuclei (marked as ○, □, △, ×) under rotation of the three orientations of the crystal sample. The curves are constructed from optimized coefficients (see Table ).

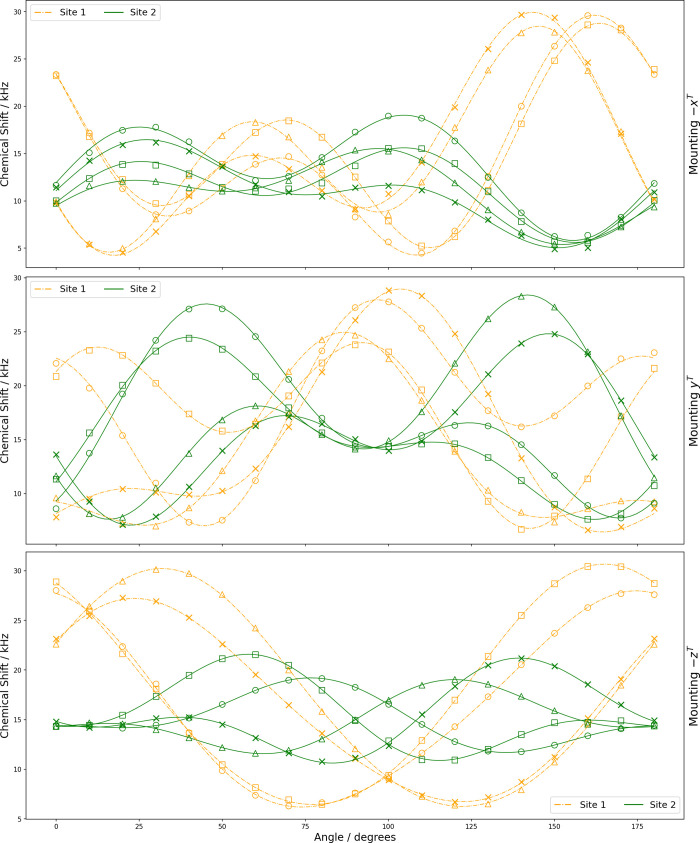

Rotation plots for 17O central transition in d-alanine showing experimental resonances with two crystallographically nonequivalent 17O sites each having four magnetically nonequivalent 17O nuclei (marked as ○, □, △, ×) under rotation of the three orientations of the crystal sample. The curves are constructed from optimized coefficients (see Table ).

Analysis of SCNMR Spectra

17O NMR Parameters

The optimized quadrupolar and CSA parameters, along with their errors, were obtained by fitting the central transition of each site using the Analysis of Single-Crystal Spectra (ASICS) software package.? The rotation plots shown in Figures and ? were fit according to eqs and ?. Tables and ? summarize the optimized coefficients provided by ASICS for magnetically nonequivalent O nuclei in l-alanine and d-alanine.

3: Optimized Coefficients (in kHz) for 17O Rotation Data of l-Alanine (up to 3 Significant Figures)

4: Optimized Coefficients (in kHz) for 17O Rotation Data of d-Alanine (up to 3 Significant Figures)

Table summarizes the optimized experimental parameters, with error limit estimated as 95% confidence intervals for individual parameters, along with the DFT computations of quadrupolar coupling and CSA parameters. Typical standard deviations in the fitted experimental peaks were 0.063 ppm for l-alanine and 0.029 ppm for d-alanine. The error bars for the derived experimental parameters in Table are determined using the ASICS data-fitting program. In the “Analysis” mode, the parameters may be scanned while monitoring deviation of the fitted data. In most cases, this was a symmetric quadratic, from which the 95% confidence intervals were extracted. In ASICS, the NMR parameters are refined according to the minimum χ^2^ (goodness of fit) deviation. The χ^2^ distribution is also used to find the 95% confidence interval? for the parameters. For two parameters, the confidence interval could not be estimated as χ^2^ values for those parameters were not distributed as a quadratic function and did not converge to a minimum. The two anionic oxygen sites in the zwitterionic alanine crystal have different orientations relative to the cationic ammonium moieties and thus different hydrogen bonding interactions, resulting in distinct magnetic environments, they have, consequently, distinct NMR parameters.

5: Experimental and Computed Quadrupolar Couplings, Chemical Shift Anisotropies, Isotropic Chemical Shift, and Relative Orientations of the Two Tensors for 17O and 14N Nuclei in l-Alanine and d-Alanine

Overall, we observed good correlation between the experimental and calculated values for the two enantiomers of alanine. However, some discrepancies remain between the experimental and calculated NMR parameters, even within the 95% confidence interval. In particular, the comparison reveals disagreement in C Q and δ_CS_ for at least one site. For C Q, the largest deviation occurs at site O1, where the calculated value is approximately 24% higher for the l-enantiomer and about 14% higher for the d-enantiomer. A similar trend has been reported in previous ^17^O studies of amino acid samples.?

In the case of δ_CS_, the asymmetry parameter of the CSA tensor, the largest discrepancy is again observed at site O1, with calculated values 63% higher for l-alanine and 50% higher for d-alanine. Since NMR parameters are sensitive to the chemical environments, the weaker H-bonding environment at site O1involved in only one CO···H–N hydrogen bond?likely contributes to the observed differences between the experimental and DFT-calculated values.?

Table also presents values of C Q, η_Q_, and δ_iso_ from previous experimental studies using powder samples. The SCNMR experimental η_ Q _ values obtained from this study show good agreement with the MAS? and DAS? measurements. However, there is notable disagreement with the MQMAS measurements? for d-alanine, though the MQMAS measurements also differ from other studies as well as from the computational findings in this study. In contrast, the DFT calculated NMR parameters reported here are in good agreement with most of the experimental results.

The C Q and δ_iso_ have been identified as reliable parameters to assign sites O1 and O2.? Given the nearly identical and relatively large uncertainties in experimental C Q values, and our inability to determine 95% confidence interval for δ_iso_ in one of the two l-alanine sites, we have turned to the asymmetry parameter, η_Q_, for the site assignment. This parameter is particularly useful, as it is known to increase with the strength of hydrogen bonding.?

The Euler angles a, b, and c agree well for both enantiomers when compared with the calculated values. Specifically, the angles b and c align well with the computed value for both enantiomers. The other angle, a shows the largest statistical uncertainty, which is related to the inaccurate measurement of η_CS_,? with experimental η_CS_ values having variation between 11 and 100% in statistical uncertainty. Due to the potential ambiguity in the projection direction of the quadrupolar and CSA principal axes, the Euler angles have been rotated by 180° where necessary to allow direct comparison. The Euler angles (ζ, λ, ν) relating the principal axis frame of quadrupolar tensor (PAF­(Q)) to crystal axis frame were calculated using the relationship

$$[eqn]$$

where the Euler triplet (α, β, γ) relates crystal axis frame with goniometer frame and was found using X-ray diffraction. The Euler triplet (α_QG_, β_QG_, γ_QG_) gives the orientation of PAF­(Q) to goniometer frame. Both sets of Euler angles are reported in Tables and ?.

6: Experimental Euler Angles Relating the PAF­(Q) to Goniometer and Crystal Axis Frame for Magnetically Equivalent 17O Nuclei for Two Crystallographically Nonequivalent Sites in l-Alanine

7: Experimental Euler Angles Relating the PAF­(Q) to Goniometer and Crystal Axis Frame for Magnetically Equivalent 17O Nuclei for Two Crystallographically Nonequivalent Sites in d-Alanine

In addition to the conventional CSA and quadrupolar tensor values, our DFT calculations also yielded the antisymmetric components of the chemical shift tensors for both ^17^O and ^14^N nuclei, as shown in Tables–?. These tables reveal that the antisymmetric chemical shift tensor components of ^17^O and ^14^N nuclei exhibit relationships such as σ_ xz _ ^ACS^(L) = −σ_ xz _ ^ACS^(R) and σ_ yz _ ^ACS^(L) = −σ_ yz _ ^ACS^(R) between the two enantiomers. This confirms the mirror reflection symmetry relating the electronic environments of the two enantiomers across the xy plane. To depict the computed ACS tensors for the alanine enantiomers in their respective crystal frames, we employ the pseudovector components resulting from the contraction of ACS tensor σ^ACS^ and Levi-Civita symbol ε_ ijk _ according to eqs and ?:?

$$[eqn]$$

giving,

$$[eqn]$$

Figure shows the pseudovectors that are dual of the DFT computed ACS tensors for sites O1 and O2, highlighting the mirror plane symmetries of the l- and d-enantiomers, and demonstrating the antisymmetry of the ACS tensors in chiral systems. The calculated tensors are given in Tables and ?.

8: Calculated quadrupolar (in MHz) and Chemical Shielding (CS) Tensors (in ppm), Rounded to Three Decimal Places, for One of the Magnetically Equivalent 17O Site for Crystallographic Site O1 in Enantiomers of Alanine

9: Calculated quadrupolar (in MHz) and Chemical Shielding (CS) Tensors (in ppm), Rounded to Three Decimal Places, for One of the Magnetically Equivalent 17O Site for Crystallographic Site O2 in Enantiomers of Alanine

10: Calculated quadrupolar (in MHz) and Chemical Shielding (CS) Tensors (in ppm), Rounded to Three Decimal Places, for One of the Magnetically Equivalent 14N Site in Enantiomers of Alanine

*Depictions of (top) the shielding tensor eigenvectors and (bottom) the ACS pseudovectors for the O1 and O2 oxygen sites, and the nitrogen site in (left) l-alanine and (right) d-alanine, where V

x ∥ a, V

y ∥ b, and V

z ∥ c. The tensors at the N site are scaled by a factor of 20 so they are visible on the same scale as the O tensors. The coordinate axes in the pseudovector depiction have been rotated so that the structural symmetry is emphasized. Note that the V

x pseudovector on O1 is obscured by the atom and the V

z pseudovector on O2 is very small. C, N, O, and H atoms are shown in black, blue, red, and white, respectively. All hydrogens, except that on the chiral carbon, have been omitted for clarity.*

14N NMR Parameters

Unfortunately, our efforts to observe the low-sensitivity ^14^N nucleus in chiral systems have thus far been unsuccessful, although we were able to detect ^14^N in the highly symmetric environment of ammonium chloride. The ^14^N nucleus (I = 1, γ_ ^14^N_ = 1.934 × 10^7^ rad T^–1^ s^–1^) has a low gyromagnetic ratio, two nonsymmetrical satellite transitions (|1⟩↔|0⟩ and |0⟩↔|−1⟩), and a relatively large quadrupolar coupling constant (C Q). These factors contribute to line broadening and signal loss, making ^14^N in an asymmetric environment particularly challenging to detect. ?,? However, the good correlation for ^17^O between experimental and DFT results provides some confidence for the calculated tensors for ^14^N given in Table, particularly given the good agreement between calculated and experimental C Q and η_Q_ values.? The chemical shielding eigenvectors and ACS pseudovectors for the N site are also depicted in Figure.

Conclusions

In this study, we investigated the quadrupolar and chemical shielding tensor components of ^17^O-enriched alanine enantiomers using single-crystal ssNMR spectroscopy. Eight magnetically inequivalent ^17^O sites, as predicted by X-ray crystallography, were successfully identified and analyzed for their NMR tensor parameters. The experimental analysis performed using the ASICS software package, as described in the Analysis of SCNMR Spectra section, was further supported by DFT calculations. The DFT calculations not only showed good correlation with experimental NMR parameters but also aided in assigning the crystallographically nonequivalent ^17^O sites, thereby validating the spectroscopic findings.

This study provides, for the first time, an extended and detailed characterization of the crystallographically distinct ^17^O nuclei in alanine enantiomers. The obtained NMR parameters are in good agreement with previous studies, reinforcing the robustness of our approach. Although the antisymmetric chemical shift (ACS) tensor components could not be directly extracted from the ssNMR experimentssince only the central transition of the spin-5/2 ^17^O nucleus was analyzed, which lacks ACS contributionsthe DFT results revealed the presence of off-diagonal ACS elements (e.g., σ_ yz _ ^ACS^ = −σ_ zy _ ^ACS^) in the crystal frame. These components reflect the mirror-symmetric electronic environments characteristic of the optical isomers.

Our findings demonstrate the utility of combining SCNMR spectroscopy with DFT calculations to discern subtle differences in electronic environments between enantiomers. This capability underscores the power of SCNMR for probing chiral molecular systems such as amino acids. Future studies may focus on analyzing all satellite transitions of ^17^O nuclei in chiral environments to experimentally access ACS contributions through Quadrupolar–ACS interactions.? Such interactions can produce observable features in the angular-dependent rotation patterns of single-crystal ssNMR spectra, in addition to the conventional first- and second-order quadrupolar and CSA effects. Furthermore, we propose extending this methodology to ^14^N SCNMR at higher magnetic fields, where enhanced sensitivity and resolution may enable clearer observation of quadrupolar broadening and magnetic shielding anisotropy. These studies could provide deeper insights into antisymmetric shielding effects and their potential role in chiral selection mechanisms, offering a plausible explanation for the enantiomeric excess of l-amino acids observed in carbonaceous chondrite meteoritesand thus contributing to our understanding of prebiotic chemistry in astrophysical environments.

Supplementary Material
