Correlation of T2 NMR with Tg/T and viscosity
Ruud van der Sman, Stefano Renzetti, Panos Voudouris, Ali Asghari, Seddik Khalloufi
TL;DR
This paper shows that T2 NMR relaxation times correlate with Tg/T and viscosity in carbohydrates, offering a new way to screen sugar replacers.
Contribution
The study establishes a direct correlation between T2 NMR relaxation times and the Tg/T ratio, linking it to viscosity and plasticizing behavior.
Findings
T2 relaxation times of small carbohydrates collapse onto a universal master curve with Tg/T.
T2 NMR accurately estimates the glass transition temperature of carbohydrates with 1%-2% deviation.
T2 NMR is a promising high-throughput method for evaluating novel sugar replacers.
Abstract
Using both literature and new experimental data, we demonstrate that T2 relaxation times are governed by the ratio Tg/T, where Tg is the moisture-dependent glass transition temperature and T is the actual temperature. This ratio, Tg/T, is known to control the viscosity and plasticizing behavior of small carbohydrates, as well as the rheological properties of biopolymeric systems such as starch and plant proteins. For small carbohydrates, the T2 data collapse onto a universal master curve, analogous to their viscosity behavior. For biopolymers, however, the current dataset is insufficient to confirm the existence of such a master curve. Additionally, we show that T2 NMR provides an accurate estimate of the glass transition temperature of small carbohydrates, with deviations within 1%–2%. This makes it a promising method for high-throughput screening of the plasticizing properties of…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

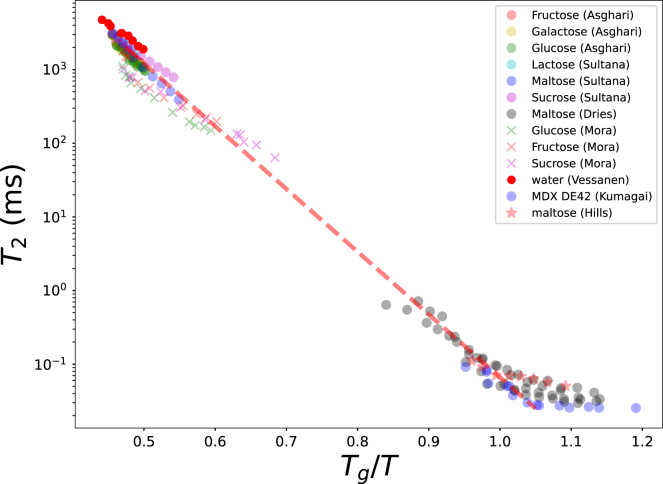

Figure 2

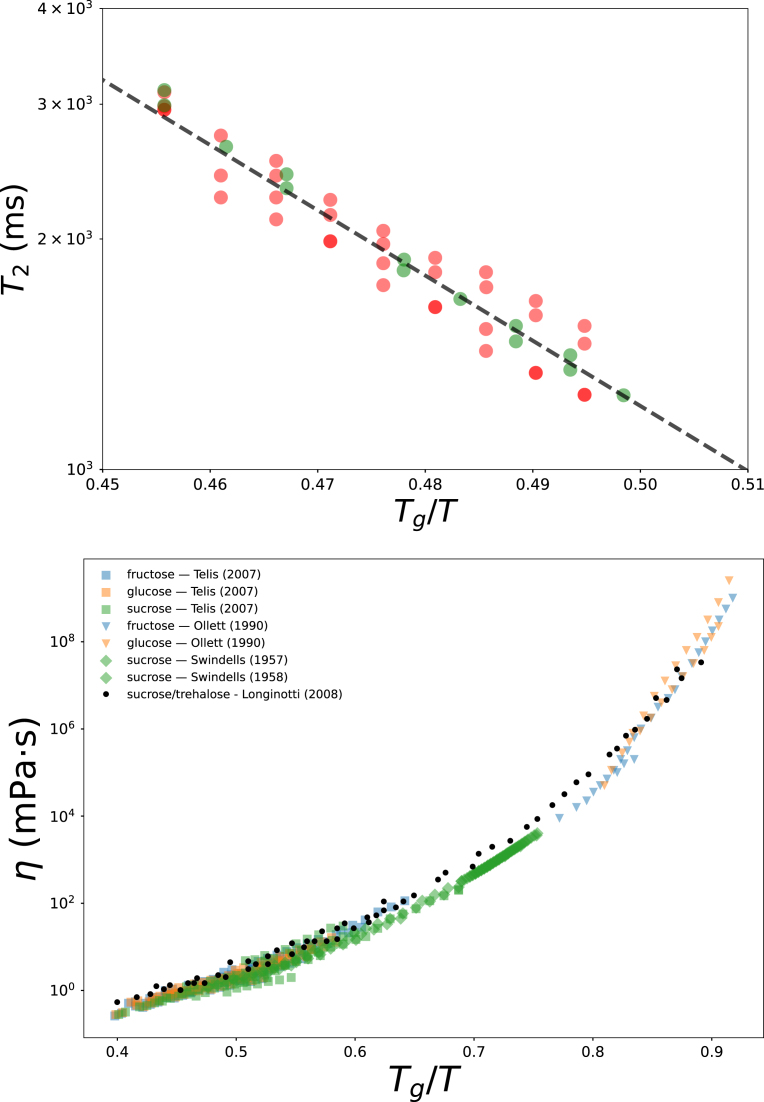

Figure 3

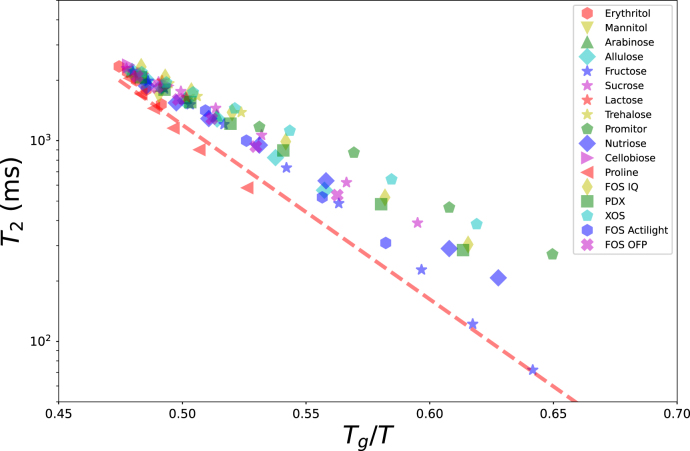

Figure 4

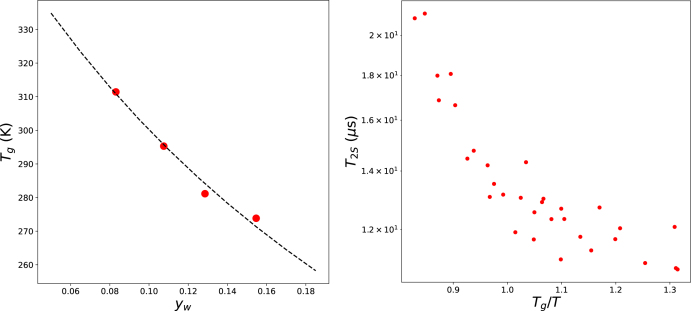

Figure 5

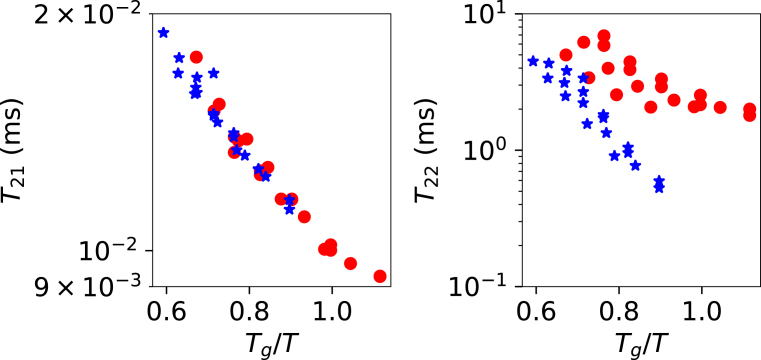

Figure 6Peer Reviews
