Human midbrain organoids reveal the characteristics of axonal mitochondria specific to dopaminergic neurons
Akihiko Nishijima, Mutsumi Yokota, Soichiro Kakuta, Akihiro Yamaguchi, Kei-ichi Ishikawa, Hideyuki Okano, Wado Akamatsu, Nobutaka Hattori, Masato Koike
TL;DR
This study uses human midbrain organoids to better understand the unique features of axonal mitochondria in dopaminergic neurons, which could help explain Parkinson's disease.
Contribution
The study introduces a new method using midbrain organoids to distinguish and analyze axonal mitochondria in human dopaminergic neurons.
Findings
Axonal mitochondria in dopaminergic neurons have lower membrane potential and shorter length compared to non-dopaminergic neurons.
Midbrain organoids are more effective than 2D cultures for distinguishing axonal from dendritic mitochondria in dopaminergic neurons.
Findings are consistent with previous observations on somatic mitochondria in these neurons.
Abstract
Mitochondrial dysfunction and abnormalities in mitochondrial quality control contribute to the development of neurodegenerative diseases. Parkinson’s disease is a neurodegenerative disease that causes motor problems mainly due to the loss of dopaminergic neurons in the substantia nigra pars compacta. Axonal mitochondria in neurons reportedly differ in properties and morphologies from mitochondria in somata or dendrites. However, the function and morphology of axonal mitochondria in human dopaminergic neurons remain poorly understood. To define the function and morphology of axonal mitochondria in human dopaminergic neurons, we newly generated tyrosine hydroxylase (TH) reporter (TH-GFP) induced pluripotent stem cell (iPSC) lines from one control and one PRKN-mutant patient iPSC lines and differentiated these iPSC lines into dopaminergic neurons in two-dimensional monolayer cultures or…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

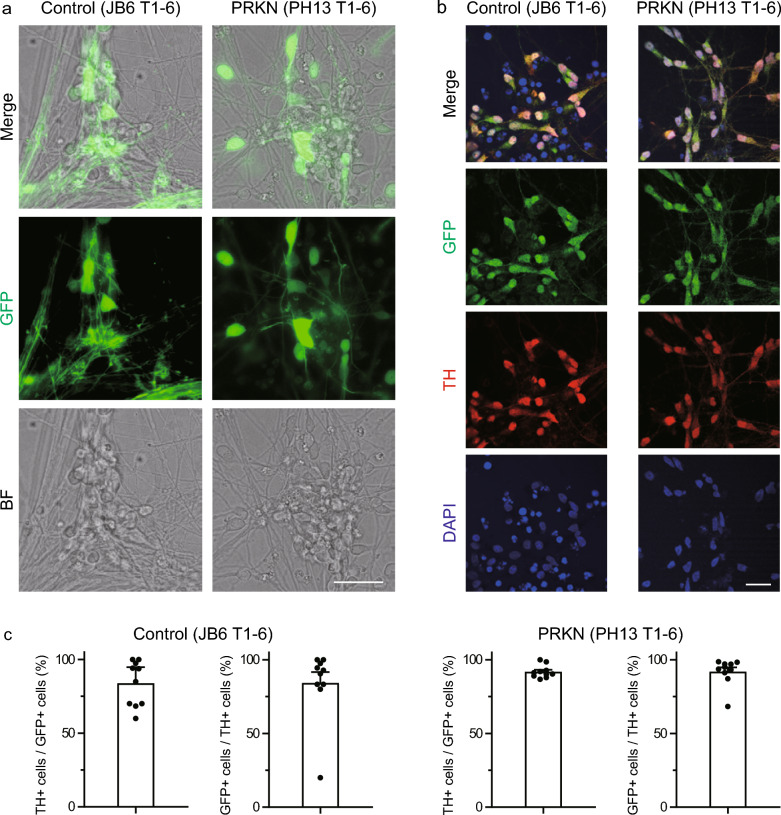

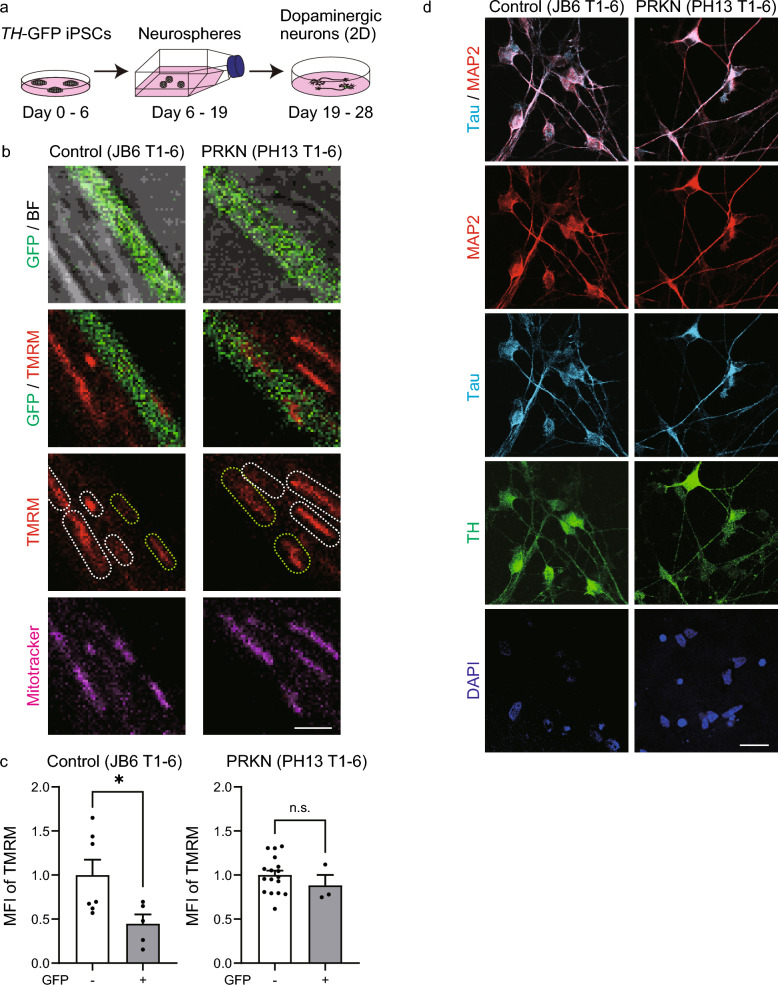

Figure 1

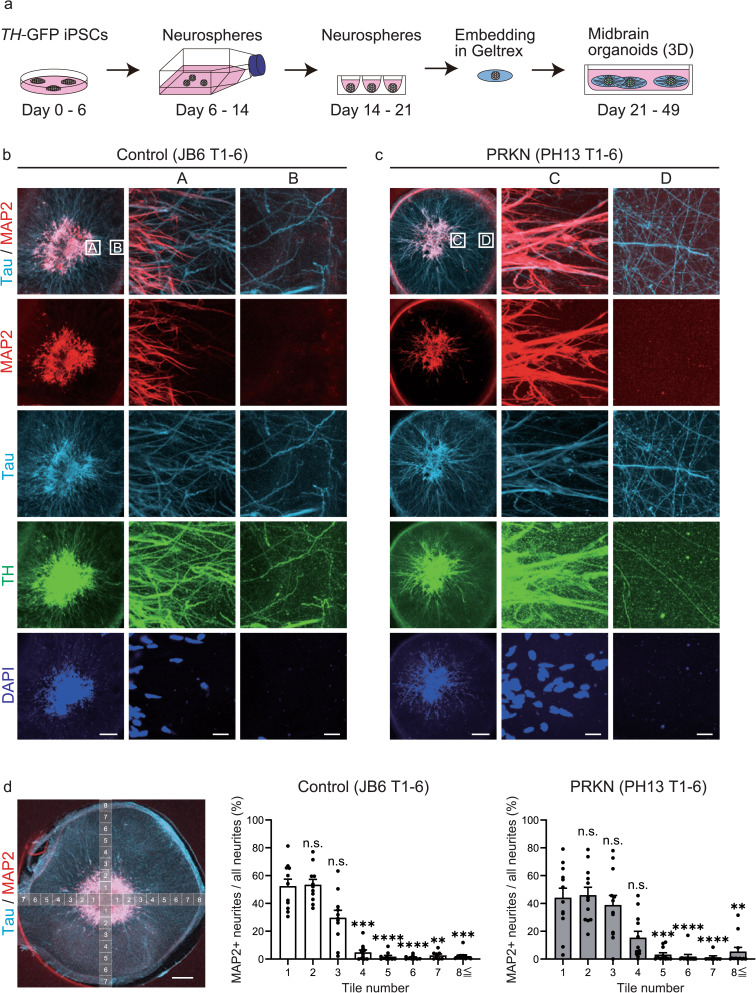

Figure 2

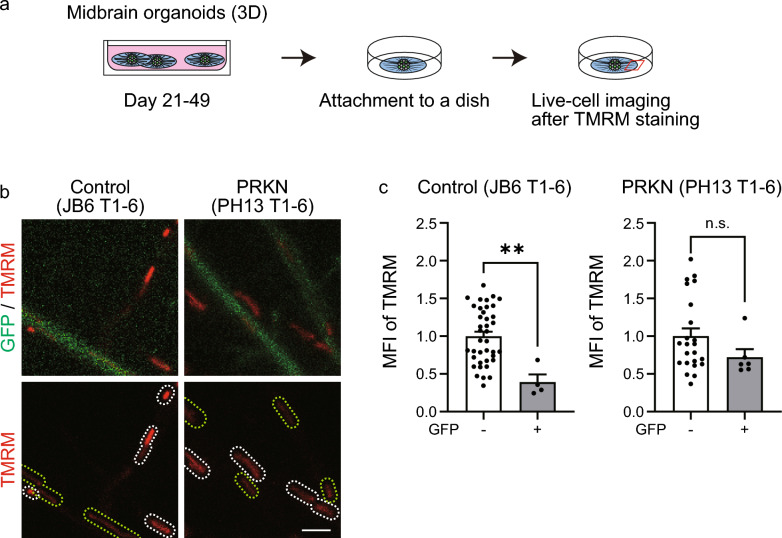

Figure 3

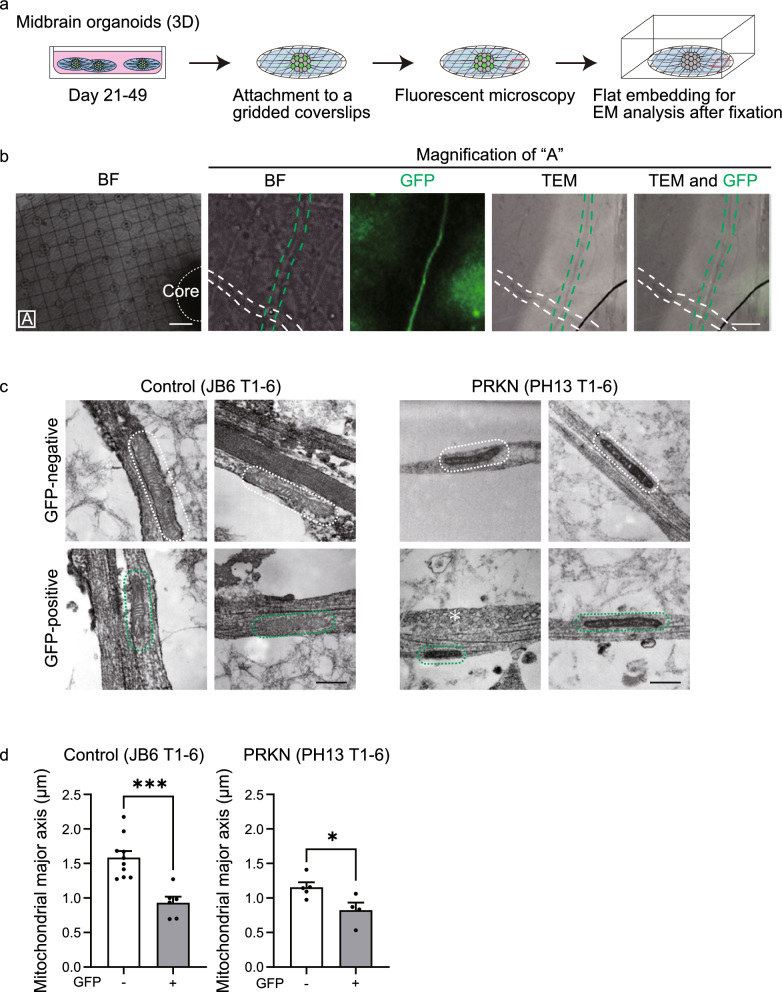

Figure 4
