Effects of axial malrotation on posterior tibial slope measurement: a digitally reconstructed radiograph study enabling automated quality assessment
Jaeseok Park, Andreas Persson, R. Kyle Martin, Eivind Inderhaug, Sung Eun Kim, Sangyoon Kim, Donghyuk Kwak, Du hyun Ro
TL;DR
This study shows how knee rotation during imaging affects the accuracy of measuring the posterior tibial slope and suggests a way to filter out poor-quality images.
Contribution
The study introduces a practical marker for identifying and filtering low-quality images due to axial malrotation in PTS measurements.
Findings
PTS measurement error increases linearly with axial malrotation, exceeding 1° at ±6° rotation.
PCDR is strongly correlated with malrotation and shows fair performance in detecting PTS errors.
AI-based measurements on DRRs showed good agreement with expert annotations (ICC = 0.78).
Abstract
Accurate measurement of posterior tibial slope (PTS) is highly sensitive to axial malrotation of the knee during acquisition, but its impact has not been systematically quantified across different anatomical variations. This simulation study aimed to quantify the effect of axial malrotation on PTS using digitally reconstructed radiographs (DRRs) and suggest a practical marker for filtering out low-quality images with excessive malrotation. A total of 55 preoperative computed tomography (CT) scans from January 2021 to December 2024 in a single, tertiary hospital were retrospectively reviewed. DRRs were generated from those scans to simulate lateral knee radiographs with malrotation ranging from −12° to +12° relative to an anatomically aligned baseline. An artificial-intelligence (AI)-based tool automatically measured PTS on each DRR, with agreement evaluated using intraclass correlation…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsTotal Knee Arthroplasty Outcomes · Bone fractures and treatments · Lower Extremity Biomechanics and Pathologies
Background
The posterior tibial slope (PTS), defined as the inclination angle of the tibial plateau relative to the long axis of the tibia, is clinically important owing to its significant influence on knee biomechanics and stability. Variations in PTS affect the anterior–posterior motion of the knee, placing increased strain on ligaments such as the anterior cruciate ligament (ACL) and posterior cruciate ligament (PCL) [1, 2]. An increased PTS is strongly associated with a higher risk of ACL injury and graft failure (after ACL reconstruction), with PTS of ≥ 12° associated with increased risk of subsequent ligamentous injuries or recurrent instability [3–7]. Furthermore, PTS plays a critical role in surgical planning for knee procedures, including high tibial osteotomy [8] and total knee arthroplasty [2, 9]. Even minor unintended alterations in PTS during these procedures can lead to changes in ligament tension, compromised joint stability, and suboptimal postoperative biomechanics.
Given the important role of PTS in the surgical decision-making process, accurate measurement of PTS is essential. Lateral knee radiographs are most commonly used in clinical practice, employing methods that measure the angle between the tibial plateau and the tibial shaft [10]. Despite their simplicity, PTS measurements require precise radiographic techniques, and slight variations in positioning or method can significantly alter results [11–13]. To date, no study has systematically evaluated how PTS measurements vary across a continuous range of axial malrotation using real patient anatomy. Owing to ethical and practical difficulties in acquiring multiple lateral knee radiographs from the same patient at incrementally different rotational positions, recent studies have utilized sawbone models to obtain measurements at discrete positions [12, 14] or one rotated radiograph from each patient with an unclear amount of malrotation [13].
Digitally reconstructed radiographs (DRRs), generated from computed tomography (CT) images [15, 16], offer a practical solution by enabling precise simulation of radiographs under systematically varied axial rotation. Unlike physical models or opportunistic clinical images, DRRs allow controlled manipulation of knee positioning using real anatomical data without additional radiation exposure. These simulated radiographs can be directly analyzed by a previously developed and externally validated AI tool for automated PTS measurement [17, 18], enabling large-scale, standardized evaluation of measurement variability. Inversely, the amount of malrotation present in a radiograph can be assessed from overlap of the medial and lateral condyles of femur.
This study aimed to (1) determine how axial malrotation in lateral knee radiographs affects measurement error of PTS using a standardized simulation framework, and (2) develop and validate surrogate image marker for evaluating image quality and potential PTS measurement error. We hypothesized that PTS measurements would change in a predictable linear trend with increasing internal or external axial malrotation, and a simple radiographic marker could serve as a threshold-based image quality metric for filtering radiographs with potential PTS error exceeding 1°.
Methods
Study design
This was a diagnostic simulation study (level of evidence III) using digitally reconstructed radiographs generated from CT scans to systematically evaluate the effects of controlled axial malrotation on PTS measurement error. This study was approved by the Institutional Review Board (IRB, no. 2503–163-1625) of the authors’ institute. Informed consent was waived owing to the retrospective nature of the study.
We retrospectively reviewed all 65 patients who underwent lower limb computed tomography (CT) scans for patient-specific instrumentation (PSI) total knee arthroplasty (TKA) at our institution between January 2021 and December 2024. All CT scans in our study were acquired using a uniform protocol, with pixel spacing, slice thickness, and spacing between slices of 0.4883 mm, 1.0 mm, and 0.5 mm, respectively. This CT protocol was selected for its high slice resolution, which is essential for generating high-quality DRRs [19]. We excluded knees with evidence of (1) prior surgery involving the femur or tibia, (2) destructive arthropathy or large osteophytes obscuring the tibial plateau contour, (3) incomplete images. A total of 55 knees from 46 patients met all criteria and were included in the final analysis (Fig. 1). Bone segmentation was performed manually on femur and tibia from each CT scan by an experienced knee surgeon.Fig. 1. Flowchart of data inclusion and exclusion
CT volume rotation and generation of digitally reconstructed radiographs
For accurate diagnosis of knee joint pathologies, lateral knee radiographs must show sufficient overlap between the medial and lateral femoral condyles [12, 20]. Prior to simulating malrotation, the original CT volume was rotated to establish an anatomically ideal alignment, defined by complete overlap of the femoral condyle contours on lateral projection and zero inclination of the tibial plateau in the coronal plane. This configuration was designated as the “aligned volume” and served as the baseline for all subsequent analyses. We observed that standardizing these conditions ensured measurement consistency and minimized potential errors in automatic PTS measurement by a pretrained model (see “Automatic posterior tibial slope measurement” section).

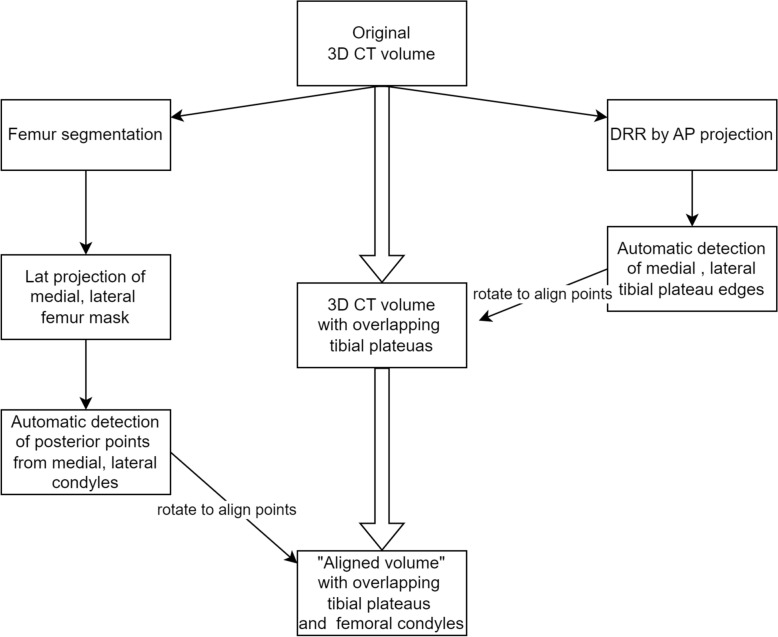

The two- step process (coronal rotation and axial rotation) of generating the aligned volume is summarized in the Supplementary Information. First, the tibia was rotated in the coronal plane to eliminate mediolateral tilt. This step ensured that the medial and lateral tibial plateaus were aligned in the sagittal projection. Although coronal tilt from mechanical alignment or patient positioning can also affect PTS measurement, we intentionally removed this variability to isolate the effects of axial malrotation under standardized slope conditions.
Second, axial rotation was applied to superimpose the medial and lateral femoral condyles on lateral projection, using posterior condylar “posterior points” derived from condyle-specific two-dimensional (2D) masks referenced to a common anterior cortical line. Although the posterior condylar axes of the femur and tibia may not be perfectly aligned, we selected femoral condyle overlap as the reference for “true lateral” projection on the basis of its clinical standardization and reproducibility. This reference served as a fixed baseline for quantifying relative changes in PTS under controlled axial malrotation. The overall process of automated CT volume alignment is summarized as a flowchart in Fig. 2, with additional visualizations of specific steps in Supplementary Fig. 2.Fig. 2. Flowchart of processing original computed tomography (CT) image into aligned volume
With the aligned volume as baseline, we performed rigid axial rotations about the CT scans’ longitudinal axis, (positive = internal rotation, negative = external rotation in 2° increments across −12°, −10°, …, +10°, +12°). Thus, each knee yielded 13 standardized positions. Sign conventions and axes remained consistent across all cases.
For each rotated volume, digitally reconstructed radiographs (DRRs) were generated using the All Scale Tomographic Reconstruction Antwerp (ASTRA) Toolbox [21] with cone-beam geometry (source–detector distance: 1200 mm; source–patient distance: 1120 mm). A 240 × 240 × 400 mm^3^ volume centered on the knee joint was extracted and resampled to 0.5 mm isotropic spacing. CT data were preprocessed using a bone window (center: 400 HU; width: 1500 HU) and converted to attenuation coefficients using a nonlinear mapping optimized for bone contrast enhancement (μwater = 0.02 mm^−1^ at 66 kVp). The forward projection produced 2700 × 1800 pixel lateral radiographs (detector pixel size 0.148 mm). To simulate realistic X-ray appearance, images underwent gamma correction (γ = 0.7), Poisson noise addition (10,000 photon scale), Gaussian noise (σ = 0.002), and Gaussian blur (σ = 0.5 pixels). Final images were saved as 16-bit grayscale with values in the range of 0–4095. The DRR reconstructed from the aligned volume was defined as the “true lateral.”
Automatic posterior tibial slope measurement
PTS was automatically measured on each DRR using a previously validated deep learning model trained on 9277 lateral knee radiographs from a single tertiary hospital between 2009 and 2019 [17, 18]. Briefly, a DEKR-based landmark detector localized six anatomical landmarks, and a segmentation-based algorithm estimated the tibial shaft axis; PTS was then defined as the angle between the shaft axis and the medial plateau tangent as per our prior work. The model was trained on 9277 radiographs, validated on 500, and tested on 230 independent images. In our previous studies, the model demonstrated excellent agreement with manual measurements using the landmark-based method (ICC = 0.91–0.92 overall), and perfect intra-observer reliability (ICC = 1.00). It also showed good external validity when applied to an independent dataset of 289 lateral knee radiographs from ACL-injured patients, achieving a good inter-rater ICC of 0.73–0.80 compared with manual measurements and maintaining perfect intra-rater reliability (ICC = 1.00). ICC values were interpreted as: < 0.50 = poor, 0.50–0.75 = moderate, 0.75–0.90 = good, and > 0.90 [22]. Example generated DRRs and overlaid visualizations of automatic PTS measurement are shown in Fig. 3.Fig. 3. Example of DRR generation and PTS measurement with varying rotation
Manual posterior tibial slope measurement
To validate the reliability of automatic measurements in DRRs, PTS was manually measured for DRRs with selected rotation angles of −8°, −4°, 0°, 4°, 8°, resulting in 275 human measurements (5 images each for 55 patients). It must be noted that, while automatic measurements were done in 13 images per each patient (−12°, −10°… 10°, 12°) to carefully analyze the effect of even small angle changes in PTS measurements, manual measurements and interobserver reliability analyses were only done in a subset of these angles per image as this was sufficient to assess reliability of AI measurements. Manual PTS was measured as the angle between the medial tibia plateau tangent and tibial shaft axis. The tibial shaft axis was calculated by connecting midpoints of tibia shaft located at two levels below the joint line, where each level was defined by 2 and 4 multiples of the perpendicular distance from the tibial joint line to the proximal tibial tuberosity. This definition of tibial shaft axis corresponds to that used in the automatic model, and is identical to the one in our previous studies [17]. The measurements were performed by an orthopedic knee surgeon who recently completed residency and knee fellowship training. The intraclass correlation coefficient (two-way mixed effects, absolute agreement, single measures) was calculated between automatic and manual measurements.
Calculation of posterior condyle distance ratio (PCDR)
Tje posterior condyle distance ratio (PCDR) quantifies axial malrotation on lateral views as the normalized posterior femoral condyle displacement. Posterior points of the medial and lateral condyles were located with respect to a common anterior cortical line derived from the full femur mask. The posterior condyle distance was the absolute anterior–posterior offset between the two posterior points; this distance was normalized by the total anterior–posterior femoral joint width (distance from the anterior cortical line to the posterior point on the full mask), yielding a unitless, absolute ratio (Fig. 4).Fig. 4. Example of PCDR measurement from DRRs
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathrm{PCDR}= \left|\Delta \text{posterior points of medial and lateral condyle}\right|/(\text{AP width of distal femur})$$\end{document}In the aligned volume used to generate the true lateral projection, medial and lateral femoral condyles were fully superimposed, yielding a baseline PCDR of zero. Thus, PCDR was used as a surrogate marker for the degree of axial malrotation in subsequent rotated images. While prior studies have analyzed posterior femoral condyle displacement as a measure of malrotation, this study introduces normalization by femoral condyle width to account for interpatient variation. The process of automatic posterior condyle distance ratio calculation and a semi-automated tool to work on clinical radiographs is further explained in Supplementary Information.

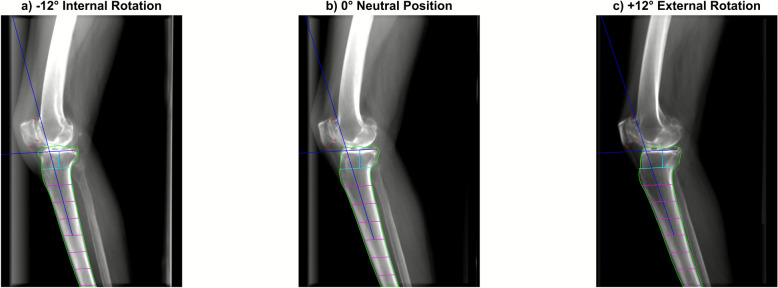

PTS is measured on multiple DRRs with varying amounts of rotation. PTS is defined as the angle between tibia shaft axis and medial plateau tangent (both represented as blue lines), calculated by keypoint detection and segmentation.

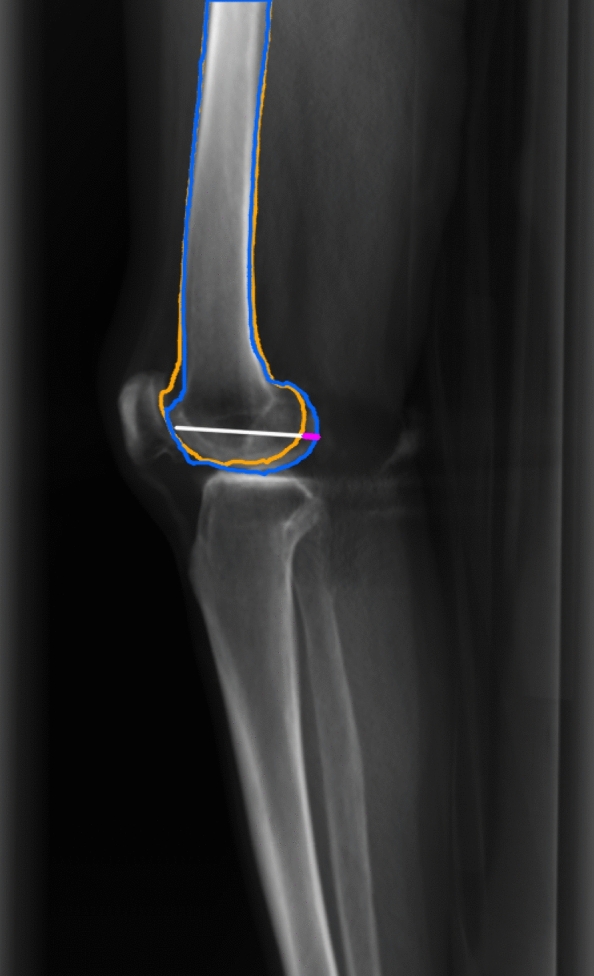

PCDR can be calculated by the length of pink segment divided by the sum of lengths of pink and white segments. The white line segment represents AP width of smaller condyle, and the pink segment represents the distance between posterior points of medial and lateral condyles. Blue and orange contours each represent the contours of medial and lateral femur.
Statistical analysis
We used Student’s t-test to determine whether statistically significant differences existed in PTS measurements from true laterals and rotated images. We performed separate paired t-tests comparing PTS measurements from each malrotation angle (−12°, −10°… 10°, 12°) with baseline (0° or aligned). Because this involved multiple comparisons (13 total tests), we applied a Bonferroni correction. The nominal alpha level was set at 0.05, and thus the corrected significance threshold became αcorrected = 0.05/13 ≈ 0.0038. All p-values below this threshold were considered statistically significant.
A linear mixed-effects model was employed, with rotation angle as a fixed effect and interpatient variation as a random effect, to evaluate the linear relationship between rotation angle and measurement error from true laterals across different rotation angles and patients. Marginal R^2^ was calculated according to the method suggested by Nakagawa and Schielzeth [23] to quantify the proportion of variance explained solely by the fixed effect.
To analyze the relationship between malrotation angle and the posterior femoral condyle distance ratio, linear regression constrained through the origin was performed, based on the assumption that the condylar distance should be zero under perfectly aligned conditions. Data were stratified by direction of rotation into internal (positive) and external (negative) groups. Receiver operating characteristic (ROC) analysis was performed to evaluate the clinical utility of PCDR as a binary classifier for identifying radiographs with clinically significant PTS error. While there is no universally accepted margin of error for PTS measurement, a 1° threshold was chosen to define clinically significant PTS error on the basis of clinical studies showing that even small deviations in PTS can meaningfully affect graft tension, joint stability, and postoperative outcomes, particularly in ACL reconstruction and high tibial osteotomy procedures [3, 4]
Results

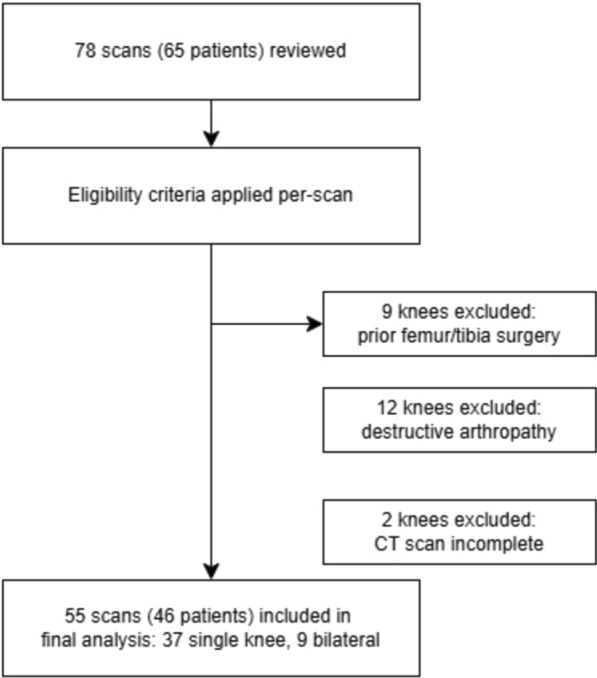

A total of 55 knees from 46 patients were included in the study. Mean age of the cohort was 73 years, and the mean body mass index (BMI) was 27 ± 2.7 kg/m^2^. Detailed patient characteristics are summarized in Table 1. Table 1. Patient characteristicsCategoryCount/averageAge [years]72.7 (4.9)Sex, male/female5/41Height [m]1.52 (0.06)BMI [kg/m^2^]26.6 (2.7)Ethnicity Korean46 (100%)Knee side Both knees11 Only right knee19 Only left knee14
Automatic PTS measurements on DRRs showed good agreement with expert annotations, with an ICC of 0.78 (95% confidence interval 0.73–0.82). Bland–Altman analysis demonstrated a mean difference of 0.81°, with 95% limits of agreement ranging from −4.65° to 6.27°, indicating minimal bias and acceptable agreement across the range of measurements. (Fig. 5).Fig. 5. Bland–Altman analysis of PTS measurements on DRRs by AI model and orthopedic specialist
PTS measurements increased significantly with greater internal axial malrotation. Measurements across all angles and patients (n = 55) are visualized and summarized in Figs. 6, 7. While the overall trend showed decreasing PTS with internal rotation and increasing PTS with external rotation, several knees exhibited small sign reversals around the 0° line (Fig. 6), likely due to subtle variability of automated joint line detection on rotated DRRs. As shown in Fig. 7, the linear mixed-effects model revealed a significant linear relationship between PTS measurement deviation and rotation angle, with a slope of 0.2° per 1° of rotation and a marginal R^2^ of 0.45 (p < 0.01). This indicates a predictable increase in measurement error with increasing malrotation, such that a 5° deviation results in approximately 1° of PTS error on average.Fig. 6. Effect of axial rotation on posterior tibial slope measurementsFig. 7PTS measurement differences from baseline plotted against malrotation angle
To complement this trend-based model, we performed a discrete-angle analysis to identify a practical threshold for clinically meaningful error. As shown in Table 2, malrotation of ≥ 6°—in either direction—resulted in statistically significant differences from baseline (p < 0.01) and exceeded a 1° mean absolute error. Table 2. Average values and t-test results of PTS measurement deviations compared with true lateralRotated angleMean diff. (SD)p-Value−12°−2.69 (2.7) < 0.001−10°−2.14 (2.3) < 0.001−8°−1.83 (1.9) < 0.001−6°−1.38 (1.7) < 0.001−4°−0.69 (1.7)0.003−2°−0.09 (1.0)0.7052°0.47 (1.7)0.0484°0.68 (1.6)0.0026°1.19 (2.1) < 0.0018°1.79 (2.4) < 0.00110°2.03 (2.4) < 0.00112°2.55 (2.5) < 0.001
As expected from trigonometric projection, PCDR exhibited a near-linear relationship with applied malrotation angle (R^2^ > 0.98 for both internal and external rotation; Supplementary Fig. S4), confirming it as a quantitative marker of axial malrotation. On the basis of this relationship, a malrotation of ±6° mentioned above to produce > 1° PTS error corresponded to a PCDR of approximately 0.082. ROC analysis (Fig. 8) showed that PCDR achieved fair discriminative performance for identifying radiographs with > 1° PTS error (AUROC = 0.77).Fig. 8. Receiver operating characteristic (ROC) curve of PCDR for detecting radiographs with > 1° PTS error

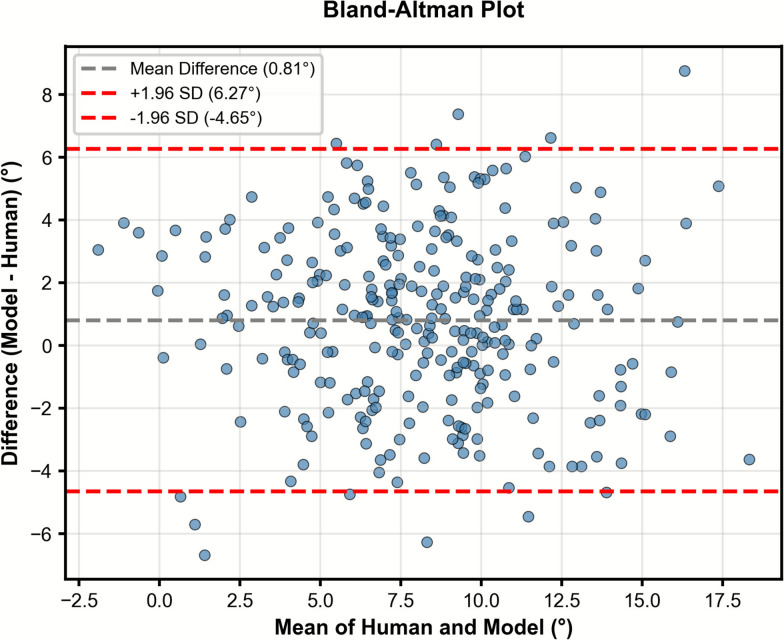

The plot shows the difference between AI and human measurements against their mean. The dashed gray line indicates the mean difference (bias), and the red dashed lines represent the limits of agreement (± 1.96 standard deviations). The narrow bias and symmetric spread suggest good agreement between the AI model and expert measurements across the range of values.

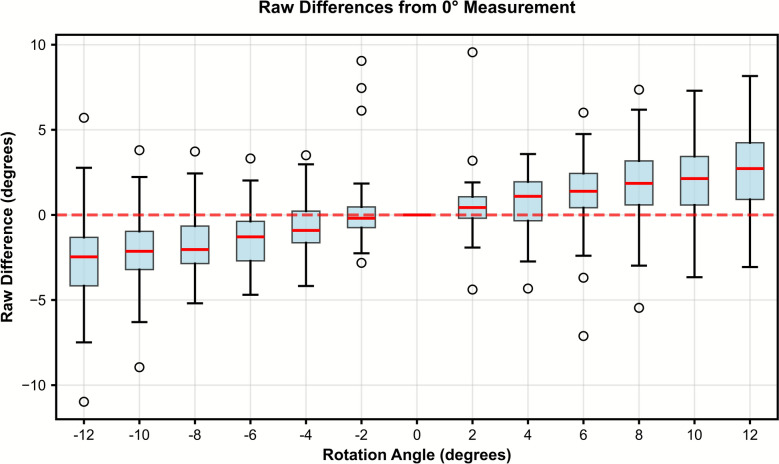

The box plot compares posterior tibial slope (PTS) measurements at different femoral rotation angles relative to the neutral (0°) position. Raw differences show systematic directional bias: external rotation (negative angles) decreases measured PTS, while internal rotation (positive angles) increases it. The red dashed line indicates zero difference.

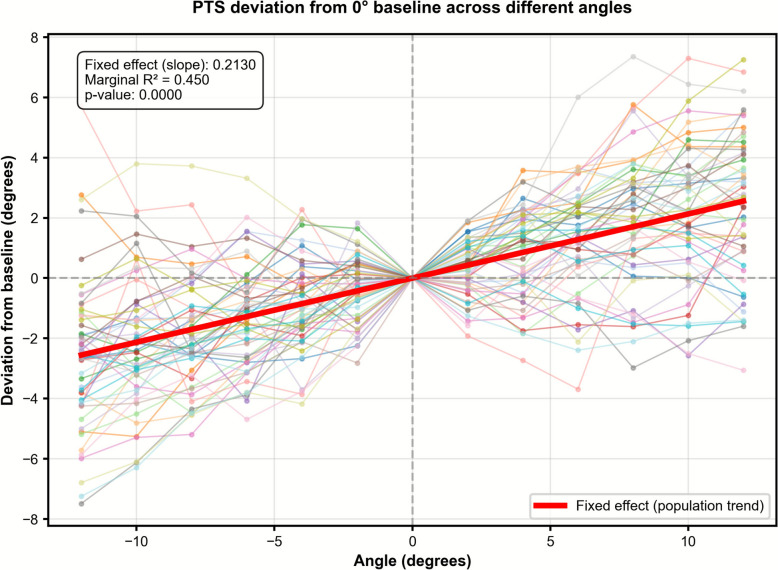

Deviation from baseline is plotted, with the linear mixed effects model visualized as thick red line. The linear effects model (red line) shows a linear relationship between PTS measurement deviation and rotation angle, with a slope of 0.2° per 1° of rotation and a marginal R^2^ of 0.45 (p < 0.01).

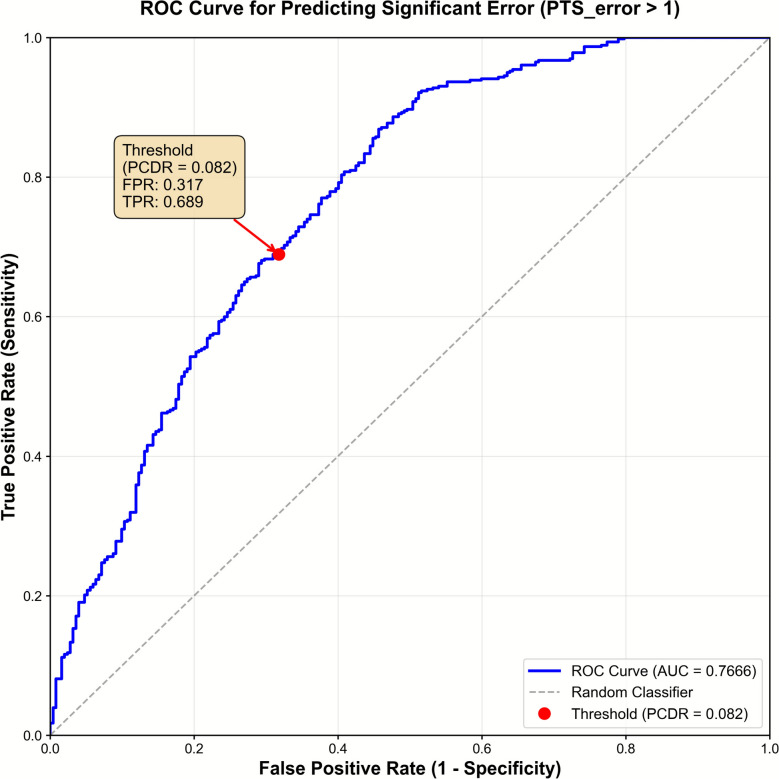

The red marker denotes the physiologically derived threshold (PCDR of 0.082), which corresponds to ±6° malrotation. At this threshold, the true positive rate was 0.689 and the false positive rate was 0.317.
