Modelling of magnetic vortex microdisc dynamics under varying magnetic field in biological viscoelastic environments
Andrea Visonà, Robert Morel, Hélène Joisten, Bernard Dieny, Alice Nicolas
TL;DR
The study models how magnetic vortex microparticles behave in biological environments under different magnetic fields, revealing how their motion depends on the medium's viscoelastic properties.
Contribution
A simplified two-dimensional model is introduced to describe the magneto-mechanical response of vortex microdiscs in viscoelastic media under varying magnetic fields.
Findings
Rotating magnetic fields induce oscillatory dynamics with a transition to asynchronous motion at a critical frequency.
Particle motion is strongly impaired when viscoelastic contributions dominate over magnetic ones.
Elastic energy transferred to the medium can perturb cellular processes without generating heat.
Abstract
Magnetically driven microparticles provide a versatile platform for probing and manipulating biological systems, yet the physical framework governing their actuation in complex environments remains only partially explored. Within the field of cellular magneto-mechanical stimulation, vortex microdiscs have emerged as particularly promising candidates for developing novel therapeutic approaches. Here, we introduce a simplified two-dimensional model describing the magneto-mechanical response of such particles embedded in viscoelastic media under varying magnetic fields. Using a Maxwell description of the medium combined with simplified elasticity assumptions, we derive analytical expressions and support them with numerical simulations of particle motion under both oscillating and rotating magnetic fields. Our results show that rotating fields typically induce oscillatory dynamics and that…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10| Parameter | Symbol | Numerical value |
|---|---|---|
| Disc radius |
| 0.65 µm |
| Disc thickness |
| 60 nm |
| Disc magnetic moment |
| 6.37 × 10−14 A m2 |
| Demagnetising factors |
| 0.0517 and 0.7076 |
| Magnetic field amplitude |
| 100 mT |
| Field frequency |
| [1–100] Hz |
| Anisotropy constant |
| 2.1 × 10−14 J |
| Young's modulus |
| [0.05–10] kPa |
| Viscosity |
| [10–1000] Pa s |
| Parameter | Symbol | Numerical value |
|---|---|---|
| Reduced magnetic coefficient |
| 6.5 |
| Reduced elastic coefficient |
| [2 × 10−4 to 2] |
| Reduced viscosity coefficient |
| [4 × 10−5 to 0.4] s |
- —Agence Nationale de la Recherche10.13039/501100001665
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMicro and Nano Robotics · Characterization and Applications of Magnetic Nanoparticles · Microfluidic and Bio-sensing Technologies
Introduction
1
In recent years, actuation of magnetic micro- and nano-objects using magnetic fields has emerged as a powerful tool for probing the mechanical properties of biological materials or for mechanically stimulating or altering cellular functions. These developments have been conducted both for improving our fundamental understanding of cell mechanobiology, in the form of magnetic tweezers^1^ and other micro-rheometers,^2^ and as proofs of concept for innovative therapeutic roads relying on the magneto-mechanical stimulation of cells.^3,4^ In both cases, the magnetic particles interact with a viscoelastic environment, the latter being either an inert material – such as a network of extracellular matrix proteins – or a responsive medium – such as the cellular interior. Indeed, mechanical stimulations trigger cellular responses based on the fact that cells generate internal forces and adapt their physical properties in response to mechanical and biochemical stimuli to maintain homeostasis.^5^ As the field of mechanobiology continues to reveal how profoundly mechanical forces regulate cellular and molecular processes, exploiting the mechanical vulnerabilities of diseases such as cancer is emerging as a promising adjunct strategy, especially where conventional therapies reach their limits. Nanomedicine offers powerful tools to pursue this vision, particularly magnetic nanoparticles, which can be remotely driven by external fields to deliver non-invasive, highly localised forces at the subcellular scale.^3^ Common features of magnetic particles used to mechanically stimulate cells or cellular environments are a large shape anisotropy, in order to allow the magnetic actuation to be effectively translated into mechanical motion, and a large magnetic volume to exert forces up to the nanonewton range. Such forces may be effective in deforming architectures of biological molecules, whose stiffness is often in the kilopascal range, denaturing proteins or breaking filamentous proteins.^6^ Typical examples are micron-sized rods and discs.^4^ In particular, disc-shaped particles have been extensively investigated to stimulate cells mechanically.
For instance, in a pioneering study, Kim et al.^7^ demonstrated that magnetic actuation of micrometric disc-shaped particles at low frequency may trigger apoptosis with a success rate of up to 90% in a human glioblastoma model cell line. The particles were 60 nm thick, 1 µm in diameter, and Fe_20_Ni_80_ (permalloy) discs coated with 5 nm thick gold layers. Such particles, now commonly referred to as vortex microdiscs, have been used to mechanically stimulate cells, for instance to destroy cancer cells,^8^ activate neuronal signalling pathways^9^ or stimulate insulin secretion in pancreatic cells.^10^ The success of such particles comes from their magnetic properties. In the absence of an external magnetic field, magnetisation consists in an in-plane closed loop yielding zero in-plane magnetisation and a very small out-of-plane magnetised core of dimension ∼5 nm at the centre of the microdisc (Fig. 1a).^11^ Under a magnetic field, the particle gets magnetically polarised along the field yielding an in-plane shift of the vortex core in a direction perpendicular to the applied field direction (Fig. 1). As the field is increased, the magnetic polarisation increases until vortex annihilation, leading to saturation at a field amplitude of typically few hundred mT. Due to its large shape anisotropy, the diameter of the disc being much larger than its thickness, the magnetisation tends to remain in the plane of the particle. This behaviour, characterised by zero magnetisation at the zero field and gradual polarization under a magnetic field, is referred to as superparamagnetic-like. Vortex microdiscs are therefore very promising for biomedical applications since the movement of the particles can be turned on and off effectively with magnetic fields and no remanent magnetisation is left when the field is turned off (Fig. 1b), thus avoiding agglomeration of particles due to magnetostatic interactions if they are dispersed in solution.^11^

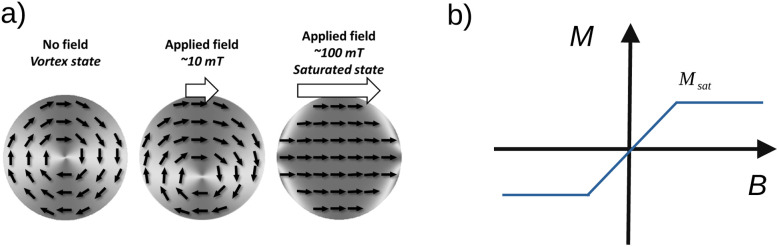

(a) Illustration of the vortex micromagnetic behaviour in a disc-shaped particle: from a vortex state (absence of an external field) to saturation. (b) Schematic representation of superparamagnetic-like behaviour of the vortex microdiscs. There is no remanent magnetisation in the absence of a magnetic field. Particles made of permalloy with a radius in the order of 1 µm and thickness below 100 nm saturate with field amplitude in the range of 40–100 mT depending on their thickness.11
In the frame of the aforementioned biological and biomedical applications, these particles are manipulated by low frequency rotating or oscillating fields. Such fields can be generated either by the motion of permanent magnets, such as the orbital motion of planar Halbach arrays^12^ or of cylindrical magnets (for oscillating and rotating fields, respectively), or with coils and AC currents.^7^ The field magnitudes used are in the order of tens to hundreds of mT, depending on the magnetic material and the geometry of the particles. The frequencies employed range between 0.5 and 20 Hz.^4^
Despite the growing number of experimental demonstrations supporting mechano-therapeutic strategies based on magnetic nanoparticles, the physical interaction of the particles, with both the surrounding medium and the magnetic field, remains poorly characterised. This gap leaves researchers without the quantitative guidance needed to design experiments or predict the mechanical stimuli generated in biological environments. In particular, there is no theoretical framework for anticipating the added value of applying an oscillating or rotating magnetic field, or for assisting in the choice of a field frequency or amplitude. These are currently chosen on the basis of experimental trials. Indeed, only two studies have proposed a physical description of the mechanical stresses exerted by the magnetised vortex discs, in specific, static configurations, and compared it with the typical order of magnitude of biomolecular stresses. For instance Kim et al.^7^ calculated the mechanical torque exerted by a disc attached to the cell membrane. The problem was solved in the quasi-static regime, corresponding to the situation where the disc movement is halted by the elastic torque opposed by the membrane. In this study the dependence of the magnetisation on the magnetic field was neglected. In a second study, Leulmi et al.^11^ proposed an in-depth calculation of the magnetic torque exerted by the particles with a more complete description of the magnetic problem. However, the reaction of the outer medium was not modelled, as the particle was assumed to be immobilized on the substrate.
In this study, we address the modelling of the vortex microdisc movement in a viscoelastic environment when exposed to oscillating or rotating fields. We aim to couple the magnetic and viscoelastic problem in a more comprehensive way as was done before. For instance, our goal is to provide a dynamic analysis of the movement of the vortex particle as a function of the viscoelastic properties of the outer medium. We propose here a first order description of the magnetic problem and of the elastic resistance of the material in which the particle is embedded. Our aim is to provide a simple but predictive framework that links the rheology of the disc's environment to its rotational dynamics. By developing for the first time a complete magneto-mechanical microdisc motion description which quantifies how viscoelasticity shapes the amplitude, phase lag, and forces generated under oscillating or rotating magnetic fields, this model helps anticipate how magnetic vortex microdiscs will behave inside cells or within extracellular matrices. Such insight is essential for designing particles and selecting biological targets. For example, if the threshold force required to activate specific mechanosensitive pathways, such as membrane ion channels or cytoskeletal tension signalling, is known, the model allows researchers to determine whether a given disc can realistically reach these regimes. For the sake of simplicity, we limit our analysis to a 2D description. By doing so, we constrain the particle rotation around the axis perpendicular to the rotation plane of the field. This amounts to imposing anisotropic mechanical properties on the material in which the microdisc is embedded, which prevents it from aligning with the rotation plane of the field. Such anisotropy is present in cells or other biomaterials, which account for many filamentous protein assemblies such as cytoskeletal or collagen fibres. The anisotropy in stiffness of these organized structures at the micrometric scale is of several orders of magnitude. Thus a portion of the microdiscs interacting with or loaded in cells experiences anisotropic resistance to their movement. Our modelling focuses on these particles, which are the ones responsible for applying mechanical stresses. In this assumption framework, an important result of this study is that the magnetic torque induces a mechanical torque whose amplitude is given by the orientation of the magnetisation relative to the plane of the particle. This leads us to show that the elastic resistance of the outer medium can either impair the rotation of the particle or favour it when its relaxation also relaxes the magnetic problem. Finally we show that viscosity, by imposing a lag in the movement of the particle relative to the magnetic field, can under some conditions convert the influence of a rotating field into an oscillating motion. Eventually, we compare the orders of magnitude of the energies at play to common biomolecular events to conclude on the ability of the movement of the particles to mechanically influence biological processes.
Theory
2
We consider magnetic particles made of ferromagnetic materials with highly anisotropic geometric specifications, with radius R and thickness h. In the absence of a field, when R ≫ h, the magnetisation organizes as a vortex (Fig. 1a).^13^ Its magnitude in every unit volume is spontaneous magnetisation, also called the saturation magnetisation Msat. When exposed to an external field of sufficient amplitude, the magnetisation vectors align (Fig. 1a) and the particle experiences a magnetic moment whose amplitude is
where V is the volume of the disc.
Here we consider a particle that is embedded in a viscoelastic material as depicted in Fig. 2. We assume that in its resting position, the plane of the particle lies in the (x, y) plane of the reference frame. In the following, we focus on the effect of rotating or oscillating magnetic fields. No field gradients are considered, which would result in the translational movement of the particle. The magnetic field, denoted B, is modelled as a constant amplitude field which may rotate or oscillate at a certain frequency, f, in the (x, z) plane (Fig. 2b). We assume that the field is invariant in the y direction. Its analytical expression is
where θ(t) is the angle between the field vector and the x axis. In the case of an oscillating field, the expression of θ(t) is θ(t) = θ0 sin ωt with ω = 2πf and θ0 being the amplitude of the oscillation. For a rotating field instead, θ(t) = ωt. This simplified field model captures the behaviour of most experimental devices (reviewed by Naud et al.^4^), where the magnetic field is essentially uniform along the y-axis when measurements are taken sufficiently far from the edges, where boundary effects are dominant. Out of these regions, the field rotates or oscillates within a specific plane. Once an external field is applied, the magnetised particle experiences a magnetic torque which tends to align the plane of the particle to the direction of the field. Such torque is counteracted by viscous and elastic resistances coming from the external medium. In the following, we propose a physical description of the interaction of the magnetic field with the microdisc and of the viscoelastic reaction of the surrounding medium. We then analyse the effect of these viscoelastic properties on the motion of the microdisc driven by oscillating or rotating magnetic fields.

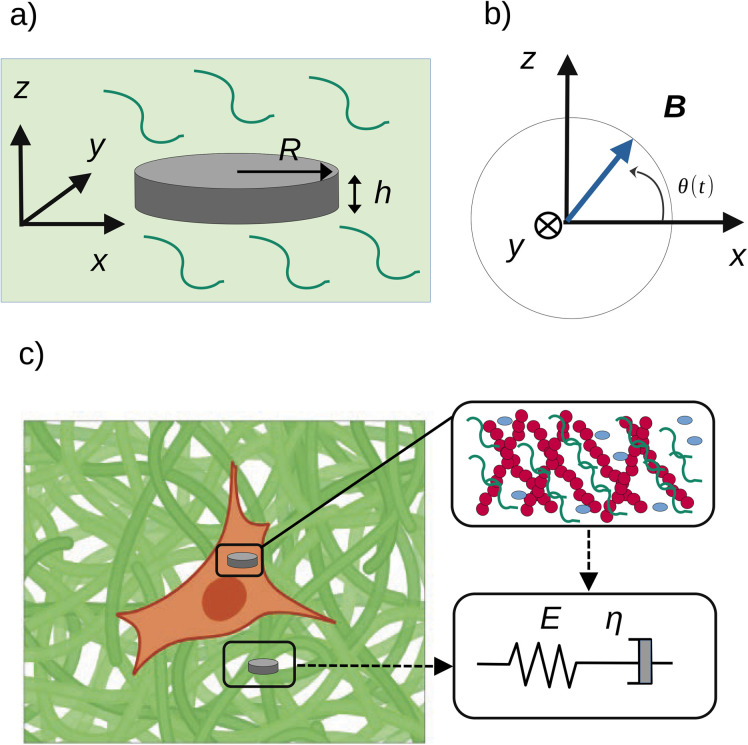

(a) Microdisc embedded in a 3D viscoelastic material. (b) 2D representation of an external field, rotating or oscillating in the (x, z) plane. The field orientation at time t is given by θ(t). The field is invariant in the y direction. (c) The particle is trapped in a material, either extracellular or intracellular, approximated using a Maxwell viscoelastic material. Its rheological properties are equivalent to those of a spring and a dashpot in series.
Modelling vortex microdisc response to an external field
2.1
The magnetic configuration in the absence of any external field is the one of a closed vortex flux (Fig. 1a). Such magnetic texture mainly arises from two competing effects, the self-magnetisation of the material and the appearance of an internal, demagnetising field. The first effect, resulting in the so-called exchange energy Eex,^14^ arises from quantum mechanical interactions between neighbouring electron spins (Coulomb repulsion of the electrons and the Pauli exclusion principle). In ferromagnetic materials, it favours the parallel alignment of the spins and leads to spontaneous magnetisation. The second effect, giving rise to the demagnetisation energy Ed and also referred to as shape anisotropy, tends to maintain the spins oriented in the plane of the particle. Phenomenologically, the demagnetising field can be described as the consequence of magnetic charges that appear at the surface of the magnetic material when the spins are out-of-plane. This energy term favours the minimal demagnetising field, which corresponds to having the magnetic charges as far as possible. In principle, the crystalline structure of the magnetic material also influences the magnetic configuration. Here we neglect the effect of the magnetocrystalline anisotropy which tends to align the magnetisation with some specific orientation of the crystalline structure. For example, in the case of permalloy, a magnetic material often employed in the design of vortex particles, its contribution vanishes due to the opposite contributions of iron and nickel atoms.
When an external magnetic field is applied, the Zeeman energy, EZ, which accounts for the tendency of the magnetisation to align with the magnetic field, has to be included. Thus the total magnetic energy reads
Depending on the amplitude of the external field, the vortex core is progressively displaced until it is completely ejected from the disc, and the particle becomes fully magnetised (Fig. 1a). For such particles, magnetic fields in the mT range are enough to saturate the magnetisation.^7,8,15^
For the scope of this paper, we are not interested in the dynamics of the vortex core, and we treat the magnetic problem as if the particle is always saturated (Fig. 3). In doing so we use the macrospin model which is often employed to describe the magnetisation dynamics of single-domain magnetic particles^14^ in the framework of the Stoner–Wohlfarth model (Fig. 3a). The magnetisation field is then reduced to a single, uniform vector M. This approximation is governed by the Landau–Lifshitz–Gilbert equation. Since the frequency of the external field is much lower than the Larmor frequency (the order of magnitude of the gyromagnetic ratio is GHz T^−1^ in ferromagnetic materials such as permalloy^16^), we neglect the dynamics of the magnetisation. We calculate its orientation as a result of the equilibrium between Zeeman and shape anisotropy energy terms, with the contribution of the exchange energy being negligible:^17^

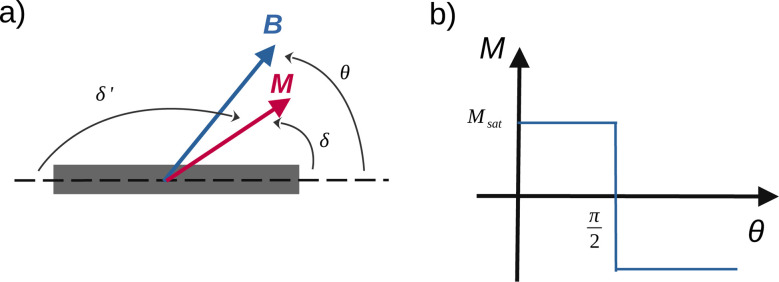

(a) The Stoner–Wohlfarth model determines the orientation of the magnetisation M relative to the plane of the particle (labelled by the angles δ or δ′ = π − δ) as a function of the orientation of the field B (angle θ). (b) In our model, the amplitude of the field is assumed constant while its orientation varies with time. We approximate the magnetic hysteresis curve to first order: the magnetisation of the disc flips from one saturated state to the other when the field is perpendicular to the plane of the disc.
Eqn (4) depends on a single angle, δ, the angle between the plane of the particle and the magnetisation vector (Fig. 3a). In this model, the magnetisation of the microdisc is assumed to be saturated at all times. The variation of the magnetisation vector relative to the orientation of the applied field is therefore approximated as a step function, as reported in Fig. 3b. This implies that the magnetisation flips in orientation once the angle θ becomes larger than π/2.
An analytical expression of the demagnetising energy can be derived by approximating the thin disc to an oblate ellipsoid whose principal axes in the (x, y) plane are of identical length, approximated to be the radius R of the microdisc, and the out-of-plane axis is approximated to be of length h, the thickness of the disc (see the SI):
In this equation, NR and Nh are the two demagnetising coefficients that depend on the aspect ratio R/h. For a true oblate geometry, they are related by the condition . In our case, since the geometry departs from an oblate, this relation does not hold. However, we could show using a micromagnetic simulation that eqn (5) is suitable to describe the demagnetizing energy but without the aforementioned relationship between NR and Nh (article in preparation). The numerical values obtained for permalloy microdiscs are gathered in Table 1.
In the presence of a magnetic field, the magnetisation M is attracted toward the field. The Zeeman energy, that describes this attraction, is written as
with m the magnetic moment associated with M: m = MV.
Model for the mechanical response of the medium to the particle motion
2.2
We assume that the particle is embedded in a Maxwell-like material (Fig. 2c). This modelling is the most simple approach often used to describe the rheological properties of either extracellular matrices or cell bodies.^18^ In this study, we limit our description to a 2D framework so as to be able to propose analytical analysis. Since the particle is not invariant in a specific direction, this assumption amounts to constraining its rotation to the y-axis, which is the axis of rotation of the magnetic field. Under this assumption, the material has highly anisotropic mechanical properties, but stress relaxation remains characterised by one single relaxation time:
where η is the viscosity and E the elastic modulus of the material along the deformable direction. The equivalent circuit associated with the Maxwell model is a spring in series with a dashpot, submitted to a unidirectional force F (Fig. 1c). The displacement x of the particle is then described by eqn (8):
where k and ξ are the spring elastic constant and the dashpot viscous constant, respectively. These are proportional respectively to the elastic modulus E and to the viscosity η of the material by a geometrical factor depending on the shape of the particle and the direction of the force relative to the orientation of the particle. This equation can be transposed to a rotating geometry when the particle is submitted to a torque, Γ.^19^ In this case, the Maxwell model describes the angular velocity of the particle in the Maxwell-like material (Fig. 4).
where γ and ν are the torsional and viscous constants.

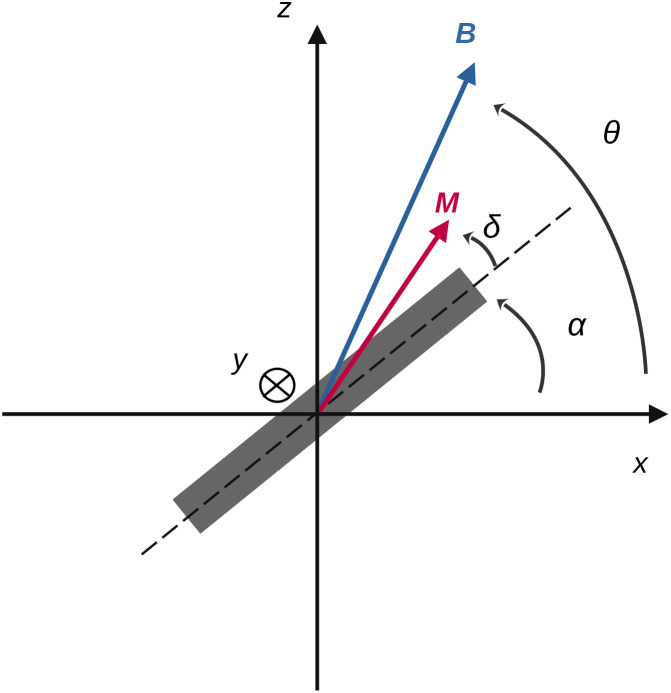

Geometrical parameters of the model when the particle can rotate.
Modelling the viscous resistance of the medium to the particle motion
2.2.1
As a consequence of the magnetic actuation, the microdisc may rotate from its resting position around the y-axis. This introduces the angle α which measures the rotation of the particle. The dynamics of α is linked to the viscous and elastic resistance of the external material (Fig. 4).
We first calculate the viscous torque that opposes the field-induced rotation. Since the particle is rotating around one of its symmetry axes that is parallel to its plane, in the regime of laminar flow, the viscous torque scales with the radius of the particle and not with its thickness. Following ref. 20 and dropping the shape-dependent numerical factors, its expression is
where is the angular velocity of the particle and ŷ is the unit vector along the y-axis, which is the axis of rotation (Fig. 4). A similar relation between ν and η has been derived for a cylinder in ref. 21 and used in ref. 19. The viscous energy loss is then written as
Elastic resistance of the medium to a small angle deformation
2.2.2
We now model the elastic resistance the material opposes to the rotation of the particle. In principle, the relation between the local force, coming from the magnetic actuation and the deformation of the elastic material, can be calculated by solving the equilibrium equation of elasticity.^22^ A mathematical framework was proposed by Chadwick et al.^23^ to calculate the deformation field resulting from torsional oscillations of rigid particles of arbitrary shape embedded in an infinite elastic solid. So in principle, the exact energy cost induced by the rotation of the microdiscs can be calculated. But no analytical solution is available as soon as the shape of the particle departs from a sphere.^24^ For our analysis, we made the choice to approximate the elastic resistance of the material to its very first order, so that we could derive an analytical expression for it. Nevertheless in the following, we expose the limitations of our approximations so that it is possible to envision their limits.
Our first approximation is to consider that the rotation of the particle is limited to small angles. This approximation will be challenged in the next sections. If the particle is rotated around one of its diameters, at small angles, the main resistance comes from the compression (and dilatation) of the material perpendicular to the flat planes of the particle. Shear stresses are thus neglected. This approximation is justified by the shape anisotropy of the microdiscs: the thickness of the particle is small compared to its diameter so that when the rotation is limited to small angles, the force component is mainly normal. Our second approximation is to neglect the contribution of the long range propagation of the elastic deformation. The long range propagation of the deformation indeed results in elastic energy being stored at a distance from the moving particle and potentially released toward the particle when the stress in the vicinity of the particle decreases.^24^ This leads us to model the elastic response of the material with Hooke's law:
where fn is the force per unit surface exerted by the microdisc normal to its plane, un is the normal displacement of the material in the vicinity of the particle and k is the elastic constant of the material, a function of the elastic modulus E, the Poisson ratio of the material and the radius R of the particle (the thickness cannot contribute in this crude approach as no shear stress is considered). Dimensional analysis suggests that k ∼ E/R.
In the framework we propose, the rotation of the particle induces a small normal displacement of the material, un = rα, with r being the distance to the axis of rotation. From eqn (12), we therefore conclude that the elastic energy generated by the motion of the particle has the following scaling with the rotation angle:
where is the approximate torsional constant.
Equation governing the motion of a saturated vortex disc in a viscoelastic medium
2.3
Coupling the magnetic (eqn (5) and (6)) and mechanical problems (eqn (11) and (13)), the total energy of the system is written as
where is the moment of inertia. Since the mass of a magnetic microparticle is in the order of 10^−15^ kg, the kinetic energy term (Ekin) is negligible compared to the other energetic terms (see Table 1).
Eqn (14) has two independent variables, δ and α. The values they assume when the magnetic field is oriented with an angle θ relative to the lab frame are found by minimising the total energy with respect to these two quantities:
with characterizing the energetic cost of the magnetic anisotropy.
Results
3
Tuning the numerical parameters of the model
3.1
Eqn (16) and (17) were solved for a range of parameters relevant for applications involving biological cells or tissues, in which such anisotropic microparticles have been used. The list of all the parameters used in the model and their respective numerical values are reported in Table 1.
The sizes of the microdiscs were inspired by ref. 7, 8, 10 and 15 that employed such particles to mechanically stimulate cells and the range of frequency. The amplitude of the field was chosen so that the magnetisation is saturated. Furthermore, it was shown that ferromagnetic particles capable of vorticity, such as those made of permalloy, reach saturation with magnetic fields below 100 mT.^11^ The orders of magnitude of the mechanical properties of the viscoelastic medium were chosen based on the rheological studies of intracellular compartments or of common biomaterials such as Matrigel, collagen or hyaluronic scaffolds. For instance, common values of the Young's modulus of Matrigel span between few tens of Pa to 2 kPa,^25^ while its viscosity is around 50 Pa s.^26^ Collagen and hyaluronic scaffolds also have stiffness that ranges between hundreds of Pa to several kPa, depending on their crosslinking and concentration.^27^
As far as cell rheology is concerned, we assume that the particle is trapped in the cellular cytoskeleton or immersed in the cytoplasm. Given that the literature provides spread values with very different orders of magnitude of elastic modulus and viscosity for the actin cortex,^5,28,29^ we decided to set a range of elastic modulus that spans between 1 kPa and 10 kPa to account for different crosslinking states and interplay with intermediate filaments and microtubules.^30–32^ Concerning the cytoplasm, we chose lower values for the elastic modulus, between 0.05 kPa and 0.5 kPa.^2^ The same approach was used to set a range of possible values of viscosity, between 10 and 1000 Pa s. This range aims at taking into consideration different polymerisation states of the cytoskeleton. For instance, we associated higher viscosity with well organised networks.^33^
The final ranges of Young's moduli and viscosities are reported in Table 1.
Shape anisotropy term imposes the angle between the easy plane and the magnetisation, δ, to be small
3.2
A first limit case of an immobilised particle is modelled to get information on the magnitude of the angle δ between the magnetisation M and the easy plane of the particle (Fig. 3a). In this case, the solution of the problem is provided by eqn (16) where α is set to 0:
The equation is solved for θ between 0 and π. When θ exceeds π/2, the magnetisation flips in the symmetric direction relative to the (y, z) plane. Nonetheless, the equation is not altered by this flip as demonstrated in the following. For values of θ ∈ [0, π/2], the equation describing the equilibrium state is eqn (18). When θ ∈ [π/2, π], the magnetisation at equilibrium is obtained with a newly defined angle δ′ = δ − π (mind the negative sign of δ′) (Fig. 3a and 5). δ′ is the angle that governs the physics of the system once the magnetisation has flipped. Eqn (18) then becomes

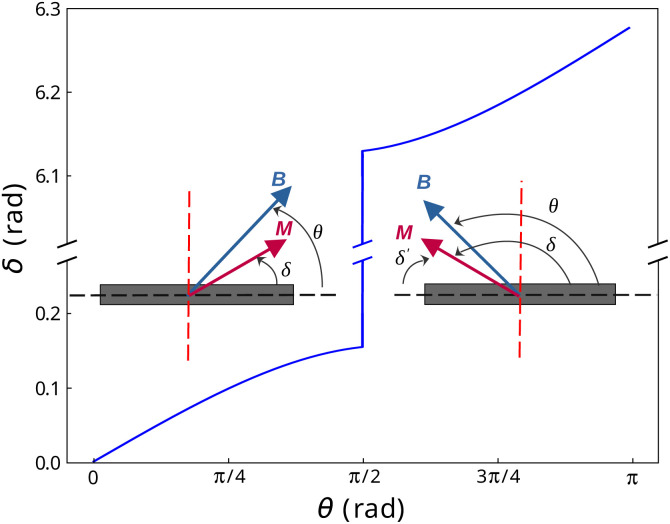

Evolution of the angle δ between the anisotropy plane and the field as a function of the field angle, θ, for an immobilised particle (Stoner–Wohlfarth's model).
Expressed in terms of δ, eqn (19) therefore remains identical to eqn (18).
Eqn (18) was solved numerically with an in-house Python code for the numerical values reported in Table 1. The values of δ are shown in Fig. 5. We therefore conclude that for an immobilized particle, either δ or δ′ remains small while θ is varied. An immobilised particle corresponds to the limit case where M deviates the most from the particle plane. Therefore we assume that the conditions |δ| ≪ 1 and |δ′| ≪ 1 are met also when the particle is free to rotate.
Adimensional parameters governing the movement
3.3
Having demonstrated that the magnetisation only slightly deviates from the easy plane of the particle, eqn (16) and (17) can be simplified by expanding them to first order in δ ≪ 1:
where we have introduced reduced variables which compare the contributions of mechanical and shape anisotropy torques that all limit the reorientation of the magnetisation to the Zeeman torque that tends to align the magnetisation to the magnetic field.
The numerical values of these parameters are reported in Table 2.
Microdisc motion subjected to an oscillating magnetic field
3.4
We first focus on the motion of a microdisc submitted to an oscillating magnetic field:
We limit the study of the motion of the particle to values of θ0 < π/2. Magnetisation flipping events will be addressed later on, in the rotating field section. In the limit where θ − α ≪ 1, which is expected either when the field oscillates at small angles (θ0 ≪ 1) or when the torques that oppose the Zeeman torque are small enough, eqn (20) can be solved analytically. Considering the initial condition α(0) = 0, we find
with
Note that the first term in A is the inverse of the Maxwell time (eqn (7)). Before drawing any conclusion, the reliability of the analytical solution eqn (23) is tested against the numerical solution of eqn (20). The numerical problem is solved with an in-house Python code making use of the solve_ivp function of the SciPy module.^34^

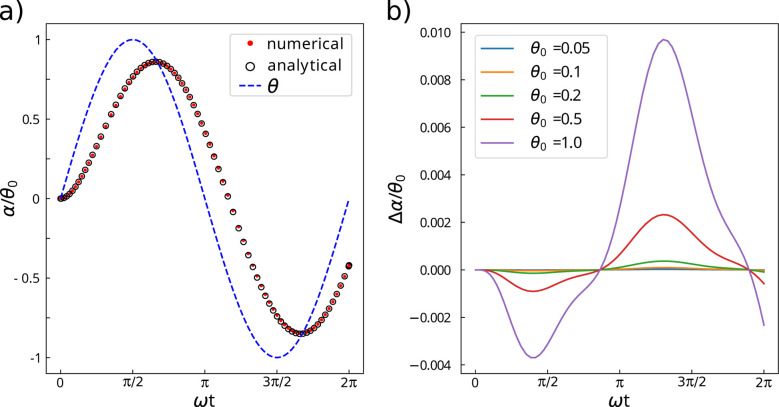

Fig. 6 shows that the analytical solution remains valid with a good accuracy beyond the approximation θ0 ≪ 1. The effectiveness of eqn (23) in describing particle motion for oscillations of significant amplitude justifies the use of the analytical approach to deduce asymptotic motion behaviours as a function of solicitation frequency or rheological parameters of the particle's environment. Reported trends should be accurate to within a few percent, even for the largest oscillations (Fig. 6b).
The analytical approach provides an accurate solution beyond the approximation θ0 ≪ 1. (a) Comparison of analytical (○) and numerical () solutions for θ0 = 1 rad, calculated for intermediate values of g and n (g = 2 × 10−2, n = 4 × 10−2 s). θ is shown to assess the assumption θ − α ≪ 1. (b) Error between the numerical and analytical solution for different values of θ0. Δα is calculated as the difference between the numerical solution and the analytical one provided by eqn (23).
Influence of the rheological parameters and of frequency on the movement
3.4.1
Eqn (23) shows that α(t) reaches a stationary regime after a characteristic time of 1/A. This characteristic time comprises two contributions that act in parallel: the relaxation of the elastic stress in the viscoelastic material following particle's movement and the friction of the surrounding material that slows down the particle rotation induced by the magnetic torques (eqn (24)). Once the steady state is reached, the oscillation of the microdisc forced by the magnetic field is a phase-shifted oscillation at the forcing frequency, whose amplitude decreases when the frequency is increased (eqn (26)–(28)):
with
Eqn (27) reveals that the coupled magnetic and mechanical constraints act as a low-band filter, with a cut-off frequency ωc:
Considering the values provided in Table 1, ωc ranges between 2 and 7 × 10^4^ s^−1^, which, in terms of frequencies, spans the interval [13 Hz to 450 kHz]. The amplitude of the oscillations is thus modulated by the interplay of the elastic and magnetic contributions to movement, g and , and the relative friction torque, nω. On the other hand, the phase shift Φ increases with frequency (eqn (28)). Its magnitude is limited by the restoring elastic and magnetic torques that limit the amplitude of the oscillation. In brief, when the friction is dominant (very viscous media or large frequency), the oscillation is damped and in phase quadrature and Φ → π/2. In the opposite situation, when resistive conservative torques are dominant (predominant elastic material, large magnetic shape anisotropy or low frequency), the amplitude of the oscillation is given by the balance of the magnetic actuation and the elastic and shape anisotropy resistances, and the oscillation remains in phase with the magnetic field. Similarly, when g ≫ 1, the oscillation is limited by the elastic resistance of the material: α0 ∼ θ0b/g(b + 1) which tends to zero as g increases while Φ tends to zero. However, when g ≪ 1, the oscillation of the particle is limited by the viscous resistance: and Φ ∼ nω(b + 1)/b.
The transition from close to in-phase to close to quadrature oscillating movement is controlled by the cut-off frequency, ωc/(2π). ωc depends on the viscoelastic parameters, n and g. Consistently, increased viscosity or reduced elasticity decreases the value of ωc (eqn (29)). This leads to the conclusion that particles stimulated in materials with large viscosity or low elasticity compared to the strength of the magnetic anisotropy experience phase-shifted, damped oscillations at lower forcing frequency than those embedded in stiffer or less viscous materials.
Influence of the magnetic parameters
3.4.2
As mentioned previously, the numerical values chosen for Kd and the field amplitude were guided by literature reports, and a detailed exploration of the parameter b was therefore not the primary focus of this study. Nonetheless, we briefly examine its behaviour in a few limiting cases. In the regime where the vortex configuration is expected to form (ref. 13), b decreases when the shape anisotropy is reduced or becomes negligible compared to the Zeeman energy. This occurs when either the geometrical parameters or the material are changed (eqn (5)) or when the driving magnetic field is increased. In the limit b ≪ 1, the steady-state amplitude α0 tends to 0 (eqn (27)), meaning that an excessively strong field or insufficient anisotropy suppresses the magneto-mechanical coupling. Although this may seem counterintuitive at first, the magnetisation in this regime simply follows the external field without producing significant mechanical motion. In the limiting case b ≫ 1, , meaning that the amplitude tends to the field oscillation angle θ0 modulated by the viscoelastic properties of the medium. Increasing b, by adjusting field strength to the anisotropy constant, improves the magneto-mechanical motion of the particle. From a practical standpoint, small variations in Kd may result from fabrication-related differences in geometrical dimensions. For microdiscs produced through cleanroom lithography (e.g. as described by Leulmi et al.^11^), the dominant source of uncertainty is the lithographic resolution, typically at the submicron level. A deviation of 0.05 µm in the disc diameter corresponds to roughly a 7% change in Kd (eqn (5)), which is not expected to substantially affect the conclusions of this study.
Microdisc motion subjected to a rotating magnetic field
3.5
We now focus on the scenario where the field rotates continuously in time: θ(t) = ωt. In this case, the flipping of the magnetisation may become a frequent event depending on the strength of the torques that resist the movement. Magnetisation flip occurs when the angle between the field and the easy plane of the microdisc exceeds π/2. For a rotating particle, this angle is θ − α (Fig. 4). When the latter exceeds π/2 (modulo π), the magnetisation flips to its symmetric orientation in the particle plane (Fig. 7). A similar argument as that given in the previous section shows that the equilibration of the magnetic torques remains governed by the same equation once the magnetisation has flipped (eqn (19)). When addressing particle motion, the angle θ in eqn (19) nevertheless has to be changed to θ − α. Just after the flip, the Zeeman torque changes sign, so that it induces an opposite motion that tends to decrease the angle α. When the field goes on rotating, the angle between the field and the magnetisation changes the sign again which again tends to increase α. The magnetisation may thus exhibit four different orientations relative to the field, as illustrated in Fig. 7.

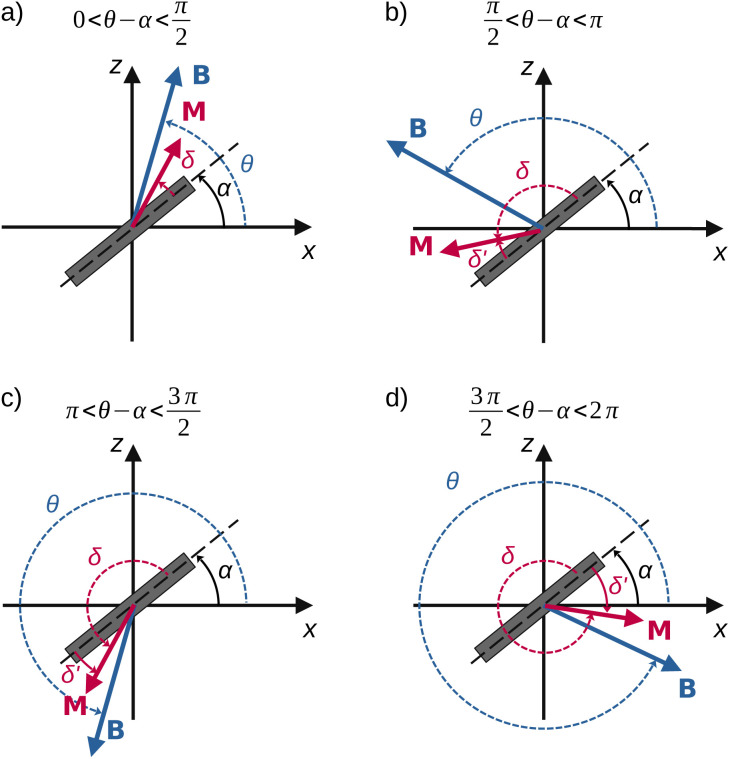

Configurations of the orientation of the magnetisation M in relation to the field orientation. Flipping events have occurred between (a and b) and (c and d).
In the following, we analyse three different rheological regimes: a purely viscous fluid (limit case where elasticity is negligible), large values of elastic resistance (limit case where the viscosity is negligible) and an intermediate case where both elasticity and viscosity have to be accounted for. The latter is approached qualitatively, as explained below.
Motion of the microdisc in a viscous environment
3.5.1
Eqn (16) and (17) are solved numerically in the case where g = 0 (Fig. 8). As no assumption on α was required to determine the viscous torque, we release the constraint α ≪ 1 imposed by the calculation of the elastic torque. This allows the entire viscosity range to be spanned without restriction.
Particles embedded in a predominantly viscous material exhibit an oscillatory motion associated with the flipping of the magnetisation as soon as the rotating frequency of the field exceeds 1/(2πn). (a) Particle rotation α(t) compared to the rotation of the magnetic field θ(t) as a function of the reduced viscosity n. Frequency = 1 Hz. For values of n < 0.01, α(t) cannot be distinguished from θ(t) (data not shown). (b) First flipping time as a function of 1/nω. The points do not gather in a master curve, implying that n and ω contribute as independent variables to the flipping time. (c) Average frequency of the oscillation fvis as a function of nω. (d) Amplitude of oscillation as a function of 1/nω.
Two regimes of motion are observed, either synchronous or asynchronous with the magnetic field (Fig. 8a). In the synchronous regime, the particle follows the rotating magnetic field with a progressive phase lag that reaches a steady value after a transient regime. This regime is observed at low viscosity. There are no flipping events in this regime. The asynchronous regime arises for larger viscosity. In this regime, the rotational motion of the particle unhinges from the magnetic field, leading to an oscillatory motion. The reasons are the flipping events. Because of the friction, α increases less rapidly than θ. At some point, θ − α reaches π/2, triggering a flip of the magnetisation. Once the magnetisation has flipped, the torque associated with the Zeeman energy (which now has a flipped sign and direction, see Fig. 7b) progressively reduces as the field further rotates and the angle between magnetisation and the field decreases. Consequently, the energy cost associated with the magnetic shape anisotropy decreases, as the magnetisation falls back to the particle plane, and the mechanical torque coming from the equilibration of the magnetic torques decreases as well. As a result, α decreases until the magnetisation realigns with the field. Once alignment is re-established, the field resumes driving the motion and α increases again (Fig. 7c). The dynamics of the rotation of the particle and of the magnetisation is shown in Movie S1.
We can obtain a crude estimation of the threshold viscosity that leads to flipping events. To this end, we solve analytically eqn (20) by setting g = 0:
When the magnetisation is close to flipping, the angle θ − α is close to π/2. We thus expanded eqn (30) for θ − α ≃ π/2 to first order and solved the resulting differential equation. Considering only the steady state regime, we find
Eqn (31) shows that the magnetisation flips as soon as nω ≥ 1. Considering relevant orders of magnitude for n, we therefore conclude that the rotation of the microdisc may be transformed into an oscillatory movement when the frequency is in the range [0.4–4000] Hz, the lower frequency being attained when the particle is within more viscous media. Since the analytical approach can only be used limitedly, we solved eqn (30) numerically for different parameters as reported in Table 1 (Fig. 8).

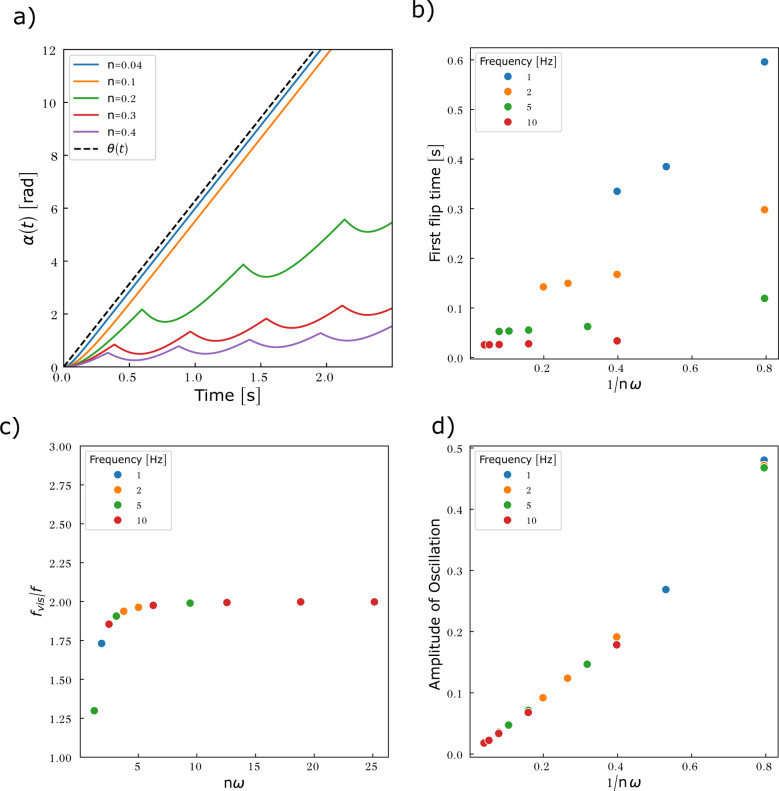

Consistently, Fig. 8a shows that the particle movement transitions from a uniform to an oscillatory motion once either the forcing frequency or the viscosity exceeds a threshold value. In the context of the numerical values used in Fig. 8, the analytical approach suggests that the oscillatory mode should arise as soon as n ≥ 0.16. Oscillations however appear after a transient time, associated with the first flip of the magnetisation. The dependency of this first flipping time is shown in Fig. 8b as a function of 1/nω. The data do not follow a master curve, meaning that n and ω contribute as independent variables to this dynamics. Nonetheless as a general result, larger viscosity or larger frequency reduces the time required for the first flipping event to happen. This result is expected as when the viscous torque is dominant, the oscillations are fully dampened (α(t) ≃ 0) and the magnetisation flips as soon as θ(t) = π/2 (modulo π). The first flip then occurs at t = 1/(4f). This is indeed what is observed in Fig. 8b when nω is larger than 5. We then calculated the mean frequency (fvis) and the amplitude of the oscillations of α(t) by numerically extracting local maxima and minima and averaging over the evaluation time window (5 s). The values are plotted in Fig. 8c and d respectively. As nω increases, the particle oscillates at an increasing frequency, that reaches twice that of the forcing field for highly viscous media or at large forcing frequency, as expected. Finally, Fig. 8d shows that the microdisc oscillates with an amplitude governed by the parameter 1/nω in the range of forcing frequencies studied.
Motion of a microdisc trapped in a predominantly elastic material
3.5.2
We now analyse the movement of the particle embedded in a predominantly elastic material, exhibiting linear elastic behaviour. n is set to 4 × 10^−4^ s in eqn (16) and (17) so that the ratio g/nω is [50 to 50 000]. In this regime, the elastic contribution is the main resistance to the rotation of the particle. For large enough elastic resistance, θ − α may reach π/2, leading to a flipping event. Once the magnetisation has flipped, the magnetic torque favours a backward motion as explained above. As a consequence, at the moment of the flip, a sudden backward jump of the particle occurs due to the instantaneous nature of the elastic stress (Fig. 9 and Movie S2).
Particles embedded in a predominantly elastic material exhibit an oscillatory motion in the presence of a rotating field, whose frequency is double the forcing frequency. (a) Particle rotation α(t) compared to the rotation of the magnetic field θ(t) in relation to the reduced elasticity g. Frequency = 1 Hz, n = 4 × 10−4 s. (b) First flipping time as a function of 1/g (○) and analytical expression of the flip time t1 at different frequencies (eqn (32)). (c) Average frequency of the oscillation fel as a function of g. All points overlap at 2f. (d) Amplitude of oscillation as a function of 1/g.
The backward motion goes in the same direction as the magnetic torque. The subsequent increase in α takes place when the balance between magnetic and elastic torques once again allows the field to drive the particle in the same direction as the field. When the coupling parameter g is low, the particle oscillates around a mechanically stressed configuration (Fig. 9a, blue or yellow curves). Conversely, for large values of g, the particle oscillates around its resting position (Fig. 9a, red curve). This latter case arises because the particle moves only slightly away from its equilibrium before the magnetisation flips, and the elastic stress fully relaxes. The flipped magnetisation then experiences an opposite torque that leads to negative values of α, until the field realigns with the particle plane and resumes driving the motion (see Movie S2). Note that the blue curve in Fig. 9a (α(t) for g = 0.2) is way beyond the approximation α ≪ 1 and should be considered more as a qualitative description, although Fig. 6 shows that this approximation is not very restrictive. Indeed, we expect our model to overestimate the particle movement in regimes where α ≫ 1 since we have not accounted for long distance contributions of elasticity. Stresses stored at large distances make the material appear stiffer than in its relaxed state, which subsequently reduces the amplitude of motion over time.^23,24^ Nonetheless, while this may affect the numerical values, the overall trend and flipping dynamics remain consistent.
The oscillatory motion of the particle can be approached analytically when the angle between the magnetisation and the easy plane of the particle is small. Before the first flip of the magnetisation, δ ≪ 1, and the motion is governed by eqn (20) with n ≃ 0. Just before the magnetisation flips, the angle between the field and the magnetisation is close to π/2. As in the viscous case, we solve eqn (20) for θ − α ≃ π/2. We observe that the first magnetisation flip occurs at time t1:

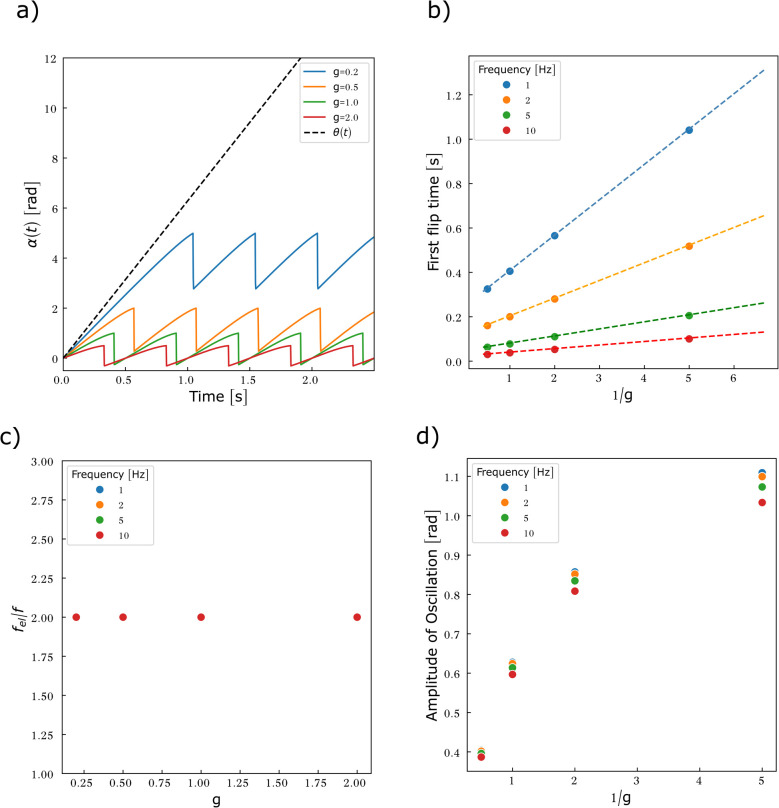

Fig. 9b shows the evolution of the first flipping time with the stiffness of the surrounding material, obtained from the numerical resolution of eqn (20). Consistent with the analytical solution eqn (32), we find that the first flipping time is inversely proportional to g. The dashed lines in Fig. 9b represent eqn (32) for different ω. The second flip of the magnetisation occurs when θ − α ≃ 3π/2. The motion is governed by eqn (16) and (17) in this regime, except that the small angle is no more δ but δ′ = δ − π (Fig. 7c). Expanding eqn (16) and (17) to first order in δ′ ≪ 1, we find the second flipping time:
This calculation can be made general for any flip of the magnetisation. We therefore conclude that the magnetisation flips at a frequency fel:
that is independent of the stiffness of the material. The ratio fel/f obtained from the numerical calculation of α is shown in Fig. 9c. Consistently we observe that all data stack at 2, whatever the stiffness of the outer material. The elastic coefficient of the material only enters the expression of the transient duration before the magnetisation starts flipping. Expectedly, it flips sooner in stiffer materials than in softer ones as particle rotation is more impeded. Lastly we observe that the amplitude of the oscillation decreases as the material becomes stiffer (Fig. 9d). A small dependence on the forcing frequency is visible. The cause is the small contribution of n that gains importance at low values of g. As previously discussed, the amplitude of oscillations is attenuated by the viscous torque in a frequency dependent manner.
Motion of a microdisc in a viscoelastic material, with the viscous friction being comparable to the elastic resistance
3.5.3
Finally we propose a qualitative description in the case where the elastic resistance is comparable to the viscous one. Indeed, in this scenario, α ≪ 1 is no longer valid and our estimation of the elastic torque in principle fails. Indeed, we already inaccurately explored regimes of large α in the previous section (see Fig. 9a). Large deformations are expected to distribute the elastic energy afar from the moving particle. The energy is restored non-locally, therefore making the material appear stiffer than it is.^23,24^ As a consequence, the oscillations are expected to be more damped than predicted by our first-order modelling. By computing eqn (16) and (17), our goal here is to get an intuition of how the oscillating movement of the particle is modified when both viscosity and elasticity impair the movement.
Our first observation is that the oscillatory motion is now a complex combination of what we reported in the cases of predominantly viscous and predominantly elastic materials (Fig. 10a and Movie S3). The particle oscillates up to a plateau amplitude, that originates from the elastic resistance. Keep in mind that this maximal deformation is expected to be overestimated. When the magnetisation flips, the elastic stress is relaxed within a time that depends on the viscosity. This time is not solely the Maxwell relaxation time but involves the magnetic shape anisotropy as was the case in a predominantly viscous medium. Fig. 10b shows the computed first flipping time, compared to the one expected in a predominantly elastic environment (eqn (32)). The discrepancy between the analytical approach and the numerical solution highlights that viscosity and elasticity contribute in an indissociable manner to the dynamics of the flipping events.
When incorporated into viscoelastic materials, the rotating field causes the particles to oscillate, with greater amplitude as the frequency decreases. (a) Particle rotation α(t) for different field rotating frequencies f. The dashed line indicates the limit of the validity of α ≪ 1. n = 0.1 s; g = 0.2. (b) First flipping time as a function of ω. The expression of the analytically derived t1 that only accounts for the elastic resistance (eqn (32)) is plotted as a dashed black line. (c) Average frequency of the oscillation fvis as a function of ω. (d) Amplitude of oscillation as a function of ω. The grey rectangle indicates the region in which the approximation α ≪ 1 is valid.

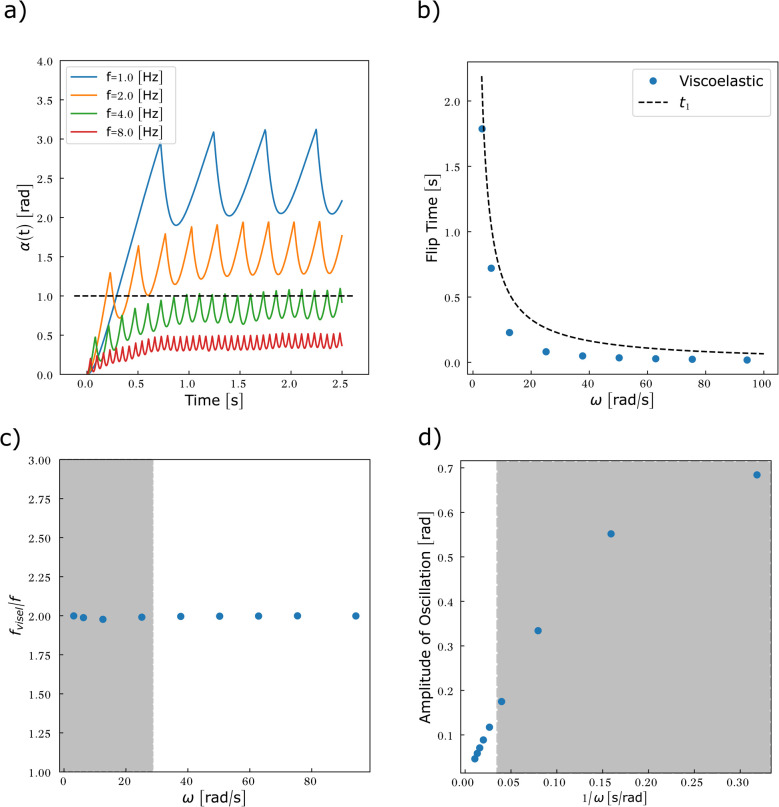

Fig. 10c illustrates the complexity brought by the combined viscous and elastic resistances to the magnetic actuation. The frequency of the oscillations of the particle now varies non-monotonically with the forcing frequency. Indeed, at low forcing frequency, the dominant resistance to the particle motion comes from the elastic properties of the material. Therefore the particle oscillates at a frequency very close to the double frequency, as expected from eqn (33). At large frequency, both the viscous and the elastic resistance of the material force the oscillation to take place at the double frequency. But at intermediate frequency, when the viscous torque is intermediate but comparable to the elastic torque, the frequency of oscillation is reduced, as it was observed in a viscous medium (Fig. 8c). Finally, Fig. 10d highlights the impact of the forcing frequency on the amplitude of the motion in a viscoelastic environment, supporting the hypothesis made in the previous section on the origin of the dispersion of data obtained in Fig. 9d.
Discussion
4
In this study, we modelled the magnetically induced motion of a micrometric particle embedded in a biological viscoelastic material, actuated by either oscillating or rotating magnetic fields. This configuration has been widely employed in experimental studies, both to probe the rheological properties of biological materials and as a proof of concept for innovative therapeutic strategies.^3,4^ Despite the growing body of experimental work in this domain, the underlying physical framework is only partially explored. This gap between theory and experiment leads to the absence of clear guidelines when selecting parameters for magnetic particle actuation. Predictive tools capable of guiding both particle design and biological target selection are crucial if magnetically driven mechano-stimulation therapies are to evolve from promising proof-of-concept demonstrations into reliable, reproducible, and clinically relevant strategies that can effectively complement traditional chemotherapy. The objective of this work was to provide a deeper understanding of the physical interactions underlying magneto-mechanical stimulation, focusing on how key parameters such as field frequency, viscosity, and stiffness influence particle dynamics. Ultimately, the proposed model offers a simplified yet predictive framework to anticipate first-order effects.
The principal finding of this study is that the use of a rotating magnetic field typically leads to oscillatory particle behaviour across most of the scenarios explored. In particular, we found that in a predominantly viscous material, as soon as the condition n = 1/ω is met, the particle motion transitions into an asynchronous regime. This critical frequency threshold was also reported by Berret et al.,^2^ where it was used to infer the viscoelastic properties of the cell interior. Experimentally observed values for the critical frequency ωc are in the order of 0.1 rad s^−1^ (∼0.2 Hz), corresponding to materials with viscosities in the tens of Pa s and stiffnesses around 10 Pa—parameters that fall at the lower end of the range explored in our study. As a result, the synchronous regime is only observed under conditions of low viscosity, low stiffness, and low actuation frequency. From a practical standpoint, this result offers useful flexibility to experimentalists: when operating under conditions that favour the asynchronous regime, rotating and oscillating magnetic fields can be used interchangeably. Notably, oscillating fields offer the additional advantage of enabling direct control over the asymptotic amplitude via the parameter θ0 (eqn (27)).
Focusing on the oscillatory motion, regardless of the origin field, we estimated that the amplitude of oscillation, Δα, is between 0.2 and 0.5 rad (for intermediate viscoelastic parameters). This quantity can be converted with a simple calculation into a displacement U = Δα × R, with R being the radius of the particle. In our case this leads to displacements in the order of 0.1–0.3 µm at the very edge of the particle. Typical lengths of collagen 1 and actin fibres are in the µm range. Therefore the particle motion can lead to important deformation of networks composed of such proteins. The amplitude of the oscillation was shown to be sensitive to two adimensional parameters, g and nω, which represent the competition of elasticity and viscosity to the magnetic field respectively (eqn (21)). As both are increased, our model predicts that the amplitude of oscillation is attenuated. Theoretical and experimental evidence of similar trends has been reported in either theoretical approaches or experimental studies. For instance, Wilhelm et al.^35^ modelled the actuation of magnetic chains composed of paramagnetic beads with oscillating fields in a Maxwellian fluid and showed that the amplitude of oscillation of rod-like particles would decrease as the forcing frequency increases. From an experimental point of view, Kim et al.^7^ used micrometric magnetic discs to stretch the membrane of glioma cells and activate mechano-responsive pathways. Their data show that the efficiency of the stimulation decreases as the field frequency goes beyond 20 Hz. In line with these observations, our recent experimental results on the effect of vortex microdisc actuation in cancer cells showed that cell traction forces are only altered when the forcing frequency is below 10 Hz.^36^ Moreover, we found that softening cell bodies, by growing them on a soft substrate,^37–39^ led microdisc oscillation to have a larger impact on cell fate, consistent with the predictions of the present model.
It is to be kept in mind that the modelling we propose is a 2D description. This simplified view was proposed to enable a more accessible analysis, supported by the analytical description of limit cases. It has nevertheless a critical impact as it makes the model “forget” that the microdisc can rotate and align its easy magnetic plane with the plane of rotation of the field. And in that case, the magnetic torque does not induce any mechanical movement since the magnetisation rotates in the easy-plane of the particle.^40^ This limitation is inherent to using a 2D framework to describe vortex particles. For instance it was not present in the work of Berret et al.,^2^ where rod-shaped particles were studied. Then our description is expected to fail when both the elastic and the viscous torques are so low compared to the Zeeman torque that the realignment of the microdisc plane with the plane in which the field rotates occurs in a time that is short compared to the duration of the experiment. So far, the actuation of vortex microdiscs in biological environments has always shown significant effects on cells, probably because the particles are not dispersed into fluid-like compartments but are indeed integrated into macromolecule networks or interacting with membranes that offer a significant viscoelastic resistance. Statistically, it is expected that some of the discs interacting with compartments with low viscoelasticity will orient themselves in the direction of the field, thereby eliminating the movement induced by the magnetic field. Others, trapped in more rigid and viscous environments, give rise to the scenario described. Our model aims at representing the latter situation. A 3D numerical analysis would however be necessary to describe this mechano-magnetic coupling entirely. This study goes beyond our objective, which was to obtain initial insights into the impact of viscoelastic environments on the movement of magnetically actuated vortex microdiscs, relevant for biological applications. It will however be of interest to address it in the near future.
The linear rheological description we used is also to be challenged. Maxwell's model is commonly used as a first-step approach for probing the behaviour of complex viscoelastic systems such as cell cytoplasm^2^ or micellar solutions.^35^ This choice inherently assumes, first, a continuum material description, and second, small deformations of the elastic components. The validity of this assumption is assessed by comparing the size of the microparticles with the typical mesh size of the biological networks considered. As discussed in the theoretical section, the porosity and mesh size of such biomaterials depend on factors such as the concentration and polymerisation conditions. For example Matrigel exhibits a pore size between 100 and 200 nm (ref. 41) while the pore size in gels made of collagen 1 varies between 1 and 10 micrometre, values that are thus comparable to the dimensions of the particles used in this study.^42^ When addressing the cell interior, the microdisc may either be trapped in the cytoskeleton of the cell or embedded in the cytoplasm. The mesh size of the actin cortex is about 50 nm,^43^ far less than the size of the particles. For a similar size-related reason, the cytoplasm can be modelled as a viscoelastic material in which the particles feel the elasticity coming from the presence of various organelles inside it and the intermediate filaments.^44^ The choice of using a Maxwell model and not limiting to a fluid description comes from the assumption that, since the frequencies assayed are in the Hz range, we expect that vibrating particles remain trapped in the mesh of proteins and do not repel these viscoelastic structures far from them. Nevertheless, in the rotating regime, deformations can exceed the linear regime and a reorganisation of the biological compounds could take place, leading to plastic behaviour.
In the present study, we limit our description of the elastic resistance to first order. However, the key dependencies of the elastic coupling assumed in our model are consistent with findings from previous studies. For instance, a similar formulation of the torsional constant was employed by Wilhelm et al.,^35^ where the torque damping coefficient is given by γ = κeVG, with κe being a dimensionless geometric factor, V being the particle volume (scaling with the cube of characteristic dimensions), and G being the shear modulus, which is itself proportional to the Young's modulus E. Similarly, Berret et al.^2^ modelled the elastic resistance of a microrod as a product of a shape-dependent factor, the shear modulus G, and the cube of the rod length (L^3^). These examples illustrate that by appropriately tuning the geometric prefactor in the expression for γ, our modelling framework can be adapted to different particle geometries.
Actuation of superparamagnetic iron oxide nanoparticles (SPIONs) has been used for a long time to induce thermal effects in biological samples or tissues.^45^ The heat source is either magnetic or mechanical, the latter referred to as Brownian dissipation. For small particles like SPIONs the Brownian dissipation is often negligible and the thermal effect originates from magnetic losses following high frequency actuation.^46^ However for large anisotropic particles, the mechanical contribution could become important. Indeed, thermal energy is released in the vicinity of the moving microdisc, coming from the viscous friction of the particle with the outer medium. To evaluate thermal losses associated with viscous friction, we considered microdiscs embedded in a purely viscous medium and use a scaling law approach to calculate the energy loss following their actuation:
This energy increases with frequency while it is accompanied by a decreased displacement. For intermediate values of η and using values for Δα obtained from our numerical calculation, we found that the dissipated power is in the order of few fW (2 fW for a frequency of 10 Hz). This quantity is to be compared to the thousands of W g^−1^ that are at play in magnetic heat generation for hyperthermia.^47^ Using the weight of a standard permalloy microdisc (∼1 × 10^−12^ g), we found that viscous friction generates energy transfer in the order of 0.002 W g^−1^, which is several orders of magnitude smaller than the targeted values for causing cellular dysfunctions. The significant difference in the orders of magnitude clearly separates mechano-stimulation from hyperthermia.
The trend is different when the dominant term is elasticity. Such energy is stored in the surrounding environment and it can be estimated as follows in the proximity of the particle edge:
By limiting our analysis to the particle edge, we avoid the limitation of our elastic description that does not take into account stress propagation far from the particle. This stored energy increases with the stiffness of the outer material, while the amplitude decreases and is independent of the frequency. For intermediate values for E, using values from our numerical calculation, we found that the mechanical energy is in the order of 0.1 fJ. Converted into kBT units, this amounts to about 2 × 10^5^kBT at 37 °C. Cells spend 30.5 kJ mol^−1^ to phosphorylate ATP into ADP, which corresponds to about 10kBT per molecule at 37 °C. Thus the motion of a particle could ideally transfer an energy that corresponds to two thousand ATP molecules. To get a clearer idea of how large this value is, one can compare it to a common energy-consuming cellular process such as actin treadmilling.^48^ For treadmilling to take place, a critical concentration of actin-ATP of 0.16 µM is required.^49^ By taking the volume of one single vortex particle as a reference, this value corresponds to about 6 molecules of ATP per particle, which when expressed in energy terms is 60kBT. This suggests that the mechanical actuation of one single particle transmits much more energy to the cell than what is involved in the polymerisation of the cytoskeleton. Our calculation therefore leads to the conclusion that cellular alterations following magnetic stimulation with such particles are to be attributed to mechanical origin and not to thermal dissipation, consistent with the conclusion reached experimentally by Kim et al.^7^
Conclusions
5
In conclusion, this study introduced a 2D model of magnetic vortex microdisc dynamics in viscoelastic environments under oscillating and rotating magnetic fields. It showed how rheological properties and field frequency control particle motion, including the transition between synchronous and asynchronous regimes. The energy associated with magnetically induced motion was found to generate negligible heat while producing mechanical stresses that can, in principle, compete with biomolecular forces. While the simplified approach captures key physical behaviours, extending it to 3D will be essential to fully describe disc reorientation over time, particularly at low viscoelastic resistance. Despite these limitations, the model provides a practical tool to anticipate the influence of viscosity, stiffness, and frequency on vortex microdisc actuation, offering valuable guidance for the design of magneto-mechanical stimulation experiments and their biomedical applications.
Author contributions
AV, AN, and BD designed the model. AV performed the analytical and numerical calculations under the supervision of RM, HJ, BD, and AN. HJ, BD, RM, and AN secured funding for the project. AV and AN wrote the first draft, which was reviewed and edited by all authors.
Conflicts of interest
There are no conflicts to declare.
Supplementary Material
NA-OLF-D5NA00854A-s001
NA-OLF-D5NA00854A-s002
NA-OLF-D5NA00854A-s003
NA-OLF-D5NA00854A-s004
