The genome sequence of the Ribwort slender, Aspilapteryx tringipennella (Zeller, 1839) (Lepidoptera: Gracillariidae)

TL;DR

The paper reports the genome sequence of the Ribwort slender moth, including its chromosomes and mitochondrial DNA.

Contribution

The novel contribution is the first reference genome assembly for Aspilapteryx tringipennella, including chromosomal pseudomolecules and mitochondrial DNA.

Findings

The genome assembly is 261.71 megabases long with 99.02% scaffolded into 30 chromosomal pseudomolecules.

The mitochondrial genome is 16.86 kilobases long and has been assembled.

Abstract

We present a genome assembly from an individual male
Aspilapteryx tringipennella (Ribwort slender; Arthropoda; Insecta; Lepidoptera; Gracillariidae). The genome sequence has a total length of 261.71 megabases. Most of the assembly (99.02%) is scaffolded into 30 chromosomal pseudomolecules, including the Z sex chromosome. The mitochondrial genome has also been assembled, with a length of 16.86 kilobases. This assembly was generated as part of the Darwin Tree of Life project, which produces reference genomes for eukaryotic species found in Britain and Ireland.

Figures

Photograph of the Aspilapteryx tringipennella (ilAspTrin1) specimen used for genome sequencing.

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Hi-C contact map of the Aspilapteryx tringipennella genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes, with a megabase scale shown below. The plot was generated using PretextSnapshot.

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

Assembly metrics for ilAspTrin1.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the lepidoptera_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

BlobToolKit GC-coverage plot for ilAspTrin1.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Tables

Table 1.. Specimen and sequencing data for BioProject PRJEB74968.

Platform	PacBio HiFi	Hi-C
ToLID	ilAspTrin1	ilAspTrin2
Specimen ID	NHMUK013805904	Ox003079
BioSample (source individual)	SAMEA112222179	SAMEA113425683
BioSample (tissue)	SAMEA112222240	SAMEA113425864
Tissue	whole organism	whole organism
Instrument	Revio	Illumina NovaSeq X
Run accessions	ERR12921316	ERR12945470
Read count total	4.18 million	601.64 million
Base count total	44.64 Gb	90.85 Gb

Table 2.. Genome assembly statistics.

Assembly name	ilAspTrin1.1
Assembly accession	GCA_964188165.1
Alternate haplotype accession	GCA_964194445.1
Assembly level	chromosome
Span (Mb)	261.71
Number of chromosomes	30
Number of contigs	467
Contig N50	1.43 Mb
Number of scaffolds	143
Scaffold N50	9.5 Mb
Sex chromosomes	Z
Organelles	Mitochondrion: 16.86 kb

Table 3.. Chromosomal pseudomolecules in the primary genome assembly of Aspilapteryx tringipennella ilAspTrin1.

INSDC accession	Molecule	Length (Mb)	GC%
OZ076561.1	1	11.39	37.50
OZ076562.1	2	11.24	37.50
OZ076563.1	3	11.13	37.50
OZ076564.1	4	10.76	37.50
OZ076565.1	5	10.70	37.50
OZ076566.1	6	10.21	37
OZ076567.1	7	10.01	37
OZ076568.1	8	9.77	37
OZ076569.1	9	9.77	37
OZ076570.1	10	9.54	37
OZ076571.1	11	9.50	37.50
OZ076572.1	12	9.38	37
OZ076573.1	13	9.24	37.50
OZ076574.1	14	8.85	37
OZ076575.1	15	8.85	37
OZ076576.1	16	8.71	38
OZ076577.1	17	8.38	37
OZ076578.1	18	8.15	37.50
OZ076579.1	19	8	37
OZ076580.1	20	7.64	37.50
OZ076581.1	21	6.55	37.50
OZ076582.1	22	6.53	37.50
OZ076583.1	23	6.36	37.50
OZ076584.1	24	6.25	38
OZ076585.1	25	6.01	37.50
OZ076586.1	26	4.85	38
OZ076587.1	27	4.76	37.50
OZ076588.1	28	4.71	39
OZ076589.1	29	4.50	38.50
OZ076560.1	Z	17.40	37.50

Table 4.. Earth Biogenome Project summary metrics for the Aspilapteryx tringipennella assembly.

Measure	Value	Benchmark
EBP summary (primary)	6.C.Q59	6.C.Q40
Contig N50 length	1.43 Mb	≥ 1 Mb
Scaffold N50 length	9.50 Mb	= chromosome N50
Consensus quality (QV)	Primary: 59.5; alternate: 58.9; combined: 59.2	≥ 40
k-mer completeness	Primary: 70.02%; alternate: 71.70%; combined: 99.63%	≥ 95%
BUSCO	C:96.2% [S:95.4%; D:0.8%]; F:0.7%; M:3.1%; n:5 286	S > 90%; D < 5%
Percentage of assembly assigned to chromosomes	99.02%	≥ 90%

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Amphiesmenoptera; Lepidoptera; Glossata; Neolepidoptera; Heteroneura; Ditrysia; Tineoidea; Gracillariidae; Gracillariinae; Aspilapteryx; Aspilapteryx tringipennella (Zeller, 1839) (NCBI:txid1594445)

Background

Aspilapteryx tringipennella (Ribwort Stilt) is a distinctive micro-moth with a smooth-scaled head and pale yellowish-brown forewings, which are pale greyish along the costa towards the apex ( Sterling et al., 2023). The costal half is speckled with numerous small dark dots arranged in rows from the base. It has a wingspan of 10–13 mm and, like its close relatives in the genus Caloptilia, it often rests with the forepart of its body raised on the front legs ( Kimber, 2025).

The species has two generations annually, flying from April to October ( Sterling et al., 2023). The larvae feed on Ribwort Plantain ( Plantago lanceolata), forming pale blotch mines on the upper surface of leaves that cause the edges to roll inwards ( Sterling et al., 2023). The second generation overwinters as larvae ( Kimber, 2025).

The Ribwort Stilt occurs in grasslands, old quarries, vegetated shingle, and waste ground where Ribwort Plantain is present ( Sterling et al., 2023). In Britain, it is widespread ( NBN Atlas Partnership, 2025). Globally, all GBIF occurrences are from Europe. The species has been recorded in several countries, most frequently in the United Kingdom, the Netherlands, Norway, Sweden and France ( GBIF Secretariat, 2023).

This assembly is the first genome for the genus Aspilapteryx and one of seven genomes available for the family Gracillariidae as of September 2025 (data obtained via NCBI datasets, O’Leary et al., 2024). The assembly was produced using the Tree of Life pipeline from a specimen collected in Hartslock Nature Reserve, England, UK ( Figure 1), as part of the Darwin Tree of Life Project.

Photograph of the Aspilapteryx tringipennella (ilAspTrin1) specimen used for genome sequencing.

Methods

Sample acquisition and DNA barcoding

The specimen used for genome sequencing was an adult male Aspilapteryx tringipennella (specimen ID NHMUK013805904, ToLID ilAspTrin1; Figure 1), collected from Hartslock Nature Reserve, England, United Kingdom (latitude 51.51, longitude –1.11) on 2021-07-29. The specimen was collected by Ian Sims and identified by Ian Sims and David Lees. A second specimen was used for Hi-C sequencing (specimen ID Ox003079, ToLID ilAspTrin2). It was collected from Wytham Woods, Oxfordshire, United Kingdom (latitude 51.772, longitude –1.338) on 2022-07-22. The specimen was collected by Finley Hutchinson and Liam Crowley and identified by Finley Hutchinson. For the Darwin Tree of Life sampling and metadata approach, refer to Lawniczak et al. (2022).

The initial identification was verified by an additional DNA barcoding process according to the framework developed by Twyford et al. (2024). A small sample was dissected from the specimen and stored in ethanol, while the remaining parts were shipped on dry ice to the Wellcome Sanger Institute (WSI) (see the protocol). The tissue was lysed, the COI marker region was amplified by PCR, and amplicons were sequenced and compared to the BOLD database, confirming the species identification ( Crowley et al., 2023). Following whole genome sequence generation, the relevant DNA barcode region was also used alongside the initial barcoding data for sample tracking at the WSI ( Twyford et al., 2024). The standard operating procedures for Darwin Tree of Life barcoding are available on protocols.io.

Nucleic acid extraction

Protocols for high molecular weight (HMW) DNA extraction developed at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory are available on protocols.io ( Howard et al., 2025). The ilAspTrin1 sample was weighed and triaged to determine the appropriate extraction protocol. Tissue from the whole organism was homogenised by powermashing using a PowerMasher II tissue disruptor.

HMW DNA was extracted in the WSI Scientific Operations core using the Automated MagAttract v2 protocol. We used centrifuge-mediated fragmentation to produce DNA fragments in the 8–10 kb range, following the Covaris g-TUBE protocol for ultra-low input (ULI). Sheared DNA was purified by manual SPRI (solid-phase reversible immobilisation). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

PacBio HiFi library preparation and sequencing

Library preparation and sequencing were performed at the WSI Scientific Operations core. Prior to library preparation, the DNA was fragmented to ~10 kb. Ultra-low-input (ULI) libraries were prepared using the PacBio SMRTbell® Express Template Prep Kit 2.0 and gDNA Sample Amplification Kit. Samples were normalised to 20 ng DNA. Single-strand overhang removal, DNA damage repair, and end-repair/A-tailing were performed according to the manufacturer’s instructions, followed by adapter ligation. A 0.85× pre-PCR clean-up was carried out with Promega ProNex beads.

The DNA was evenly divided into two aliquots for dual PCR (reactions A and B), both following the manufacturer’s protocol. A 0.85× post-PCR clean-up was performed with ProNex beads. DNA concentration was measured using a Qubit Fluorometer v4.0 (Thermo Fisher Scientific) with the Qubit HS Assay Kit, and fragment size was assessed on an Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) using the gDNA 55 kb BAC analysis kit. PCR reactions A and B were then pooled, ensuring a total mass of ≥500 ng in 47.4 μl.

The pooled sample underwent another round of DNA damage repair, end-repair/A-tailing, and hairpin adapter ligation. A 1× clean-up was performed with ProNex beads, followed by DNA quantification using the Qubit and fragment size analysis using the Agilent Femto Pulse. Size selection was performed on the Sage Sciences PippinHT system, with target fragment size determined by Femto Pulse analysis (typically 4–9 kb). Size-selected libraries were cleaned with 1.0× ProNex beads and normalised to 2 nM before sequencing.

The sample was sequenced on a Revio instrument (Pacific Biosciences). The prepared library was normalised to 2 nM, and 15 μL was used for making complexes. Primers were annealed and polymerases bound to generate circularised complexes, following the manufacturer’s instructions. Complexes were purified using 1.2X SMRTbell beads, then diluted to the Revio loading concentration (200–300 pM) and spiked with a Revio sequencing internal control. The sample was sequenced on a Revio 25M SMRT cell. The SMRT Link software (Pacific Biosciences), a web-based workflow manager, was used to configure and monitor the run and to carry out primary and secondary data analysis.

Hi-C

** Sample preparation and crosslinking **

The Hi-C sample was prepared from 20–50 mg of frozen tissue from the ilAspTrin2 sample using the Arima-HiC v2 kit (Arima Genomics). Following the manufacturer’s instructions, tissue was fixed and DNA crosslinked using TC buffer to a final formaldehyde concentration of 2%. The tissue was homogenised using the Diagnocine Power Masher-II. Crosslinked DNA was digested with a restriction enzyme master mix, biotinylated, and ligated. Clean-up was performed with SPRISelect beads before library preparation. DNA concentration was measured with the Qubit Fluorometer (Thermo Fisher Scientific) and Qubit HS Assay Kit. The biotinylation percentage was estimated using the Arima-HiC v2 QC beads.

** Hi-C library preparation and sequencing **

Biotinylated DNA constructs were fragmented using a Covaris E220 sonicator and size selected to 400–600 bp using SPRISelect beads. DNA was enriched with Arima-HiC v2 kit Enrichment beads. End repair, A-tailing, and adapter ligation were carried out with the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs), following a modified protocol where library preparation occurs while DNA remains bound to the Enrichment beads. Library amplification was performed using KAPA HiFi HotStart mix and a custom Unique Dual Index (UDI) barcode set (Integrated DNA Technologies). Depending on sample concentration and biotinylation percentage determined at the crosslinking stage, libraries were amplified with 10–16 PCR cycles. Post-PCR clean-up was performed with SPRISelect beads. Libraries were quantified using the AccuClear Ultra High Sensitivity dsDNA Standards Assay Kit (Biotium) and a FLUOstar Omega plate reader (BMG Labtech).

Prior to sequencing, libraries were normalised to 10 ng/μL. Normalised libraries were quantified again and equimolar and/or weighted 2.8 nM pools. Pool concentrations were checked using the Agilent 4200 TapeStation (Agilent) with High Sensitivity D500 reagents before sequencing. Sequencing was performed using paired-end 150 bp reads on the Illumina NovaSeq X.

Genome assembly

Prior to assembly of the PacBio HiFi reads, a database of k-mer counts ( k = 31) was generated from the filtered reads using FastK. GenomeScope2 ( Ranallo-Benavidez et al., 2020) was used to analyse the k-mer frequency distributions, providing estimates of genome size, heterozygosity, and repeat content.

The HiFi reads were assembled using Hifiasm ( Cheng et al., 2021) with the --primary option. The Hi-C reads ( Rao et al., 2014) were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019), and the contigs were scaffolded in YaHS ( Zhou et al., 2023) with the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).

The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

Assembly curation

The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants ( ASCC) pipeline. TreeVal was used to generate the flat files and maps for use in curation. Manual curation was conducted primarily in PretextView and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Manual corrections included 33 breaks and 37 joins. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation. PretextSnapshot was used to generate a Hi-C contact map of the final assembly.

Assembly quality assessment

The Merqury.FK tool ( Rhie et al., 2020) was run in a Singularity container ( Kurtzer et al., 2017) to evaluate k-mer completeness and assembly quality for the primary and alternate haplotypes using the k-mer databases ( k = 31) computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.

The genome was analysed using the BlobToolKit pipeline, a Nextflow implementation of the earlier Snakemake version ( Challis et al., 2020). The pipeline aligns PacBio reads using minimap2 ( Li, 2018) and SAMtools ( Danecek et al., 2021) to generate coverage tracks. It runs BUSCO ( Manni et al., 2021) using lineages identified from the NCBI Taxonomy ( Schoch et al., 2020). For the three domain-level lineages, BUSCO genes are aligned to the UniProt Reference Proteomes database ( Bateman et al., 2023) using DIAMOND blastp ( Buchfink et al., 2021). The genome is divided into chunks based on the density of BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database with DIAMOND blastx. Sequences without hits are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The BlobToolKit suite consolidates all outputs into a blobdir for visualisation. The BlobToolKit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), with containerisation through Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017).

Genome sequence report

Sequence data

PacBio sequencing of the Aspilapteryx tringipennella specimen generated 44.64 Gb (gigabases) from 4.18 million reads, which were used to assemble the genome. GenomeScope2.0 analysis estimated the haploid genome size at 231.34 Mb, with a heterozygosity of 2.10% and repeat content of 26.92% ( Figure 2). These estimates guided expectations for the assembly. Based on the estimated genome size, the sequencing data provided approximately 176× coverage. Hi-C sequencing produced 90.85 Gb from 601.64 million reads, which were used to scaffold the assembly. Table 1 summarises the specimen and sequencing details.

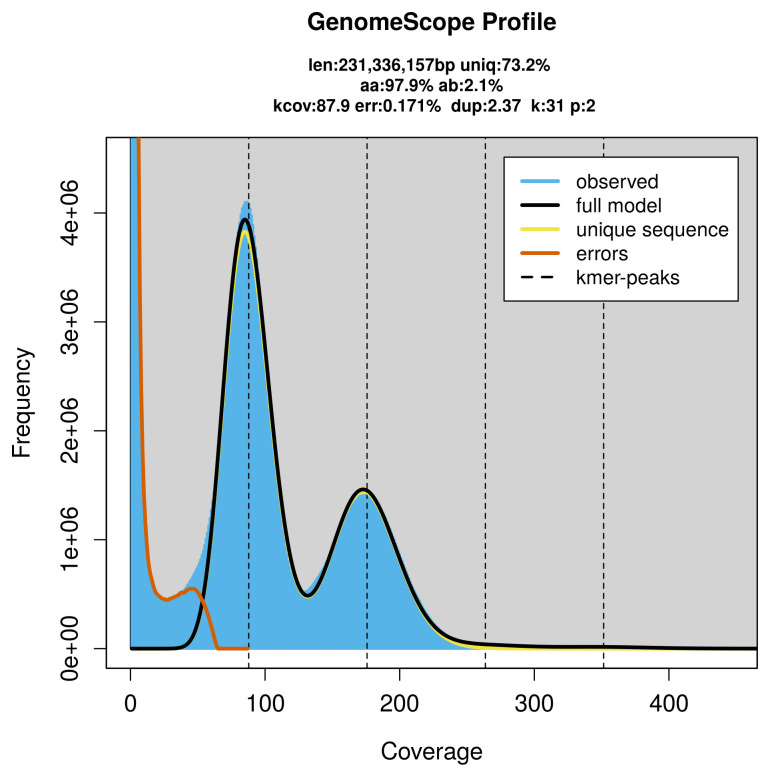

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Assembly statistics

The primary haplotype was assembled, and contigs corresponding to an alternate haplotype were also deposited in INSDC databases. The final assembly has a total length of 261.71 Mb in 143 scaffolds, with 324 gaps, and a scaffold N50 of 9.5 Mb ( Table 2).

Most of the assembly sequence (99.02%) was assigned to 30 chromosomal-level scaffolds, representing 29 autosomes and the Z sex chromosome. These chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 3; Table 3). Chromosome Z was assigned based on synteny to Euspilapteryx auroguttella (GCA_951802225.1) ( Boyes et al., 2024).

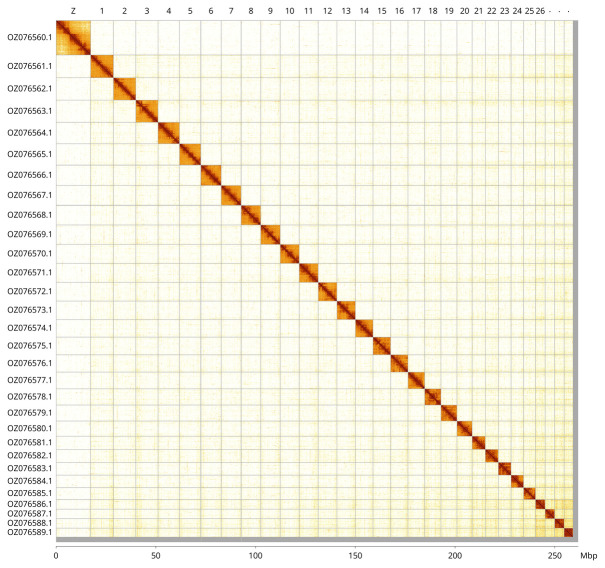

Hi-C contact map of the Aspilapteryx tringipennella genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes, with a megabase scale shown below. The plot was generated using PretextSnapshot.

Table 3.: Chromosomal pseudomolecules in the primary genome assembly of Aspilapteryx tringipennella ilAspTrin1.

The mitochondrial genome was also assembled (length 16.86 kb, OZ076590.1). This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record.

The combined primary and alternate assemblies achieve an estimated QV of 59.2. The k-mer completeness is 70.02% for the primary assembly, 71.70% for the alternate haplotype, and 99.63% for the combined assemblies ( Figure 4).

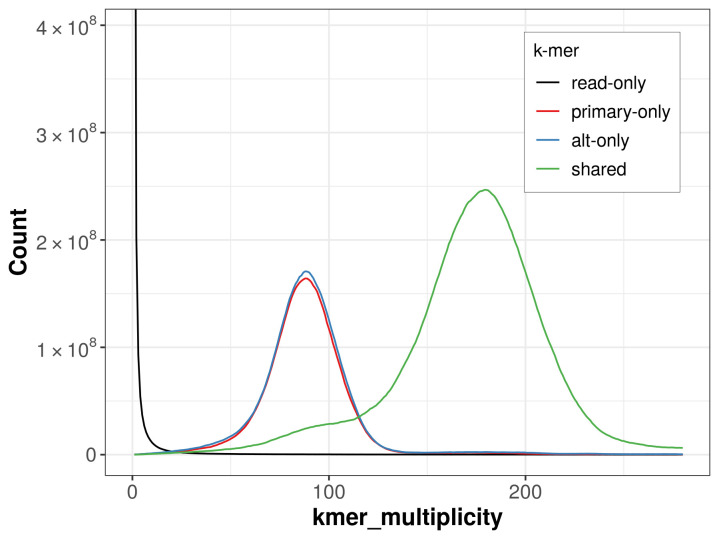

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

BUSCO v.5.5.0 analysis using the lepidoptera_odb10 reference set ( n = 5 286) identified 96.2% of the expected gene set (single = 95.4%, duplicated = 0.8%). The snail plot in Figure 5 summarises the scaffold length distribution and other assembly statistics for the primary assembly. The blob plot in Figure 6 shows the distribution of scaffolds by GC proportion and coverage.

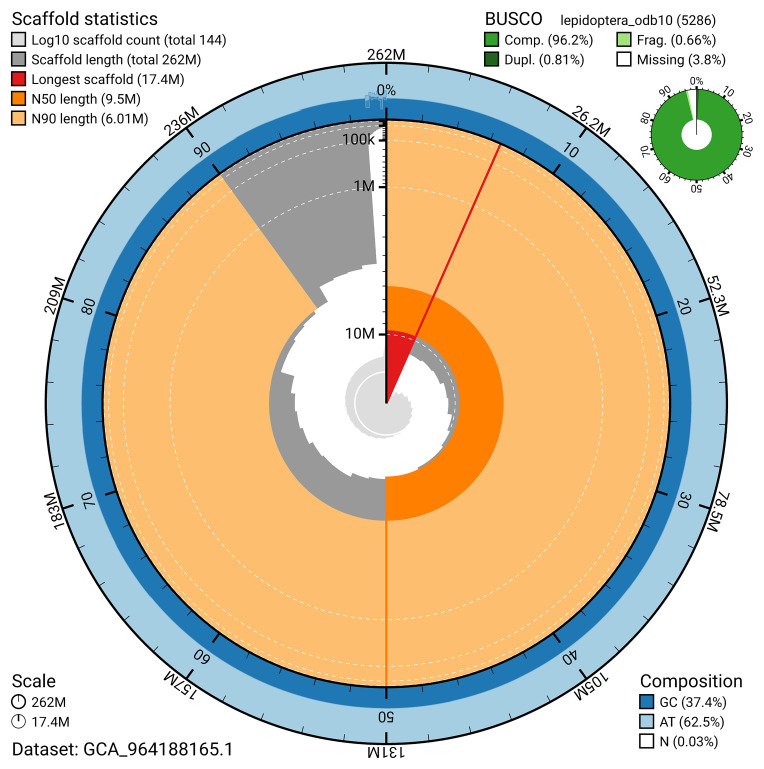

Assembly metrics for ilAspTrin1.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the lepidoptera_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

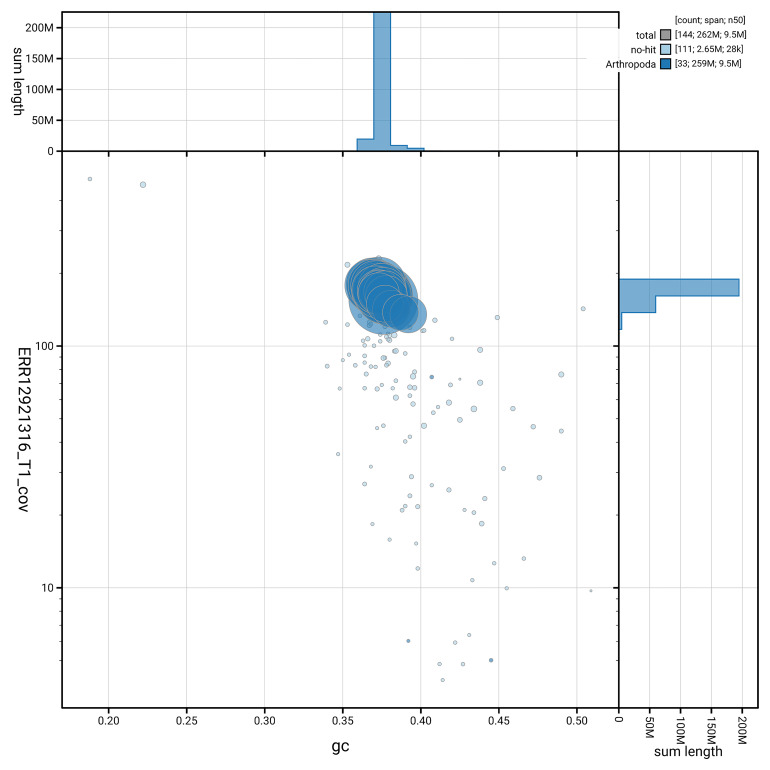

BlobToolKit GC-coverage plot for ilAspTrin1.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Table 4 lists the assembly metric benchmarks adapted from Rhie et al. (2021) and the Earth BioGenome Project Report on Assembly Standards September 2024. The EBP metric, calculated for the primary assembly, is 6.C.Q59, meeting the recommended reference standard.

Table 4.: Earth Biogenome Project summary metrics for the Aspilapteryx tringipennella assembly.
