DCA-UNet: A Cross-Modal Ginkgo Crown Recognition Method Based on Multi-Source Data

TL;DR

This paper introduces DCA-UNet, a new deep learning method for accurately recognizing ginkgo tree crowns using UAV-based RGB and multispectral images.

Contribution

The novel DCA-UNet architecture with dual-branch dynamic weighting fusion and cross-modal attention improves multi-source data integration for ginkgo crown recognition.

Findings

DCA-UNet achieves 93.42% IoU and 96.82% PA in ginkgo crown segmentation.

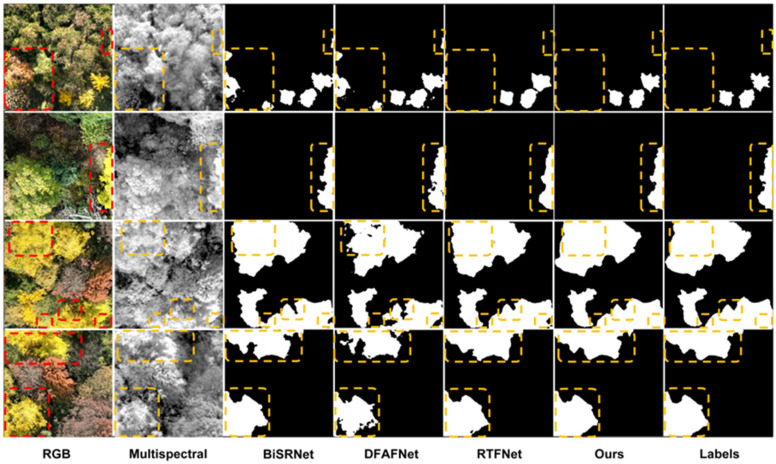

It outperforms DFAFNet and single-modality baselines by significant margins.

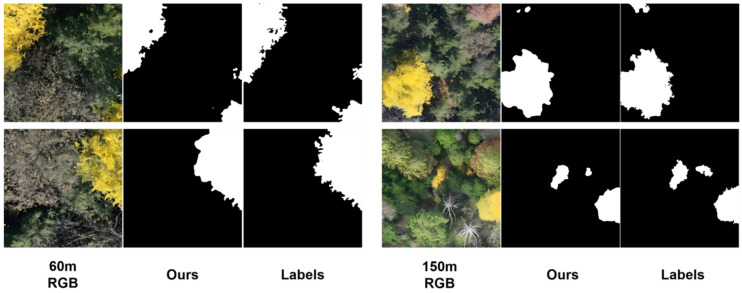

The model shows strong generalization across different flight altitudes.

Abstract

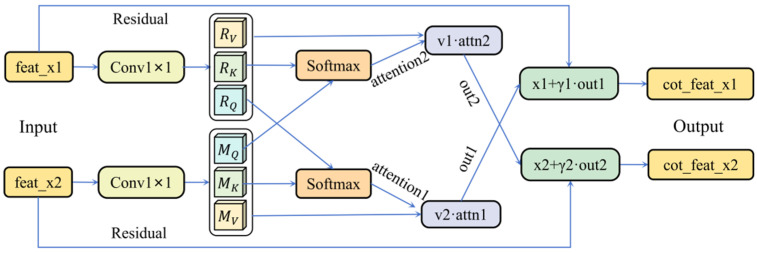

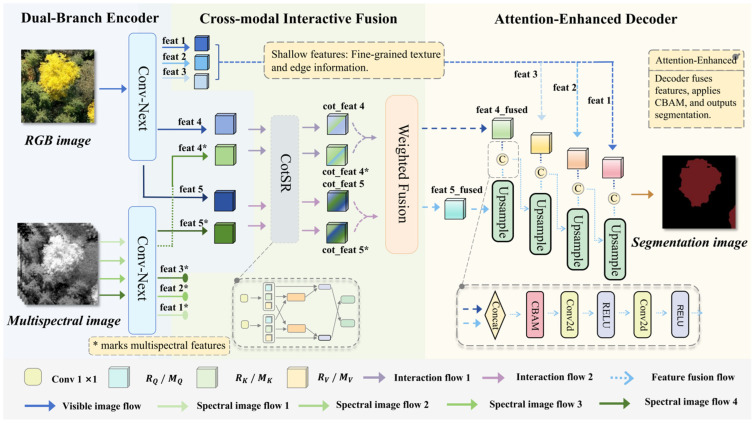

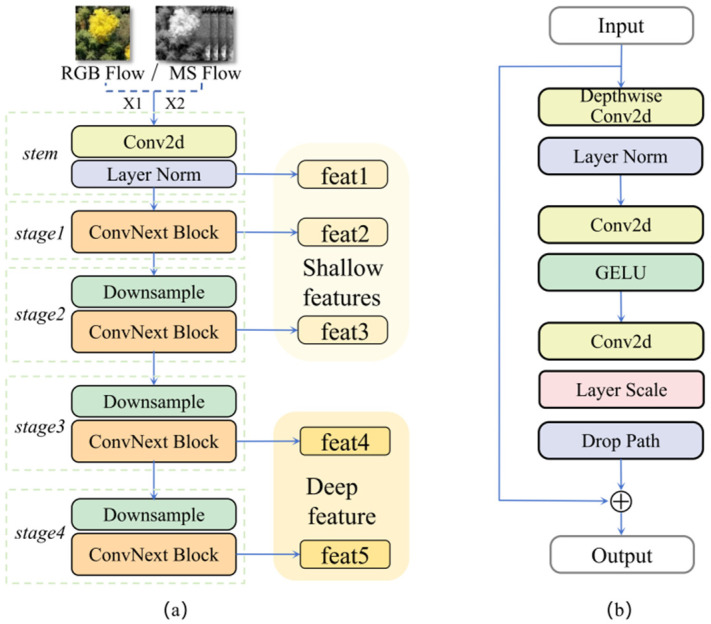

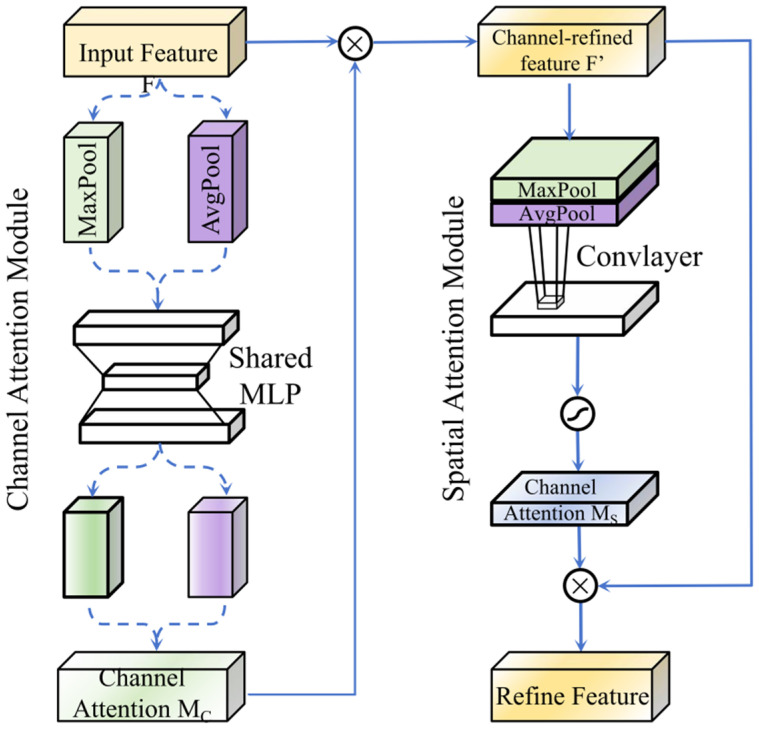

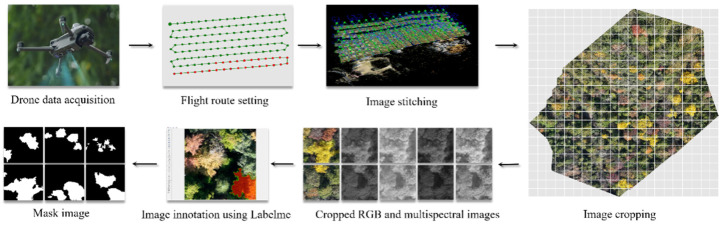

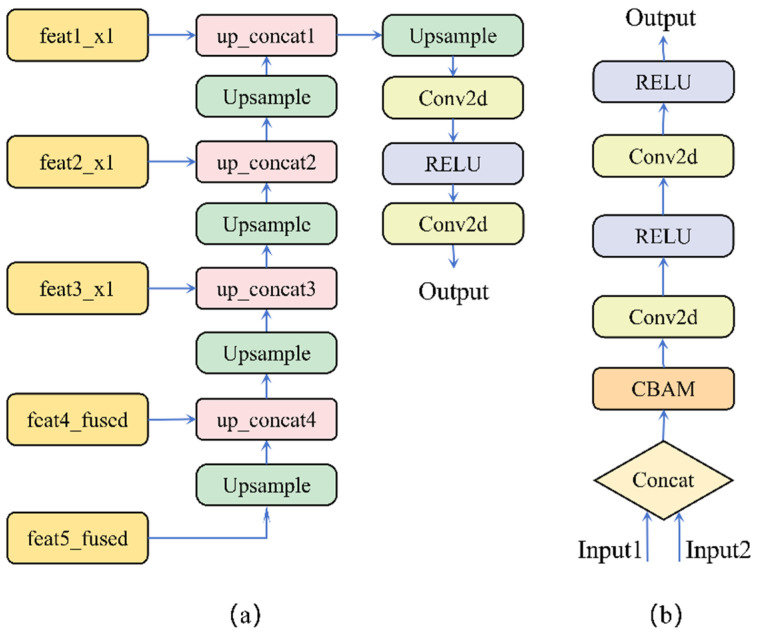

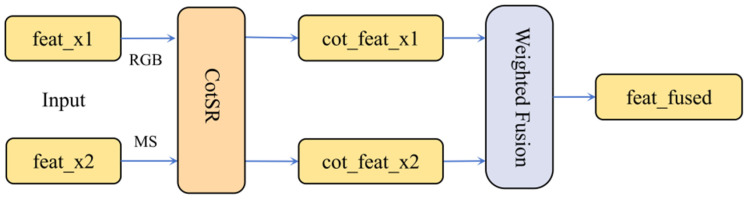

Wild ginkgo, as an endangered species, holds significant value for genetic resource conservation, yet its practical applications face numerous challenges. Traditional field surveys are inefficient in mountainous mixed forests, while satellite remote sensing is limited by spatial resolution. Current deep learning approaches relying on single-source data or merely simple multi-source fusion fail to fully exploit information, leading to suboptimal recognition performance. This study presents a multimodal ginkgo crown dataset, comprising RGB and multispectral images acquired by an UAV platform. To achieve precise crown segmentation with this data, we propose a novel dual-branch dynamic weighting fusion network, termed dual-branch cross-modal attention-enhanced UNet (DCA-UNet). We design a dual-branch encoder (DBE) with a two-stream architecture for independent feature extraction from each modality. We further develop a cross-modal interaction fusion module (CIF), employing cross-modal attention and learnable dynamic weights to boost multi-source information fusion. Additionally, we introduce an attention-enhanced decoder (AED) that combines progressive upsampling with a hybrid channel-spatial attention mechanism, thereby effectively utilizing multi-scale features and enhancing boundary semantic consistency. Evaluation on the ginkgo dataset demonstrates that DCA-UNet achieves a segmentation performance of 93.42% IoU (Intersection over Union), 96.82% PA (Pixel Accuracy), 96.38% Precision, and 96.60% F1-score. These results outperform differential feature attention fusion network (DFAFNet) by 12.19%, 6.37%, 4.62%, and 6.95%, respectively, and surpasses the single-modality baselines (RGB or multispectral) in all metrics. Superior performance on cross-flight-altitude data further validates the model’s strong generalization capability and robustness in complex scenarios. These results demonstrate the superiority of DCA-UNet in UAV-based multimodal ginkgo crown recognition, offering a reliable and efficient solution for monitoring wild endangered tree species.
