Dewatering Hypersaline Na2SO4 and NaCl via Commercial Forward Osmosis Module
Noel Devaere, Vladimiros G. Papangelakis
TL;DR
This paper explores using forward osmosis to efficiently dewater highly salty industrial wastewater, showing it can concentrate solutions to saturation without evaporation.
Contribution
The study experimentally demonstrates FO membrane performance with hypersaline Na2SO4 and NaCl, identifying key operational thresholds for industrial use.
Findings
The Aquaporin HFFO2 membrane can concentrate Na2SO4 to saturation under mildly acidic conditions.
Maintaining a minimum water flux is critical to prevent salt rejection loss or draw solute leakage.
A minimum osmotic differential is proposed to parameterize water flux in FO systems.
Abstract
Efficient water recycling in the hydrometallurgical industry requires the dewatering of hypersaline Na2SO4 or similar brines via non-evaporative methods. Unfortunately, many non-evaporative methods require the use of specific solutes and are not compatible with complex hydrometallurgical effluents. Forward Osmosis (FO) uses a draw solution to link known non-evaporative water recycling methods with feed solutions that are otherwise incompatible. There is minimal experimental data on the dewatering performance of today’s available commercial FO membranes, especially with hypersaline concentrations (>70,000 mg/L total dissolved solids). This study tests the commercially available Aquaporin HFFO2 hollow fibre FO membrane module with hypersaline Na2SO4 or NaCl feed solutions versus a MgCl2 draw solution. It identifies a key requirement to maintain water flux above a certain threshold to…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

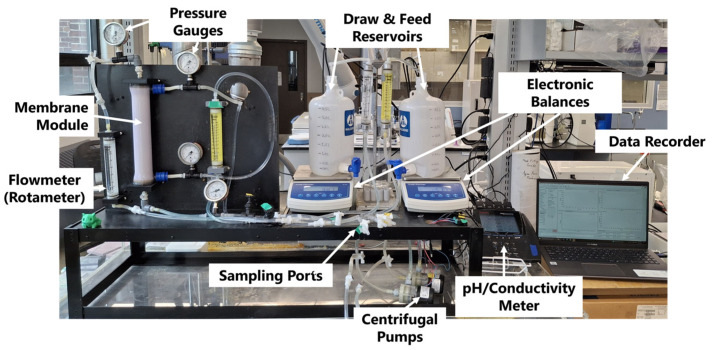

Figure 1

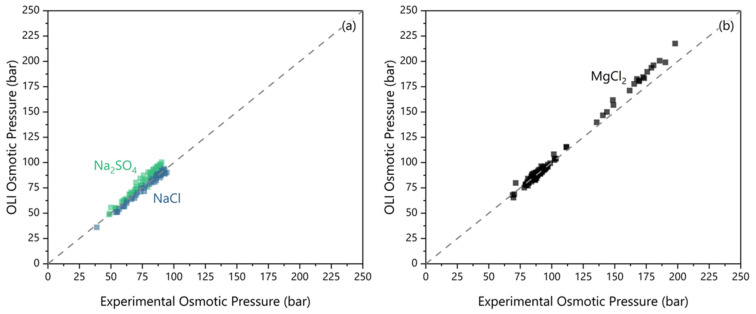

Figure 2

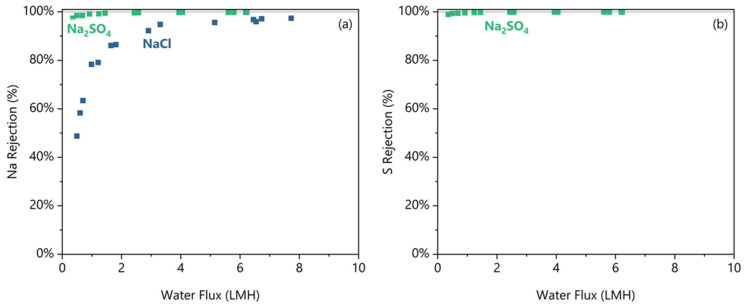

Figure 3

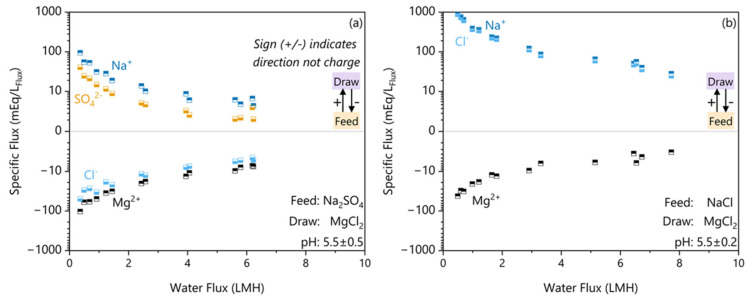

Figure 4

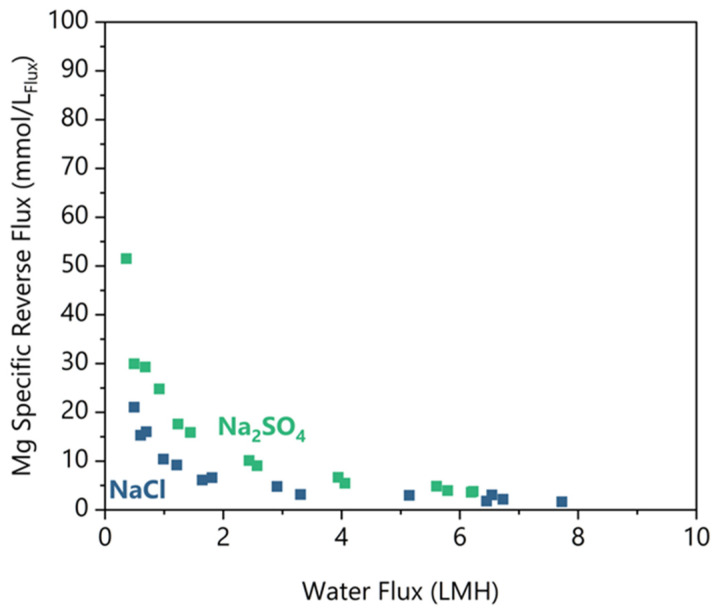

Figure 5

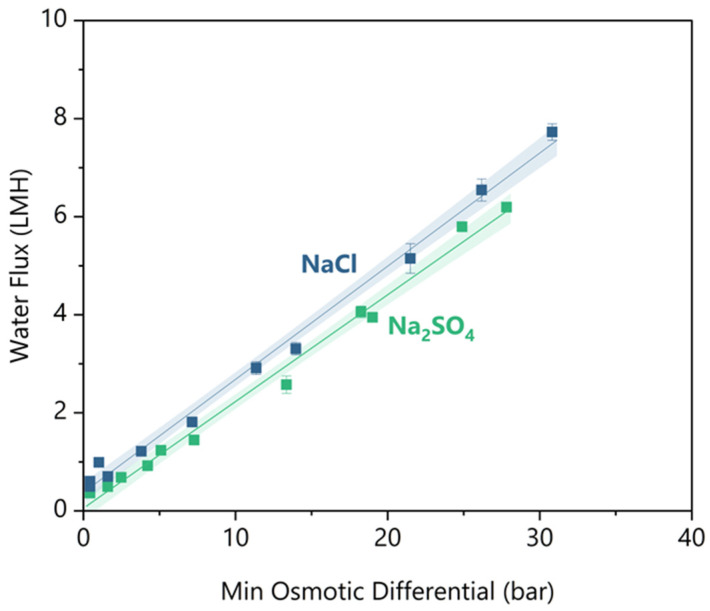

Figure 6

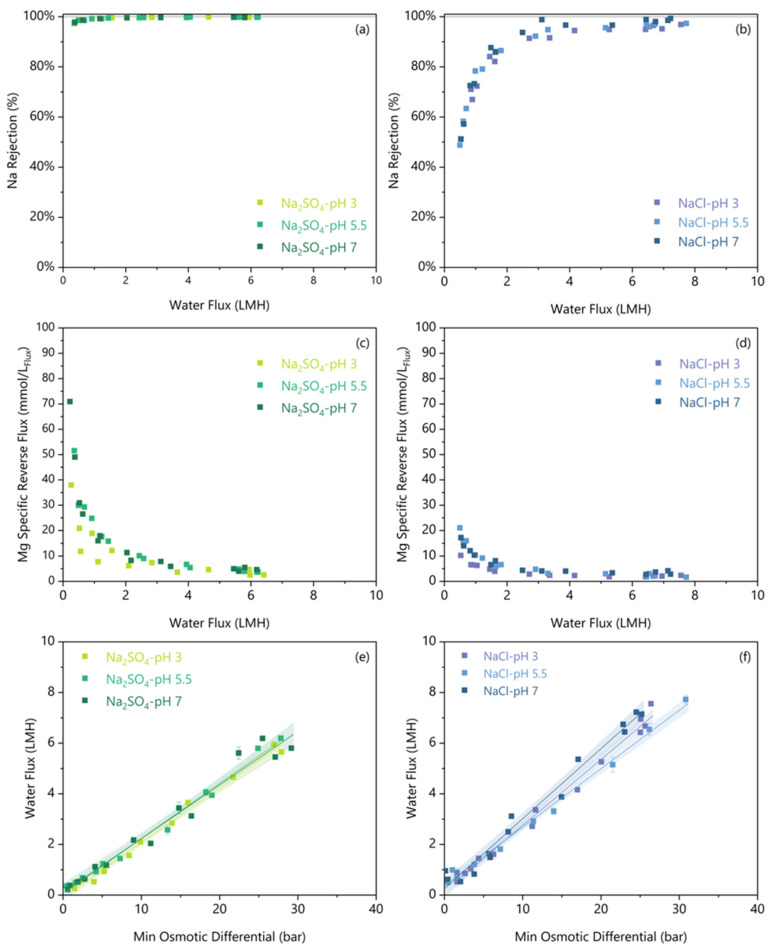

Figure 7Peer Reviews
