Auger Electron Spectroscopy for Chemical Analysis of Passivated (Al,Ga)N-Based Systems
Alina Domanowska, Bogusława Adamowicz
TL;DR
This paper reviews how Auger Electron Spectroscopy is used to analyze chemical properties of passivated (Al,Ga)N-based systems in electronic devices and sensors.
Contribution
The paper introduces a detailed AES depth profiling approach to distinguish interfacial from bulk properties in multilayer semiconductor systems.
Findings
AES provides micro- to nanometer-scale chemical information at dielectric/semiconductor interfaces.
AES identifies chemical states and oxidation transformations in (Al,Ga)N-based systems.
Optimized experimental conditions reduce sputter-induced artifacts in AES analysis.
Abstract
This review summarizes the use of Auger Electron Spectroscopy (AES) for microchemical analysis of two different types of dielectric/(Al,Ga)N-based systems: (i) extrinsic dielectric PECVD SiO2, ALD Al2O3, and ECR-CVD SiNx films on AlxGa1−xN/GaN structures in the context of their application in microelectronic power devices and (ii) intrinsic Al2O3 films on AlN epitaxial layers grown by high-temperature oxidation for nanostructured technology of various gas/ion sensors. Particular attention is given to AES depth profiling across complete multilayer cross-sections, combining qualitative analysis of spectral line shape and intensity evolution as well as kinetic energy shifts with quantitative elemental depth distributions. This approach enables identification of chemical states and oxidation-related transformations at dielectric/semiconductor interfaces. Reported results demonstrate that…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

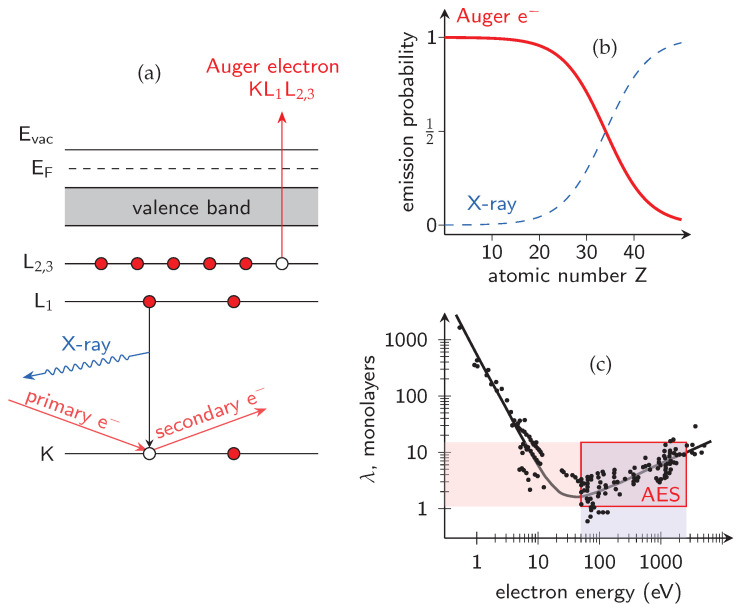

Figure 1

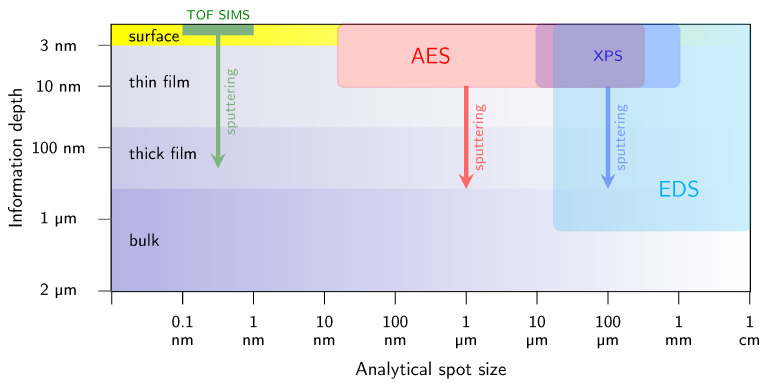

Figure 2

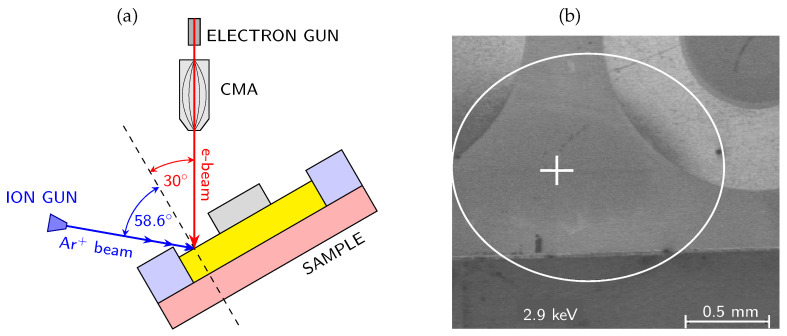

Figure 3

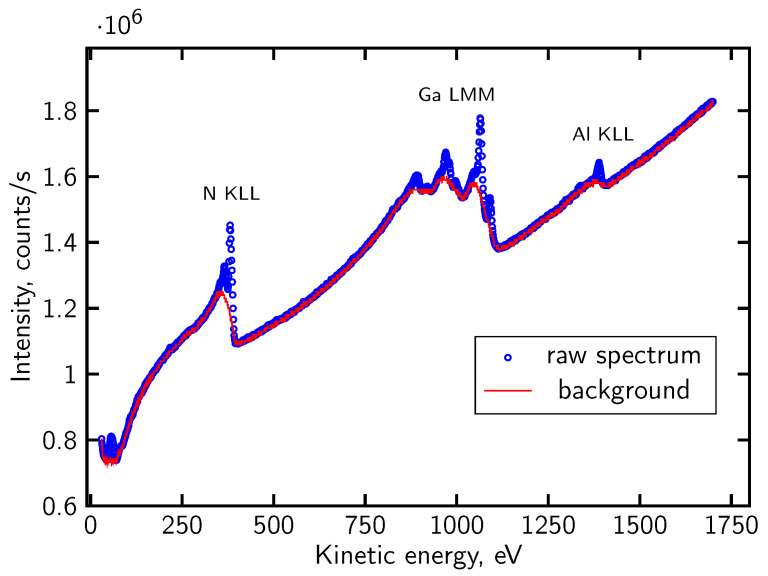

Figure 4

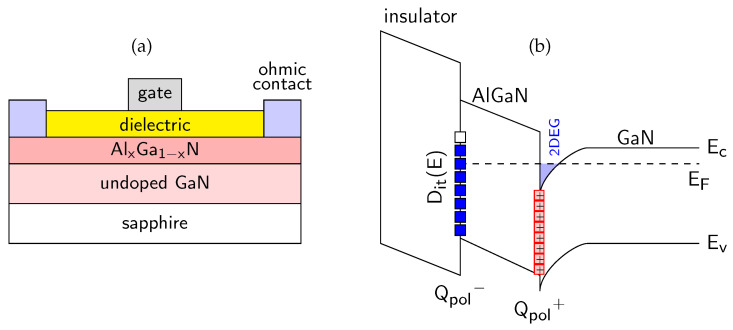

Figure 5

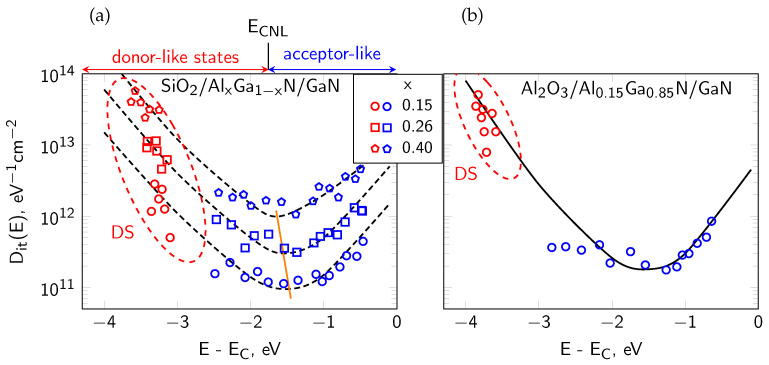

Figure 6

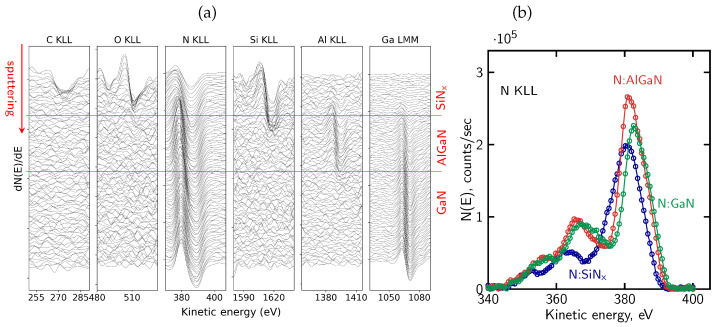

Figure 7

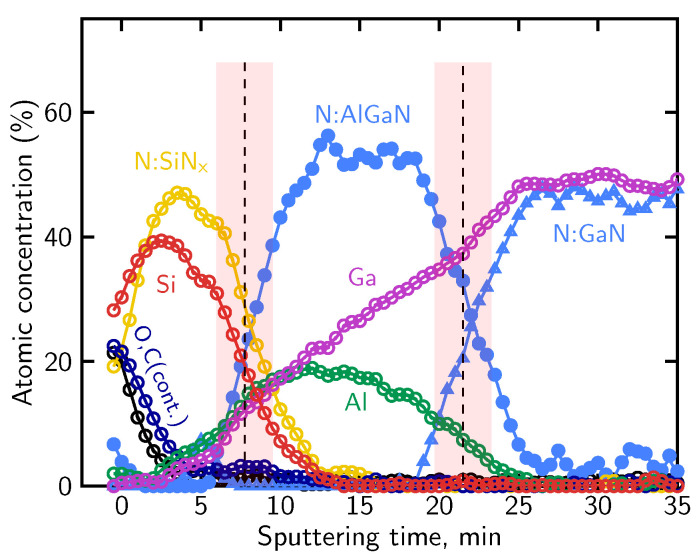

Figure 8

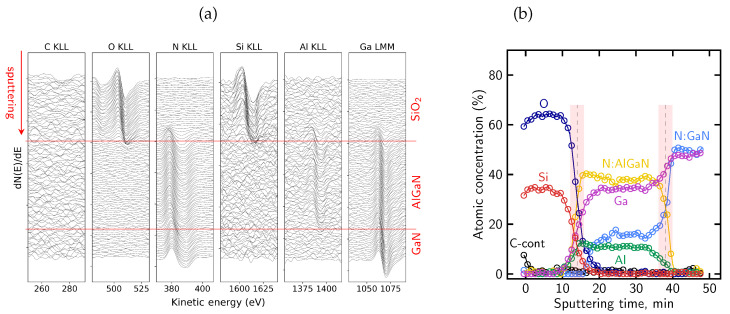

Figure 9

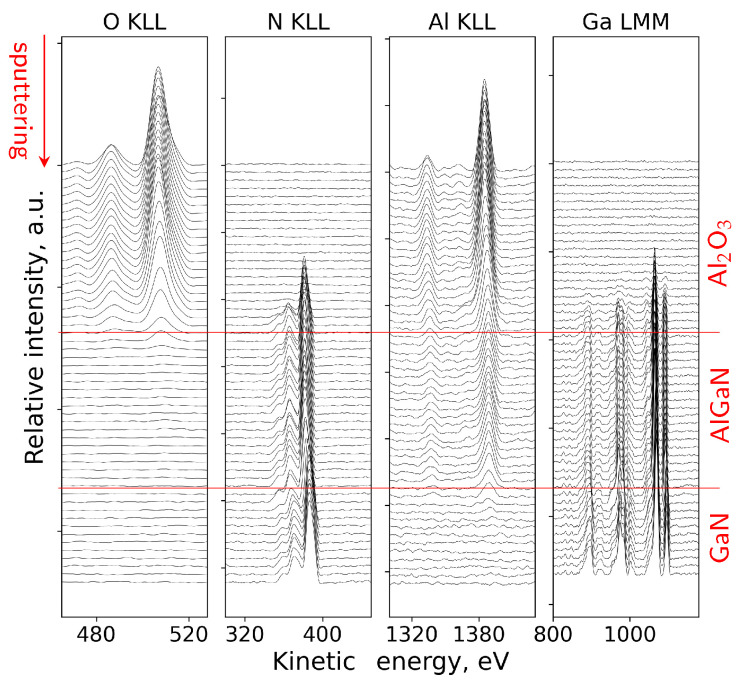

Figure 10

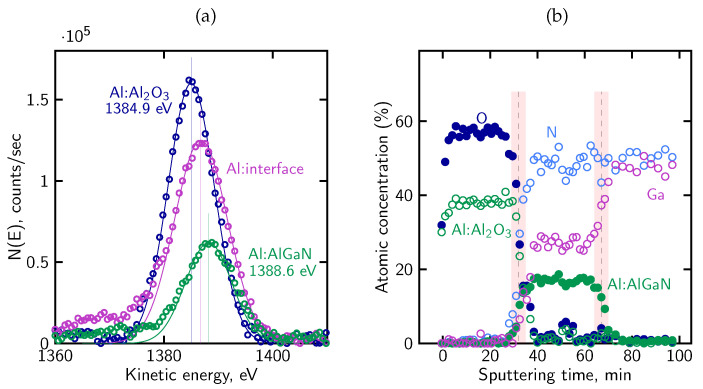

Figure 11
Figure 12

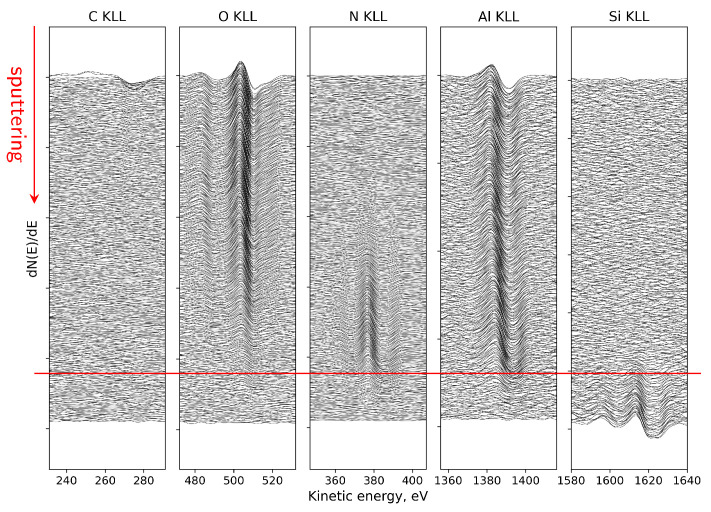

Figure 13

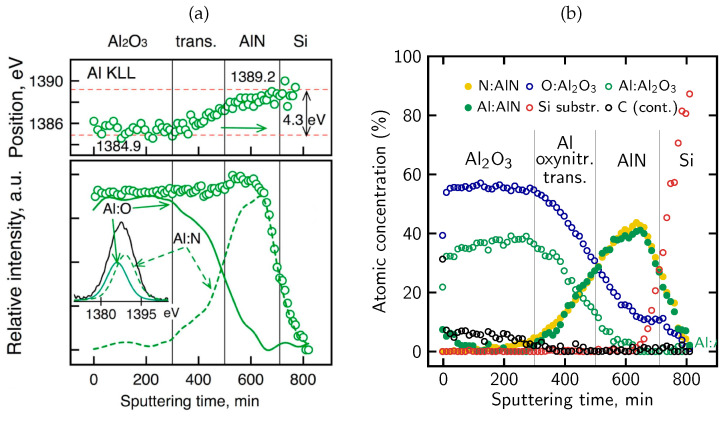

Figure 14

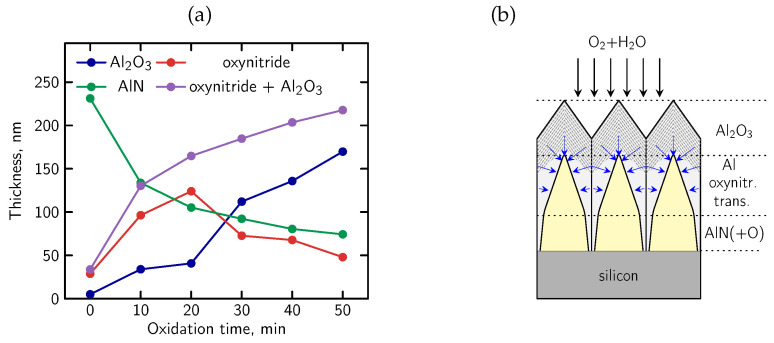

Figure 15Peer Reviews
